1995 ACURA TL Service Repair Manual

Mainshaft/Countershaft Spee d Sensor s
Replacemen t
Make sur e lifts , jack s an d safet y stand s ar e
place d properl y (se e sectio n 1 ).
1 . Rais e th e fron t o f th e vehicle , an d suppor t i t wit h
safet y stand s (se e sectio n 1 ).
2 . Se t th e parkin g brake , an d bloc k bot h rea r wheel s
securely .
3. Remov e th e transmissio n moun t an d moun t bracket .
12 x 1.2 5 mm54 N- m(5.5 kgf-m ,40 Ibf-ft ]
MOUN TBRACKE T
12 x 1.2 5 mm54 N- m(5.5 kgf-m , 4 0 Ibf-ft )
TRANSMISSIO NMOUNT
INSULATO RRUBBER
MOUNTSTOPPE R
WASHER
12 x 1.2 5 mm64 N- m(6.5 kgf-m , 4 7 Ibf-ft )Replace .
4. Disconnec t th e mainshaf t o r countershaf t spee d
senso r connector .
5. Remov e th e 6 m m bol t fro m th e transmissio n hous -
ing, an d remov e th e mainshaf t o r countershaf t
spee d sensor .
6 . Replac e th e O-rin g wit h a ne w on e befor e rein -
stallin g th e mainshaf t o r countershaf t spee d sensor .
MAINSHAF T SPEE DSENSO R
6 x 1. 0 m m12 N- m(1.2 kgf-m , 8. 7 Ibf-ft )WASHE R(used fro m transmissio n
numbe r M1WA-3010520. )
COUNTERSHAFTSPEED SENSO R
O-RINGReplace .
ProCarManuals.com

Transmission Contro l Modul e (TCM )
Replacemen t
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S (sectio n 24 ) befor e performin g repair s o r service .
1 . Remov e th e glov e bo x fro m th e dashboard .
CLIP
GLOV E BO X
2.
5. 0 m m BOLT S
Remov e th e AB S contro l uni t mountin g bolts , an d
tur n th e AB S contro l uni t over . Disconnec t th e radi -
ato r fa n time r contro l uni t connector .
NOTE : D o no t disconnec t th e connector s fro m th e
AB S contro l unit .
ABS CONTRO LUNIT
RADIATO R FA N
TIME R CONTRO L
UNIT CONNECTO R
6 x 1. 0 m m9.8 N- m(1.0 kgf-m , 7. 2 Ibf-ft )
3. Remov e th e contro l uni t bracket , the n remov e th e
TCM . Disconnec t th e connector s an d replac e th e
TCM .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
WIR E HARNES S
CONNECTO R
STUD BOL TFLANG E NU T
9. 8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
CONTRO L UNI TBRACKE T
TCM
ProCarManuals.com

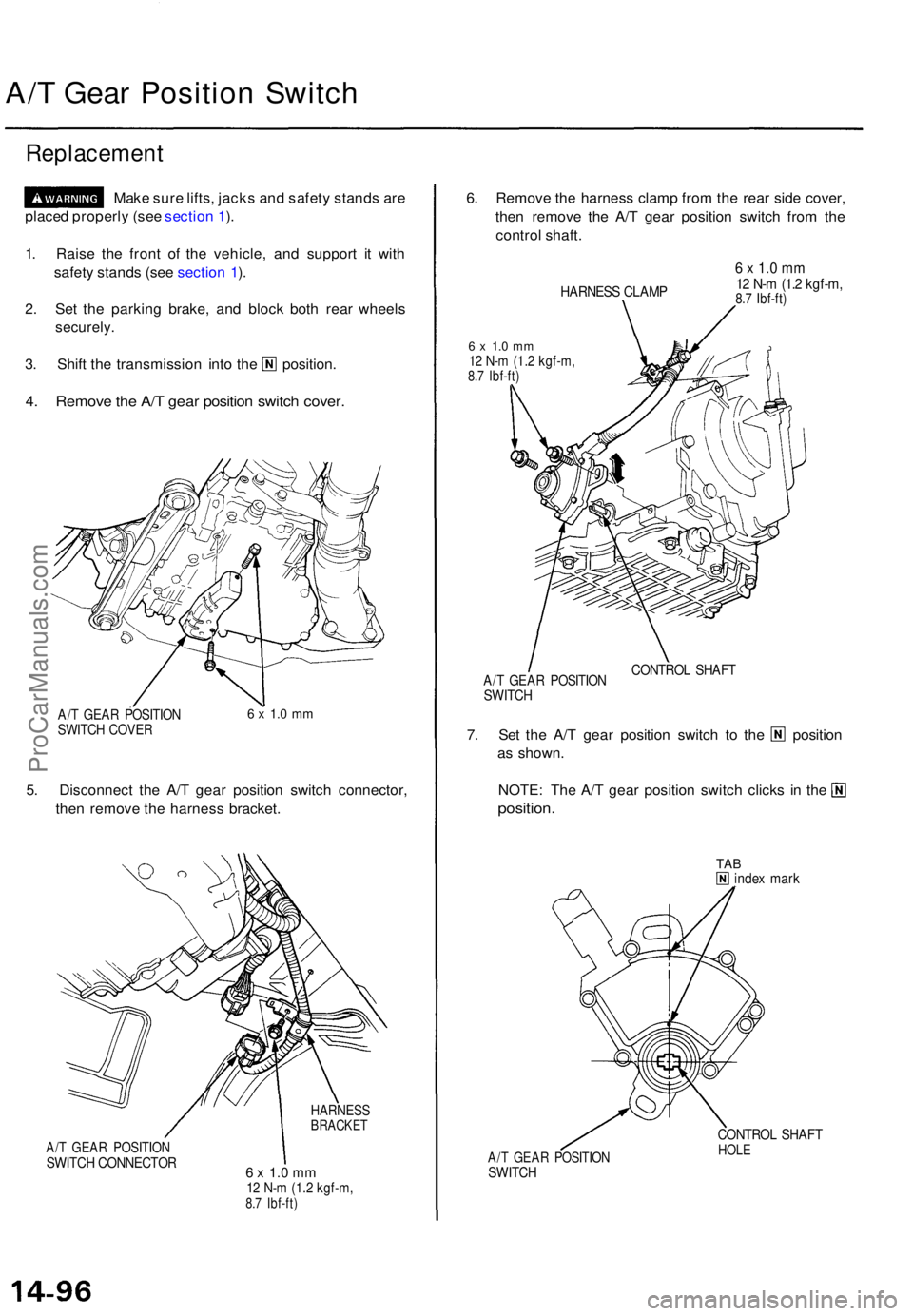

A/T Gea r Positio n Switc h
Replacemen t
Make sur e lifts , jack s an d safet y stand s ar e
place d properl y (se e sectio n 1 ).
1 . Rais e th e fron t o f th e vehicle , an d suppor t i t wit h
safet y stand s (se e sectio n 1 ).
2 . Se t th e parkin g brake , an d bloc k bot h rea r wheel s
securely .
3. Shif t th e transmissio n int o th e position .
4. Remov e th e A/ T gea r positio n switc h cover .
A/T GEA R POSITIO N
SWITC H COVE R6 x 1. 0 m m
5. Disconnec t th e A/ T gea r positio n switc h connector ,
the n remov e th e harnes s bracket .
A/T GEA R POSITIO NSWITCH CONNECTO R
HARNESSBRACKE T
6 x 1. 0 m m12 N- m (1.2 kgf-m ,8.7 Ibf-ft )
6. Remov e th e harnes s clam p fro m th e rea r sid e cover ,
the n remov e th e A/ T gea r positio n switc h fro m th e
contro l shaft .
HARNES S CLAM P
6 x 1.0 mm12 N- m (1. 2 kgf-m ,8.7 Ibf-ft )
6 x 1. 0 m m12 N- m (1.2 kgf-m ,8.7 Ibf-ft )
A/T GEA R POSITIO NSWITCH
CONTRO L SHAF T
7. Se t th e A/ T gea r positio n switc h t o th e positio n
a s shown .
NOTE : Th e A/ T gea r positio n switc h click s i n th e
position .
TABinde x mar k
A/T GEA R POSITIO NSWITCH
CONTRO L SHAF THOLE
ProCarManuals.com

8.
Set the control shaft to the position, then install

the A/T gear position switch on the control shaft

and install the clamp on the rear cover.

SHIFT CABLE

CONTROL

LEVER

9. Connect the A/T gear position switch connector,

then install the harness stay.

10. Turn the ignition switch ON (II). Move the shift lever

through all gears, and check the A/T gear position

switch synchronization with the A/T gear position

indicator.

11. If the A/T gear position switch does not synchronize

with the A/T gear position indicator, loosen the

bolts securing the A/T gear position switch and

adjust the A/T gear position switch installation.

GAUGE ASSEMBLY

A/T GEAR

POSITION INDICATOR
12. Install the A/T gear position switch cover. Tighten

the bolt on the ATF pan side loosely so that there is

no clearance between the A/T gear position switch

cover and the ATF pan. Then tighten the bolt on the

rear cover side to the specified torque, and tighten

the bolt on the ATF pan side to the specified torque.

6 x 1.0 mm

(Rear cover side)

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

A/T GEAR POSITION

SWITCH COVER
ATF PAN

6 x 1.0 mm (ATF pan side)

12 N-m (1.2 kgf-m, 8.7 Ibf-ft)

13. Start the engine. Move the shift lever through all

gears, and verify the following:

• The shift lever cannot be moved to the posi-

tion from the position without pushing the

shift lever.

• The engine will not start in any gear, only in the

or position.

• The back-up lights come on when the shift lever

is in the position.ProCarManuals.com

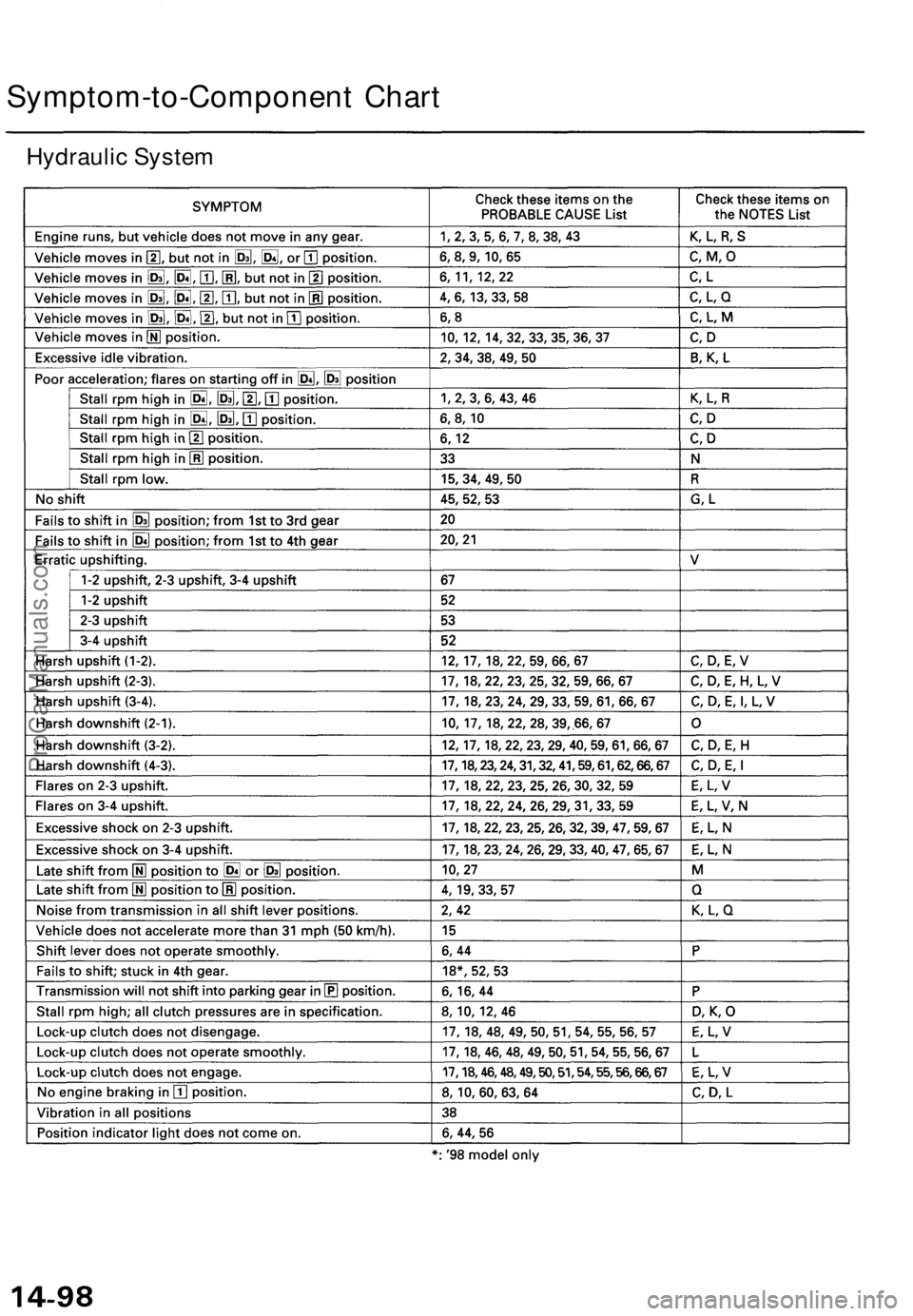

Symptom-to-Component Chart

Hydraulic SystemProCarManuals.com

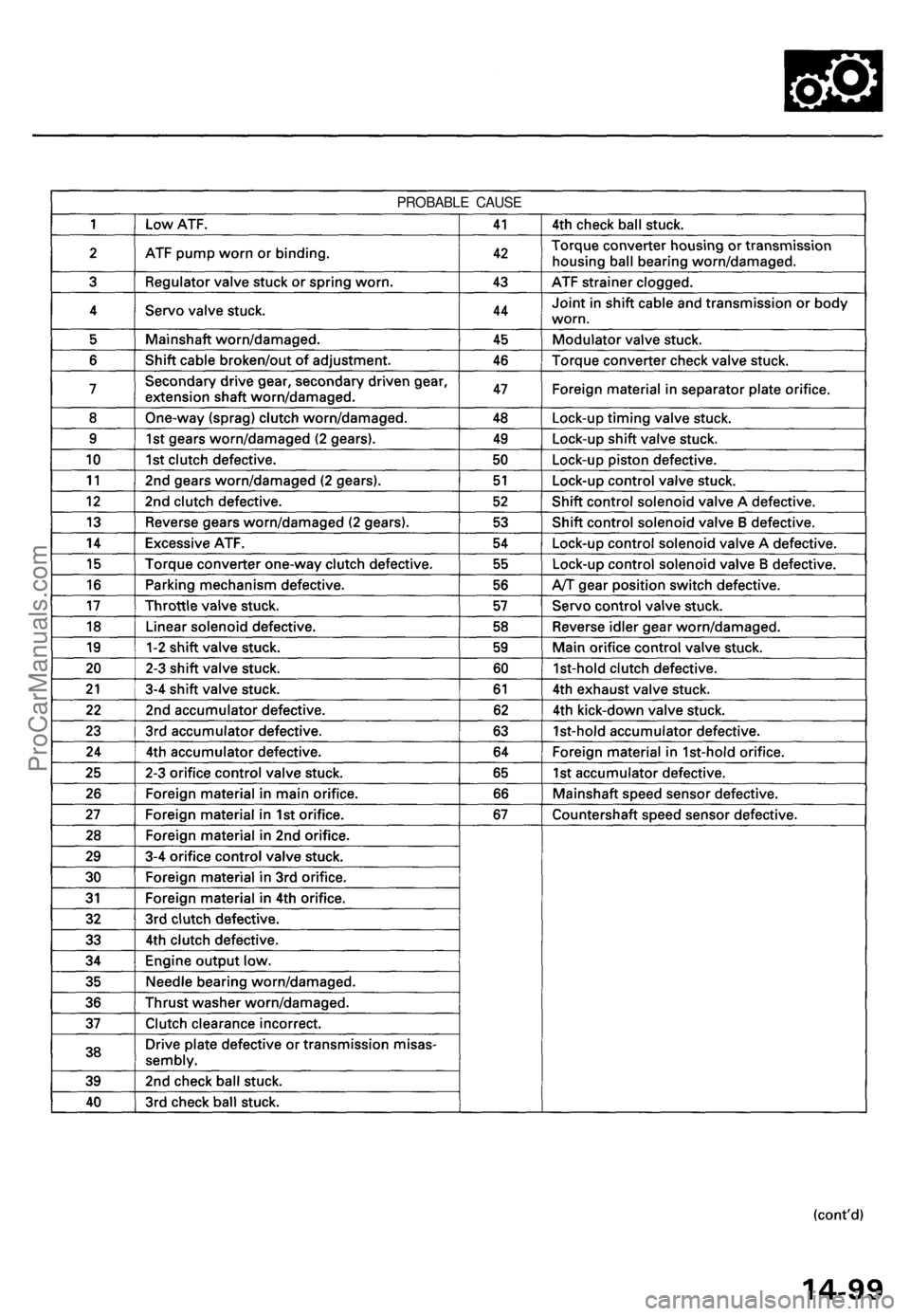

PROBABLE CAUSEProCarManuals.com

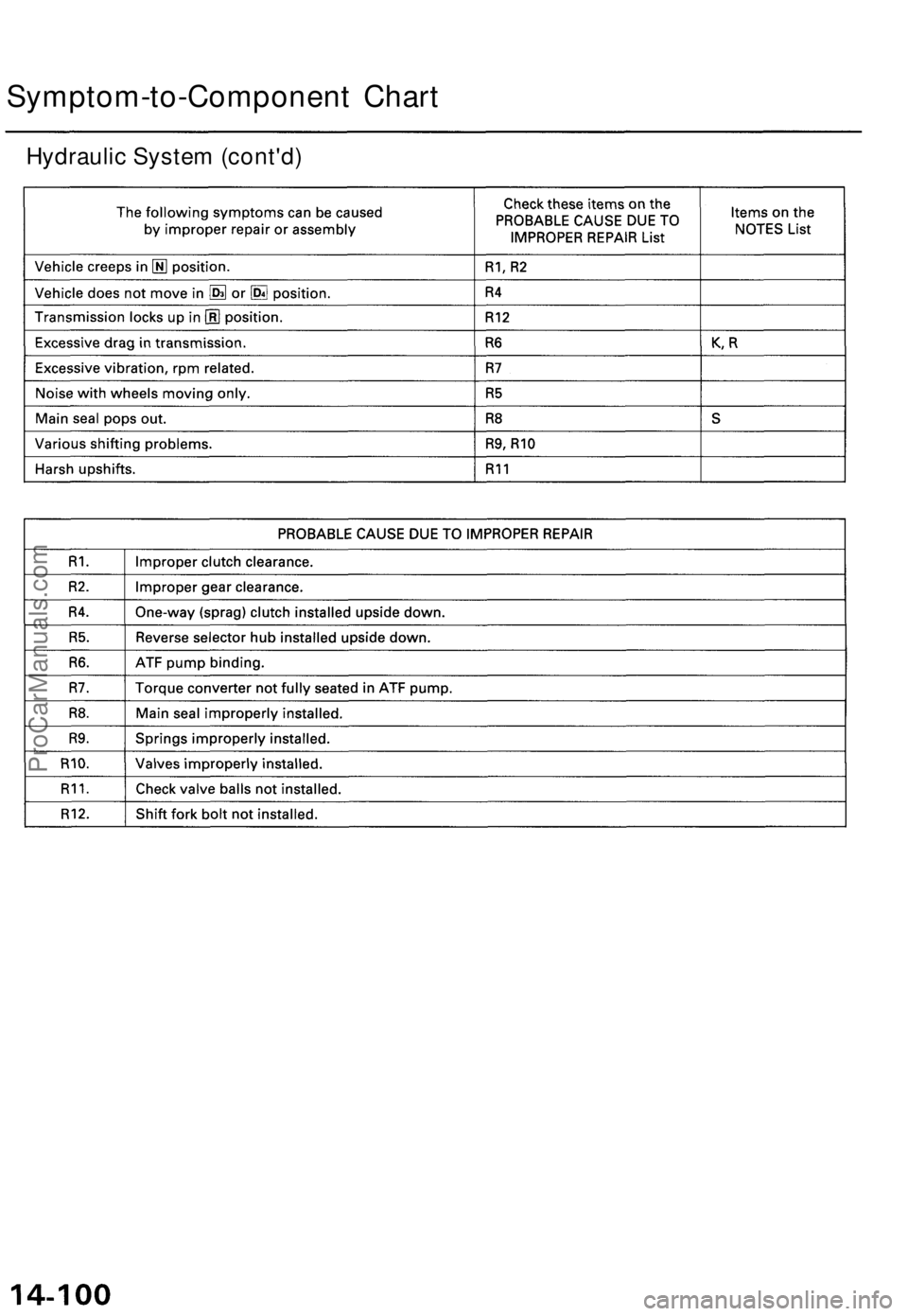

Symptom-to-Component Chart

Hydraulic System (cont'd)ProCarManuals.com

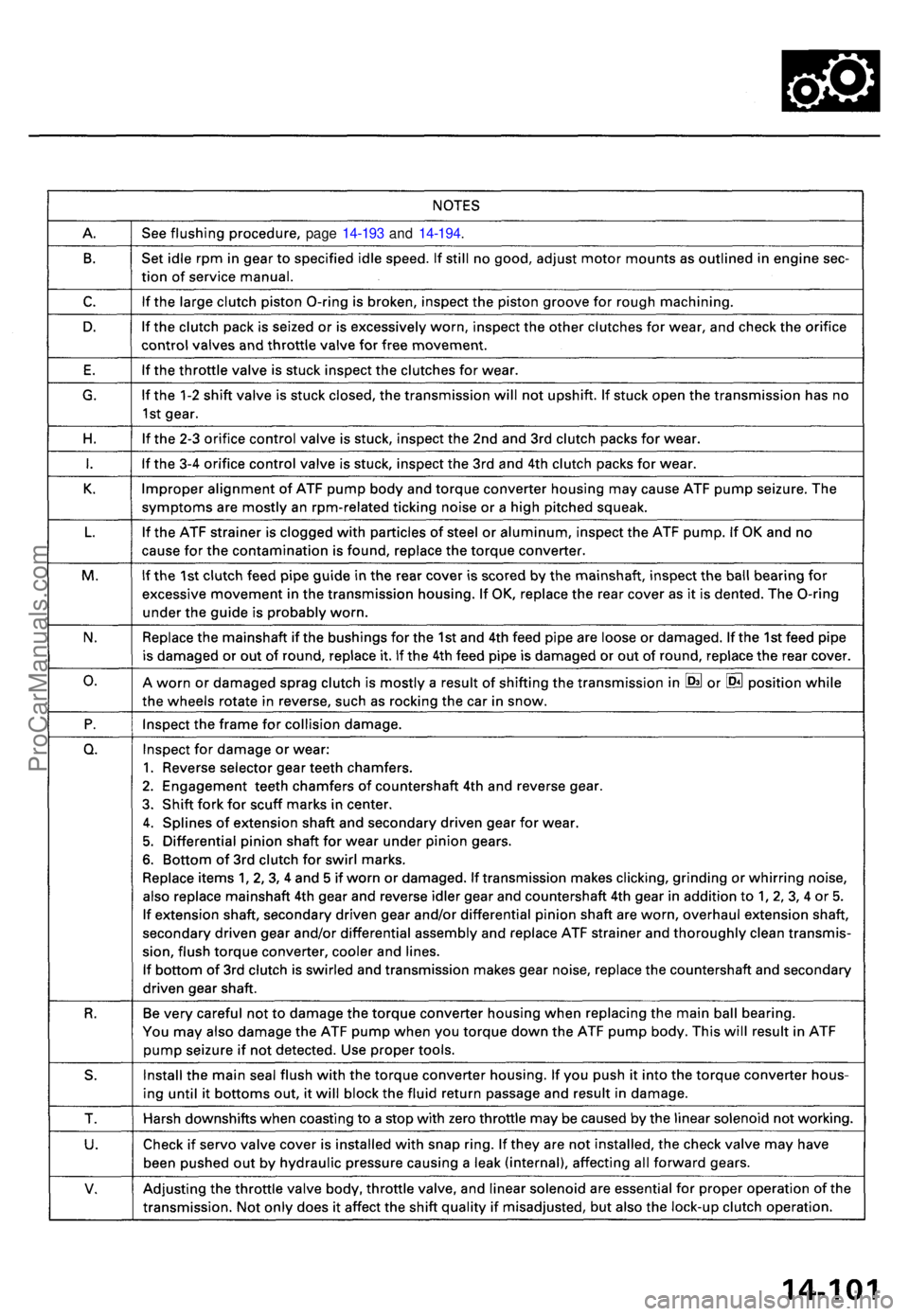

page 14-19 3 an d 14-194 .
