Power Window s
Master Switc h Inpu t Tes t
NOTE : Th e contro l uni t i s buil t int o th e powe r windo w maste r switch , an d onl y control s driver' s doo r windo w operations .
1 . Remov e th e driver' s doo r panel , an d disconnec t th e 16 P an d 3 P connector s fro m th e maste r switch .
2 . Inspec t th e connecto r an d socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
I f th e terminal s ar e bent , loos e o r corroded , repai r
the m as necessary , an d rechec k th e system .
I f th e terminal s loo k OK , mak e th e followin g inpu t
test s a t th e connector .
— If a tes t indicate s a problem , fin d an d correc t
th e cause , the n rechec k th e system .
— If al l th e inpu t test s prov e OK , th e powe r win -
do w maste r switc h mus t b e faulty ; replac e it .
POWE R WINDO W MASTE R SWITC H
16P CONNECTO R
3P CONNECTO R
WIR E SID E O F FEMAL E
TERMINAL S
ProCarManuals.com

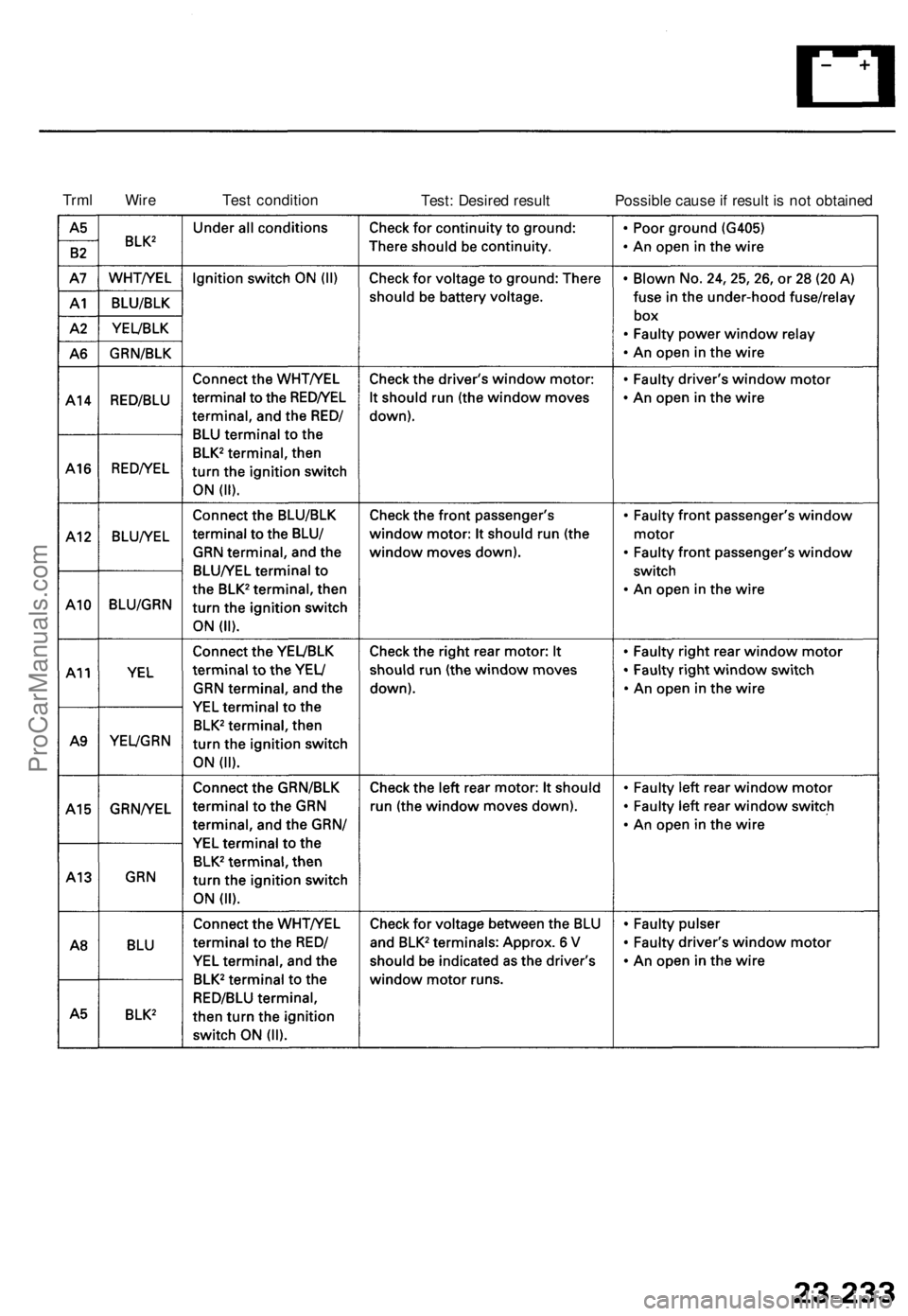

Trml Wire
Test condition

Test: Desired result
Possible cause if result is not obtainedProCarManuals.com

Power Window s
Master Switc h Replacemen t
1. Remov e th e powe r windo w maste r switc h togethe r
wit h th e armres t pocke t fro m th e driver' s doo r
panel .
2 . Disconnec t th e 16 P an d 3 P connector s fro m th e
powe r windo w maste r switch .
POWER WINDO W MASTE R SWITC H
ARMRES T POCKE T
16 P CONNECTO R
3P CONNECTO R
3. Remov e th e thre e mountin g screws , the n remov e
th e maste r switc h fro m th e armres t pocket .
POWER WINDO W
MASTE R SWITC H
ARMRES T POCKE T
4. Instal l i n th e revers e orde r o f removal .
Passenger' s Windo w Switc h
Replacemen t
NOTE: Th e illustratio n show s th e fron t passenger' s win -
do w switch ; th e lef t rea r windo w switc h an d righ t rea r
windo w switc h ar e similar .
1. Remov e th e passenger' s windo w switc h togethe r
wit h th e armres t pocke t fro m th e passenger' s doo r
panel .
2 . Disconnec t th e 5 P connecto r fro m th e passenger' s
window switch .
FRONT PASSENGER' S WINDO W SWITC H
ARMRES T POCKE T
5 P CONNECTO R
3. Remov e th e tw o mountin g screws , the n remov e th e
passenger' s windo w switc h fro m th e armres t pocket .
PASSENGER' SWINDOWSWITCH
ARMRES T POCKE T
4. Instal l i n th e revers e orde r o f removal .
ProCarManuals.com

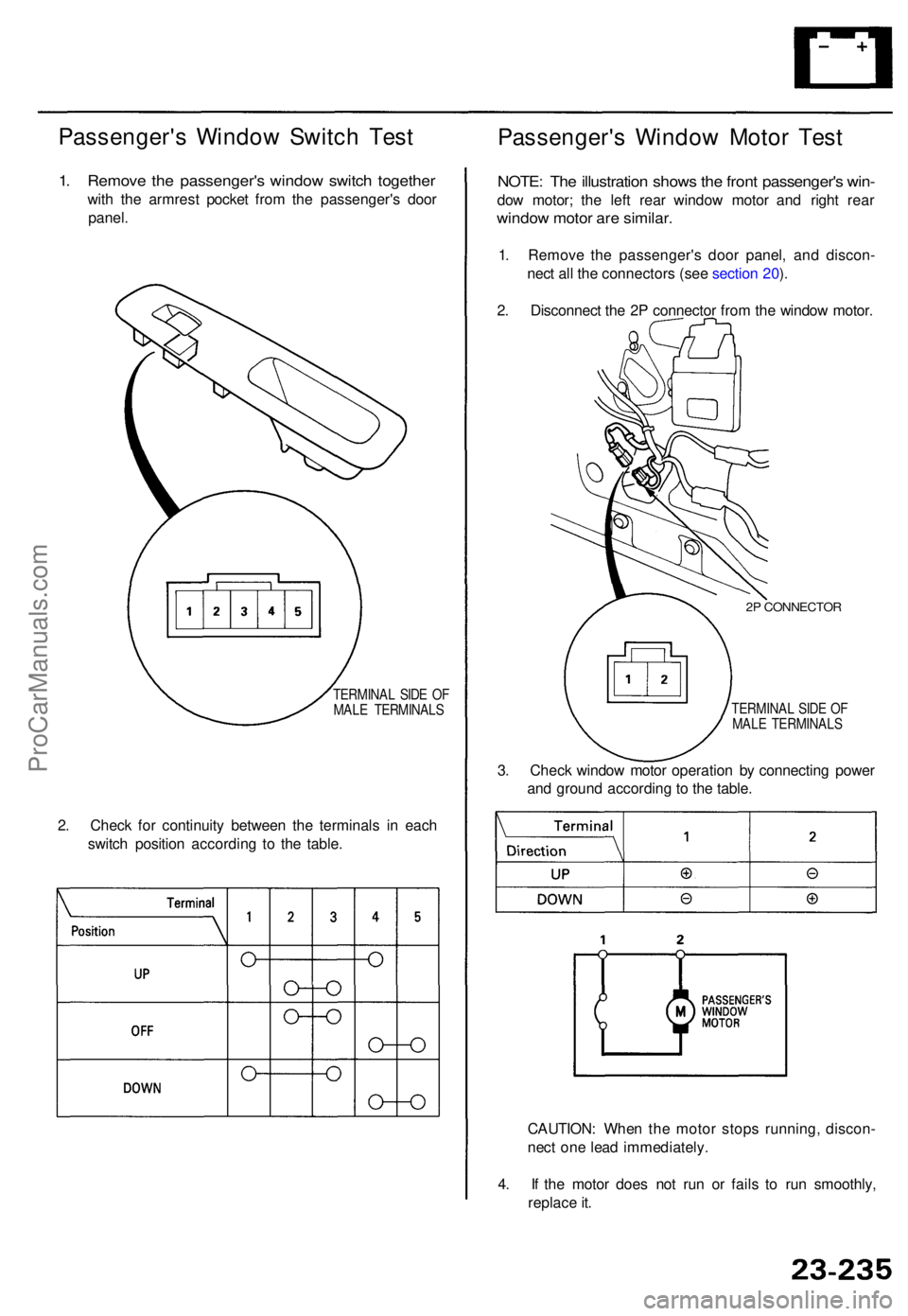

Passenger's Windo w Switc h Tes t
1. Remov e th e passenger' s windo w switc h togethe r
with th e armres t pocke t fro m th e passenger' s doo r
panel .
TERMINA L SID E O F
MAL E TERMINAL S
2. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
Passenger' s Windo w Moto r Tes t
NOTE : Th e illustratio n show s th e fron t passenger' s win -
dow motor ; th e lef t rea r windo w moto r an d righ t rea r
windo w moto r ar e similar .
1. Remov e th e passenger' s doo r panel , an d discon -
nec t al l th e connector s (se e sectio n 20 ).
2 . Disconnec t th e 2 P connecto r fro m th e windo w motor .
2P CONNECTO R
TERMINAL SID E O F
MAL E TERMINAL S
3. Chec k windo w moto r operatio n b y connectin g powe r
an d groun d accordin g t o th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replac e it .
ProCarManuals.com

Power Window s
Driver's Windo w Moto r Tes t
Moto r Test :
1 . Remov e th e driver' s doo r panel , an d disconnec t al l
connector s (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e windo w motor .
TERMINA L SID E O F MAL E TERMINAL S
3. Tes t th e moto r i n eac h directio n b y connectin g bat -
ter y powe r an d groun d accordin g t o th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replac e it . Pulse
r Test :
5 . Connec t th e tes t lead s o f a n analo g ohmmete r t o th e
No . 3 an d No . 4 terminals .
6 . Ru n th e moto r b y connectin g powe r an d groun d t o
th e No . 1 an d No . 2 terminals . Th e ohmmete r needl e
shoul d mov e bac k an d fort h alternately .
ProCarManuals.com

Power Doo r Lock s
Componen t Locatio n Inde x
REMOT E TRANSMITTE R
Replacement , pag e 23-24 9
RIGHT REA R DOO R LOC K ACTUATO R
Test , pag e 23-24 7
Replacement , sectio n 2 0
LEF T REA R DOO R LOC K ACTUATO RTest, pag e 23-24 7
Replacement , sectio n 2 0
KEYLES S DOO R LOC K CONTRO L UNI T
(Wit h keyles s entr y system )
Inpu t Test , pag e 23-24 4
DRIVER'S DOO R
KE Y CYLINDE R SWITC H
Test , pag e 23-24 8
DRIVER' S DOO R LOC K ACTUATO R
Test , pag e 23-24 6
Replacement , sectio n 2 0
DRIVER' S DOO R
LOC K SWITC H
Test/Replacement , pag e 23-24 9
POWE R DOO R LOC K
CONTRO L UNI T
Inpu t Test , pag e 23-24 2
Descriptio n
This doo r loc k syste m ha s bee n adopte d t o improv e convenienc e an d safety . I f yo u inser t th e ke y int o th e driver' s doo r ke y
cylinder , tur n i t t o th e unloc k position , an d the n pul l i t ou t immediately , ONL Y th e driver' s doo r wil l unlock . However , i f
yo u kee p th e ke y i n th e unloc k positio n fo r on e secon d o r more , AL L door s wil l unlock .
FRONT PASSENGER' S DOO R LOC K ACTUATO R
Test , pag e 23-24 7
Replacement , sectio n 2 0
FRONT PASSENGER' S DOO R KE Y
CYLINDE R SWITC H
Test , pag e 23-24 8
Replacement , sectio n 2 0
FRON
T PASSENGER' S
DOO R LOC K SWITC H
Test/Replacement , pag e 23-24 9
ProCarManuals.com

Power Doo r Lock s
Troubleshootin g (Withou t Keyles s Entry ) ('9 5 - 9 7 models )
NOTE: Th e number s in th e tabl e sho w th e troubleshootin g sequence .
I f th e syste m is workin g
normally , all door s will unloc k whe n yo u hol d th e doo r ke y i n th e unloc k positio n (lock cylinde r
switc h an d doo r loc k kno b switc h turne d ON ) fo r on e secon d o r more .
ProCarManuals.com

Troubleshooting (With Keyless Entry) ('98 model)

NOTE: The numbers in the table show the troubleshooting sequence.

CAUTION: To prevent damage to the motor, apply battery voltage only momentarily.

NOTE:

When the remote transmitter button is pressed the first time, only the driver's door will unlock. When the button is

pressed the second time, all the doors will unlock.

The doors will relock automatically after 20 seconds if a door is not opened, or the key is out of the ignition switch.

The keyless entry system will not lock the doors when the key is in the ignition switch.ProCarManuals.com
