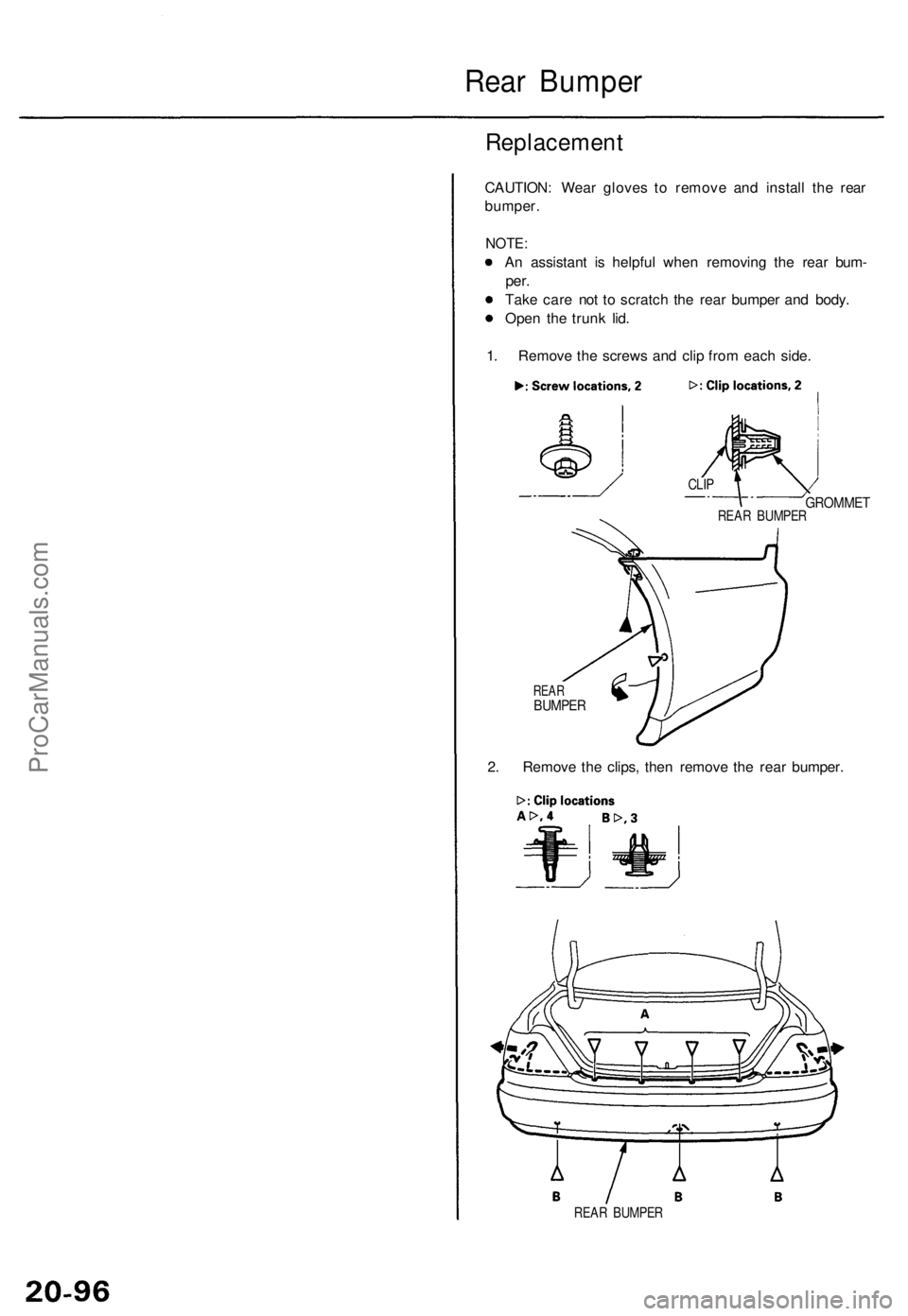

Rear Bumpe r
Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e rea r
bumper .
NOTE:
An assistan t i s helpfu l whe n removin g th e rea r bum -
per.
Tak e car e no t t o scratc h th e rea r bumpe r an d body .
Ope n th e trun k lid .
1 . Remov e th e screw s an d cli p fro m eac h side .
GROMME T
REARBUMPE R
2. Remov e th e clips , the n remov e th e rea r bumper .
REAR BUMPE R
REAR BUMPE R
CLIP
ProCarManuals.com
Page 1450 of 1771

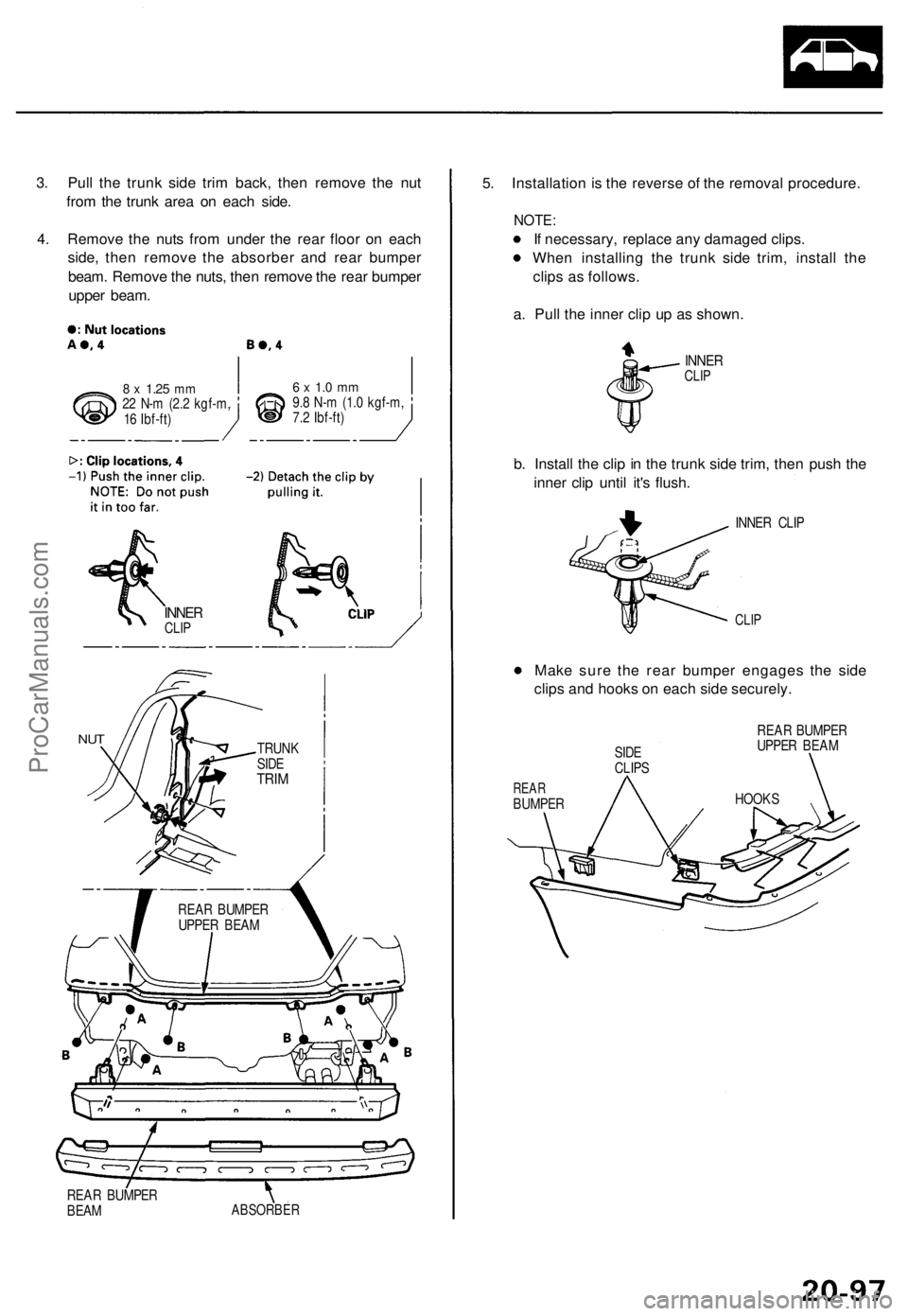

3. Pull the trunk side trim back, then remove the nut
from the trunk area on each side.
4. Remove the nuts from under the rear floor on each
side, then remove the absorber and rear bumper
beam. Remove the nuts, then remove the rear bumper
upper beam.
8 x
1.25
mm
22 N-m (2.2 kgf-m,
16 Ibf-ft)
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
INNER
CLIP
NUT
REAR BUMPER
UPPER BEAM
REAR BUMPER
BEAM
5. Installation is the reverse of the removal procedure.
NOTE:
If necessary, replace any damaged clips.
When installing the trunk side trim, install the
clips as follows.
a. Pull the inner clip up as shown.
INNER
CLIP
b. Install the clip in the trunk side trim, then push the
inner clip until it's flush.
INNER CLIP
CLIP
Make sure the rear bumper engages the side
clips and hooks on each side securely.
SIDE
CLIPS
REAR BUMPER
UPPER BEAM
REAR
BUMPER
ABSORBER
HOOKS
TRUNK
SIDE
TRIMProCarManuals.com
Page 1451 of 1771

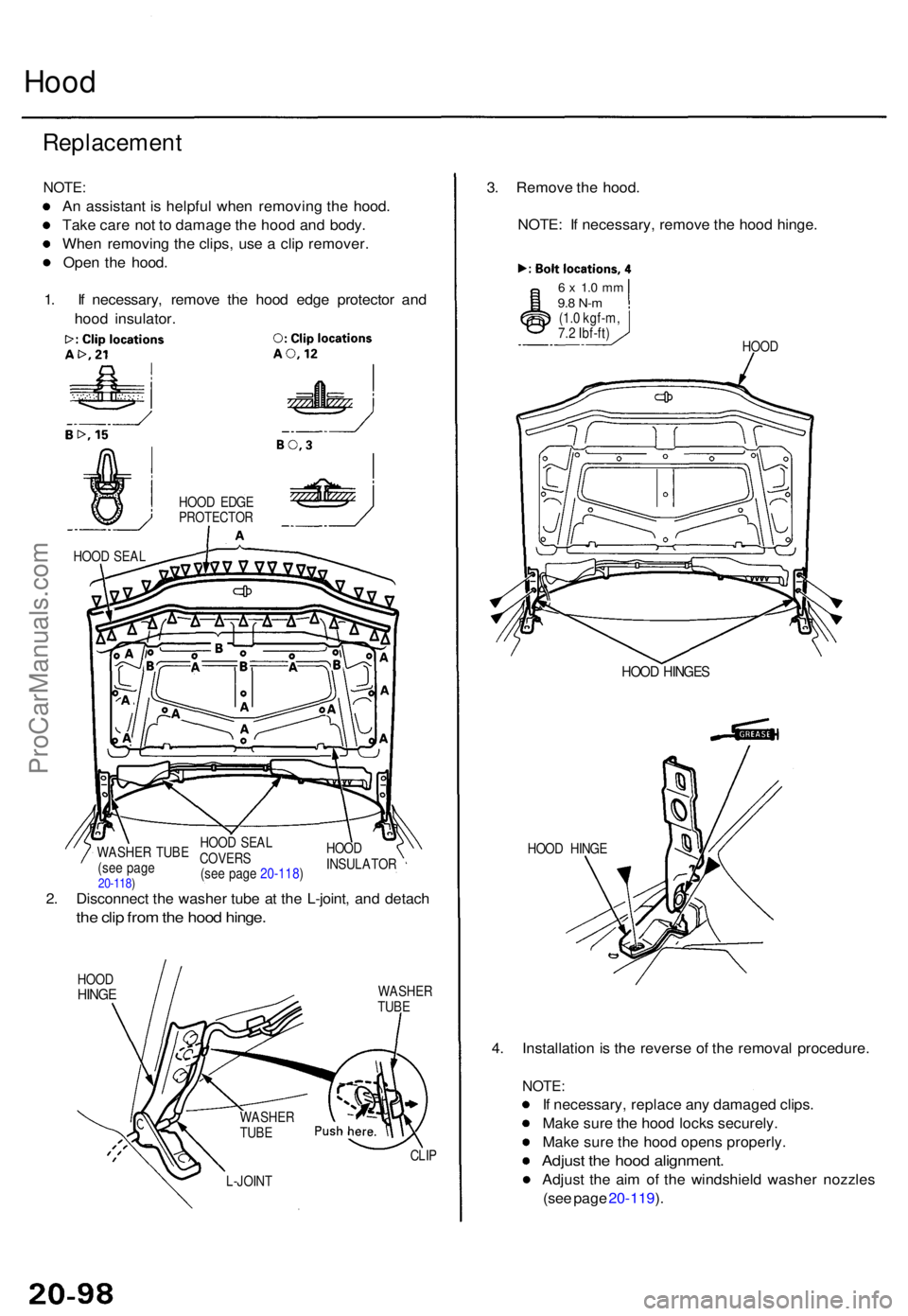

Hood
Replacemen t
NOTE:
An assistan t i s helpfu l whe n removin g th e hood .
Tak e car e no t t o damag e th e hoo d an d body .
Whe n removin g th e clips , us e a cli p remover .
Ope n th e hood .
1 . I f necessary , remov e th e hoo d edg e protecto r an d
hoo d insulator .
HOOD EDG EPROTECTO R
HOOD SEA L
HOOD SEA L
COVER S
(se e pag e 20-118 )HOO
D
INSULATO R
WASHE
R TUB E
(se e pag e
20-118 )2. Disconnec t th e washe r tub e a t th e L-joint , an d detac h
the cli p fro m th e hoo d hinge .
HOODHING EWASHE R
TUB E
CLIP
3. Remov e th e hood .
NOTE : I f necessary , remov e th e hoo d hinge .
6 x 1. 0 m m9.8 N- m(1.0 kgf-m ,
7. 2 Ibf-ft )
HOOD
HOOD HINGE S
HOOD HING E
4. Installatio n is th e revers e o f th e remova l procedure .
NOTE:
If necessary , replac e an y damage d clips .
Mak e sur e th e hoo d lock s securely .
Mak e sur e th e hoo d open s properly .
Adjust th e hoo d alignment .
Adjust th e ai m o f th e windshiel d washe r nozzle s
(se e pag e 20-119 ).L-JOIN T
WASHE RTUBE
ProCarManuals.com
Page 1452 of 1771
Adjustment
NOTE: Before adjusting the hood, loosen each bolt slightly.
1. Adjust the hood hinges right and left, as well as fore and aft, by using the elongated holes.
2. Turn the hood edge cushions, as necessary, to make the hood fit flush with the body at front and side edges.
3. Adjust the hood latch to obtain the proper height at the forward edge.
4. After adjustment, tighten each bolt securely.
HOOD
HINGE
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
HOOD EDGE
CUSHION
HOOD
LATCH
NOTE: Move the hood latch right or left until the striker
is centered in the hood latch as shown.
HOOD EDGE
CUSHIONS
(Body side)
HOOD
LATCH
STRIKER
HOOD
LATCH
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
HOOD
HINGE
HOOD
HOODProCarManuals.com
Page 1453 of 1771

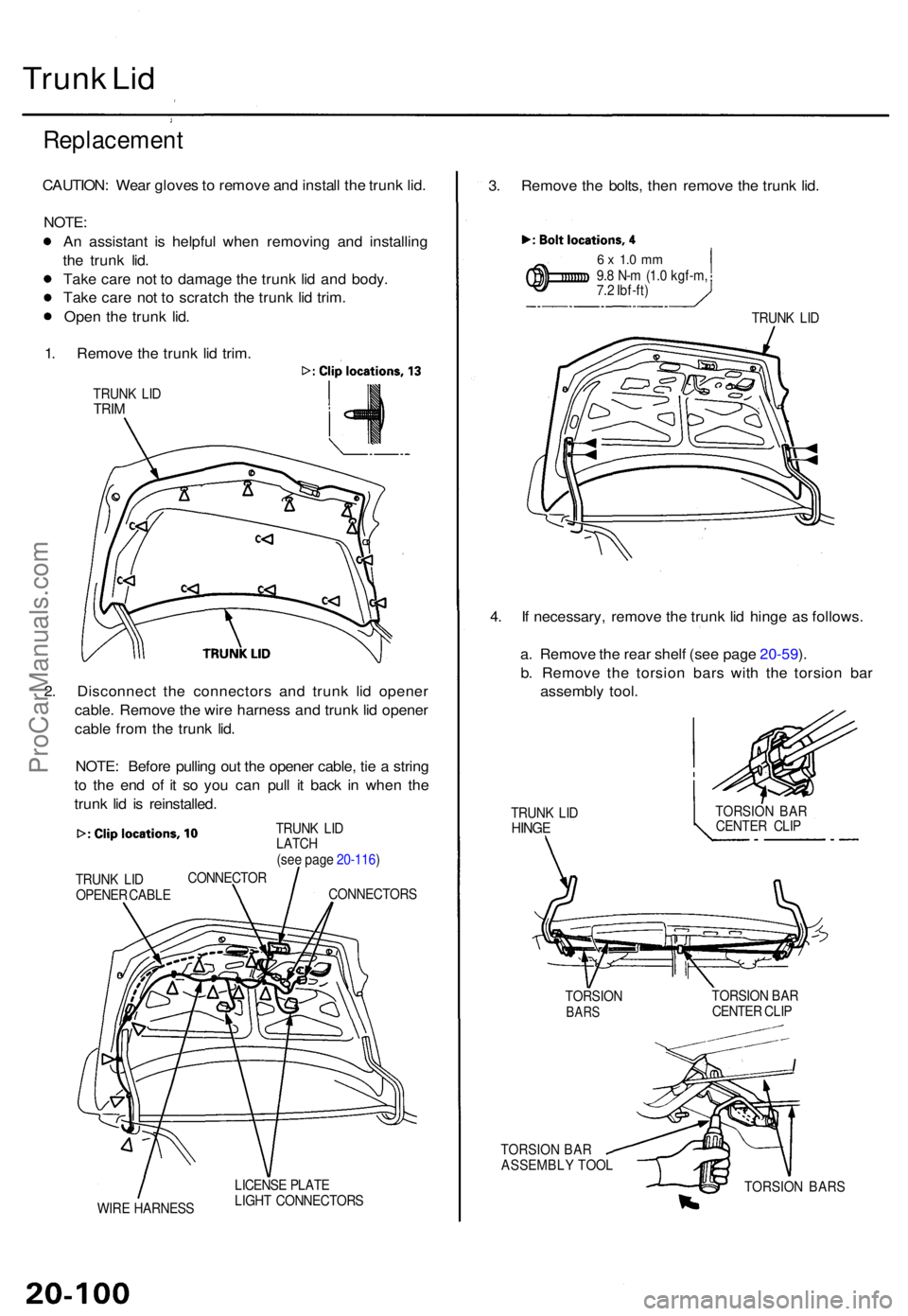

Trunk Li d
Replacemen t
CAUTION: Wea r glove s to remov e an d instal l th e trun k lid .
NOTE :
An assistan t i s helpfu l whe n removin g an d installin g
th e trun k lid .
Tak e car e no t t o damag e th e trun k li d an d body .
Tak e car e no t t o scratc h th e trun k li d trim .
Ope n th e trun k lid .
1 . Remov e th e trun k li d trim .
TRUN K LI DTRI M
2. Disconnec t th e connector s an d trun k li d opene r
cable . Remov e th e wir e harnes s an d trun k li d opene r
cabl e fro m th e trun k lid .
NOTE : Befor e pullin g ou t th e opene r cable , ti e a strin g
t o th e en d o f i t s o yo u ca n pul l i t bac k i n whe n th e
trun k li d i s reinstalled .
WIRE HARNES SLICENS
E PLAT E
LIGH T CONNECTOR S
3. Remov e th e bolts , the n remov e th e trun k lid .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
TRUNK LI D
4. I f necessary , remov e th e trun k li d hing e a s follows .
a . Remov e th e rea r shel f (se e pag e 20-59 ).
b . Remov e th e torsio n bar s wit h th e torsio n ba r
assembl y tool .
TRUN K LI DHING E
TORSIO NBARSTORSIO N BA R
CENTE R CLI P
TORSIO N BA R
ASSEMBL Y TOO L
TORSION BAR S
TORSIO
N BA R
CENTE R CLI P
TRUN K LI D
LATC H(see pag e 20-116 )
CONNECTOR S
CONNECTO
R
TRUN K LI D
OPENE R CABL E
ProCarManuals.com
Page 1454 of 1771

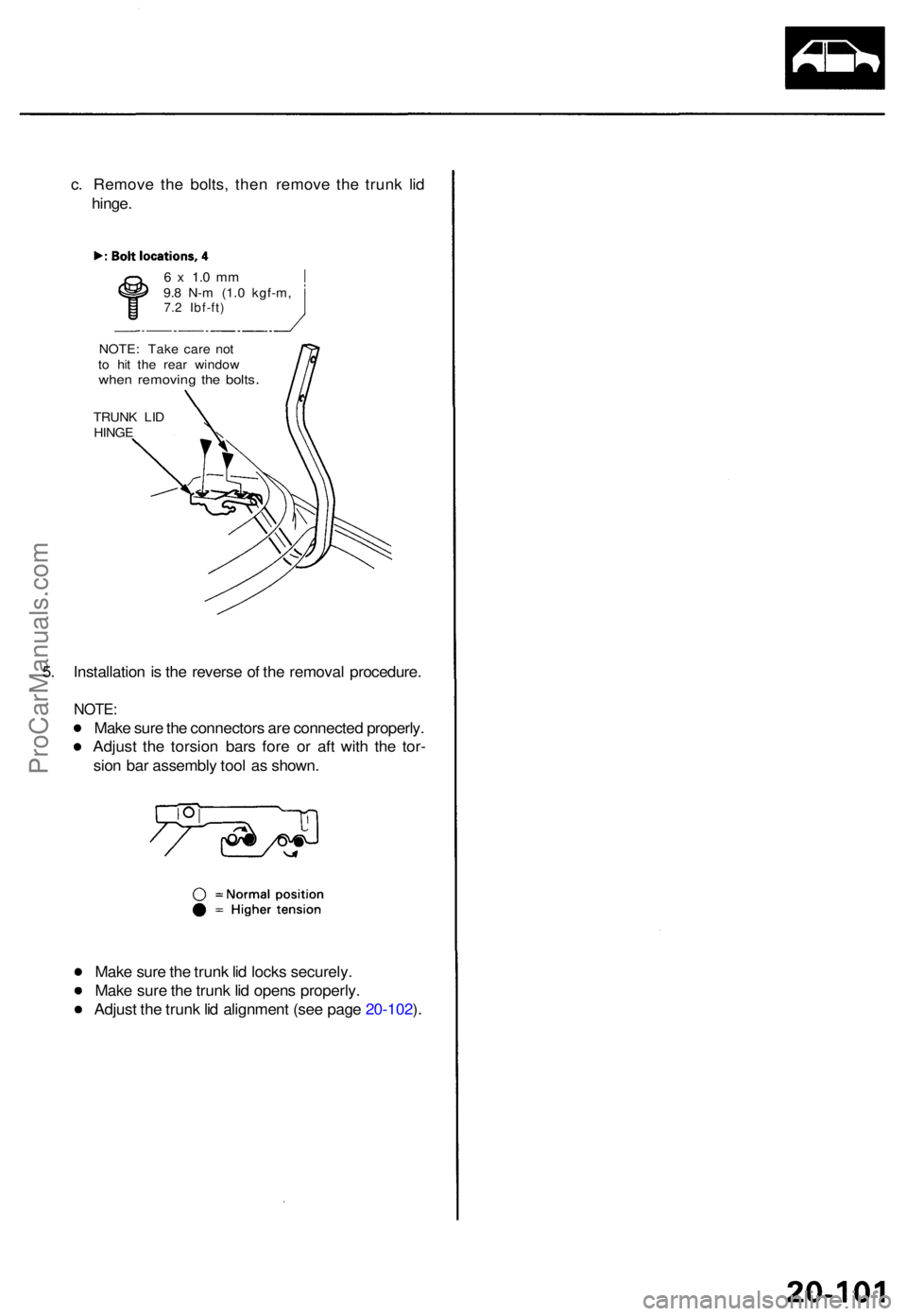

c. Remov e th e bolts , the n remov e th e trun k li d
hinge .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,7.2 Ibf-ft )
NOTE: Tak e car e no t
t o hi t th e rea r windo w
when removin g th e bolt s
TRUN K LI D
HING E
5. Installatio n is th e revers e o f th e remova l procedure .
NOTE:
Make sur e th e connector s ar e connecte d properly .
Adjus t th e torsio n bar s for e o r af t wit h th e tor -
sio n ba r assembl y too l a s shown .
Mak e sur e th e trun k li d lock s securely .
Mak e sur e th e trun k li d open s properly .
Adjus t th e trun k li d alignmen t (se e pag e 20-102 ).
ProCarManuals.com
Page 1455 of 1771

Trunk Li d
Adjustmen t
NOTE: Befor e adjustin g th e trun k lid , loose n eac h bol t slightly .
1 . Adjus t th e trun k li d hinge s righ t an d left , a s wel l a s for e an d aft , b y usin g th e elongate d holes .
2 . Tur n th e trun k li d edg e cushions , a s necessary , t o mak e th e trun k li d fi t flus h wit h th e bod y a t th e rea r an d sid e edges .
3 . Adjus t th e fi t betwee n th e trun k li d an d th e trun k li d openin g b y movin g th e striker .
4 . Afte r adjustment , tighte n eac h bol t securely .
TRUNK LI D EDG E
CUSHIO N
TRUNK LI DHING E
TRUNK LI D
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
STRIKE R
TRUNK LI D
HING E
TRUN K LI D
EDG E CUSHIO N
NOTE: Mov e th e strike r righ t o r lef t unti l it' s centere d i n
th e trun k li d latc h a s shown .
STRIKE R
TRUNK LI DLATC H
NOTE: Whe n adjustin g th e striker , remov e th e rea r tri m
pane l (se e pag e 20-61 ), the n remov e th e strike r cover .
6 x 1. 0 m m9.8 N-m(1.0kgf- n7.2 Ibf-ft )
STRIKE RCOVER
STRIKE R
TRUNK LI D
ProCarManuals.com
Page 1456 of 1771

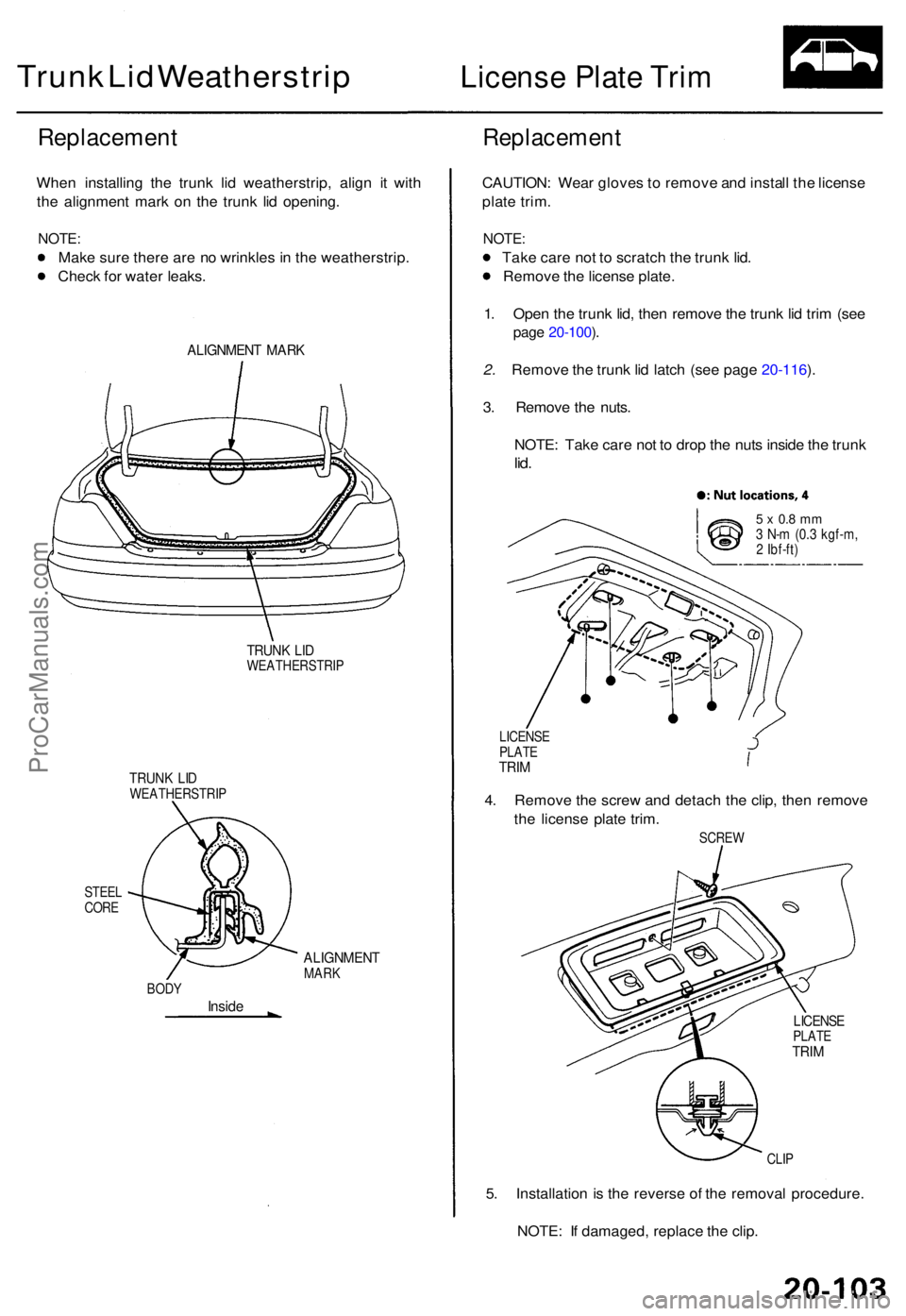

Trunk Lid Weatherstrip License Plat e Tri m
Replacemen t
When installin g th e trun k li d weatherstrip , alig n i t wit h
th e alignmen t mar k o n th e trun k li d opening .
NOTE:
Make sur e ther e ar e n o wrinkle s i n th e weatherstrip .
Chec k fo r wate r leaks .
ALIGNMEN T MAR K
TRUN K LI DWEATHERSTRI P
TRUNK LI DWEATHERSTRI P
STEE L
CORE
ALIGNMEN TMARK
BOD Y
Inside
Replacemen t
CAUTION: Wea r glove s to remov e an d instal l th e licens e
plat e trim .
NOTE :
Take car e no t t o scratc h th e trun k lid .
Remov e th e licens e plate .
1 . Ope n th e trun k lid , the n remov e th e trun k li d tri m (se e
page 20-100 ).
2. Remov e th e trun k li d latc h (se e pag e 20-116 ).
3 . Remov e th e nuts .
NOTE : Tak e car e no t t o dro p th e nut s insid e th e trun k
lid.
LICENS EPLATETRIM
4. Remov e th e scre w an d detac h th e clip , the n remov e
th e licens e plat e trim .
SCRE W
CLIP
5. Installatio n is th e revers e o f th e remova l procedure .
NOTE : I f damaged , replac e th e clip .
5 x 0. 8 m m3 N- m (0. 3 kgf-m ,2 Ibf-ft )
LICENS EPLATETRIM
