Cylinder Heads

Installation (cont'd)

6. Install the head cover gasket in the groove of the

cylinder head cover. Seat the recesses for the cam-

shaft first, then work it into the groove around the

outside edges.

NOTE:

Before installing the cylinder head cover gasket,

thoroughly clean the seal and the groove.

When installing, make sure the head cover gasket

is seated securely in the corners of the recesses

with no gap.

CORNERS OF

THE RECESS
HEAD COVER

GASKET

Clean.
CORNERS OF

THE RECESS

7.
CYLINDER

HEAD COVER

Apply liquid gasket to the head cover gasket at the

four corners of the recesses.

NOTE:

Use liquid gasket, Part No. 08718 - 0001 or 08718

-003.

Check that the mating surfaces are clean and dry

before applying liquid gasket.

Do not install the parts if five minutes or more have

elapsed since applying liquid gasket. Instead, reap-

ply liquid gasket after removing old residue.

After assembly, wait at least 30 minutes before

filling the engine with oil.

Apply liquid gasket to

the shaded areas.
8.
When installing the cylinder head cover, hold the

head cover gasket in the groove by placing your fin-

gers on the camshaft contacting surfaces (top of the

semicircles).

Once the cylinder head cover is on the cylinder head,

slide the cover slightly back and forth to seat the

head cover gasket.

NOTE:

Before installing the cylinder head cover, clean

the cylinder head contacting surfaces with a

shop towel.

Do not touch the parts where liquid gasket was

applied.

Replace the washer when damaged or deterio-

rated.

WASHER

CYLINDER

HEAD COVER

9. Tighten the nuts in two or three steps. In the final step,

tighten all nuts, in sequence, to 12 N-m (1.2 kgf-m,

8.7 Ibf-ft).

NOTE: After assembly, wait at least 30 minutes

before filling the engine with oil.ProCarManuals.com

10. Instal l th e lef t an d righ t bac k covers , the n instal l th e
lef t an d righ t camshaf t pulleys .
LEFTCAMSHAF T PULLE Y
BACK COVE R
CKP/CY PSENSOR
8 x 1.2 5 mm31 N- m (3. 2 kgf-m ,23 Ibf-ft )
RIGHTCAMSHAF T PULLE Y
8 x 1.2 5 mm31 N- m (3. 2 kgf-m ,
2 3 Ibf-ft )BACK COVE R
11. Instal l th e timin g bel t (se e pag e 6-8 ).
12 . Instal l th e intak e manifol d an d wate r passage , the n
tighte n th e intak e manifol d mountin g bolt s an d nut s
i n a crisscros s patter n i n tw o o r thre e steps , begin -
nin g wit h th e inne r bolts .
Alway s us e ne w intak e manifol d gaskets .
13 . Instal l th e EG R pipe .
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
WATE RPASSAG E
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,8.7 Ibf-ft )
GASKET SReplace.EGR PIP E
O-RIN GReplace .GASKET SReplace.
14. Instal l th e exhaus t manifolds , an d tighte n th e nut s
i n a crisscros s patter n i n tw o o r thre e steps , begin -
nin g wit h th e inne r nu t (se e pag e 9-3 ).
Alway s us e ne w exhaus t manifol d gaskets .
15 . Afte r installation , chec k tha t al l tubes , hose s an d
connector s ar e installe d correctly .
16 . Ente r th e anti-thef t cod e fo r th e radio , the n ente r th e
customer' s radi o statio n presets .
ProCarManuals.com

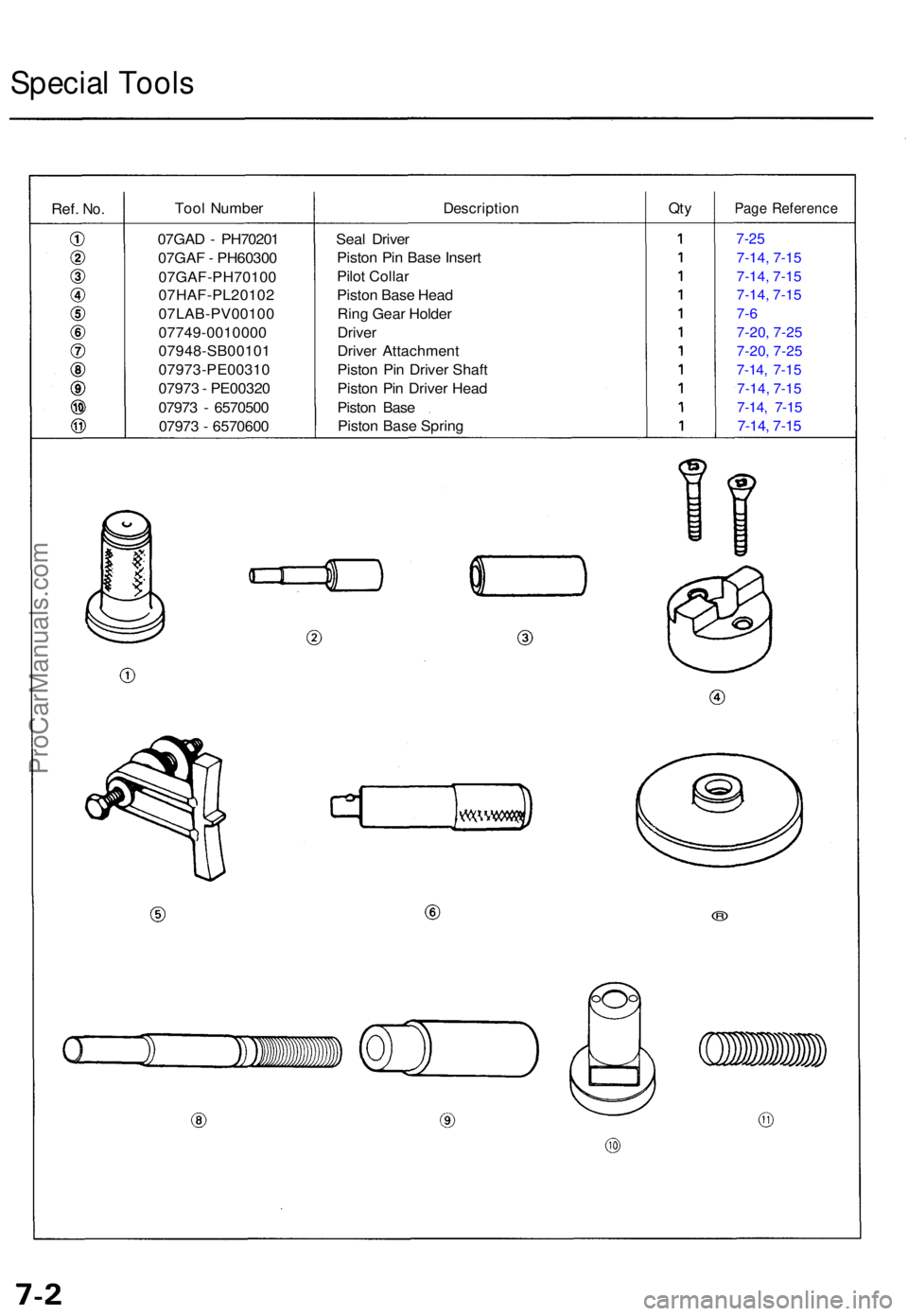

Special Tool s
Ref. No.Too l Numbe rDescriptio nQtyPag e Referenc e
Seal Drive r
Pisto n Pi n Bas e Inser t
Pilo t Colla r
Pisto n Bas e Hea d
Rin g Gea r Holde r
Drive r
Drive r Attachmen t
Pisto n Pi n Drive r Shaf t
Pisto n Pi n Drive r Hea d
Pisto n Bas e
Pisto n Bas e Sprin g7-25
7-14 , 7-1 5
7-14 , 7-1 5
7-14 , 7-1 5
7-6
7-20, 7-25
7-20, 7-25
7-14 , 7-1 5
7-14 , 7-1 5
7-14 , 7-1 5
7-14, 7-15
®
07GA D - PH7020 1
07GA F - PH6030 0
07GAF-PH7010 0
07HAF-PL2010 2
07LAB-PV0010 0
07749-001000 0
07948-SB0010 1
07973-PE0031 0
0797 3 - PE0032 0
0797 3 - 657050 0
0797 3 - 657060 0
ProCarManuals.com

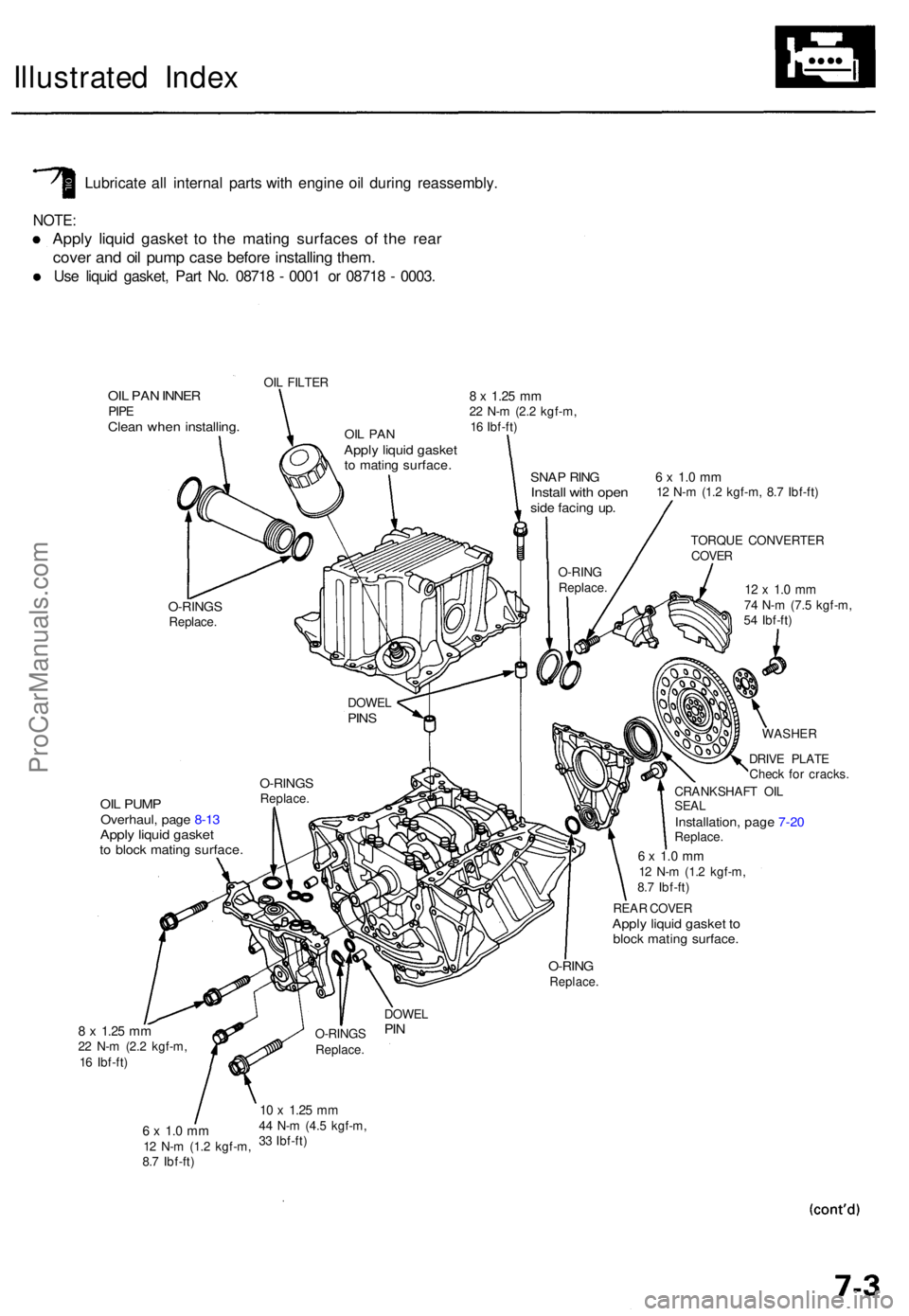

Illustrated Inde x
Lubricat e al l interna l part s wit h engin e oi l durin g reassembly .
NOTE:
Apply liqui d gaske t t o th e matin g surface s o f th e rea r
cove r an d oi l pum p cas e befor e installin g them .
Use liqui d gasket , Par t No . 0871 8 - 000 1 o r 0871 8 - 0003 .
OIL PA N INNE RPIPEClea n whe n installing .
OIL FILTE R8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
TORQU E CONVERTE R
COVE R
12 x 1. 0 m m74 N- m (7. 5 kgf-m ,
5 4 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft ) WASHE
R
OIL PUM POverhaul , pag e 8-1 3Appl y liqui d gaske tto bloc k matin g surface .
DRIVE PLAT E
Chec k fo r cracks .
CRANKSHAF T OI L
SEA L
Installation , pag e 7-2 0Replace .
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
REA R COVE R
Apply liqui d gaske t t obloc k matin g surface .
O-RINGReplace .
10 x 1.2 5 mm44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )O-RING
S
Replace .DOWE
L
PIN
O-RING SReplace .DOWE
L
PINS
O-RING SReplace . O-RIN
G
Replace .
SNAP RIN GInstal l wit h ope nside facin g up .
OIL PA NAppl y liqui d gaske tto matin g surface .
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
ProCarManuals.com

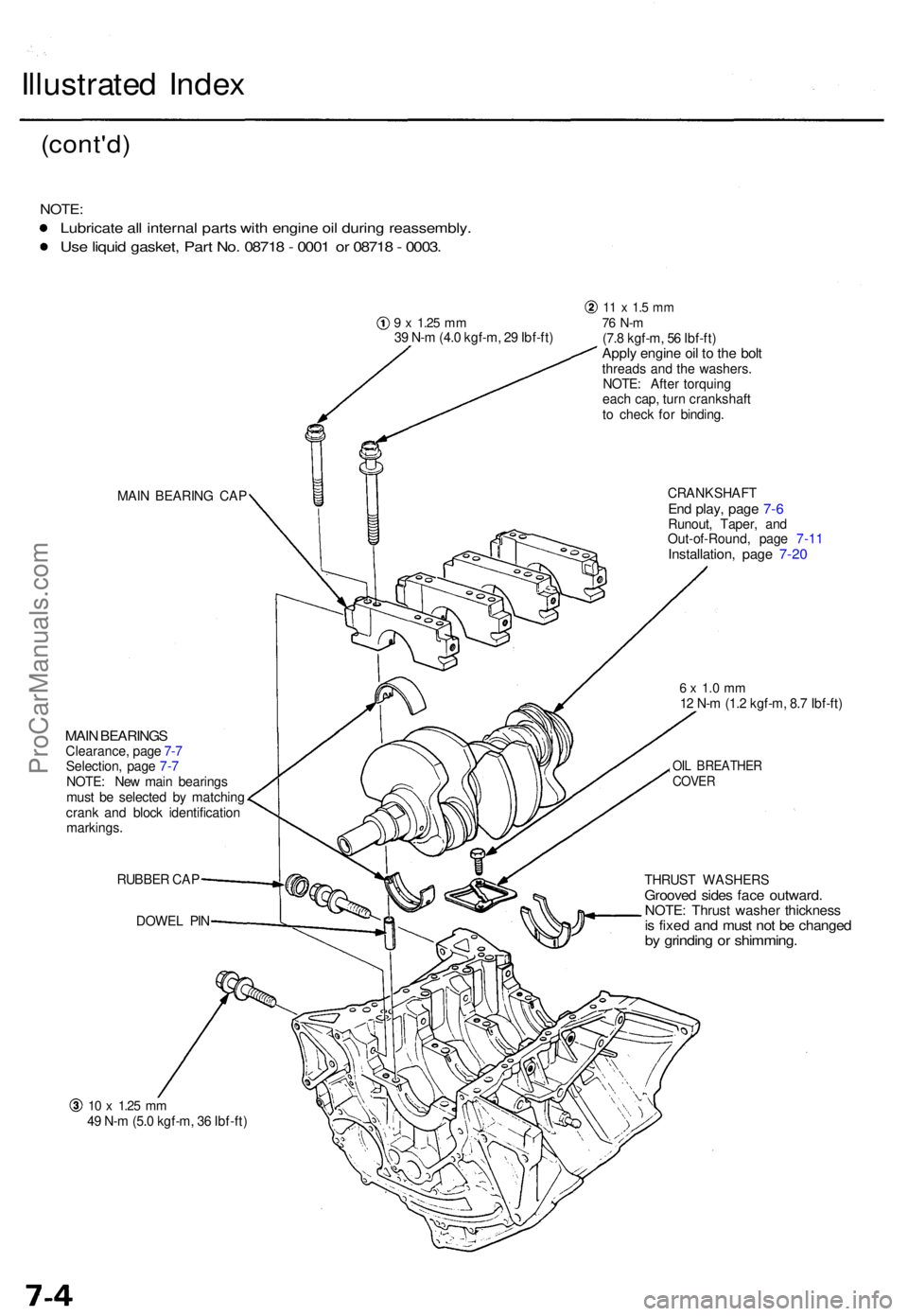

Illustrated Inde x
(cont'd )
NOTE:
Lubricat e al l interna l part s wit h engin e oi l durin g reassembly .
Use liqui d gasket , Par t No . 0871 8 - 000 1 o r 0871 8 - 0003 .
9 x 1.2 5 mm39 N- m (4. 0 kgf-m , 2 9 Ibf-ft )
11 x 1. 5 m m76 N- m(7.8 kgf-m , 5 6 Ibf-ft )Apply engin e oi l t o th e bol tthread s an d th e washers .
NOTE : Afte r torquin g
eac h cap , tur n crankshaf t
t o chec k fo r binding .
MAI N BEARIN G CA P
MAIN BEARING SClearance , pag e 7- 7
Selection , pag e 7- 7
NOTE : Ne w mai n bearing s
mus t b e selecte d b y matchin g
cran k an d bloc k identificatio n
markings .
RUBBE R CA P
DOWE L PI N CRANKSHAF
T
End play , pag e 7- 6Runout , Taper , an d
Out-of-Round , pag e 7-1 1
Installation , pag e 7-2 0
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
OIL BREATHE RCOVER
THRUS T WASHER SGrooved side s fac e outward .NOTE: Thrus t washe r thicknes sis fixe d an d mus t no t b e change dby grindin g o r shimming .
10 x 1.2 5 mm49 N- m (5. 0 kgf-m , 3 6 Ibf-ft )
ProCarManuals.com

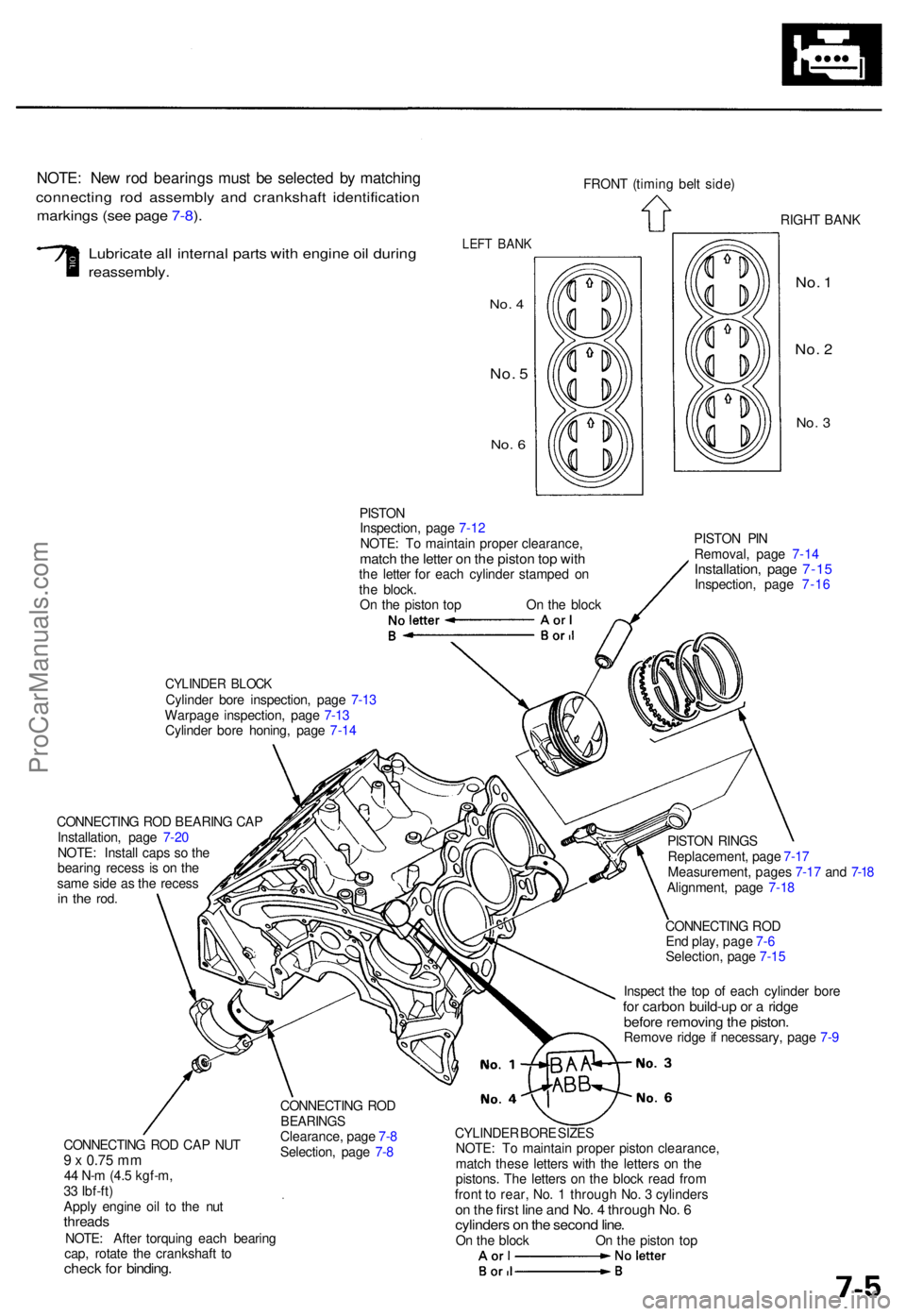

NOTE: Ne w ro d bearing s mus t b e selecte d b y matchin g
connectin g ro d assembl y an d crankshaf t identificatio n
markings (se e pag e 7-8 ).
FRON T (timin g bel t side )
RIGHT BAN K
Lubricat e al l interna l part s wit h engin e oi l during
reassembly .
LEFT BAN K
No. 4
No . 5
No . 6
No . 1
No . 2
No . 3
PISTO N
Inspection , pag e 7-1 2
NOTE : T o maintai n prope r clearance ,
match th e lette r o n th e pisto n to p wit hthe lette r fo r eac h cylinde r stampe d o n
th e block .
O n th e pisto n to p O n th e bloc k PISTO
N PI N
Removal , pag e 7-1 4Installation , pag e 7-1 5Inspection , pag e 7-1 6
CYLINDE R BLOC KCylinde r bor e inspection , pag e 7-1 3
Warpag e inspection , pag e 7-1 3
Cylinde r bor e honing , pag e 7-1 4
CONNECTIN G RO D BEARIN G CA P
Installation , pag e 7-2 0
NOTE : Instal l cap s s o th e
bearin g reces s i s o n th e
sam e sid e a s th e reces s
in th e rod .
CONNECTIN G RO D CA P NU T9 x 0.7 5 m m44 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
Appl y engin e oi l t o th e nu t
thread sNOTE: Afte r torquin g eac h bearin g
cap , rotat e th e crankshaf t t o
chec k fo r binding .
CONNECTIN G RO DBEARING SClearance , pag e 7- 8
Selection , pag e 7- 8 PISTO
N RING S
Replacement , pag e 7-1 7
Measurement , page s 7-1 7 an d 7-1 8
Alignment , pag e 7-1 8
CONNECTIN G RO D
En d play , pag e 7- 6
Selection , pag e 7-1 5
Inspec t th e to p o f eac h cylinde r bor e
for carbo n build-u p o r a ridg ebefor e removin g th e piston .Remov e ridg e if necessary , pag e 7- 9
CYLINDE R BOR E SIZE S
NOTE : T o maintai n prope r pisto n clearance ,
matc h thes e letter s wit h th e letter s o n th e
pistons . Th e letter s o n th e bloc k rea d fro m
fron t t o rear , No . 1 throug h No . 3 cylinder s
on th e firs t lin e an d No . 4 throug h No . 6cylinder s o n th e secon d line .On th e bloc k O n th e pisto n to p
ProCarManuals.com

Drive Plat e Connectin
g Ro d an dCrankshaf t
Replacemen t En
d Pla y
Remov e th e eigh t driv e plat e bolts , the n separat e th e
driv e plat e fro m th e crankshaf t flange . Afte r installation ,
tighten th e bolt s in a crisscros s pattern .
RING GEA R HOLDE R07LAB - PV0010 0
ENGINEBLOCK
RING GEA R HOLDE R07LAB - PV0010 0
RING GEA RInspec t rin g gea rteeth fo r wea r o rdamag e
12 x 1. 0 m m74 N- m(7.5 kgf-m , 5 4 Ibf-ft )
Connectin g Ro d En d Play :
Standar d (New) : 0.1 5 - 0.3 0 m m
(0.006-0.01 2 in )
Servic e Limit : 0.4 0 m m (0.01 6 in )
I f out-of-tolerance , instal l a ne w connectin g rod .
I f stil l out-of-tolerance , replac e th e crankshaf t (se e
page s 7- 9 an d 7-20 ).
Pus h th e crankshaf t firml y awa y fro m th e dia l indicator ,
an d zer o th e dia l agains t th e en d o f th e crankshaft . The n
pul l th e crankshaf t firml y bac k towar d th e indicator ; dia l
readin g shoul d no t excee d servic e limit .
SCREWDRIVE R
Crankshaft En d Play :
Standar d (New) : 0.1 0 - 0.2 9 m m
(0.004-0.01 1 in )
Servic e Limit : 0.4 5 m m (0.01 8 in )
I f en d pla y i s excessive , inspec t th e thrus t washer s
an d thrus t surfac e o n th e crankshaft . Replac e part s a s
necessary .
NOTE: Thrus t washe r thicknes s i s fixe d an d mus t no t b e
change d eithe r b y grindin g o r shimming .
Thrust washer s ar e installe d wit h th e groove d sid e fac -
ing outward .
ProCarManuals.com

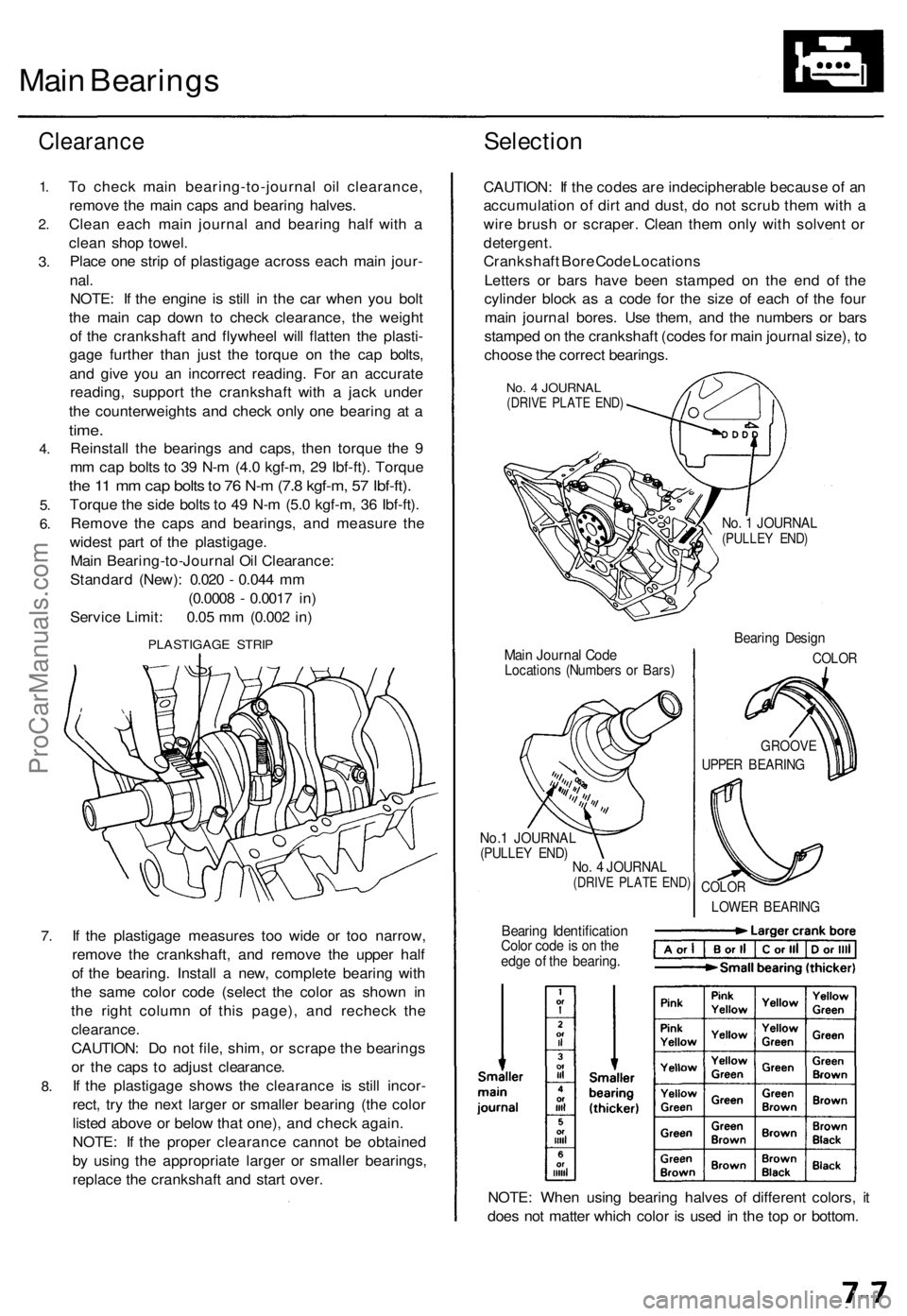

Main Bearing s
Clearanc eSelection
1.
2 .
3.
4 .
5.
6.
7 .
8 .
T o chec k mai n bearing-to-journa l oi l clearance ,
remov e th e mai n cap s an d bearin g halves .
Clea n eac h mai n journa l an d bearin g hal f wit h a
clea n sho p towel .
Plac e on e stri p o f plastigag e acros s eac h mai n jour -
nal.
NOTE : I f th e engin e i s stil l i n th e ca r whe n yo u bol t
th e mai n cap dow n t o chec k clearance , th e weigh t
o f th e crankshaf t an d flywhee l wil l flatte n th e plasti -
gag e furthe r tha n jus t th e torqu e o n th e ca p bolts ,
an d giv e yo u a n incorrec t reading . Fo r a n accurat e
reading , suppor t th e crankshaf t wit h a jac k unde r
th e counterweight s an d chec k onl y on e bearin g a t a
time .
Reinstal l th e bearing s an d caps , the n torqu e th e 9
m m ca p bolt s t o 3 9 N- m (4. 0 kgf-m , 2 9 Ibf-ft) . Torqu e
the 1 1 m m ca p bolt s to 7 6 N- m (7. 8 kgf-m , 5 7 Ibf-ft) .
Torqu e th e sid e bolt s t o 4 9 N- m (5. 0 kgf-m , 3 6 Ibf-ft) .
Remov e th e cap s an d bearings , an d measur e th e
wides t par t o f th e plastigage .
Mai n Bearing-to-Journa l Oi l Clearance :
Standar d (New) : 0.02 0 - 0.04 4 m m
(0.000 8 - 0.001 7 in )
Servic e Limit : 0.0 5 m m (0.00 2 in )
PLASTIGAG E STRI P
If th e plastigag e measure s to o wid e o r to o narrow ,
remov e th e crankshaft , an d remov e th e uppe r hal f
o f th e bearing . Instal l a new , complet e bearin g wit h
th e sam e colo r cod e (selec t th e colo r a s show n i n
th e righ t colum n o f thi s page) , an d rechec k th e
clearance .
CAUTION: D o no t file , shim , o r scrap e th e bearing s
o r th e cap s t o adjus t clearance .
I f th e plastigag e show s th e clearanc e i s stil l incor -
rect , tr y th e nex t large r o r smalle r bearin g (th e colo r
liste d abov e o r belo w tha t one) , an d chec k again .
NOTE : I f th e prope r clearanc e canno t b e obtaine d
b y usin g th e appropriat e large r o r smalle r bearings ,
replac e th e crankshaf t an d star t over . CAUTION
: I f th e code s ar e indecipherabl e becaus e o f a n
accumulatio n o f dir t an d dust , d o no t scru b the m wit h a
wir e brus h o r scraper . Clea n the m onl y wit h solven t o r
detergent .
Crankshaf t Bor e Cod e Location s
Letter s o r bar s hav e bee n stampe d o n th e en d of the
cylinde r bloc k a s a cod e fo r th e siz e o f eac h o f th e fou r
mai n journa l bores . Us e them , an d th e number s o r bar s
stampe d o n th e crankshaf t (code s fo r mai n journa l size) , t o
choos e th e correc t bearings .
No. 4 JOURNA L(DRIVE PLAT E END )
No. 1 JOURNA L(PULLEY END )
Main Journa l Cod eLocation s (Number s o r Bars )
No.1 JOURNA L(PULLEY END )No. 4 JOURNA L(DRIVE PLAT E END )
Bearin g Desig n
COLOR
GROOV E
UPPER BEARIN G
COLOR
LOWE R BEARIN G
Bearing Identificatio nColor cod e is o n th eedg e o f th e bearing .
NOTE: Whe n usin g bearin g halve s o f differen t colors , i t
doe s no t matte r whic h colo r i s use d i n th e to p o r bottom .
ProCarManuals.com
