1995 ACURA TL Service Repair Manual

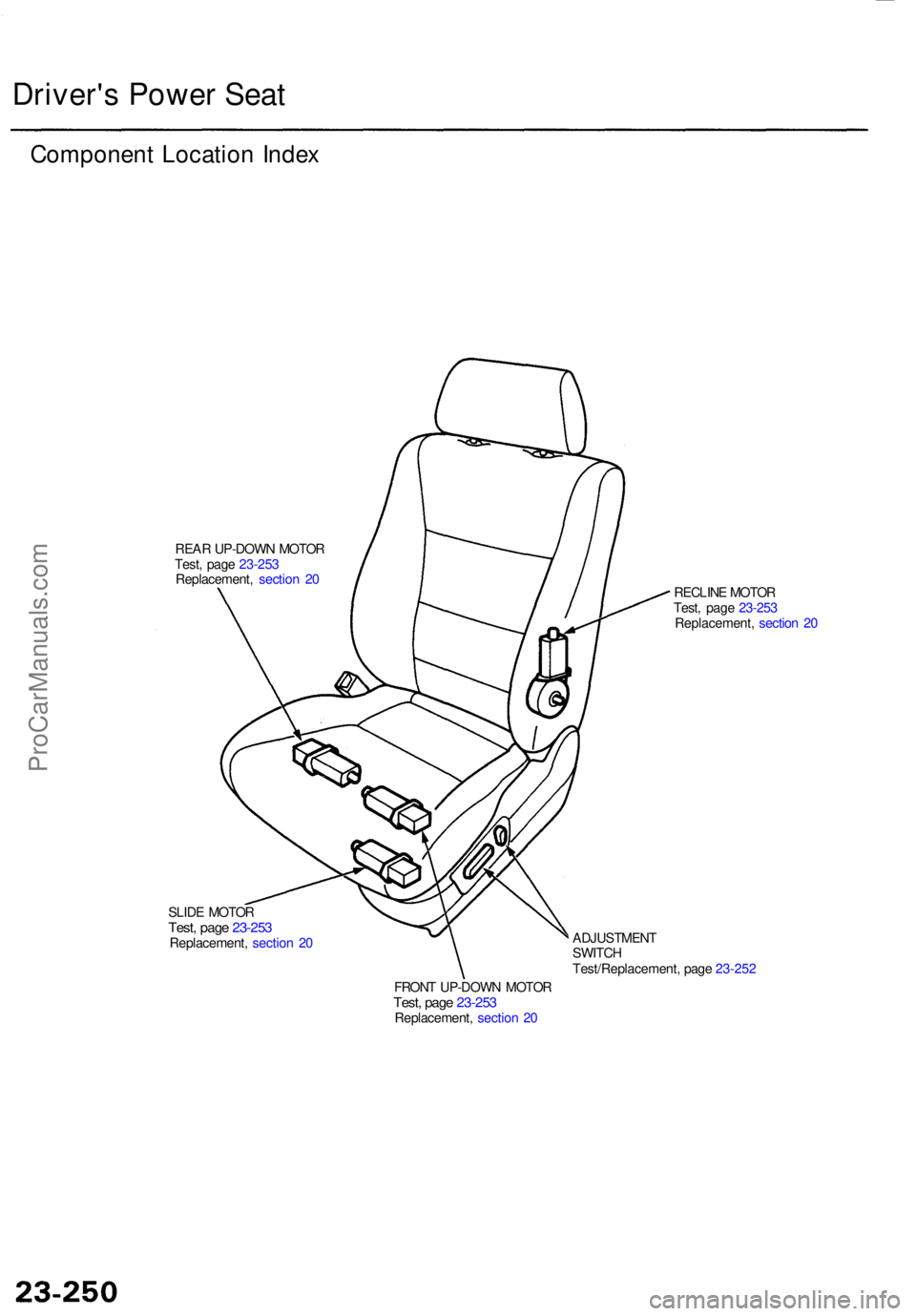

Driver's Powe r Sea t
Componen t Locatio n Inde x
REAR UP-DOW N MOTO R
Test , pag e 23-25 3
Replacement , sectio n 2 0
RECLINE MOTO R
Test , pag e 23-25 3
Replacement , sectio n 2 0
SLID E MOTO R
Test, pag e 23-25 3Replacement , sectio n 2 0 ADJUSTMEN
T
SWITC H
Test/Replacement , pag e 23-25 2
FRON T UP-DOW N MOTO R
Test, pag e 23-25 3Replacement , sectio n 2 0
ProCarManuals.com

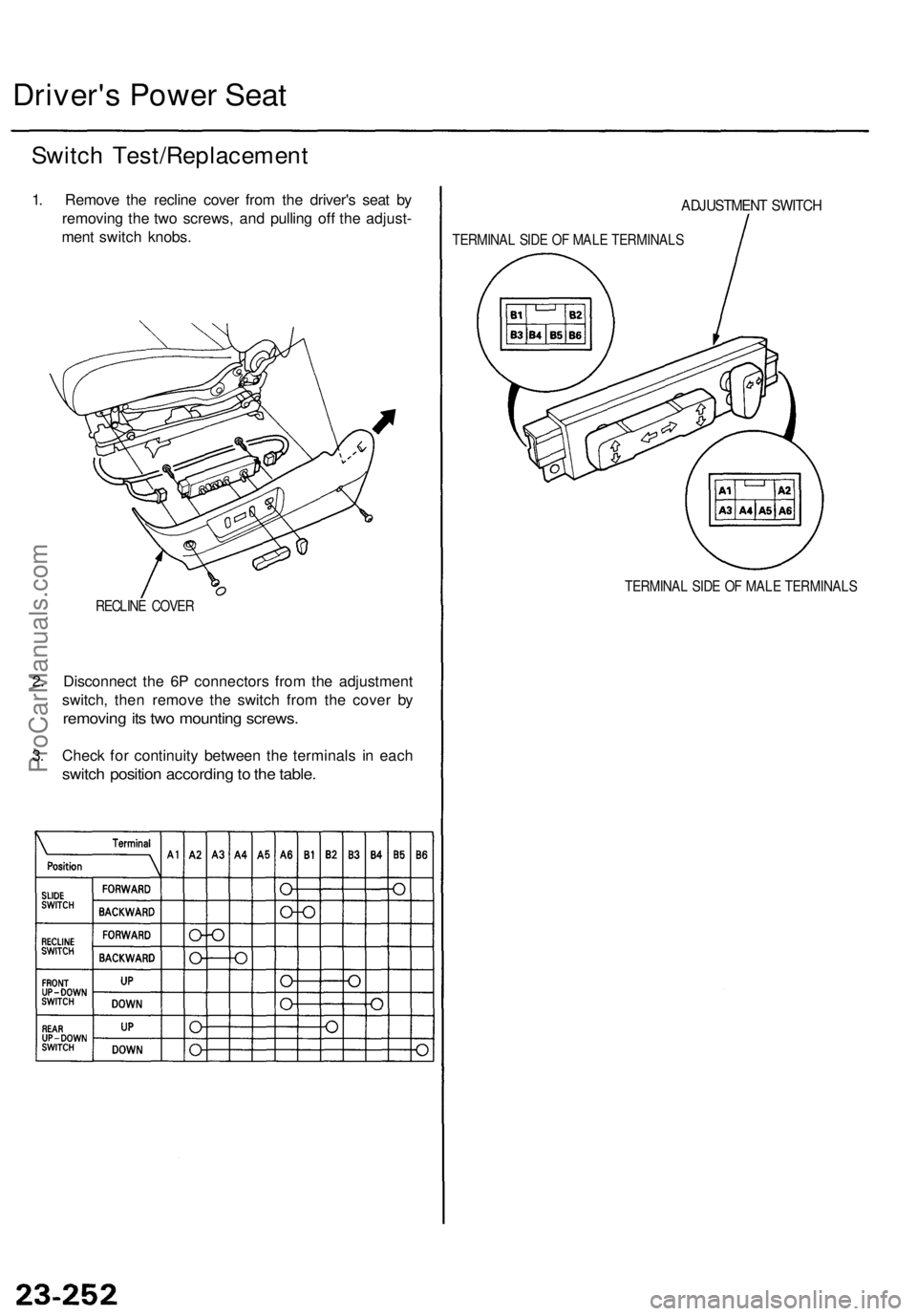

Driver's Power Seat

Switch Test/Replacement

1. Remove the recline cover from the driver's seat by

removing the two screws, and pulling off the adjust-

ment switch knobs.

RECLINE COVER

2. Disconnect the 6P connectors from the adjustment

switch, then remove the switch from the cover by

removing its two mounting screws.

3. Check for continuity between the terminals in each

switch position according to the table.
ADJUSTMENT SWITCH

TERMINAL SIDE OF MALE TERMINALS

TERMINAL SIDE OF MALE TERMINALSProCarManuals.com

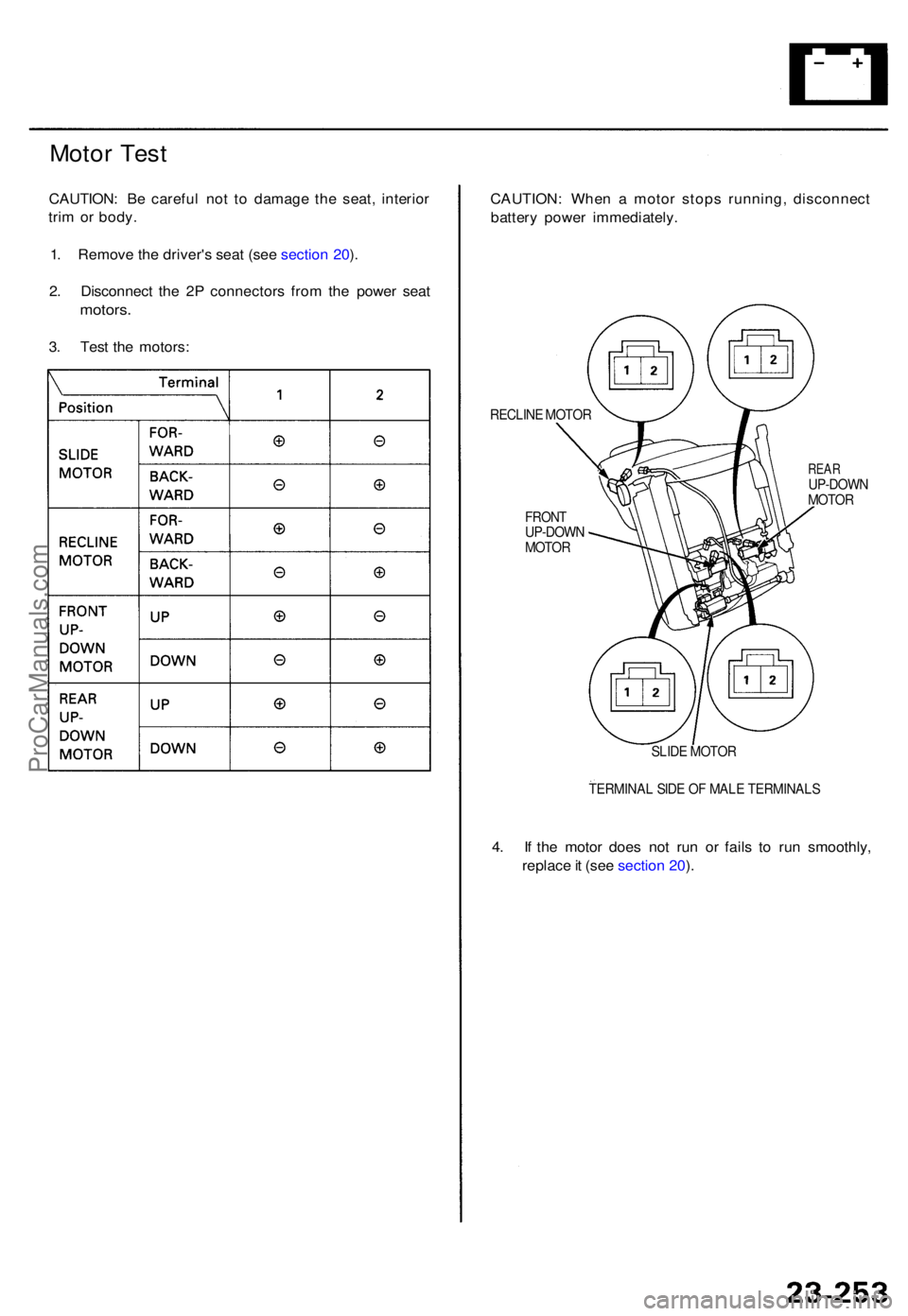

Motor Tes t
CAUTION : B e carefu l no t t o damag e th e seat , interio r
tri m o r body .
1 . Remov e th e driver' s sea t (se e sectio n 20 ).
2 . Disconnec t th e 2 P connector s fro m th e powe r sea t
motors .
3. Tes t th e motors : CAUTION
: Whe n a moto r stop s running , disconnec t
batter y powe r immediately .
RECLINE MOTO R
FRONTUP-DOW N
MOTO R
REARUP-DOW N
MOTO R
SLID E MOTO R
TERMINA L SID E O F MAL E TERMINAL S
4. I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replac e it (se e sectio n 20 ).
ProCarManuals.com

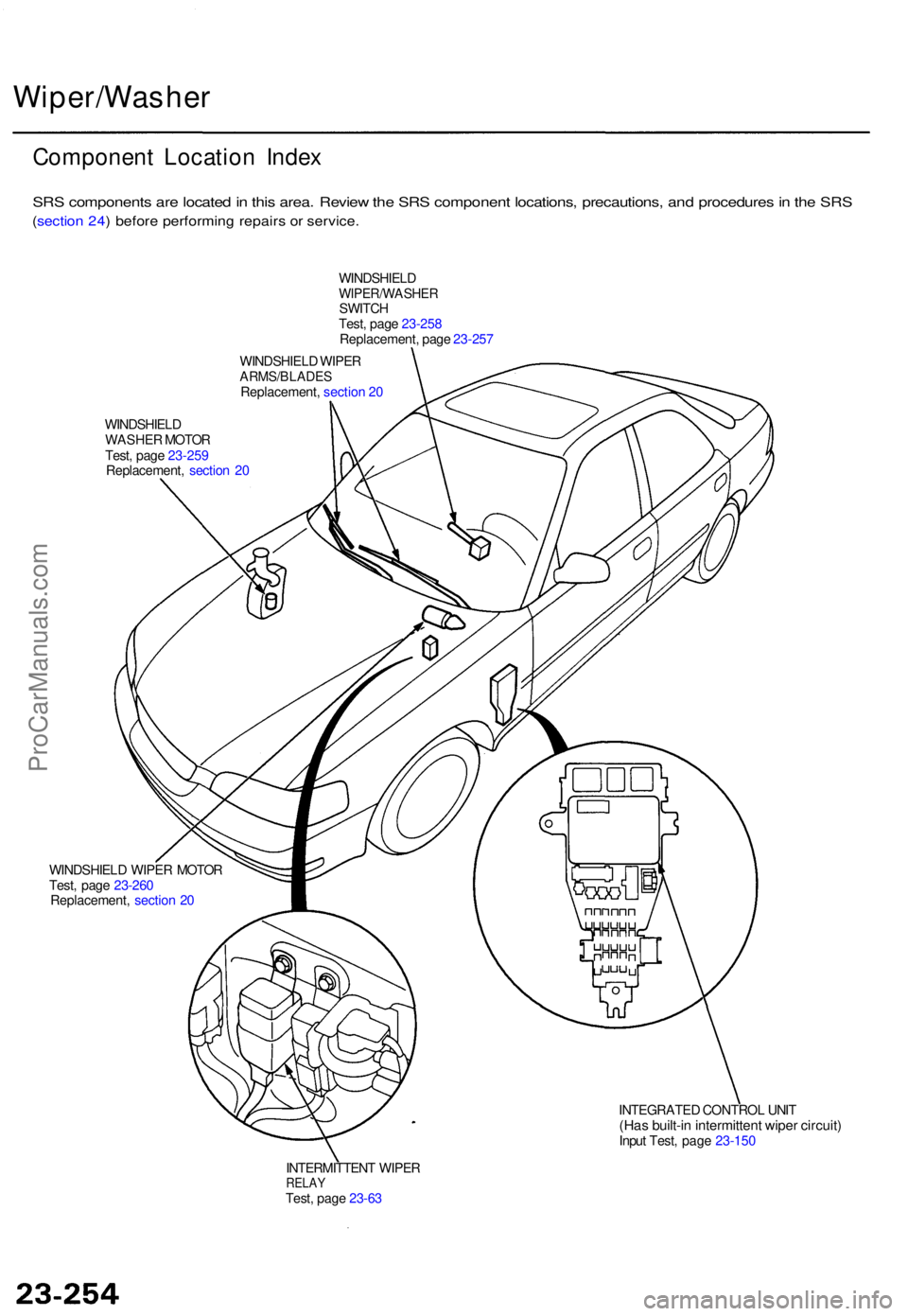

Wiper/Washer
Component Locatio n Inde x
SRS component s ar e locate d in thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s in th e SR S
(sectio n 24 ) befor e performin g repair s o r service .
WINDSHIEL DWIPER/WASHE RSWITCH
Test , pag e 23-25 8
Replacement , pag e 23-25 7
WINDSHIEL D WIPE R
ARMS/BLADE SReplacement, sectio n 2 0
WINDSHIEL D
WASHE R MOTO R
Test , pag e 23-25 9
Replacement , sectio n 2 0
WINDSHIEL D WIPE R MOTO R
Test , pag e 23-26 0
Replacement , sectio n 2 0
INTEGRATED CONTRO L UNI T
(Has built-i n intermitten t wipe r circuit )Input Test , pag e 23-150
INTERMITTEN T WIPE R
RELAYTest, pag e 23-6 3
ProCarManuals.com

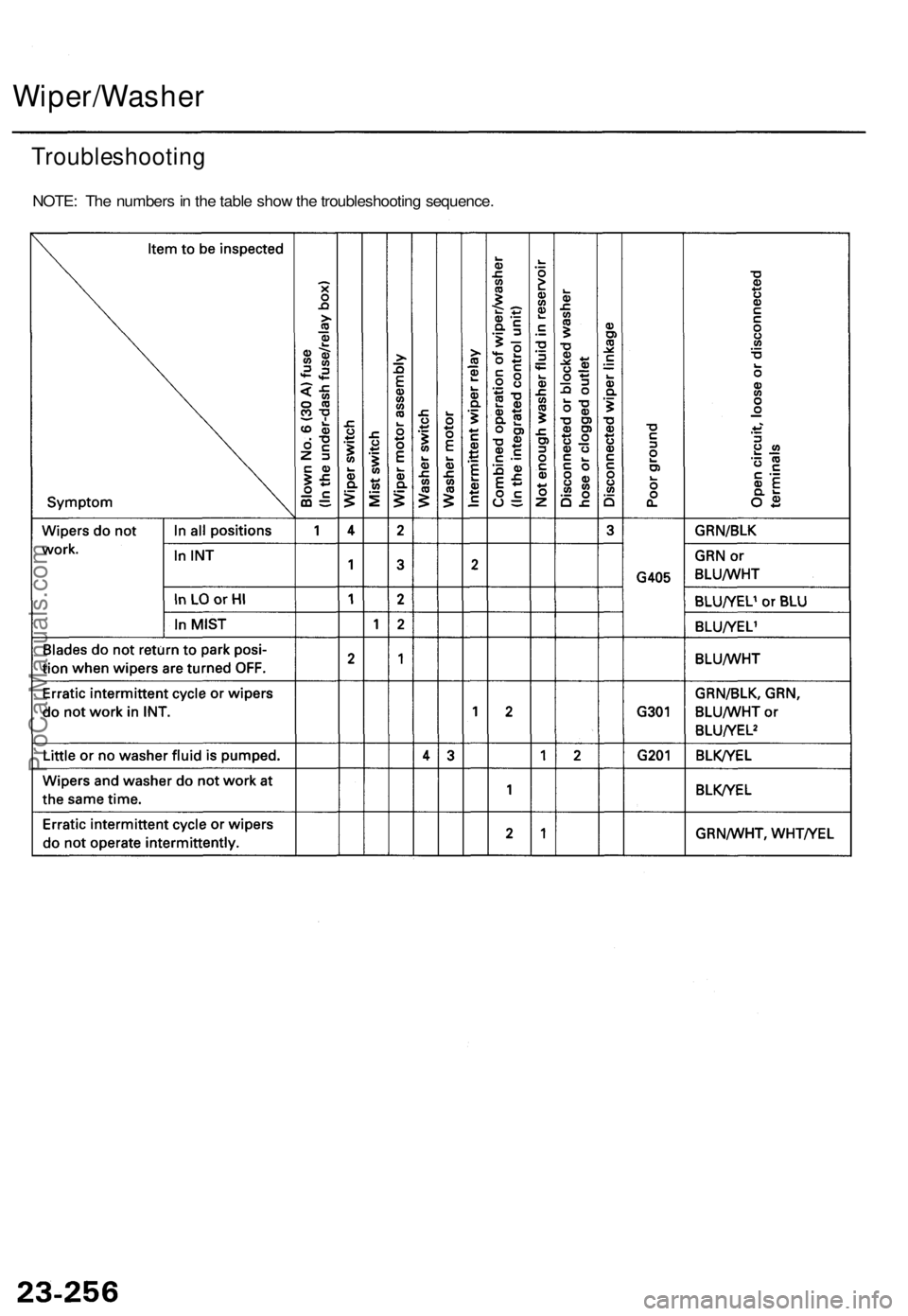

Wiper/Washer

Troubleshooting

NOTE: The numbers in the table show the troubleshooting sequence.ProCarManuals.com

Switch Replacemen t
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S (sectio n 24 ) befor e performin g repair s o r ser -
vice .
1 . Remov e th e dashboar d lowe r cove r an d kne e bol -
ster.
KNE E
BOLSTE R
DASHBOARD LOWE R COVE R
2. Remov e th e steerin g colum n covers .
STEERIN G COLUM N
UPPE R COVE R
STEERIN G
COLUMNLOWERCOVER
3. Remov e th e tw o screw s an d th e switch .
SCREW S
8P CONNECTO RWINDSHIEL
D
WIPER/WASHE R SWITC H
4. Instal l i n th e revers e orde r o f removal .
ProCarManuals.com

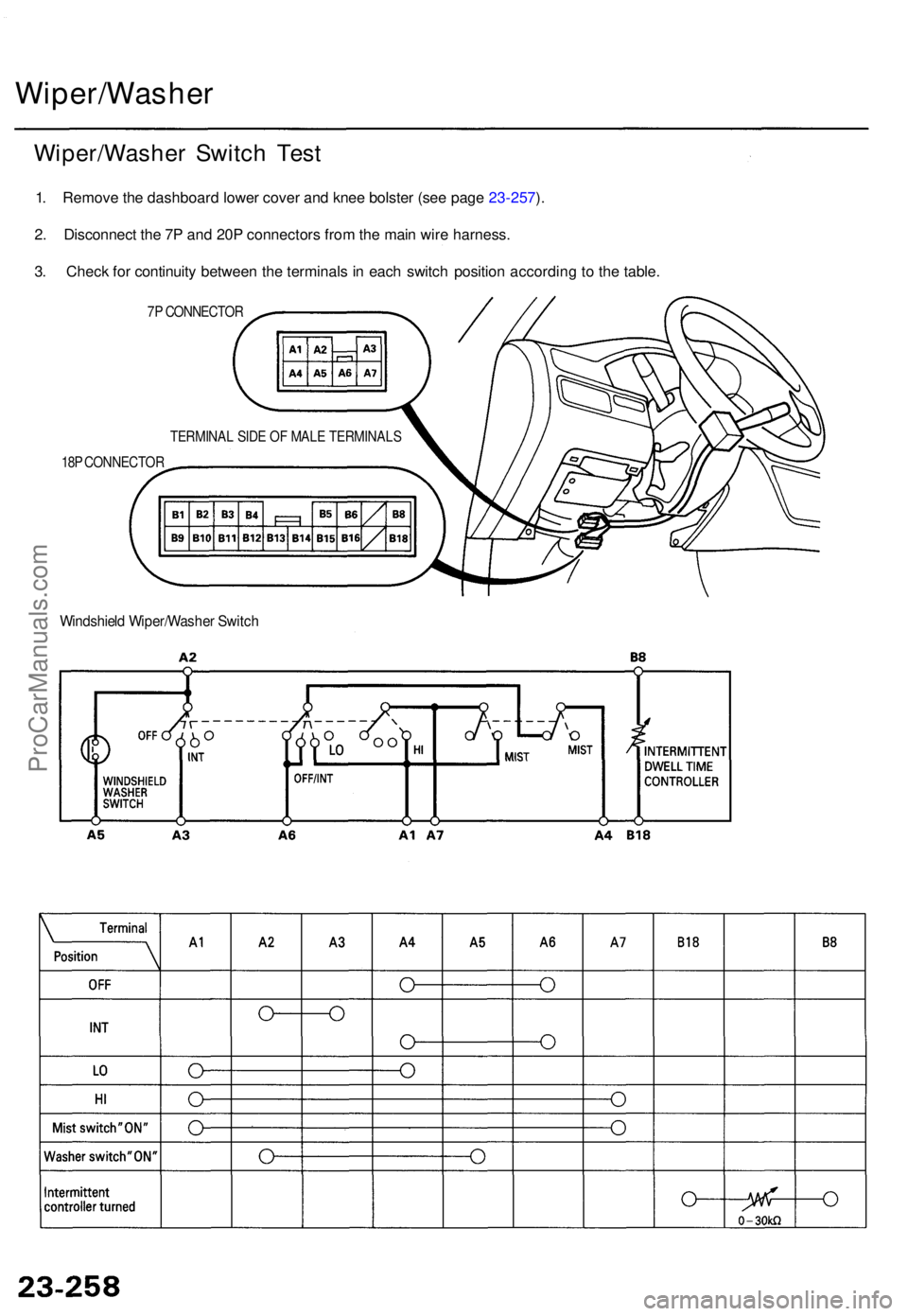

Wiper/Washer
Wiper/Washer Switc h Tes t
1. Remov e th e dashboar d lowe r cove r an d kne e bolste r (se e page 23-257 ).
2 . Disconnec t th e 7 P an d 20 P connector s fro m th e mai n wir e harness .
3 . Chec k fo r continuit y betwee n th e terminal s i n eac h switc h positio n accordin g t o th e table .
7P CONNECTO R
TERMINA L SID E O F MAL E TERMINAL S
18 P CONNECTO R
Windshield Wiper/Washe r Switc h
ProCarManuals.com

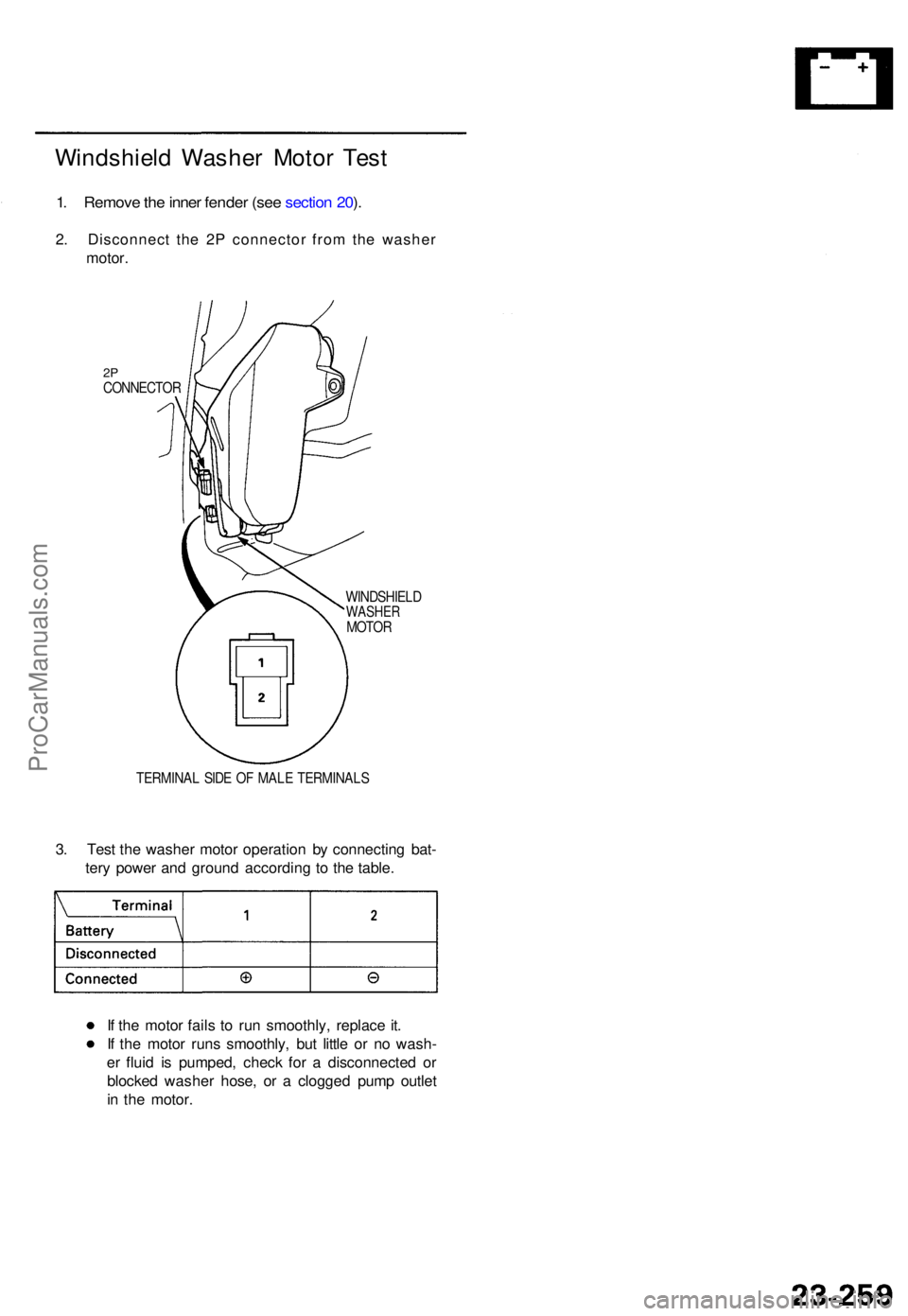

Windshield Washe r Moto r Tes t
1. Remov e th e inne r fende r (se e sectio n 20 ).
2 . Disconnec t th e 2 P connecto r fro m th e washe r
motor .
2PCONNECTO R
WINDSHIELD
WASHERMOTOR
TERMINA L SID E O F MAL E TERMINAL S
3. Tes t th e washe r moto r operatio n b y connectin g bat -
ter y powe r an d groun d accordin g t o th e table .
I f th e moto r fail s t o ru n smoothly , replac e it .
I f th e moto r run s smoothly , bu t littl e o r n o wash -
e r flui d i s pumped , chec k fo r a disconnecte d o r
blocke d washe r hose , o r a clogge d pum p outle t
i n th e motor .
