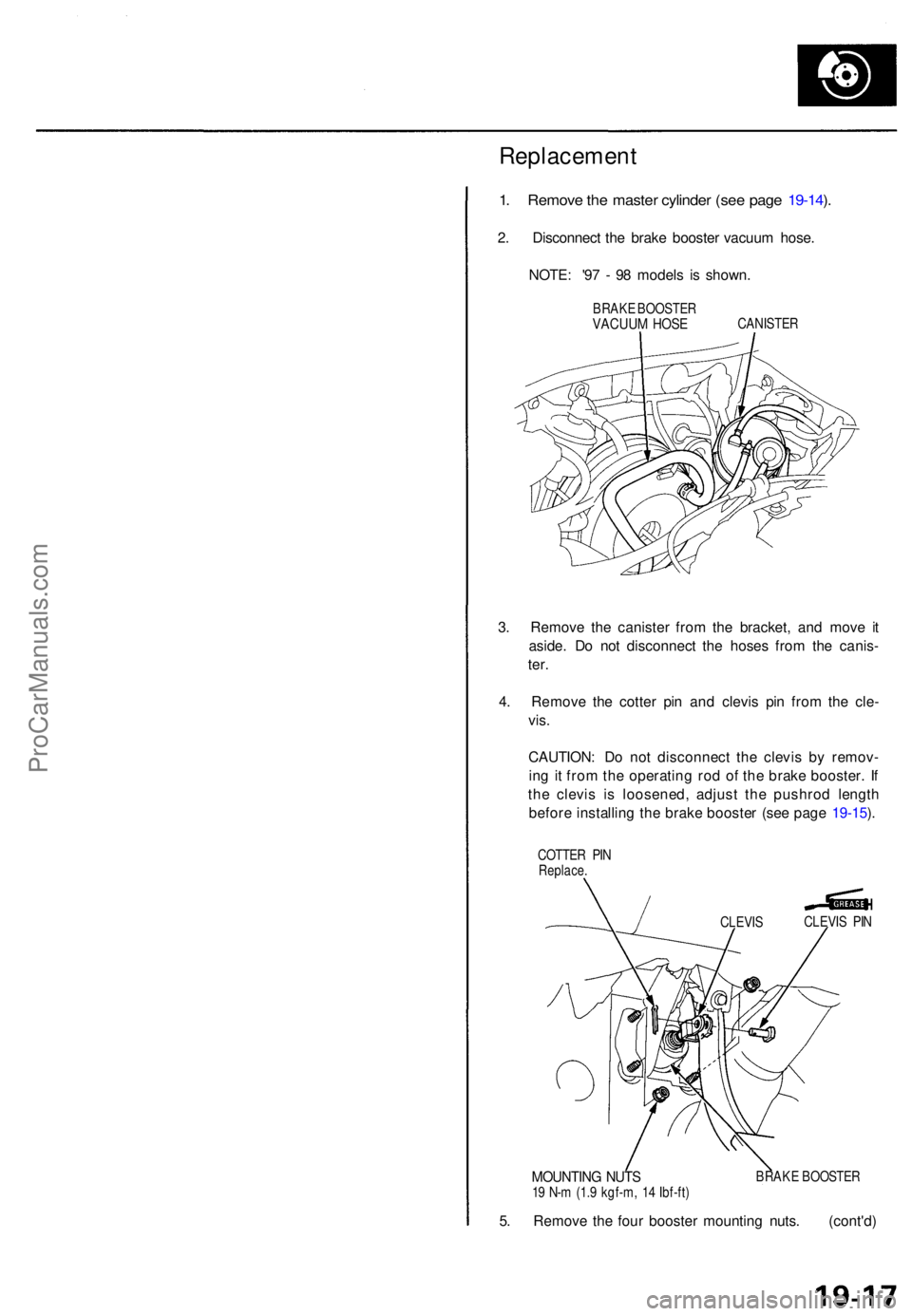

Replacement
1. Remov e th e maste r cylinde r (se e pag e 19-14 ).
2 . Disconnec t th e brak e booste r vacuu m hose .
NOTE : '9 7 - 9 8 model s i s shown .
BRAKE BOOSTE RVACUUM HOS ECANISTE R
3. Remov e th e caniste r fro m th e bracket , an d mov e i t
aside . D o no t disconnec t th e hose s fro m th e canis -
ter.
4. Remov e th e cotte r pi n an d clevi s pi n fro m th e cle -
vis.
CAUTION : D o no t disconnec t th e clevi s b y remov -
in g it fro m th e operatin g ro d o f th e brak e booster . I f
th e clevi s i s loosened , adjus t th e pushro d lengt h
befor e installin g th e brak e booste r (se e pag e 19-15 ).
COTTE R PI NReplace .
MOUNTIN G NUT S19 N- m (1. 9 kgf-m , 1 4 Ibf-ft ) BRAK
E BOOSTE R
5. Remov e th e fou r booste r mountin g nuts . (cont'd )
CLEVIS CLEVI
S PI N
ProCarManuals.com

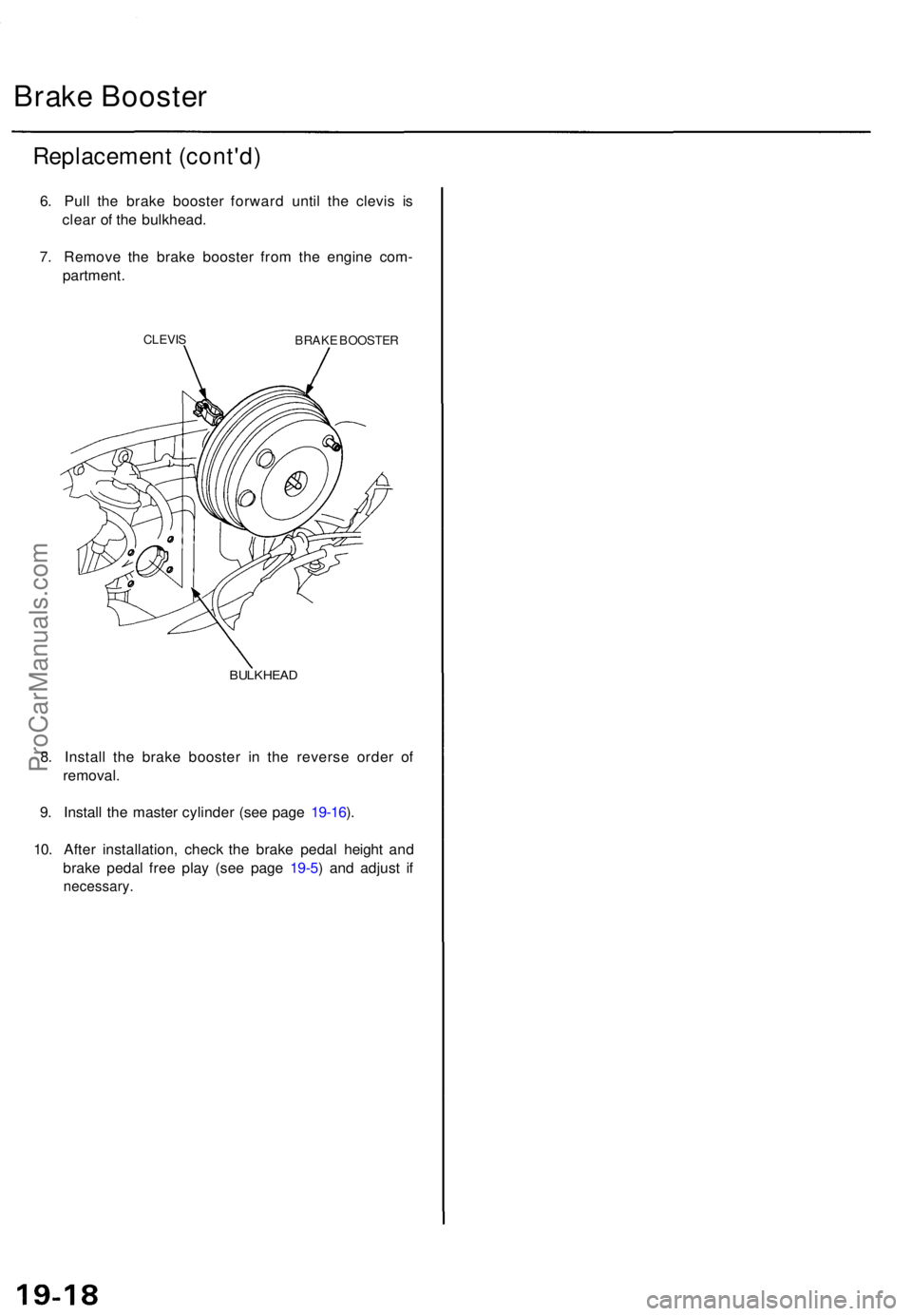

Brake Booste r
Replacemen t (cont'd )
6. Pul l th e brak e booste r forwar d unti l th e clevi s i s
clea r o f th e bulkhead .
7 . Remov e th e brak e booste r fro m th e engin e com -
partment .
CLEVIS
BRAKE BOOSTE R
BULKHEA D
8. Instal l th e brak e booste r i n th e revers e orde r o f
removal .
9 . Instal l th e maste r cylinde r (se e pag e 19-16 ).
10 . Afte r installation , chec k th e brak e peda l heigh t an d
brak e peda l fre e pla y (se e pag e 19-5 ) an d adjus t i f
necessary .
ProCarManuals.com

Rear Brake Pads

Inspection and Replacement

• Never use an air hose or dry brush to clean brake

assemblies.

• Use an OSHA-approved vacuum cleaner to avoid

breathing brake dust.

1. Block the front wheels, loosen the rear wheel nuts

slightly, support the rear of vehicle on safety

stands, then remove the rear wheels.

2. Release the parking brake.

3. Remove the two caliper bolts and the caliper from

the bracket.

CAUTION:

• Thoroughly clean the outside of the caliper to pre-

vent dust and dirt from entering inside.

• Support the caliper with a piece of wire so that

it does not hang from the brake hose.

CALIPER BOLTS

CALIPER

4. Remove the pad shims and brake pads.

OUTER PAD

SHIM

Check for weakness.
INNER PAD

SHIM

Check for weakness.

REAR BRAKE PADS

Check for wear.ProCarManuals.com

5. Using vernier calipers, measure the thickness of

each brake pad lining.

Brake Pad Thickness:

Standard: 8.5 - 9.5 mm (0.33 - 0.37 in)

Service Limit: 1.6 mm (0.06 in)

BACKING PLATE

NOTE: Measurement does not include pad backing

plate thickness.

6. Remove the pad retainers.

PAD RETAINERS

CALIPER BRACKET

Check for cracks.

7. Clean the caliper thoroughly; remove any rust, and

check for grooves and cracks.

8. Check the brake disc for damage and cracks.

9. Make sure that the pad retainers are installed in the

correct positions.
10. Apply Molykote M77 grease to the pad side of the

shims. Wipe excess grease off the shims.

OUTER PAD

SHIM

Apply Molykote

M77 grease.
INNER PAD

SHIM

Apply Molykote M77

grease.

WEAR

INDICATOR

REAR BRAKE PADS

11. Install the brake pads and pad shims on the caliper

bracket.

When reusing the pads, always reinstall the brake

pads in their original positions to prevent loss of

braking efficiency.

Contaminated brake discs or pads reduce stop-

ping ability. Keep grease off the discs and pads.

NOTE: Install the inner pad with its wear indicator

facing downward.

12. Rotate the caliper piston clockwise into place in the

cylinder, then align the cutout in the piston with the

tab on the inner pad by turning the piston back.

CAUTION: Lubricate the boot with rubber grease

to avoid twisting the piston boot. If the piston boot

is twisted, back it out so it sits properly.

CALIPER BOLTS

23 N-m

(2.3 kgf-m, 17 Ibf-ft)

TAB

CUTOUT

Align

13. Install the brake caliper.

14. Install and tighten the caliper bolts.
CALIPERProCarManuals.com

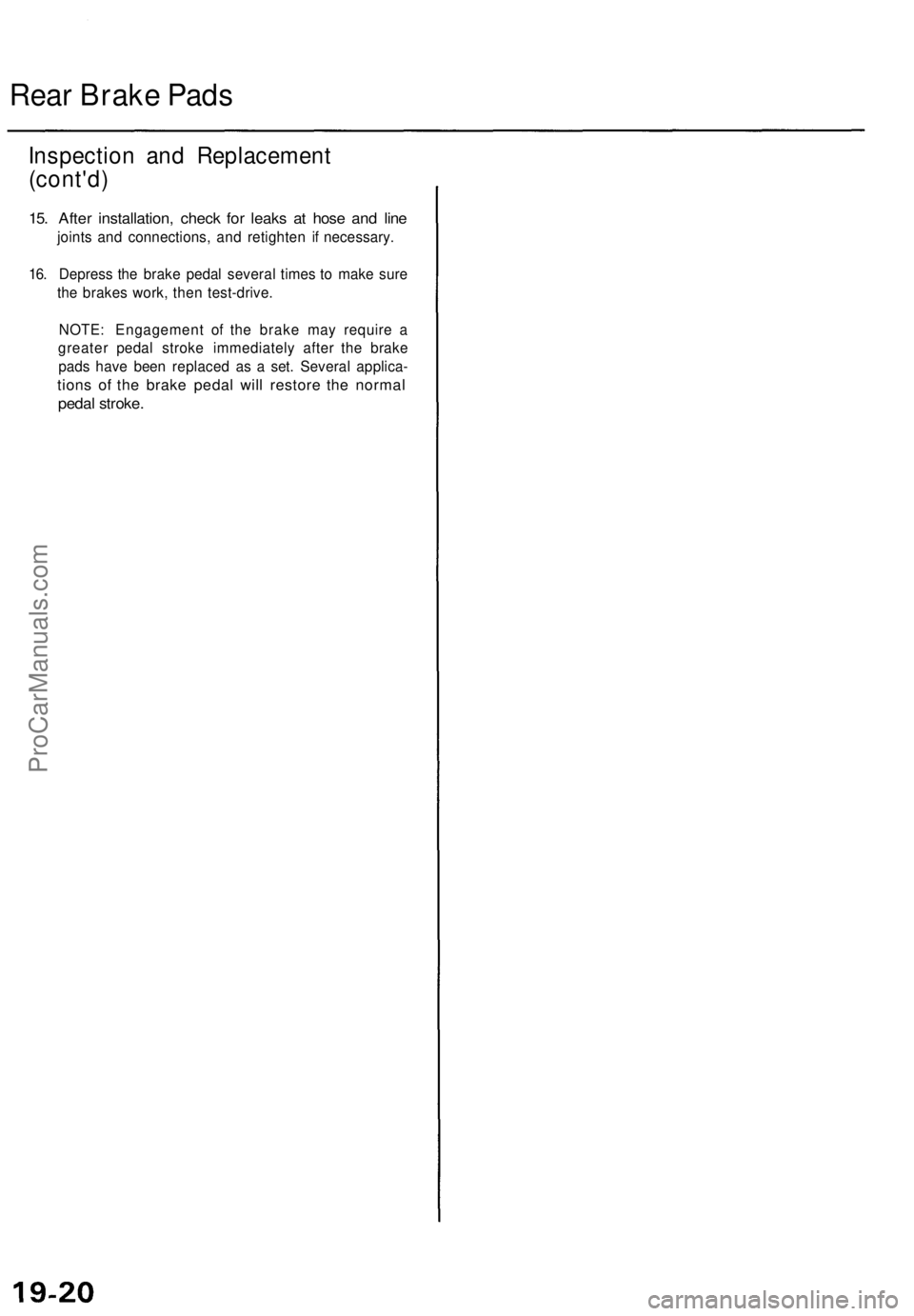

Rear Brake Pads

Inspection and Replacement

(cont'd)

15. After installation, check for leaks at hose and line

joints and connections, and retighten if necessary.

16. Depress the brake pedal several times to make sure

the brakes work, then test-drive.

NOTE: Engagement of the brake may require a

greater pedal stroke immediately after the brake

pads have been replaced as a set. Several applica-

tions of the brake pedal will restore the normal

pedal stroke.ProCarManuals.com

Rear Brak e Dis c
Disc Runou t Inspectio n
1. Loose n th e rea r whee l nut s slightly , the n rais e th e
vehicl e an d suppor t i t o n safet y stands . Remov e th e
rea r wheels .
2 . Remov e th e brak e pad s (se e pag e 19-18 ).
3 . Inspec t th e dis c surfac e fo r damag e an d cracks .
Clea n th e dis c thoroughl y an d remov e al l rust .
4 . Us e whee l nut s an d suitabl e plai n washer s t o hol d
th e dis c securel y agains t th e hub , the n moun t a dia l
indicato r a s shown , an d measur e th e runou t a t
10 m m (0. 4 in ) fro m th e oute r edg e o f th e disc .
Brak e Dis c Runout :
Servic e Limit : 0.1 0 m m (0.00 4 in )
10 m m (0. 4 in)
DIA L INDICATO R
WHEEL NU T AN D
PLAI N WASHE R
108 N- m(11 kgf-m , 8 0 Ibf-ft )
5. I f th e dis c is beyon d the servic e limit, refinis h the
brak e disc .
Max . Refinishin g Limit : 7. 5 m m (0.3 0 in )
NOTE : A ne w dis c shoul d b e refinishe d i f it s runou t
i s greate r tha n 0.1 0 m m (0.00 4 in) .
ProCarManuals.com

Disc Thicknes s an d Parallelis m
Inspectio n
1. Loose n th e rea r whee l nut s slightly , the n rais e th e
vehicl e an d suppor t i t o n safet y stands . Remov e th e
rea r wheels .
2 . Remov e th e brak e pad s (se e pag e 19-18 ).
3 . Usin g a micrometer , measur e dis c thicknes s a t
eigh t points , approximatel y 45 ° apar t an d 1 0 m m
(0.4 in ) i n fro m th e oute r edg e o f th e disc .
MICROMETE R
Brake Dis c Thickness :
Standard: 8. 9 - 9. 1 m m (0.35 0 - 0.35 8 in )
Max . Refinishin g Limit : 7. 5 m m (0.3 0 in )
NOTE : Replac e th e brak e dis c i f th e smalles t mea -
suremen t i s les s tha n th e max . refinishin g limit .
Brak e Dis c Parallelism : 0.01 5 m m
(0.000 6 in ) max .
NOTE : Thi s i s th e maximu m allowabl e differenc e
between th e thicknes s measurements .
4. I f th e dis c i s beyon d th e servic e limi t fo r parallelism,
refinis h th e brak e disc .
NOTE : Se e pag e 18-2 7 fo r brak e dis c replacement .
ProCarManuals.com

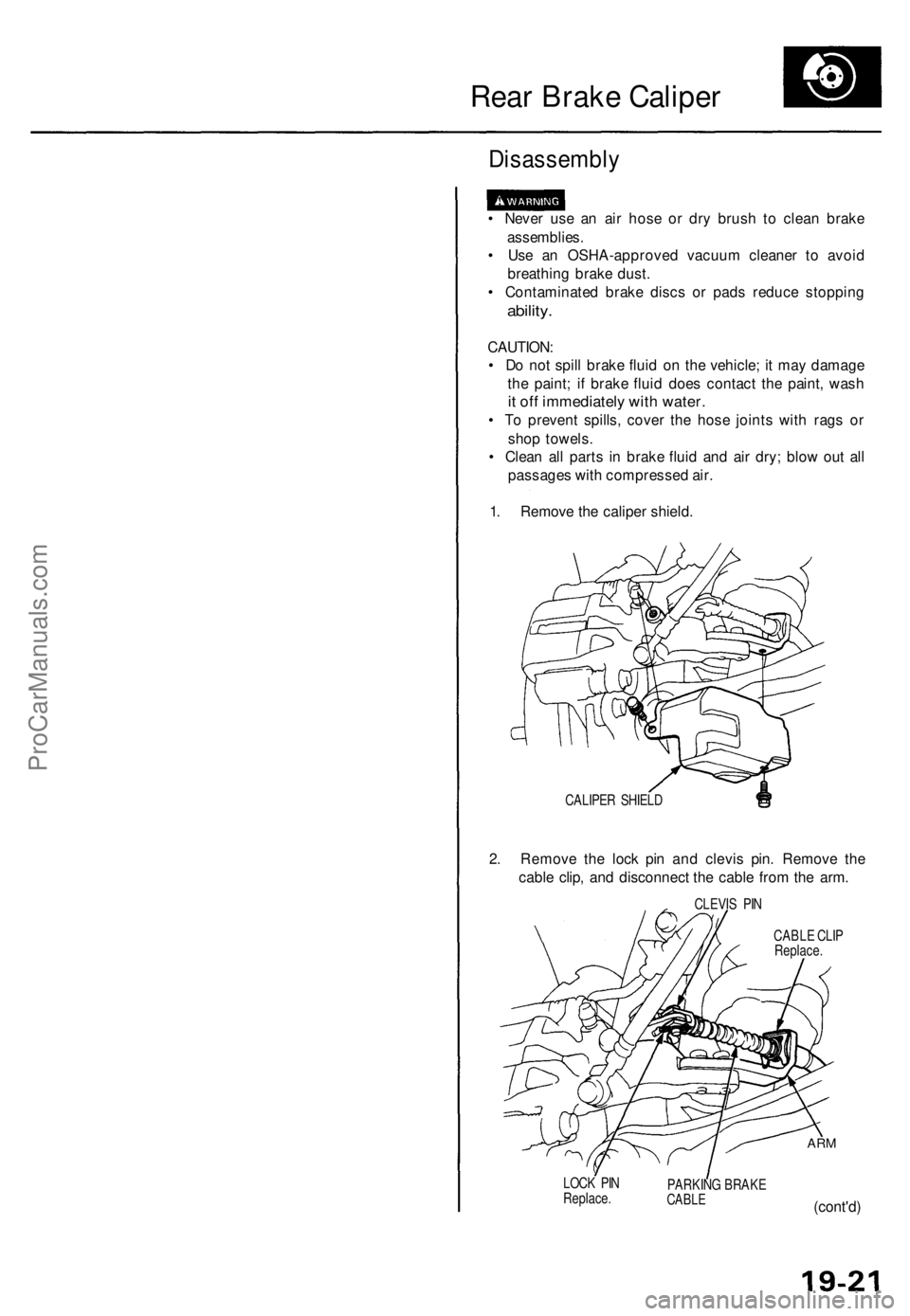

Rear Brake Caliper

Disassembly

• Never use an air hose or dry brush to clean brake

assemblies.

• Use an OSHA-approved vacuum cleaner to avoid

breathing brake dust.

• Contaminated brake discs or pads reduce stopping

ability.

CAUTION:

• Do not spill brake fluid on the vehicle; it may damage

the paint; if brake fluid does contact the paint, wash

it off immediately with water.

• To prevent spills, cover the hose joints with rags or

shop towels.

• Clean all parts in brake fluid and air dry; blow out all

passages with compressed air.

1. Remove the caliper shield.

CALIPER SHIELD

2. Remove the lock pin and clevis pin. Remove the

cable clip, and disconnect the cable from the arm.

CLEVIS PIN

CABLE CLIP

Replace.

LOCK PIN

Replace.
PARKING BRAKE

CABLE
ARM

(cont'd)ProCarManuals.com
