1995 ACURA TL Service Repair Manual

Positive Crankcase Ventilation (PCV) System

Description

The Positive Crankcase Ventilation (PCV) system is

designed to prevent blow-by gas from escaping to the

atmosphere. The PCV valve contains a spring-loaded

plunger. When the engine starts, the plunger in the PCV

valve is lifted in proportion to intake manifold vacuum and

the blow-by gas is drawn directly into the intake manifold.

BREATHER

HOSE

PCV VALVE
BLOW-BY VAPOR

FRESH AIR
Inspection

1. Check the PCV hoses and connections for leaks and

clogging.

PCV HOSE

PCV VALVE

2.
BREATHER

PIPE

At idle, make sure there is a clicking sound from the

PCV valve when the hose between PCV valve and

intake manifold in lightly pinched with your fingers

or pliers.

Gently pinch here

If there is no clicking sound, check the PCV valve

grommet for cracks or damage. If the grommet is

OK, replace the PCV valve and recheck.
INTAKE

MANIFOLDProCarManuals.com

Emission Control System

Evaporative Emission (EVAP) Controls

Description

The evaporative emission controls are designed to minimize the amount of fuel vapor escaping to the atmosphere. The

system consists of the following components:

A. Evaporative Emission (EVAP) Control Canister

An EVAP control canister is used for the temporary storage of fuel vapor until the fuel vapor can be purged from the

EVAP control canister into the engine and burned.

B. Vapor Purge Control System

EVAP control canister purging is accomplished by drawing fresh air through the EVAP control canister and into a port

on the throttle body. The purging vacuum is controlled by the EVAP purge control solenoid valve.

'95 - 96 models:

EVAP PURGE CONTROL SOLENOID VALVE OFF AFTER

STARTING ENGINE

'97 - 98 models:

EVAP PURGE CONTROL SOLENOID VALVE DUTY CON-

TROLLED AFTER STARTING ENGINE

C. Fuel Tank Vapor Control System

When fuel vapor pressure in the fuel tank is higher than the set value of the EVAP two way valve, the valve opens and

regulates the flow of fuel vapor to the EVAP control canister.
ENGINE COOLANT TEMPERATURE ABOVE 167°F (75°C)

ENGINE COOLANT TEMPERATURE ABOVE 158°F (70°C)ProCarManuals.com

'95 - 96 models:

VARIOUS

SENSORS

From

No. 4 ECU
(ECM)

(20A) FUSE

(in the under-dash

fuse/relay box)

VARIOUS

SENSORS

EVAP

TWO WAY

VALVE
EVAP

BYPASS

SOLENOID

VALVE
EVAP

THREE

WAY

VALVE
EVAP CONTROL

CANISTER

VENT SHUT VALVE
EVAP PURGE

CONTROL

SOLENOID VALVE
ECM
ECM
From

No. 4 ECU
(ECM) (15A)

FUSE (in the under-dash

fuse/relay box)

EVAP CONTROL

CANISTER
FUEL

TANK

PRESSURE

SENSOR
FUEL TANK
FUEL FILL

CAP

FUEL TANK

EVAP VALVE
FUEL TANK

'97 - 98 models:
FUEL TANK

EVAP VALVE
EVAP TWO WAY VALVE

FRESH

AIR

FUEL FILL CAP
EVAP PURGE

FLOW SWITCH
EVAP PURGE

CONTROL

SOLENOID VALVEProCarManuals.com

Emission Contro l Syste m
Evaporativ e Emissio n (EVAP ) Control s (cont'd )

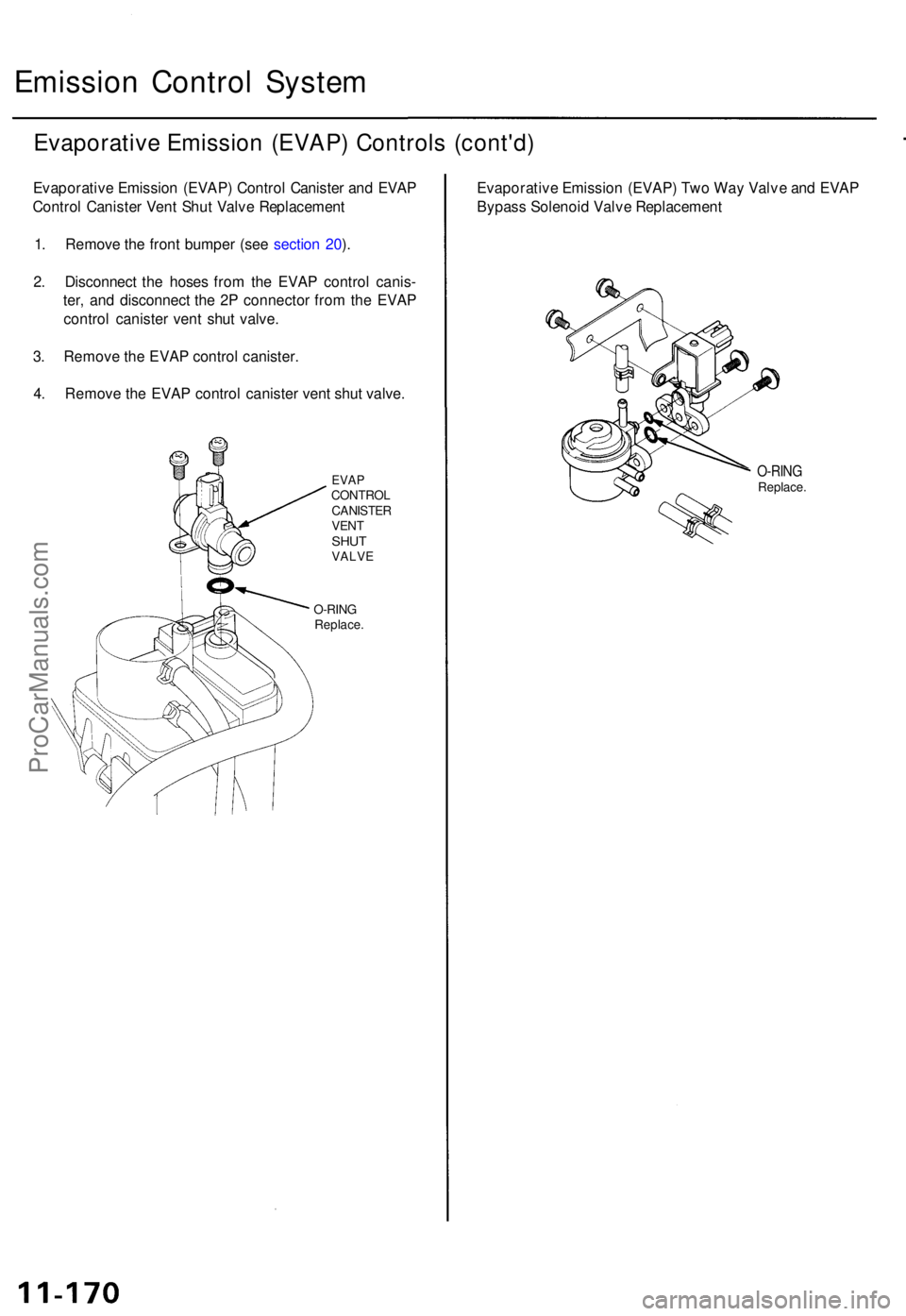

Evaporativ e Emissio n (EVAP ) Contro l Caniste r an d EVA P
Contro l Caniste r Ven t Shu t Valv e Replacemen t
1 . Remov e th e fron t bumpe r (se e sectio n 20 ).
2 . Disconnec t th e hose s fro m th e EVA P contro l canis -
ter , an d disconnec t th e 2 P connecto r fro m th e EVA P
contro l caniste r ven t shu t valve .
3 . Remov e th e EVA P contro l canister .
4 . Remov e th e EVA P contro l caniste r ven t shu t valve .
EVAPCONTRO L
CANISTE R
VEN T
SHU TVALV E
O-RIN G
Replace .
Evaporativ e Emissio n (EVAP ) Tw o Wa y Valv e an d EVA P
Bypas s Solenoi d Valv e Replacemen t
O-RINGReplace .
ProCarManuals.com

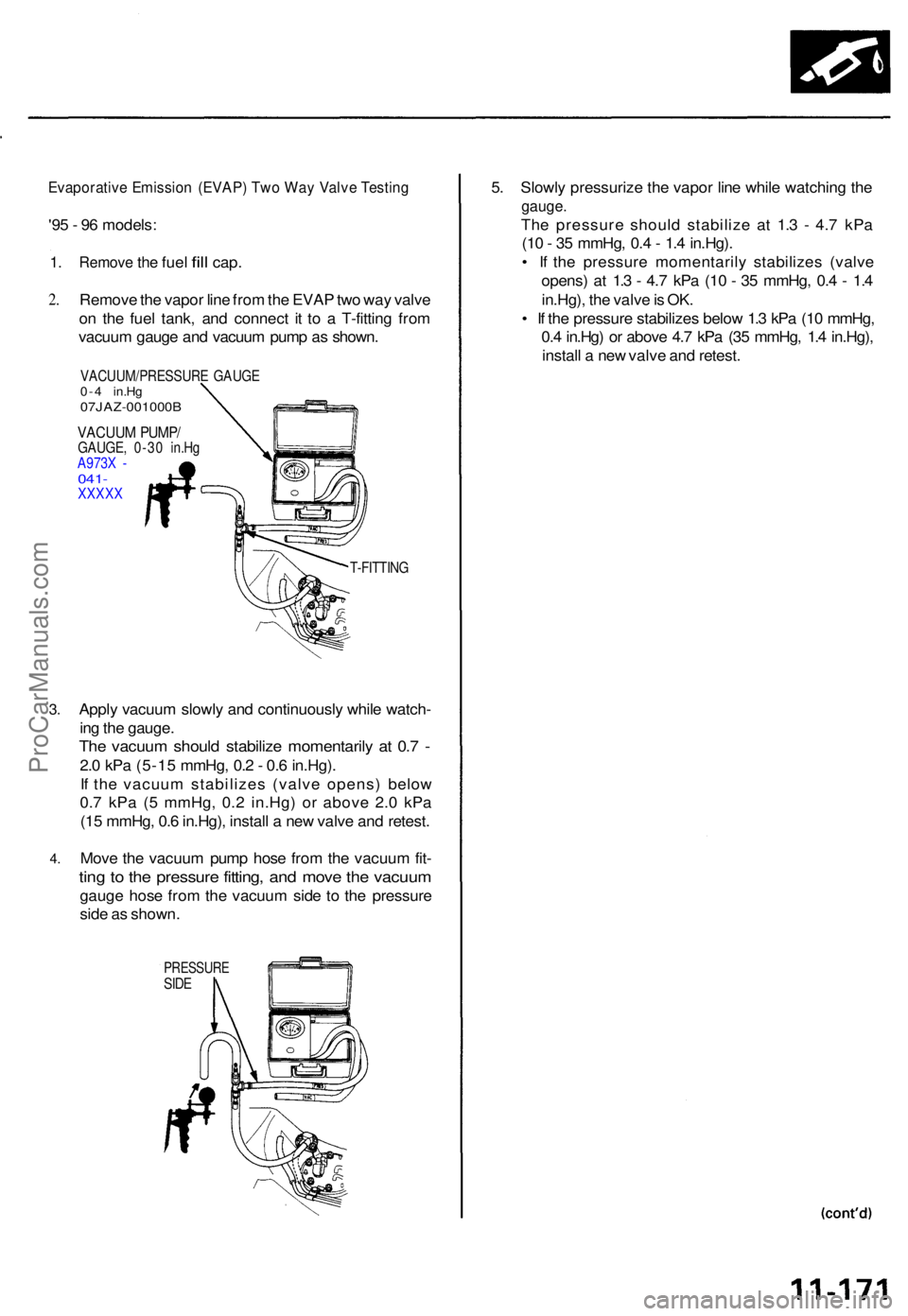

Evaporative Emissio n (EVAP ) Tw o Wa y Valv e Testin g
'95 - 9 6 models :
1. Remov e the fue l fill cap .
2.
3 .
4 .
Remov e th e vapo r lin e fro m th e EVA P tw o wa y valv e
o n th e fue l tank , an d connec t i t t o a T-fittin g fro m
vacuu m gaug e an d vacuu m pum p a s shown .
VACUUM/PRESSUR E GAUG E0-4 in.H g07JAZ-001000 B
VACUUM PUMP /GAUGE , 0-3 0 in.H g
A973 X -
041 -XXXX X
T-FITTING
Apply vacuu m slowl y an d continuousl y whil e watch -
in g th e gauge .
The vacuu m shoul d stabiliz e momentaril y a t 0. 7 -
2. 0 kP a (5-1 5 mmHg , 0. 2 - 0. 6 in.Hg) .
I f th e vacuu m stabilize s (valv e opens ) belo w
0. 7 kP a ( 5 mmHg , 0. 2 in.Hg ) o r abov e 2. 0 kP a
(1 5 mmHg , 0. 6 in.Hg) , instal l a ne w valv e an d retest .
Mov e th e vacuu m pum p hos e fro m th e vacuu m fit -
ting to th e pressur e fitting , an d mov e th e vacuu m
gauge hos e fro m th e vacuu m sid e t o th e pressur e
sid e a s shown .
PRESSUR ESIDE
5. Slowl y pressuriz e th e vapo r lin e whil e watchin g th e
gauge .
The pressur e shoul d stabiliz e a t 1. 3 - 4. 7 kP a
(1 0 - 3 5 mmHg , 0. 4 - 1. 4 in.Hg) .
• I f th e pressur e momentaril y stabilize s (valv e
opens ) a t 1. 3 - 4. 7 kP a (1 0 - 3 5 mmHg , 0. 4 - 1. 4
in.Hg) , th e valv e is OK .
• I f th e pressur e stabilize s belo w 1. 3 kP a (1 0 mmHg ,
0. 4 in.Hg ) o r abov e 4. 7 kP a (3 5 mmHg , 1. 4 in.Hg) ,
instal l a ne w valv e an d retest .
ProCarManuals.com

Emission Contro l Syste m
Evaporativ e Emissio n (EVAP ) Control s (cont'd )

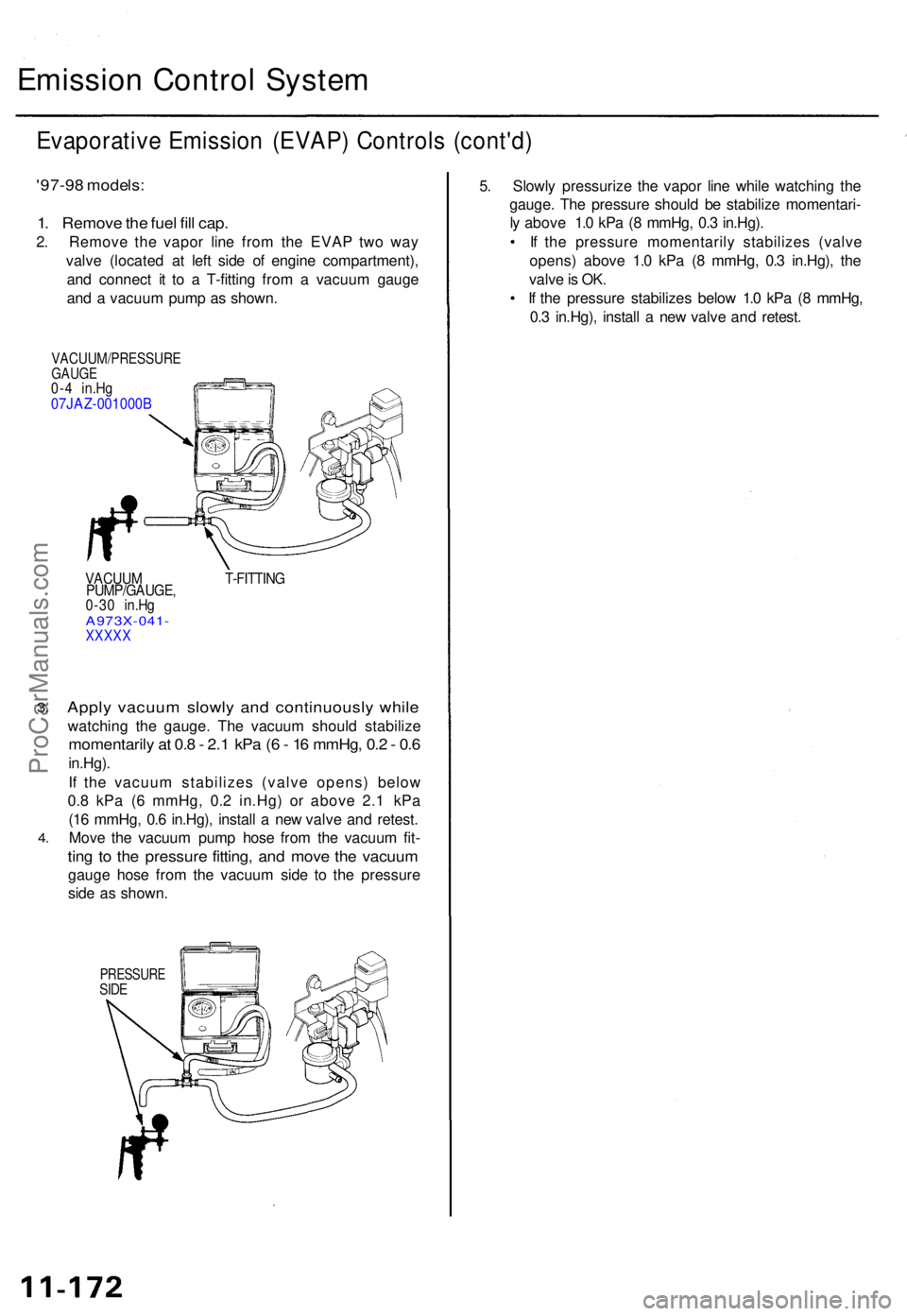

'97-98 models :
1. Remov e th e fue l fil l cap .
2. Remov e th e vapo r lin e fro m th e EVA P tw o wa y
valv e (locate d a t lef t sid e o f engin e compartment) ,
an d connec t i t t o a T-fittin g fro m a vacuu m gaug e
an d a vacuu m pum p a s shown .
VACUUM/PRESSUR EGAUGE0-4 in.H g07JAZ-001000 B
3.
4 .
VACUU M T-FITTIN G
PUMP/GAUGE ,
0-3 0 in.H g
A973X-041 -XXXXX
Apply vacuu m slowl y an d continuousl y whil e
watchin g th e gauge . Th e vacuu m shoul d stabiliz e
momentaril y a t 0. 8 - 2. 1 kP a ( 6 - 1 6 mmHg , 0. 2 - 0. 6
in.Hg) .
I f th e vacuu m stabilize s (valv e opens ) belo w
0. 8 kP a ( 6 mmHg , 0. 2 in.Hg ) o r abov e 2. 1 kP a
(1 6 mmHg , 0. 6 in.Hg) , instal l a ne w valv e an d retest .
Mov e th e vacuu m pum p hos e fro m th e vacuu m fit -
ting t o th e pressur e fitting , an d mov e th e vacuu m
gauge hos e fro m th e vacuu m sid e t o th e pressur e
sid e a s shown .
PRESSUR ESIDE
5. Slowl y pressuriz e th e vapo r lin e whil e watchin g th e
gauge . Th e pressur e shoul d b e stabiliz e momentari -
l y abov e 1. 0 kP a ( 8 mmHg , 0. 3 in.Hg) .
• I f th e pressur e momentaril y stabilize s (valv e
opens ) abov e 1. 0 kP a ( 8 mmHg , 0. 3 in.Hg) , th e
valv e is OK .
• I f th e pressur e stabilize s belo w 1. 0 kP a ( 8 mmHg ,
0. 3 in.Hg) , instal l a ne w valv e an d retest .
ProCarManuals.com

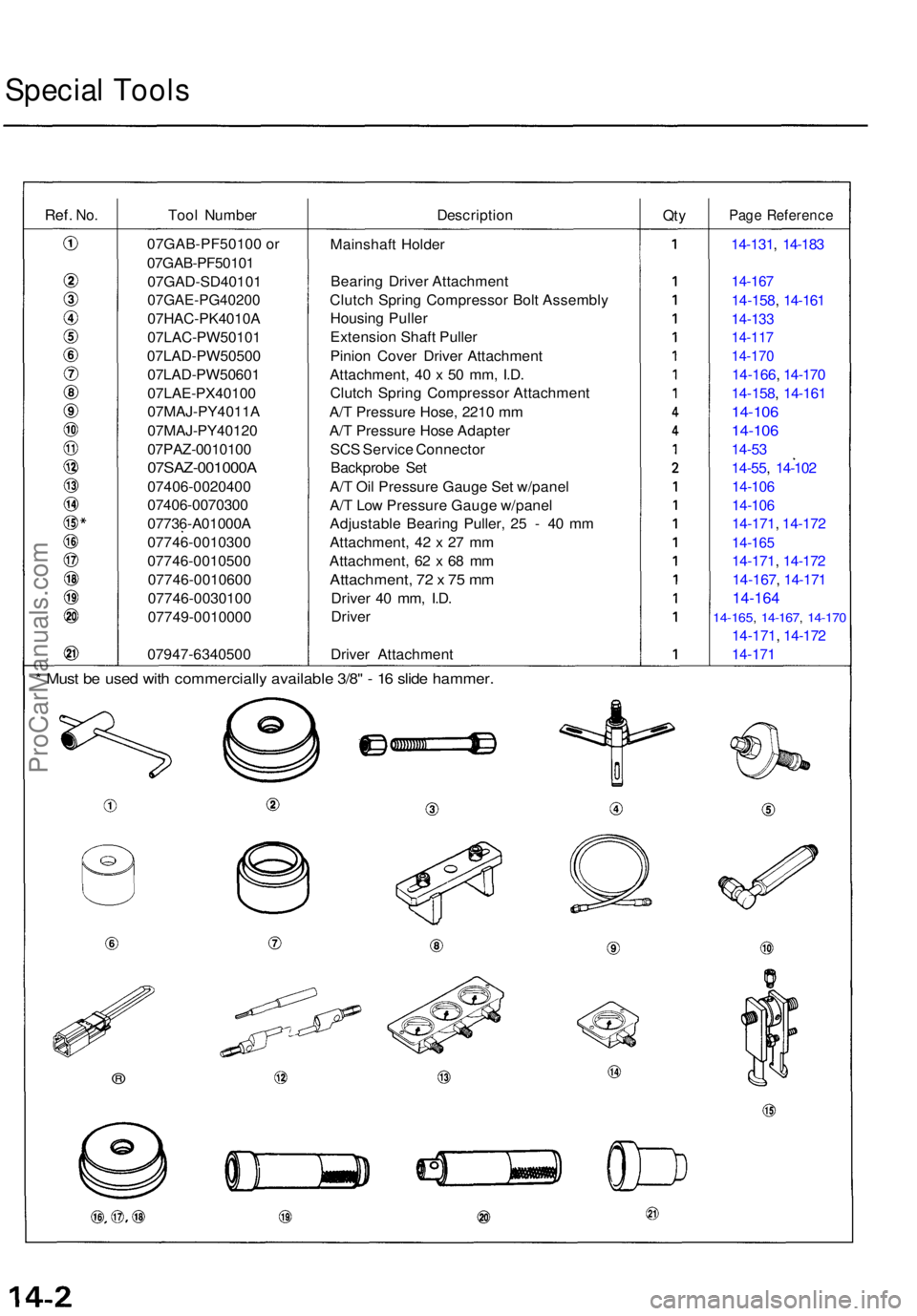

Special Tool s
Ref. No.Too l Numbe rDescriptio nQtyPag e Referenc e
07GAB-PF50100 o r
07GAB-PF50101
07GAD-SD4010 1
07GAE-PG4020 0
07HAC-PK4010A
07LAC-PW5010 1
07LAD-PW5050 0
07LAD-PW5060 1
07LAE-PX4010 0
07MAJ-PY4011 A
07MAJ-PY4012 0
07PAZ-001010 0
07SAZ-001000A
07406-0020400
07406-0070300
07736-A01000 A
07746-0010300
07746-0010500
07746-0010600
07746-0030100
07749-0010000
07947-6340500
Mainshaf t Holde r
Bearin g Drive r Attachmen t
Clutc h Sprin g Compresso r Bol t Assembl y
Housin g Pulle r
Extensio n Shaf t Pulle r
Pinio n Cove r Drive r Attachmen t
Attachment , 4 0 x 5 0 mm , I.D .
Clutc h Sprin g Compresso r Attachmen t
A/ T Pressur e Hose , 221 0 m m
A/ T Pressur e Hos e Adapte r
SC S Servic e Connecto r
Backprob e Se t
A/ T Oi l Pressur e Gaug e Se t w/pane l
A/ T Lo w Pressur e Gaug e w/pane l
Adjustabl e Bearin g Puller , 2 5 - 4 0 m m
Attachment , 4 2 x 2 7 m m
Attachment , 6 2 x 68 m m
Attachment , 7 2 x 7 5 m m
Drive r 4 0 mm , I.D .
Drive r
Driver Attachmen t 14-131
, 14-18 3
14-16 7
14-158 , 14-16 1
14-13 3
14-11 7
14-17 0
14-166 , 14-17 0
14-158 , 14-16 1
14-10 6
14-10 6
14-53
14-55 , 14-10 2
14-10 6
14-10 6
14-171 , 14-17 2
14-16 5
14-171 , 14-17 2
14-167 , 14-17 1
14-16 4
14-165 , 14-167 , 14-170
14-171 , 14-17 2
14-17 1
* Mus t b e use d wit h commerciall y availabl e 3/8 " - 1 6 slid e hammer .
®
ProCarManuals.com

Description

The automatic transmission is a combination of a 3-element torque converter and a dual-shaft electronically controlled

automatic transmission which provides 4 speeds forward and 1 reverse. The entire unit is positioned in line with the engine.

Torque Converter, Gears and Clutches

The torque converter consists of a pump, turbine and stator, assembled in a single unit.

They are connected to the engine crankshaft so they turn together as a unit as the engine turns.

Around the outside of the drive plate is a ring gear which meshes with the starter pinion when the engine is being started.

The entire torque converter assembly serves as a flywheel while transmitting power to the transmission mainshaft.

The transmission has two parallel shafts: the mainshaft and the countershaft. The mainshaft is in line with the engine

crankshaft.

The mainshaft includes the 1st, 2nd and 4th clutches, and gears for 4th, 2nd, 1st and reverse (3rd gear is integral with the

mainshaft, while the reverse gear is integral with 4th gear).

The countershaft includes the 3rd, and 1st-hold clutches, and gears for 3rd, 4th, 1st, 2nd, reverse, and parking. The sec-

ondary drive gear is integrated with the countershaft.

The gears on the mainshaft are in constant mesh with those on the countershaft.

When certain combinations of gears in the transmission are engaged by clutches, power is transmitted from the mainshaft

to the countershaft to provide and positions.

Electronic Control

The electronic control system consists of the Transmission Control Module (TCM), sensors, a linear solenoid and four

solenoid valves. Shifting and lock-up are electronically controlled for comfortable driving under all conditions.

The TCM is located below the dashboard, behind the glove box on the passenger's side.

Hydraulic Control

The lower valve body assembly includes the main valve body, the servo body and the shift control solenoid valves. They

are bolted on the lower part of the transmission housing.

Other valve bodies, the regulator valve body, the ATF pump body, the 2nd accumulator body, and the throttle valve body,

are bolted to the torque converter housing.

The main valve body contains the manual valve, the 1 - 2 shift valve, the 2 - 3 shift valve, the 3 - 4 shift valve, the 4th kick-

down valve, the 2 - 3 orifice control valve, the 3 - 4 orifice control valve, the 4th exhaust valve, the servo control valve,

and the main orifice control valve.

The servo body contains the servo valve, 3rd and 4th accumulator pistons.

The regulator valve body contains the regulator valve, the lock-up shift valve, and the cooler relief valve.

Fluid from the regulator passes through the manual valve to the various control valves.

The throttle valve body includes the throttle valve which is bolted onto the 2nd accumulator body. The 2nd accumulator

piston is assembled in the 2nd accumulator body.

The linear solenoid is joined with the throttle valve body.

The ATF pump body contains the modulator valve, the lock-up control valve, the lock-up timing valve, and the relief valve.

The torque converter check valve is located in the torque converter housing under the ATF pump body.

The 1st and 1st-hold accumulator pistons are assembled in the rear cover.

The clutches receive fluid from their respective feed pipes or internal hydraulic circuit.

Shift Control Mechanism

Input from various sensors located throughout the vehicle determines which shift control solenoid valve the TCM will acti-

vate. Activating a shift control solenoid valve changes modulator pressure, causing a shift valve to move. This pressurizes

a line to one of the clutches, engaging that clutch and its corresponding gear.

Lock-up Mechanism

In position, in 2nd, 3rd and 4th, and in position in 3rd, pressurized fluid is drained from the back of the torque con-

verter through a fluid passage, causing the lock-up piston to be held against the torque converter cover. As this takes place,

the mainshaft rotates at the same speed as the engine crankshaft. Together with hydraulic control, the TCM optimizes the

timing of the lock-up mechanism. The lock-up valves control the range of lock-up according to lock-up control solenoid

valves A and B, and throttle valve. When lock-up control solenoid valves A and B activate, the modulator pressure changes.

The lock-up control solenoid valves A and B are mounted on the torque converter housing, and are controlled by the TCM.ProCarManuals.com
