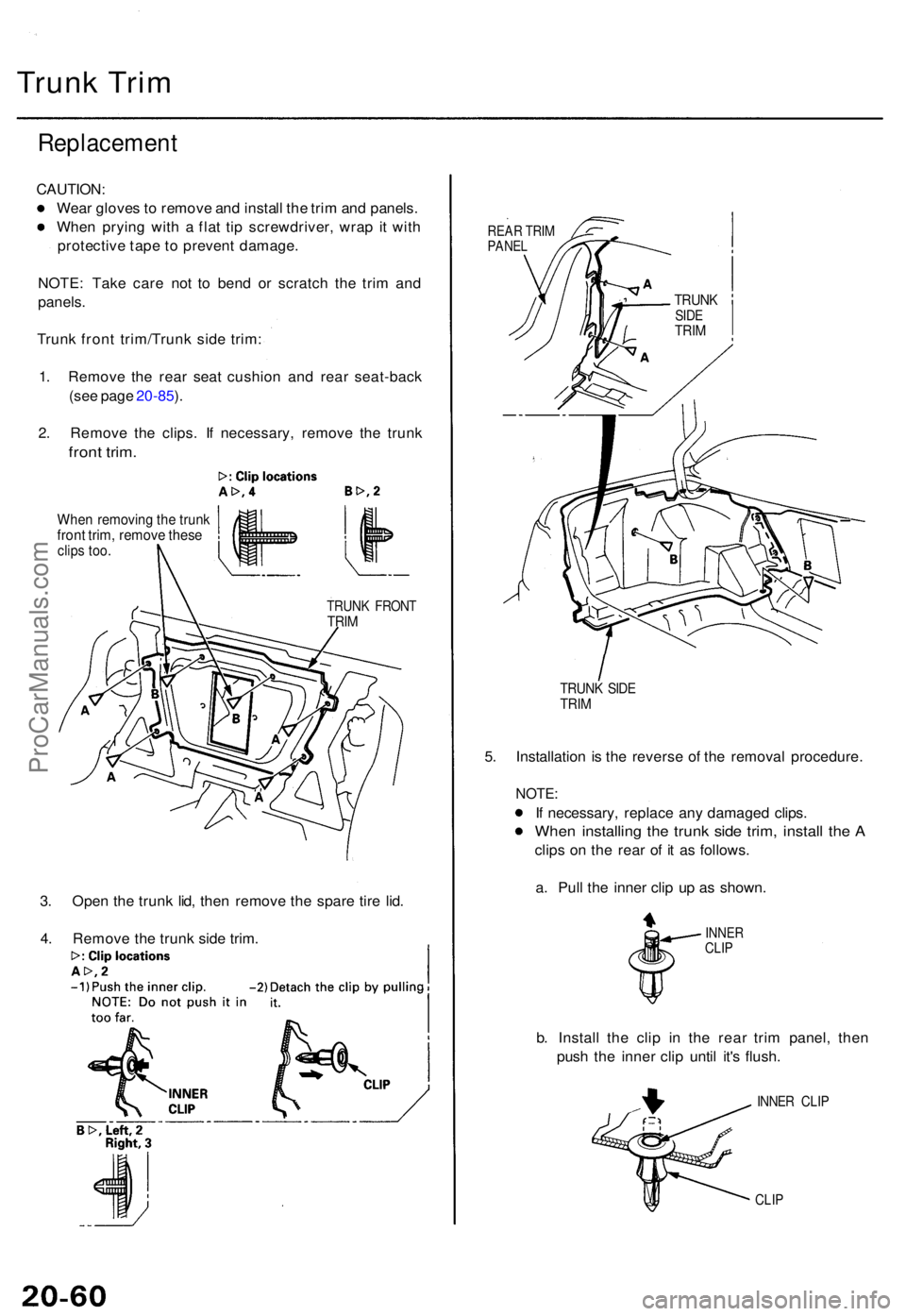

1995 ACURA TL Service Repair Manual

Trunk Tri m
Replacemen t
CAUTION:
Wea r glove s to remov e an d instal l th e tri m an d panels .
Whe n pryin g wit h a fla t ti p screwdriver , wra p it wit h
protectiv e tap e t o preven t damage .
NOTE : Tak e car e no t t o ben d o r scratc h th e tri m an d
panels .
Trun k fron t trim/Trun k sid e trim :
1 . Remov e th e rea r sea t cushio n an d rea r seat-bac k
(se e pag e 20-85 ).
2 . Remov e th e clips . I f necessary , remov e th e trun k
front trim .
Whe n removin g th e trun kfront trim , remov e thes eclips too .
TRUN K FRON TTRIM
3. Ope n th e trun k lid , the n remov e th e spar e tir e lid .
4 . Remov e th e trun k sid e trim .
REA R TRI MPANE L
TRUNK SID ETRIM
5. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
If necessary , replac e an y damage d clips .
When installin g th e trun k sid e trim , instal l th e A
clip s o n th e rea r o f i t a s follows .
a . Pul l th e inne r cli p u p a s shown .
INNERCLIP
b. Instal l th e cli p i n th e rea r tri m panel , the n
pus h th e inne r cli p unti l it' s flush .
INNER CLI P
CLIP
TRUN KSIDETRI M
ProCarManuals.com

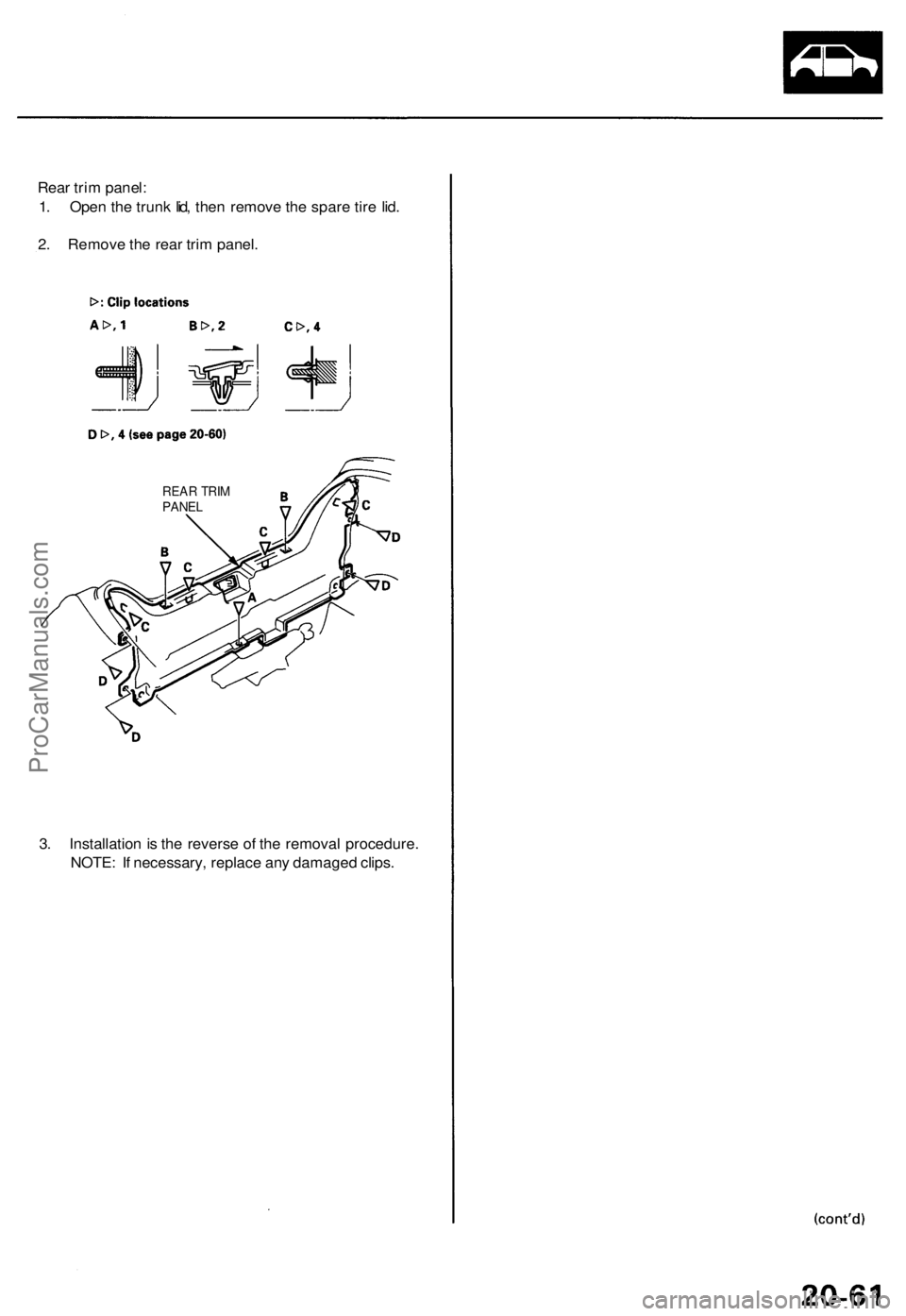

Rear trim panel:

1. Open the trunk lid, then remove the spare tire lid.

2. Remove the rear trim panel.

REAR TRIM

PANEL

3. Installation is the reverse of the removal procedure.

NOTE: If necessary, replace any damaged clips.ProCarManuals.com

Headliner
Replacemen t
CAUTION: Whe n pryin g wit h a fla t ti p screwdriver , wra p
i t wit h protectiv e tap e t o preven t damage .
NOTE:
Take car e no t t o ben d an d scratc h th e headliner .
B e carefu l no t t o damag e th e dashboar d an d othe r inte -
rior trim .
1. Remove :
Fron t an d rea r doo r sil l molding s (on e side , se e
pag e 20-57 )
Fron t an d rea r doo r tri m (bot h sides , se e page s
20-57 ,20- 58)
Fron t pilla r tri m (on e side , se e pag e 20-58 )
Cente r pilla r lowe r tri m (on e side , se e pag e 20-57 )
Rea r pilla r tri m (on e side , se e pag e 20-59 )
Spotligh t an d spotligh t tri m (se e pag e 20-35 )
Rearvie w mirro r (se e pag e 20-35 )
Ceilin g ligh t (se e sectio n 23 )
Window antenna termina l cove r (se e pag e 20-43 )
2 . Remov e th e sunviso r an d holde r fro m eac h side .
Disconnec t bot h positiv e terminals .
HOLDERPOSITIV ETERMINA L
SUNVISOR
NOTE:
• I f necessary , remov e th e sunviso r bracke t a s
shown .
• Whe n installin g th e sunviso r bracket , appl y greas e
an d mak e sur e it' s installe d properly .
Pull ou t th e wir e harness .
SUNVISO RBRACKETTUBE
SUNVISO R
ProCarManuals.com

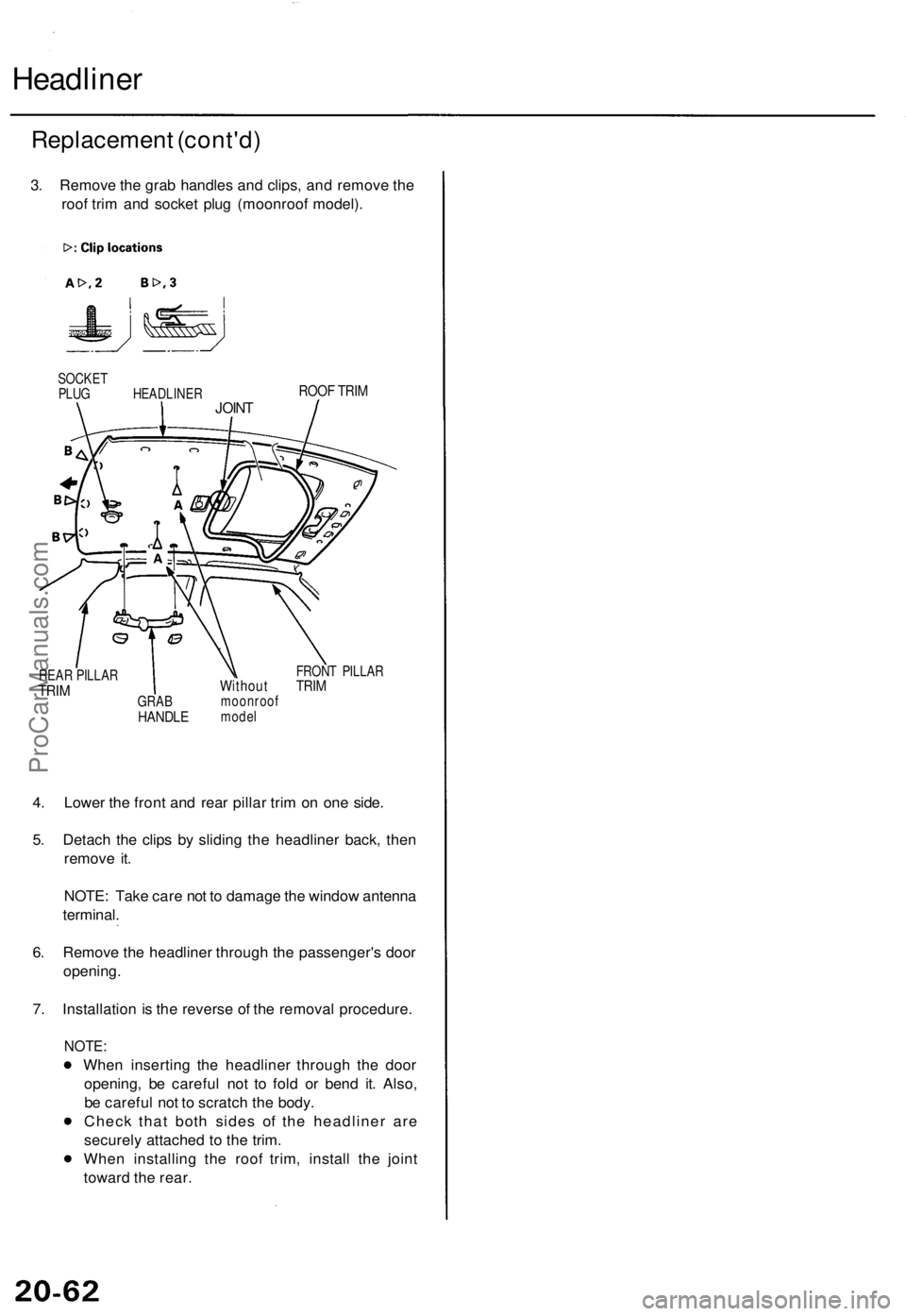

Headliner
Replacemen t (cont'd )
3. Remov e th e gra b handle s an d clips , an d remov e th e
roo f tri m an d socke t plu g (moonroo f model) .
SOCKE T
PLU G HEAD LINER
REA R PILLA R
TRIM
ROO F TRI M
GRA BHANDL E
FRONT PILLA RWithou t TRI Mmoonroo fmodel
4. Lowe r th e fron t an d rea r pilla r tri m o n on e side .
5 . Detac h th e clip s b y slidin g th e headline r back , the n
remov e it .
NOTE : Tak e car e no t t o damag e th e windo w antenn a
terminal .
6 . Remov e th e headline r throug h th e passenger' s doo r
opening .
7 . Installatio n is th e revers e o f th e remova l procedure .
NOTE:
When insertin g th e headline r throug h th e doo r
opening , b e carefu l not to fol d o r ben d it . Also ,
b e carefu l no t t o scratc h th e body .
Chec k tha t bot h side s o f th e headline r ar e
securel y attache d t o th e trim .
Whe n installin g th e roo f trim , instal l th e join t
towar d th e rear .
JOINT
ProCarManuals.com

Carpet
Replacemen t
SRS component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S (sectio n 24 ) befor e performin g repair s o r service .
1 . Remove :
Fron t sea t (se e pag e 20-71 )
Rea r sea t cushio n (se e pag e 20-85 )
Fron t doo r sil l moldin g (se e pag e 20-57 )
Rea r doo r sil l moldin g (se e pag e 20-57 )
Fron t sea t bel t lowe r ancho r (se e pag e 20-88 )
Cente r pilla r lowe r tri m (se e pag e 20-57 )
Cente r consol e (se e pag e 20-64 )
Dashboar d cente r tri m (se e pag e 20-67 )
Opene r cove r (se e pag e 20-115 )
2 . Remov e th e accelerato r peda l sto p an d footrest .
NOTE : Loose n th e clip s usin g a he x wrenc h b y
turnin g the m counterclockwise .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
3. Cu t are a i n th e carpet , the n pul l i t bac k a s shown .
CARPE T
FASTENE RSRS UNI T
FOOTRES T
ACCELERATO RPEDAL STO PCLIP
ProCarManuals.com

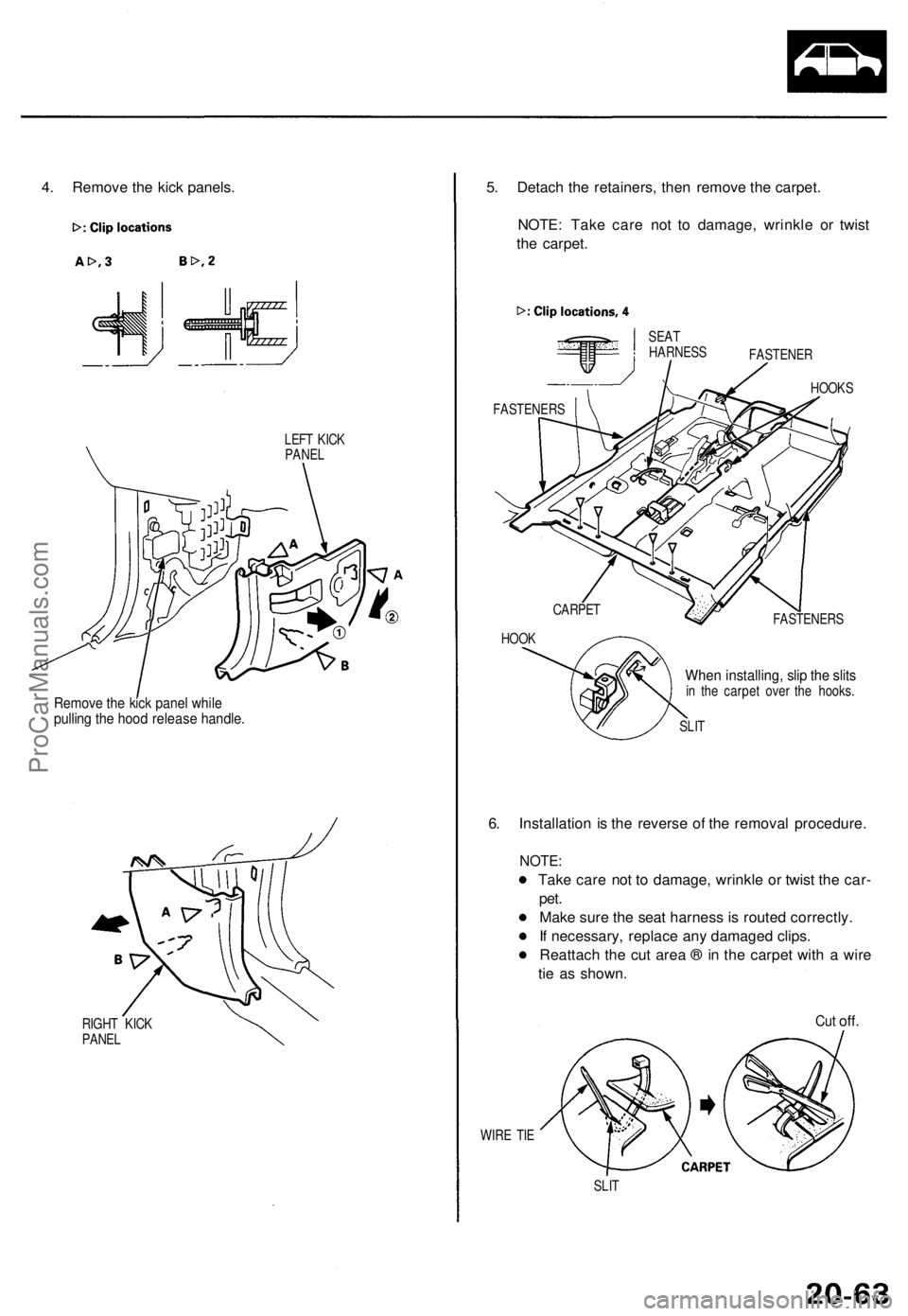

4. Remove the kick panels.

LEFT KICK

PANEL

Remove the kick panel while

pulling the hood release handle.

RIGHT KICK

PANEL
5. Detach the retainers, then remove the carpet.

NOTE: Take care not to damage, wrinkle or twist

the carpet.

CARPET

HOOK
FASTENERS

When installing, slip the slits

in the carpet over the hooks.

SLIT

6. Installation is the reverse of the removal procedure.

NOTE:

Take care not to damage, wrinkle or twist the car-

pet.

Make sure the seat harness is routed correctly.

If necessary, replace any damaged clips.

Reattach the cut area ® in the carpet with a wire

tie as shown.

Cut
off.

WIRE TIE

SLIT
SEAT

HARNESS

FASTENERS
FASTENER

HOOKSProCarManuals.com

Center Console

Replacement

CAUTION: When prying with a flat tip screwdriver, wrap

it with protective tape to prevent damage.

NOTE: Take care not to scratch the center console, front

seat and related parts.

Center console/Center console panel removal:

1. Slide the front seats backward fully.

2. Remove the A/T gear position indicator trim, and

disconnect the indicator light.

INDICATOR

LIGHT

A/T GEAR POSITION

INDICATOR TRIM

3. Open the armrest, then remove the inner mat and

remove the ashtray.

ASHTRAY

CIGARETTE

LIGHTER

CONNECTOR CENTER CONSOLE

ARMREST

4. Remove the screws, then remove the center con-

sole. Disconnect the cigarette lighter connector.
5. Remove the screws from under the center console.

CENTER

CONSOLE

ASHTRAY

BASE

6. Detach the clips, then remove the center console

panel.

ASHTRAY

BASE
CENTER CONSOLE

PANEL

7. Installation is the reverse of the removal procedure.

NOTE:

Make sure the wire harnesses are not pinched.

Make sure the connector is connected properly.

Beverage holder removal:

Detach the clips, then pull it up.

CENTER

CONSOLE

PANEL

CLIP

BEVERAGE

HOLDER
INNER

MAT
HOOK
CENTER CONSOLEProCarManuals.com

Dashboard
Componen t Removal/Installatio n
CAUTION: Whe n pryin g wit h a fla t ti p screwdriver , wra p
i t wit h protectiv e tape , an d appl y protectiv e tap e aroun d
th e relate d parts , t o preven t damage .
NOTE : Tak e car e no t t o scratc h th e dashboar d an d relate d
parts .
Instrumen t pane l removal :
1 . Lowe r th e steerin g column .
2 . Remov e th e screws , an d detac h th e clips , the n care -
fully pul l ou t th e instrumen t panel . Disconnec t th e
cloc k an d hazar d warnin g switc h connectors , the n
remov e th e instrumen t panel .
NOTE : Remov e th e lowe r screw s whil e peelin g
bac k th e lip .
INSTRUMEN TPANELCONNECTO R(CLOCK)
HAZARD WARNIN GSWITCH CONNECTO R
LIPPee l back .
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e connector s ar e connecte d
properly . Dashboar
d lowe r cove r an d kne e bolste r removal :
SR S component s ar e locate d in thi s area . Revie w th e SR S
componen t locations , precautions , an d procedure s i n th e
SR S (sectio n 24 ) befor e performin g repair s o r service .
1 . Remov e th e screws , an d detac h th e clips , the n
remov e th e dashboar d lowe r cover .
DASHBOAR DLOWER COVE R2. Remov e th e bolts , detac h th e harnes s clip s an d con -
necto r clip , the n remov e th e kne e bolster .
SRS MAI NHARNES S6 x 1. 0 m m9.8 N- m(1.0 kgf-m ,7.2 Ibf-ft )
KNEE BOLSTE R
3. Installatio n i s th e revers e o f th e remova l procedure .
CLIPS
