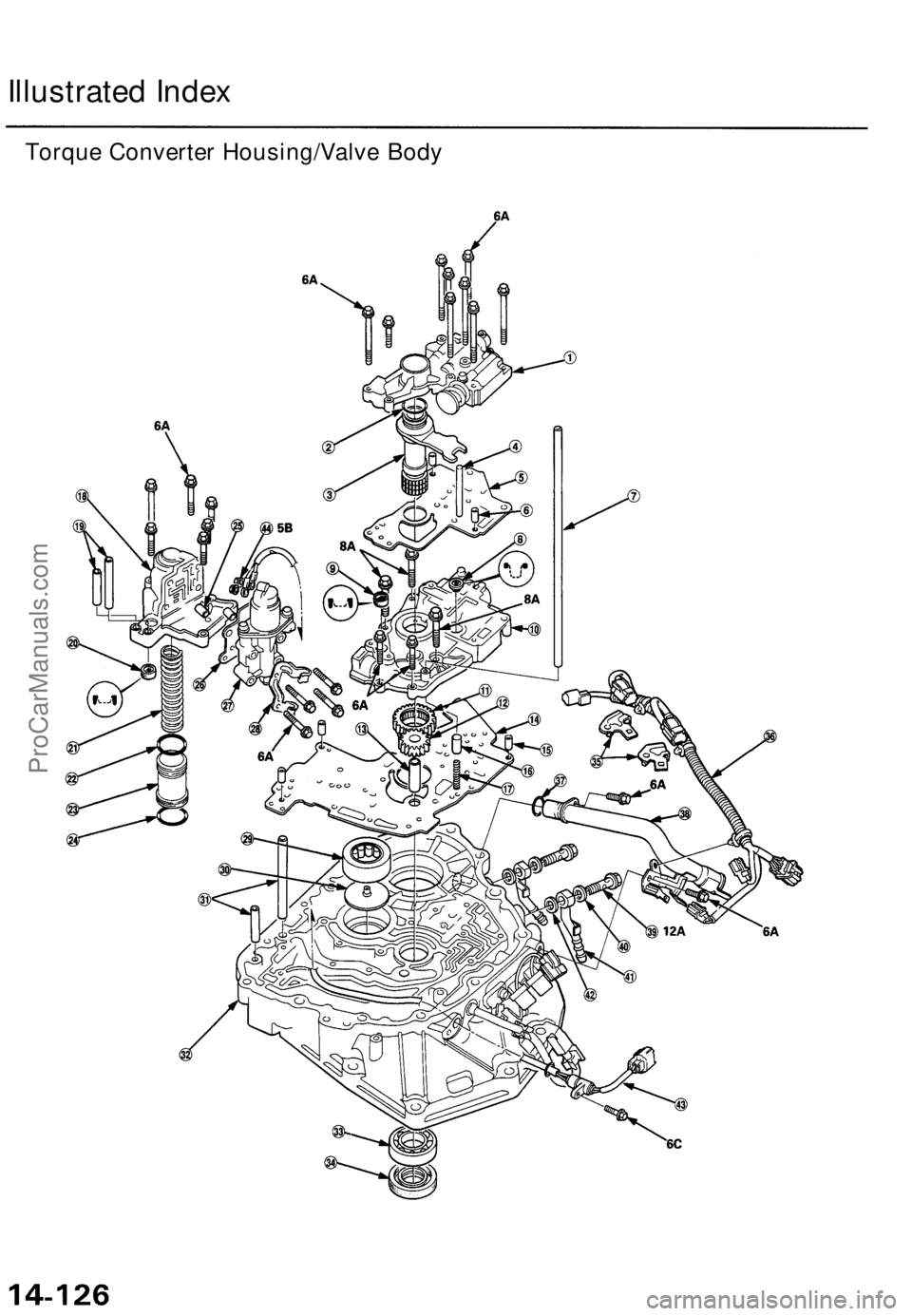

Page 1017 of 1771
Illustrated Index
Torque Converter Housing/Valve BodyProCarManuals.com

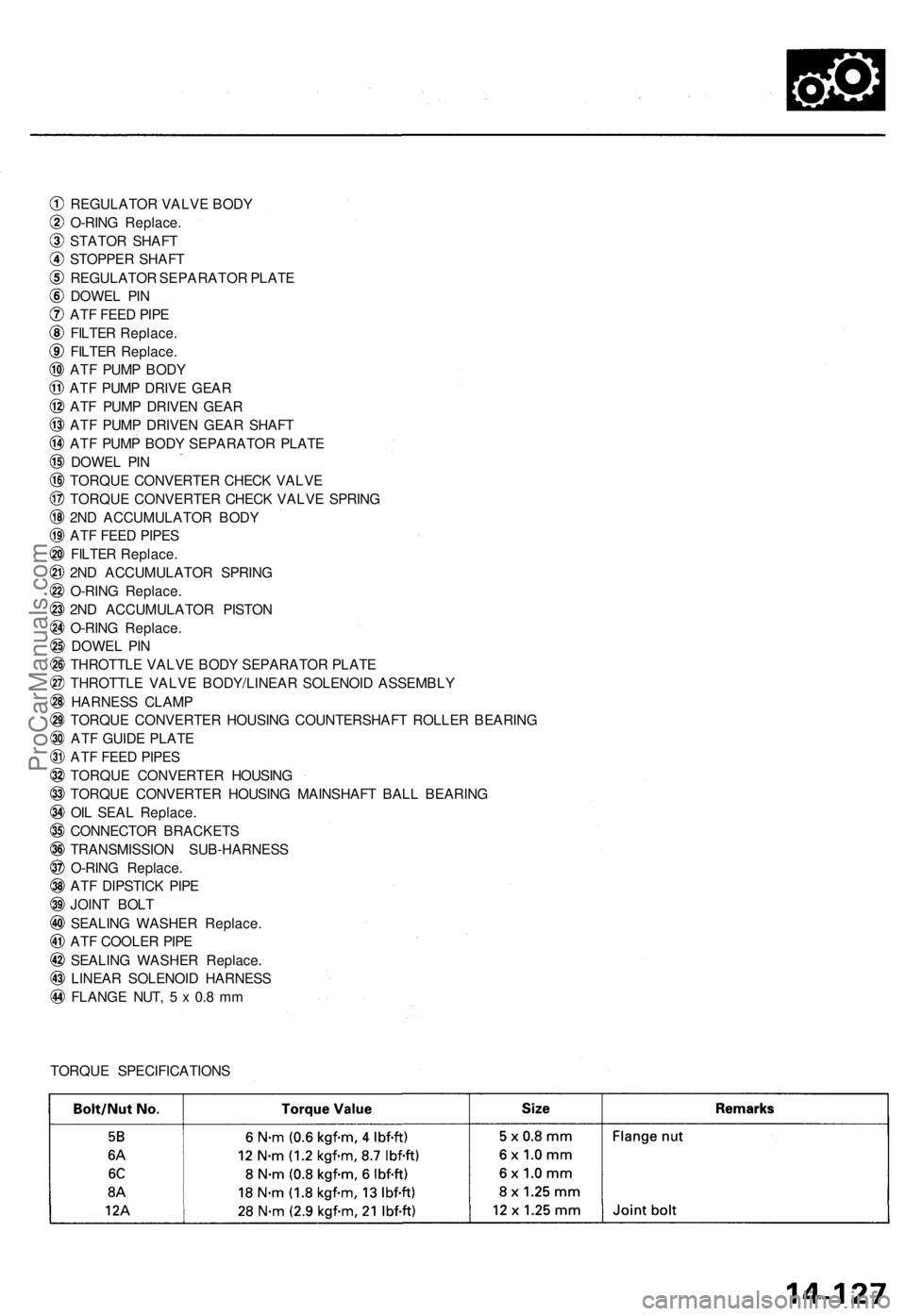

Page 1018 of 1771

REGULATOR VALV E BOD Y
O-RIN G Replace .
STATO R SHAF T
STOPPE R SHAF T
REGULATO R SEPARATO R PLAT E
DOWE L PI N
AT F FEE D PIP E
FILTE R Replace .
FILTE R Replace .
AT F PUM P BOD Y
AT F PUM P DRIV E GEA R
AT F PUM P DRIVE N GEA R
AT F PUM P DRIVE N GEA R SHAF T
AT F PUM P BOD Y SEPARATO R PLAT E
DOWE L PI N
TORQU E CONVERTE R CHEC K VALV E
TORQU E CONVERTE R CHEC K VALV E SPRIN G
2N D ACCUMULATO R BOD Y
AT F FEE D PIPE S
FILTE R Replace .
2N D ACCUMULATO R SPRIN G
O-RIN G Replace .
2N D ACCUMULATO R PISTO N
O-RIN G Replace .
DOWE L PI N
THROTTL E VALV E BOD Y SEPARATO R PLAT E
THROTTL E VALV E BODY/LINEA R SOLENOI D ASSEMBL Y
HARNES S CLAM P
TORQU E CONVERTE R HOUSIN G COUNTERSHAF T ROLLE R BEARIN G
AT F GUID E PLAT E
AT F FEE D PIPE S
TORQU E CONVERTE R HOUSIN G
TORQU E CONVERTE R HOUSIN G MAINSHAF T BAL L BEARIN G
OI L SEA L Replace .
CONNECTO R BRACKET S
TRANSMISSIO N SUB-HARNES S
O-RIN G Replace .
AT F DIPSTIC K PIP E
JOIN T BOL T
SEALIN G WASHE R Replace .
AT F COOLE R PIP E
SEALIN G WASHE R Replace .
LINEA R SOLENOI D HARNES S
FLANG E NUT , 5 x 0. 8 m m
TORQU E SPECIFICATION S
ProCarManuals.com

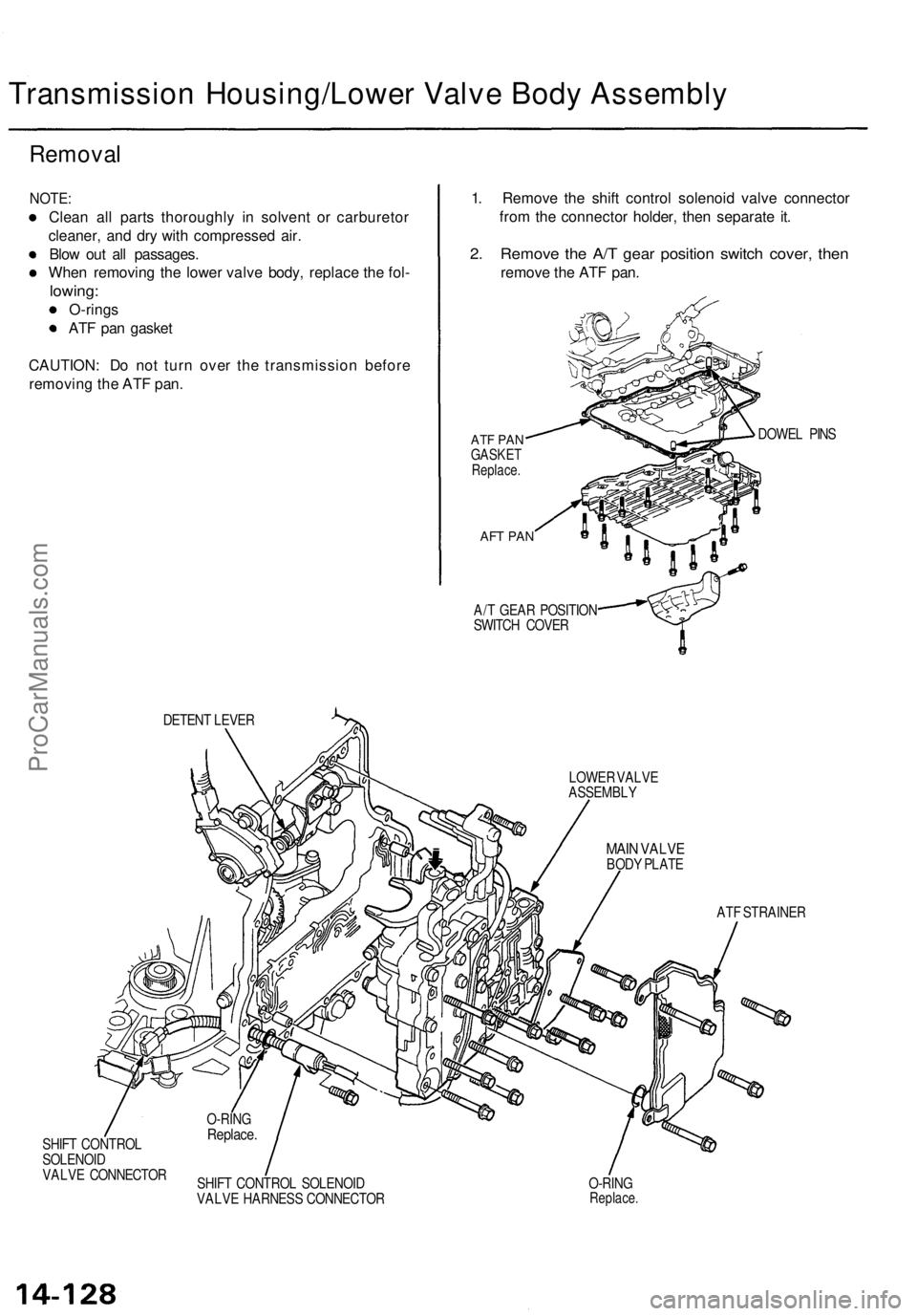

Page 1019 of 1771
Transmission Housing/Lower Valve Body Assembly
Removal
NOTE:
Clean all parts thoroughly in solvent or carburetor
cleaner, and dry with compressed air.
Blow out all passages.
When removing the lower valve body, replace the fol-
lowing:
O-rings
ATF pan gasket
CAUTION: Do not turn over the transmission before
removing the ATF pan.
1. Remove the shift control solenoid valve connector
from the connector holder, then separate it.
2. Remove the A/T gear position switch cover, then
remove the ATF pan.
ATF PAN
GASKET
Replace.
AFT PAN
A/T GEAR POSITION
SWITCH COVER
DOWEL PINS
DETENT LEVER
SHIFT CONTROL
SOLENOID
VALVE CONNECTOR
LOWER VALVE
ASSEMBLY
MAIN VALVE
BODY PLATE
SHIFT CONTROL SOLENOID
VALVE HARNESS CONNECTOR
O-RING
Replace.
ATF STRAINER
O-RING
Replace.ProCarManuals.com

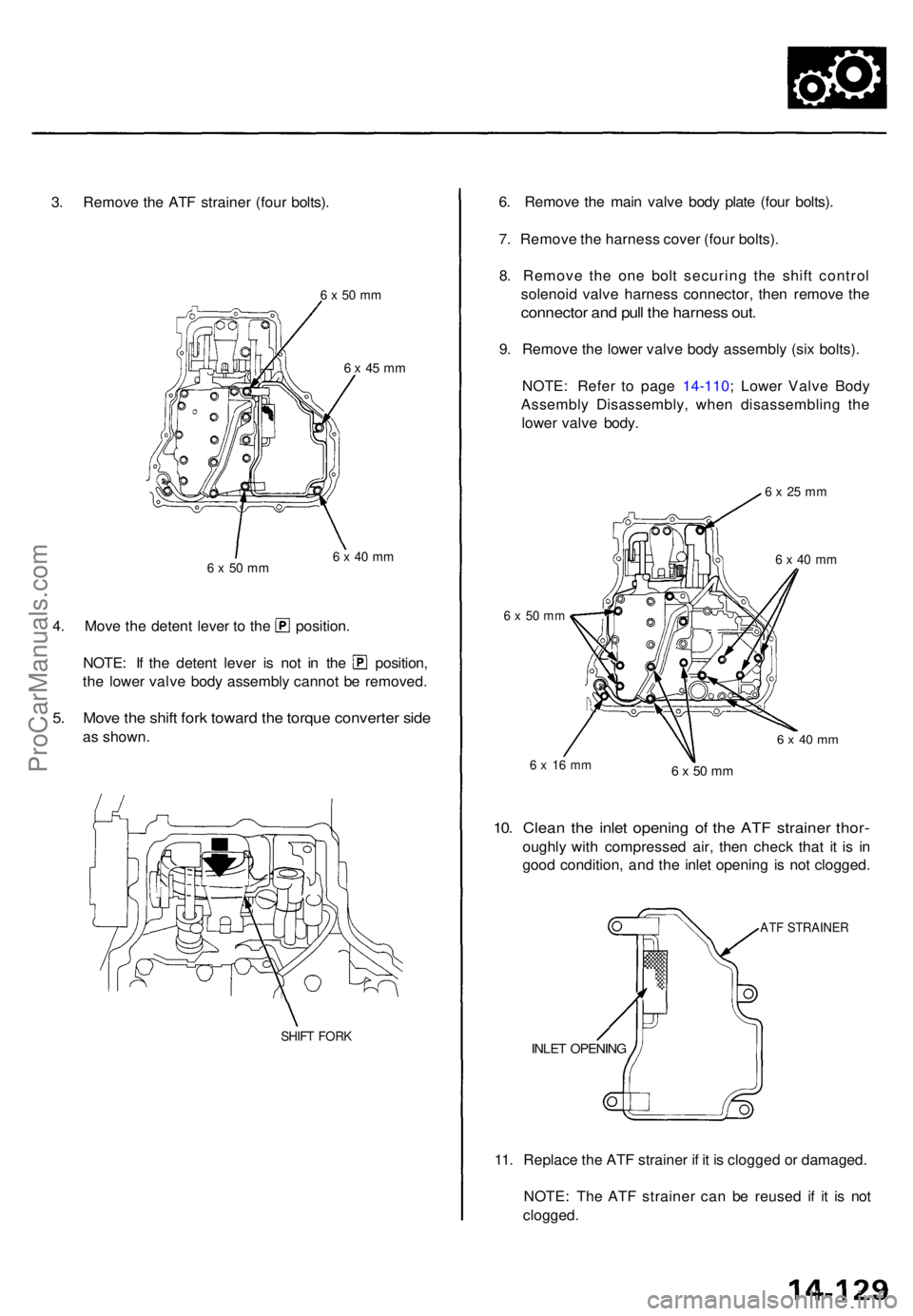

Page 1020 of 1771

3. Remov e th e AT F straine r (fou r bolts) .
6 x 50 m m
6 x 4 5 m m
6 x 50 m m6 x 40 m m
4. Mov e th e deten t leve r t o th e position .
NOTE: I f th e deten t leve r i s no t i n th e position ,
th e lowe r valv e bod y assembl y canno t b e removed .
5. Mov e th e shif t for k towar d th e torqu e converte r sid e
as shown .
SHIFT FOR K
6. Remov e th e mai n valv e bod y plat e (fou r bolts) .
7 . Remov e th e harnes s cove r (fou r bolts) .
8 . Remov e th e on e bol t securin g th e shif t contro l
solenoi d valv e harnes s connector , the n remov e th e
connecto r an d pul l th e harnes s out .
9. Remov e th e lowe r valv e bod y assembl y (si x bolts) .
NOTE : Refe r t o pag e 14-110 ; Lowe r Valv e Bod y
Assembl y Disassembly , whe n disassemblin g th e
lowe r valv e body .
6 x 25 m m
6 x 40 m m
6 x 5 0 m m
6 x 1 6 m m
6 x 4 0 m m
6 x 50 m m
10. Clea n th e inle t openin g o f th e AT F straine r thor -
oughl y wit h compresse d air , the n chec k tha t i t i s i n
goo d condition , an d th e inle t openin g i s no t clogged .
ATF STRAINE R
INLET OPENIN G
11. Replac e th e AT F straine r i f i t i s clogge d o r damaged .
NOTE : Th e AT F straine r ca n b e reuse d i f i t i s no t
clogged .
ProCarManuals.com

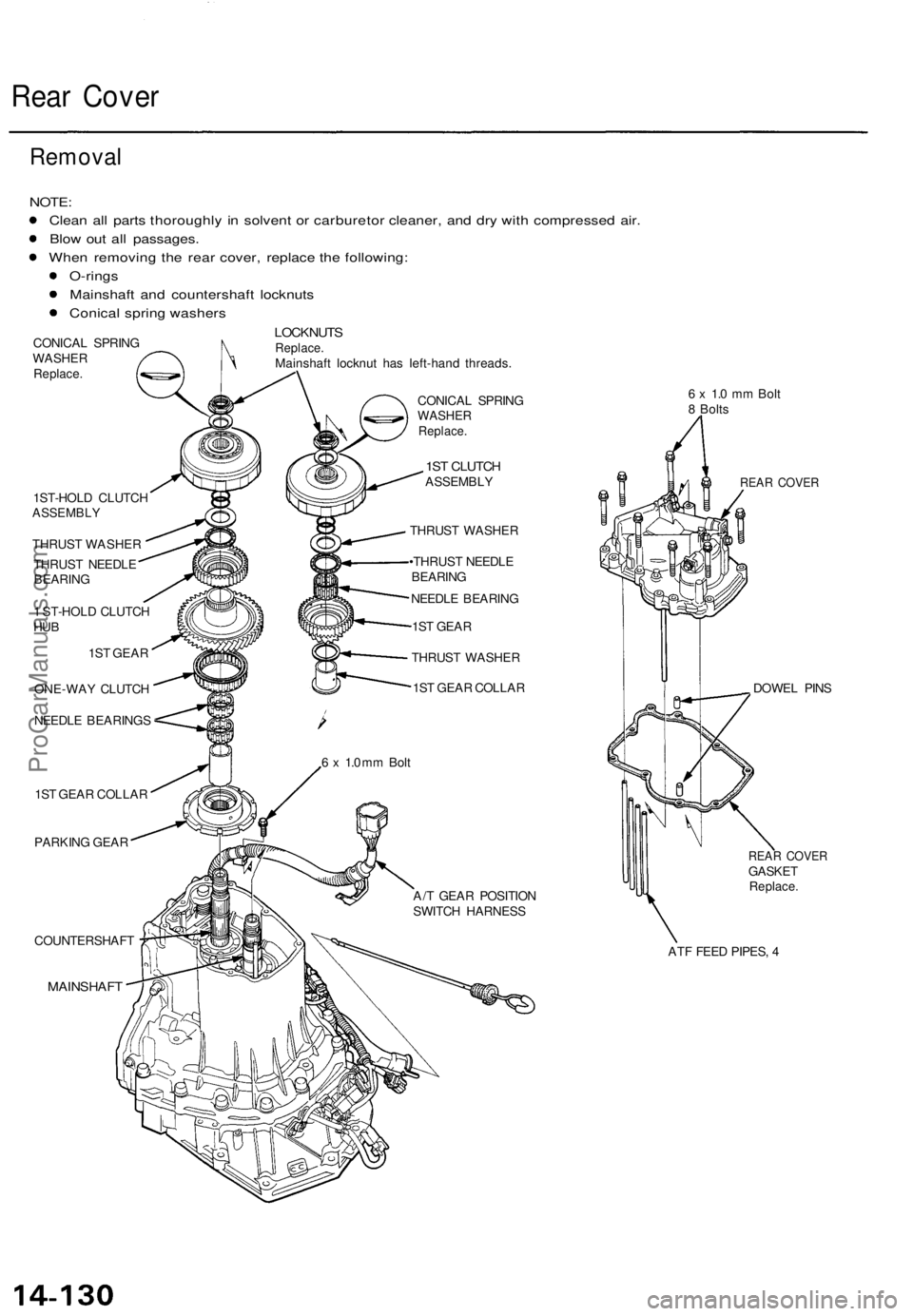

Page 1021 of 1771
Rear Cover
Removal
NOTE:
Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
Blow out all passages.
When removing the rear cover, replace the following:
O-rings
Mainshaft and countershaft locknuts
Conical spring washers
LOCKNUTS
Replace.
Mainshaft locknut has left-hand threads.
CONICAL SPRING
WASHER
Replace.
1ST-HOLD CLUTCH
ASSEMBLY
THRUST WASHER
THRUST NEEDLE
BEARING
1 ST-HOLD CLUTCH
HUB
1ST GEAR
ONE-WAY CLUTCH
NEEDLE BEARINGS
1ST GEAR COLLAR
PARKING GEAR
COUNTERSHAFT
MAINSHAFT
CONICAL SPRING
WASHER
Replace.
1ST CLUTCH
ASSEMBLY
THRUST WASHER
•THRUST NEEDLE
BEARING
NEEDLE BEARING
1ST GEAR
THRUST WASHER
1ST GEAR COLLAR
6 x 1.0 mm Bolt
8 Bolts
REAR COVER
DOWEL PINS
REAR COVER
GASKET
Replace.
ATF FEED PIPES, 4
A/T GEAR POSITION
SWITCH HARNESS
6 x 1.0 mm BoltProCarManuals.com

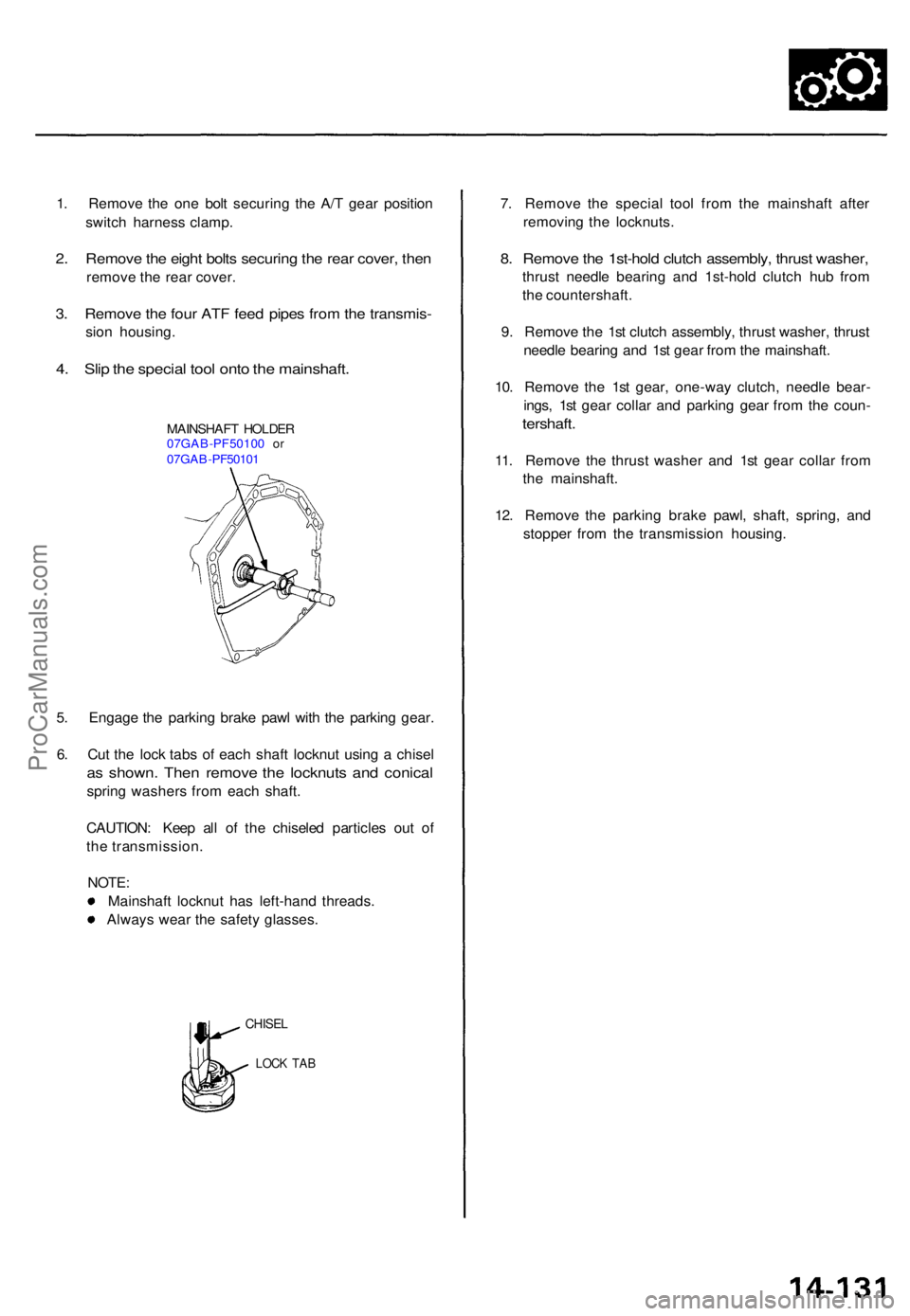

Page 1022 of 1771

1. Remov e th e on e bol t securin g th e A/ T gea r positio n
switc h harnes s clamp .
2. Remov e th e eigh t bolt s securin g th e rea r cover , the n
remov e th e rea r cover .
3. Remov e th e fou r AT F fee d pipe s fro m th e transmis -
sion housing .
4. Sli p th e specia l too l ont o th e mainshaft .
MAINSHAF T HOLDE R07GAB-PF5010 0 o r07GA B-PF5010 1
5. Engag e th e parkin g brak e paw l wit h th e parkin g gear .
6 . Cu t th e loc k tab s o f eac h shaf t locknu t usin g a chise l
as shown . The n remov e th e locknut s an d conica l
spring washer s fro m eac h shaft .
CAUTION : Kee p al l o f th e chisele d particle s ou t o f
th e transmission .
NOTE :
Mainshaf t locknu t ha s left-han d threads .
Alway s wea r th e safet y glasses . 7
. Remov e th e specia l too l fro m th e mainshaf t afte r
removin g th e locknuts .
8. Remov e th e 1st-hol d clutc h assembly , thrus t washer ,
thrust needl e bearin g an d 1st-hol d clutc h hu b fro m
th e countershaft .
9 . Remov e th e 1s t clutc h assembly , thrus t washer , thrus t
needl e bearin g an d 1s t gea r fro m th e mainshaft .
10 . Remov e th e 1s t gear , one-wa y clutch , needl e bear -
ings , 1s t gea r colla r an d parkin g gea r fro m th e coun -
tershaft .
11. Remov e th e thrus t washe r an d 1s t gea r colla r fro m
th e mainshaft .
12 . Remov e th e parkin g brak e pawl , shaft , spring , an d
stoppe r fro m th e transmissio n housing .
LOCK TA B
CHISE L
ProCarManuals.com

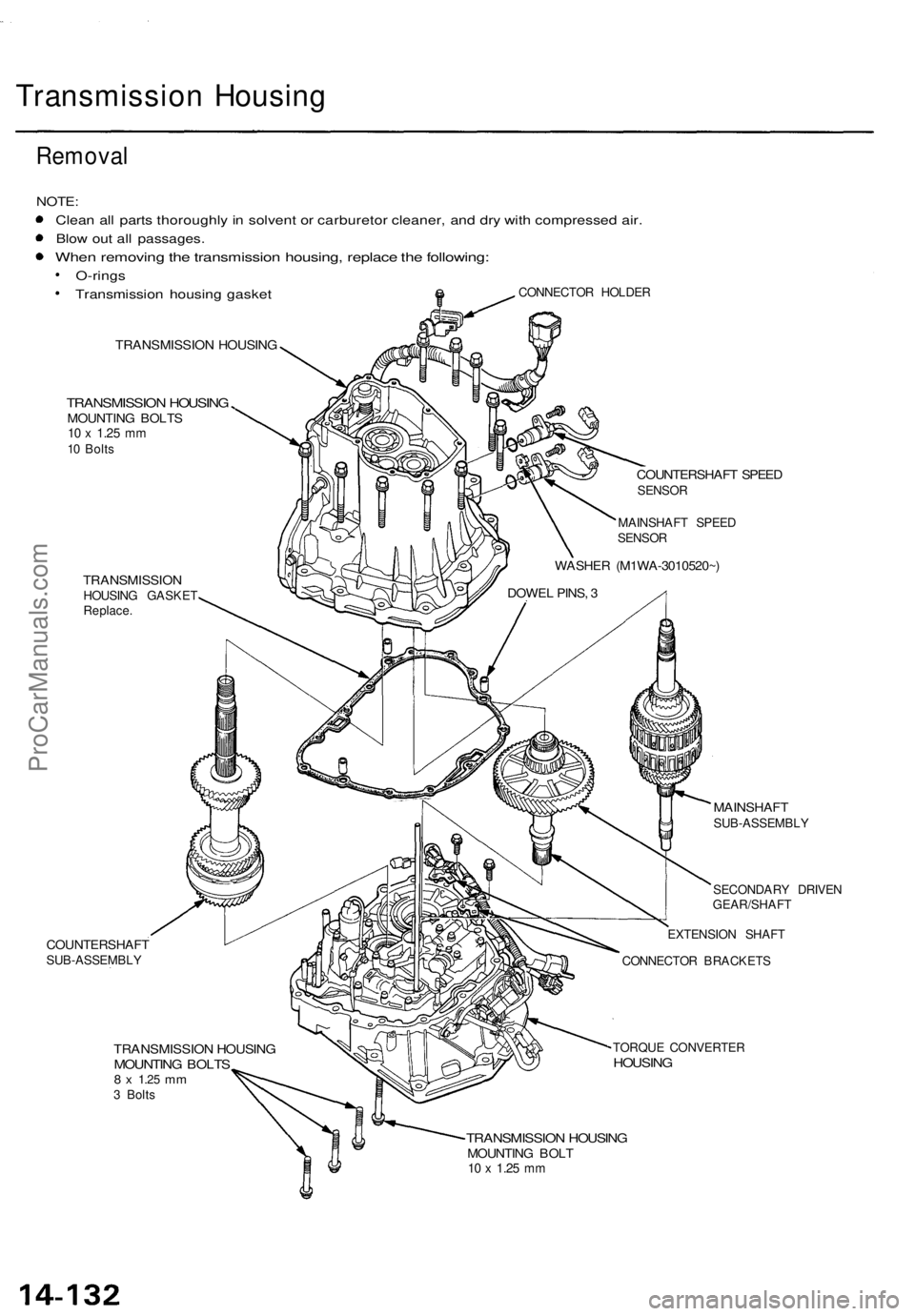

Page 1023 of 1771
Transmission Housing
Removal
NOTE:
Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
Blow out all passages.
When removing the transmission housing, replace the following:
O-rings
Transmission housing gasket
TRANSMISSION HOUSING
TRANSMISSION HOUSING
MOUNTING BOLTS
10 x
1.25
mm
10 Bolts
COUNTERSHAFT SPEED
SENSOR
MAINSHAFT SPEED
SENSOR
TRANSMISSION
HOUSING GASKET
Replace.
COUNTERSHAFT
SUB-ASSEMBLY
MAINSHAFT
SUB-ASSEMBLY
SECONDARY DRIVEN
GEAR/SHAFT
TRANSMISSION HOUSING
MOUNTING BOLTS
8 x
1.25
mm
3 Bolts
EXTENSION SHAFT
CONNECTOR BRACKETS
TORQUE CONVERTER
HOUSING
TRANSMISSION HOUSING
MOUNTING BOLT
10 x
1.25
mm
DOWEL PINS, 3
WASHER (M1WA-3010520~)
CONNECTOR HOLDERProCarManuals.com

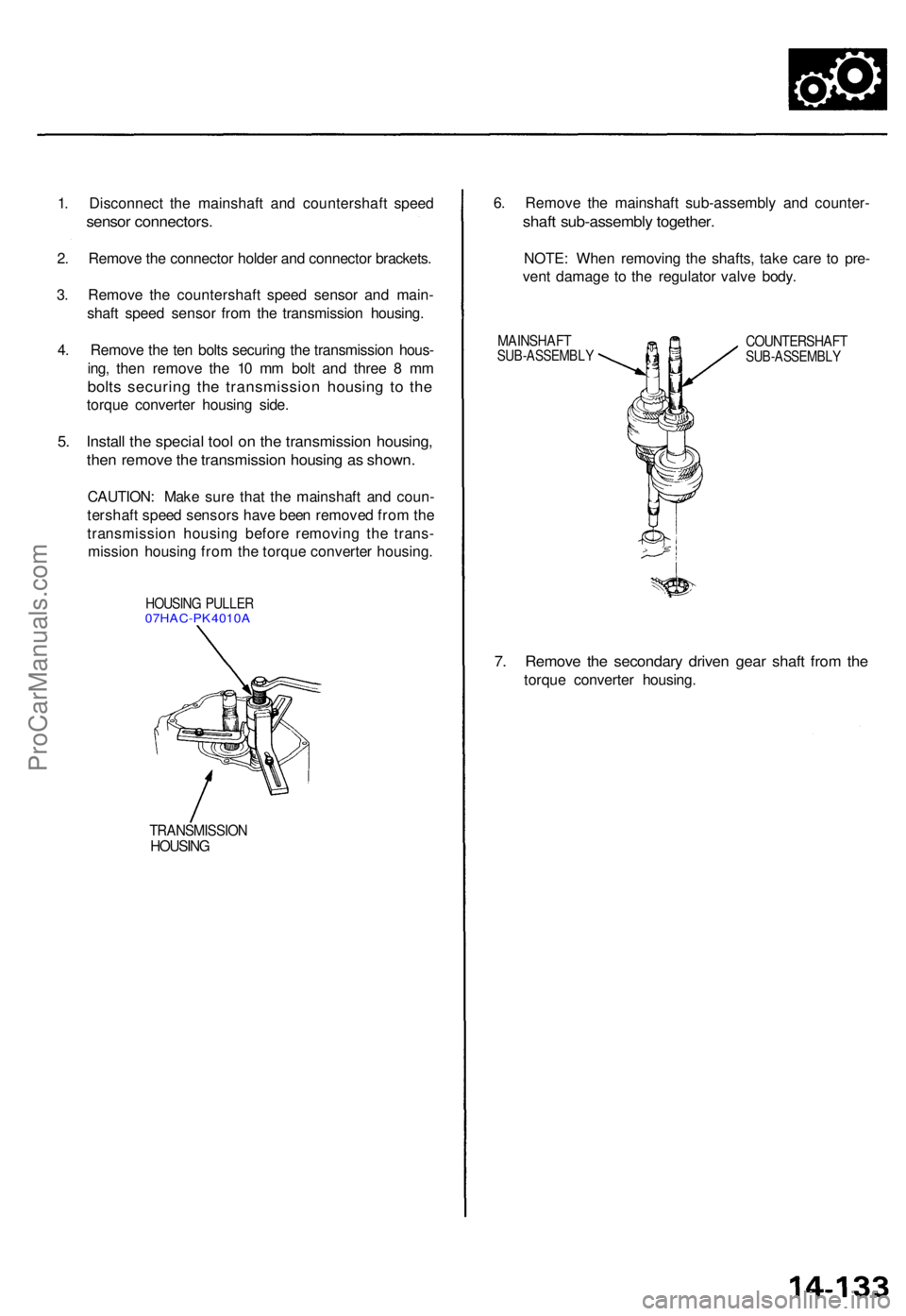

Page 1024 of 1771

1. Disconnec t th e mainshaf t an d countershaf t spee d
sensor connectors .
2. Remov e th e connecto r holde r an d connecto r brackets .
3 . Remov e th e countershaf t spee d senso r an d main -
shaf t spee d senso r fro m th e transmissio n housing .
4 . Remov e th e te n bolt s securin g th e transmissio n hous -
ing , the n remov e th e 1 0 m m bol t an d thre e 8 m m
bolt s securin g th e transmissio n housin g t o th e
torqu e converte r housin g side .
5. Instal l th e specia l too l o n th e transmissio n housing ,
then remov e th e transmissio n housin g a s shown .
CAUTION : Mak e sur e tha t th e mainshaf t an d coun -
tershaf t spee d sensor s hav e bee n remove d fro m th e
transmissio n housin g befor e removin g th e trans -
missio n housin g fro m th e torqu e converte r housing .
HOUSING PULLE R07HAC-PK4010 A
TRANSMISSIONHOUSING
6. Remov e th e mainshaf t sub-assembl y an d counter -
shaft sub-assembl y together .
NOTE: Whe n removin g th e shafts , tak e car e t o pre -
ven t damag e t o th e regulato r valv e body .
MAINSHAF TSUB-ASSEMBL YCOUNTERSHAF TSUB-ASSEMBLY
7. Remov e th e secondar y drive n gea r shaf t fro m th e
torqu e converte r housing .
ProCarManuals.com
