1995 ACURA TL Service Repair Manual

Doors

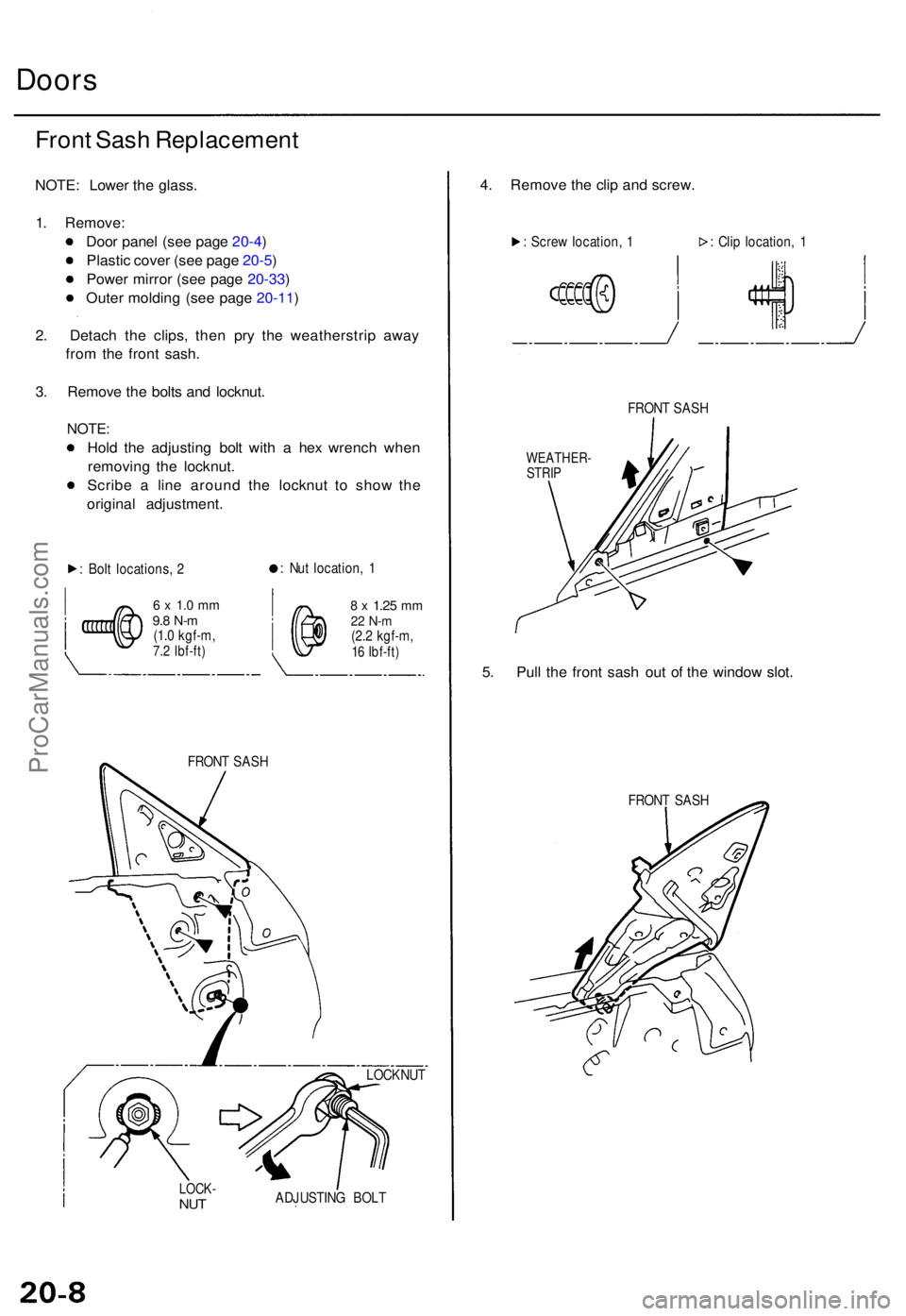

Front Sas h Replacemen t
NOTE: Lowe r th e glass .
1 . Remove :
Doo r pane l (se e pag e 20-4 )
Plasti c cove r (se e pag e 20-5 )
Powe r mirro r (se e pag e 20-33 )
Oute r moldin g (se e pag e 20-11 )
2 . Detac h th e clips , the n pr y th e weatherstri p awa y
fro m th e fron t sash .
3 . Remov e th e bolt s an d locknut .
NOTE:
Hold th e adjustin g bol t wit h a he x wrenc h whe n
removin g th e locknut .
Scrib e a lin e aroun d th e locknu t t o sho w th e
origina l adjustment .
: Bol t locations , 2 :
Nu t location , 1
6 x 1. 0 m m9.8 N- m(1.0 kgf-m ,7.2 Ibf-ft )
8 x 1.2 5 mm22 N- m(2.2 kgf-m ,16 Ibf-ft )
FRON T SAS H
LOCK -NUTADJUSTIN G BOL T
4. Remov e th e cli p an d screw .
: Scre w location , 1 : Cli p location , 1
FRON T SAS H
WEATHER -
STRI P
5. Pul l th e fron t sas h ou t o f th e windo w slot .
FRON T SAS H
LOCKNU T
ProCarManuals.com

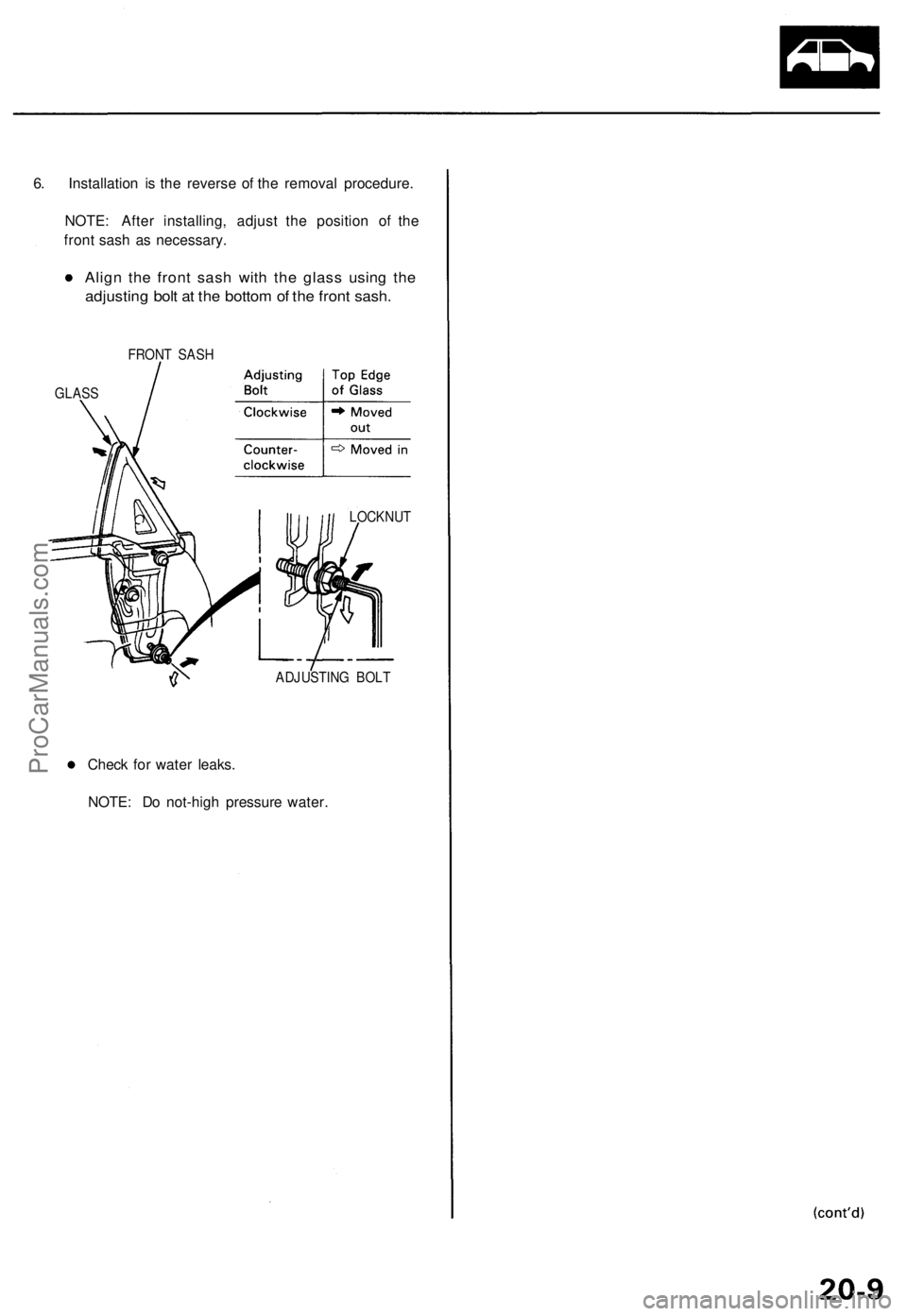

6. Installation is the reverse of the removal procedure.

NOTE: After installing, adjust the position of the

front sash as necessary.

Align the front sash with the glass using the

adjusting bolt at the bottom of the front sash.

FRONT SASH

GLASS

LOCKNUT

ADJUSTING BOLT

Check for water leaks.

NOTE: Do not-high pressure water.ProCarManuals.com

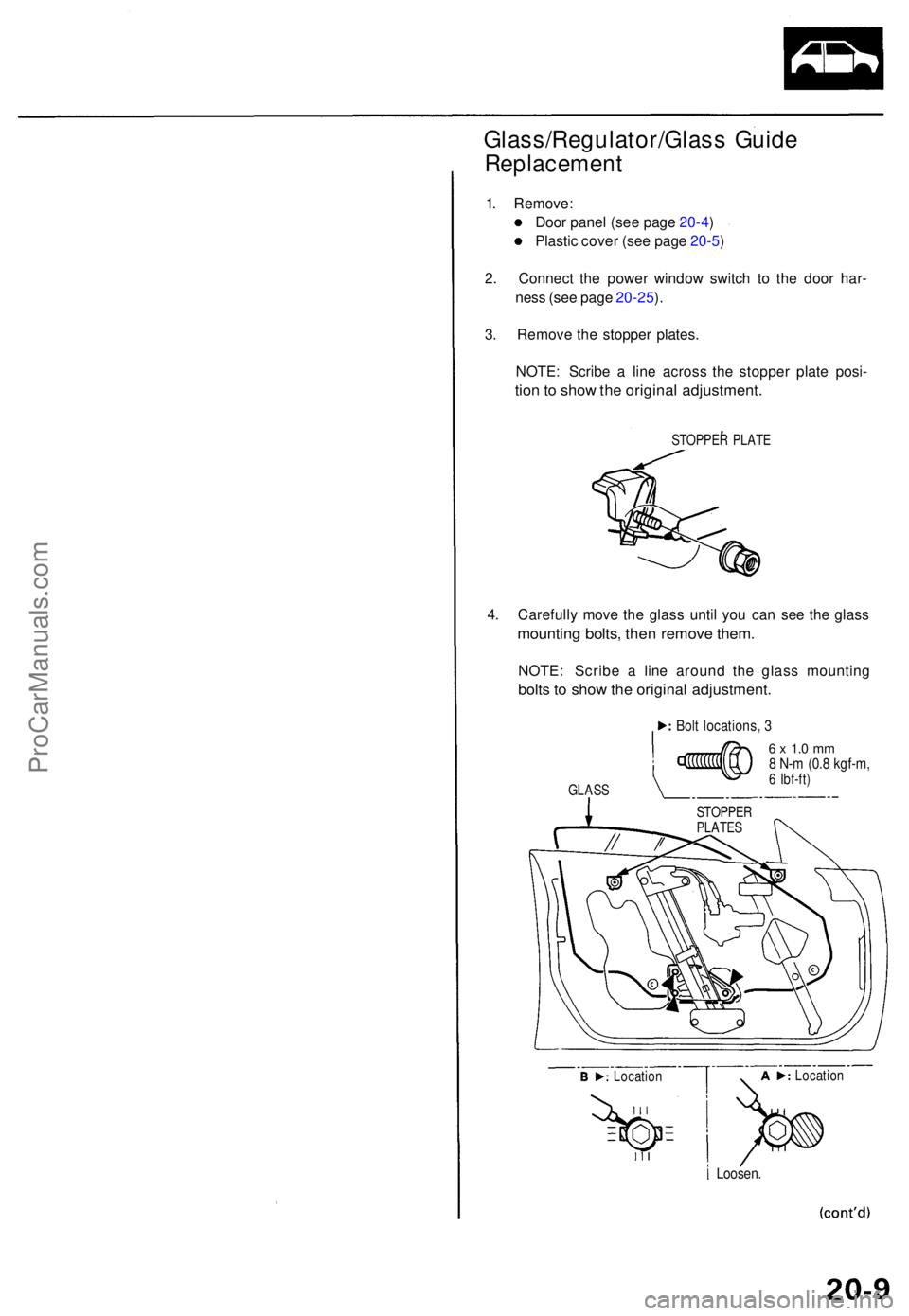

Glass/Regulator/Glass Guid e
Replacemen t
1. Remove :
Doo r pane l (se e pag e 20-4 )
Plasti c cove r (se e pag e 20-5 )
2 . Connec t th e powe r windo w switc h t o th e doo r har -
nes s (se e pag e 20-25 ).
3 . Remov e th e stoppe r plates .
NOTE : Scrib e a lin e acros s th e stoppe r plat e posi -
tion to sho w th e origina l adjustment .
STOPPER PLAT E
4. Carefull y mov e th e glas s unti l yo u ca n se e th e glas s
mountin g bolts , the n remov e them .
NOTE : Scrib e a lin e aroun d th e glas s mountin g
bolts t o sho w th e origina l adjustment .
Bolt locations , 3
GLAS S
6 x 1. 0 m m8 N- m (0. 8 kgf-m ,6 Ibf-ft )
Loosen .
STOPPE R
PLATE S
Locatio n Locatio
n
ProCarManuals.com

Doors
Glass/Regulator/Glas s Guid e Replacemen t (cont'd )

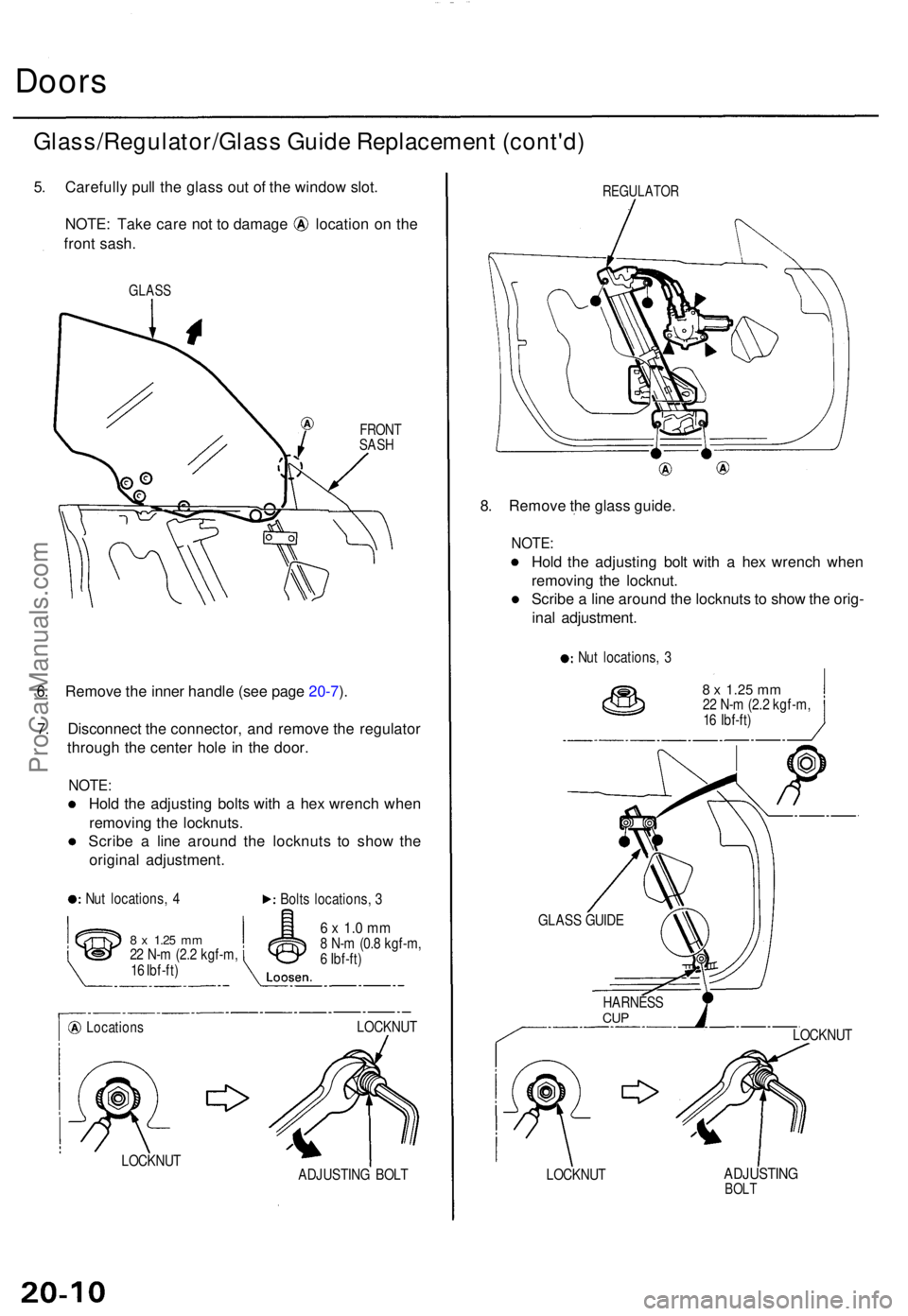

5. Carefull y pul l th e glas s ou t o f th e windo w slot .
NOTE : Tak e car e no t t o damag e locatio n o n th e
fron t sash .
GLAS S
FRONTSASH
6. Remov e th e inne r handl e (se e pag e 20-7 ).
7 . Disconnec t th e connector , an d remov e th e regulato r
throug h th e cente r hol e i n th e door .
NOTE :
Hold th e adjustin g bolt s wit h a he x wrenc h whe n
removin g th e locknuts .
Scrib e a lin e aroun d th e locknut s t o sho w th e
origina l adjustment .
Nut locations , 4
Bolts locations , 3
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
Location s
6 x 1. 0 m m8 N- m (0. 8 kgf-m ,
6 Ibf-ft )
LOCKNU T
LOCKNU T
ADJUSTING BOL T
REGULATO R
8. Remov e th e glas s guide .
NOTE:
Hold th e adjustin g bol t wit h a he x wrenc h whe n
removin g th e locknut .
Scrib e a lin e aroun d th e locknut s t o sho w th e orig -
ina l adjustment .
Nut locations , 3
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
LOCKNU T
LOCKNU T
ADJUSTIN GBOLT
GLAS S GUID E
HARNES S
CUP
ProCarManuals.com

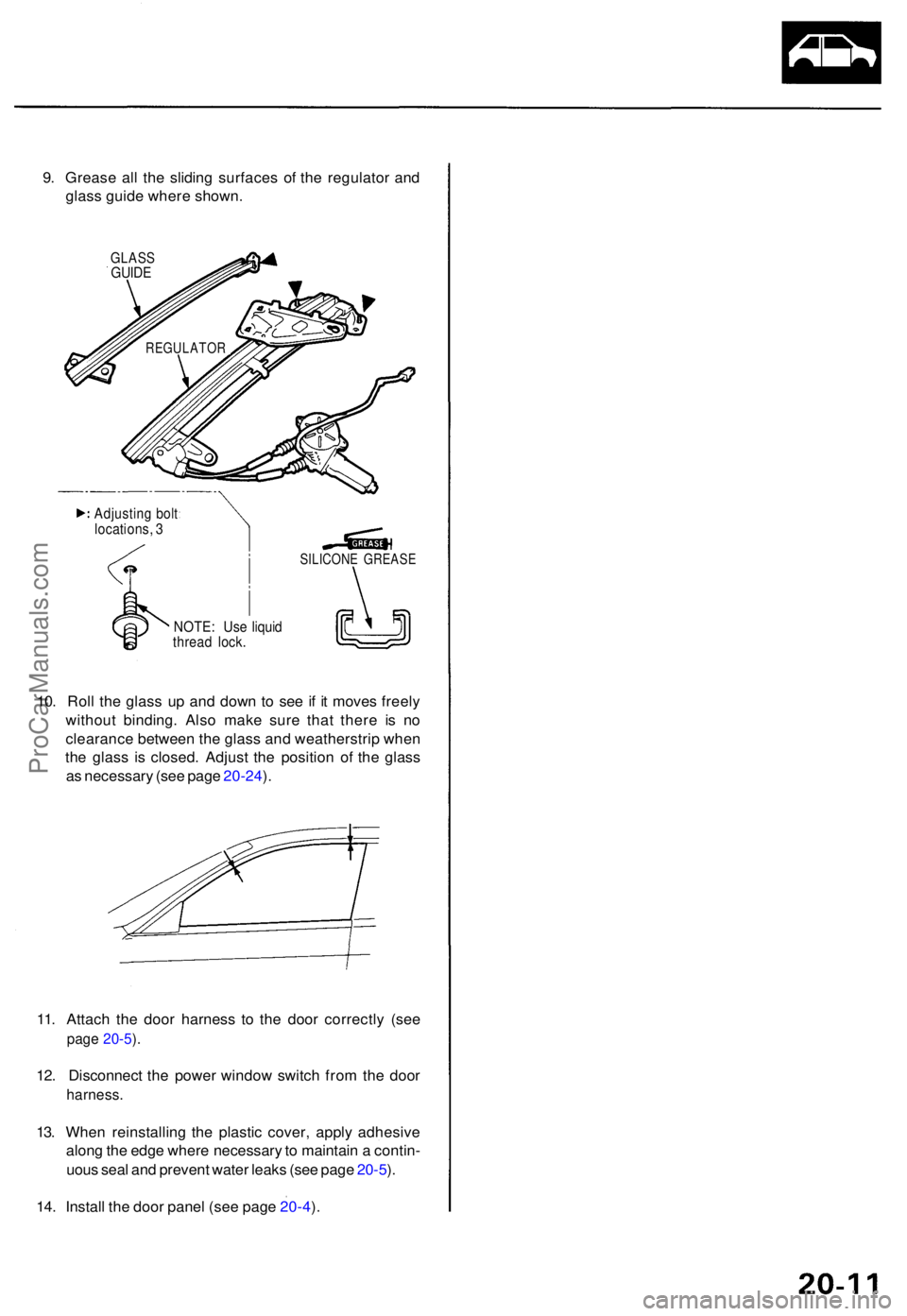

9. Greas e al l th e slidin g surface s o f th e regulato r an d
glas s guid e wher e shown .
GLASSGUIDE
10. Rol l th e glas s u p an d dow n t o se e i f i t move s freel y
withou t binding . Als o mak e sur e tha t ther e i s n o
clearanc e betwee n th e glas s an d weatherstri p whe n
th e glas s i s closed . Adjus t th e positio n o f th e glas s
a s necessar y (se e pag e 20-24 ).
11 . Attac h th e doo r harnes s t o th e doo r correctl y (se e
page 20-5 ).
12 . Disconnec t th e powe r windo w switc h fro m th e doo r
harness .
13. Whe n reinstallin g th e plasti c cover , appl y adhesiv e
alon g th e edg e wher e necessar y to maintai n a contin -
uou s sea l an d preven t wate r leak s (se e pag e 20-5 ).
14 . Instal l th e doo r pane l (se e pag e 20-4 ).
REGULATO R
Adjusting bol tlocations , 3
NOTE : Us e liqui dthrea d lock .
SILICON E GREAS E
ProCarManuals.com

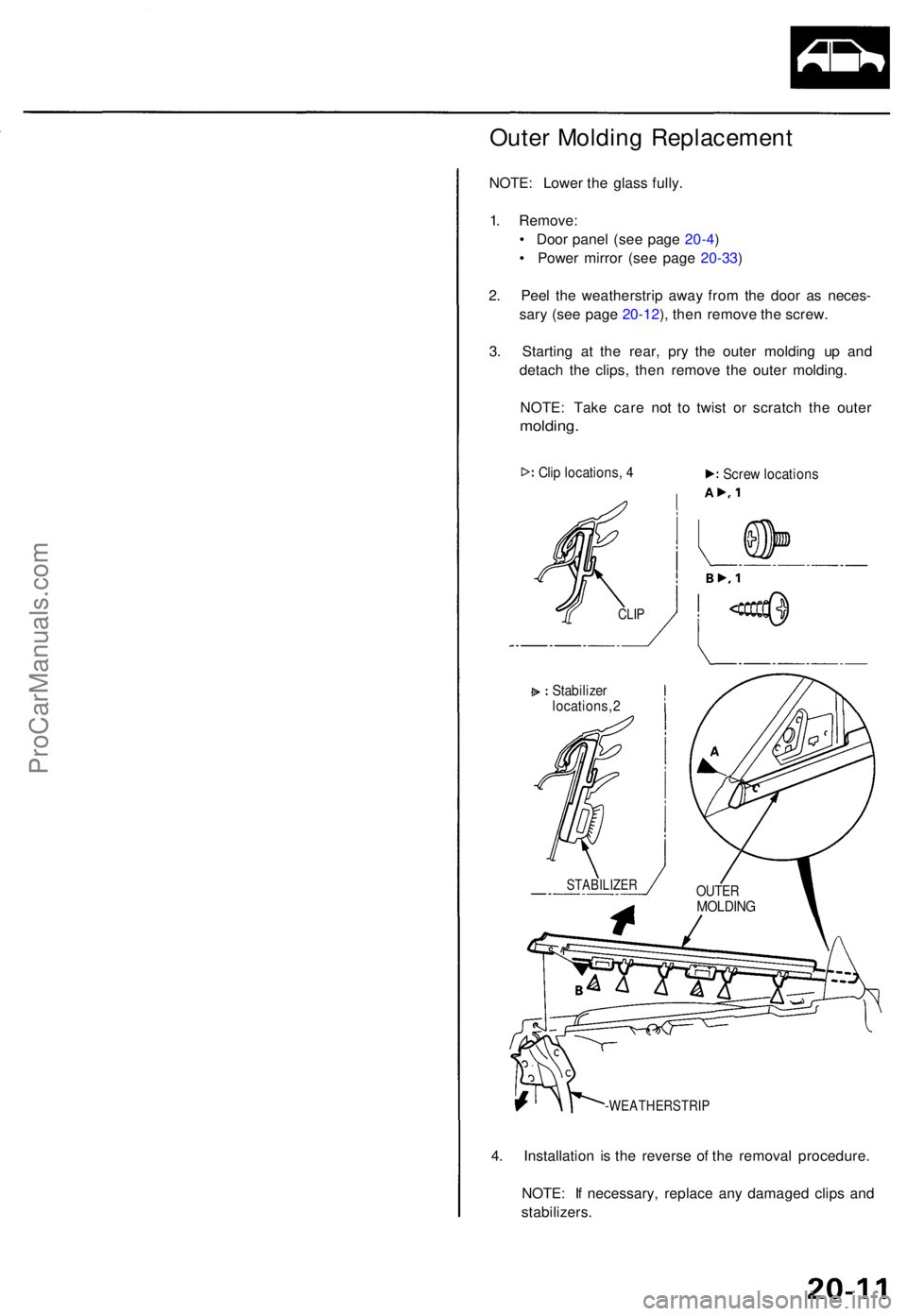

Outer Moldin g Replacemen t
NOTE: Lowe r th e glas s fully .
1 . Remove :
• Doo r pane l (se e pag e 20-4 )
• Powe r mirro r (se e pag e 20-33 )
2 . Pee l th e weatherstri p awa y fro m th e doo r a s neces -
sar y (se e pag e 20-12 ), the n remov e th e screw .
3 . Startin g a t th e rear , pr y th e oute r moldin g u p an d
detac h th e clips , the n remov e th e oute r molding .
NOTE : Tak e car e no t t o twis t o r scratc h th e oute r
molding .
Clip locations , 4
-WEATHERSTRI P
4. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : I f necessary , replac e an y damage d clip s an d
stabilizers .
OUTERMOLDIN G
STABILIZE R
Stabilizer
locations , 2 Scre
w location s
CLIP
ProCarManuals.com

Doors

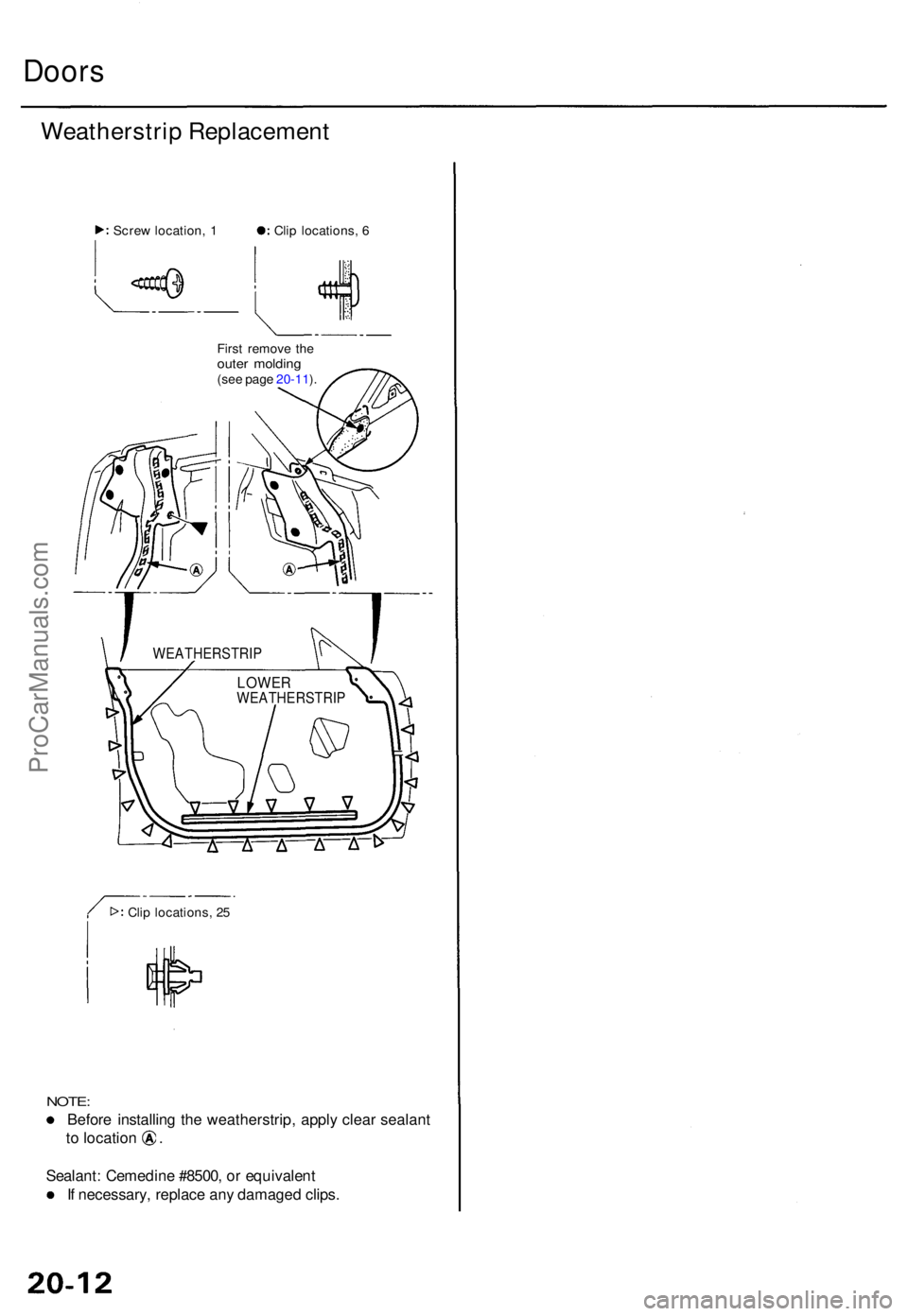

Weatherstri p Replacemen t
First remov e th eoute r moldin g(see pag e 20-11 ).
Cli p locations , 2 5
NOTE :
Before installin g th e weatherstrip , appl y clea r sealan t
to locatio n .
Sealant : Cemedin e #8500 , o r equivalen t
I f necessary , replac e an y damage d clips .
Clip locations , 6
Scre w location , 1
WEATHERSTRI P
LOWERWEATHERSTRI P
ProCarManuals.com
