1995 ACURA TL Service Repair Manual

5. Installatio n is th e revers e o f th e remova l procedure .
NOTE:

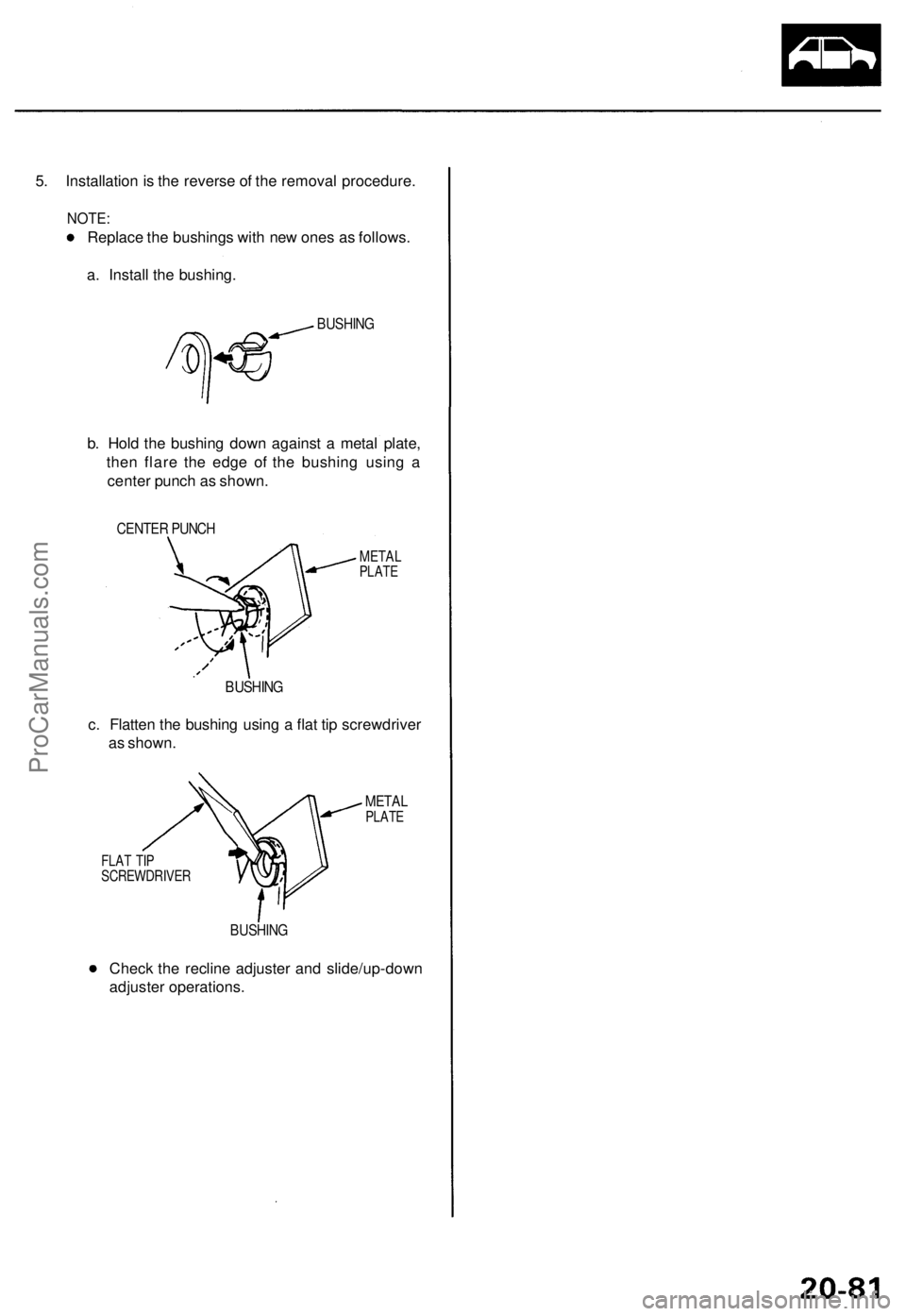

Replac e th e bushing s wit h ne w one s a s follows .
a . Instal l th e bushing .
BUSHING
b. Hol d th e bushin g dow n agains t a meta l plate ,
the n flar e th e edg e of the bushin g usin g a
cente r punc h a s shown .
CENTER PUNC H
METALPLATE
BUSHIN G
c. Flatte n th e bushin g usin g a fla t ti p screwdrive r
a s shown .
METALPLATE
FLA T TI P
SCREWDRIVE R
BUSHING
Check th e reclin e adjuste r an d slide/up-dow n
adjuste r operations .
ProCarManuals.com

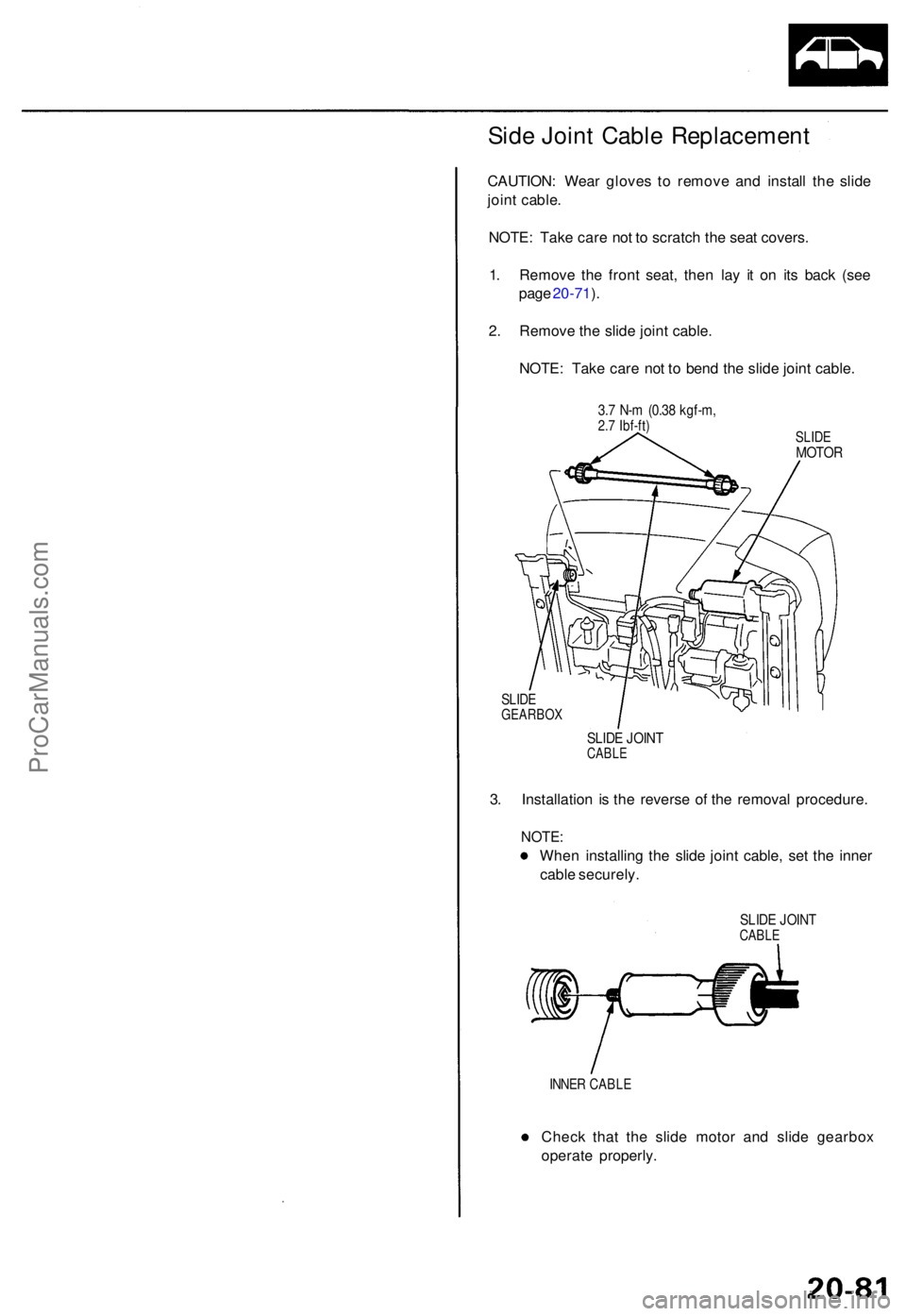

Side Join t Cabl e Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e slid e
join t cable .
NOTE : Tak e car e no t t o scratc h th e sea t covers .
1 . Remov e th e fron t seat , the n la y i t o n it s bac k (se e
pag e 20-71 ).
2 . Remov e th e slid e join t cable .
NOTE : Tak e car e no t t o ben d th e slid e join t cable .
3.7 N- m (0.3 8 kgf-m ,2.7 Ibf-ft )SLIDEMOTO R
SLIDEGEARBO X
SLIDE JOIN TCABL E
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
When installin g th e slid e join t cable , se t th e inne r
cabl e securely .
SLIDE JOIN TCABL E
INNER CABL E
Check tha t th e slid e moto r an d slid e gearbo x
operat e properly .
ProCarManuals.com

Front Sea t

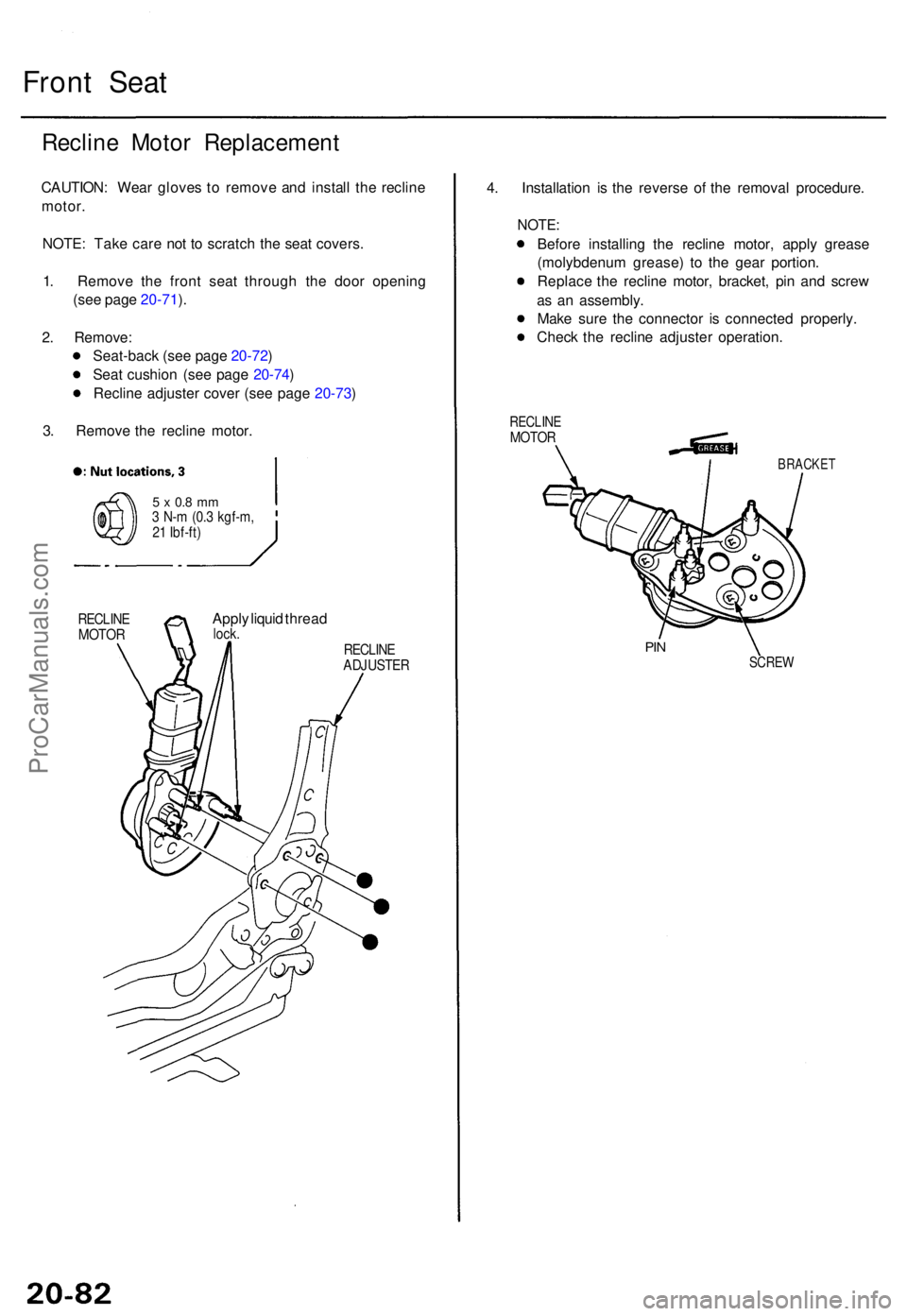

Reclin e Moto r Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e reclin e
motor .
NOTE : Tak e car e no t t o scratc h th e sea t covers .
1 . Remov e th e fron t sea t throug h th e doo r openin g
(se e pag e 20-71 ).
2 . Remove :
Seat-bac k (se e pag e 20-72 )
Sea t cushio n (se e pag e 20-74 )
Reclin e adjuste r cove r (se e pag e 20-73 )
3 . Remov e th e reclin e motor .
5 x 0. 8 m m3 N- m (0. 3 kgf-m ,
2 1 Ibf-ft )
RECLIN E
MOTORApply liqui d threa dlock.RECLIN E
ADJUSTE R
4. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
Before installin g th e reclin e motor , appl y greas e
(molybdenu m grease ) t o th e gea r portion .
Replac e th e reclin e motor , bracket , pi n an d scre w
a s a n assembly .
Mak e sur e th e connecto r i s connecte d properly .
Chec k th e reclin e adjuste r operation .
RECLINEMOTOR
BRACKE T
PINSCRE W
ProCarManuals.com

Slide Motor , Slid e Gearbo x Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e slid e
moto r an d slid e gearbox .
NOTE :
Tak e car e no t t o scratc h th e sea t cover .
T o remov e th e slid e moto r an d slid e gearbox , slid e th e
fron t sea t backwar d fully , an d rais e th e sea t cushio n t o
its fron t maximu m height .
1. Remov e th e fron t sea t throug h th e doo r openin g (se e
pag e 20-71 ).
2 . Remov e th e reclin e cove r (se e pag e 20-72 ).
3 . Remov e th e slid e join t cabl e (se e pag e 20-81 ).
4 . Disconnec t th e slid e moto r connector .
5 . Remov e th e bolt s fro m eac h side .
6 x 1. 0 m m8 N- m (0. 8 kgf-m ,
6 Ibf-ft )6 x 1. 0 m m9 N- m (0. 9 kgf-m ,
7 Ibf-ft )
SLID E
GEARBO X
6. Remov e th e slid e moto r an d slid e gearbo x whil e
movin g th e lowe r rails .
NOTE : Tak e car e no t t o damag e th e slid e lea d screws .
LOWERRAILSLID E LEA D
SCRE W
SLID E
MOTO R
SLIDE
GEARBO X LOWE
R
RAIL
7. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
Before installin g th e slid e moto r an d slid e gear -
box , greas e th e slid e lea d screw s a s shown .
Befor e installin g th e slid e moto r an d slid e gear -
box, alig n portio n a s shown .
Check th e slid e lea d scre w fo r bending .
SLIDEGEARBO X
SLIDE
MOTO R SLID
E LEA D
SCRE W
SLID E
MOTO R
CONNECTO R
SLIDE LEA D
SCRE W
SLIDE LEA D
SCRE W
Apply liqui d threa d lock .Apply liqui d threa d lock .
ProCarManuals.com

Front Seat

Slide Motor, Slide Gearbox

Replacement (cont'd)

• When installing the slide motor and slide gear-

box, make sure the end of the slide lead screw is

positioned properly.

SLIDE LEAD

SCREW

GUIDE

When installing the slide joint cable, engage the

inner cable securely.

Make sure the slide motor connector is connected

properly.

Check the slide motor and slide gearbox opera-

tions.ProCarManuals.com

Front Sea t

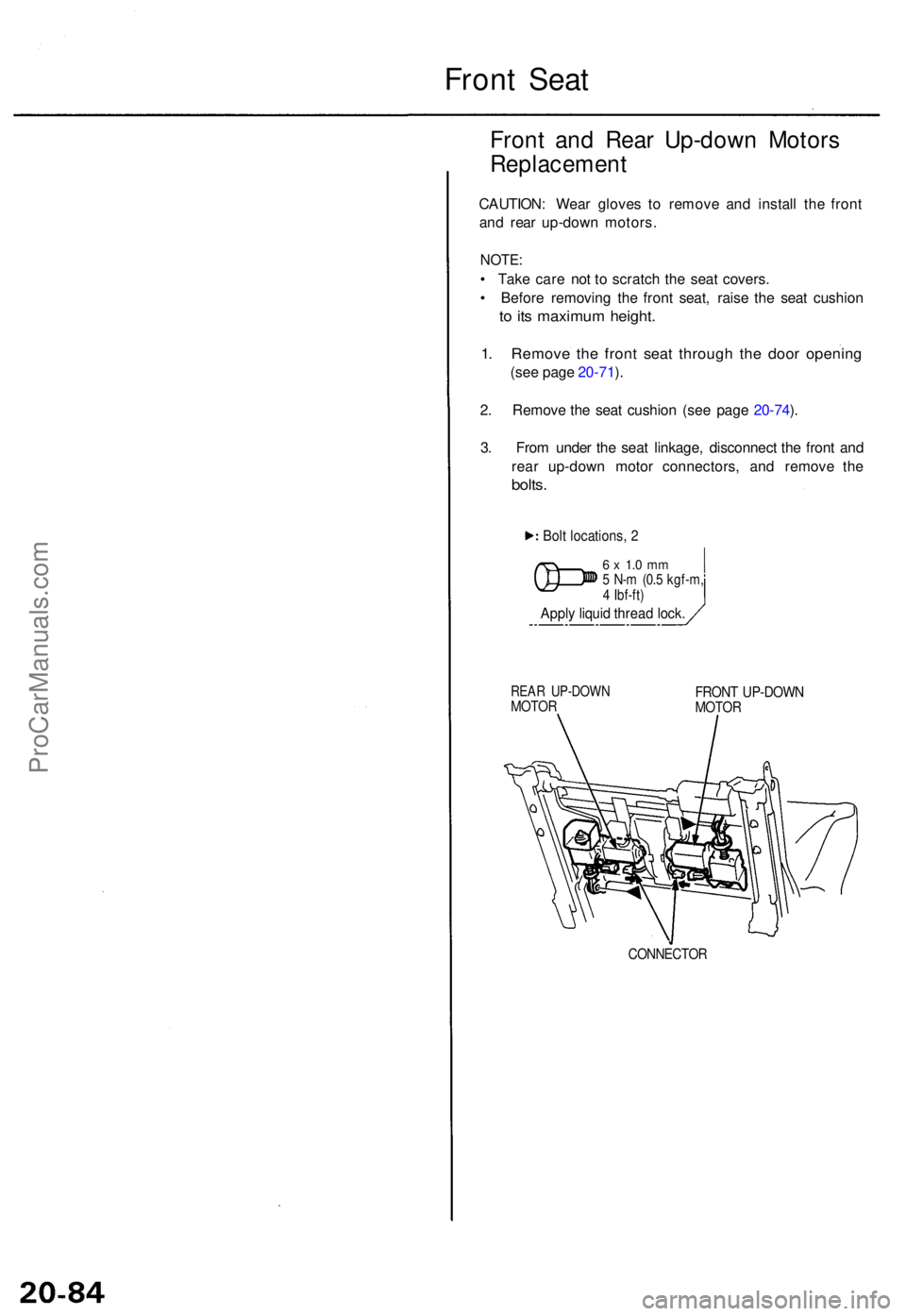

Front an d Rea r Up-dow n Motor s
Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e fron t
an d rea r up-dow n motors .
NOTE:
• Tak e car e no t t o scratc h th e sea t covers .
• Befor e removin g th e fron t seat , rais e th e sea t cushio n
to it s maximu m height .
1. Remov e th e fron t sea t throug h th e doo r openin g
(see pag e 20-71 ).
2 . Remov e th e sea t cushio n (se e pag e 20-74 ).
3 . Fro m unde r th e sea t linkage , disconnec t th e fron t an d
rea r up-dow n moto r connectors , an d remov e th e
bolts .
REA R UP-DOW NMOTORFRONT UP-DOW NMOTOR
CONNECTO R
Bolt locations , 2
6 x 1. 0 m m5 N- m (0. 5 kgf-m ,4 Ibf-ft )
Apply liqui d threa d lock .
ProCarManuals.com

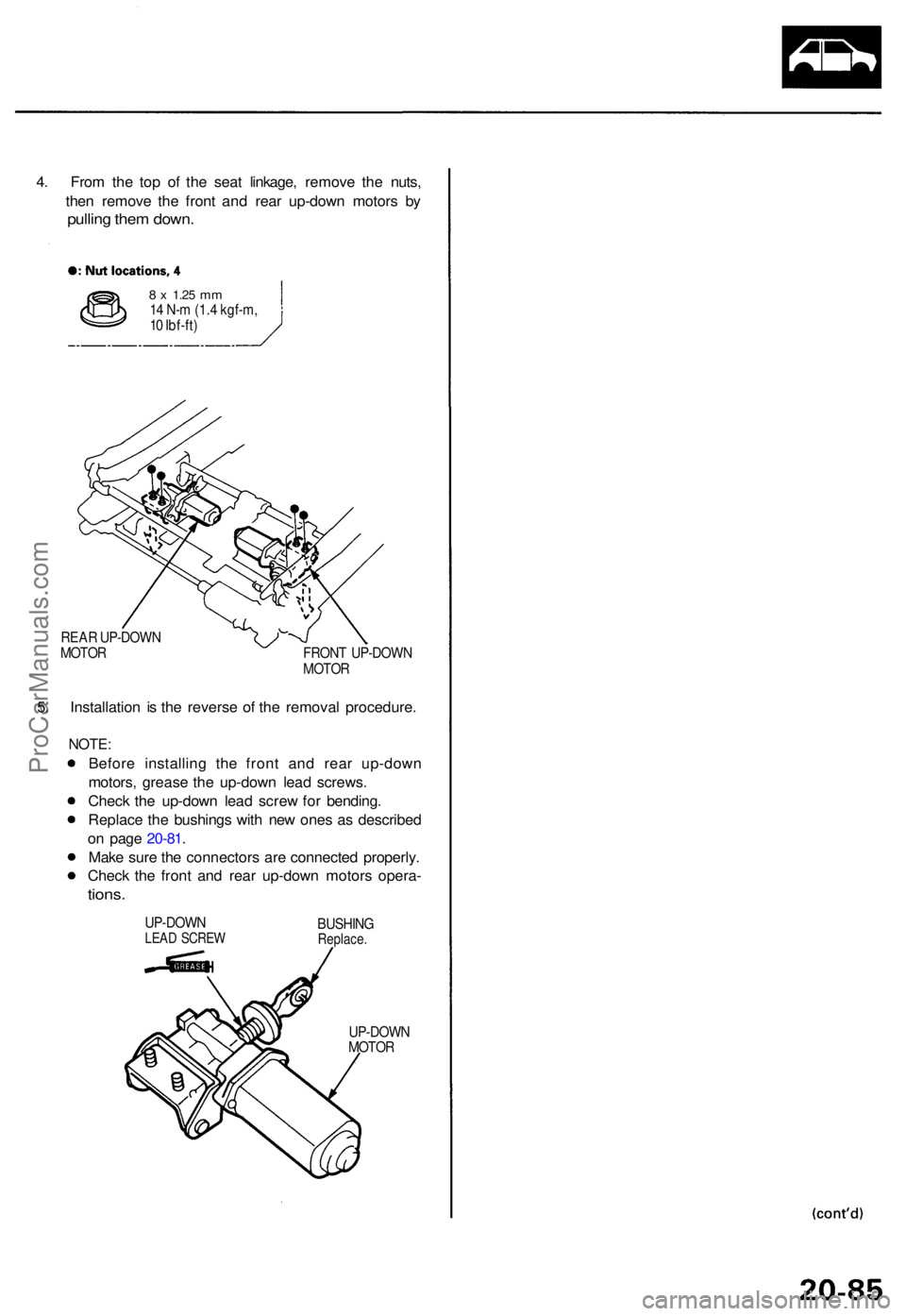

4. Fro m th e to p o f th e sea t linkage , remov e th e nuts ,
the n remov e th e fron t an d rea r up-dow n motor s b y
pullin g the m down .
8 x 1.2 5 mm14 N- m (1. 4 kgf-m ,
1 0 Ibf-ft )
REA R UP-DOW N
MOTO R FRONT UP-DOW N
MOTO R
5. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
Before installin g th e fron t an d rea r up-dow n
motors , greas e th e up-dow n lea d screws .
Chec k th e up-dow n lea d scre w fo r bending .
Replac e th e bushing s wit h ne w one s a s describe d
o n pag e 20-81 .
Mak e sur e th e connector s ar e connecte d properly .
Chec k th e fron t an d rea r up-dow n motor s opera -
tions.
UP-DOW NLEAD SCRE WBUSHIN GReplace .
UP-DOW NMOTOR
ProCarManuals.com

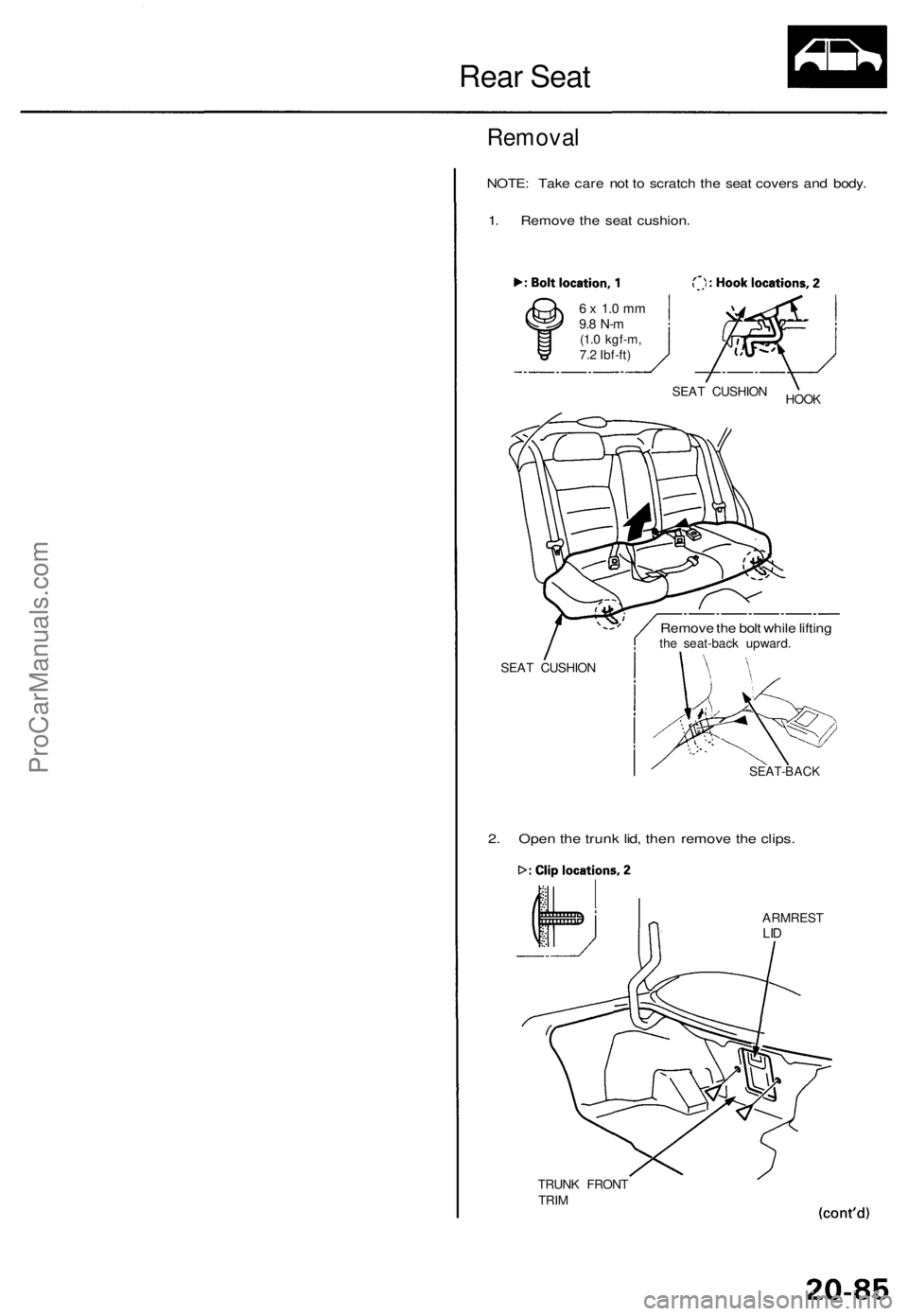

Rear Sea t
Remova l
NOTE: Tak e car e no t t o scratc h th e sea t cover s an d body .
1 . Remov e th e sea t cushion .
6 x 1. 0 m m9.8 N- m(1.0 kgf-m ,
7. 2 Ibf-ft )
SEA T CUSHIO N SEA
T CUSHIO N
HOOK
Remov e th e bol t whil e liftin gthe seat-bac k upward .
SEAT-BAC K
2. Ope n th e trun k lid , the n remov e th e clips .
TRUN K FRON T
TRI M ARMRES
T
LID
ProCarManuals.com
