Page 1337 of 1771
Pulsers/Wheel Sensor

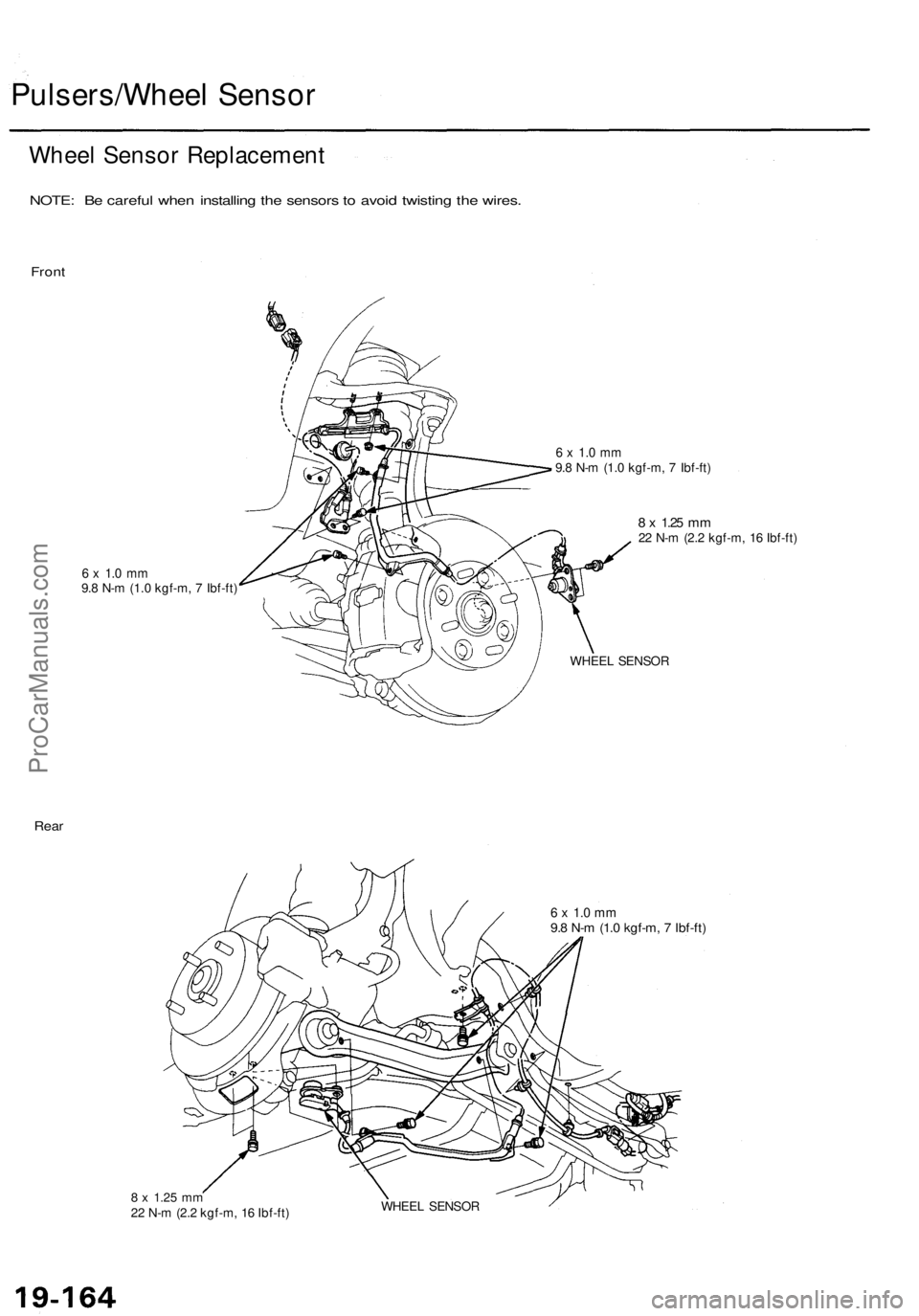

Wheel Sensor Replacement
NOTE: Be careful when installing the sensors to avoid twisting the wires.
Front
6 x 1.0 mm
9.8 N-m (1.0 kgf-m, 7 Ibf-ft)
6 x 1.0 mm
9.8 N-m (1.0 kgf-m, 7 Ibf-ft)
8 x
1.25
mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
WHEEL SENSOR
Rear
6 x 1.0 mm
9.8 N-m (1.0 kgf-m, 7 Ibf-ft)
8 x
1.25
mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
WHEEL SENSORProCarManuals.com
Page 1338 of 1771
Doors

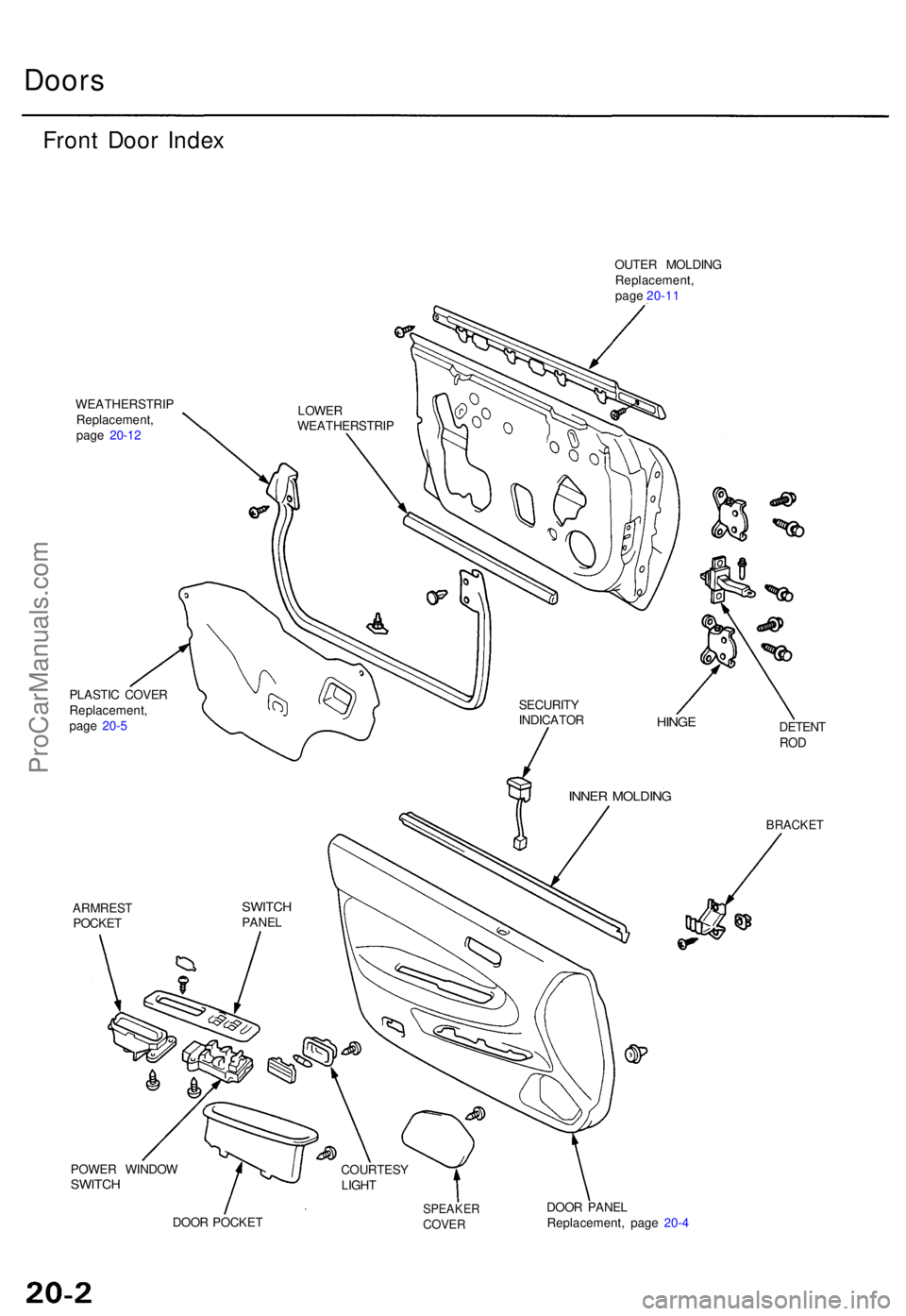

Front Doo r Inde x
WEATHERSTRI P
Replacement ,
pag e 20-1 2
PLASTI C COVE R
Replacement ,
pag e 20- 5
ARMRES T
POCKE T OUTE
R MOLDIN G
Replacement ,
pag e 20-1 1
POWE R WINDO W
SWITCH
DETEN TROD
BRACKE T
DOOR POCKE TSPEAKE RCOVER
DOOR PANE L
Replacement , pag e 20- 4
SWITC HPANEL
COURTESY
LIGH T
INNER MOLDIN G
HINGE
SECURIT Y
INDICATO R
LOWE
R
WEATHERSTRI P
ProCarManuals.com
Page 1339 of 1771

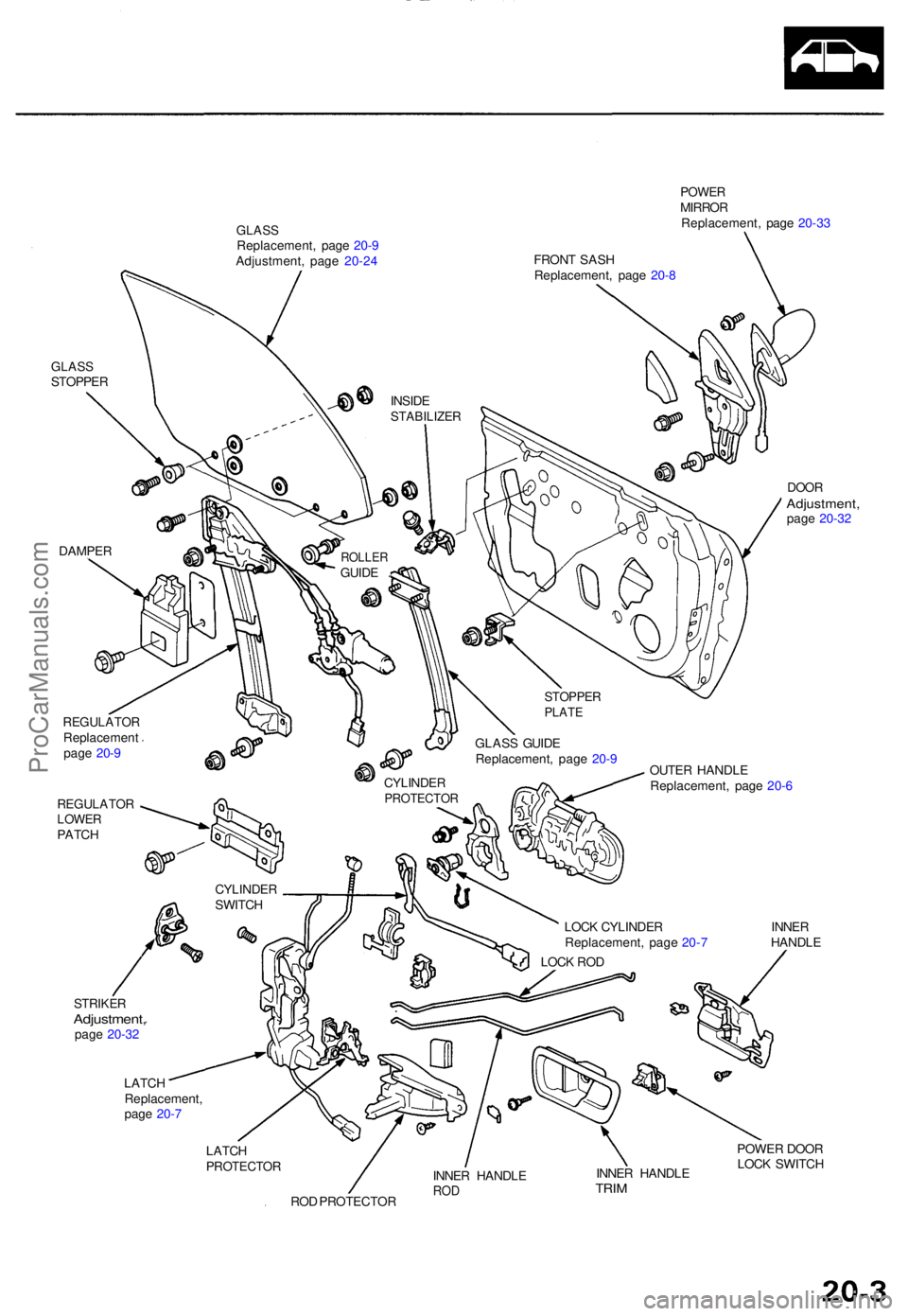

GLASSSTOPPE R
DAMPER
REGULATO RReplacemen t
pag e 20- 9
REGULATO RLOWERPATCH
STRIKE RAdjustment ,page 20-3 2
GLAS SReplacement , pag e 20- 9
Adjustment , pag e 20-2 4
POWE RMIRRO R
Replacement , pag e 20-3 3
DOO RAdjustment ,page 20-3 2
GLAS S GUID E
Replacement , pag e 20- 9
OUTER HANDL E
Replacement , pag e 20- 6
LOC K CYLINDE R INNE R
Replacement , pag e 20- 7 HANDL E
LOC K RO D
LATC H
Replacement ,
pag e 20- 7
LATC H
PROTECTO R
ROD PROTECTO R INNE
R HANDL ETRIM
POWE R DOO R
LOC K SWITC H
CYLINDE RSWITCH
INNER HANDL E
ROD
CYLINDE RPROTECTO R
STOPPERPLATE
ROLLE RGUIDE . INSID
E
STABILIZE R
FRONT SAS H
Replacement , pag e 20- 8
ProCarManuals.com
Page 1340 of 1771

Doors

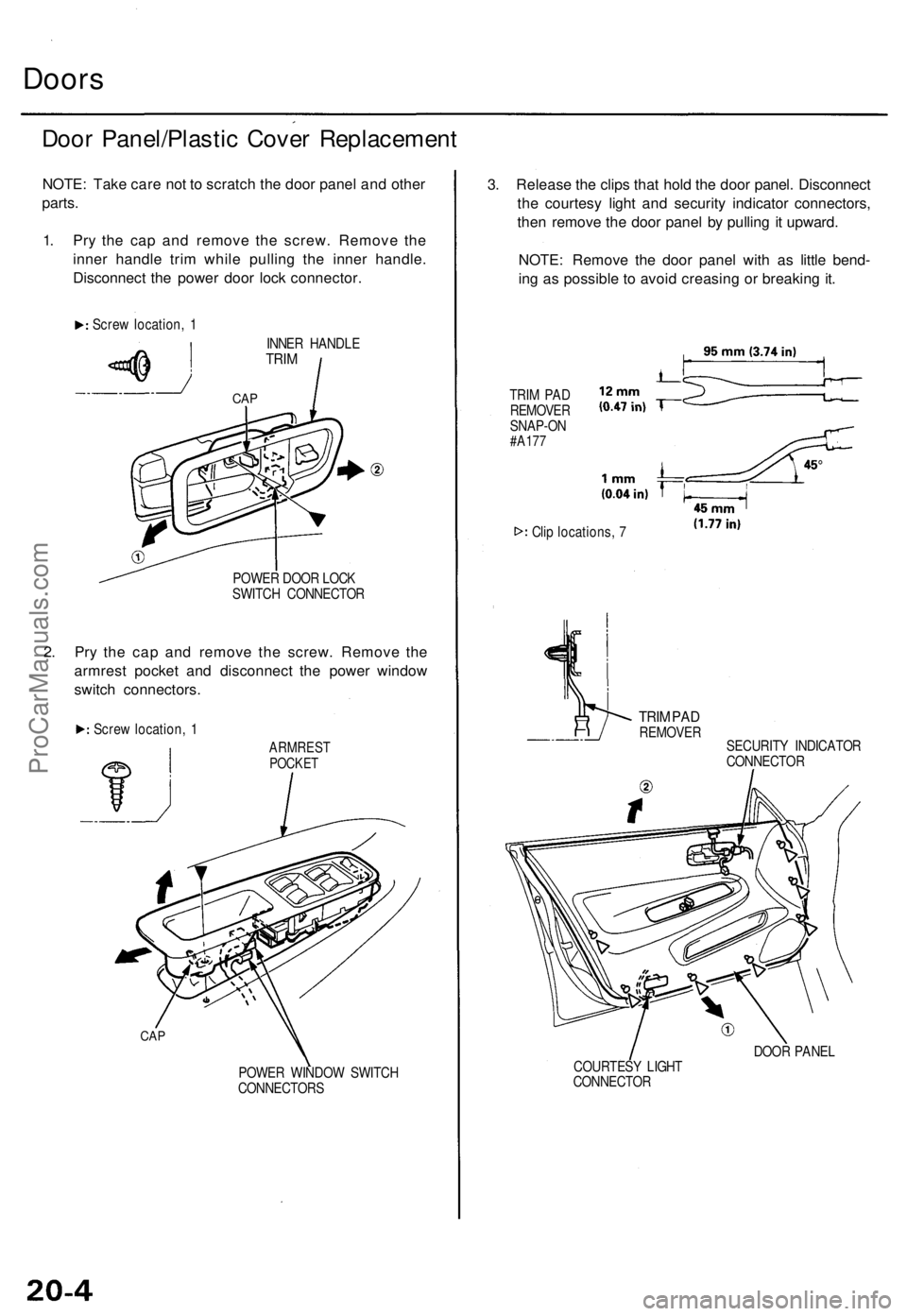

Door Panel/Plasti c Cove r Replacemen t
NOTE: Tak e car e no t t o scratc h th e doo r pane l an d othe r
parts .
1 . Pr y th e ca p an d remov e th e screw . Remov e th e
inne r handl e tri m whil e pullin g th e inne r handle .
Disconnec t th e powe r doo r loc k connector .
Screw location , 1
INNER HANDL E
TRIM
POWE R DOO R LOC K
SWITC H CONNECTO R
2. Pr y th e ca p an d remov e th e screw . Remov e th e
armres t pocke t an d disconnec t th e powe r windo w
switc h connectors .
Screw location , 1
ARMRES TPOCKET
CAP
POWE R WINDO W SWITC H
CONNECTOR S
3. Releas e th e clip s tha t hol d th e doo r panel . Disconnec t
th e courtes y ligh t an d securit y indicato r connectors ,
the n remov e th e doo r pane l b y pullin g it upward .
NOTE : Remov e th e doo r pane l wit h a s littl e bend -
in g a s possibl e t o avoi d creasin g o r breakin g it .
TRI M PA D
REMOVE R
SNAP-O N
#A177
Clip locations , 7
TRI M PA DREMOVE R
SECURIT Y INDICATO R
CONNECTO R
DOO R PANE L
COURTES Y LIGH T
CONNECTO R
CAP
ProCarManuals.com
Page 1341 of 1771

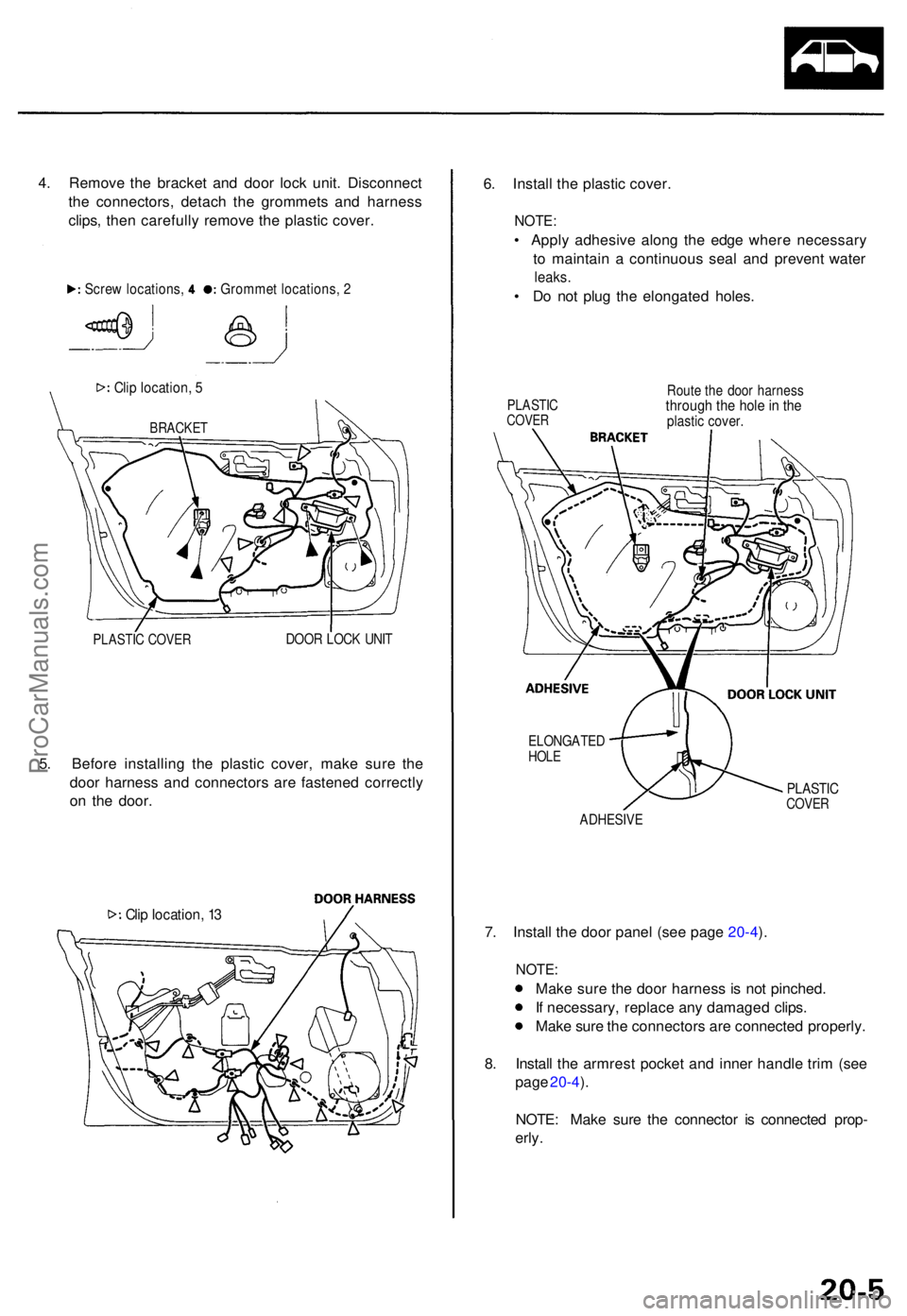

4. Remov e th e bracke t an d doo r loc k unit . Disconnec t
th e connectors , detac h th e grommet s an d harnes s
clips , the n carefull y remov e th e plasti c cover .
Clip location , 5
BRACKE T
PLASTIC COVE RDOOR LOC K UNI T
5. Befor e installin g th e plasti c cover , mak e sur e th e
doo r harnes s an d connector s ar e fastene d correctl y
o n th e door .
Clip location , 1 3
6. Instal l th e plasti c cover .
NOTE:
• Appl y adhesiv e alon g th e edg e wher e necessar y
t o maintai n a continuou s sea l an d preven t wate r
leaks.
• D o no t plu g th e elongate d holes .
PLASTI CCOVER
Route th e doo r harnes sthrough th e hol e in th eplasti c cover .
ELONGATE DHOLE
PLASTI CCOVERADHESIV E
7. Instal l th e doo r pane l (se e pag e 20-4 ).
NOTE :
Make sur e th e doo r harnes s i s no t pinched .
I f necessary , replac e an y damage d clips .
Mak e sur e th e connector s ar e connecte d properly .
8 . Instal l th e armres t pocke t an d inne r handl e tri m (se e
pag e 20-4 ).
NOTE : Mak e sur e th e connecto r i s connecte d prop -
erly .
Gromme t locations , 2Scre w locations ,
ProCarManuals.com
Page 1342 of 1771

Doors

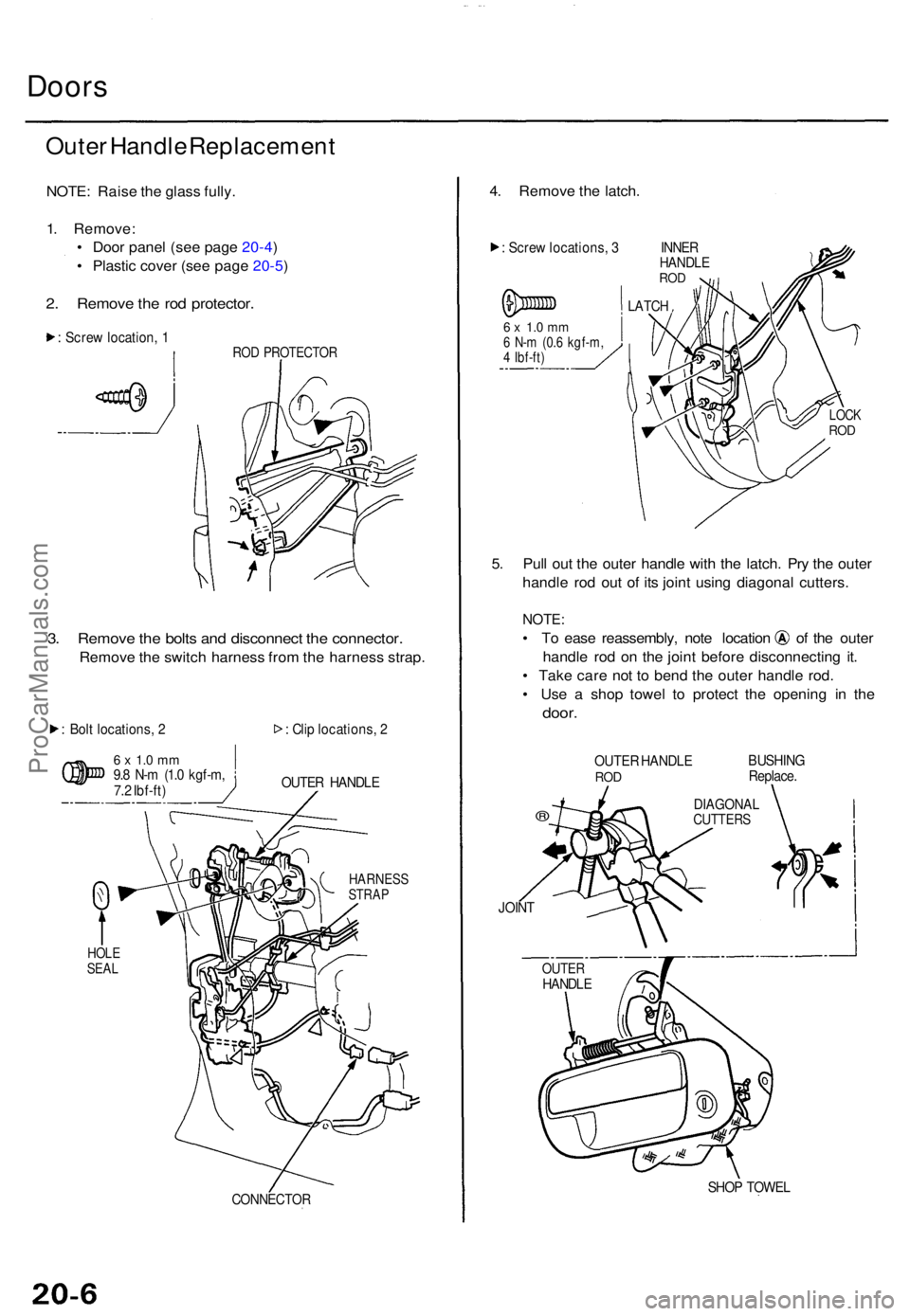

Outer Handl e Replacemen t
NOTE: Rais e th e glas s fully .
1 . Remove :
• Doo r pane l (se e pag e 20-4 )
• Plasti c cove r (se e pag e 20-5 )
2. Remov e th e ro d protector .
: Scre w location , 1RO D PROTECTO R
3. Remov e th e bolt s an d disconnec t th e connector .
Remove th e switc h harnes s fro m th e harnes s strap .
: Bol t locations , 2
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft ) :
Cli p locations , 2
OUTE R HANDL E
CONNECTO R
4. Remov e th e latch .
: Scre w locations , 3 INNE RHANDLEROD
6 x 1. 0 m m6 N- m (0. 6 kgf-m ,4 Ibf-ft )
LATCH
5. Pul l ou t th e oute r handl e wit h th e latch . Pr y th e oute r
handl e ro d ou t o f it s join t usin g diagona l cutters .
NOTE:
• T o eas e reassembly , not e locatio n o f th e oute r
handl e ro d o n th e join t befor e disconnectin g it .
• Tak e car e no t t o ben d th e oute r handl e rod .
• Us e a sho p towe l t o protec t th e openin g i n th e
door .
OUTE R HANDL ERODBUSHIN G
Replace .
®
JOINT
SHOP TOWE L
DIAGONA LCUTTERS
HARNES SSTRAP
HOLESEALOUTE RHANDL E
LOCKROD
ProCarManuals.com
Page 1343 of 1771

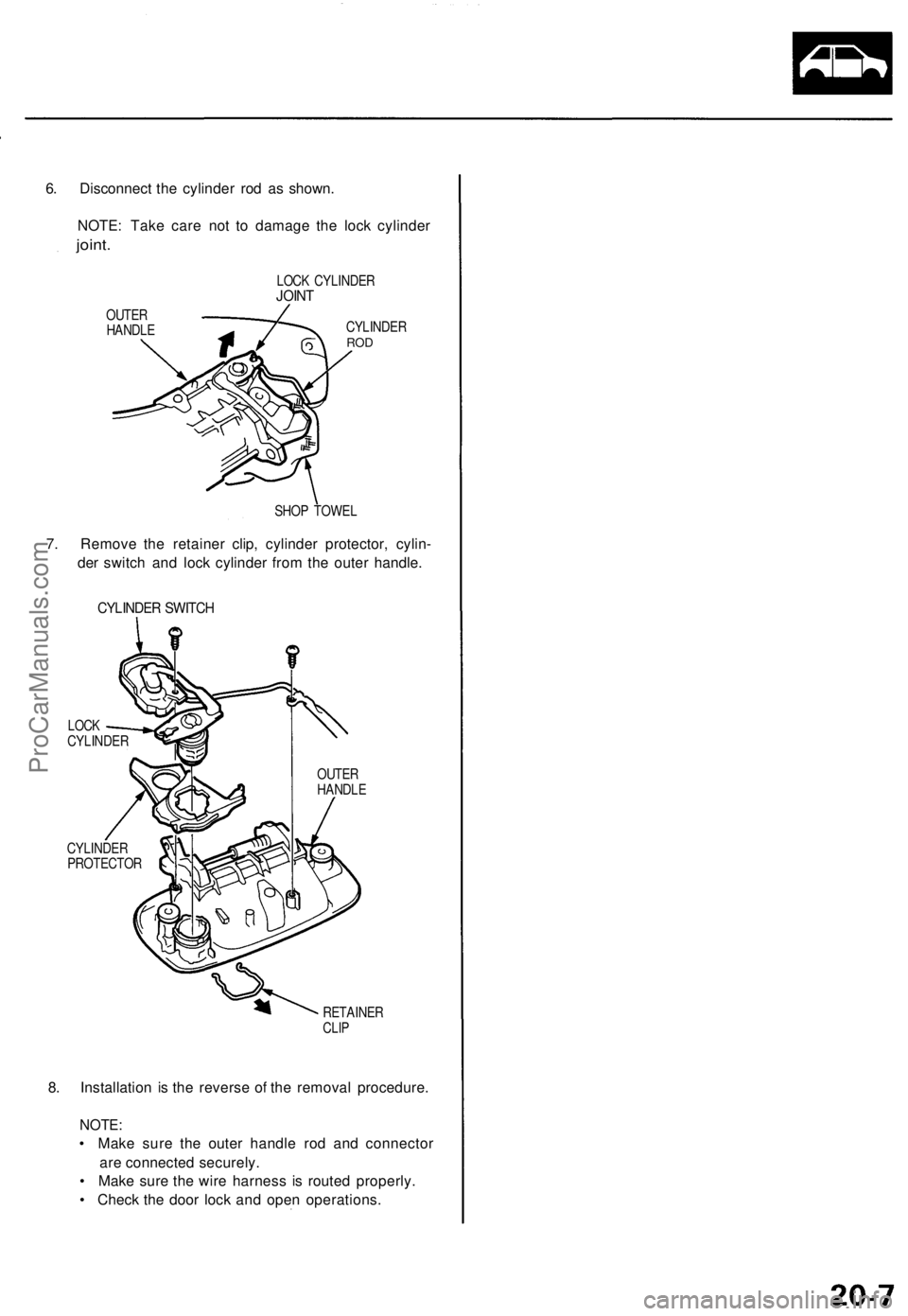

6. Disconnect the cylinder rod as shown.
NOTE: Take care not to damage the lock cylinder
joint.
LOCK CYLINDER
JOINT
OUTER
HANDLE
CYLINDER
ROD
SHOP TOWEL
7. Remove the retainer clip, cylinder protector, cylin-
der switch and lock cylinder from the outer handle.
CYLINDER SWITCH
LOCK
CYLINDER
CYLINDER
PROTECTOR
OUTER
HANDLE
RETAINER
CLIP
8. Installation is the reverse of the removal procedure.
NOTE:
• Make sure the outer handle rod and connector
are connected securely.
• Make sure the wire harness is routed properly.
• Check the door lock and open operations.ProCarManuals.com
Page 1344 of 1771

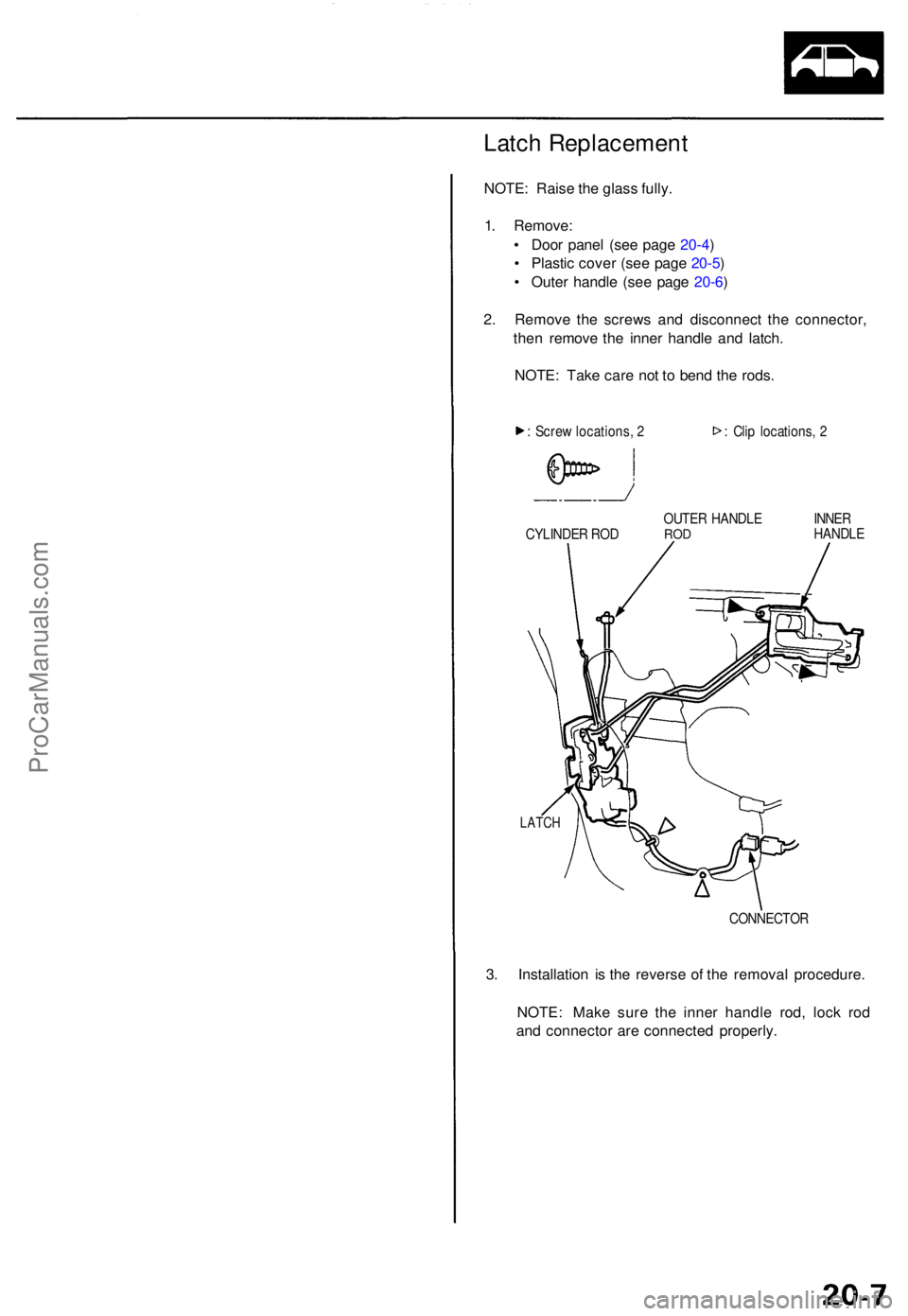

Latch Replacemen t
NOTE: Rais e th e glas s fully .
1 . Remove :
• Doo r pane l (se e pag e 20-4 )
• Plasti c cove r (se e pag e 20-5 )
• Oute r handl e (se e pag e 20-6 )
2 . Remov e th e screw s an d disconnec t th e connector ,
the n remov e th e inne r handl e an d latch .
NOTE : Tak e car e no t t o ben d th e rods .
: Scre w locations , 2 : Cli p locations , 2
CYLINDE R RO D OUTE
R HANDL E
RODINNE R
HANDL E
LATCH
CONNECTO R
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e inne r handl e rod , loc k ro d
an d connecto r ar e connecte d properly .
ProCarManuals.com
