1995 ACURA TL Service Repair Manual

D, E, F, G, H, I, J, K: Refer to page 1-12

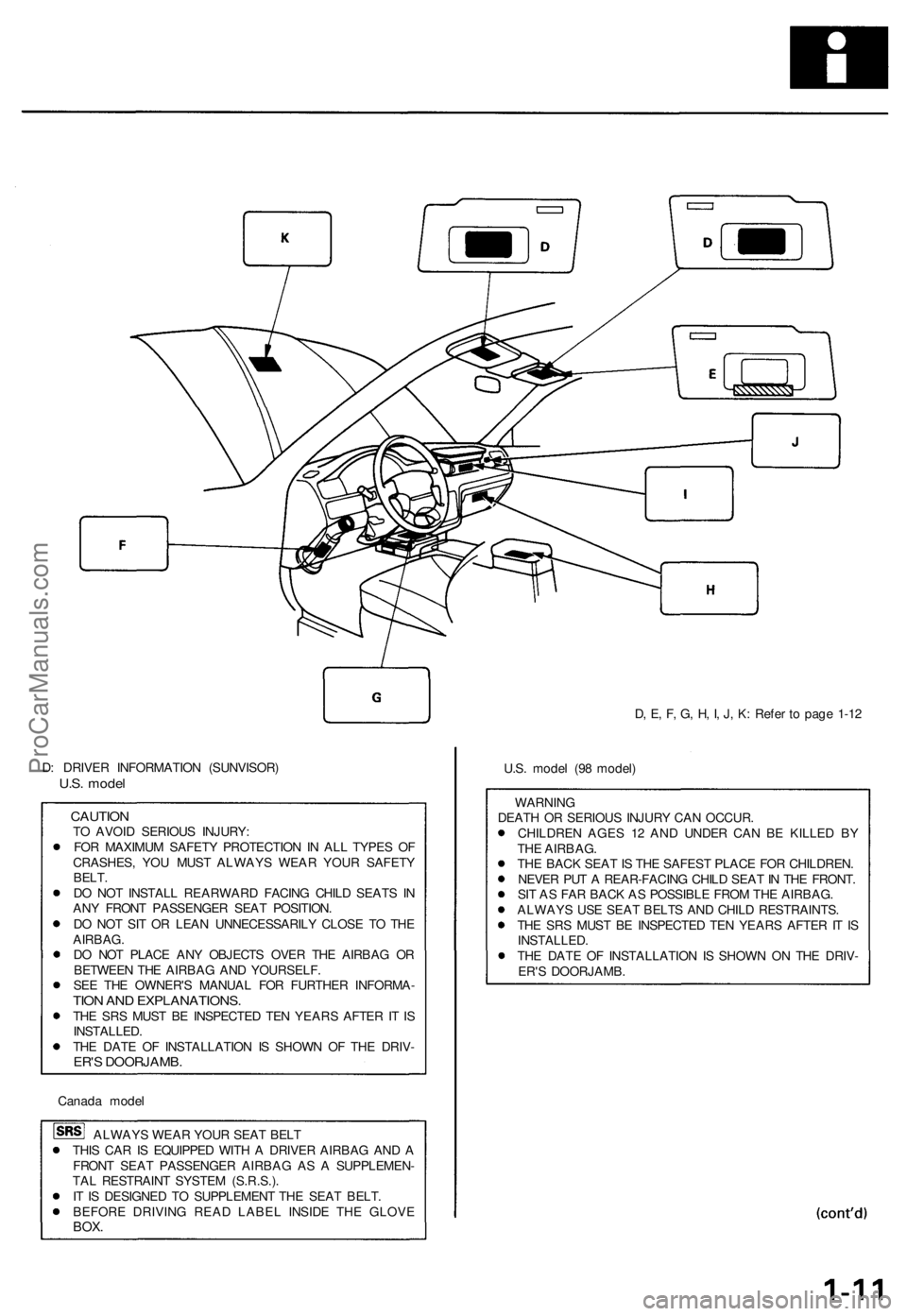

D: DRIVER INFORMATION (SUNVISOR)

U.S. model

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIRBAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN OF THE DRIV-

ER'S DOORJAMB.

Canada model

ALWAYS WEAR YOUR SEAT BELT

THIS CAR IS EQUIPPED WITH A DRIVER AIRBAG AND A

FRONT SEAT PASSENGER AIRBAG AS A SUPPLEMEN-

TAL RESTRAINT SYSTEM (S.R.S.).

IT IS DESIGNED TO SUPPLEMENT THE SEAT BELT.

BEFORE DRIVING READ LABEL INSIDE THE GLOVE

BOX.
U.S. model (98 model)

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR.

CHILDREN AGES 12 AND UNDER CAN BE KILLED BY

THE AIRBAG.

THE BACK SEAT IS THE SAFEST PLACE FOR CHILDREN.

NEVER PUT A REAR-FACING CHILD SEAT IN THE FRONT.

SIT AS FAR BACK AS POSSIBLE FROM THE AIRBAG.

ALWAYS USE SEAT BELTS AND CHILD RESTRAINTS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN ON THE DRIV-

ER'S DOORJAMB.ProCarManuals.com

Warning/Caution Label Locations

(cont'd)

D: DRIVER INFORMATION (SUNVISOR)

Canada model (98 model)

CAUTION

TO AVOID SERIOUS INJURY:

FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF

CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY

BELT.

DO NOT INSTALL REARWARD FACING CHILD SEATS IN

ANY FRONT PASSENGER SEAT POSITION.

DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE

AIRBAG.

DO NOT PLACE ANY OBJECTS OVER THE AIRBAG OR

BETWEEN THE AIRBAG AND YOURSELF.

SEE THE OWNER'S MANUAL FOR FURTHER INFORMA-

TION AND EXPLANATIONS.

THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED.

THE DATE OF INSTALLATION IS SHOWN OF THE DRIV-

ER'S DOORJAMB.

E: ASSISTANT INFORMATION

U.S. model

AIRBAG SEE OTHER SIDE.

U.S. model (98 model)

AIRBAG WARNING

FLIP VISOR OVER

F: STEERING COLUMN NOTICE

NOTICE

TO PREVENT SRS DAMAGE, REMOVE STEERING WHEEL

BEFORE REMOVING STEERING SHAFT CONNECTING

BOLT.

G: MONITOR NOTICE

NOTICE

• NO SERVICEABLE PARTS INSIDE.

• REFER TO SERVICE MANUAL FOR DETAILED INSTRUC-

TIONS.

H: SRS CONSOLE/GLOVE BOX INFORMATION

Canada model (95 - 97 model)

AIRBAG INFORMATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

• THE SRS MUST BE INSPECTED TEN YEARS AFTER IT IS

INSTALLED. THE DATE OF INSTALLATION IS SHOWN

ON THE CERTIFICATION PLATE, LOCATED ON THE

DRIVER'S DOORJAMB.

• DIAGNOSTIC CHECKS AND REPLACEMENT OF SRS

COMPONENTS MUST BE DONE BY AN AUTHORIZED

DEALER.

• SEE YOUR OWNER'S MANUAL FOR ADDITIONAL SRS

INFORMATION.
I: FRONT SEAT PASSENGER AIRBAG MODULE DANGER

DANGER

EXPLOSIVE/FLAMMABLE

CONTACT WITH ACID, WATER OR HEAVY METALS SUCH

AS COPPER, LEAD OR MERCURY MAY PRODUCE HARM-

FUL AND IRRITATING GASES OR EXPLOSIVE COM-

POUNDS. STORAGE TEMPERATURES MUST NOT EXCEED

200 F (100°C). FOR PROPER HANDLING, STORAGE AND

DISPOSAL PROCEDURES REFER TO SERVICE MANUAL,

SRS SUPPLEMENT.

POISON

CONTAINS POISONOUS SODIUM AZIDE AND POTASSIUM

NITRATE.

FIRST AID

IF CONTENTS ARE SWALLOWED, INDUCE VOMITING.

FOR EYE CONTACT, FLUSH EYES WITH WATER FOR 15

MINUTES. IF GASES (FROM ACID OR WATER CONTACT)

ARE INHALED, SEEK FRESH AIR. IN EVERY CASE, GET

PROMPT MEDICAL ATTENTION.

KEEP OUT OF REACH OF CHILDREN.

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT OR KILL YOU.

• DO NOT USE ELECTRICAL TEST EQUIPMENT OR PROB-

ING DEVICES. THEY CAN CAUSE ACCIDENTAL DEPLOY-

MENT.

• NO SERVICEABLE PARTS INSIDE. DO NOT DISASSEM-

BLE.

• PLACE AIRBAG UPRIGHT WHEN REMOVED.

• FOLLOW SERVICE MANUAL INSTRUCTIONS CAREFULLY.

J: PASSENGER AIRBAG CAUTION

U.S. model (98 model)

WARNING

CHILDREN CAN BE KILLED OR INJURED BY A PASSENGER

AIRBAG.

THE BACK SEAT IS THE SAFEST PLACE FOR CHILDREN

AGES 12 AND UNDER. MAKE SURE ALL CHILDREN USE

SEAT BELTS OR CHILD SEATS.

K: SRS WARNING (HOOD)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

THIS VEHICLE IS EQUIPPED WITH DRIVER AND FRONT

SEAT PASSENGER AIRBAGS.

ALL SRS ELECTRICAL WIRING AND CONNECTORS ARE

COLORED YELLOW.

TAMPERING WITH, DISCONNECTING OR USING ELECTRI-

CAL TEST EQUIPMENT ON THE SRS WIRING CAN MAKE

THE SYSTEM INOPERATIVE OR CAUSE ACCIDENTAL FIR-

ING OF THE INFLATOR.

WARNING

THE AIRBAG INFLATOR IS EXPLOSIVE AND, IF ACCIDEN-

TALLY DEPLOYED, CAN SERIOUSLY HURT YOU. FOLLOW

SERVICE MANUAL INSTRUCTIONS CAREFULLY.ProCarManuals.com

SERVICE INFORMATIO N(1995-1996,1998 )VEHICLE EMISSIO N CONTRO LINFORMATION/VACUU MHOSE ROUTIN G DIAGRA M(1997: KA )VEHICL E EMISSIO N CONTRO LINFORMATIO N (1997 : KC )
COOLAN TINFORMATIO N(1995-1996)VACUUM HOS EROUTIN G DIAGRA M(1997 -1998 : KC)
COOLAN TINFORMATIO N (199 7 -1998 )
AIR CONDITIONIN G
INFORMATIO N
(1995-1997 )
BATTERYCAUTION(1995 -1998 )
AIR CLEANER ,RECOMMENDE DENGINE OI Land FILTER , SPAR KPLUG SERVIC E(1995-1998 )
TIRE INFORMATIO N(1995 - 1996 )TIRE INFORMATIO N(1997 -1998 )
RADIATO R CA PCAUTIO N
(199 5 -1998 )
NOTE: Refe r t o page 1-9a of th e '9 6-9 8 Acura 3.2TL Servic e Manual supplement forfor the differences on this page for the 3.2TL.
ProCarManuals.com

Under-hood Emissions Control Label

VACUUM HOSE ROUTING DIAGRAM
Emission Group Identification

(1997 model)

VEHICLE EMISSION CONTROL INFORMATION

50ST (50 States):

THIS VEHICLE CONFORMS TO THE U.S. EPA AND THE

STATE OF CALIFORNIA REGULATIONS APPLICABLE TO

1997 MODEL YEAR NEW MOTOR VEHICLES.

49ST (49 States/Federal):

THIS VEHICLE CONFORMS TO THE U.S. EPA REGULA-

TIONS APPLICABLE TO 1997 MODEL YEAR NEW

MOTOR VEHICLES.

CAL (California):

THIS VEHICLE CONFORMS TO THE U.S. EPA AND

STATE OF CALIFORNIA REGULATIONS APPLICABLE TO

1997 MODEL YEAR NEW PASSENGER CARS PROVIDED

THAT THIS VEHICLE IS ONLY INTRODUCED INTO COM-

MERCE FOR SALE IN THE STATE OF CALIFORNIA.
Engine and Evaporative FamiliesProCarManuals.com

Emission Group Identification

(1998 model)
Engine and Evaporative Families

VACUUM HOSE ROUTING DIAGRAM

50ST (50 States):

THIS VEHICLE CONFORMS TO THE U.S. EPA AND THE

STATE OF CALIFORNIA REGULATIONS APPLICABLE TO

1998 MODEL YEAR NEW MOTOR VEHICLES.

49ST (49 States/Federal):

THIS VEHICLE CONFORMS TO THE U.S. EPA REGULA-

TIONS APPLICABLE TO 1998 MODEL YEAR NEW

MOTOR VEHICLES.

CAL (California):

THIS VEHICLE CONFORMS TO THE U.S. EPA AND

STATE OF CALIFORNIA REGULATIONS APPLICABLE TO

1998 MODEL YEAR NEW PASSENGER CARS PROVIDED

THAT THIS VEHICLE IS ONLY INTRODUCED INTO COM-

MERCE FOR SALE IN THE STATE OF CALIFORNIA.
VEHICLE EMISSION CONTROL INFORMATIONProCarManuals.com

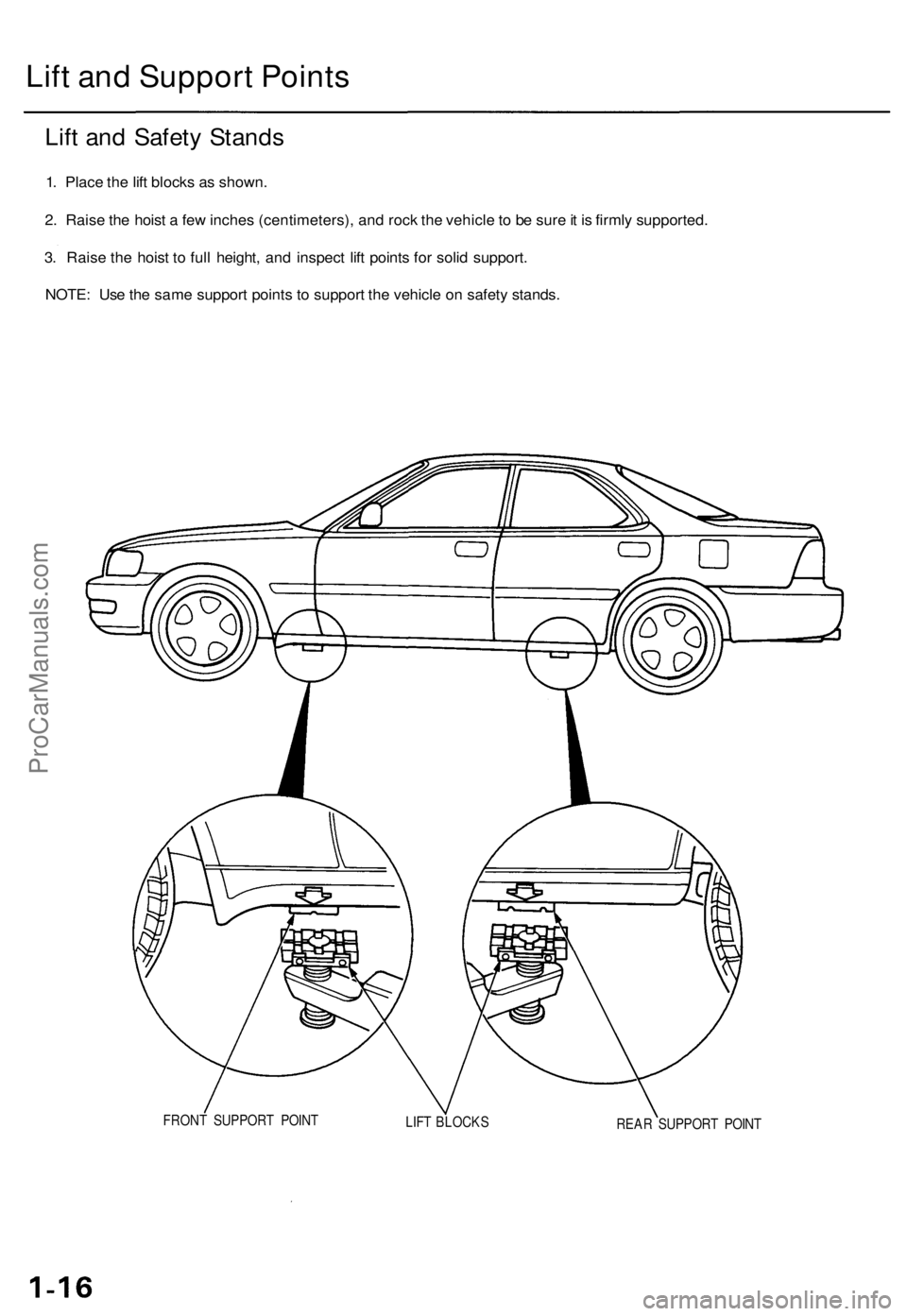

Lift and Support Points

Lift and Safety Stands

1. Place the lift blocks as shown.

2. Raise the hoist a few inches (centimeters), and rock the vehicle to be sure it is firmly supported.

3. Raise the hoist to full height, and inspect lift points for solid support.

NOTE: Use the same support points to support the vehicle on safety stands.

FRONT SUPPORT POINT

LIFT BLOCKS

REAR SUPPORT POINTProCarManuals.com

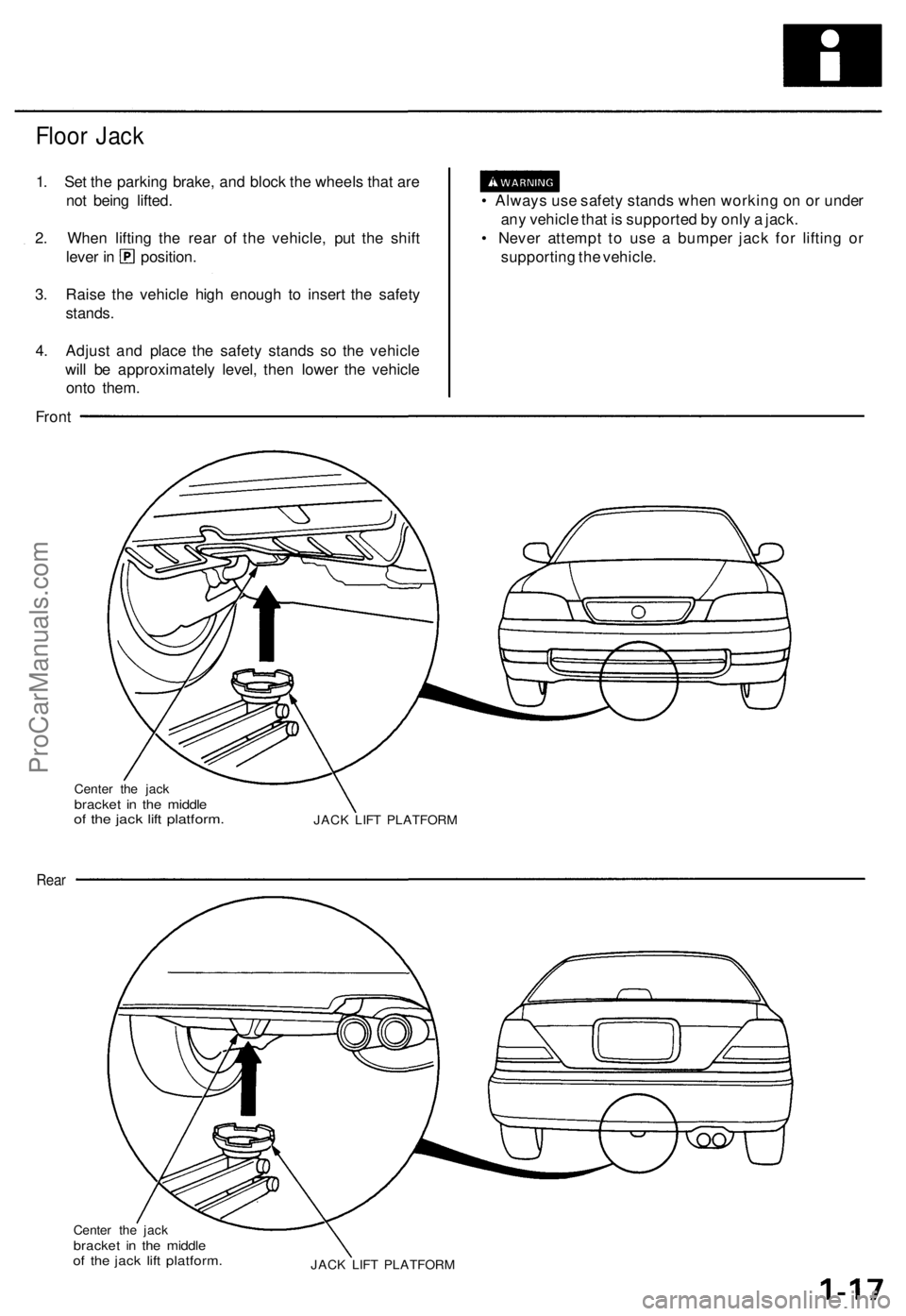

Floor Jack

1. Set the parking brake, and block the wheels that are

not being lifted.

2. When lifting the rear of the vehicle, put the shift

lever in position.

3. Raise the vehicle high enough to insert the safety

stands.

4. Adjust and place the safety stands so the vehicle

will be approximately level, then lower the vehicle

onto them.
• Always use safety stands when working on or under

any vehicle that is supported by only a jack.

• Never attempt to use a bumper jack for lifting or

supporting the vehicle.

Front

Center the jack

bracket in the middle

of the jack lift platform.

JACK LIFT PLATFORM

Rear

Center the jack

bracket in the middle

of the jack lift platform.

JACK LIFT PLATFORMProCarManuals.com

Towing

If the vehicle needs to be towed, call a professional tow-

ing service. Never tow the vehicle behind another vehi-

cle with just a rope or chain. It is very dangerous.

Emergency Towing

There are three popular methods of towing a vehicle:

Flat-bed Equipment — The operator loads the vehicle on

the back of a truck. This is the best way of transporting the

vehicle.

Wheel Lift Equipment — The tow truck uses two pivoting

arms that go under the tires (front or rear) and lifts them

off the ground. The other two wheels remain on the

ground.

Sling-type Equipment — The tow truck uses metal cables

with hooks on the ends. These hooks go around parts of

the frame or suspension and the cables lift that end of

the vehicle off the ground. The vehicle's suspension and

body can be seriously damaged if this method of towing

is attempted.

If the vehicle cannot be transported by flat-bed, it should

be towed with the front wheels off the ground. If due to

damage, the vehicle must be towed with the front

wheels on the ground, do the following:

• Release the parking brake.

• Start the engine.

• Shift to position, then position.

• Turn off the engine.

CAUTION:

• Improper towing preparation will damage the trans-

mission. Follow the above procedure exactly. If you

cannot shift the transmission or start the engine, the

vehicle must be transported on a flat-bed.

• It is best to tow the vehicle no farther than 50 miles

(80 km), and keep the speed below 35 mph (55

km/h).

• Trying to lift or tow the vehicle by the bumpers will

cause serious damage. The bumpers are not

designed to support the vehicle's weight.
Front:

TOWING HOOKS and

TIE DOWN BRACKETS

Rear:

TIE DOWN BRACKETSProCarManuals.com
