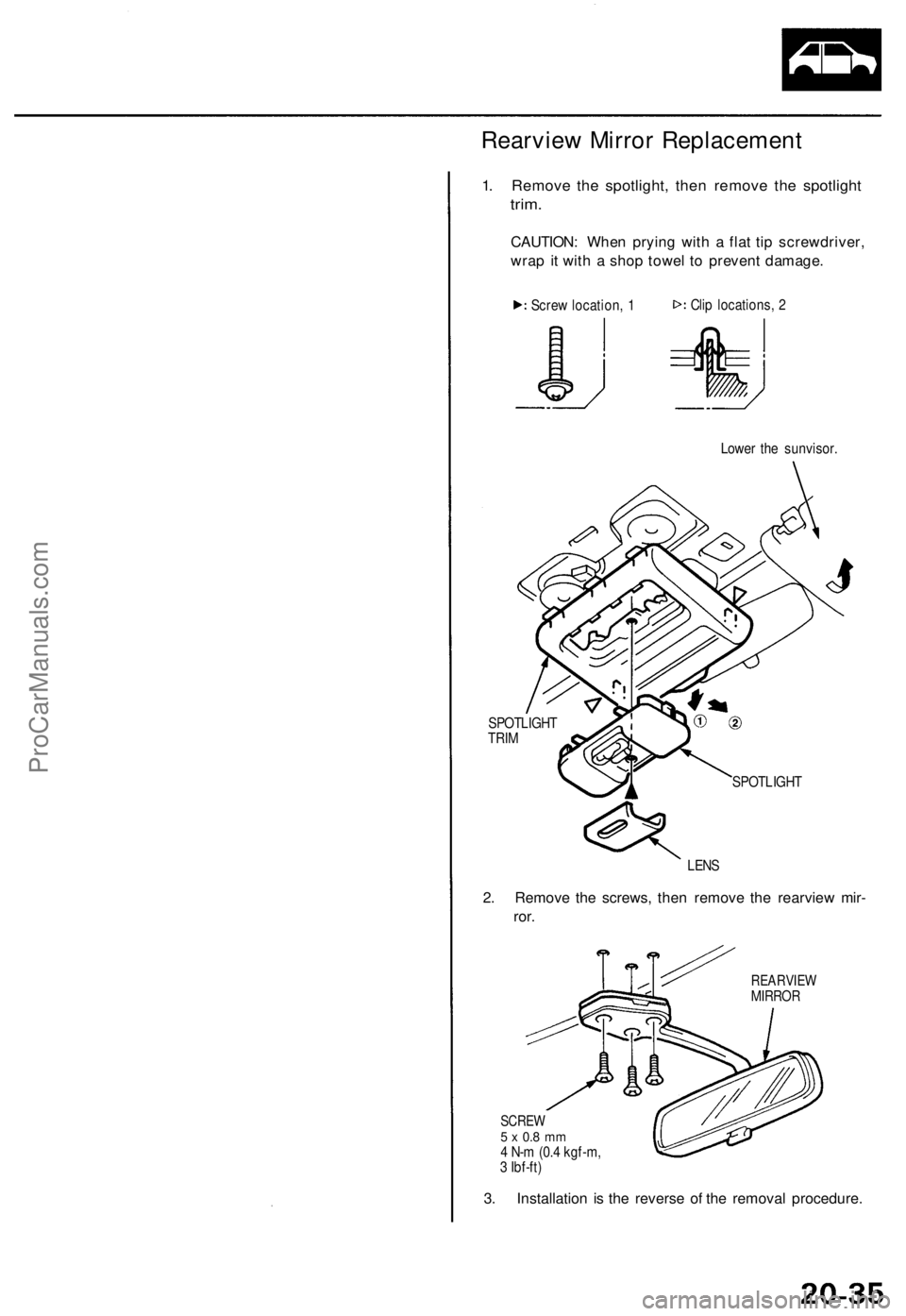

Rearview Mirror Replacement
1. Remove the spotlight, then remove the spotlight
trim.
CAUTION: When prying with a flat tip screwdriver,
wrap it with a shop towel to prevent damage.
Lower the sunvisor.
SPOTLIGHT
TRIM
SPOTLIGHT
LENS
2. Remove the screws, then remove the rearview mir-
ror.
REARVIEW
MIRROR
SCREW
5 x 0.8 mm
4 N-m (0.4 kgf-m,
3 Ibf-ft)
3. Installation is the reverse of the removal procedure.
Screw location, 1
Clip locations, 2ProCarManuals.com
