1995 ACURA TL Service Repair Manual

Wiring/Connector Location s
HEATER VALV E CONTRO L SOLENOI D
VALV E CONNECTO R RADIATO
R FA N CONTRO L MODUL E
(Locate d unde r righ t sid e o f dash )
Test , pag e 22-2 0
COMPRESSO R CLUTC H RELA Y
CONNECTO R
Wir e colors : WHT , RED ,
BLK/YE L an d RED/BL U
RADIATO R FA N RELA Y CONNECTO R
Wir e colors : WHT , YEL/WH T
WHT/BLU an d L T GRN/YE L SUNLIGH
T SENSO R
A/ C DIOD E
RADIATO R FA N
CONNECTO R
OUTSID E AI R TEMPERATUR E SENSO R COMPRESSO
R CLUTC H
CONNECTO R
A/ C PRESSUR E SWITC H
CONNECTO R CONDENSE
R FA N RELA Y CONNECTO R
Wir e colors : WHT , YE L
WHT/GR N an d L T GRN/YE L
CONDENSE R FA N CONNECTO R BLOWE
R MOTO R RELA Y
ProCarManuals.com

Troubleshooting

Radiator Fan Control Module Input Tests

NOTE: Perform the following tests with the radiator fan control module 8P connector connected, the ignition switch ON (II),

and the A/C switch OFF. If you find the cause of a problem, correct it before you continue.

RADIATOR FAN CONTROL MODULE 8P CONNECTOR

WIRE SIDE OF FEMALE TERMINALS

Terminal

No.

4

6

7

2

3

1

8

5
Wire

color

BLK

WHT/GRN

BLK/YEL

BLK/YEL

YEL/WHT

YEL

LT

GRN/YEL

ORN
Test condition

Check for voltage to body

ground.

Check for battery voltage:

Check for battery voltage:

Ignition switch - ON (II)

Check for battery voltage:

Ignition switch - ON (II)

Check for battery voltage:

Ignition switch - ON (II)

Check for battery voltage:

Ignition switch - ON (II)

Connect to body ground:

Ignition switch - ON (II)

Check for voltage.
Desired results

There should be less

than one volt.

There should be battery

voltage.

Condenser fan and radia-

tor fan should come on.

Approx. 11 V (engine oil

temperature below 198°F

[92°C])
Corrective action if desired results are

not obtained

Repair open to body ground.

Check No. 56 (10 A) fuse in the under-

hood fuse/relay box; if OK, repair open

in the WHT/GRN wire.

Check No. 4* fuse in the under-dash

fuse/relay box; if OK, repair open in the

BLK/YEL wire.

Check No. 7 (7.5 A) fuse in the under-

dash fuse/relay box; if OK, repair open in

the BLK/YEL wire.

Replace the radiator fan control module.

Before you connect the new radiator fan

control module, disconnect both fan

relays. Check for continuity between the

YEL/WHT (or YEL) wire and ground, using

the 20 scale on your ohmmeter. There

should be no continuity. If there is conti-

nuity, the new radiator fan control mod-

ule will be damaged when you connect it.

Check for an open in the LT GRN/YEL

wire between the radiator fan control

module and the condenser fan relay or

the radiator fan relay. If OK, check for an

open in the YEL/WHT wire between the

radiator fan control module and the radi-

ator fan relay, or the YEL wire between

the radiator fan control module and the

condenser fan relay. If OK, test the con-

denser fan relay or the radiator fan relay.

Faulty engine oil temperature switch,

short to body ground, or faulty radiator

fan control module.

*No. 4 (15 A):'96 model

No. 4 (20 A): '97 and '98 modelsProCarManuals.com

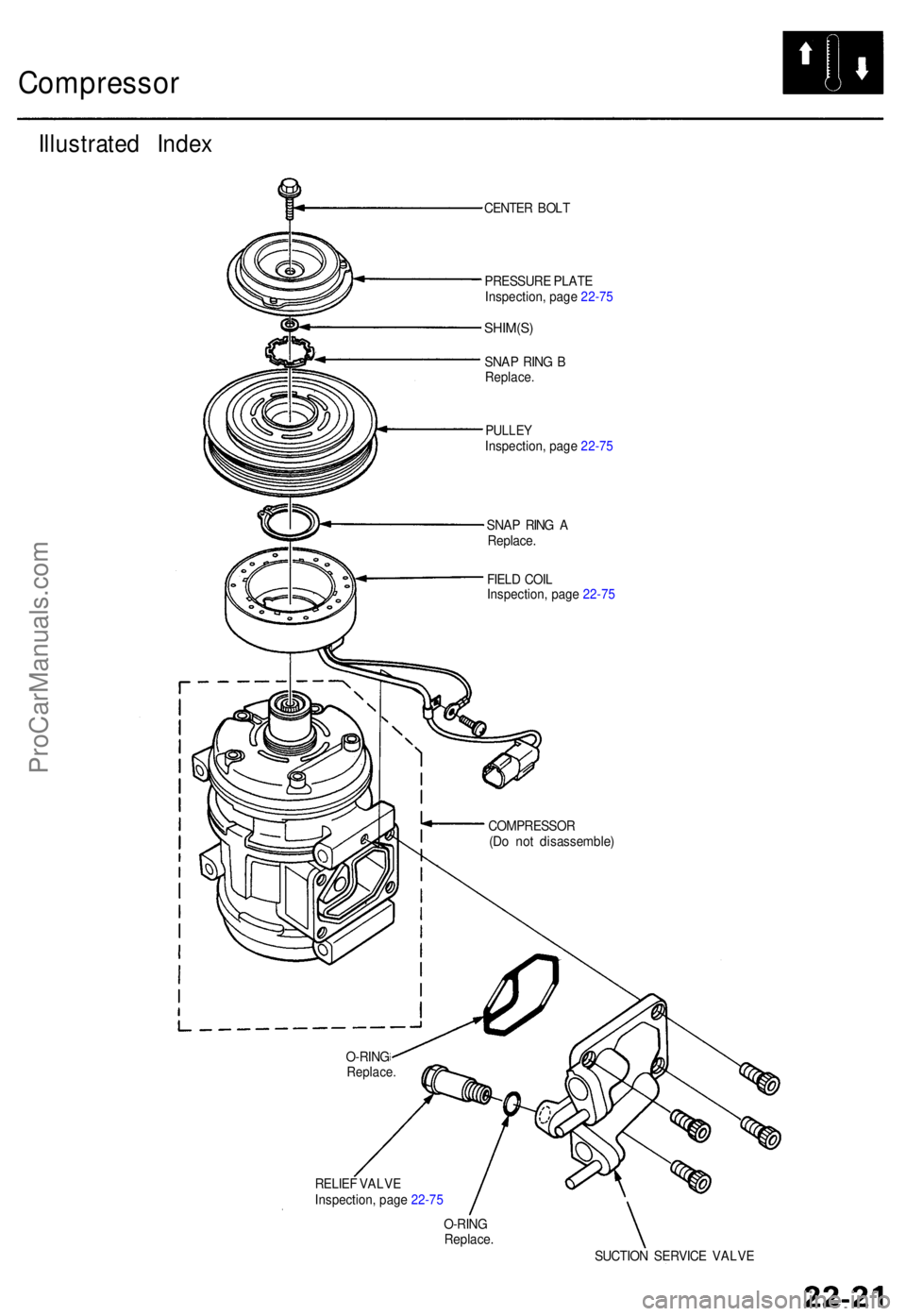

Compressor
Illustrated Inde x
CENTE R BOL T
PRESSUR E PLAT E
SHIM(S )
SNAP RIN G BReplace .
RELIEF VALV E
O-RING
Replace .SUCTION SERVIC E VALV E
O-RIN
G
Replace .
COMPRESSO R
(D o no t disassemble )
PULLEY
SNAP RIN G A
Replace .
FIEL D COI L
Inspection, page 22-75
Inspection, page 22-75
Inspection, page 22-75
Inspection, page 22-75
ProCarManuals.com

Compressor
Replacemen t
1. I f th e compresso r i s marginall y operable , ru n th e
engin e a t idl e speed , an d le t th e ai r conditione r
wor k fo r a fe w minutes , the n shu t th e engin e off .
2 . Mak e sur e yo u hav e th e anti-thef t cod e fo r th e radio ,
the n writ e dow n th e frequencie s fo r th e radio' s pre -
se t buttons .
Disconnec t th e negativ e cabl e fro m th e battery .
3 . Recove r th e refrigeran t wit h a Recovery/Recycling /
Charging System .
4. Loose n th e A/ C compresso r bel t (se e pag e 22-24 ).
A/ C COMPRESSO R BEL T
5. Remov e th e nuts , the n disconnec t th e suctio n lin e
an d th e discharg e lin e fro m th e compressor .
NOTE : Plu g o r cap the line s immediatel y afte r dis -
connectin g the m to avoi d moistur e an d dus t con -
tamination .
SUCTION LIN EDISCHARG E LIN E
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7 Ibf-ft )
6. Remov e th e fou r mountin g bolt s an d th e compres -
sor.
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
7. Remov e th e fou r bolt s an d th e suctio n servic e valv e
fro m th e compressor .
25.5 N- m (2. 6 kgf-m , 18. 8 Ibf-ft )
SUCTIO N SERVIC E
VALVE
O-RIN G
Replace .
22-22ProCarManuals.com

8. I f necessary , remov e th e idle r pulley .
IDLER PULLE Y
9.
MOUNTIN G BOLT S
Check th e idle r pulle y bearin g fo r pla y an d drag .
Replac e it wit h a ne w on e i f it' s nois y o r ha s exces -
siv e pla y o r drag .
ADJUSTIN GBOLT
IDLE RPULLE YCENTE RBOLT
10 x 1.2 5 mm44 N- m (4. 5 kgf-m , 3 3 Ibf-ft )
10. Instal l i n th e revers e orde r o f removal . Mak e not e o f
th e followin g items .
I f you'r e installin g a ne w compressor , drai n al l
th e refrigeran t oi l fro m th e remove d compressor ,
an d measur e it s volume . Subtrac t th e volum e o f
draine d oi l fro m 14 0 ( 4 1/ 3 fl-oz , 4. 9 Imp-oz) ;
th e resul t i s th e amoun t o f oi l yo u shoul d drai n
fro m th e ne w compresso r (throug h th e suctio n
fitting).
Replac e th e O-rings with ne w one s a t eac h fitting ,
an d appl y a thi n coa t of refrigeran t oi l befor e
installin g them .
NOTE : B e sur e t o us e th e righ t O-ring s fo r HFC -
134 a (R-134a ) t o avoi d leakage .
Us e refrigeran t oi l (ND-OI L 8 ) fo r R-134 a DENS O
pisto n typ e compressor s only .
T o avoi d contamination , d o no t retur n th e oi l t o
th e containe r onc e dispensed , an d neve r mi x i t
wit h othe r refrigeran t oils .
Immediatel y afte r usin g th e oil , replac e th e ca p
o n th e container , an d sea l i t t o avoi d moistur e
absorption .
D o no t spil l th e refrigeran t oi l o n th e vehicle ; i t
ma y damag e th e paint ; i f th e refrigeran t oi l con -
tact s th e paint , was h i t of f immediately .
B e carefu l no t t o damag e th e radiato r fin s whe n
installin g th e condense r fa n shrou d an d th e com -
pressor .
Adjust th e A/ C compresso r bel t (se e pag e 22-24 ).
Charg e th e syste m (se e pag e 22-30 ), an d tes t it s
performanc e (se e pag e 22-28 ).
Ente r th e anti-thef t cod e fo r th e radio , the n ente r
th e customer' s radi o statio n presets .
ProCarManuals.com

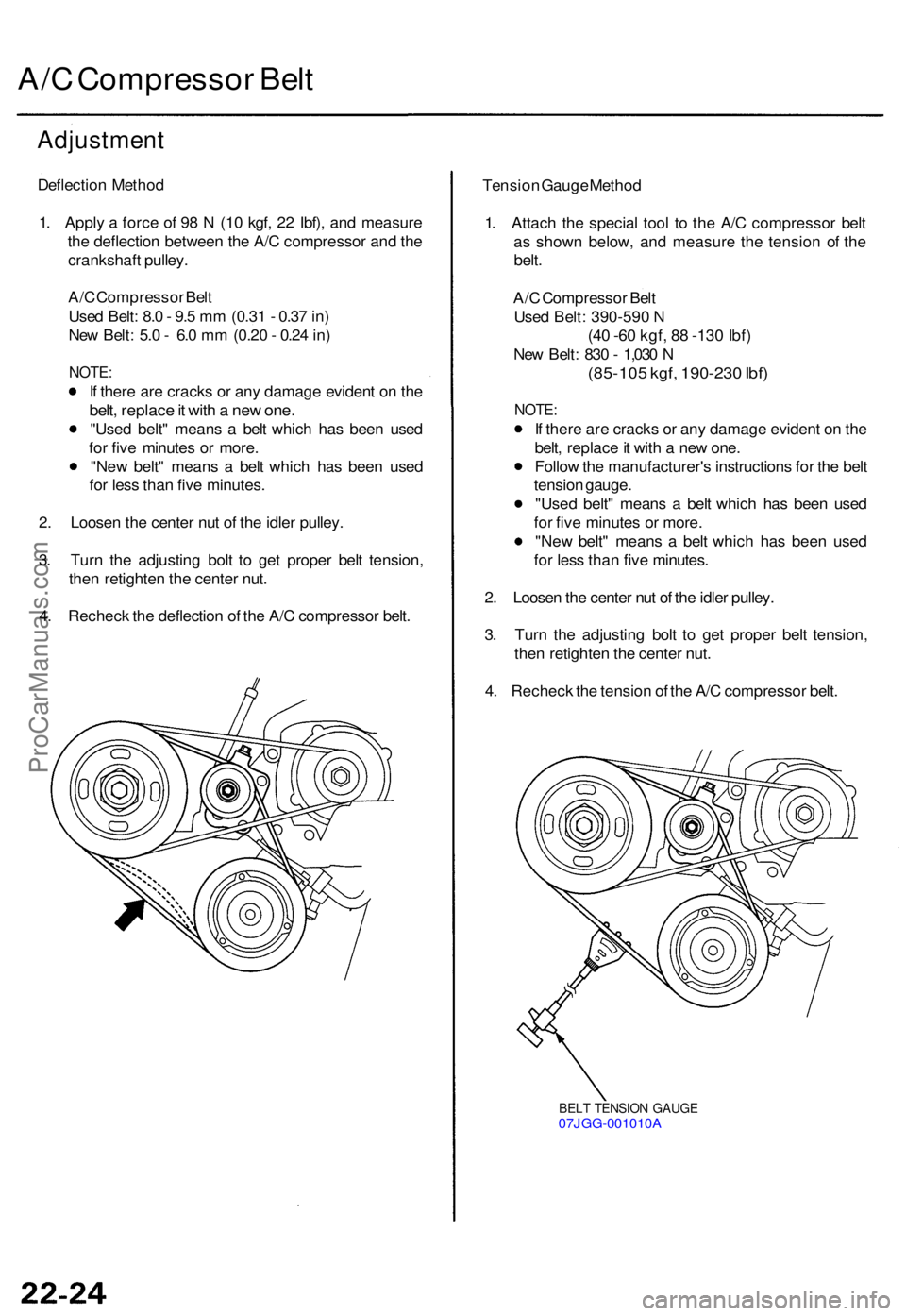

A/C Compresso r Bel t
Adjustmen t
Deflection Metho d
1 . Appl y a forc e o f 9 8 N (1 0 kgf , 2 2 Ibf) , an d measur e
th e deflectio n betwee n th e A/ C compresso r an d th e
crankshaf t pulley .
A/ C Compresso r Bel t
Use d Belt : 8. 0 - 9. 5 m m (0.3 1 - 0.3 7 in )
Ne w Belt : 5. 0 - 6. 0 m m (0.2 0 - 0.2 4 in )
NOTE :
If ther e ar e crack s o r an y damag e eviden t o n th e
belt , replac e it wit h a ne w one .
"Use d belt " mean s a bel t whic h ha s bee n use d
fo r fiv e minute s o r more .
"New belt" mean s a bel t whic h ha s bee n use d
fo r les s tha n fiv e minutes .
2 . Loose n th e cente r nu t o f th e idle r pulley .
3 . Tur n th e adjustin g bol t t o ge t prope r bel t tension ,
the n retighte n th e cente r nut .
4 . Rechec k th e deflectio n o f th e A/ C compresso r belt . Tensio
n Gaug e Metho d
1 . Attac h th e specia l too l t o th e A/ C compresso r bel t
a s show n below , an d measur e th e tensio n o f th e
belt .
A/ C Compresso r Bel t
Use d Belt : 390-59 0 N
(4 0 -6 0 kgf , 88 -13 0 Ibf )
New Belt : 83 0 - 1,03 0 N
(85-10 5 kgf , 190-23 0 Ibf )
NOTE :
If ther e ar e crack s o r an y damag e eviden t o n th e
belt , replac e it wit h a ne w one .
Follo w th e manufacturer' s instruction s fo r th e bel t
tensio n gauge .
"Use d belt " mean s a bel t whic h ha s bee n use d
fo r fiv e minute s o r more .
"Ne w belt " mean s a bel t whic h ha s bee n use d
fo r les s tha n fiv e minutes .
2 . Loose n th e cente r nu t o f th e idle r pulley .
3 . Tur n th e adjustin g bol t t o ge t prope r bel t tension ,
the n retighte n th e cente r nut .
4 . Rechec k th e tensio n o f th e A/ C compresso r belt .
BEL T TENSIO N GAUG E07JGG-001010 A
ProCarManuals.com

Condenser
Replacemen t
1. Recove r th e refrigeran t wit h a Recovery/Recycling /
Charging System .
2 . Remov e th e batter y an d th e batter y bas e (se e
sectio n 5 ).
3 . Remov e th e bulkhea d cove r (se e sectio n 20 ).
4 . Remov e th e resonator .
6 x 1. 0 m m8 N- m (0. 8 kgf-m , 6 Ibf-ft )
RESONATO R
5. Remov e th e bolt , an d disconnec t th e condense r lin e
fro m th e condenser .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7 Ibf-ft )
6. Remov e th e nut , an d disconnec t th e discharg e lin e
from th e condenser .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7 Ibf-ft )
DISCHARG E LIN E
7. Remov e th e tw o bolts , an d th e tw o radiato r uppe r
moun t brackets .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7 Ibf-ft )
RADIATO R UPPE R MOUN T BRACKE T
CONDENSE
R LIN E
ProCarManuals.com

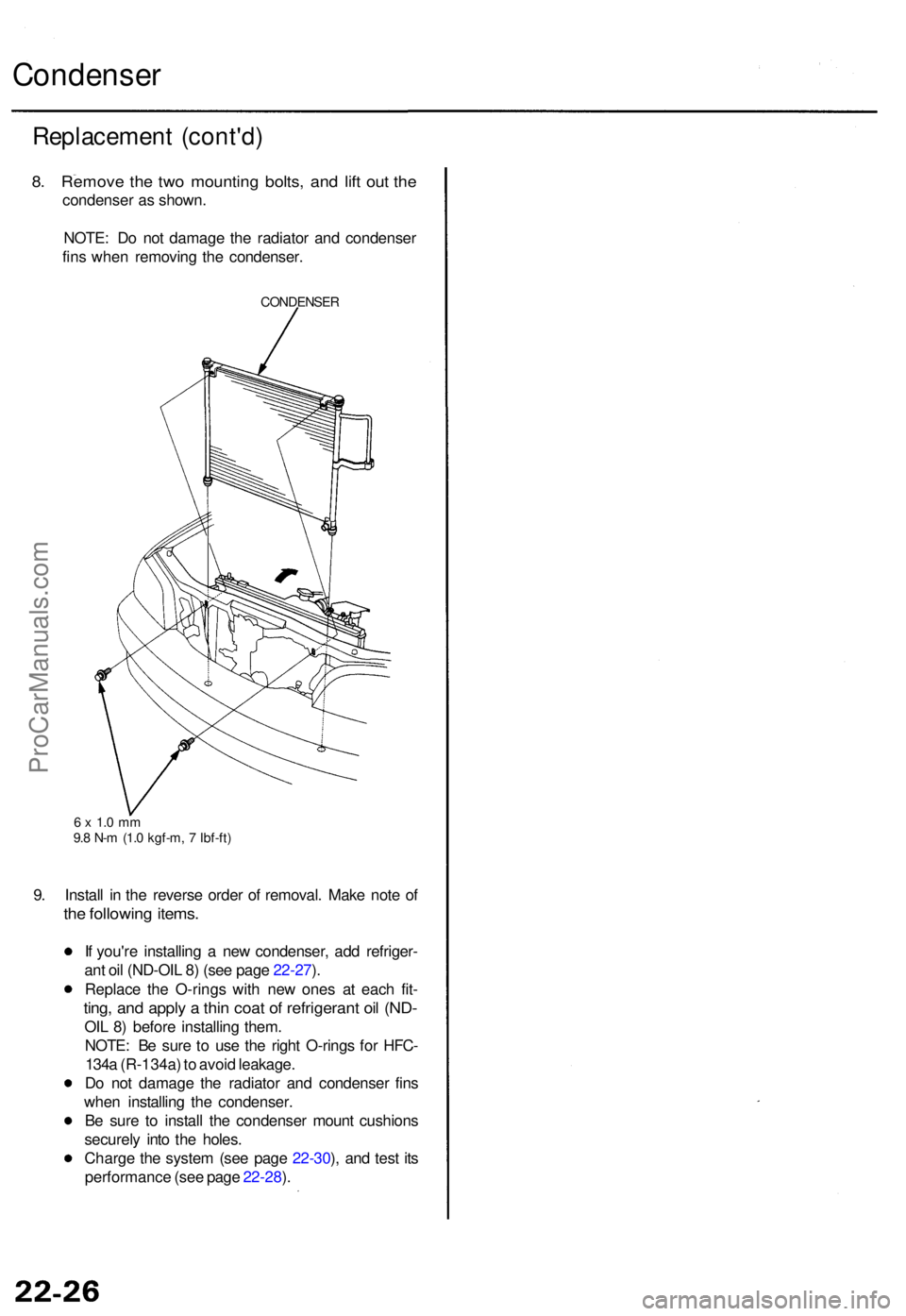

Condenser
Replacemen t (cont'd )
8. Remov e th e tw o mountin g bolts , an d lif t ou t th e
condense r a s shown .
NOTE : D o no t damag e th e radiato r an d condense r
fin s whe n removin g th e condenser .
CONDENSE R
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , 7 Ibf-ft )
9. Instal l i n th e revers e orde r o f removal . Mak e not e o f
the followin g items .
If you'r e installin g a ne w condenser , ad d refriger -
an t oi l (ND-OI L 8 ) (se e pag e 22-27 ).
Replac e th e O-ring s wit h ne w one s a t eac h fit -
ting , an d appl y a thi n coa t o f refrigeran t oi l (ND -
OIL 8 ) befor e installin g them .
NOTE : B e sur e t o us e th e righ t O-ring s fo r HFC -
134 a (R-134a ) t o avoi d leakage .
D o no t damag e th e radiato r an d condense r fin s
whe n installin g th e condenser .
B e sur e t o instal l th e condense r moun t cushion s
securel y int o th e holes .
Charg e th e syste m (se e pag e 22-30 ), an d tes t it s
performanc e (se e pag e 22-28 ).
