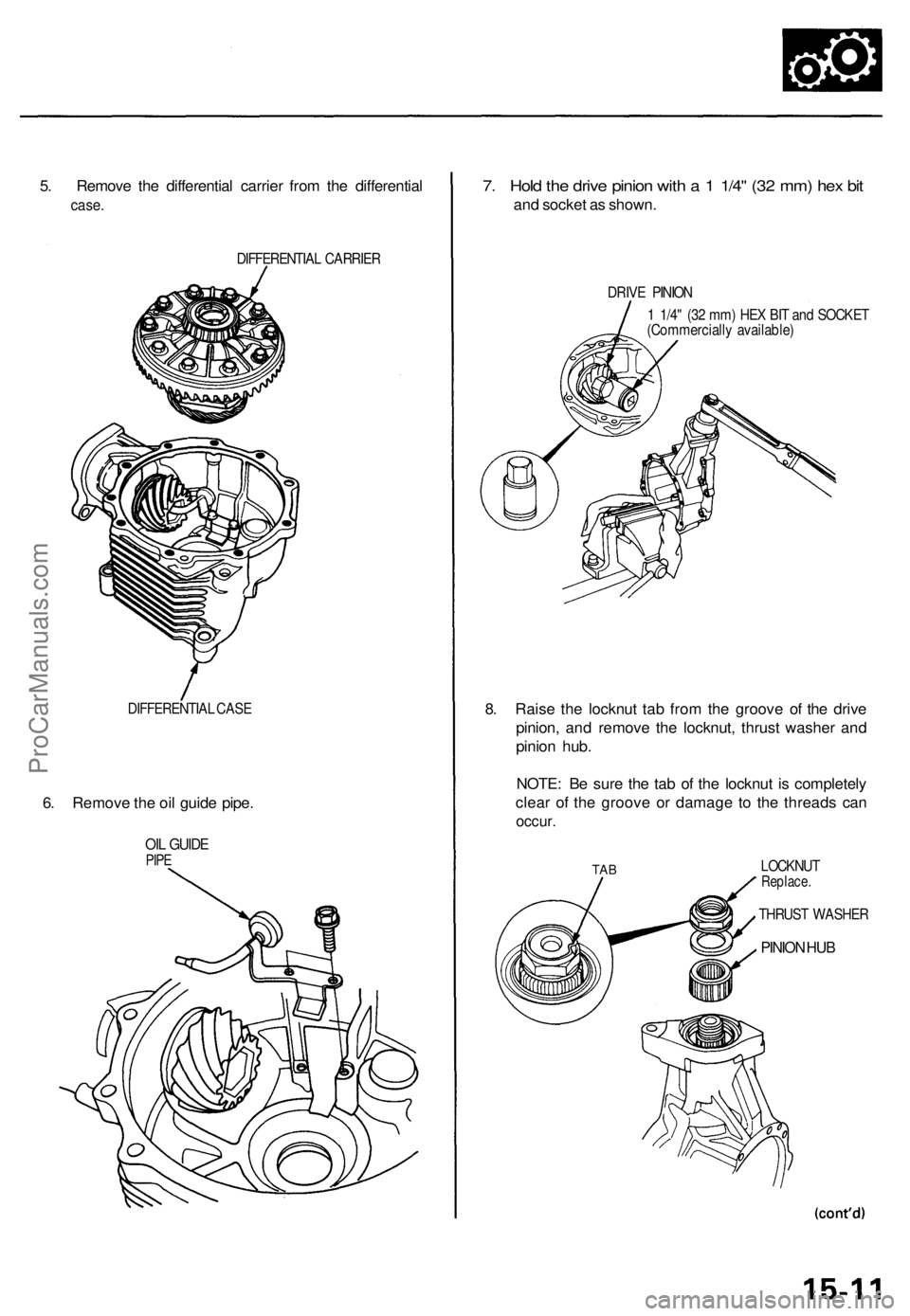

5. Remove the differential carrier from the differential

case.

DIFFERENTIAL CARRIER

DIFFERENTIAL CASE

6. Remove the oil guide pipe.

OIL GUIDE

PIPE
7. Hold the drive pinion with a 1 1/4" (32 mm) hex bit

and socket as shown.

DRIVE PINION

1 1/4" (32 mm) HEX BIT and SOCKET

(Commercially available)

8. Raise the locknut tab from the groove of the drive

pinion, and remove the locknut, thrust washer and

pinion hub.

NOTE: Be sure the tab of the locknut is completely

clear of the groove or damage to the threads can

occur.

TAB
LOCKNUT

Replace.

THRUST WASHER

PINION HUBProCarManuals.com

Differential Assembl y
Disassembl y (cont'd )
9. Remov e th e oi l seal , the n remov e th e thrus t washer .
Us e a plasti c hamme r t o carefull y ta p th e driv e pin -
io n ou t o f th e tapere d rolle r bearing , the n remov e
th e bearing .
OIL SEA LReplace .
TAPERE D ROLLE RBEARIN G
THRUST WASHE R
10. Remov e th e driv e pinion , pinio n space r an d thrus t
washers .
THRUST WASHER S
PINION SPACE RReplace .
DRIVE PINIO N
11. Remov e th e bearin g oute r races , thrus t washer s an d
79. 5 m m thrus t shim s fro m th e differentia l cas e b y
heatin g th e differentia l cas e to abou t 212° F (100°C) .
NOTE:
• D o no t hea t th e differentia l cas e in exces s o f 212° F
(100°C) .
• I f th e bearin g oute r rac e wa s remove d b y heating ,
allo w th e differentia l cas e t o coo l t o roo m tem -
perature .
• Replac e th e tapere d rolle r bearin g wit h a ne w on e
wheneve r th e bearin g oute r rac e is replaced .
BEARING OUTE R RACE S79.5 mmTHRUS T
SHIM(S )
( 1 o r 2 shims )
THRUS T WASHER S
BEARIN G OUTE R
RACE
DIFFERENTIA LCASE
12. Remov e th e tapere d rolle r bearin g an d 4 3 m m thrus t
shi m usin g a pres s a s shown .
ATTACHMENT ,32 x 35 m m07746-001010 0
BEARING SEPARATOR , 0 - 4 1/ 2 in
(Commerciall y available )
TAPEREDROLLERBEARIN G
43 m mTHRUS TSHIM
PRES S
ProCarManuals.com

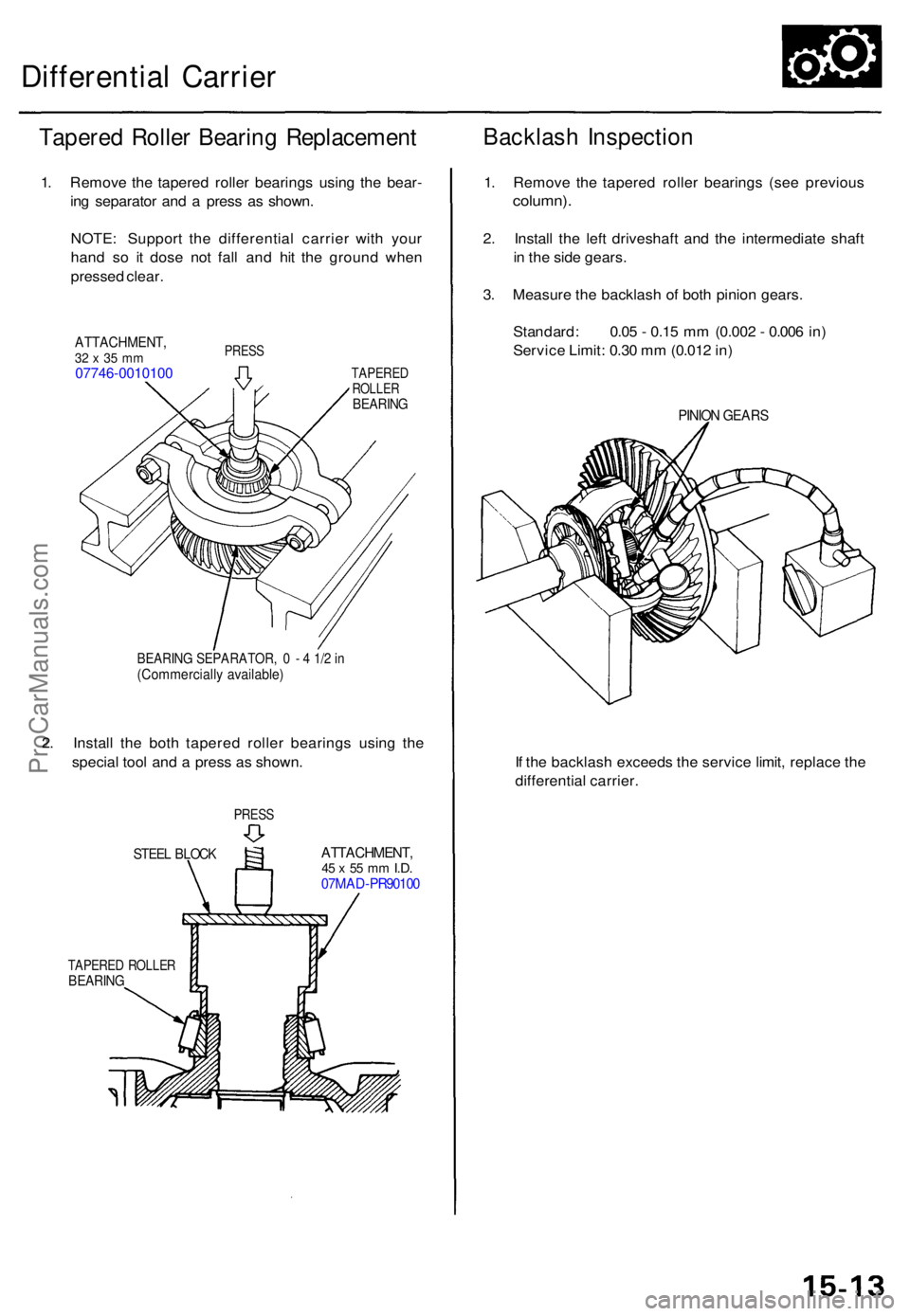

Differential Carrie r
Tapered Rolle r Bearin g Replacemen t
1. Remov e th e tapered roller bearing s usin g th e bear -
in g separato r an d a pres s a s shown .
NOTE : Suppor t th e differentia l carrie r wit h you r
han d s o i t dos e no t fal l an d hi t th e groun d whe n
presse d clear .
ATTACHMENT ,32 x 35 m m07746-001010 0
PRESS
TAPERE DROLLERBEARIN G
BEARIN G SEPARATOR , 0 - 4 1/ 2 in(Commerciall y available )
2. Instal l th e bot h tapere d rolle r bearing s usin g th e
specia l too l an d a pres s a s shown .
STEEL BLOC KATTACHMENT ,45 x 55 m m I.D .07MA D-PR9010 0
TAPERE D ROLLE RBEARIN G
1. Remov e th e tapere d rolle r bearing s (se e previou s
column).
2. Instal l th e lef t driveshaf t an d th e intermediat e shaf t
i n th e sid e gears .
3 . Measur e th e backlas h o f bot h pinio n gears .
Standard : 0.0 5 - 0.1 5 m m (0.00 2 - 0.00 6 in )
Servic e Limit : 0.3 0 m m (0.01 2 in )
PINIO N GEAR S
If th e backlas h exceed s th e servic e limit , replac e th e
differentia l carrier .
PRESS
Backlas h Inspectio n
ProCarManuals.com

Differential Carrier

Ring Gear Replacement

1. Remove the bolts in a crisscross pattern, in several

steps, and remove the ring gear.

11 x 1.0 mm

118 N-m (12.0 kgf-m,

87 Ibf-ft)

DIFFERENTIAL

CARRIER

RING

GEAR

2. Install the ring gear by tightening the bolts in a

crisscross pattern, in several steps. If the bolts are

difficult to tighten, make sure that the ring gear is

going onto the differential carrier correctly.ProCarManuals.com

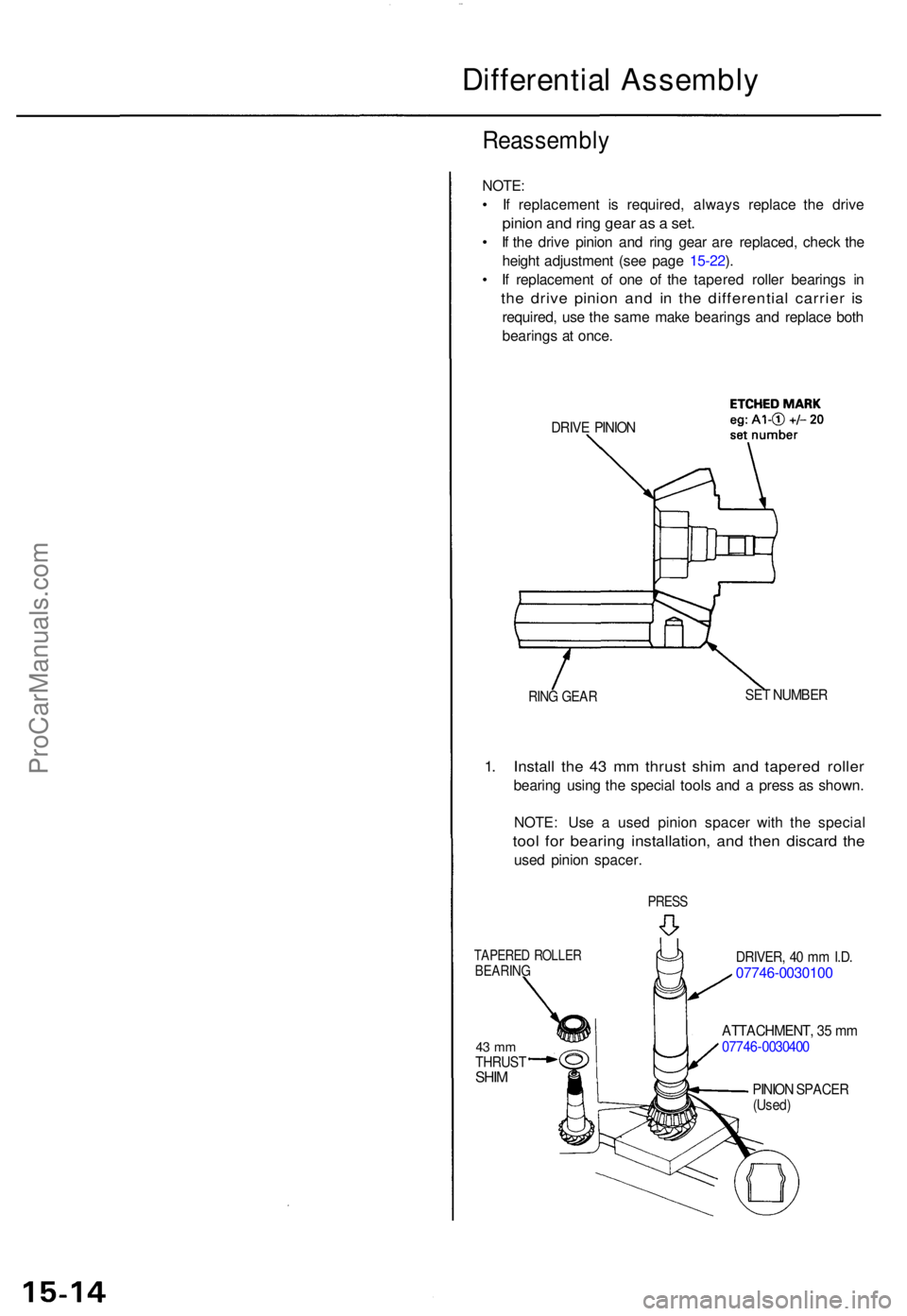

Differential Assembl y
Reassembl y
NOTE:
• I f replacemen t i s required , alway s replac e th e driv e
pinion an d rin g gea r a s a set .
• I f th e driv e pinio n an d rin g gea r ar e replaced , chec k th e
heigh t adjustmen t (se e pag e 15-22 ).
• I f replacemen t o f on e o f th e tapere d rolle r bearing s i n
th e driv e pinio n an d i n th e differentia l carrie r i s
required , us e th e sam e mak e bearing s an d replac e bot h
bearing s a t once .
DRIVE PINIO N
RING GEA RSET NUMBE R
1. Instal l th e 4 3 m m thrus t shi m an d tapere d rolle r
bearin g usin g th e specia l tool s an d a pres s a s shown .
NOTE : Us e a use d pinio n space r wit h th e specia l
tool fo r bearin g installation , an d the n discar d th e
use d pinio n spacer .
PRESS
DRIVER , 4 0 m m I.D .07746-003010 0
ATTACHMENT , 3 5 m m0774 6-003040 0
TAPERE D ROLLE RBEARIN G
43 m mTHRUS TSHIMPINIO N SPACE R(Used)
ProCarManuals.com

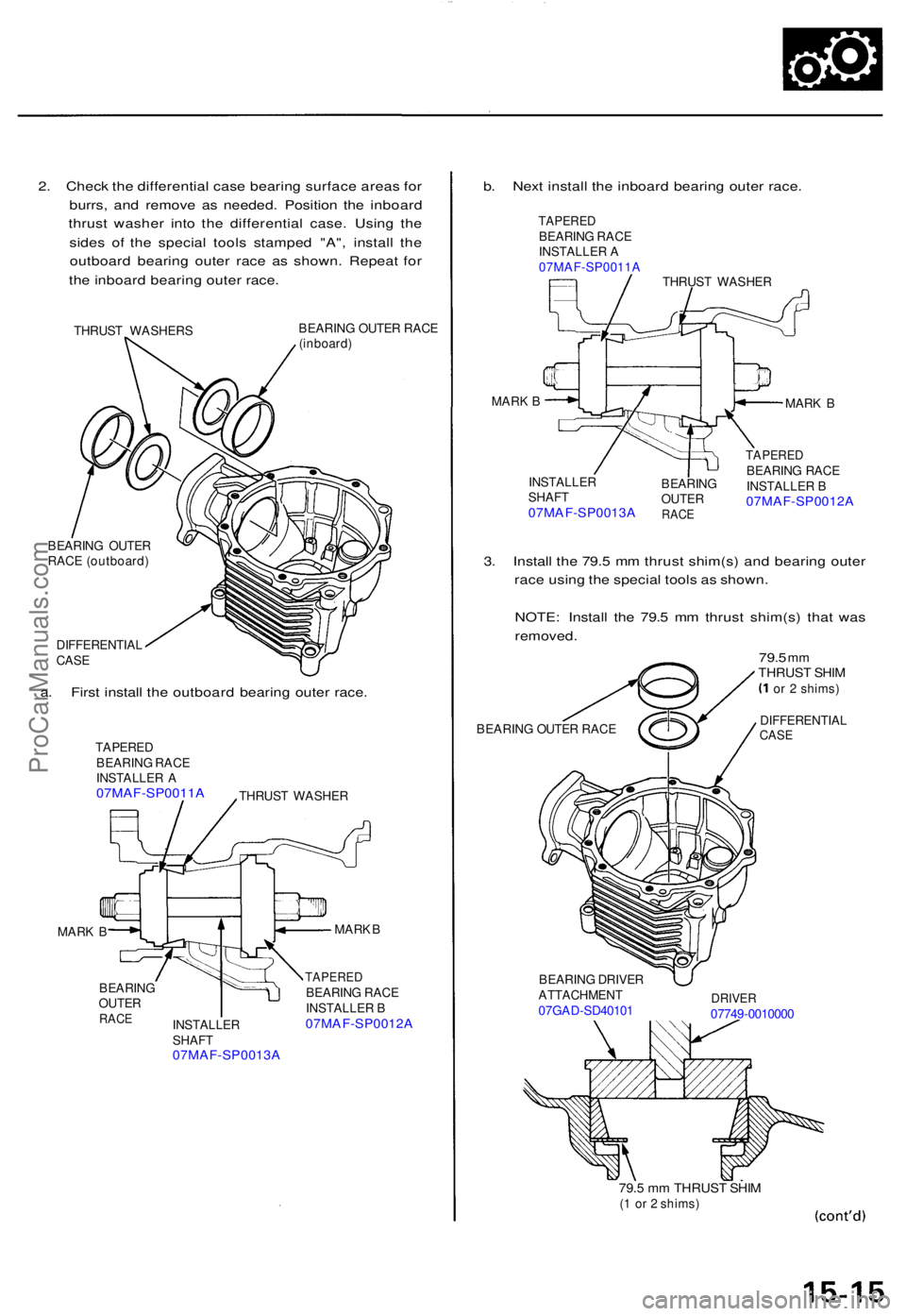

2. Chec k th e differentia l cas e bearin g surfac e area s fo r
burrs , an d remov e a s needed . Positio n th e inboar d
thrus t washe r int o th e differentia l case . Usin g th e
side s o f th e specia l tool s stampe d "A" , instal l th e
outboar d bearin g oute r rac e a s shown . Repea t fo r
th e inboar d bearin g oute r race .
THRUS T WASHER S BEARIN
G OUTE R RAC E
(inboard )
BEARIN G OUTE R
RAC E (outboard )
DIFFERENTIA L
CAS E
a. Firs t instal l th e outboar d bearin g oute r race .
TAPERE DBEARING RAC E
INSTALLE R A
07MAF-SP0011 A
MARK B
BEARIN G
OUTE R
RACEINSTALLE R
SHAF T
07MAF-SP0013 A
MARK B
TAPERE DBEARING RAC E
INSTALLE R B
07MAF-SP0012 A
b. Nex t instal l th e inboar d bearin g oute r race .
TAPERE DBEARING RAC E
INSTALLE R A
07MAF-SP0011 A
THRUS T WASHE R
MAR K B
MARK B
TAPERE DBEARING RAC E
INSTALLE R B
07MAF-SP0012 A
3. Instal l th e 79. 5 m m thrus t shim(s ) an d bearin g oute r
rac e usin g th e specia l tool s a s shown .
NOTE : Instal l th e 79. 5 m m thrus t shim(s ) tha t wa s
removed .
BEARING OUTE R RAC E
79.5 mmTHRUS T SHI Mor 2 shims )
DIFFERENTIA L
CASE
BEARIN G DRIVE R
ATTACHMEN T
07GA D-SD4010 1
DRIVER07749-001000 0
79.5 m m THRUS T SHI M(1 o r 2 shims )
INSTALLE RSHAFT07MAF-SP0013 A
BEARINGOUTERRACE
THRUS T WASHE R
ProCarManuals.com

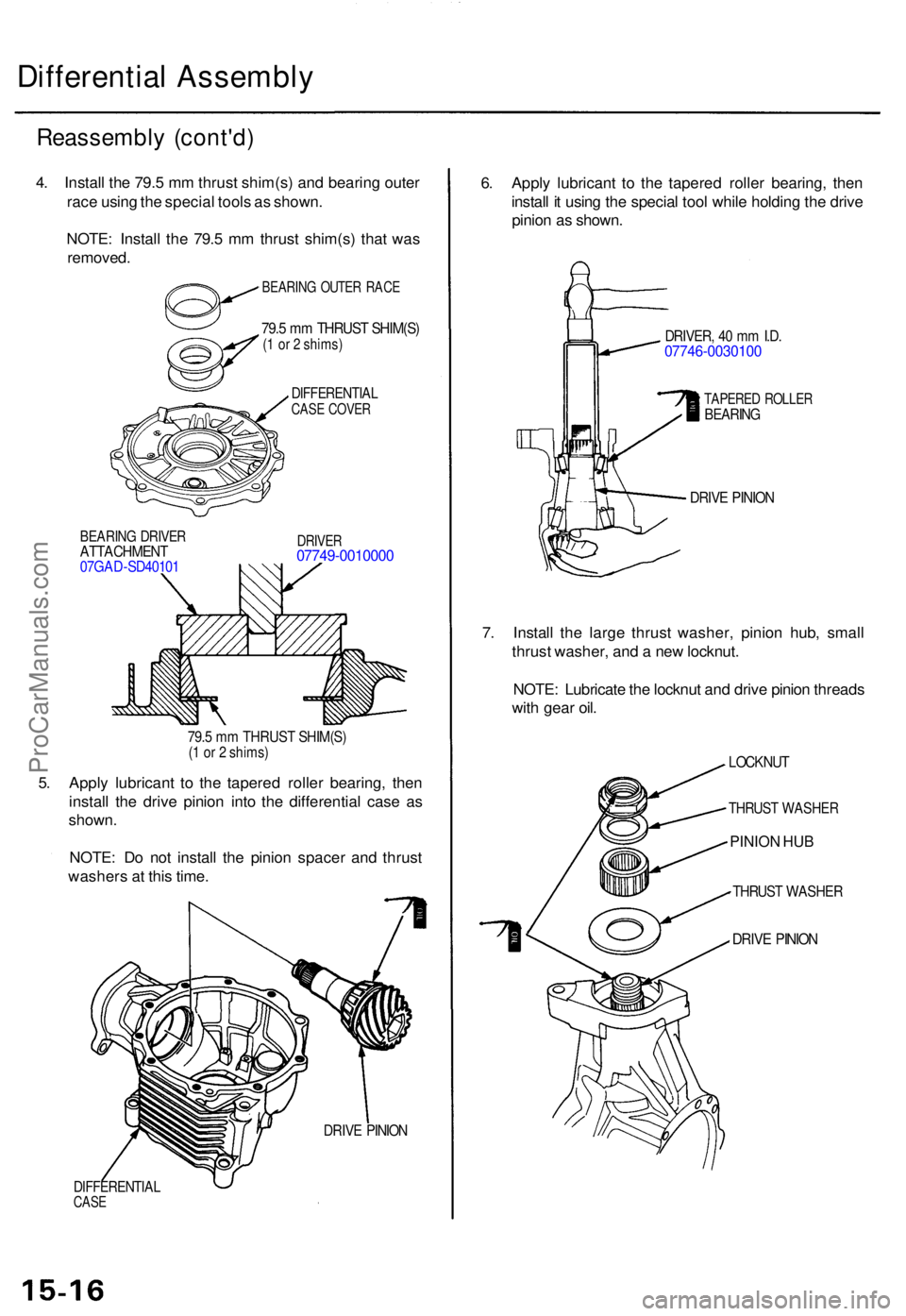

Differential Assembl y
Reassembl y (cont'd )
DIFFERENTIA LCASE COVE R
BEARIN G DRIVE RATTACHMEN T07GAD-SD4010 1
DRIVER07749-001000 0
79.5 m m THRUS T SHIM(S )(1 o r 2 shims )
5. Appl y lubrican t t o th e tapere d rolle r bearing , the n
instal l th e driv e pinio n int o th e differentia l cas e a s
shown .
NOTE : D o no t instal l th e pinio n space r an d thrus t
washer s a t thi s time .
DIFFERENTIA LCASE
DRIV E PINIO N
6. Appl y lubrican t t o th e tapere d rolle r bearing , the n
instal l i t usin g th e specia l too l whil e holdin g th e driv e
pinio n a s shown .
DRIVER , 4 0 m m I.D .07746-003010 0
TAPERED ROLLE RBEARIN G
DRIVE PINIO N
7. Instal l th e larg e thrus t washer , pinio n hub , smal l
thrus t washer , an d a ne w locknut .
NOTE : Lubricat e th e locknu t an d driv e pinio n thread s
wit h gea r oil .
LOCKNU T
THRUST WASHE R
PINION HUB
THRUST WASHE R
DRIVE PINIO N
4. Instal l th e 79. 5 m m thrus t shim(s ) an d bearin g oute r
rac e usin g th e specia l tool s a s shown .
NOTE : Instal l th e 79. 5 m m thrus t shim(s ) tha t wa s
removed .
IBEARING OUTE R RAC E
79.5 m m THRUS T SHIM(S )(1 o r 2 shims )
ProCarManuals.com

8. Hol d th e driv e pinio n wit h a 1 1/4 " (3 2 mm ) he x bi t
an d socke t a s shown , the n carefull y tighte n th e pin -
io n locknu t unti l ther e is n o pla y in th e pinio n shaft .
Torque : 2 0 N- m (2. 0 kgf-m , 1 4 Ibf-ft )
CAUTION : T o avoi d damagin g th e tapere d rolle r
bearing , d o no t overtighte n th e locknut .
1 1/4 " (3 2 mm ) HE X BI T an d SOCKE T(Commerciall y available )
9. Clea n an d pain t th e rin g gea r teet h lightl y an d evenl y
wit h Prussia n Blu e (o n bot h side s o f eac h tooth) .
10. Appl y lubrican t t o th e tapere d rolle r bearings , instal l
the differentia l carrie r int o th e differentia l case , the n
instal l th e differentia l cas e cover .
11 . Instal l th e bolt s an d tighte n in a crisscros s patter n in
severa l steps .
DIFFERENTIA LCASE COVE R
10 x 1.2 5 mm44 N- m (4. 5 kgf-m , 3 3 Ibf-ft )
DIFFERENTIA LCARRIER
12. Instal l th e specia l too l a s shown , the n rotat e th e
driv e pinio n i n bot h direction s s o tha t th e rin g gea r
rotat e on e ful l tur n i n bot h directions . Durin g thi s
operation resistanc e shoul d b e applie d t o th e rin g
gear .
LOCKNU T SOCKET ,36 x 41 m m07HA A-SF1010 0
CORREC T TOOT H CONTAC T
13. Remov e th e differentia l cas e cover , an d chec k th e
toot h contac t patter n (hee l an d toe) . Adjus t th e rin g
gea r toot h contac t a s neede d (se e pag e 15-23 ).
14 . Afte r adjustin g th e rin g gea r toot h contact , remov e
th e driv e pinion , the n instal l a ne w pinio n space r
an d thrus t washer s o n th e driv e pinion .
PINION SPACE R
THRUST WASHER S
DRIVE PINIO N
