1995 ACURA TL Service Repair Manual

Valves, Valv e Spring s an d
Valv e Seal s
Valv e Installatio n
When installin g valve s i n th e cylinde r head , coa t valv e
stem s wit h oi l befor e insertin g int o th e valv e guides ,
an d mak e sur e th e valve s mov e u p an d dow n smoothly .
Afte r th e valves , spring s an d keeper s ar e assembled ,
lightly ta p th e en d o f eac h valv e ste m tw o o r thre e time s
with a plasti c malle t t o ensur e prope r seatin g o f valv e
an d valv e keepers .
NOTE : Ta p th e valv e ste m onl y alon g it s axi s s o yo u d o
no t ben d th e stem .
PLASTI CMALLET
VALVESTEMS
ProCarManuals.com

Camshaft/Rocker Arms and

Camshaft Seal

Installation

CAUTION:

• Make sure that all rockers are in alignment with their

valves when torquing the rocker assembly bolts.

• Valve locknuts should be loosened and adjusting

screws backed off before installation.

• To prevent the rocker arm assembly from coming

apart, leave the camshaft holder bolts in the holes.

1. After wiping down the camshaft and journals in the

cylinder head, lubricate both surfaces and install the

camshaft.

2. Install the camshaft seal with the open side (spring)

facing in.

Lubricate the cam lobes after reassembly.

KEYWAY

3.
CAMSHAFT OIL SEAL CAMSHAFT

Seal housing surface should be dry. Keyway up.

Apply a light coat of oil to camshaft

and inner lip of seal.

Apply liquid gasket to the head mating surfaces of

the No. 1 and the No. 7 camshaft holders.

— Apply liquid gasket to the shaded areas.

NOTE: Be sure to wipe any liquid gasket off the sur-

face of the No. 7 camshaft holder where the distrib-

utor is to be attached.

No. 7 No. 1ProCarManuals.com

4. Tighten each bolt two turns at a time in the sequence

shown below to ensure that the rockers do not bind

on the valves.

Specified torque:

8 mm bolts: 22 N-m (2.2 kgf-m, 16 Ibf-ft)

Apply engine oil

6 mm bolts: 12 N-m (1.2 kgf-m, 8.7 Ibf-ft)

Apply engine oil

6 mm bolts:

5. Torque the bolts in the sequence shown.ProCarManuals.com

Cylinder Hea d
Installatio n
Install th e cylinde r hea d in th e revers e orde r o f removal :
NOTE:
Alway s us e a ne w cylinde r hea d gasket .
Cylinde r hea d an d cylinde r bloc k surfac e mus t b e clean .
Tur n th e camshaf t s o th e keywa y i n facin g up .
Tur n th e crankshaft so th e No . 1 pisto n is a t TD C (se e
pag e 6-11 ).
Clea n th e oi l contro l orific e befor e installing .
D o no t us e th e uppe r cove r an d lowe r cove r fo r stor -
in g remove d item .
• Clea n th e uppe r cove r an d lowe r cove r befor e instal -
lation.
1. Alig n th e cylinde r hea d dowe l pins .
2 . Instal l th e oi l contro l orific e an d cylinde r hea d gas -
ket.
DOWE L PIN S
CYLINDE R HEA D
GASKE TReplace .
OIL CONTRO L
ORIFIC E
Clean .
O-RIN GReplace .
ProCarManuals.com

Cylinder Hea d
Installatio n (cont'd )
3. Tur n th e camshaf t unti l it s keywa y i s facin g u p (No . 1
pisto n TDC) .
4 . Torqu e th e cylinde r hea d bolt s sequentiall y i n thre e
steps .
1s t ste p torque : 3 9 N- m (4. 0 kgf-m , 2 9 Ibf-ft )
2n d ste p torque : 6 9 N- m (7. 0 kgf-m , 5 1 Ibf-ft )
3r d ste p torque : 98. 1 N- m (10. 0 kgf-m , 72. 3 Ibf-ft )
NOTE :
• W e recommen d usin g a beam-typ e torqu e
wrench . Whe n usin g a preset-typ e torqu e wrench ,
b e sur e t o tighte n slowl y an d no t t o overtighten .
• I f a bol t make s an y nois e whil e yo u ar e torquin g it ,
loose n th e bolt , an d retighte n it fro m th e 1s t step .
CYLINDE R HEA D BOLT S TORQU E SEQUENC E
LONGER BOL T
CYLINDE R HEA D BOL T
12 x 1. 5 m m98. 1 N- m (10. 0 kgf-m , 72. 3 Ibf-ft )Apply clea n engin e oi l t o th ebol t thread s an d washe r contac tsurfaces .
5.
6.
7 .
Instal l th e intak e manifold , an d tighte n th e nut s i n a
crisscros s patter n i n tw o o r thre e steps , beginnin g
wit h th e inne r nuts .
• Alway s us e a ne w intak e manifol d gasket .
GASKE TReplace .
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft )
INTAK EMANIFOL D
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,16 Ibf-ft )
Install th e exhaus t manifold , an d tighte n th e nut s i n
a crisscros s patter n in tw o o r thre e steps , beginnin g
wit h th e inne r nu t (se e pag e 9-4 ).
• Alway s us e a ne w exhaus t manifol d gasket .
Instal l th e exhaus t manifol d brackets , the n tighte n
th e self-lockin g nuts .
EXHAUS T MANIFOL DBRACKETS
8 x 1.2 5 mm27 N- m (2. 8 kgf-m ,
2 0 Ibf-ft )GASKE TReplace .
SELF-LOCKIN G NU T10 x 1.2 5 mm54 N- m (5. 5 kgf-m , 4 0 Ibf-ft )
Replace .
ProCarManuals.com

8. Instal l th e TDC/CK P sensor , the n instal l th e bac k cover .
BACK COVE R
Clean .
TDC/CK P
SENSO R
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
9. Instal l th e camshaf t pulley , the n instal l th e CY P sen -
sor.
CY PSENSO R
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
CAMSHAF T
PULLEYClean.10 x 1.2 5 mm69 N- m (7. 0 kgf-m , 5 1 Ibf-ft )Apply engin e oi l t o th ethreads .
10. Instal l th e CK F sensor .
CKFSENSO R
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
11. Instal l th e timin g bel t (se e pag e 6-11 ).
12 . Adjus t th e valv e clearanc e (se e pag e 6-3 ).
13 . Instal l th e hea d cove r gaske t i n th e groov e o f th e
cylinde r hea d cover . Sea t th e recesse s fo r th e cam -
shaf t first , the n wor k i t int o th e groov e aroun d th e
outsid e edges .
NOTE:
• Befor e installin g th e hea d cove r gasket , thor -
oughl y clea n th e sea l an d th e groove .
• Whe n installing , mak e sur e th e hea d cove r gaske t
i s seate d securel y i n th e corner s o f th e recesse s
with n o gap .
CORNER S O F
HEA D COVE R TH E RECES S
GASKETClean.
CORNER S O F
TH E RECES S CYLINDE
R HEA DCOVE R
KEY
ProCarManuals.com

Cylinder Head

Installation (cont'd)

14. Apply liquid gasket to the head cover gasket at the

four corners of the recesses.

NOTE:

• Use liquid gasket. Part No. 08718 - 0001 or 08718

- 0003.

• Check that the mating surfaces are clean and dry

before applying liquid gasket.

• Do not install the parts if five minutes or more

have elapsed since applying liquid gasket. Instead,

reapply liquid gasket after removing old residue.

• After assembly, wait at least 30 minutes before

filling the engine with oil.

15.
Apply liquid gasket to

the shaded areas.

When installing the cylinder head cover, hold the

head cover gasket in the groove by placing your fin-

gers on the camshaft contacting surfaces (top of the

semicircles).

Once the cylinder head cover is on the cylinder

head, slide the cover slightly back and forth to seat

the head cover gasket.

NOTE:

• Before installing the cylinder head cover, clean

the cylinder head contacting surfaces with a

shop towel.

• Do not touch the parts where liquid gasket was

applied.

• Replace the washer when damaged or deterio-

rated.

• Reconnect the grounds cables to the cylinder

head cover.
16. Tighten the nuts in two or three steps. In the final step,

torque all nuts, in sequence, to 12 N-m (1.2 kgf-m, 8.7

Ibf-ft).

NOTE:

• Be sure to wipe any liquid gasket off the surface

of the No. 7 camshaft holder where the distribu-

tor is to be attached.

• After assembly, wait at least 30 minutes before

filling the engine with oil.

17. After installation, check that all tubes, hoses and

connectors are installed correctly.

18. Enter the anti-theft code for the radio, then enter the

customer's radio station presets.

CYLINDER HEAD

COVER

WASHERProCarManuals.com

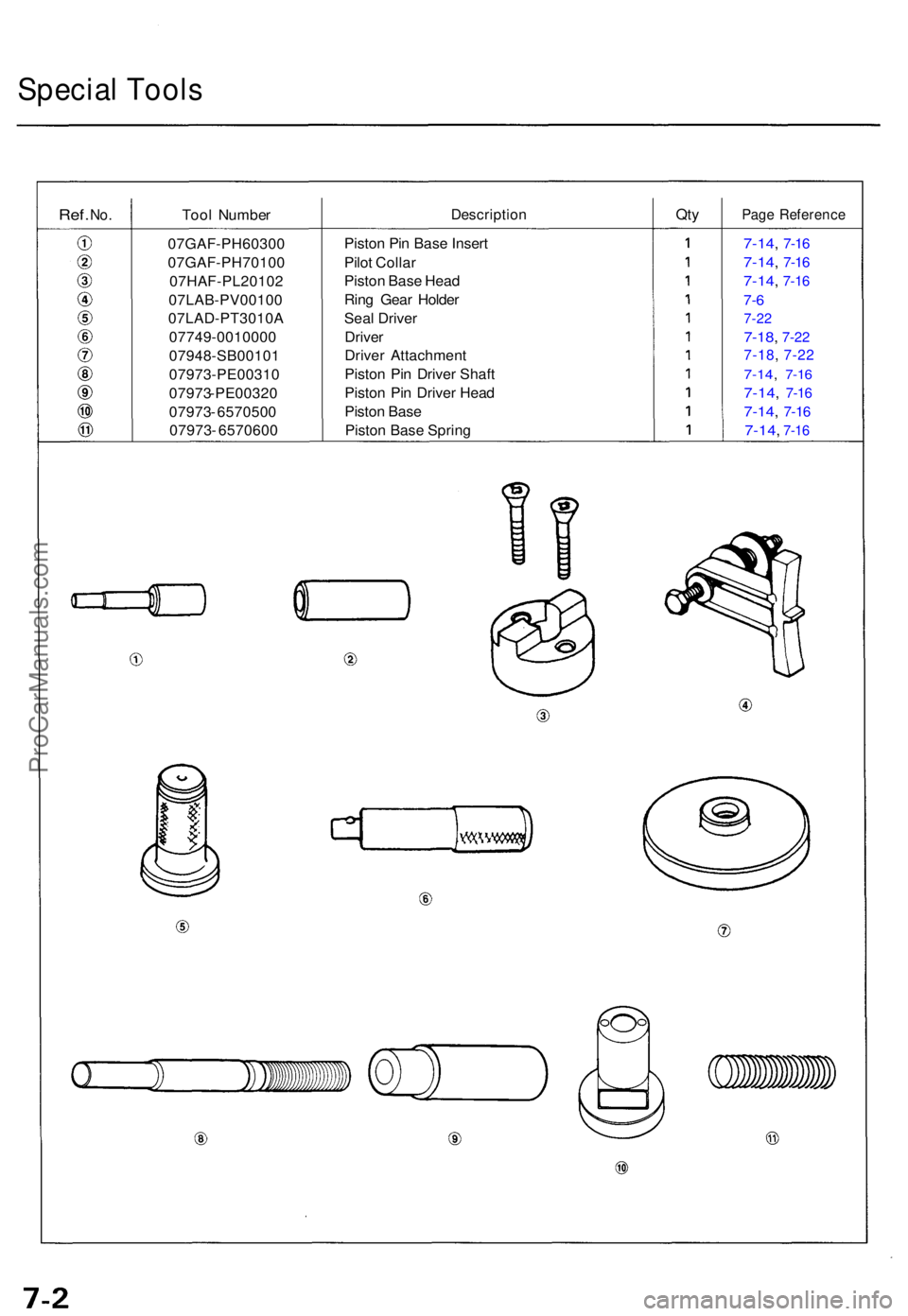

Special Tool s
Ref. No.Too l Numbe rDescriptio nQtyPag e Referenc e
Piston Pi n Bas e Inser t
Pilo t Colla r
Pisto n Bas e Hea d
Rin g Gea r Holde r
Sea l Drive r
Drive r
Drive r Attachmen t
Pisto n Pi n Drive r Shaf t
Pisto n Pi n Drive r Hea d
Pisto n Bas e
Pisto n Bas e Sprin g7-14, 7-1 6
7-14 , 7-1 6
7-14 , 7-1 6
7-6
7-2 2
7-18 , 7-2 2
7-18 , 7-2 2
7-14 , 7-1 6
7-14 , 7-1 6
7-14 , 7-1 6
7-14 , 7-1 6
07GAF -PH60300
07GAF-PH70100 07HAF-PL20102
07LAB-PV00100
07LAD-PT3010A
07749-0010000
07948-SB00101
07973-PE00310
07973 - PE00320
07973 - 6570500
07973 - 6570600
