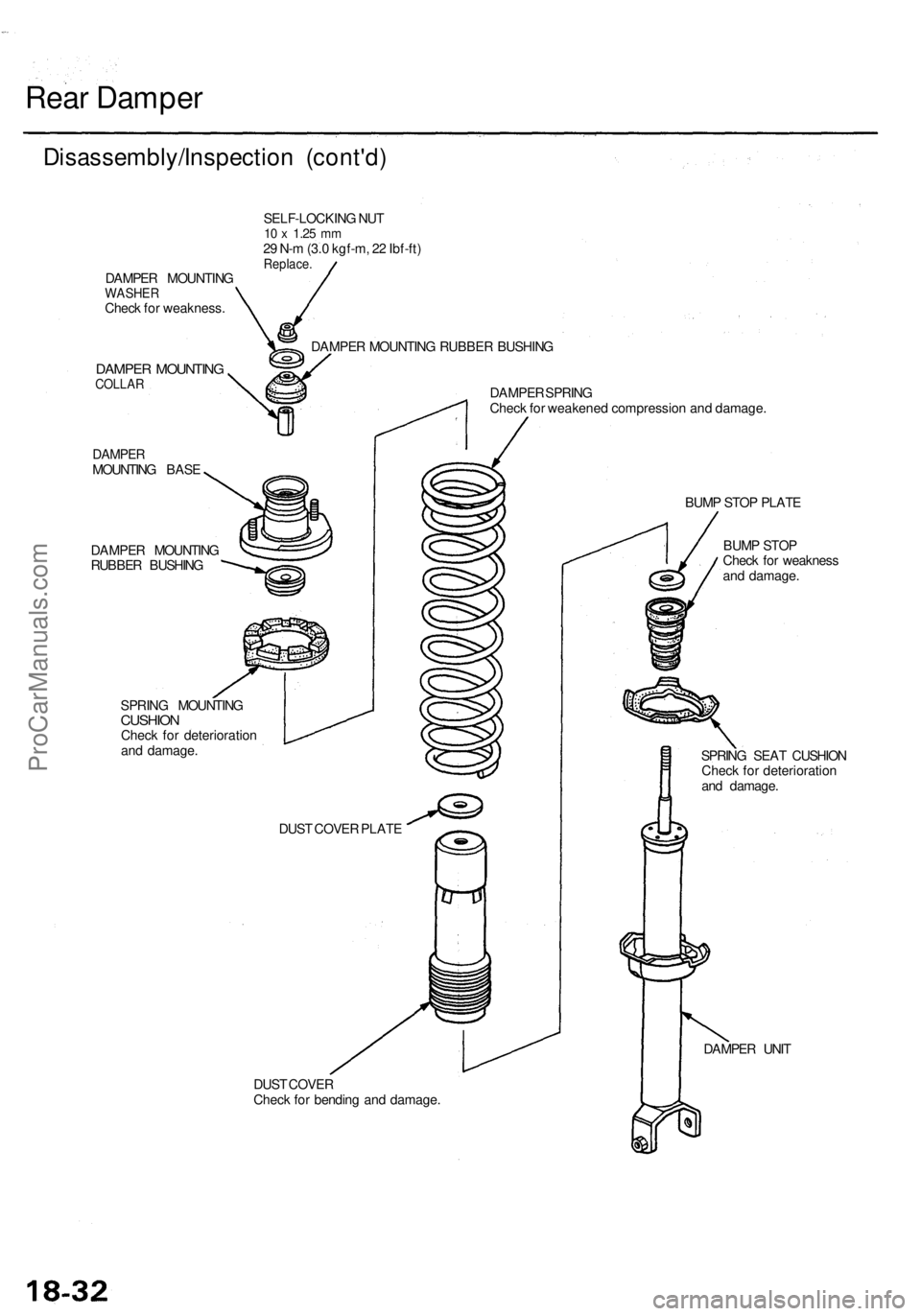

Rear Damper

Disassembly/Inspection (cont'd)

DAMPER MOUNTING

WASHER

Check for weakness.

DAMPER MOUNTING

COLLAR

DAMPER

MOUNTING BASE

DAMPER MOUNTING

RUBBER BUSHING
SELF-LOCKING NUT

10 x
1.25
mm

29 N-m (3.0 kgf-m, 22 Ibf-ft)

Replace.

DAMPER MOUNTING RUBBER BUSHING

SPRING MOUNTING

CUSHION

Check for deterioration

and damage.
DAMPER SPRING

Check for weakened compression and damage.

DUST COVER

Check for bending and damage.
BUMP STOP PLATE

BUMP STOP

Check for weakness

and damage.

SPRING SEAT CUSHION

Check for deterioration

and damage.

DAMPER UNIT
DUST COVER PLATEProCarManuals.com
