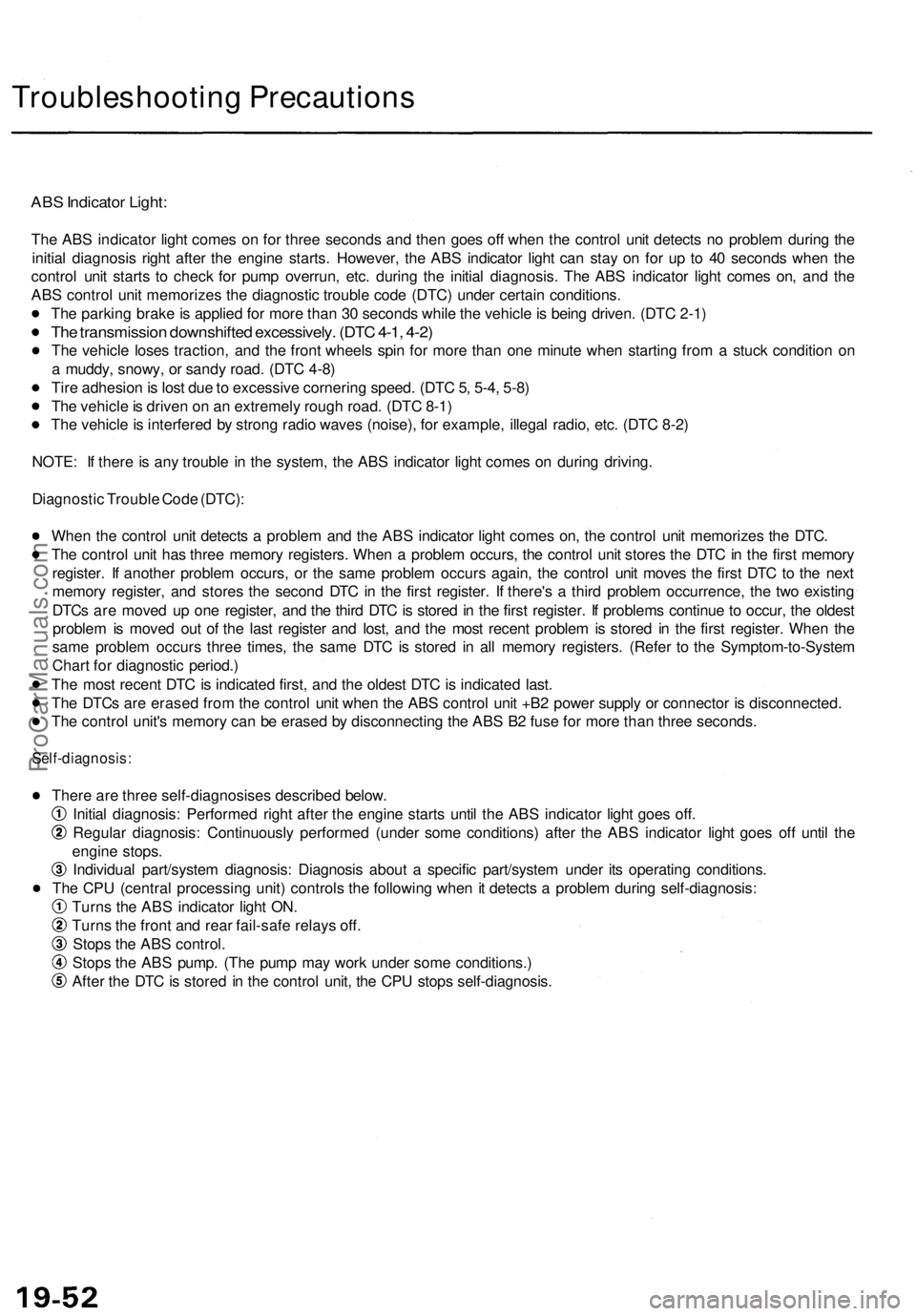

Troubleshooting Precautions

ABS Indicator Light:

The ABS indicator light comes on for three seconds and then goes off when the control unit detects no problem during the

initial diagnosis right after the engine starts. However, the ABS indicator light can stay on for up to 40 seconds when the

control unit starts to check for pump overrun, etc. during the initial diagnosis. The ABS indicator light comes on, and the

ABS control unit memorizes the diagnostic trouble code (DTC) under certain conditions.

• The parking brake is applied for more than 30 seconds while the vehicle is being driven. (DTC 2-1)

• The transmission downshifted excessively. (DTC 4-1, 4-2)

• The vehicle loses traction, and the front wheels spin for more than one minute when starting from a stuck condition on

a muddy, snowy, or sandy road. (DTC 4-8)

• Tire adhesion is lost due to excessive cornering speed. (DTC 5, 5-4, 5-8)

• The vehicle is driven on an extremely rough road. (DTC 8-1)

• The vehicle is interfered by strong radio waves (noise), for example, illegal radio, etc. (DTC 8-2)

NOTE: If there is any trouble in the system, the ABS indicator light comes on during driving.

Diagnostic Trouble Code (DTC):

• When the control unit detects a problem and the ABS indicator light comes on, the control unit memorizes the DTC.

• The control unit has three memory registers. When a problem occurs, the control unit stores the DTC in the first memory

register. If another problem occurs, or the same problem occurs again, the control unit moves the first DTC to the next

memory register, and stores the second DTC in the first register. If there's a third problem occurrence, the two existing

DTCs are moved up one register, and the third DTC is stored in the first register. If problems continue to occur, the oldest

problem is moved out of the last register and lost, and the most recent problem is stored in the first register. When the

same problem occurs three times, the same DTC is stored in all memory registers. (Refer to the Symptom-to-System

Chart for diagnostic period.)

• The most recent DTC is indicated first, and the oldest DTC is indicated last.

• The DTCs are erased from the control unit when the ABS control unit +B2 power supply or connector is disconnected.

• The control unit's memory can be erased by disconnecting the ABS B2 fuse for more than three seconds.

Self-diagnosis:

• There are three self-diagnosises described below.

Initial diagnosis: Performed right after the engine starts until the ABS indicator light goes off.

Regular diagnosis: Continuously performed (under some conditions) after the ABS indicator light goes off until the

engine stops.

Individual part/system diagnosis: Diagnosis about a specific part/system under its operating conditions.

• The CPU (central processing unit) controls the following when it detects a problem during self-diagnosis:

Turns the ABS indicator light ON.

Turns the front and rear fail-safe relays off.

Stops the ABS control.

Stops the ABS pump. (The pump may work under some conditions.)

After the DTC is stored in the control unit, the CPU stops self-diagnosis.ProCarManuals.com

Troubleshooting Procedures

Checking the Diagnostic Trouble Code (DTC)

with an OBD II Scan tool or Honda PGM Tester

When the TCM senses an abnormality in the input or output systems, the indicator light in the gauge assembly will

blink. When the 16P Data Link Connector (DLC) (located behind the ashtray) is connected to the OBD II Scan Tool or Honda

PGM Tester as shown, the scan tool or tester will indicate the Diagnostic Trouble Code (DTC) when the ignition switch is

turned ON(II).

When the indicator light has been reported on, connect the OBD II Scan Tool conforming to SAE J1978 or Honda PGM

Tester to the DLC (16P) behind the ashtray. Turn the ignition switch on (II), and observe the DTC on the screen of the OBD II

Scan Tool or Honda PGM Tester. After determining the DTC, refer to the electrical system Symptom-to-Component Chart

on page 14-56 and 14-57.

NOTE: See the OBD II Scan Tool or Honda PGM Tester user's manual for specific instruction.

OBD II SCAN TOOL or

HONDA PGM TESTER

Some PGM-FI problems will also make the indicator light come on. After repairing the PGM-FI system, disconnect the

BACK UP RADIO fuse (10 A) in the under-hood fuse/relay box for more than 10 seconds to reset the TCM memory, then

retest.

NOTE: Disconnecting the BACK UP RADIO fuse also cancels the radio anti-theft code, preset stations and the clock setting.

Get the customer's code number, and make note of the radio presets before removing the fuse so you can reset them.
