NOTE:
Clean al l part s thoroughl y in solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
Do no t le t th e chec k ball s fal l ou t o f th e mai n valv e bod y whe n removin g th e mai n valv e body .
Coat al l part s wit h AT F befor e reassembly .
Replace th e O-ring s an d filters .
Install th e filter s i n th e directio n shown .
Refer t o pag e 14-15 3 whe n installin g th e chec k ball s o n th e mai n valv e body .
CAUTION : D o no t us e a magne t t o remov e th e chec k balls ; i t ma y magnetiz e th e balls .
THROTTL E VALV E
BODY/LINEA R
SOLENOID
THROTTL ESEPARATO RPLATE
HARNES S
CLAM P 2N
D ACCUMULATO R COVE R
O-RINGReplace .
1S T ACCUMULATO R COVE R
FLANG E NU T
6N-m(0.6 kgf-m ,
4 Ibf-ft ) SECONDAR
Y
VALV E BOD Y
AT F PASSAG E
SEPARATO R PLAT E
DOWE L PI N
AT F PASSAG E
MAINSEPARATO RPLATE
DOWE L PI N
FILTE RReplace .
CHEC K BAL L
CHOK E 6
x 1. 0 mm : 1 2 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
A: 6 x 20m m 2 Bolt s
B: 6 x 30m m 2 Bolt s
C: 6 x 35m m 1 Bol t
D: 6 x 60m m 6 Bolt s
E: 6 x 70m m 4 Bolt s
F: 6 x 95m m 2 Bolt s
No Mark : 6 x 65m m 8 Bolt s
DOWE LPIN
MAI N VALV E BOD Y
FILTERReplace. '
O-RING
Replace .
SHIF T CONTRO L
SOLENOI D VALV E B
SHIF T CONTRO L
SOLENOI D VALV E A
FILTE RReplace .
Lower Valv e Bod y Assembl y — '96 Mode l
Disassembly/Reassembl y
ProCarManuals.com

Lower Valv e Bod y Assembl y — '97 - '9 8 Model s
Disassembly/Reassembl y
NOTE:
Clean al l part s thoroughl y in solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
D o no t le t th e chec k ball s fal l ou t o f th e mai n valv e bod y whe n removin g th e mai n valv e body .
Coa t al l part s wit h AT F befor e reassembly .
Replac e th e 0-ring s an d filters .
Instal l th e filter s i n th e directio n shown .
Refe r t o pag e 14-15 5 whe n installin g th e chec k ball s o n th e mai n valv e body .
CAUTION : D o no t us e a magne t t o remov e th e chec k balls ; i t ma y magnetiz e th e balls .
THROTTL E VALV E
BODY/LINEA R
SOLENOI D
THROTTL E
SEPARATO R
PLAT E
HARNES S
CLAM P
FLANG E NU T
6N-m(0.6 kgf-m ,
4 Ibf-ft )
O-RING
Replace .FILTERReplac e
SHIFT CONTRO L
SOLENOI D VALV E A
SHIF
T CONTRO L
SOLENOI D VALV E B
AT F PASSAG E
SEPARATO R PLAT E
DOWE L PI N
AT F PASSAG E 2N
D ACCUMULATO R COVE R
O-RIN G
Replace .
1S T ACCUMULATO R COVE R
SECONDAR Y
VALV E BOD Y
MAINSEPARATO RPLATE
DOWE L PI N
FILTE RReplace .
CHECK BAL L
CHOK E
6 x 1. 0 mm : 1 2 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
A: 6 x 20 m m 2 Bolt s
B: 6 x 30 m m 2 Bolt s
C: 6 x 35 m m 1 Bol t
D: 6 x 60 m m 3 Bolt s
E : 6 x 70 m m 4 Bolt s
F: 6 x 95 m m 2 Bolt s
No Mark : 6 x 65 m m 11 Bolt s
FILTE RReplace .
MAI
N VALV E BOD Y
FILTE
R
Replace .
ProCarManuals.com

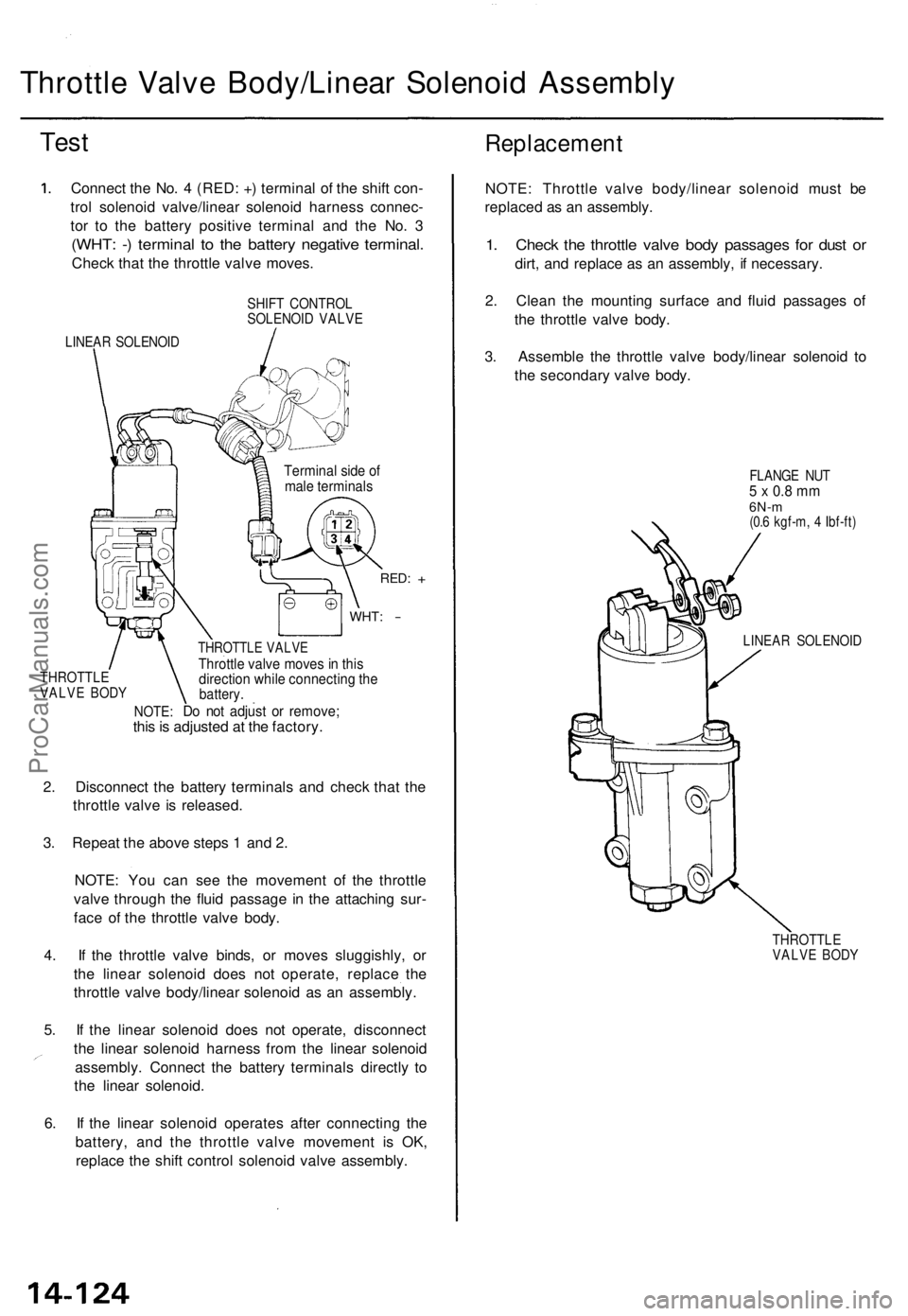

Throttle Valv e Body/Linea r Solenoi d Assembl y
Test
Connec t th e No . 4 (RED : + ) termina l o f th e shif t con -
tro l solenoi d valve/linea r solenoi d harnes s connec -
to r t o th e batter y positiv e termina l an d th e No . 3
(WHT : - ) termina l t o th e batter y negativ e terminal .
Check tha t th e throttl e valv e moves .
SHIFT CONTRO LSOLENOID VALV E
LINEAR SOLENOI D
THROTTL EVALVE BOD Y
Termina l sid e o fmal e terminal s
RED: +
WHT : -
NOTE :
THROTTL E VALV EThrottle valv e move s i n thi sdirectio n whil e connectin g th ebattery .
Do no t adjus t o r remove ;this is adjuste d a t th e factory .
2 . Disconnec t th e batter y terminal s an d chec k tha t th e
throttl e valv e i s released .
3 . Repea t th e abov e step s 1 an d 2 .
NOTE : Yo u ca n se e th e movemen t o f th e throttl e
valv e throug h th e flui d passag e i n th e attachin g sur -
fac e o f th e throttl e valv e body .
4 . I f th e throttl e valv e binds , o r move s sluggishly , o r
th e linea r solenoi d doe s no t operate , replac e th e
throttl e valv e body/linea r solenoi d a s a n assembly .
5 . I f th e linea r solenoi d doe s no t operate , disconnec t
th e linea r solenoi d harnes s fro m th e linea r solenoi d
assembly . Connec t th e batter y terminal s directl y t o
th e linea r solenoid .
6 . I f th e linea r solenoi d operate s afte r connectin g th e
battery , an d th e throttl e valv e movemen t i s OK ,
replac e th e shif t contro l solenoi d valv e assembly .
Replacemen t
NOTE: Throttl e valv e body/linea r solenoi d mus t b e
replace d a s a n assembly .
1. Chec k th e throttl e valv e bod y passage s fo r dus t o r
dirt , an d replac e a s a n assembly , i f necessary .
2 . Clea n th e mountin g surfac e an d flui d passage s o f
th e throttl e valv e body .
3 . Assembl e th e throttl e valv e body/linea r solenoi d t o
th e secondar y valv e body .
FLANG E NU T5 x 0. 8 m m6N- m(0.6 kgf-m , 4 Ibf-ft )
LINEA R SOLENOI D
THROTTLEVALVE BOD Y
ProCarManuals.com

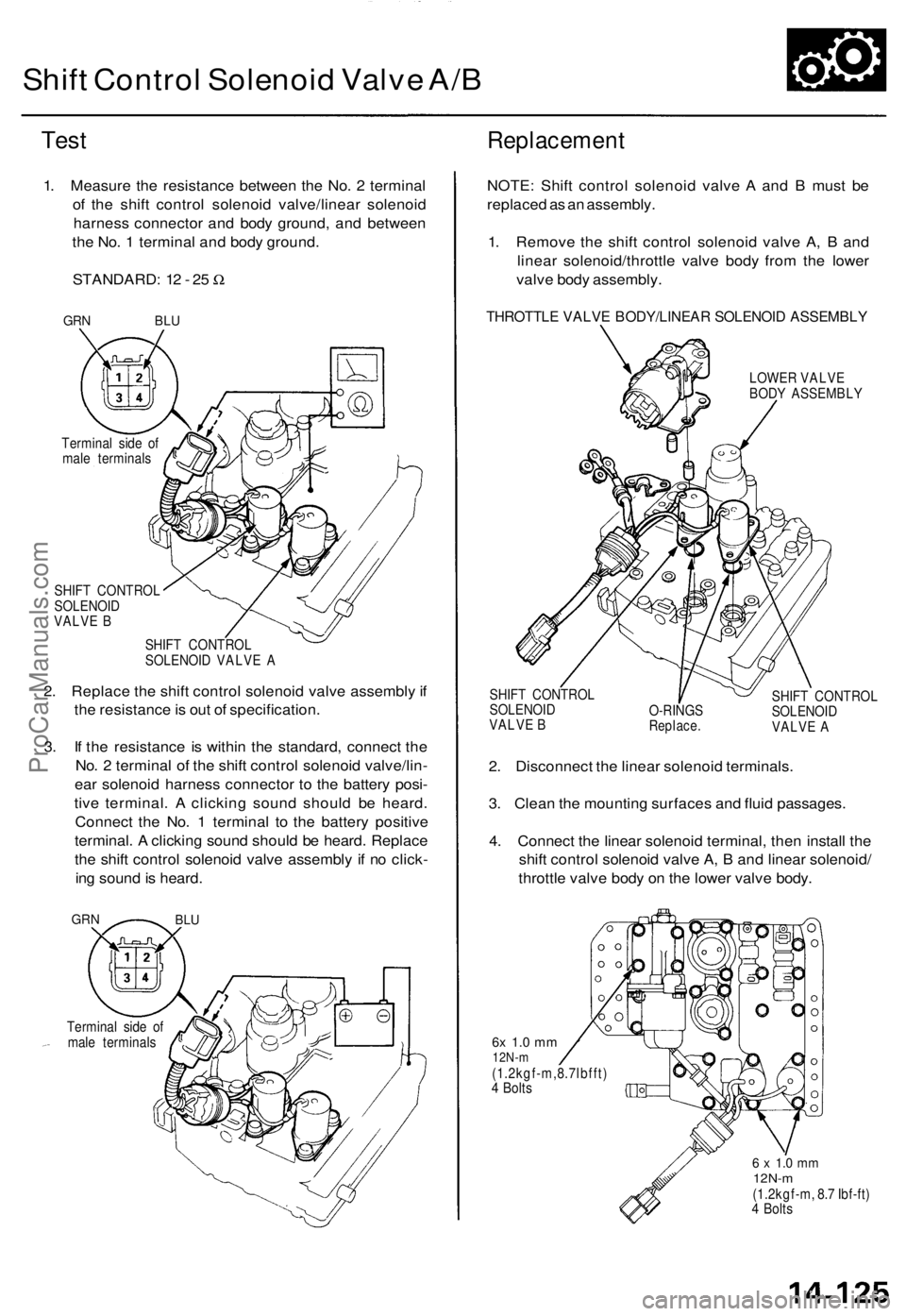

Shift Contro l Solenoi d Valv e A/ B
Tes t
1. Measur e th e resistanc e betwee n th e No . 2 termina l
o f th e shif t contro l solenoi d valve/linea r solenoi d
harnes s connecto r an d bod y ground , an d betwee n
th e No . 1 termina l an d bod y ground .
STANDARD : 1 2 - 2 5 W
Replacemen t
Terminal sid e o f
mal e terminal s
SHIF T CONTRO L
SOLENOI D
VALV E B
SHIFT CONTRO L
SOLENOI D VALV E A
2. Replac e th e shif t contro l solenoi d valv e assembl y if
th e resistanc e is ou t o f specification .
3 . I f th e resistanc e i s withi n th e standard , connec t th e
No . 2 termina l o f th e shif t contro l solenoi d valve/lin -
ea r solenoi d harnes s connecto r t o th e batter y posi -
tiv e terminal . A clickin g soun d shoul d b e heard .
Connec t th e No . 1 termina l t o th e batter y positiv e
terminal . A clickin g soun d shoul d b e heard . Replac e
th e shif t contro l solenoi d valv e assembl y i f n o click -
in g soun d is heard .
GRNBLU
Termina l sid e o f
mal e terminal s
NOTE: Shif t contro l solenoi d valv e A an d B mus t b e
replace d a s a n assembly .
1 . Remov e th e shif t contro l solenoi d valv e A , B an d
linea r solenoid/throttl e valv e bod y fro m th e lowe r
valv e bod y assembly .
THROTTLE VALV E BODY/LINEA R SOLENOI D ASSEMBL Y
LOWER VALV E
BOD Y ASSEMBL Y
SHIF T CONTRO L
SOLENOI D
VALV E B O-RING
S
Replace .
SHIFT CONTRO L
SOLENOI D
VALV E A
2. Disconnec t th e linea r solenoi d terminals .
3 . Clea n th e mountin g surface s an d flui d passages .
4 . Connec t th e linea r solenoi d terminal , the n instal l th e
shif t contro l solenoi d valv e A , B an d linea r solenoid /
throttl e valv e bod y o n th e lowe r valv e body .
6x 1. 0 m m12N- m(1.2kgf-m,8.7lbfft )
4 Bolt s
6 x 1. 0 m m12N- m(1.2kgf-m , 8. 7 Ibf-ft )
4 Bolt s
GRN BL U
ProCarManuals.com

Transmission
Removal
Make sur e lift s ar e place d properly , an d
hois t bracket s ar e attache d t o th e correc t positio n o n
th e engin e (se e sectio n 1 ).
CAUTION : Us e fende r cove r t o avoi d damagin g painte d
surfaces .
1. Befor e yo u disconnec t power , mak e sur e yo u hav e
th e anti-theft code fo r th e radio , the n writ e dow n
th e frequencie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e (- ) termina l fro m
th e battery , the n remov e th e positiv e (+ ) terminal .
3. Shif t th e transmissio n int o th e position .
4 . Remov e th e contro l box .
CAUTION : D o no t remov e th e vacuu m tube s fro m
th e contro l box .
ATF DIPSTIC KPIPE BRACKE T
TRANSMISSIO N
SUB-HARNES S
CONNECTOR S
TRANSMISSIO N HOUSIN GMOUNTIN G BOLT SCONTRO L BO X
5. Disconnec t th e transmissio n sub-harnes s connec -
tors , an d remov e th e transmissio n sub-harnes s
clamp .
6 . Remov e th e thre e bolt s securin g th e AT F dipstic k
pip e bracket .
7 . Remov e th e transmissio n housin g mountin g bolts . 8
. Drai n th e automati c transmissio n flui d (ATF) . Reinstal l
th e drai n plu g wit h a ne w sealin g washer .
SEALIN G WASHE RReplace.DRAIN PLU G18 x 1. 5 m m49 N- m (5. 0 kgfm ,36 Ibf-ft )
9. Pul l th e carpe t bac k t o expos e th e secondar y heate d
oxyge n senso r (H02 S senso r 2 ) connector , the n dis -
connec t th e connector , an d pus h i t ou t fro m insid e
o f th e vehicle .
NOTE : Th e H02 S (senso r 2 ) connecto r i s locate d
unde r th e passenger' s seat .
HO2S (SENSO R 2 )
CONNECTO R PASSENGER'
SSEAT
CARPE T
ProCarManuals.com

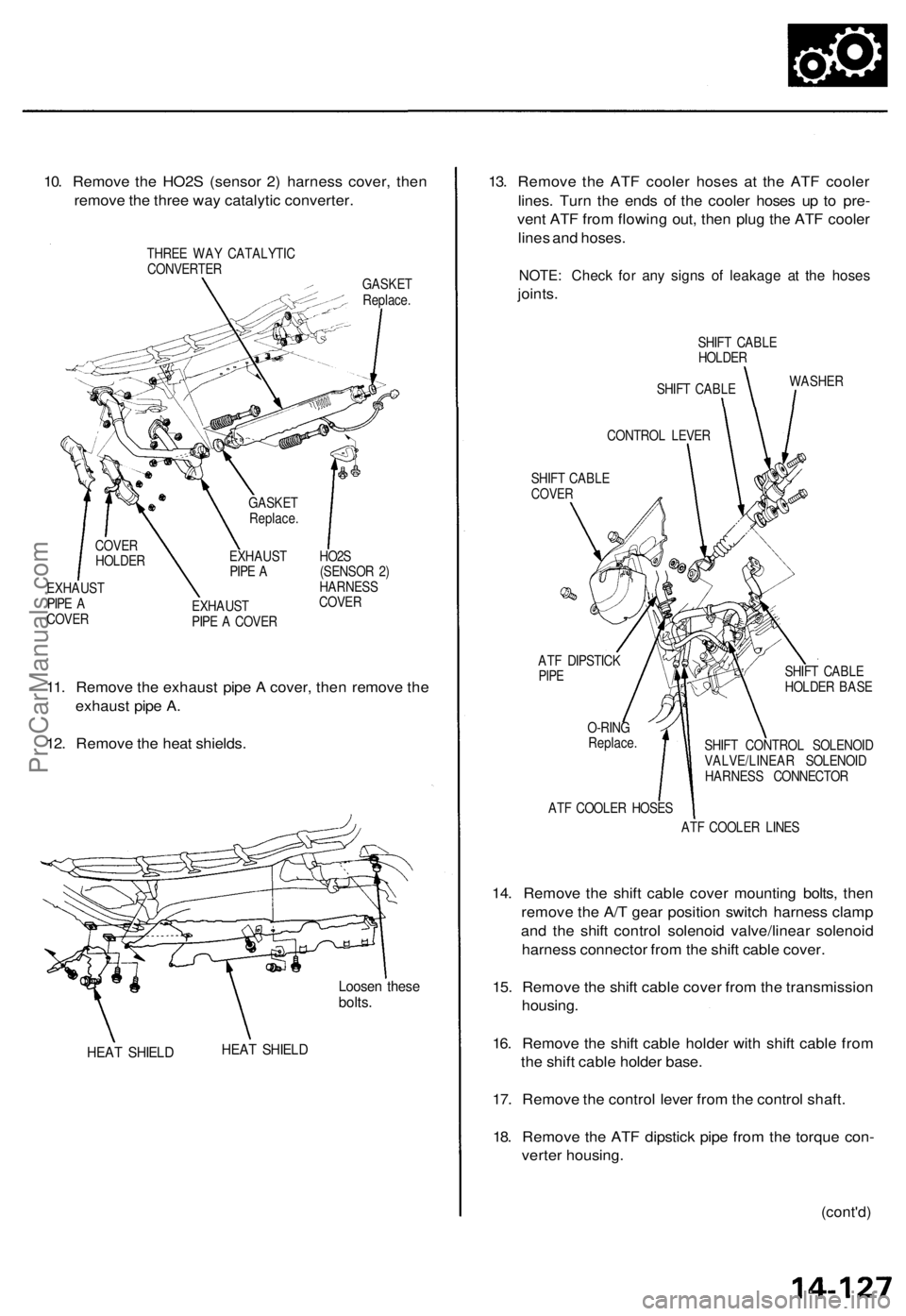

10. Remove the HO2S (sensor 2) harness cover, then

remove the three way catalytic converter.

THREE WAY CATALYTIC

CONVERTER

GASKET

Replace.

EXHAUST

PIPE A

COVER
EXHAUST

PIPE A COVER
HO2S

(SENSOR 2)

HARNESS

COVER

11. Remove the exhaust pipe A cover, then remove the

exhaust pipe A.

12. Remove the heat shields.

Loosen these

bolts.

HEAT SHIELD
HEAT SHIELD
13. Remove the ATF cooler hoses at the ATF cooler

lines. Turn the ends of the cooler hoses up to pre-

vent ATF from flowing out, then plug the ATF cooler

lines and hoses.

NOTE: Check for any signs of leakage at the hoses

joints.

SHIFT CABLE

HOLDER

SHIFT CABLE

CONTROL LEVER

SHIFT CABLE

COVER
WASHER

ATF DIPSTICK

PIPE

O-RING

Replace.

ATF COOLER HOSES
SHIFT CABLE

HOLDER BASE

SHIFT CONTROL SOLENOID

VALVE/LINEAR SOLENOID

HARNESS CONNECTOR

ATF COOLER LINES

14. Remove the shift cable cover mounting bolts, then

remove the A/T gear position switch harness clamp

and the shift control solenoid valve/linear solenoid

harness connector from the shift cable cover.

15. Remove the shift cable cover from the transmission

housing.

16. Remove the shift cable holder with shift cable from

the shift cable holder base.

17. Remove the control lever from the control shaft.

18. Remove the ATF dipstick pipe from the torque con-

verter housing.

(cont'd)
COVER

HOLDER
EXHAUST

PIPE A
GASKET

Replace.ProCarManuals.com

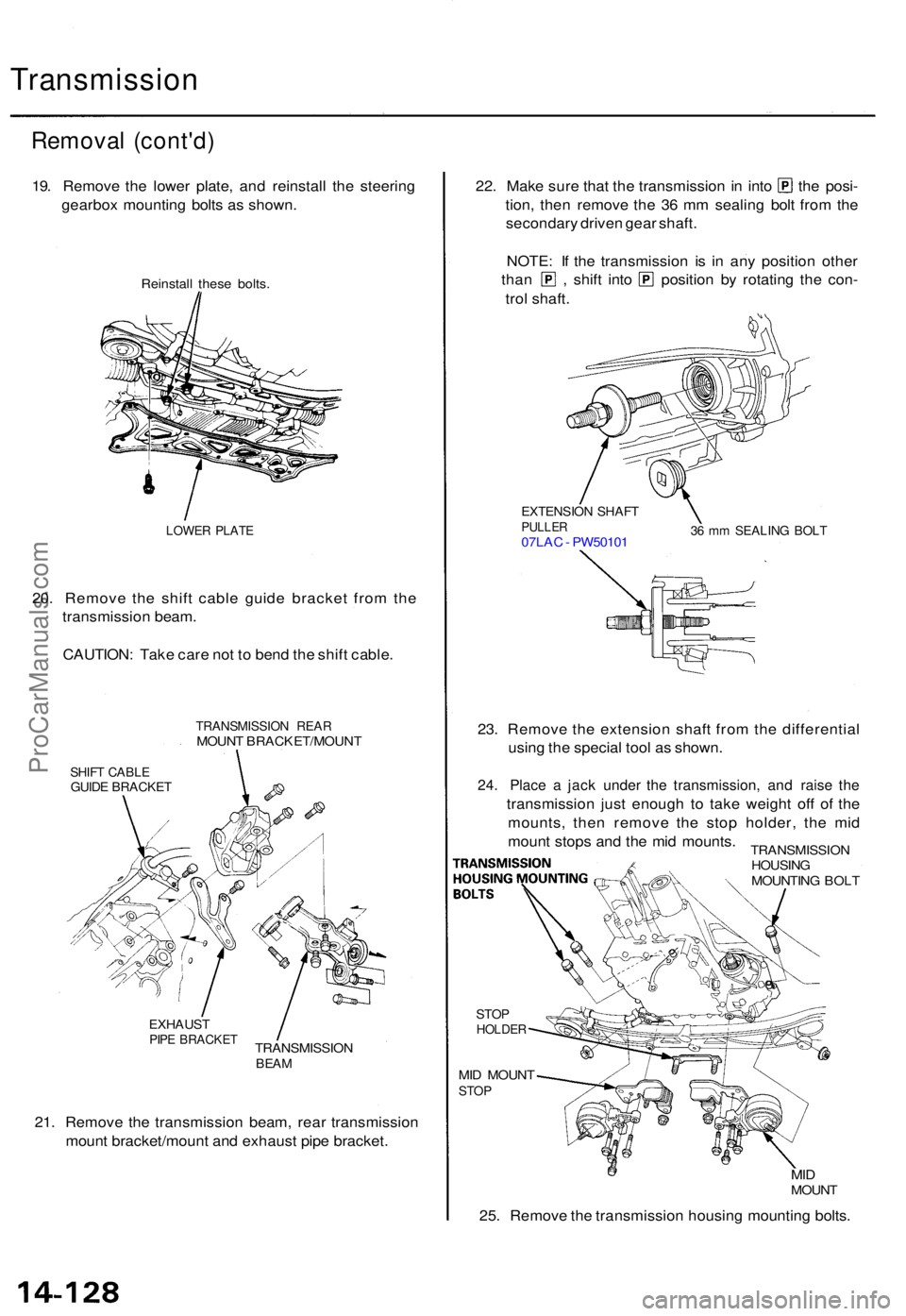

Transmission
Removal (cont'd )
19. Remov e th e lowe r plate , an d reinstal l th e steerin g
gearbo x mountin g bolt s a s shown .
Reinstal l thes e bolts .
LOWE R PLAT E
20. Remov e th e shif t cabl e guid e bracke t fro m th e
transmissio n beam .
CAUTION : Tak e car e no t t o ben d th e shif t cable .
TRANSMISSIO N REA RMOUN T BRACKET/MOUN T
SHIFT CABL EGUIDE BRACKE T
EXHAUSTPIPE BRACKE TTRANSMISSIO NBEAM
21. Remov e th e transmissio n beam , rea r transmissio n
moun t bracket/moun t an d exhaus t pip e bracket .
22. Mak e sur e tha t th e transmissio n in int o th e posi -
tion , the n remov e th e 3 6 m m sealin g bol t fro m th e
secondar y drive n gea r shaft .
NOTE : I f th e transmissio n i s i n an y positio n othe r
than , shift int o positio n b y rotatin g th e con -
tro l shaft .
EXTENSIO N SHAF TPULLE R07LAC - PW5010 136 m m SEALIN G BOL T
STOPHOLDE R
MID MOUN TSTOP
MIDMOUN T
25. Remov e th e transmissio n housin g mountin g bolts .
23
. Remov e th e extensio n shaf t fro m th e differentia l
usin g th e specia l too l a s shown .
24. Plac e a jac k unde r th e transmission , an d rais e th e
transmissio n jus t enoug h t o tak e weigh t of f o f th e
mounts , the n remov e th e sto p holder , th e mi d
moun t stop s an d th e mi d mounts .
TRANSMISSIO N
HOUSIN G
MOUNTIN G BOL T
ProCarManuals.com

26. Remove the engine stiffener.

TRANSMISSION HOUSING

MOUNTING BOLT
DRIVE PLATE

BOLT

ENGINE

STIFFENER

TORQUE CONVERTER

COVERS

27. Remove the torque converter covers.

28. Remove the six drive plate bolts one at a time while

rotating the crankshaft pulley.

NOTE: If necessary, remove the spark plugs while

removing the drive plate bolts.

29. Remove the transmission housing mounting bolts.

30. Pull the transmission away from the engine until it

clears the dowel pins, then lower it on the transmis-

sion jack.
26 mm SHIMProCarManuals.com
