1995 ACURA TL Service Repair Manual

Page 81 of 1771

ACURA TL 1995  Service Repair Manual Rocker Ar m Assembl y
Removal
NOTE:
Unscre w th e camshaf t holde r bolts , tw o turn s a t a
tim e i n a  crisscros s pattern , t o preven t damagin g th e
valve s o r rocke r ar m assembly .
Whe n r

Page 82 of 1771

ACURA TL 1995  Service Repair Manual
Camshaft

Inspection

NOTE:

Do not rotate the camshaft during inspection.

Remove the rocker arms and rocker shafts.

1. Put the camshaft and the camshaft holders on the

cylinder head, then tighten

Page 83 of 1771

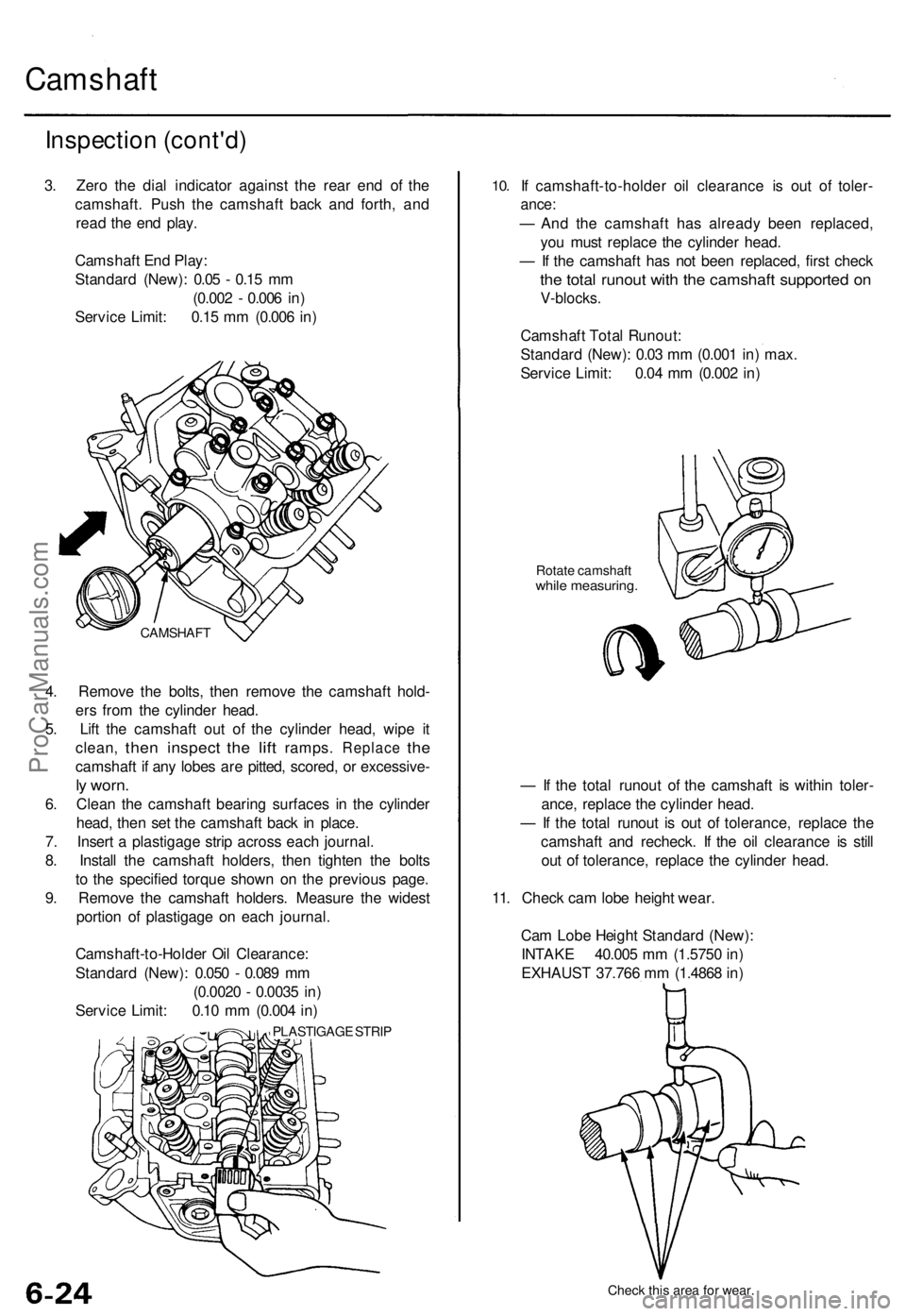

ACURA TL 1995  Service Repair Manual
Camshaft

Inspection (cont'd)

3. Zero the dial indicator against the rear end of the

camshaft. Push the camshaft back and forth, and

read the end play.

Camshaft End Play:

Standard (New): 0.0

Page 84 of 1771

ACURA TL 1995  Service Repair Manual

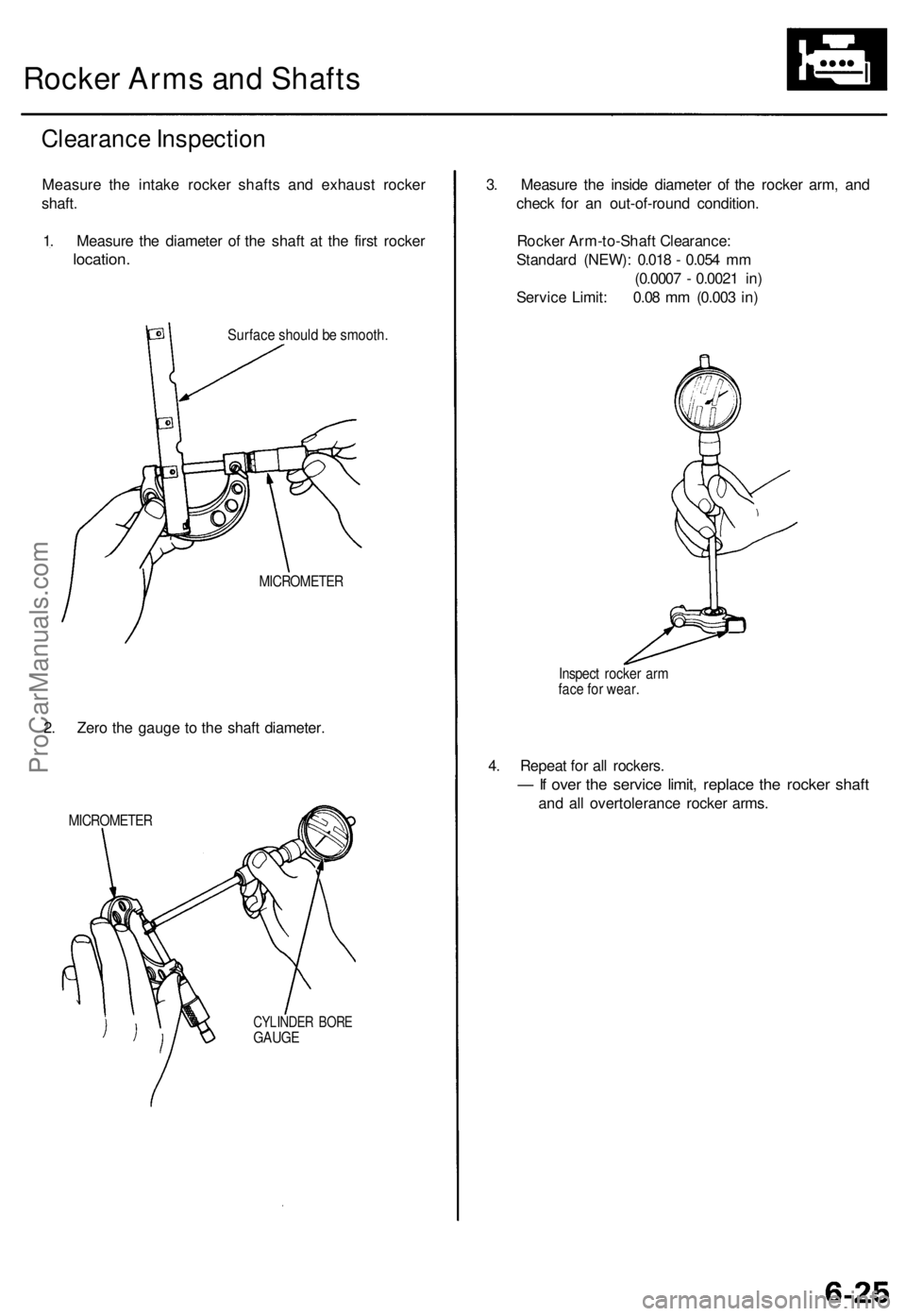

Rocker Arms and Shafts

Clearance Inspection

Measure the intake rocker shafts and exhaust rocker

shaft.

1. Measure the diameter of the shaft at the first rocker

location.

Surface should be smoot

Page 85 of 1771

ACURA TL 1995  Service Repair Manual Valves, Valv e Spring s an d Valv e Seal s
Remova l
NOTE: Identif y valve s an d valv e spring s a s the y ar e
remove d s o tha t eac h ite m ca n b e reinstalle d i n it s origi -
nal position .
1.

Page 86 of 1771

ACURA TL 1995  Service Repair Manual

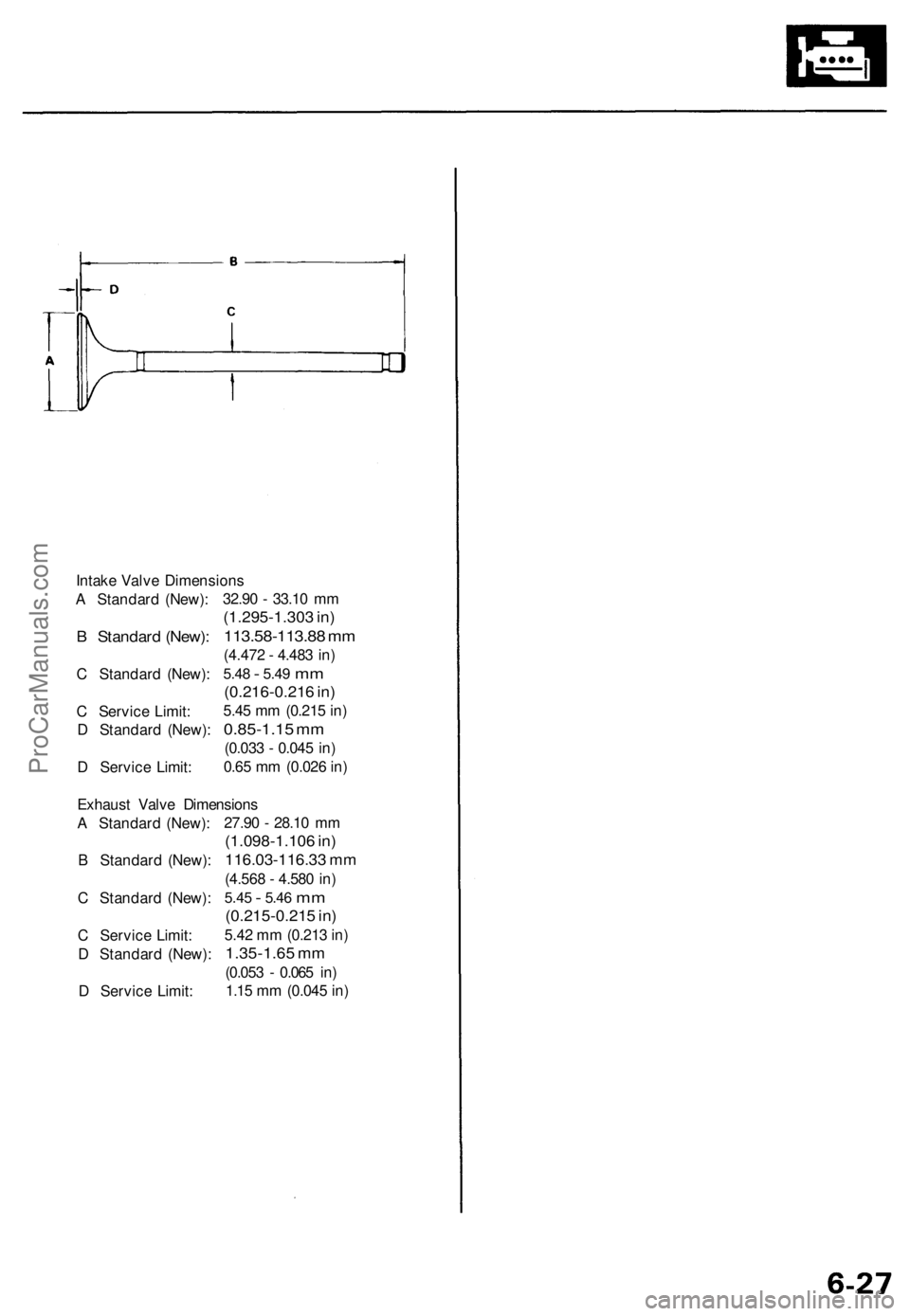

Intake Valve Dimensions

A Standard (New):

B Standard (New):

C Standard (New):

C Service Limit:

D Standard (New):

D Service Limit:
32.90 - 33.10 mm

(1.295-1.303 in)

113.58-113.88 mm

(4.472 -

Page 87 of 1771

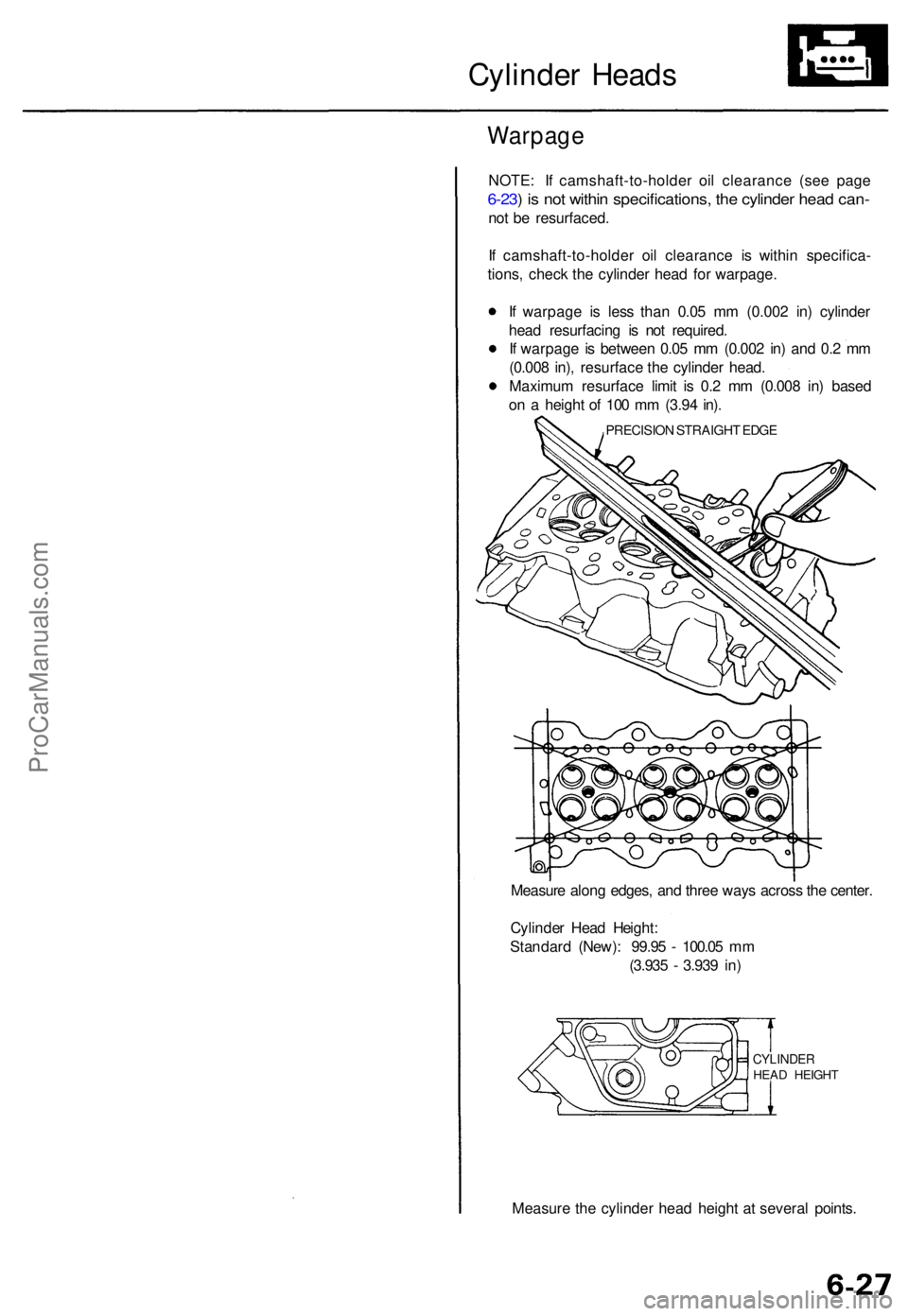

ACURA TL 1995  Service Repair Manual Cylinder Head s
Warpag e
NOTE: I f camshaft-to-holde r oi l clearanc e (se e pag e
6-23) i s  no t withi n specifications , th e cylinde r hea d can -
not b e resurfaced .
I f  camshaft-to-holde r oi

Page 88 of 1771

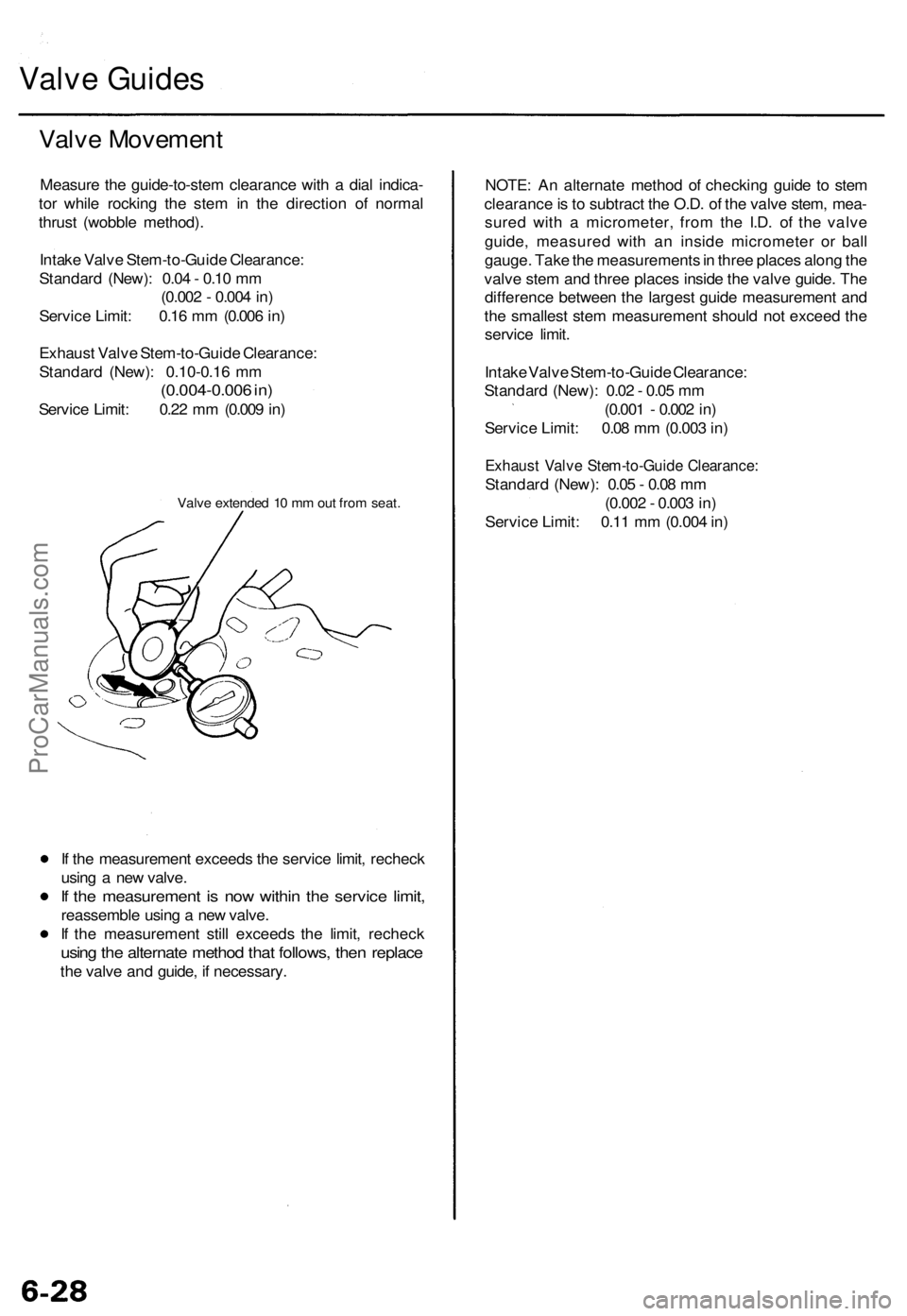

ACURA TL 1995  Service Repair Manual Valve Guide s
Valve Movemen t
Measure th e guide-to-ste m clearanc e wit h a  dia l indica -
to r whil e rockin g th e ste m in th e directio n o f norma l
thrus t (wobbl e method) .
Intak e Valv e St
