1995 ACURA TL Service Repair Manual

Diagnostic Trouble Code (DTC)

DTC Erasure

1. Pull the parking brake lever up.

2. Push and hold the TCS switch, then turn the ignition switch ON (II).

3. Hold the TCS switch pushed for four seconds (do not release the TCS switch), then release the TCS switch for less than

six seconds.

4. After three seconds, the TCS indicator light go off three times, then turn it on. It means that the DTC is erased.

NOTE:

• Follow these steps exactly. If you connect the SCS service connector and/or release the parking brake lever during

these steps, the DTC will not be erased.

• If the TCS indicator light blinks repeatedly, replace the TCS control unit.

Standard Indication Pattern

Abnormal Indication PatternProCarManuals.com

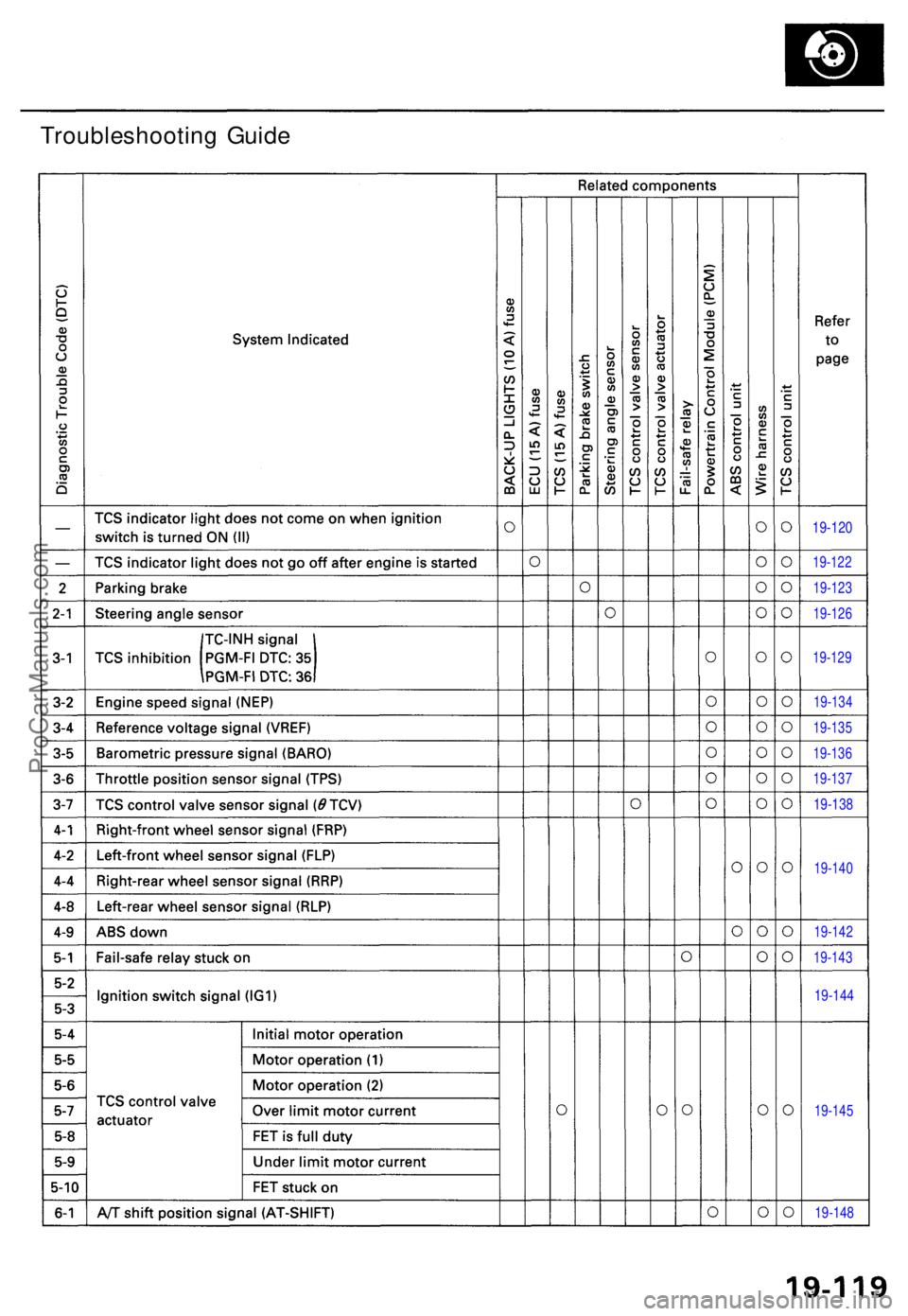

Troubleshooting Guid e
19-120
19-122
19-123
19-126
19-129
19-134
19-135
19-136
19-137
19-138
19-140
19-142
19-143
19-144
19-145
19-148
ProCarManuals.com

Electronic Component s
Steering Angl e Senso r Replacemen t
CAUTION: D o no t damag e o r dro p th e steerin g angl e senso r a s it i s sensitive .
1 . Remov e th e combinatio n switc h (refe r t o sectio n 1 7 in th e '9 5 - '9 8 Acur a 2.5T L servic e manual , P/ N 61SW504) .
2 . Remov e th e circli p an d screw , the n remov e th e steerin g angl e senso r fro m th e combinatio n switch .
3 . Installatio n i s i n th e revers e orde r o f removal .
CAUTION : D o no t appl y an y greas e o r oi l t o th e steerin g angl e sensor .
4 . Perfor m th e steerin g angl e senso r syste m check . SCRE W
STEERING ANGL E SENSO R
COMBINATIO N SWITC H
CANCE L CA M
WAV E WASHE R
SPRING
LOWER COVE R
NOTE: Whe n reassembling , alig n th e tab s o f th e join t an d
cance l ca m to th e sli t o f th e steerin g angl e sensor .
Steering Angl e Senso r Syste m Chec k
1. Star t th e engine .
2 . Pus h th e TC S switc h thre e time s withi n thre e seconds .
NOTE: Alway s maintai n th e sam e numbe r o f rotations .
3. Slowl y tur n th e steerin g whee l fro m clockwis e mor e tha n 1. 5 turns .
NOTE :
• Star t checkin g afte r th e steerin g whee l move s a t leas t 1. 5 turns .
• Tur n th e steerin g whee l slowly , n o faste r tha n on e tur n in fou r seconds .
4 . Pus h th e TC S switc h twic e withi n thre e seconds .
NOTE : Alway s maintai n th e sam e numbe r o f rotations .
5 . Slowl y tur n th e steerin g whee l counterclockwise , an d chec k th e numbe r o f time s th e TC S indicato r ligh t flashe s afte r
th e whee l ha s move d approximatel y on e turn .
NOTE :
• Star t countin g afte r th e steerin g whee l move s on e turn .
• Tur n th e steerin g whee l slowly , n o faste r tha n on e tur n i n fou r seconds .
Standar d numbe r o f time s th e TC S indicato r ligh t flashes : 2 time s ('9 6 model )
: 4 time s ('9 7 model )
6 . I f ther e is a n abnormality , chec k th e troubleshooting flowchart (se e pag e 19-126 ).
JOIN T
CIRCLI P
ProCarManuals.com

Electronic Components

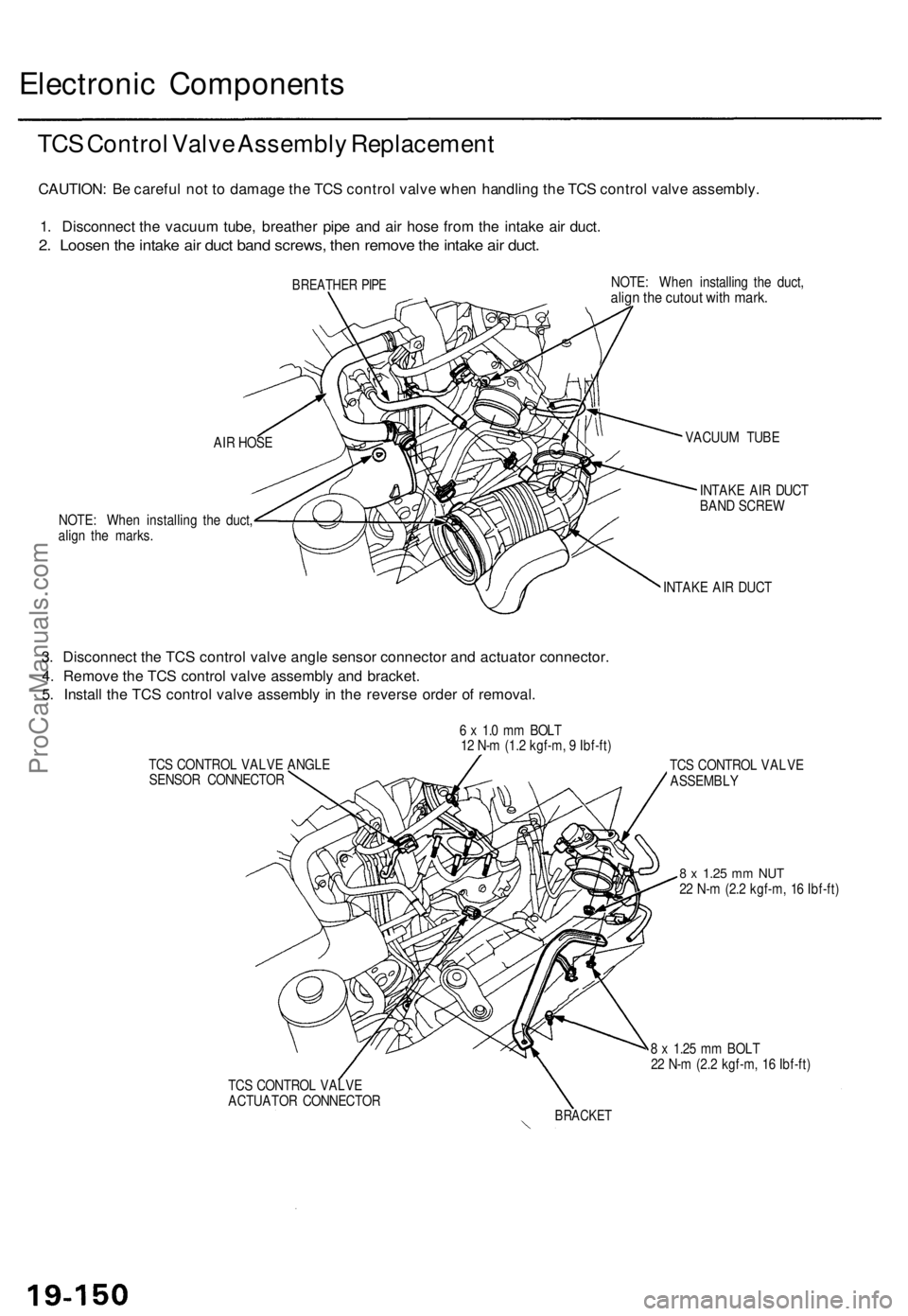

TCS Control Valve Assembly Replacement

CAUTION: Be careful not to damage the TCS control valve when handling the TCS control valve assembly.

1. Disconnect the vacuum tube, breather pipe and air hose from the intake air duct.

2. Loosen the intake air duct band screws, then remove the intake air duct.

BREATHER PIPE

AIR HOSE

NOTE: When installing the duct,

align the marks.
NOTE: When installing the duct,

align the cutout with mark.

VACUUM TUBE

INTAKE AIR DUCT

BAND SCREW

INTAKE AIR DUCT

3. Disconnect the TCS control valve angle sensor connector and actuator connector.

4. Remove the TCS control valve assembly and bracket.

5. Install the TCS control valve assembly in the reverse order of removal.

TCS CONTROL VALVE ANGLE

SENSOR CONNECTOR
6 x 1.0 mm BOLT

12 N-m (1.2 kgf-m, 9 Ibf-ft)

TCS CONTROL VALVE

ASSEMBLY

8 x
1.25
mm NUT

22 N-m (2.2 kgf-m, 16 Ibf-ft)

8 x 1.25 mm BOLT

22 N-m (2.2 kgf-m, 16 Ibf-ft)

BRACKET
TCS CONTROL VALVE

ACTUATOR CONNECTORProCarManuals.com

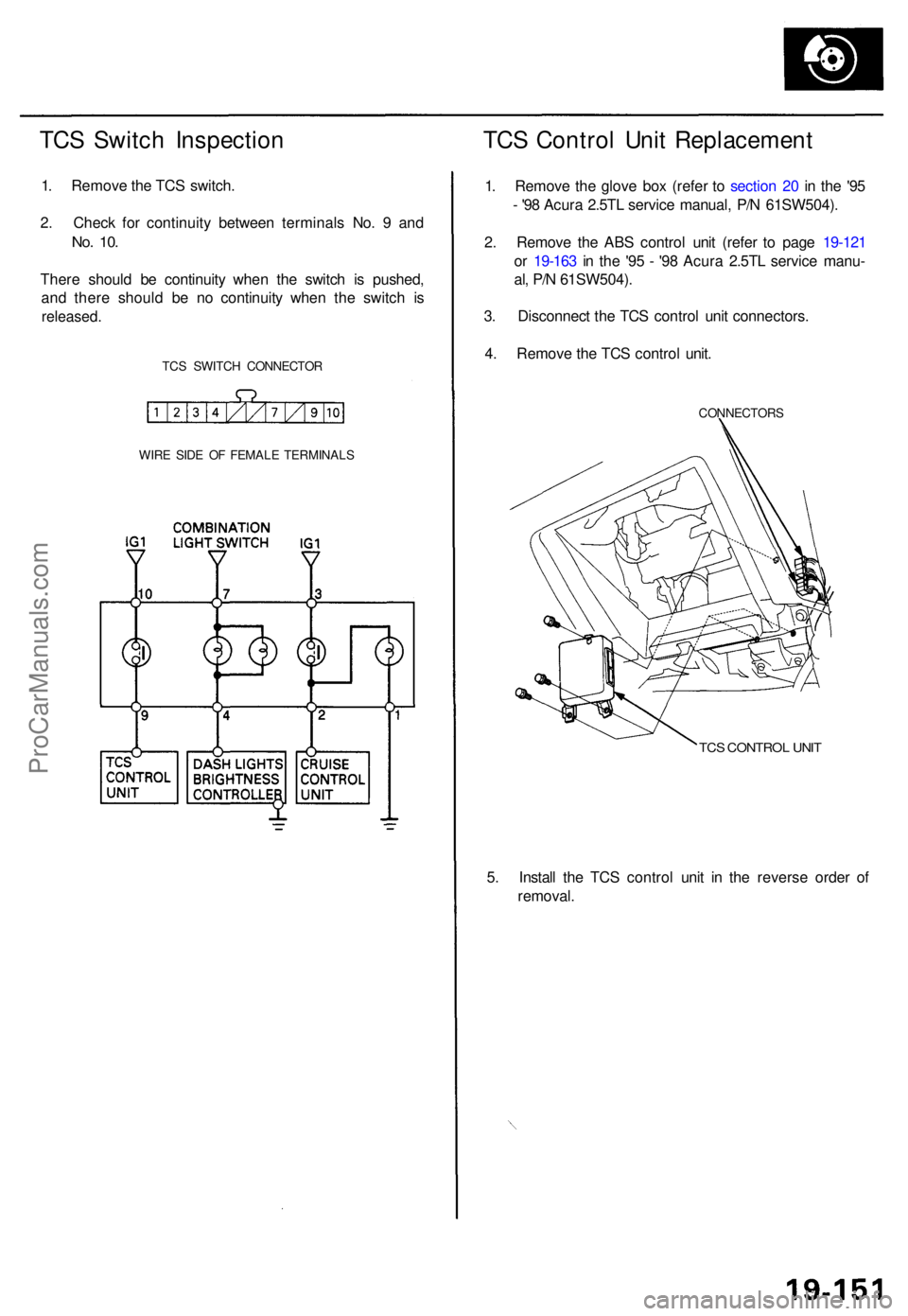

TCS Switc h Inspectio n
1. Remov e th e TC S switch .
2 . Chec k fo r continuit y betwee n terminal s No . 9 an d
No. 10 .
Ther e shoul d b e continuit y whe n th e switc h i s pushed ,
an d ther e shoul d b e n o continuit y whe n th e switc h i s
released .
TCS SWITC H CONNECTO R
TCS Contro l Uni t Replacemen t
1. Remov e th e glov e bo x (refe r t o sectio n 2 0 i n th e '9 5
- '9 8 Acur a 2.5T L servic e manual , P/ N 61SW504) .
2 . Remov e th e AB S contro l uni t (refe r t o pag e 19-12 1
o r 19-16 3 i n th e '9 5 - '9 8 Acur a 2.5T L servic e manu -
al , P/ N 61SW504) .
3 . Disconnec t th e TC S contro l uni t connectors .
4 . Remov e th e TC S contro l unit .
CONNECTOR S
TCS CONTRO L UNI T
5. Instal l th e TC S contro l uni t i n th e revers e orde r o f
removal .
WIRE SID E O F FEMAL E TERMINAL S
ProCarManuals.com

Center Console

Replacement

CAUTION: When prying with a flat tip screwdriver, wrap

it with protective tape to prevent damage.

NOTE: Take care not to scratch the center console, front

seat and related parts.

1. Slide the front seats backward fully.

2. Remove the A/T gear position indicator trim, and

disconnect the indicator light.

3. Open the armrest, then remove the inner mat and

remove the ashtray.

4. Remove the screws, then remove the center con-

sole. Disconnect the cigarette lighter connector,

front fog light switch connector and seat heater

switch connectors.

5. Installation is the reverse of the removal procedure.

NOTE:

• Make sure the wire harnesses are not pinched.

• Make sure the connectors are connected properly.ProCarManuals.com

Front Seat

Seat Harness Wiring Locations

(With Seat Heater)

NOTE: Replace the seat cover, seat heater and wire har-

ness as an assembly.

8-way power adjustable:ProCarManuals.com

4-way power adjustable:

SEAT-BACK
RECLINE

MOTOR

CONNECTOR

SEAT-BACK

HEATER

CONNECTOR

To seat

switch.

To seat

cushion

heater.

SLIDE MOTOR

CONNECTOR

SEAT CUSHION
WIRE TIES

Forward
SEAT HEATER

CONNECTOR
SEAT

HARNESSES
To seat-back

heater.ProCarManuals.com
