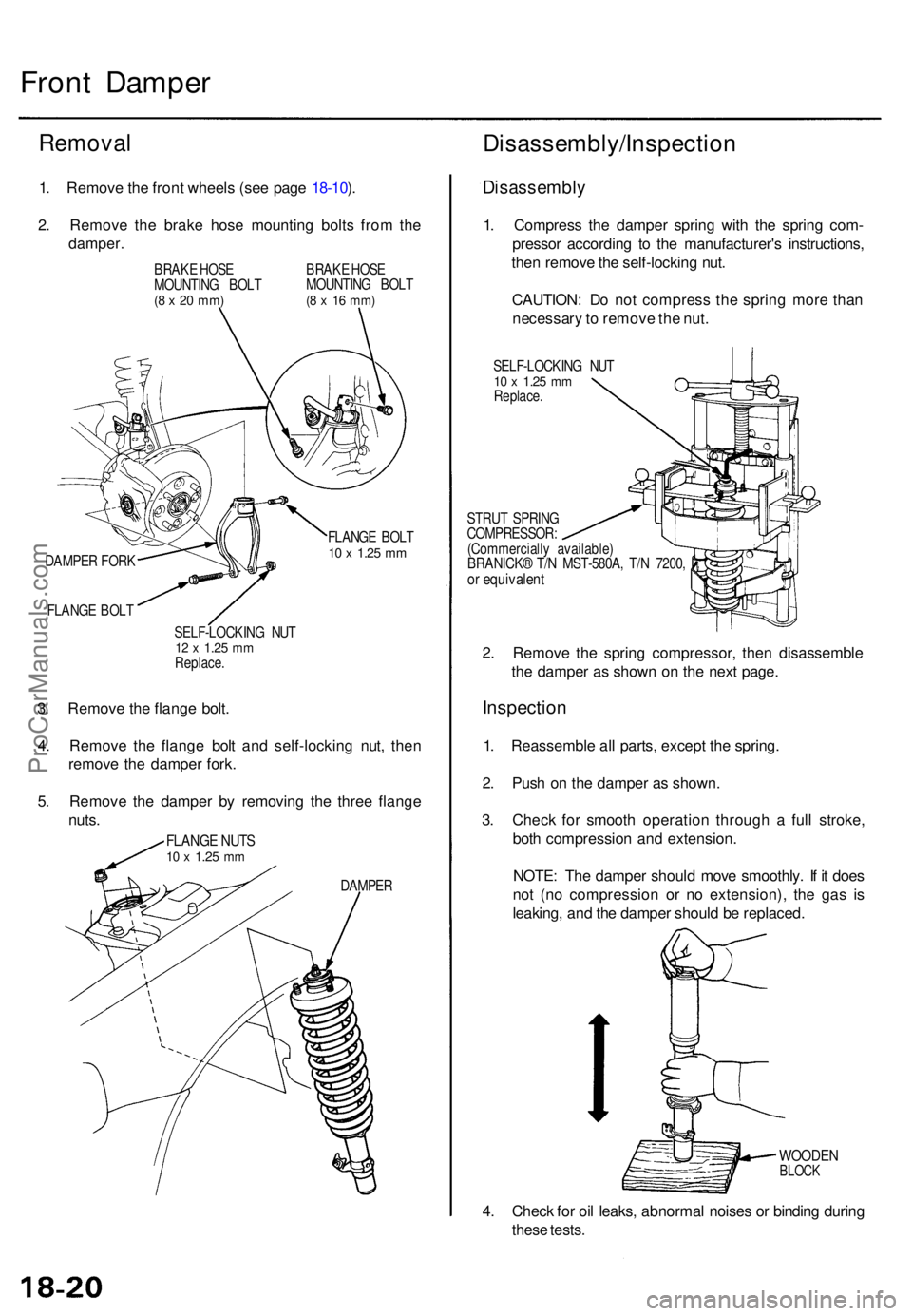

Front Dampe r
Remova l
1. Remov e th e fron t wheel s (se e pag e 18-10 ).
2 . Remov e th e brak e hos e mountin g bolt s fro m th e
damper .
BRAKE HOS E
MOUNTIN G BOL T
(8 x 2 0 mm )
BRAK E HOS E
MOUNTIN G BOL T
(8 x 1 6 mm )
DAMPE R FOR K
FLANG E BOL T FLANG
E BOL T10 x 1.2 5 mm
SELF-LOCKIN G NU T12 x 1.2 5 mmReplace .
3. Remov e th e flang e bolt .
4 . Remov e th e flang e bol t an d self-lockin g nut , the n
remov e th e dampe r fork .
5 . Remov e th e dampe r b y removin g th e thre e flang e
nuts .
FLANG E NUT S10 x 1.2 5 mm
DAMPE R
Disassembly/Inspectio n
Disassembly
1. Compres s th e dampe r sprin g wit h th e sprin g com -
presso r accordin g t o th e manufacturer' s instructions ,
the n remov e th e self-lockin g nut .
CAUTION : D o no t compres s th e sprin g mor e tha n
necessar y to remov e th e nut .
SELF-LOCKIN G NU T10 x 1.2 5 mmReplace .
STRU T SPRIN G
COMPRESSOR :
(Commerciall y available )
BRANICK ® T/ N MST-580A , T/ N 7200 ,
or equivalen t
2. Remov e th e sprin g compressor , the n disassembl e
th e dampe r a s show n o n th e nex t page .
Inspectio n
1. Reassemble all parts , excep t th e spring .
2 . Pus h o n th e dampe r a s shown .
3 . Chec k fo r smoot h operatio n throug h a ful l stroke ,
bot h compressio n an d extension .
NOTE : Th e dampe r shoul d mov e smoothly . I f i t doe s
no t (n o compressio n o r n o extension) , th e ga s i s
leaking , an d th e dampe r shoul d b e replaced .
WOODENBLOCK
4. Chec k fo r oi l leaks , abnorma l noise s o r bindin g durin g
thes e tests .
ProCarManuals.com

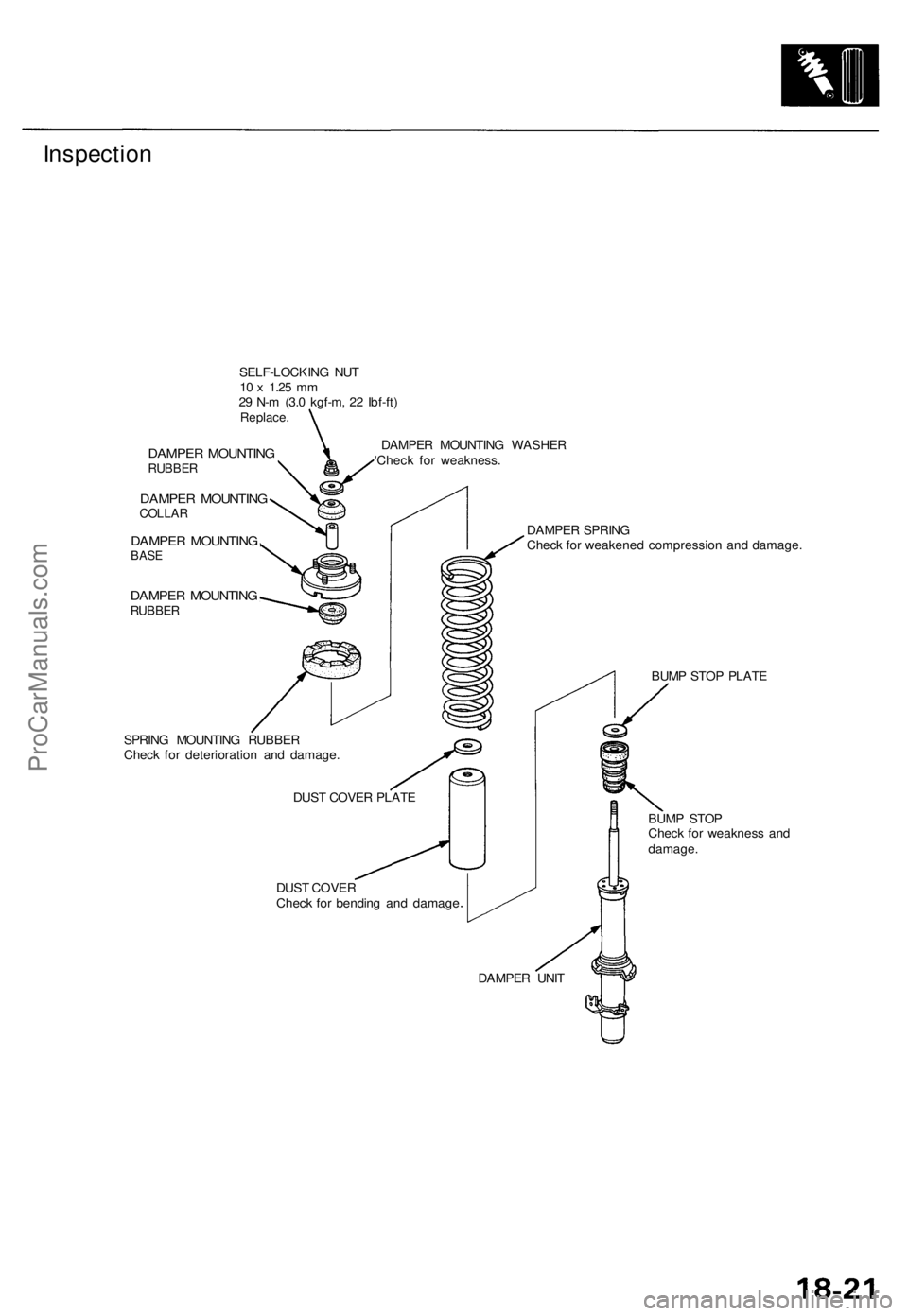

Inspection
SELF-LOCKIN G NU T10 x 1.2 5 mm29 N- m (3. 0 kgf-m , 2 2 Ibf-ft )Replace .
DAMPER MOUNTIN GRUBBER
DAMPE R MOUNTIN GCOLLAR
DAMPE R MOUNTIN GBASE
DAMPE R MOUNTIN GRUBBER
DAMPE R MOUNTIN G WASHE R
'Chec k fo r weakness .
DAMPE R SPRIN G
Chec k fo r weakene d compressio n an d damage .
SPRIN G MOUNTIN G RUBBE R
Chec k fo r deterioratio n an d damage . BUM
P STO P PLAT E
BUM P STO P
Chec k fo r weaknes s an d
damage .
DUS T COVE R
Chec k fo r bendin g an d damag e
DUS
T COVE R PLAT E
DAMPER UNI T
ProCarManuals.com

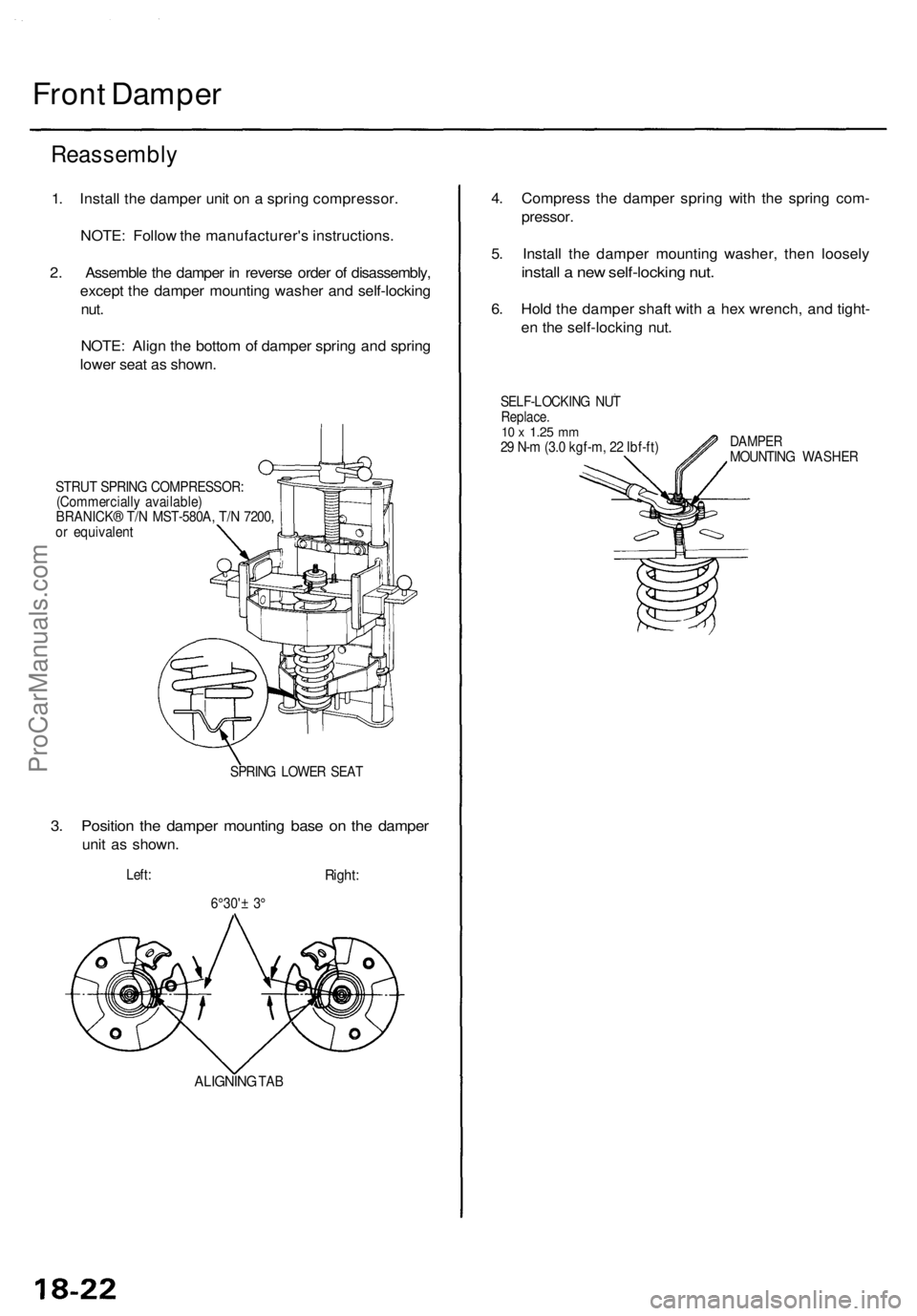

Front Dampe r
Reassembl y
1. Instal l th e dampe r uni t o n a sprin g compressor .
NOTE : Follo w th e manufacturer' s instructions .
2 . Assembl e th e dampe r i n revers e orde r o f disassembly ,
excep t th e dampe r mountin g washe r an d self-lockin g
nut.
NOTE : Alig n th e botto m o f dampe r sprin g an d sprin g
lowe r sea t a s shown .
STRUT SPRIN G COMPRESSOR :
(Commerciall y available )
BRANICK ® T/ N MST-580A , T/ N 7200 ,
o r equivalen t
SPRING LOWE R SEA T
3. Positio n th e dampe r mountin g bas e o n th e dampe r
unit a s shown .
Left:Right :
6°30' ± 3 °
ALIGNIN G TAB
4. Compres s th e dampe r sprin g wit h th e sprin g com -
pressor .
5 . Instal l th e dampe r mountin g washer , the n loosel y
install a ne w self-lockin g nut .
6. Hol d th e dampe r shaf t wit h a he x wrench , an d tight -
e n th e self-lockin g nut .
SELF-LOCKIN G NU TReplace .10 x 1.2 5 mm29 N- m (3. 0 kgf-m , 2 2 Ibf-ft )DAMPE RMOUNTIN G WASHE R
ProCarManuals.com

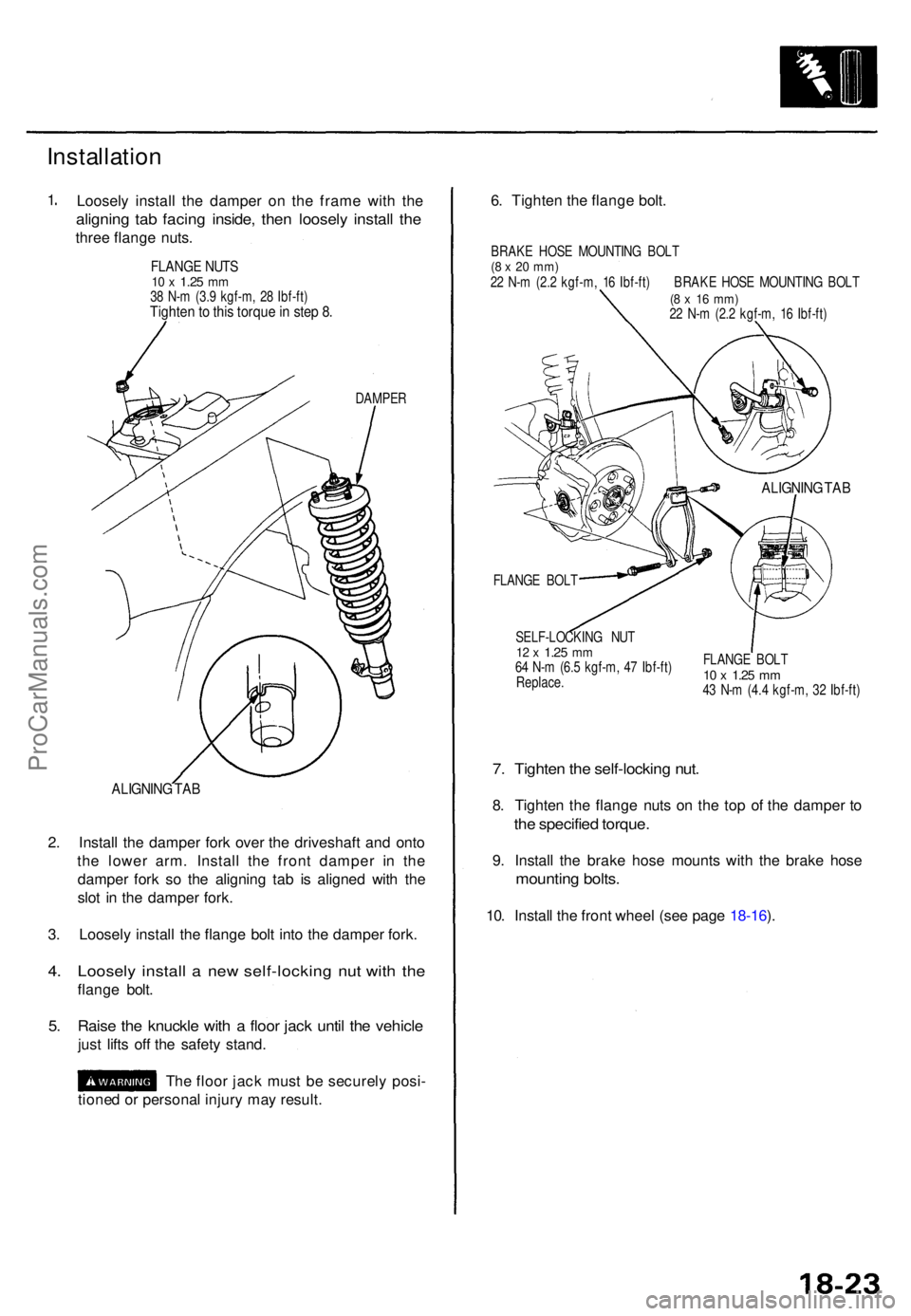

Installation
1. Loosel y instal l th e dampe r o n th e fram e wit h th e
alignin g ta b facin g inside , the n loosel y instal l th e
thre e flang e nuts .
FLANG E NUT S10 x 1.2 5 mm38 N- m (3. 9 kgf-m , 2 8 Ibf-ft )Tighte n to thi s torqu e in ste p 8 .
DAMPE R
ALIGNIN G TA B
2. Instal l th e dampe r for k ove r th e driveshaf t an d ont o
th e lowe r arm . Instal l th e fron t dampe r i n th e
dampe r for k s o th e alignin g ta b i s aligne d wit h th e
slo t i n th e dampe r fork .
3 . Loosel y instal l th e flang e bol t int o th e damper fork.
4. Loosel y instal l a ne w self-lockin g nu t wit h th e
flang e bolt .
5. Rais e th e knuckl e wit h a floo r jac k unti l th e vehicl e
just lift s of f th e safet y stand .
Th e floo r jac k mus t b e securel y posi -
tione d o r persona l injur y ma y result . 6
. Tighte n th e flang e bolt .
BRAK E HOS E MOUNTIN G BOL T(8 x 20 mm )22 N- m (2. 2 kgf-m , 1 6 Ibf-ft ) BRAK E HOS E MOUNTIN G BOL T(8 x 1 6 mm )22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
ALIGNIN G TA B
FLANG E BOL T
SELF-LOCKIN G NU T
12 x 1.2 5 mm64 N- m (6. 5 kgf-m , 4 7 Ibf-ft )
Replace . FLANG
E BOL T10 x 1.2 5 mm43 N- m (4. 4 kgf-m , 3 2 Ibf-ft )
7. Tighte n th e self-lockin g nut .
8. Tighte n th e flang e nut s o n th e to p o f th e damper to
th e specifie d torque .
9. Instal l th e brak e hos e mount s wit h th e brak e hos e
mountin g bolts .
10. Instal l th e fron t whee l (se e pag e 18-16 ).
ProCarManuals.com

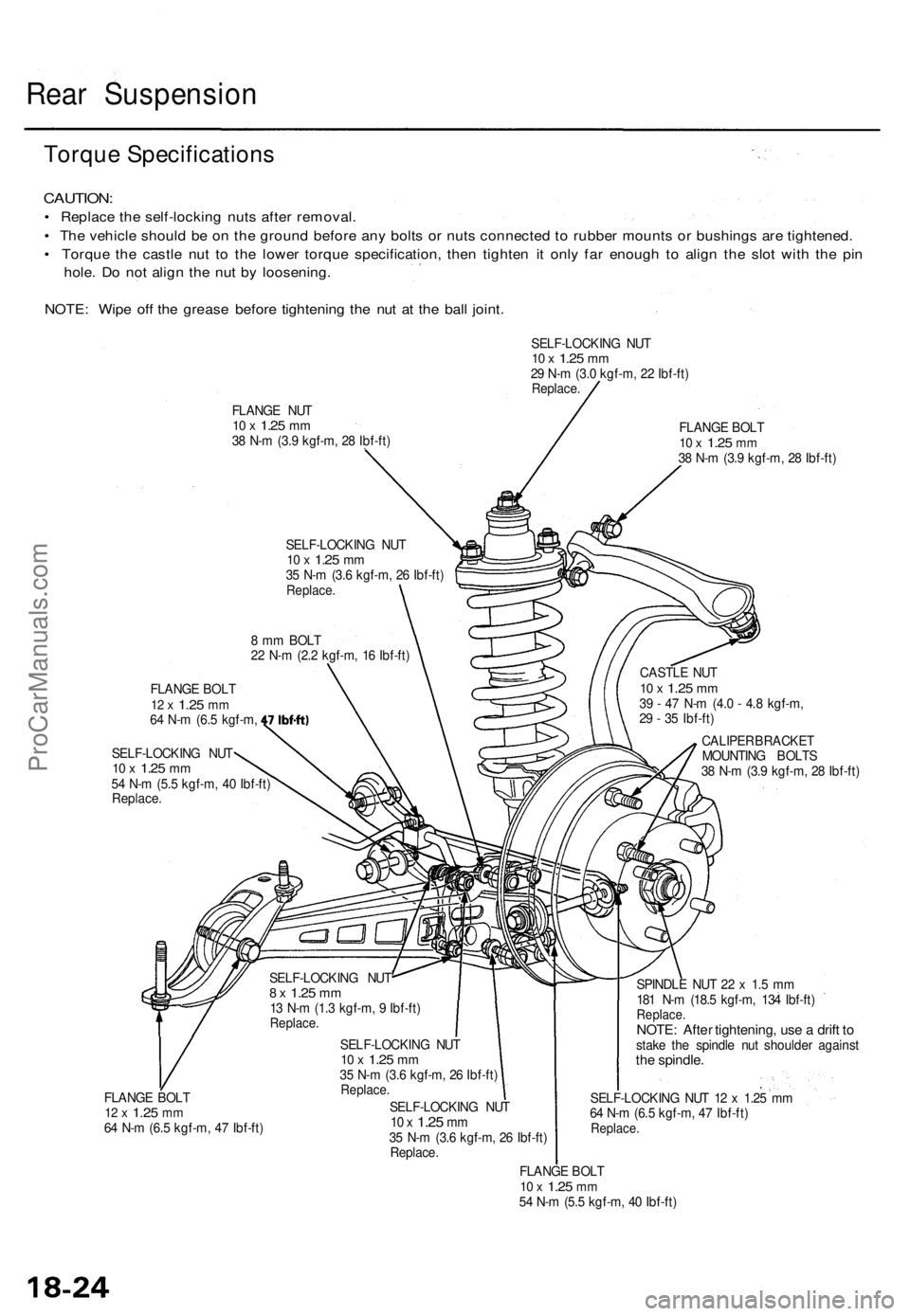

Rear Suspensio n
Torque Specification s
CAUTION:
• Replac e th e self-lockin g nut s afte r removal .
• Th e vehicl e shoul d b e o n th e groun d befor e an y bolt s o r nut s connecte d to rubbe r mount s o r bushing s ar e tightened .
• Torqu e th e castl e nu t t o th e lowe r torqu e specification , the n tighte n i t onl y fa r enoug h t o alig n th e slo t wit h th e pi n
hole . D o no t alig n th e nu t b y loosening .
NOTE : Wip e of f th e greas e befor e tightenin g th e nu t a t th e bal l joint .
SELF-LOCKIN G NU T10 x 1.2 5 mm29 N- m (3. 0 kgf-m , 2 2 Ibf-ft )Replace .
FLANGE NU T10 x 1.2 5 mm38 N- m (3. 9 kgf-m , 2 8 Ibf-ft ) FLANG
E BOL T10 x 1.2 5 mm38 N- m (3. 9 kgf-m , 2 8 Ibf-ft )
SELF-LOCKIN G NU T
10 x 1.2 5 mm35 N- m (3. 6 kgf-m , 2 6 Ibf-ft )Replace .
8 m m BOL T
2 2 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
FLANG E BOL T
12 x 1.2 5 mm64 N- m (6. 5 kgf-m ,
SELF-LOCKIN G NU T
10 x 1.2 5 mm54 N- m (5. 5 kgf-m , 4 0 Ibf-ft )
Replace . CASTL
E NU T
10 x 1.2 5 mm39 - 4 7 N- m (4. 0 - 4. 8 kgf-m ,
2 9 - 3 5 Ibf-ft )
CALIPE R BRACKE T
MOUNTIN G BOLT S
3 8 N- m (3. 9 kgf-m , 2 8 Ibf-ft )
FLANG E BOL T
12 x 1.2 5 mm64 N- m (6. 5 kgf-m , 4 7 Ibf-ft )SELF-LOCKIN
G NU T
8 x 1.2 5 mm13 N- m (1. 3 kgf-m , 9 Ibf-ft )Replace .
SELF-LOCKIN G NU T10 x 1.2 5 mm35 N- m (3. 6 kgf-m , 2 6 Ibf-ft )Replace .
SELF-LOCKIN G NU T10 x 1.2 5 mm35 N- m (3. 6 kgf-m , 2 6 Ibf-ft )
Replace .
FLANGE BOL T
10 x 1.2 5 mm54 N- m (5. 5 kgf-m , 4 0 Ibf-ft )
SPINDL
E NU T 2 2 x 1. 5 m m
18 1 N- m (18. 5 kgf-m , 13 4 Ibf-ft )
Replace .NOTE: Afte r tightening , us e a drif t t ostak e th e spindl e nu t shoulde r agains tthe spindle .
SELF-LOCKIN G NU T 1 2 x 1.2 5 m m
6 4 N- m (6. 5 kgf-m , 4 7 Ibf-ft )
Replace .
ProCarManuals.com

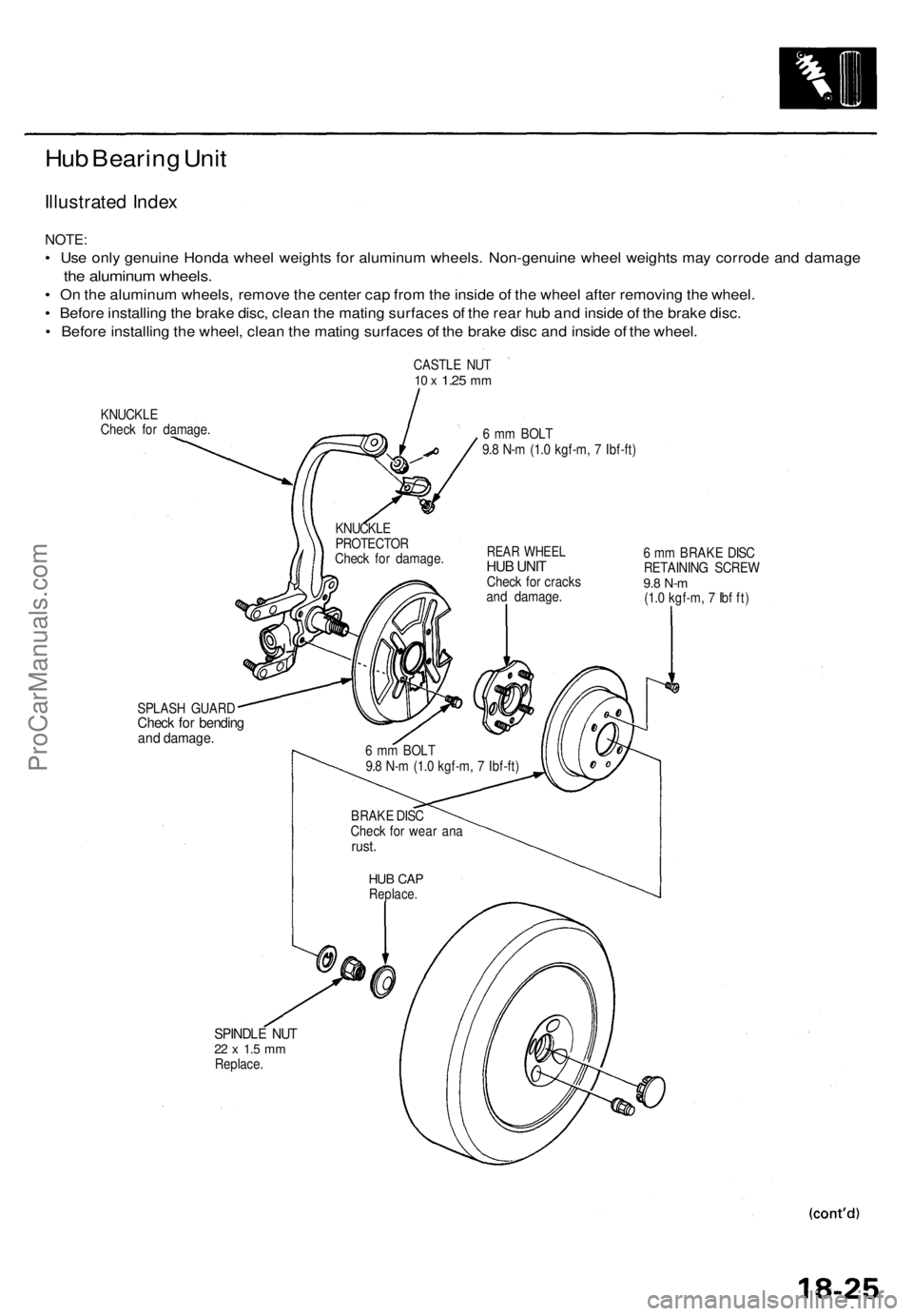

Hub Bearing Unit

Illustrated Index

NOTE:

• Use only genuine Honda wheel weights for aluminum wheels. Non-genuine wheel weights may corrode and damage

the aluminum wheels.

• On the aluminum wheels, remove the center cap from the inside of the wheel after removing the wheel.

• Before installing the brake disc, clean the mating surfaces of the rear hub and inside of the brake disc.

• Before installing the wheel, clean the mating surfaces of the brake disc and inside of the wheel.

KNUCKLE

Check for damage.

6 mm BOLT

9.8 N-m (1.0 kgf-m, 7 Ibf-ft)

SPLASH GUARD

Check for bending

and damage.
6 mm BRAKE DISC

RETAINING SCREW

9.8 N-m

(1.0 kgf-m, 7 Ibf ft)

SPINDLE NUT

22 x 1.5 mm

Replace.
CASTLE NUT

10 x
1.25
mm

KNUCKLE

PROTECTOR

Check for damage.

HUB CAP

Replace.
BRAKE DISC

Check for wear ana

rust.
6 mm BOLT

9.8 N-m (1.0 kgf-m, 7 Ibf-ft)
REAR WHEEL

HUB UNIT

Check for cracks

and damage.ProCarManuals.com

Rear Suspensio n
Hub Bearin g Uni t (cont'd )
Remova l
1. Loose n th e whee l nut s slightly .
2 . Rais e th e rea r o f vehicle , an d suppor t i t wit h safet y
stand s in th e prope r location s (se e sectio n 1 ).
3 . Remov e th e whee l nut s an d rea r wheel .
HUB CA PReplace .
NOTE : Tak e car e no t t o damag e
the hu b uni t o n disassembly .
REAR WHEE L
SPINDL E NU T WHEE L NU T
22 x 1. 5 m m 1 2 x 1. 5 m mReplace .
4. Pul l th e parkin g brak e leve r up .
5 . Remov e th e hu b cap .
6 . Rais e th e lockin g ta b o n th e spindl e nut , the n remov e
the nut .
7. Remov e th e brak e hos e mountin g bolts .
BRAK E HOS E MOUNTIN G BOLT S
CALIPE R
CALIPER BRACKE T MOUNTIN G BOLT S10 x 1.2 5 mm
8. Remov e th e calipe r bracke t mountin g bolt s an d
han g th e calipe r t o on e side .
CAUTION : T o preven t accidenta l damag e t o th e
calipe r o r brak e hose , us e a shor t piec e o f wir e t o
han g th e calipe r fro m th e undercarriage . 9
. Remov e th e 6 m m brak e dis c retainin g screws .
8 x 1.2 5 m m BOLT S
BRAK E DIS C 6
m m BRAK E DIS C
RETAININ G SCREW S
10. Scre w tw o 8 x 1.2 5 m m bolt s int o th e dis c to pus h it
awa y fro m th e hub .
NOTE : Tur n eac h bol t tw o turn s a t a tim e t o preven t
cockin g th e dis c excessively .
11 . Remov e th e brak e disc .
HUB UNI TChec k fo r crack s an d damage .
BRAK E DIS C
Chec k fo r wea r an d rust .
Inspection , sectio n 19 .
SPINDL E WASHE R
12. Remov e th e hu b uni t fro m th e knuckle .
ProCarManuals.com

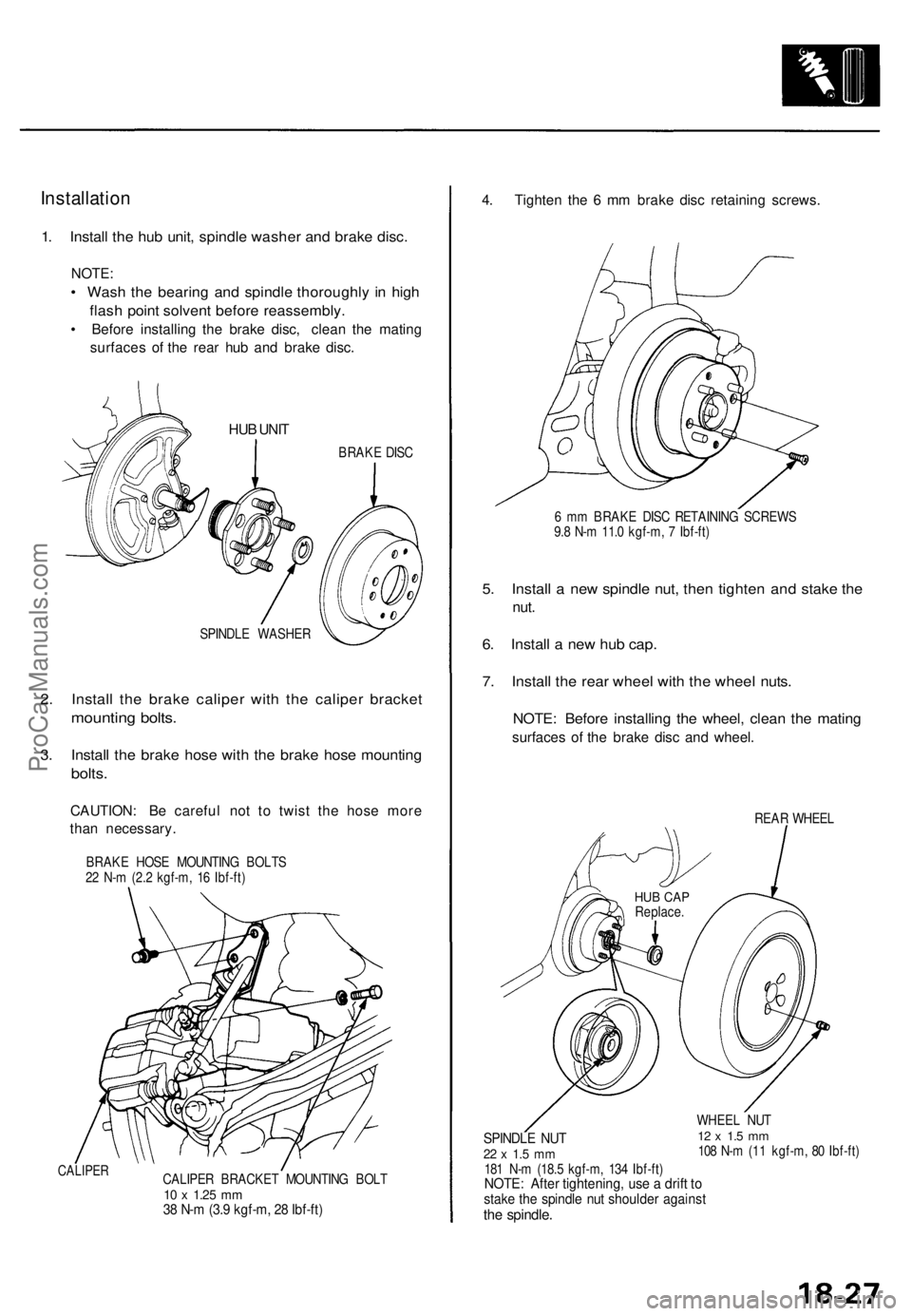

Installation

1. Install the hub unit, spindle washer and brake disc.

NOTE:

• Wash the bearing and spindle thoroughly in high

flash point solvent before reassembly.

• Before installing the brake disc, clean the mating

surfaces of the rear hub and brake disc.

BRAKE DISC

SPINDLE WASHER

2. Install the brake caliper with the caliper bracket

mounting bolts.

3. Install the brake hose with the brake hose mounting

bolts.

CAUTION: Be careful not to twist the hose more

than necessary.

BRAKE HOSE MOUNTING BOLTS

22 N-m (2.2 kgf-m, 16 Ibf-ft)

CALIPER

CALIPER BRACKET MOUNTING BOLT

10 x
1.25
mm

38 N-m (3.9 kgf-m, 28 Ibf-ft)
4. Tighten the 6 mm brake disc retaining screws.

6 mm BRAKE DISC RETAINING SCREWS

9.8 N-m 11.0 kgf-m, 7 Ibf-ft)

5. Install a new spindle nut, then tighten and stake the

nut.

6. Install a new hub cap.

7. Install the rear wheel with the wheel nuts.

NOTE: Before installing the wheel, clean the mating

surfaces of the brake disc and wheel.

REAR WHEEL

SPINDLE NUT

22 x 1.5 mm

181 N-m (18.5 kgf-m, 134 Ibf-ft)

NOTE: After tightening, use a drift to

stake the spindle nut shoulder against

the spindle.
WHEEL NUT

12 x 1.5 mm

108 N-m (11 kgf-m, 80 Ibf-ft)
HUB UNIT

HUB CAP

Replace.ProCarManuals.com
