1995 ACURA TL Service Repair Manual

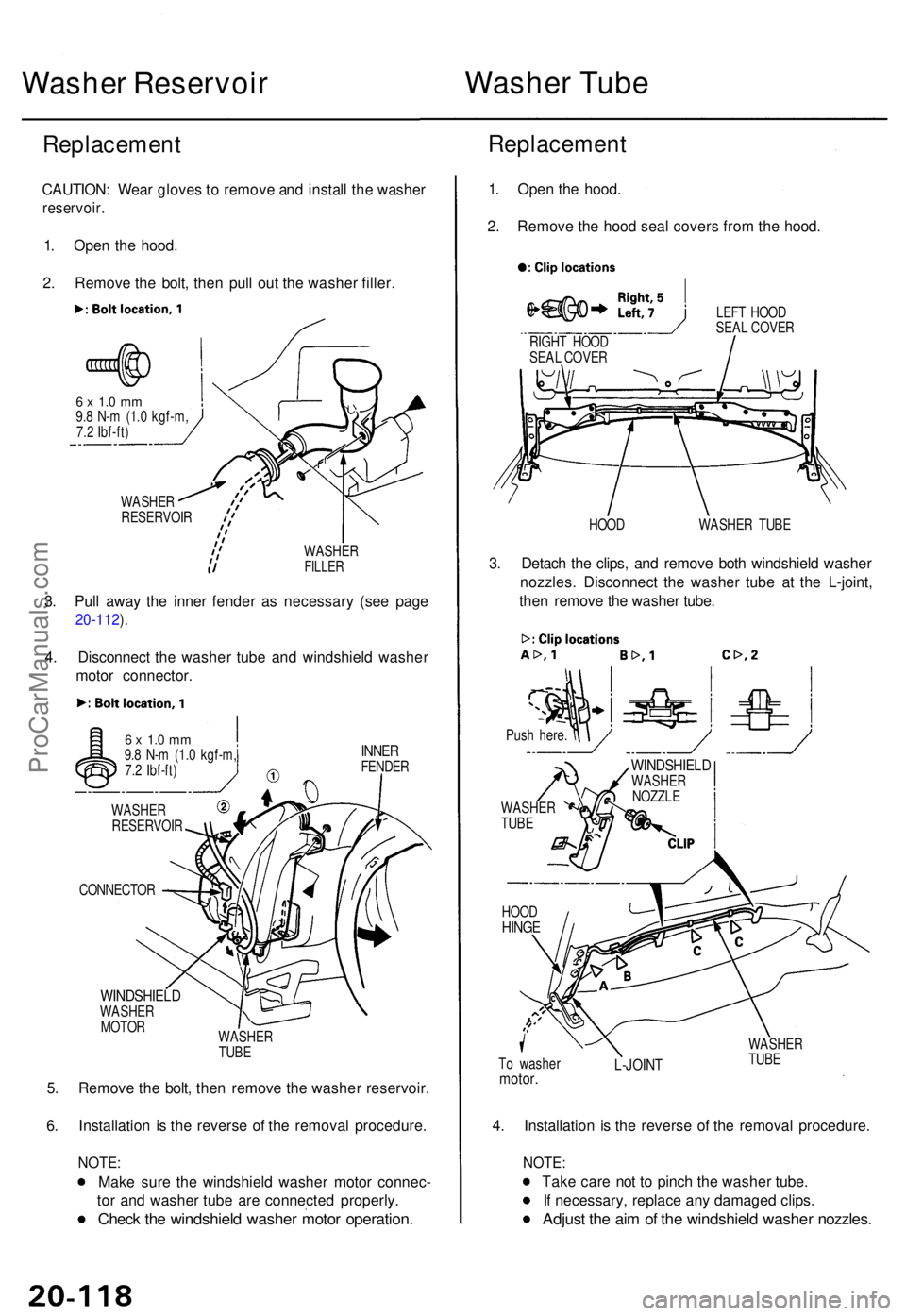

Washer Reservoi r Washe
r Tub e
Replacemen t
CAUTION: Wea r glove s to remov e an d instal l th e washe r
reservoir .
1. Ope n th e hood .
2 . Remov e th e bolt , the n pul l ou t th e washe r filler .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
WASHE R
RESERVOI R
WASHER
FILLER
3. Pul l awa y th e inne r fende r a s necessar y (se e pag e
20-112 ).
4 . Disconnec t th e washe r tub e an d windshiel d washe r
moto r connector .
INNERFENDE R
CONNECTO R
WINDSHIELDWASHER
MOTO R
WASHER
TUB E
5. Remov e th e bolt , the n remov e th e washe r reservoir .
6 . Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
Make sur e th e windshiel d washe r moto r connec -
to r an d washe r tub e ar e connecte d properly .
Check th e windshiel d washe r moto r operation .
Replacemen t
1. Ope n th e hood .
2 . Remov e th e hoo d sea l cover s fro m th e hood .
LEFT HOO D
SEA L COVE R
HOO D WASHER TUB E
3. Detac h th e clips , an d remov e bot h windshiel d washe r
nozzles . Disconnec t th e washe r tub e a t th e L-joint ,
the n remov e th e washe r tube .
WINDSHIEL DWASHER
NOZZL E
T o washe r
motor.L-JOIN T
WASHE R
TUB E
4. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
Take car e no t t o pinc h th e washe r tube .
I f necessary , replac e an y damage d clips .
Adjus t th e ai m o f th e windshiel d washe r nozzles .
RIGHT HOO D
SEA L COVE R
Pus h here .
WASHE R
TUB E
HOO D
HING E
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7. 2 Ibf-ft )
WASHE R
RESERVOI R
ProCarManuals.com

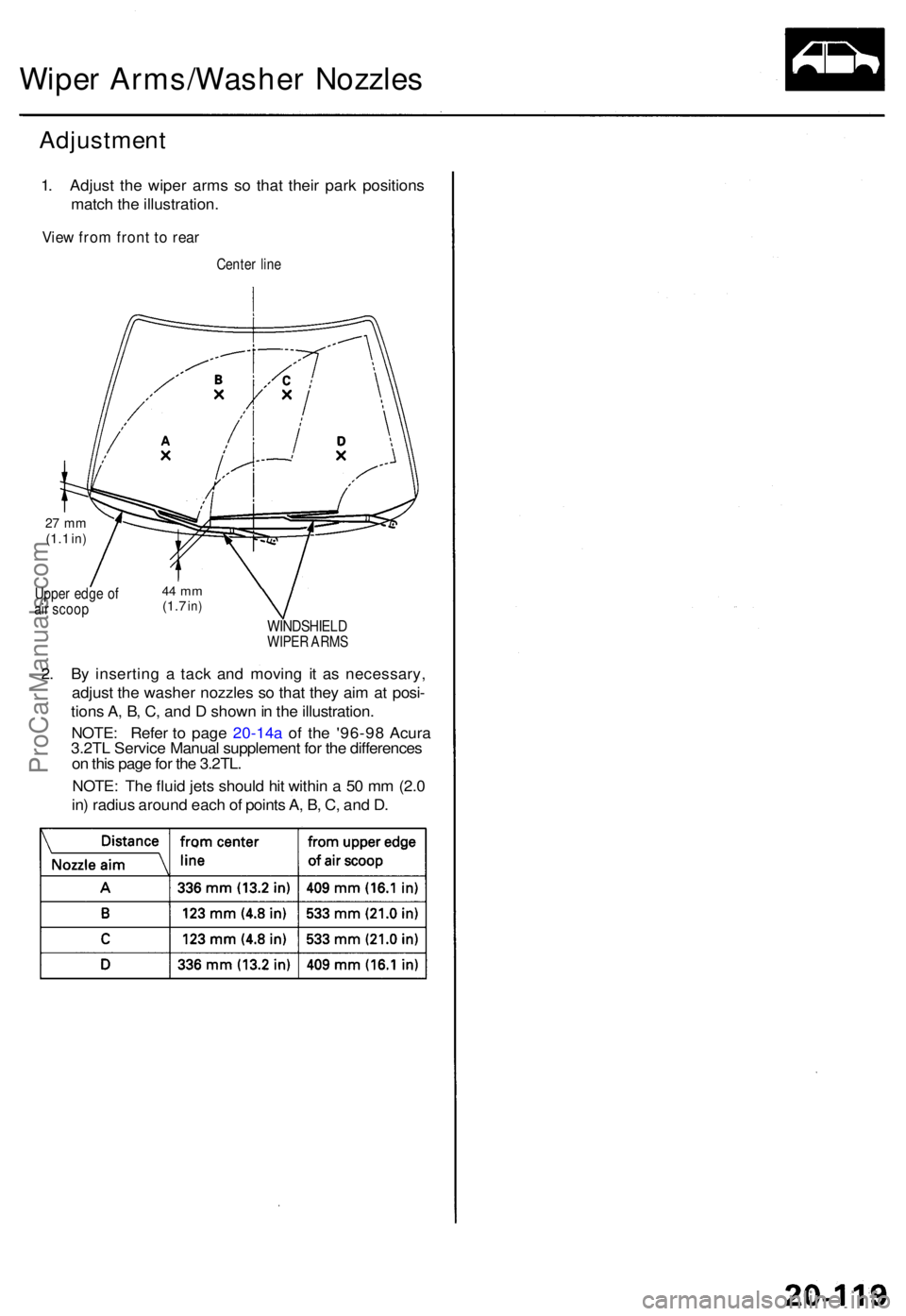

Wiper Arms/Washe r Nozzle s
Adjustmen t
1. Adjus t th e wipe r arm s s o tha t thei r par k position s
matc h th e illustration .
View fro m fron t t o rea r
Cente r lin e
27 m m(1.1 in)
Uppe r edg e o f
ai r scoo p44 m m(1.7 in)
WINDSHIEL DWIPER ARM S
2. B y insertin g a tac k an d movin g i t a s necessary ,
adjus t th e washe r nozzle s s o tha t the y ai m a t posi -
tion s A , B , C , an d D show n in th e illustration .
NOTE : Th e flui d jet s shoul d hi t withi n a 5 0 m m (2. 0
in ) radiu s aroun d eac h o f point s A , B , C , an d D .
NOTE : Refe r t o page 20-14a of th e '96-9 8 Acura 3.2TL Servic e Manual supplement for the differences on this page for the 3.2TL.
ProCarManuals.com

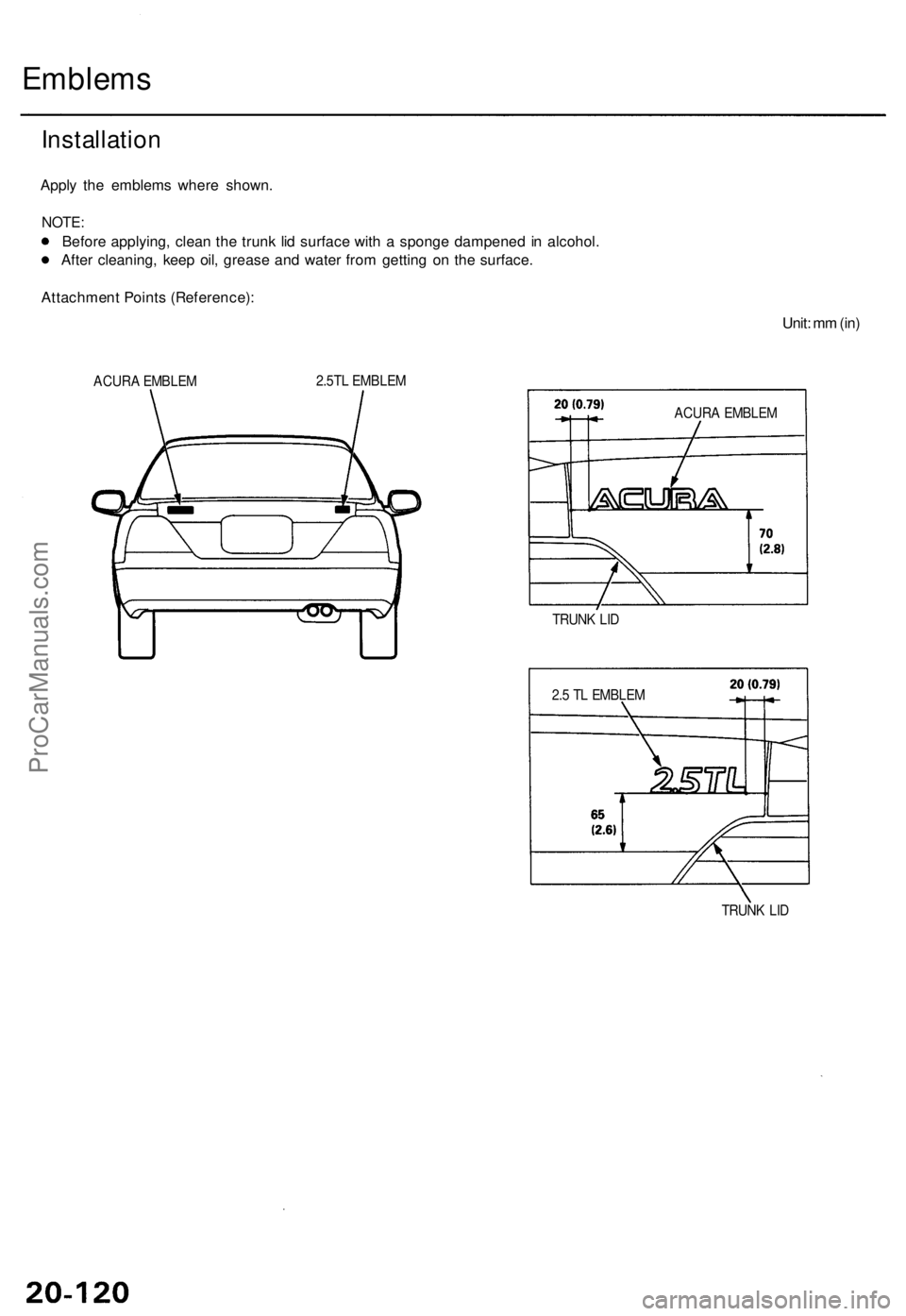

Emblems
Installatio n
Apply th e emblem s wher e shown .
NOTE:
Before applying , clea n th e trun k li d surfac e wit h a spong e dampene d i n alcohol .
Afte r cleaning , kee p oil , greas e an d wate r fro m gettin g o n th e surface .
Attachmen t Point s (Reference) :
Unit: m m (in )
ACUR A EMBLE M 2.5T
L EMBLE M
TRUNK LI D
TRUNK LI D
2.
5 T L EMBLE MACUR
A EMBLE M
ProCarManuals.com

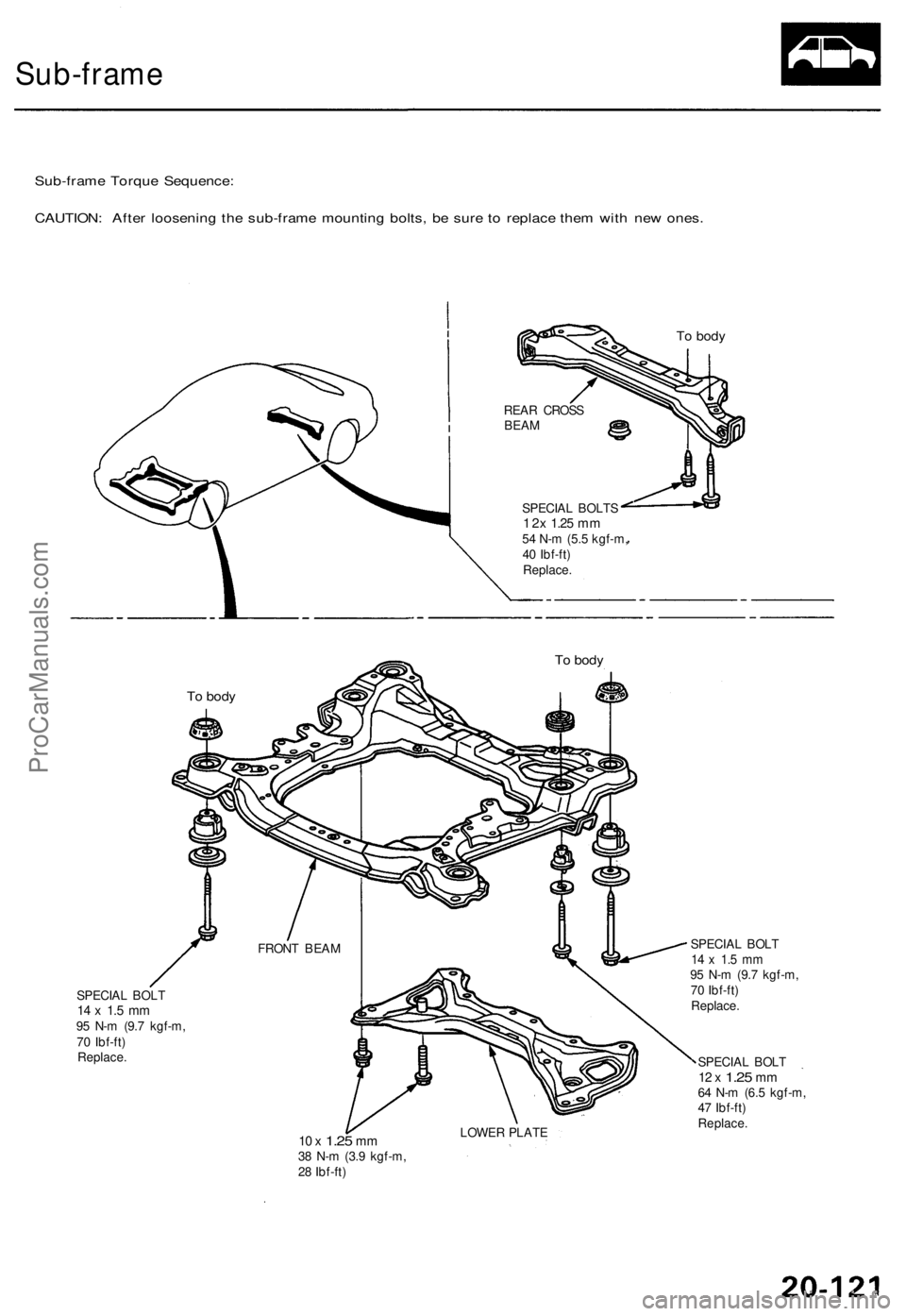

Sub-frame

Sub-frame Torque Sequence:

CAUTION: After loosening the sub-frame mounting bolts, be sure to replace them with new ones.

To body

REAR CROSS

BEAM

SPECIAL BOLTS

1 2x
1.25
mm

54 N-m (5.5 kgf-m,

40 Ibf-ft)

Replace.

To body

To body

SPECIAL BOLT

14 x 1.5 mm

95 N-m (9.7 kgf-m,

70 Ibf-ft)

Replace.

10 x
1.25
mm

38 N-m (3.9 kgf-m,

28 Ibf-ft)
LOWER PLATE
SPECIAL BOLT

14 x 1.5 mm

95 N-m (9.7 kgf-m,

70 Ibf-ft)

Replace.

SPECIAL BOLT

12 x
1.25
mm

64 N-m (6.5 kgf-m,

47 Ibf-ft)

Replace.
FRONT BEAMProCarManuals.com

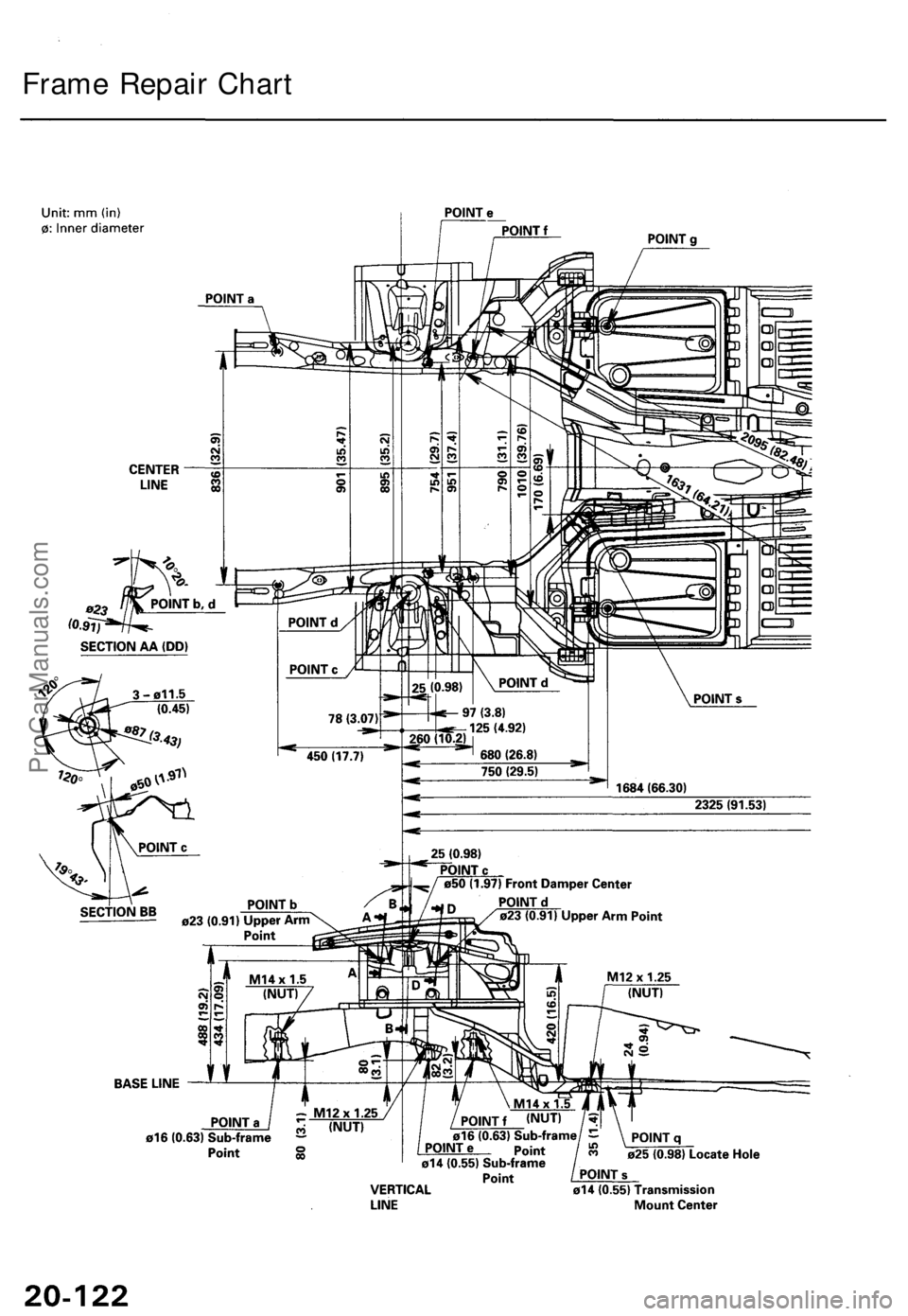

Frame Repair ChartProCarManuals.com

POINT y
POINT vProCarManuals.com

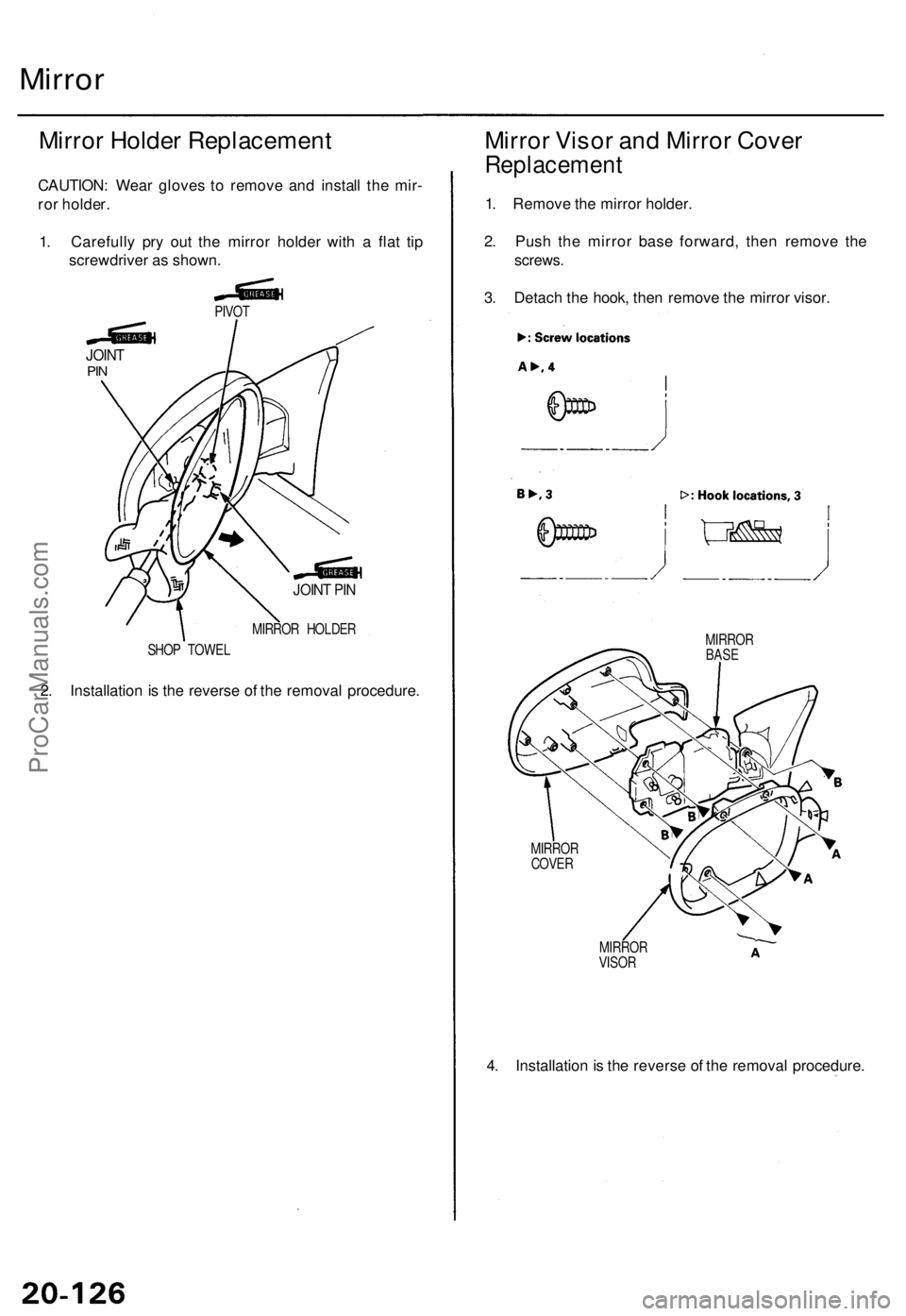

Mirror
Mirror Holde r Replacemen t
CAUTION: Wea r glove s t o remov e an d instal l th e mir -
ro r holder .
1 . Carefull y pr y ou t th e mirro r holde r wit h a fla t ti p
screwdrive r a s shown .
PIVOT
JOINT PI N
MIRRO R HOLDE R
SHO P TOWE L
2. Installatio n is th e revers e o f th e remova l procedure .
Mirror Viso r an d Mirro r Cove r
Replacemen t
1. Remov e th e mirro r holder .
2 . Pus h th e mirro r bas e forward , the n remov e th e
screws .
3. Detac h th e hook , the n remov e th e mirro r visor .
MIRRO RBASE
MIRRO RCOVER
MIRRO R
VISO R
4. Installatio n is th e revers e o f th e remova l procedure .
JOINTPIN
ProCarManuals.com

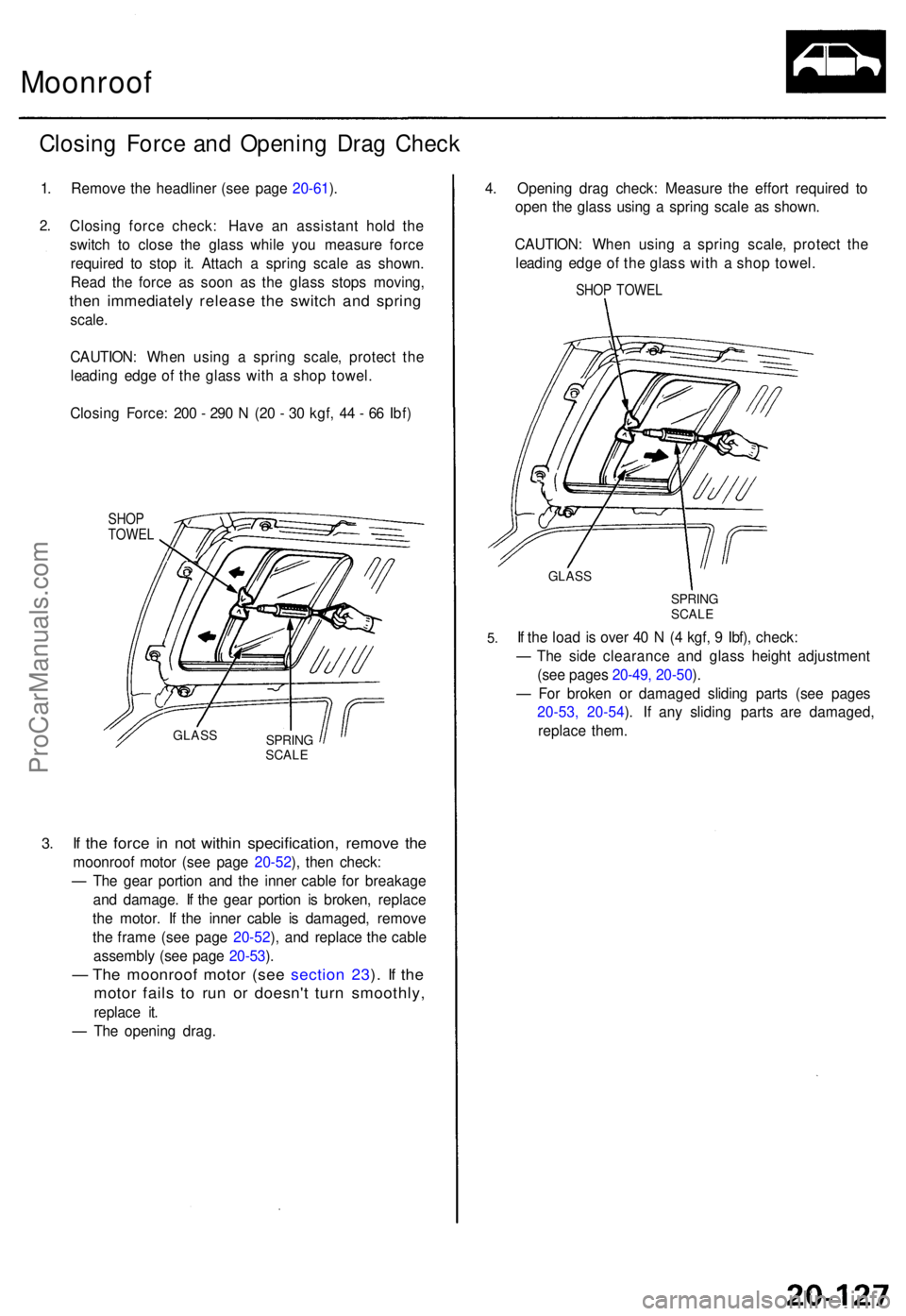

Moonroof
Closing Forc e an d Openin g Dra g Chec k
1. Remov e th e headline r (se e pag e 20-61 ).
2 .
3.
Closin g forc e check : Hav e a n assistan t hol d th e
switc h t o clos e th e glas s whil e yo u measur e forc e
require d t o sto p it . Attac h a sprin g scal e a s shown .
Rea d th e forc e a s soo n a s th e glas s stop s moving ,
then immediatel y releas e th e switc h an d sprin g
scale.
CAUTION : Whe n usin g a sprin g scale , protec t th e
leadin g edg e o f th e glas s wit h a sho p towel .
Closin g Force : 20 0 - 29 0 N (2 0 - 3 0 kgf , 4 4 - 6 6 Ibf )
SHO PTOWE L
If th e forc e i n no t withi n specification , remov e th e
moonroo f moto r (se e pag e 20-52 ), the n check :
— Th e gea r portio n an d th e inne r cabl e fo r breakag e
an d damage . I f th e gea r portio n i s broken , replac e
th e motor . I f th e inne r cabl e i s damaged , remov e
th e fram e (se e pag e 20-52 ), an d replac e th e cabl e
assembl y (se e pag e 20-53 ).
— Th e moonroo f moto r (se e sectio n 23 ). I f th e
moto r fail s t o ru n o r doesn' t tur n smoothly ,
replace it .
— Th e openin g drag . 4
. Openin g dra g check : Measur e th e effor t require d t o
ope n th e glas s usin g a sprin g scal e a s shown .
CAUTION : Whe n usin g a sprin g scale , protec t th e
leadin g edg e o f th e glas s wit h a sho p towel .
SHOP TOWE L
GLASS
SPRIN GSCALE
5.If th e loa d i s ove r 4 0 N (4 kgf , 9 Ibf) , check :
— Th e sid e clearanc e an d glas s heigh t adjustmen t
(se e page s 20-49 , 20-50 ).
— Fo r broke n o r damage d slidin g part s (se e page s
20-53, 20-54 ). If any sliding parts are damaged,
replac e them .
SPRIN GSCALE
GLAS S
