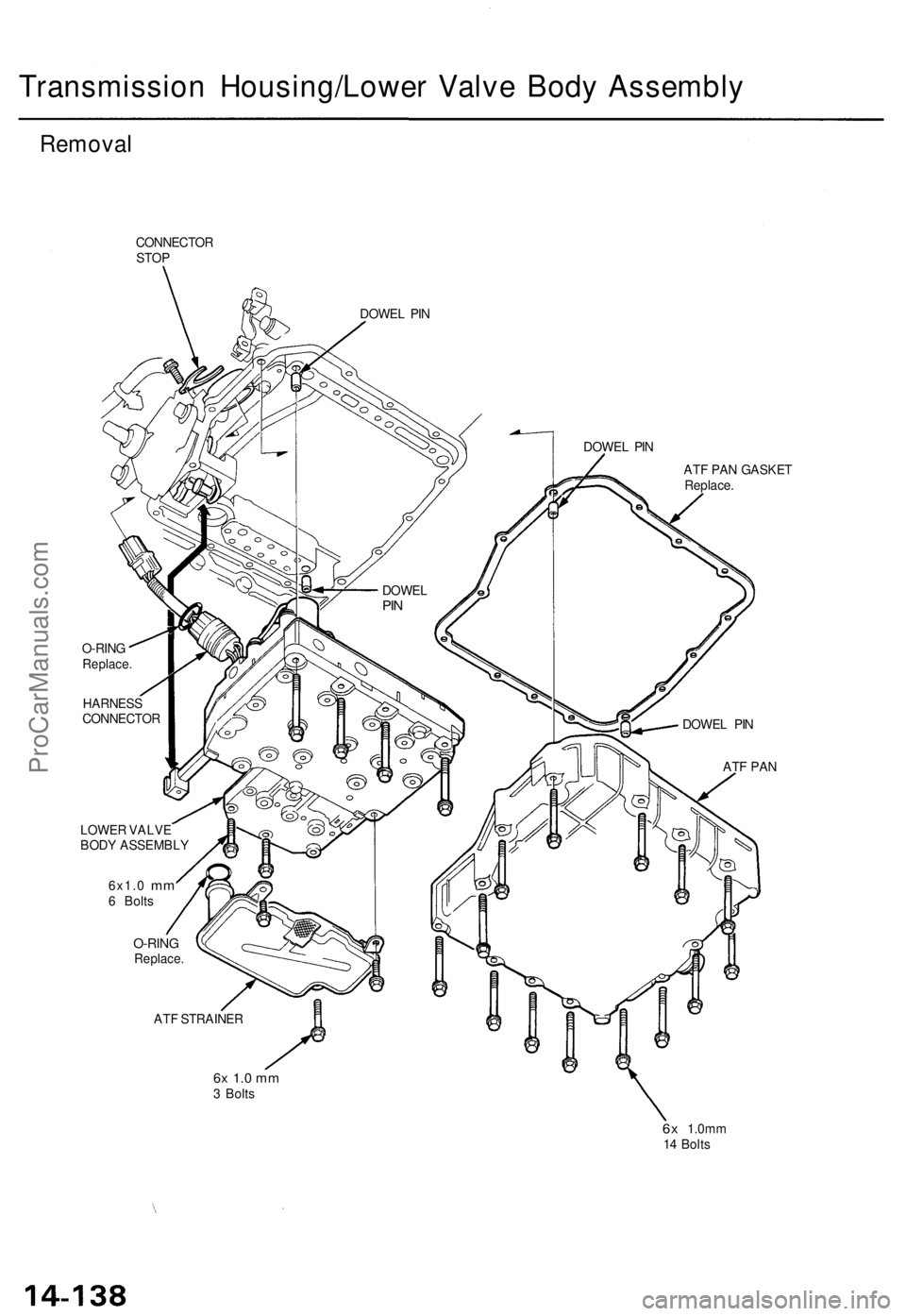

Transmission Housing/Lowe r Valv e Bod y Assembl y
Removal
CONNECTO RSTOP
DOWE L PI N
DOWEL PI N
O-RIN G
Replace .
HARNES S
CONNECTO R AT
F PA N GASKE T
Replace.
LOWER VALV E
BOD Y ASSEMBL Y
6x1.0 mm6 Bolt s
O-RIN GReplace .
ATF STRAINE R
6x 1. 0 m m3 Bolt s
6x 1.0m m14 Bolt s
DOWE
L
PIN
AT F PA N
DOWE L PI N
ProCarManuals.com
Page 354 of 1771
NOTE:
Clean all parts thoroughly in solvent or carburetor
cleaner, and dry with compressed air.
Blow out all passages.
When removing the lower valve body assembly,
replace the following:
-O-rings
-ATF pan gasket
CAUTION: Do not turn over the transmission before
removing the ATF pan.

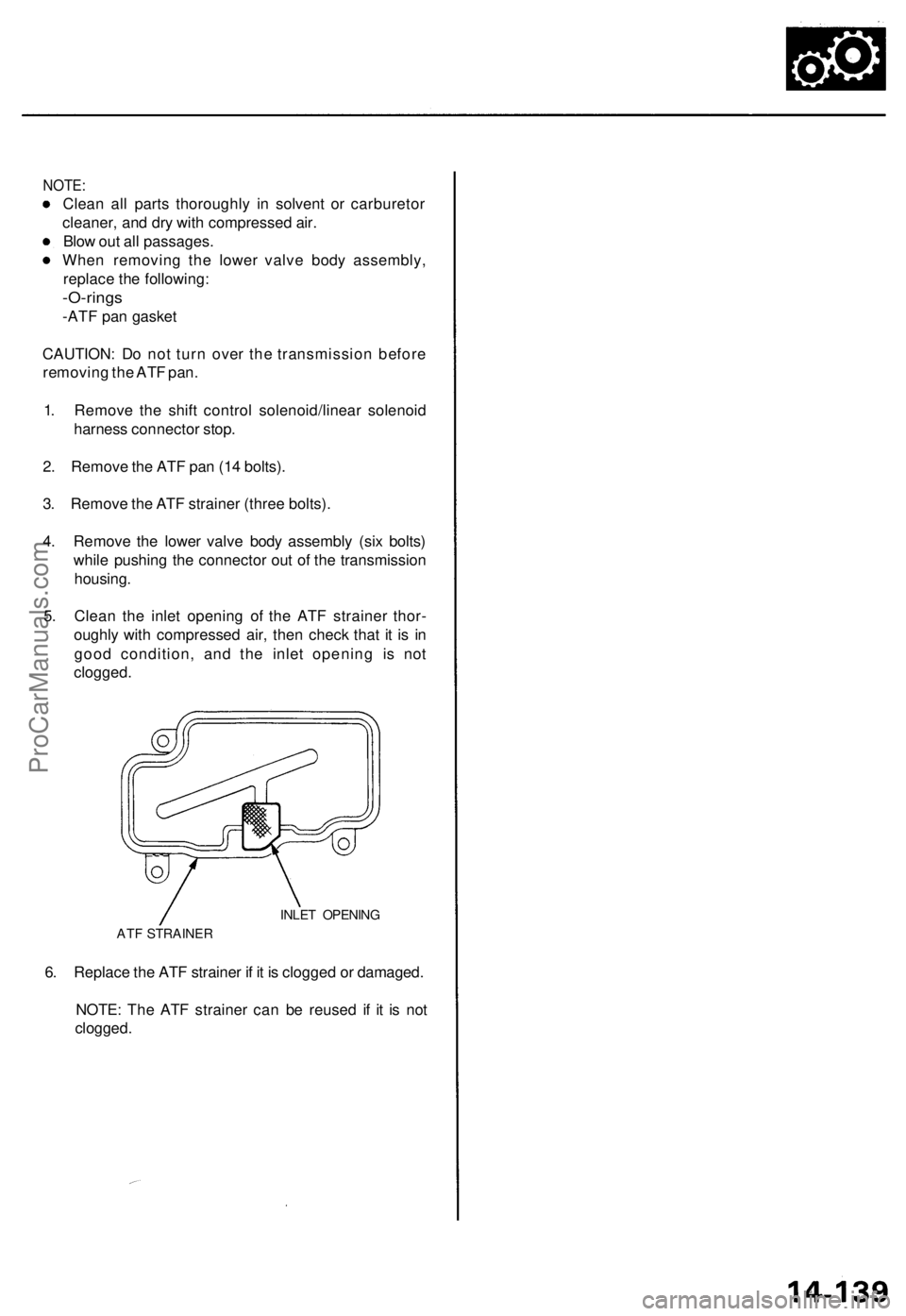

1. Remove the shift control solenoid/linear solenoid
harness connector stop.
2. Remove the ATF pan (14 bolts).
3. Remove the ATF strainer (three bolts).
4. Remove the lower valve body assembly (six bolts)
while pushing the connector out of the transmission
housing.
5. Clean the inlet opening of the ATF strainer thor-
oughly with compressed air, then check that it is in
good condition, and the inlet opening is not
clogged.
INLET OPENING
ATF STRAINER
6. Replace the ATF strainer if it is clogged or damaged.
NOTE: The ATF strainer can be reused if it is not
clogged.ProCarManuals.com
Page 355 of 1771

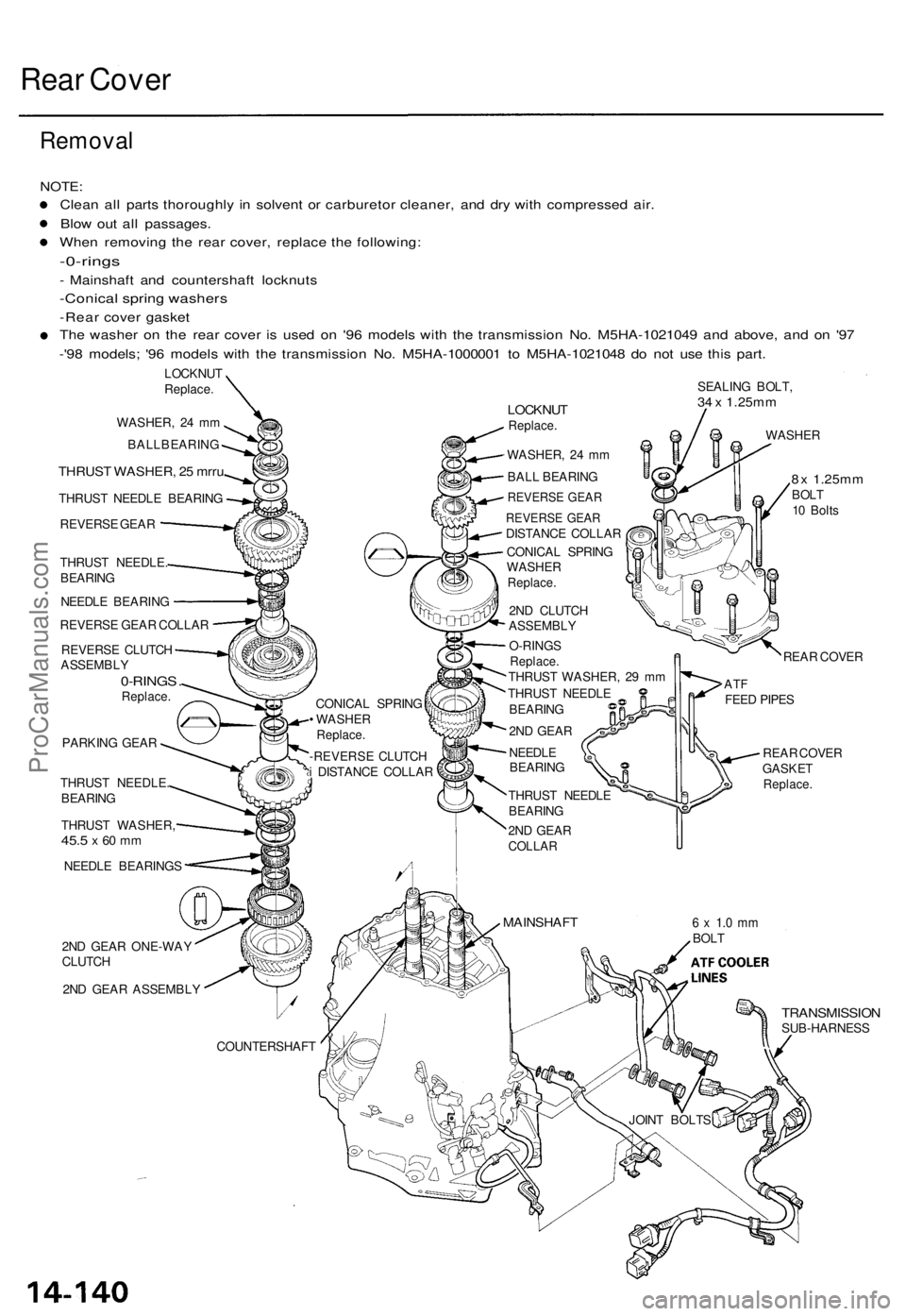

Rear Cove r
Remova l
NOTE:
Clean al l part s thoroughl y i n solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
Whe n removin g th e rea r cover , replac e th e following :
-0-rings
- Mainshaf t an d countershaf t locknut s
-Conical sprin g washer s
-Rear cove r gaske t
Th e washe r o n th e rea r cove r i s use d o n '9 6 model s wit h th e transmissio n No . M5H A-102104 9 an d above , an d o n '9 7
- '9 8 models ; '9 6 model s wit h th e transmissio n No . M5H A-100000 1 t o M5H A-102104 8 d o no t us e thi s part .
LOCKNU T
Replace .
WASHER , 2 4 m m
BALLBEARIN G
THRUST WASHER , 2 5 mrr u
THRUS T NEEDL E BEARIN G
REVERS E GEA R
THRUS T NEEDLE .
BEARIN G
NEEDL E BEARIN G
REVERS E GEA R COLLA R
REVERS E CLUTC H
ASSEMBL Y
0-RINGS .Replace .
PARKING GEA R
THRUS T NEEDLE .
BEARIN G
THRUS T WASHER ,
45.5 x 60 m m
NEEDL E BEARING S
2N D GEA R ONE-WA Y
CLUTC H
2N D GEA R ASSEMBL Y CONICA
L SPRIN G
• WASHE R
Replace.
-REVERS E CLUTC H
i DISTANC E COLLA R
LOCKNU TReplace.
WASHER , 2 4 m m
BAL L BEARIN G
REVERS E GEA R
REVERS E GEA RDISTANC E COLLA R
CONICA L SPRIN G
WASHE R
Replace .
2ND CLUTC H
ASSEMBL Y
O-RING S
Replace .THRUST WASHER , 2 9 m m
THRUS T NEEDL E
BEARIN G
2N D GEA R
NEEDL E
BEARIN G
THRUS T NEEDL E
BEARIN G
2N D GEA R
COLLA R
SEALIN G BOLT ,34 x 1.25m m
WASHE R
8x 1.25m mBOLT
1 0 Bolt s
REA R COVE R
ATFFEE D PIPE S
6 x 1. 0 m mBOL T
COUNTERSHAF T
TRANSMISSIONSUB-HARNESS
MAINSHAFT
JOINT BOLT S REA
R COVE R
GASKE T
Replace .
ProCarManuals.com
Page 356 of 1771

SNAP RIN GPLIER S
SNAP RIN G
4. Remov e th e tw o AT F fee d pipe s fro m th e transmis -
sio n housing .
5 . Sli p th e specia l too l ont o th e mainshaft .
MAINSHAF T HOLDE R07924-PJ4010 A
6. Engag e th e parkin g brak e paw l wit h th e parkin g
gear.
7. Cu t th e loc k tab s o f eac h shaf t locknu t usin g a chise l
a s shown , the n remov e th e locknut s fro m eac h
shaft.
CAUTION : Kee p al l o f th e chisele d particle s ou t o f
th e transmission .
NOTE:
Countershaf t locknu t ha s left-han d threads .
Alway s wea r safet y glasses .
CHISEL
LOCK TA B
8. Remov e th e specia l too l fro m th e mainshaf t afte r
removin g th e locknuts .
9 . Remov e th e 2 4 m m washer , bal l bearing , revers e
gear , revers e gea r distanc e colla r an d conica l sprin g
washe r fro m th e mainshaft .
10 . Remov e th e 2 4 m m washer , bal l bearing , 2 5 m m
thrus t washer , thrus t needl e bearing , revers e gear ,
thrus t needl e bearing , needl e bearing , revers e gea r
collar , revers e clutc h assembfy , conica l sprin g
washe r an d revers e clutc h distanc e colla r fro m th e
countershaft .
11. Remov e th e 2n d clutc h assembl y fro m th e main -
shaft .
12 . Remov e th e parkin g brak e paw l shaf t sleeve , pawl ,
spring , an d shaf t fro m th e housing .
13 . Remov e th e parkin g gea r fro m th e countershaft ,
an d th e 2 9 m m thrus t washer , thrus t needl e bearin g
an d 2n d gea r fro m th e mainshaf t together .
14 . Remov e th e thrus t needl e bearing , 45. 5 x 6 0 m m
thrus t washer , needl e bearings , 2n d gea r one-wa y
clutc h an d 2n d gea r assembl y fro m th e counter -
shaft .
15 . Remov e th e needl e bearing , thrus t needl e bearin g
an d 2n d gea r colla r fro m th e mainshaft .
16 . Disconnec t th e connector s fro m th e transmissio n
sub-harness.

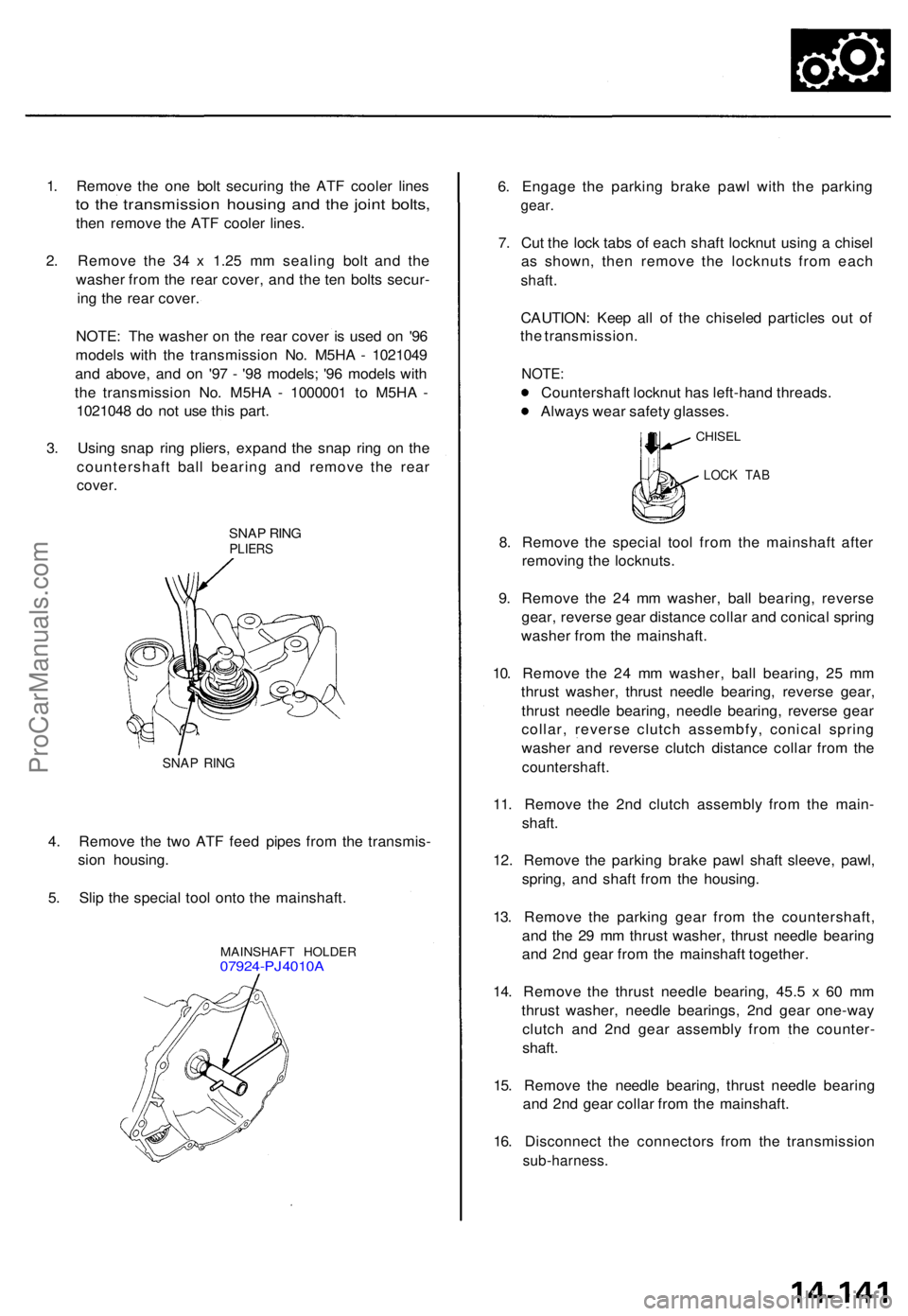

1. Remov e th e on e bol t securin g th e AT F coole r line s
to th e transmissio n housin g an d th e join t bolts ,
then remov e th e AT F coole r lines .
2 . Remov e th e 3 4 x 1.2 5 m m sealin g bol t an d th e
washe r fro m th e rea r cover , an d th e te n bolt s secur -
in g th e rea r cover .
NOTE : Th e washe r o n th e rea r cove r i s use d o n '9 6
model s wit h th e transmissio n No . M5H A - 102104 9
an d above , an d o n '9 7 - '9 8 models ; '9 6 model s wit h
th e transmissio n No . M5H A - 100000 1 t o M5H A -
102104 8 d o no t us e thi s part .
3 . Usin g sna p rin g pliers , expan d th e sna p rin g o n th e
countershaf t bal l bearin g an d remov e th e rea r
cover .
ProCarManuals.com
Page 357 of 1771

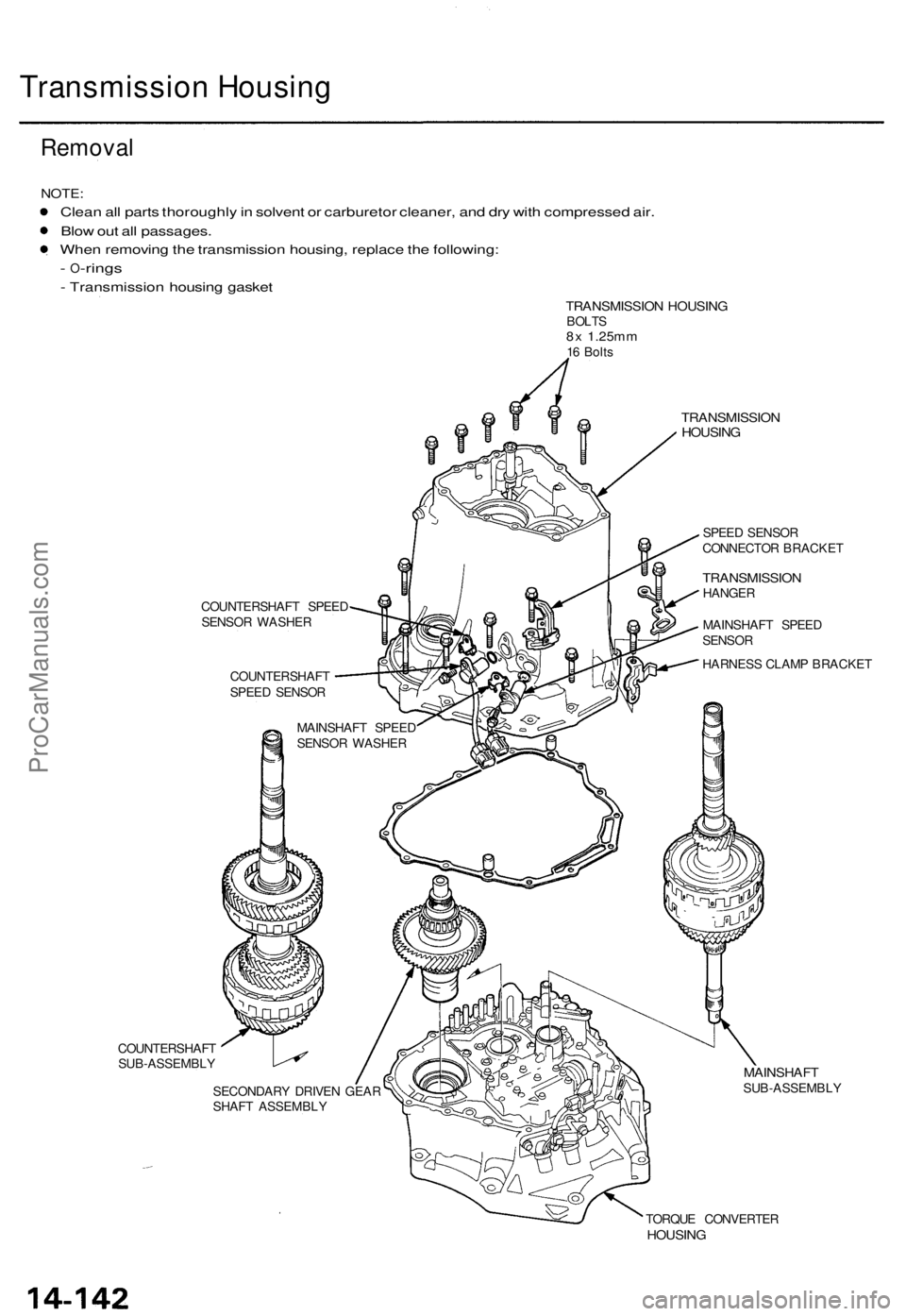

Transmission Housin g
Remova l
TRANSMISSIO NHOUSING
COUNTERSHAF T SPEE D
SENSO R WASHE R
COUNTERSHAF T
SPEE D SENSO R
COUNTERSHAF T
SUB-ASSEMBL Y
SECONDAR Y DRIVE N GEA R
SHAF T ASSEMBL Y
MAINSHAFTSUB-ASSEMBL Y
TORQU E CONVERTE R
HOUSING
NOTE:
Clean al l part s thoroughl y in solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
Whe n removin g th e transmissio n housing , replac e th e following :
- O-rings
- Transmissio n housin g gaske t
TRANSMISSIO N HOUSIN GBOLTS8x 1.25m m16 Bolt s
MAINSHAF T SPEE D
SENSO R WASHE R HARNES
S CLAM P BRACKE T
MAINSHAF
T SPEE D
SENSO R
SPEE
D SENSO R
CONNECTO R BRACKE T
TRANSMISSIO NHANGER
ProCarManuals.com
Page 358 of 1771

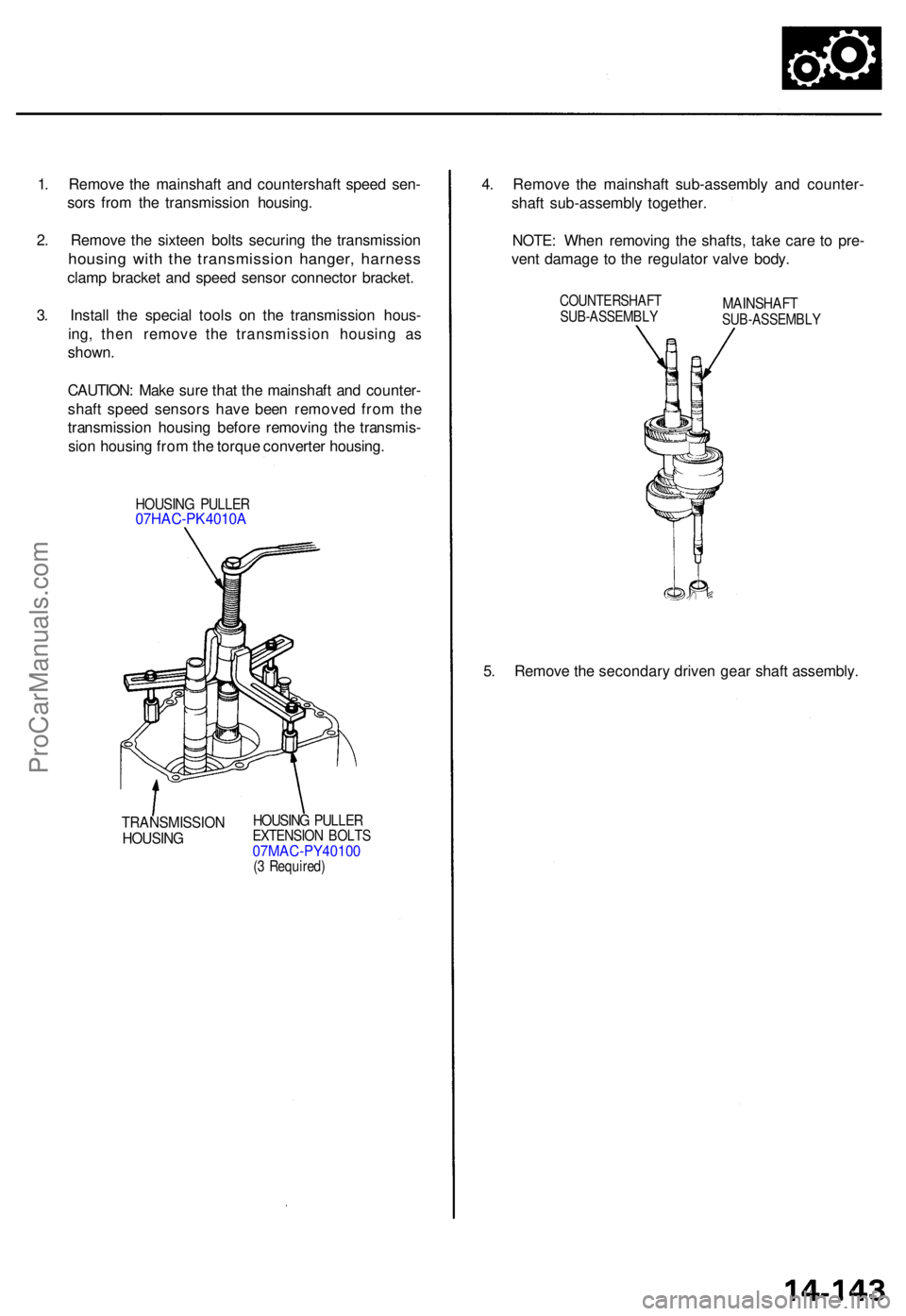

1. Remov e th e mainshaf t an d countershaf t spee d sen -
sor s fro m th e transmissio n housing .
2 . Remov e th e sixtee n bolt s securin g th e transmissio n
housing wit h th e transmissio n hanger , harnes s
clamp bracke t an d spee d senso r connecto r bracket .
3 . Instal l th e specia l tool s o n th e transmissio n hous -
ing , the n remov e th e transmissio n housin g a s
shown .
CAUTION : Mak e sur e tha t th e mainshaf t an d counter -
shaf t spee d sensor s hav e bee n remove d fro m th e
transmissio n housin g befor e removin g th e transmis -
sio n housin g fro m th e torqu e converte r housing .
HOUSING PULLE R07HAC-PK4010 A
TRANSMISSIONHOUSING
HOUSING PULLE REXTENSIO N BOLT S07MAC-PY4010 0(3 Required )
4. Remov e th e mainshaf t sub-assembl y an d counter -
shaf t sub-assembl y together .
NOTE : Whe n removin g th e shafts , tak e car e t o pre -
ven t damag e t o th e regulato r valv e body .
COUNTERSHAF T
SUB-ASSEMBL YMAINSHAFTSUB-ASSEMBL Y
5. Remov e th e secondar y drive n gea r shaf t assembly .
ProCarManuals.com
Page 359 of 1771

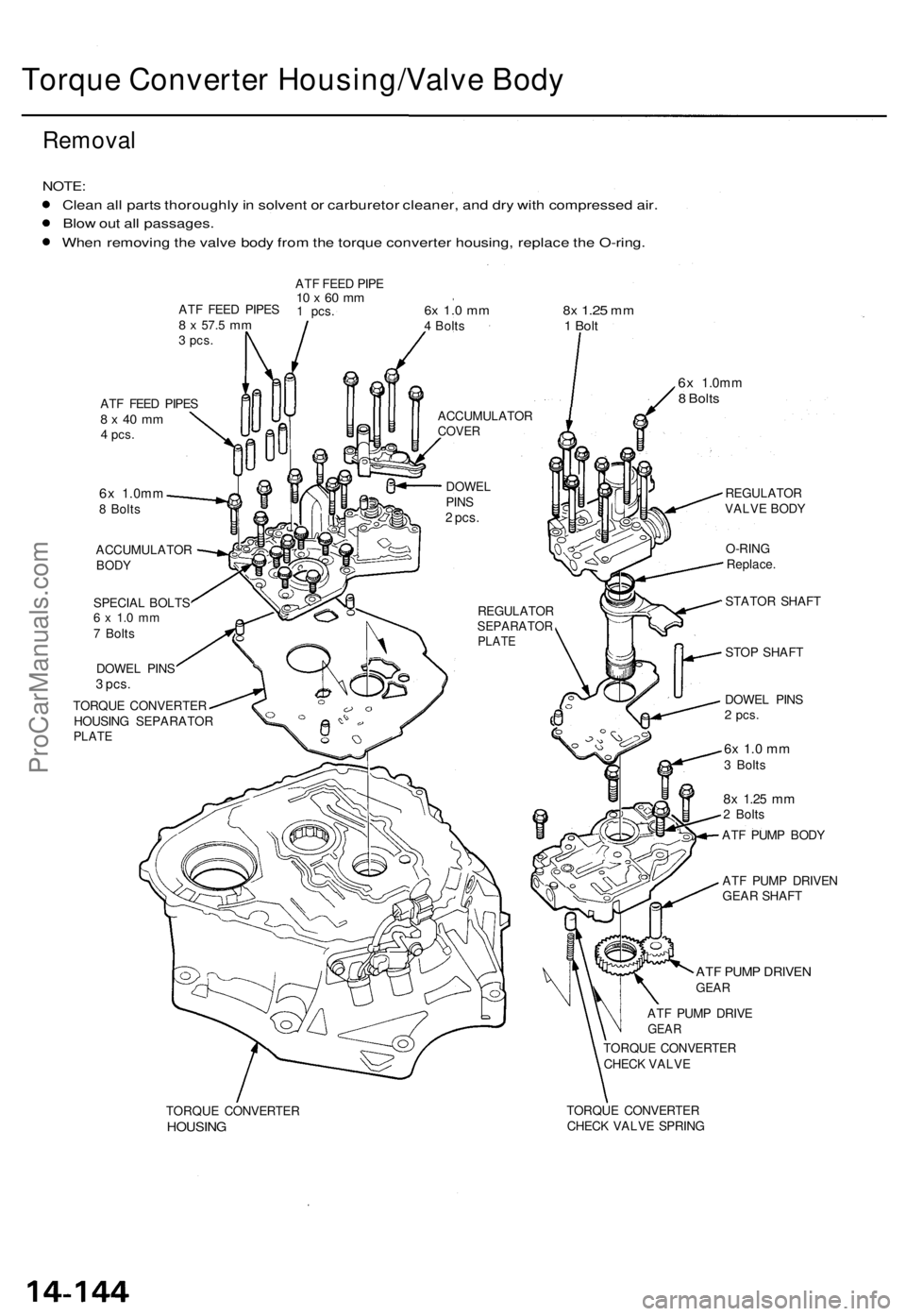

Torque Converte r Housing/Valv e Bod y
Remova l
NOTE:
Clean al l part s thoroughl y in solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
Whe n removin g th e valv e bod y fro m th e torqu e converte r housing , replac e th e O-ring .
ATF FEE D PIP E10 x 60 m mAT F FEE D PIPE S 1 pcs.8 x 57. 5 mm3 pcs .
ATF FEE D PIPE S8 x 4 0 m m4 pcs .
6x 1.0m m8 Bolt s
ACCUMULATO R
BODY
SPECIA L BOLT S6 x 1. 0 m m7 Bolt s
DOWE L PIN S
3 pcs.
TORQU E CONVERTE R
HOUSIN G SEPARATO R
PLATE
ACCUMULATO RCOVER
DOWE LPINS2 pcs .
8x 1.2 5 mm1 Bol t
REGULATO RSEPARATO RPLATE
6x 1.0m m8 Bolt s
TORQU E CONVERTE RHOUSINGTORQUE CONVERTE R
CHEC K VALV E SPRIN G
REGULATO RVALVE BOD Y
O-RIN G
Replace .
STATOR SHAF T
STO P SHAF T
DOWE L PIN S
2 pcs.
6x 1. 0 m m3 Bolt s
8x 1.2 5 mm2 Bolt s
AT F PUM P BOD Y
AT F PUM P DRIVE N
GEA R SHAF T
ATF PUM P DRIVE NGEAR
TORQU E CONVERTE R
CHEC K VALV E
AT
F PUM P DRIV E
GEAR
6x 1. 0 m m4 Bolt s
ProCarManuals.com
Page 360 of 1771

1. Remove the eight 6 mm bolts and one 8 mm bolt
securing the regulator valve body, then remove the
regulator valve body.
2. Remove the stator shaft, stop shaft, and the regula-
tor separator plate.
3. Remove the three 6 mm bolts and two 8 mm bolts
securing the ATF pump body, then remove the ATF
pump body.
4. Remove the ATF pump driven gear shaft, ATF pump
gears, torque converter check valve, and spring.
5. Remove the four bolts securing the accumulator
cover, then remove the accumulator cover.
NOTE: The accumulator cover is spring loaded. To
prevent stripping the threads in the torque converter
housing, press down on the accumulator cover
while unscrewing the bolts in a crisscross pattern.
6. Remove the eight ATF feed pipes from the accumu-
lator body.
7. Remove the eight 6 mm bolts and seven 6 mm spe-
cial bolts securing the accumulator body, then
remove the accumulator body.
8. Remove the torque converter housing separator
