1995 ACURA TL Service Repair Manual

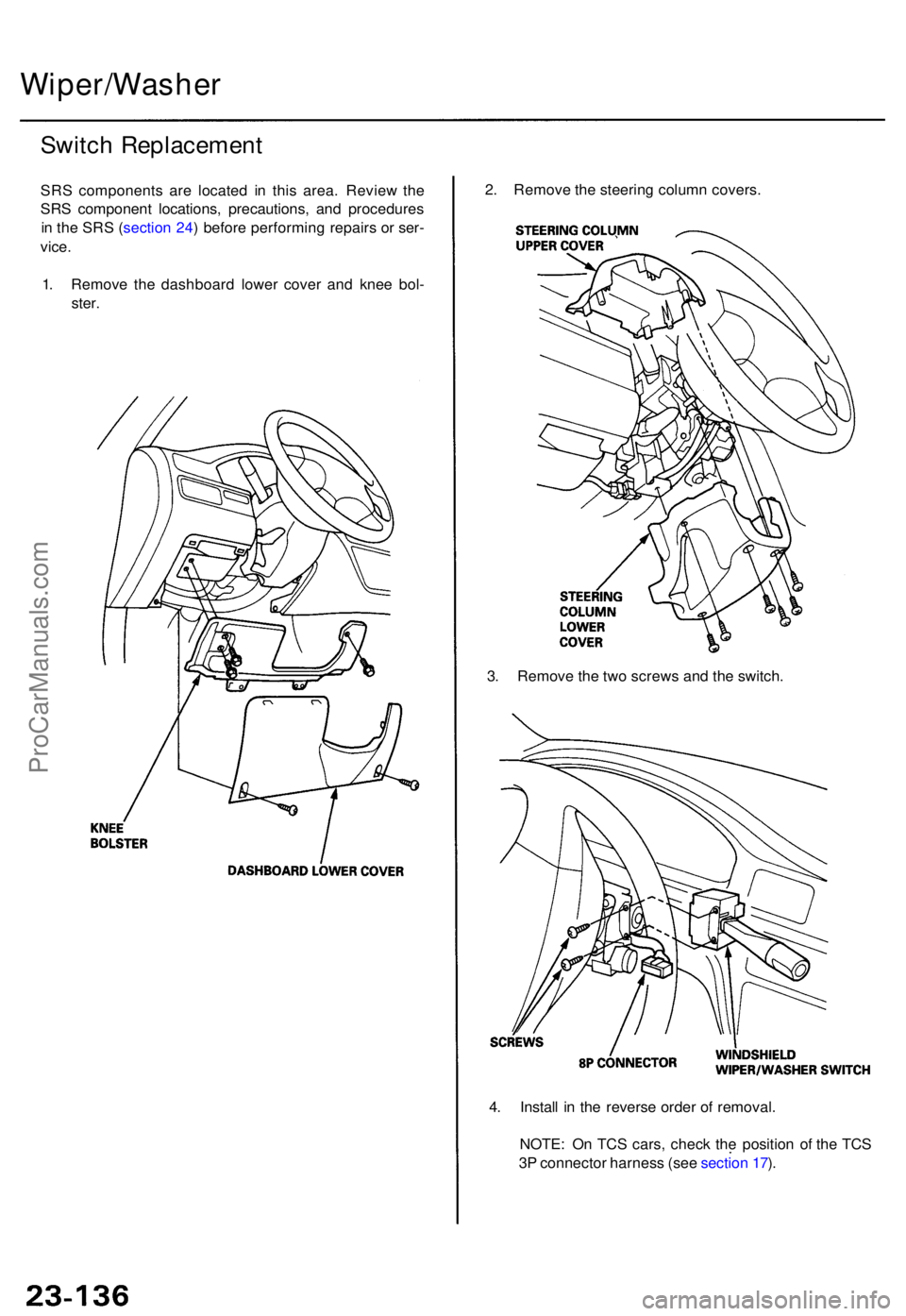

Wiper/Washer
Switch Replacemen t
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S (sectio n 24 ) befor e performin g repair s o r ser -
vice .
1 . Remov e th e dashboar d lowe r cove r an d kne e bol -
ster . 2
. Remov e th e steerin g colum n covers .
3 . Remov e th e tw o screw s an d th e switch .
4 . Instal l i n th e revers e orde r o f removal .
NOTE : O n TC S cars , chec k th e positio n o f th e TC S
3 P connecto r harnes s (se e sectio n 17 ).
ProCarManuals.com

Troubleshooting

NOTE:

• The numbers in the table show the troubleshooting sequence.

• Before troubleshooting,

Check the No. 1 (10 A) and the No. 4 (15 A)*1 or (20 A)*2 fuses in the under-dash fuse/relay box, and the No. 31 (120 A),

No. 35 (50 A), and the No. 30 (20 A) fuses in the under-hood fuse/relay box.

Check that the horns sound.

Check the tachometer to see if it works properly.ProCarManuals.com

3. I f necessary , replac e th e A/ T gea r positio n switch .
Cruise Contro l
A/T Gea r Positio n Switc h Tes t
1. Disconnec t th e 10 P connecto r fro m th e A/ T gea r posi -
tion switch .
2. Chec k fo r continuit y betwee n th e terminal s i n eac h
positio n accordin g t o th e tabl e an d confir m tha t
there i s continuit y onl y i n position s
Actuator Solenoi d Tes t
1. Disconnec t th e 4 P connecto r fro m th e actuator .
2 . Chec k fo r resistanc e betwee n th e terminal s accord -
in g t o th e table .
NOTE : Resistanc e wil l var y slightl y wit h tempera -
ture ; specifie d resistanc e is a t 70° F (20°C) .
ProCarManuals.com

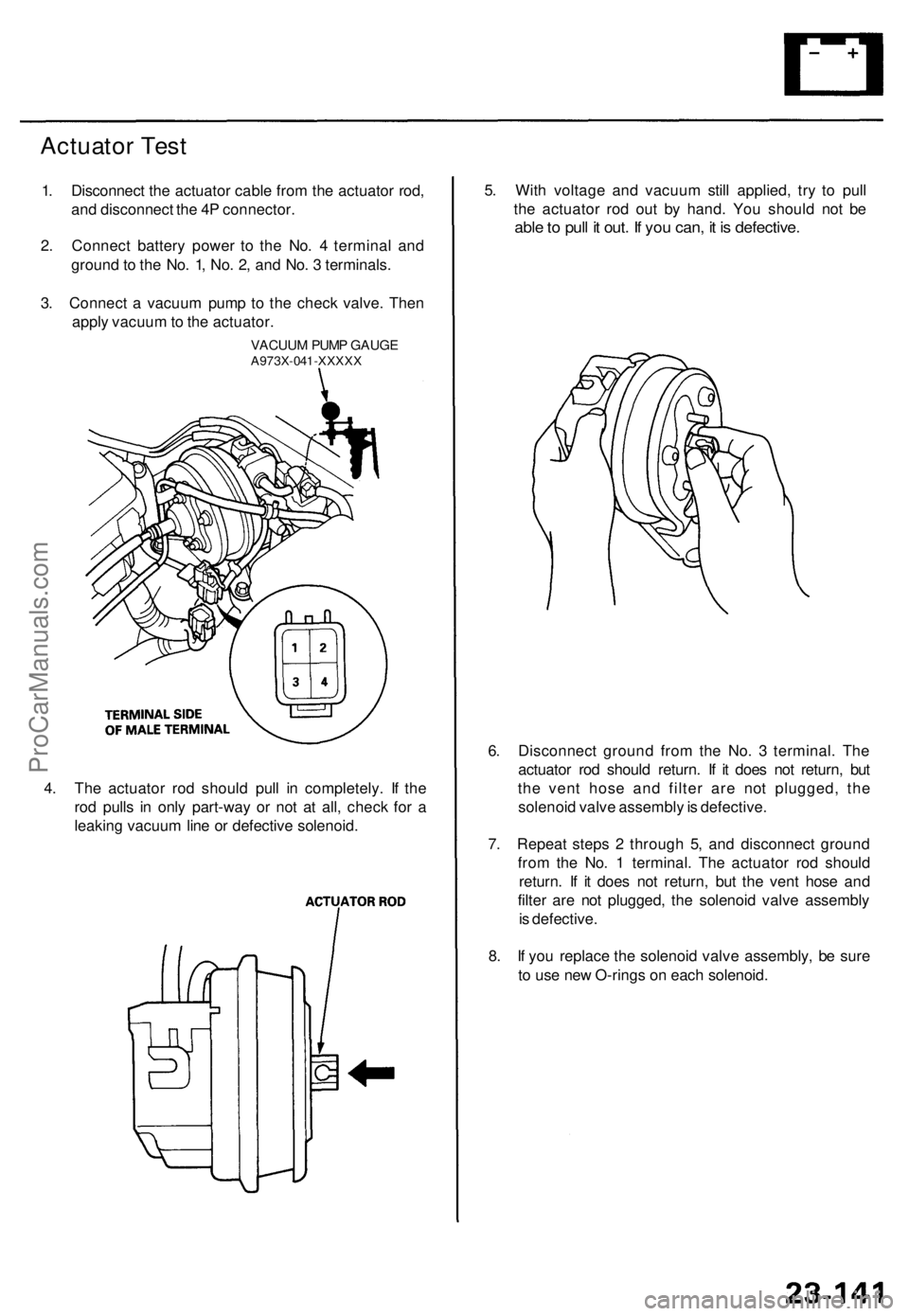

Actuator Tes t
1. Disconnec t th e actuato r cabl e fro m th e actuato r rod ,
an d disconnec t th e 4 P connector .
2 . Connec t batter y powe r t o th e No . 4 termina l an d
groun d to th e No . 1 , No . 2 , an d No . 3 terminals .
3 . Connec t a vacuu m pum p t o th e chec k valve . The n
appl y vacuu m to th e actuator .
VACUUM PUM P GAUG EA973X-04 1-XXXX X
5. Wit h voltag e an d vacuu m stil l applied , tr y t o pul l
th e actuato r ro d ou t b y hand . Yo u shoul d no t b e
abl e to pul l i t out . I f yo u can , i t i s defective .
6. Disconnec t groun d fro m th e No . 3 terminal . Th e
actuato r ro d shoul d return . I f i t doe s no t return , bu t
th e ven t hos e an d filte r ar e no t plugged , th e
solenoi d valv e assembl y is defective .
7 . Repea t step s 2 throug h 5 , an d disconnec t groun d
fro m th e No . 1 terminal . Th e actuato r ro d shoul d
return . I f i t doe s no t return , bu t th e ven t hos e an d
filte r ar e no t plugged , th e solenoi d valv e assembl y
i s defective .
8 . I f yo u replac e th e solenoi d valv e assembly , b e sur e
t o us e ne w O-ring s o n eac h solenoid .
4
. Th e actuato r ro d shoul d pul l i n completely . I f th e
ro d pull s i n onl y part-wa y o r no t a t all , chec k fo r a
leakin g vacuu m lin e o r defectiv e solenoid .
ProCarManuals.com

Cruise Contro l

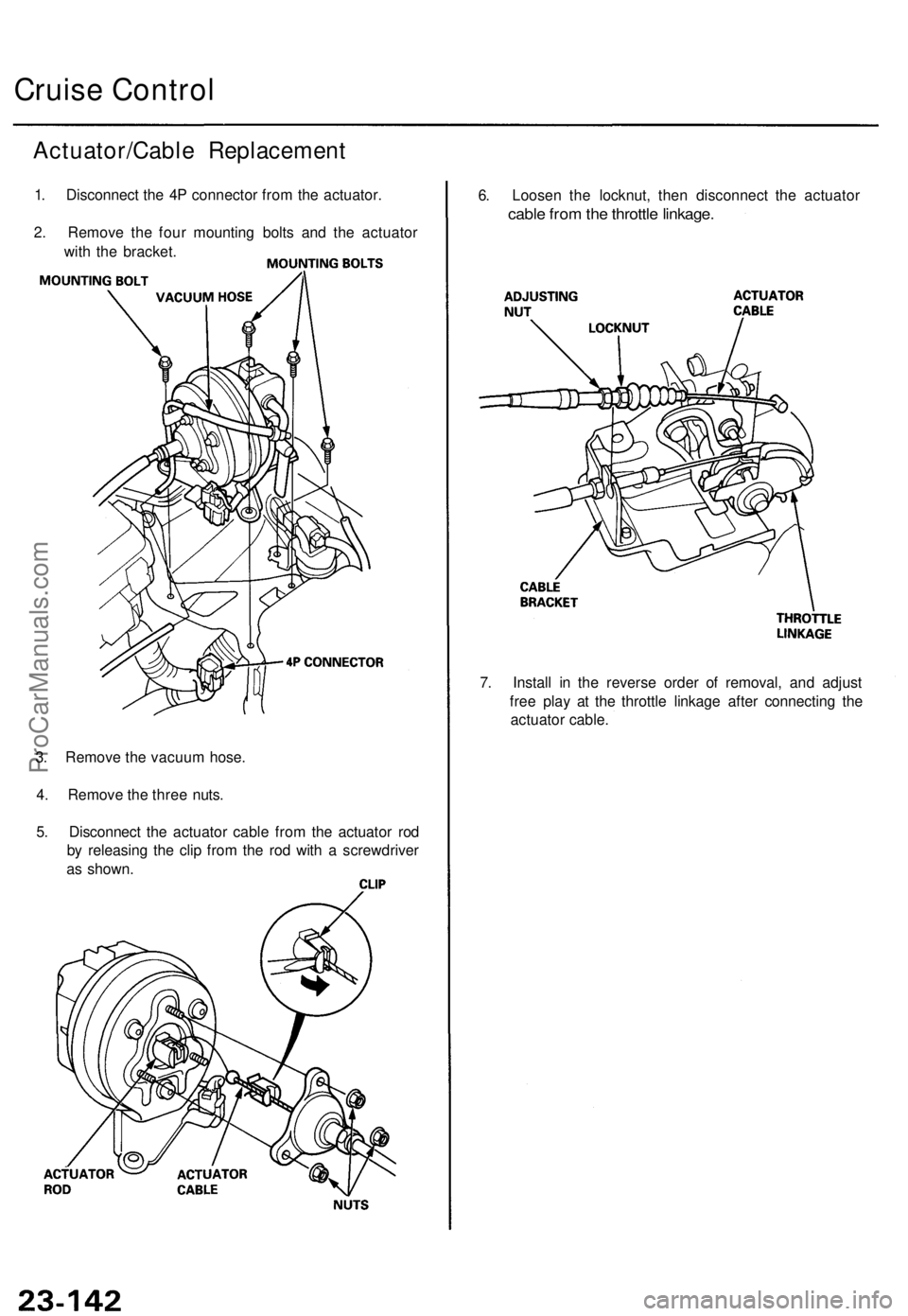

Actuator/Cabl e Replacemen t
1. Disconnec t th e 4 P connecto r fro m th e actuator .
2 . Remov e th e fou r mountin g bolt s an d th e actuato r
wit h th e bracket .
3 . Remov e th e vacuu m hose .
4 . Remov e th e thre e nuts .
5 . Disconnec t th e actuato r cabl e fro m th e actuato r ro d
b y releasin g th e cli p fro m th e ro d wit h a screwdrive r
a s shown . 6
. Loose n th e locknut , the n disconnec t th e actuato r
cable fro m th e throttl e linkage .
7. Instal l i n th e revers e orde r o f removal , an d adjus t
fre e pla y a t th e throttl e linkag e afte r connectin g th e
actuato r cable .
ProCarManuals.com

SOLENOID VALVE S
Test , pag e 23-14 0

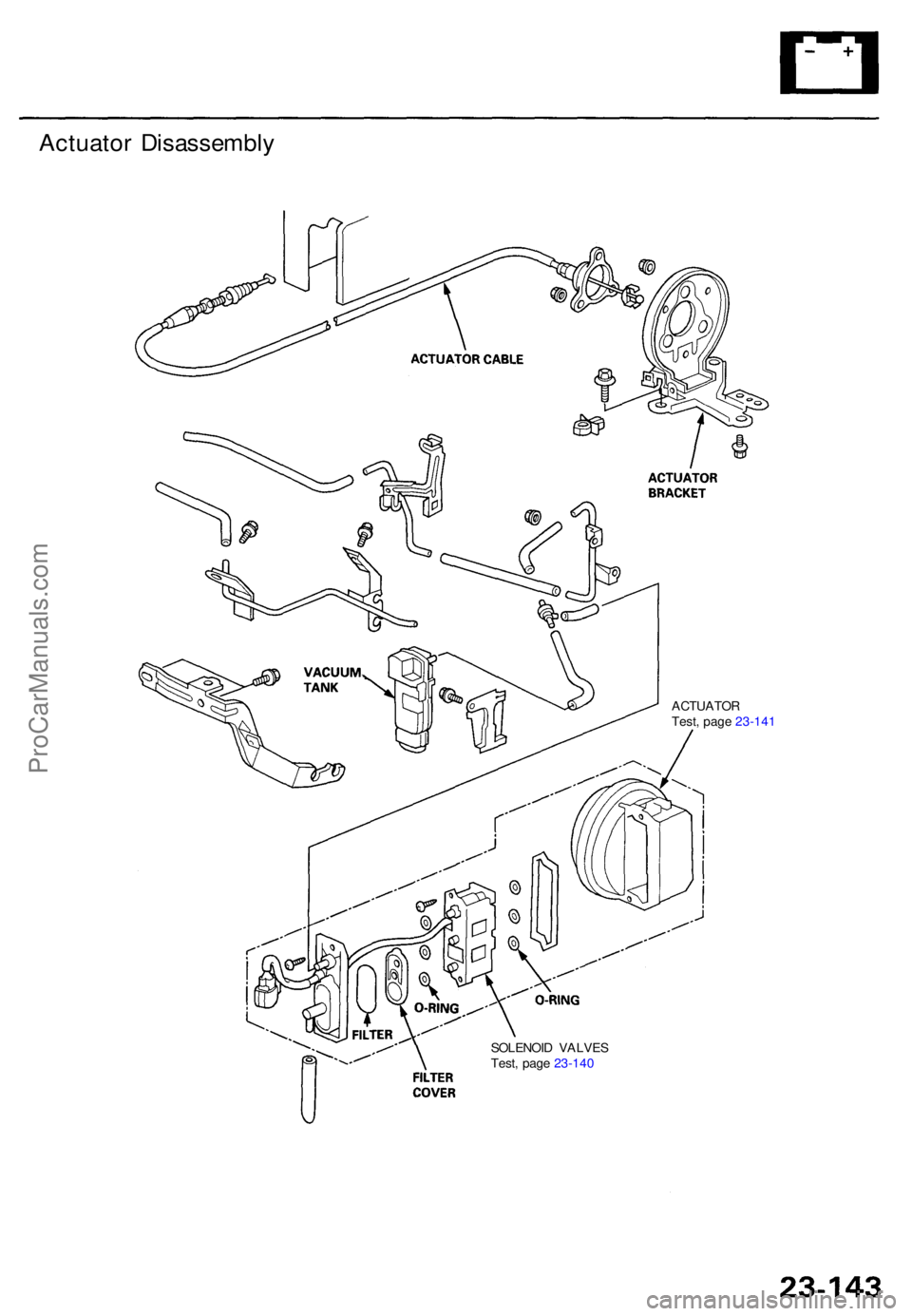

Actuato r Disassembl y
ACTUATOR
Test , pag e 23-14 1
ProCarManuals.com

Cruise Contro l
Actuato r Cabl e Adjustmen t
1. Chec k tha t th e actuato r cabl e move s smoothl y wit h
n o bindin g o r sticking .
2. Star t th e engine . Hol d th e engin e a t 3,00 0 rp m wit h
no loa d unti l th e radiato r fa n
come s on , the n le t i t idle .
3 . Measur e th e amoun t of movemen t of the outpu t
linkag e unti l th e engin e spee d start s t o increase . A t
first , th e outpu t linkag e shoul d b e locate d a t th e
full y close d position . Fre e pla y shoul d b e 5 ± 0.5 m m
(0.2 0 ± 0.02 in) .
5. Tur n th e adjustin g nu t unti l i t i s 5 ± 0. 5 m m (0.2 0 ±
0.0 2 in ) awa y fro m th e bracket .
6. Pul l th e cabl e s o tha t th e adjustin g nu t touche s th e
bracket , an d tighte n th e locknut .
4 . I f th e fre e pla y i s no t withi n specs , mov e th e cabl e to
th e poin t wher e th e engin e spee d start s t o increase ,
an d tighte n th e locknu t an d adjustin g nut .
ProCarManuals.com

Security Alar m Syste m
Componen t Locatio n Inde x
HORN (LOW ) HOR
N RELA Y NOTE
: Refe r t o page 23-274 of the '95-9 8
Acura 2.5TL Servic e Manual , P/ N 61SW504 ,for the items no t show n in thi s sub-section .
BATTERYTest, pag e 23-5 6
HEADLIGH T RELA Y
TAILLIGH T RELA Y
Test , pag e 23-5 8
UNDER-HOO
D
FUSE/RELAYBOX
DIMME R RELA Y
UNDER-DAS H RELA Y BO X
HOR N (HIGH )
Test , pag e 23-203
Test, pag e 23- 63 Test
, pag e 23-63
Test
, pag e 23-203 Test
, pag e 23- 62
