1995 ACURA TL Service Repair Manual

Interior Light s
Courtes y Light s Replacemen t
NOTE: Th e bul b o r len s alon e ca n b e replace d withou t
removin g th e doo r panel .
1 . T o replac e th e entir e light , remov e th e doo r pane l
(see section 20 ).
2 . Remov e th e tw o screws , the n remov e th e ligh t
housin g fro m th e doo r panel .
3 . Disconnec t th e 2 P connector , an d remov e th e light .
2P CONNECTO R
BULB (3. 4 W ) LEN
S
Doo r Switc h Tes t
1. Remov e th e cove r an d th e screw , the n pul l th e switc h
out.
2. Disconnec t th e 1 P connector , an d remov e th e
switch .
BASE PLAT E
COVE R
1 P CONNECTO R
3. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
HOUSIN G
OPEN(ON)
CLOS E(OFF)TERMINA L
ProCarManuals.com

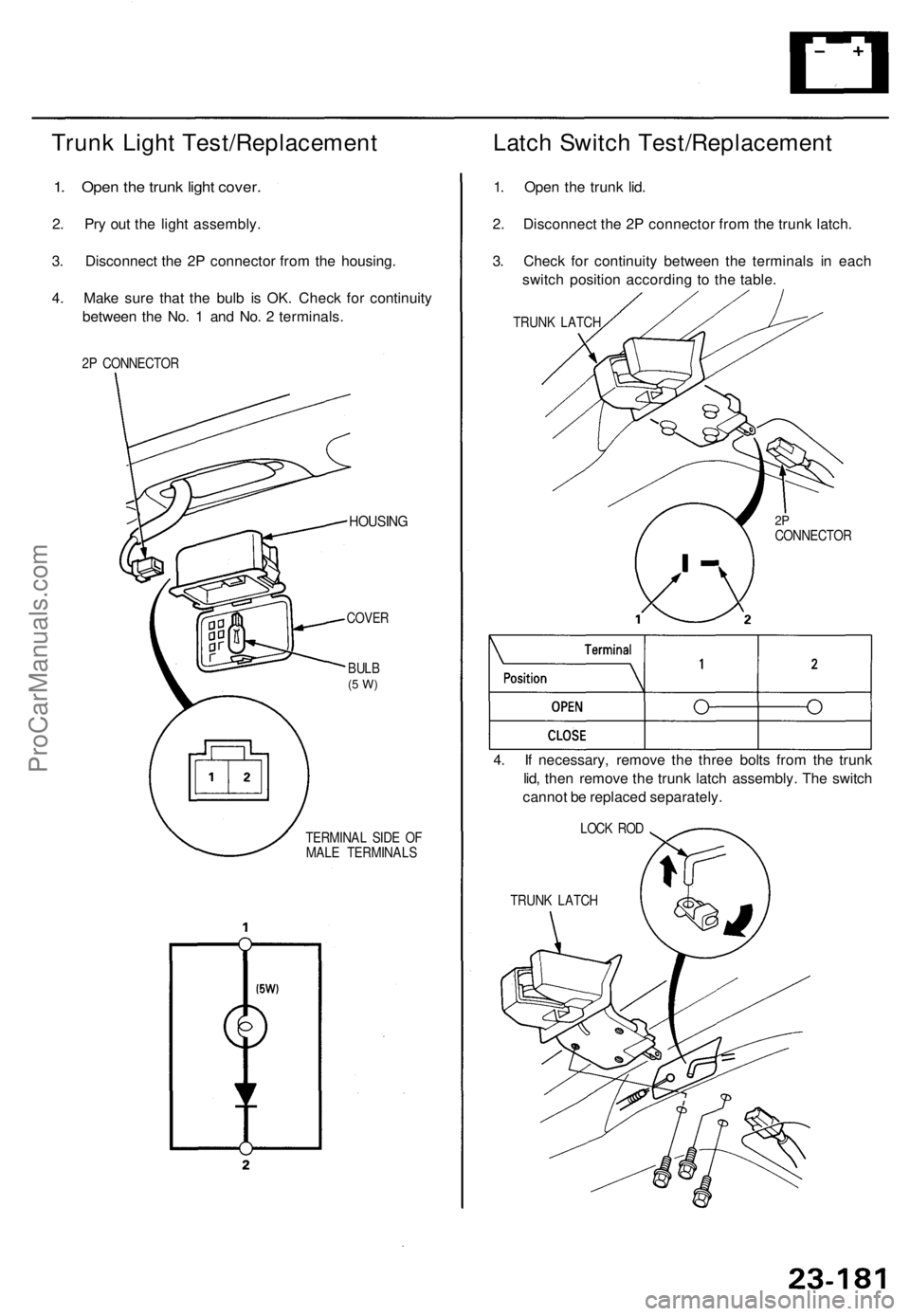

Trunk Ligh t Test/Replacemen t
1. Ope n th e trun k ligh t cover .
2. Pr y ou t th e ligh t assembly .
3 . Disconnec t th e 2 P connecto r fro m th e housing .
4 . Mak e sur e tha t th e bul b i s OK . Chec k fo r continuit y
betwee n th e No . 1 an d No . 2 terminals .
2P CONNECTO R
HOUSING
COVER
BULB(5 W )
TERMINA L SID E O F
MAL E TERMINAL S
Latch Switc h Test/Replacemen t
1. Ope n th e trun k lid .
2 . Disconnec t th e 2 P connecto r fro m th e trun k latch .
3 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
TRUN K LATC H
2PCONNECTO R
4. I f necessary , remov e th e thre e bolt s fro m th e trun k
lid , the n remov e th e trun k latc h assembly . Th e switc h
canno t b e replace d separately .
LOCK RO D
TRUN K LATC H
ProCarManuals.com

Back-up Light s
Test
NOTE : Chec k th e No . 1 (1 0 A ) fus e in th e under-das h fuse /
rela y bo x befor e testing .
1.
2 .
3.
4 .
Tes t th e back-u p ligh t switc h b y shiftin g th e shif t
lever t o an d turnin g th e ignitio n switc h O N (II) .
If th e back-u p light s d o no t g o on , chec k th e back-u p
light bulb s i n th e tailligh t assembly .
I f th e fus e an d bulb s ar e OK , disconnec t th e 14 P con -
necto r fro m th e A/ T gea r positio n switc h (back-u p
ligh t switch) .
14P CONNECTO R
WIRE SID E O F FEMAL E TERMINAL S
Check fo r continuit y betwee n th e No . 1 2 an d No . 1 4
terminals . Mov e th e leve r bac k an d fort h a t th e
positio n withou t pushin g dow n o n th e lever , an d
chec k fo r continuit y withi n th e rang e o f fre e pla y o f
th e shif t lever .
• I f ther e i s n o continuit y withi n th e rang e o f fre e
play , adjus t th e A/ T gea r positio n switc h (se e
sectio n 14 ).
• I f ther e is continuity , bu t th e back-u p light s d o no t
go on , chec k for :
— Poo r groun d (G502 )
— An ope n in th e YE L o r GRN/BL K wir e
ProCarManuals.com

Brake Light s an d Hig h Moun t Brak e Ligh t
Brake Switc h Tes t
1. I f on e o f th e brak e light s doe s no t g o on , chec k th e
bul b i n th e tailligh t o r th e hig h moun t brak e light .
2 . I f non e o f th e brak e light s g o on , chec k th e No . 3 0
(2 0 A ) fus e in th e under-hoo d fuse/rela y box .
3 . I f th e fus e an d bulb s ar e OK , disconnec t th e 4 P con -
necto r fro m th e brak e switch .
4P CONNECTO R
TERMINAL SID E O FMAL E TERMINAL S
BRAK E SWITC H
BRAKEPEDAL
4. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
I f ther e i s n o continuit y wit h th e brak e peda l
depressed , adjus t th e peda l heigh t (se e
section 19 ), an d recheck .
If ther e is stil l n o continuity , replac e th e switch .
If ther e i s continuity , bu t th e brak e light s d o no t
g o on , chec k for :
— Poo r groun d (G502 , G501 )
— A n ope n i n th e WHT/YE L o r GRN/WH T wir e
— Fault y brak e ligh t failur e senso r (se e pag e
23-141 )
High Moun t Brak e Ligh t
Replacemen t
1. Ope n th e trun k lid , an d disconnec t th e 2 P connecto r
fro m th e hig h moun t brak e light .
2 . Remov e th e tw o nuts , the n remov e th e hig h moun t
brak e ligh t fro m th e rea r shelf .
HIGH MOUN T BRAK E LIGH T
BULB(21 W )
SOCKE T
2P CONNECTO R
3.Instal l th e hig h moun t brak e ligh t i n th e revers e orde r
of removal . Clea n th e rea r windo w befor e installin g
the light .
ProCarManuals.com

Dash Lights Brightness Controller

Controller Input Test

NOTE: The control unit is built into the dash lights brightness controller.

1. Carefully pry the controller out of the dashboard, then disconnect the 3P connector from the controller.

2. Inspect the connector terminals to be sure they are all making good contact.

If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

If the terminals look OK, make the following input tests at the connector.

— If any test indicates a problem, find and correct the cause, then recheck the system.

— If all the input tests prove OK, the controller must be faulty; replace it.

WIRE SIDE OF FEMALE TERMINALS

3P CONNECTOR
DRIVER'S

SWITCH

PANEL

DASH LIGHTS

BRIGHTNESS

CONTROLLER

Trml Wire
Test condition

Test: Desired result
Possible cause if result is not obtainedProCarManuals.com

Turn Signal/Hazar d Flashe r Syste m
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
COMBINATIO N LIGHT/TUR N SIGNA L SWITC H
Test , pag e 23-16 2
Replacement , pag e 23-16 6 TUR
N SIGNA L INDICATO R LIGHT S
(I n th e gaug e assembly )
Bul b Locations , pag e 23-11 5
HAZAR D WARNIN G SWITC H
Replacement , pag e 23-19 0
Test , pag e 23-19 0
TUR N SIGNAL/HAZAR D
RELAYInput Test , pag e 23-18 9
UNDER-DASH FUSE/RELA Y BO X
ProCarManuals.com

Turn Signal/Hazar d Rela y Inpu t Tes t
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
1 . Remov e th e tur n signal/hazar d rela y fro m th e under-das h fuse/rela y box .
2 . Inspec t th e rela y an d fuse/rela y bo x socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
I f th e terminal s ar e bent , loos e o r corroded , repai r the m a s necessary , an d rechec k th e system .
I f th e terminal s loo k OK , mak e th e followin g inpu t test s a t th e fuse/rela y bo x socket .
— If an y tes t indicate s a problem , fin d an d correc t th e cause , the n rechec k th e system .
— If al l th e inpu t test s prov e OK , th e tur n signal/hazar d rela y mus t b e faulty ; replac e it .
UNDER-DAS H
FUSE/RELA Y BO X
TUR N SIGNAL /HAZARD RELA Y
TrmlTest conditio n Test: Desire d resul t Possible caus e if resul t i s no t obtaine d
ProCarManuals.com

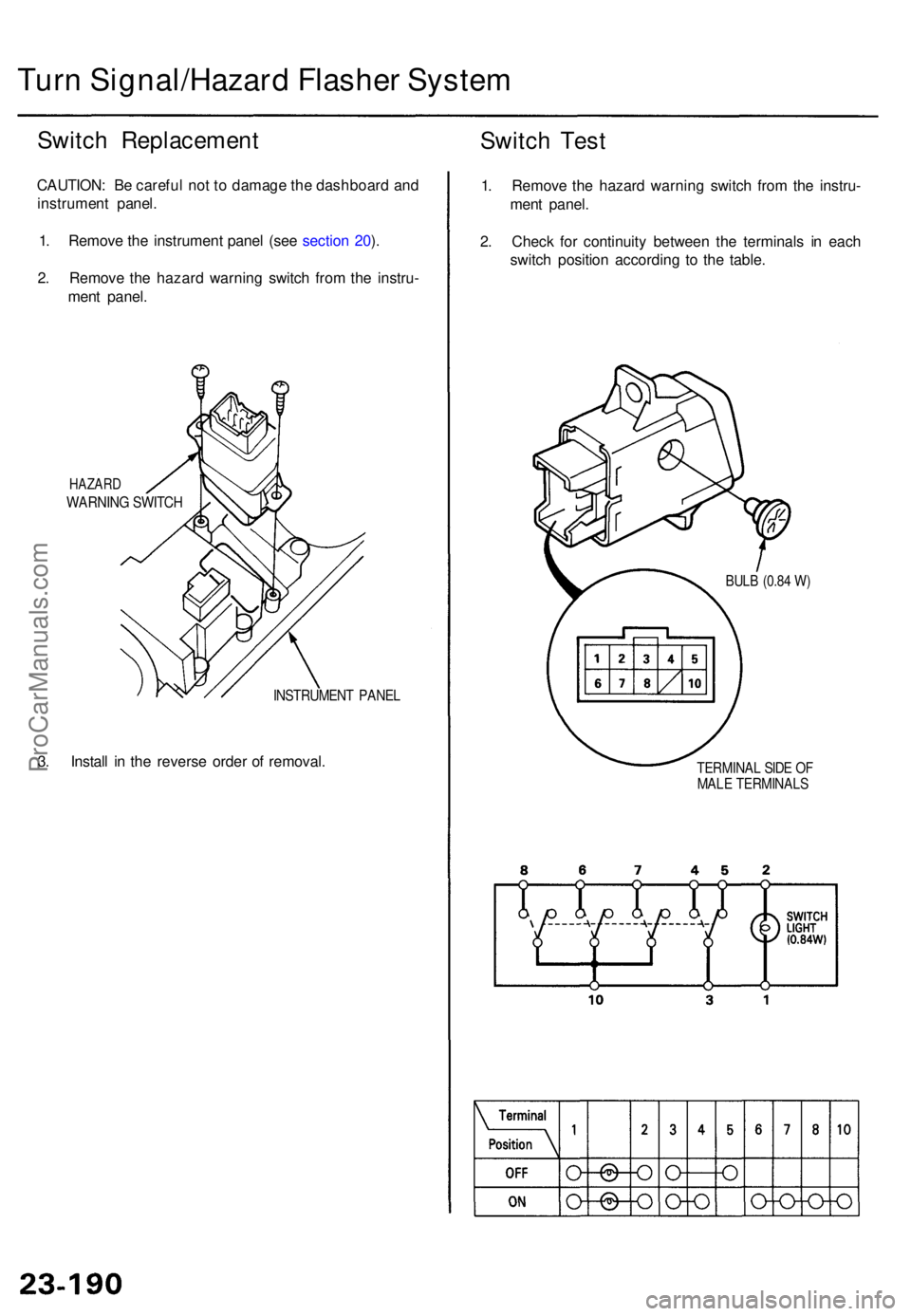

Turn Signal/Hazar d Flashe r Syste m
Switch Replacemen t
CAUTION: B e carefu l no t t o damag e th e dashboar d an d
instrumen t panel .
1 . Remov e th e instrumen t pane l (se e sectio n 20 ).
2 . Remov e th e hazar d warnin g switc h fro m th e instru -
men t panel .
HAZAR D
WARNIN G SWITC H
INSTRUMEN T PANE L
3. Instal l i n th e revers e orde r o f removal .
Switch Tes t
1. Remov e th e hazar d warnin g switc h fro m th e instru -
men t panel .
2 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
BULB (0.8 4 W )
TERMINA L SID E O FMAL E TERMINAL S
