Ascending Control
When the TCM determines that the vehicle is climbing a hill in position, the system extends the engagement area of
3rd gear to prevent the transmission from frequently shifting between 3rd and 4th gears, so the vehicle can run smooth
and have more power when needed.
NOTE:
Shift schedules between 3rd and 4th gear stored in the TCM enable the TCM's fuzzy logic to automatically select the
most suitable gear according to the magnitude of a gradient.
Fuzzy logic is a form of artificial intelligence that lets computers respond to changing conditions much like a human
mind would.
Descending Control
When the TCM determines that the vehicle is going down a hill in position, the shift-up speed from 3rd to 4th gear
when the throttle is closed becomes faster than the set speed for flat road driving to widen the 3rd gear driving area.
This, in combination with engine braking from the deceleration lock-up, achieves smooth driving when the vehicle is
descending.
There are two ascending modes with different 3rd gear driving areas according to the magnitude of a gradient stored in
the
TCM.
When the vehicle is in 4th gear, and you are decelerating on a gradual hill, or when you are applying the brakes on a steep
hill, the transmission will downshift to 3rd gear. When you accelerate, the transmission will then return to 4th gear.
ASCENDING MODE
DESCENDING MODE
• Deceleration Control
When the vehicle goes around a corner, and needs to decelerate first and then accelerate, the TCM sets the data for deceleration
control to reduce the number of times the transmission shifts. When the vehicle is decelerating from speeds above 30 mph
(48 km/h), the TCM shifts the transmission from 4th to 2nd earlier than normal to cope with upcoming acceleration.ProCarManuals.com

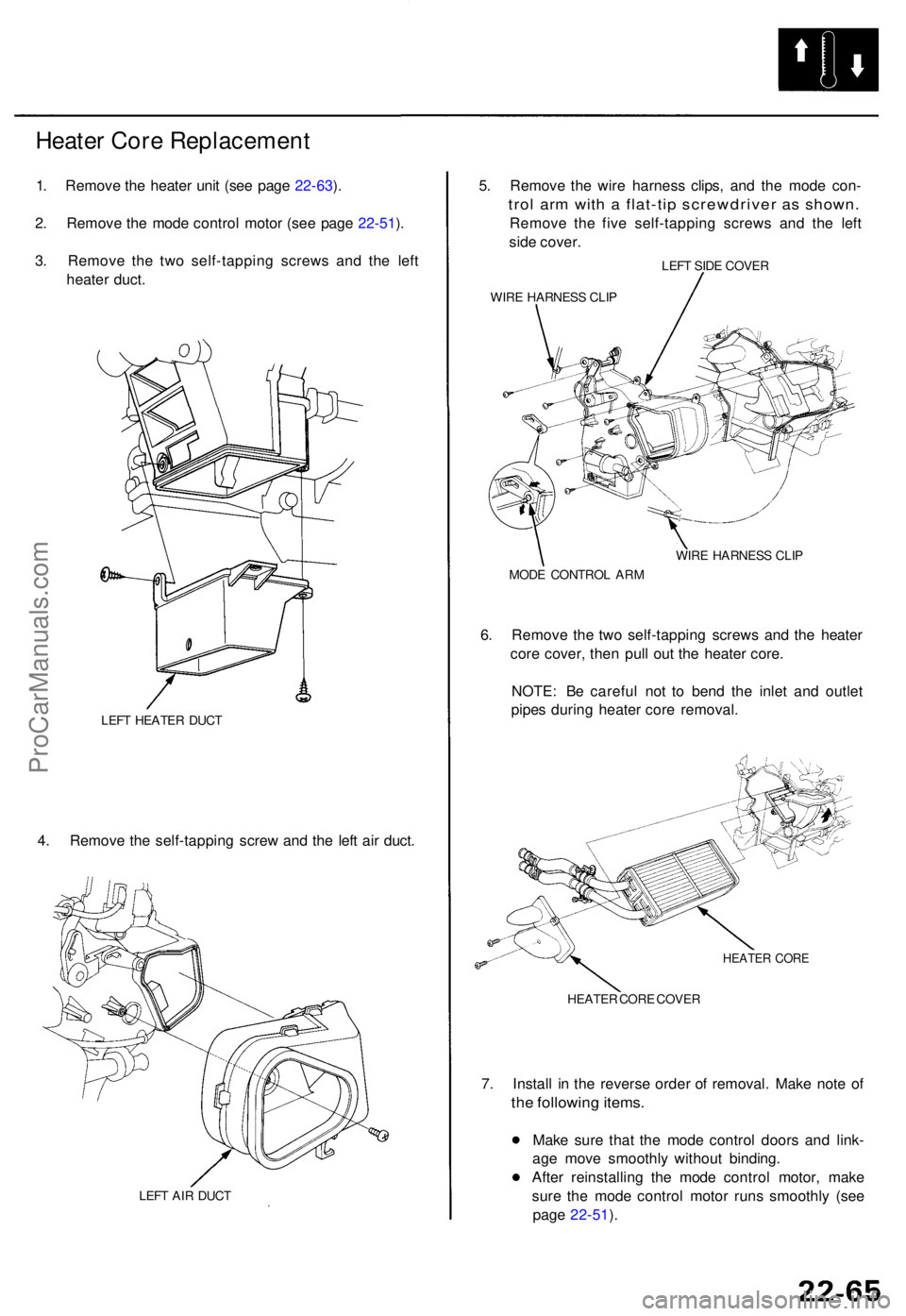

Heater Cor e Replacemen t
1. Remov e th e heate r uni t (se e pag e 22-63 ).
2 . Remov e th e mod e contro l moto r (se e pag e 22-51 ).
3 . Remov e th e tw o self-tappin g screw s an d th e lef t
heate r duct .
LEFT HEATE R DUC T
4. Remov e th e self-tappin g scre w an d th e lef t ai r duct .
LEFT AI R DUC T
5. Remov e th e wir e harnes s clips , an d th e mod e con -
trol ar m wit h a flat-ti p screwdrive r a s shown .
Remove th e fiv e self-tappin g screw s an d th e lef t
sid e cover .
LEFT SID E COVE R
WIR E HARNES S CLI P
WIRE HARNES S CLI P
MOD E CONTRO L AR M
6. Remov e th e tw o self-tappin g screw s an d th e heate r
cor e cover , the n pul l ou t th e heate r core .
NOTE : B e carefu l no t t o ben d th e inle t an d outle t
pipe s durin g heate r cor e removal .
HEATER COR E
HEATE R COR E COVE R
7. Instal l i n th e revers e orde r o f removal . Mak e not e o f
the followin g items .
Make sur e tha t th e mod e contro l door s an d link -
ag e mov e smoothl y withou t binding .
Afte r reinstallin g th e mod e contro l motor , mak e
sur e th e mod e contro l moto r run s smoothl y (se e
pag e 22-51 ).
