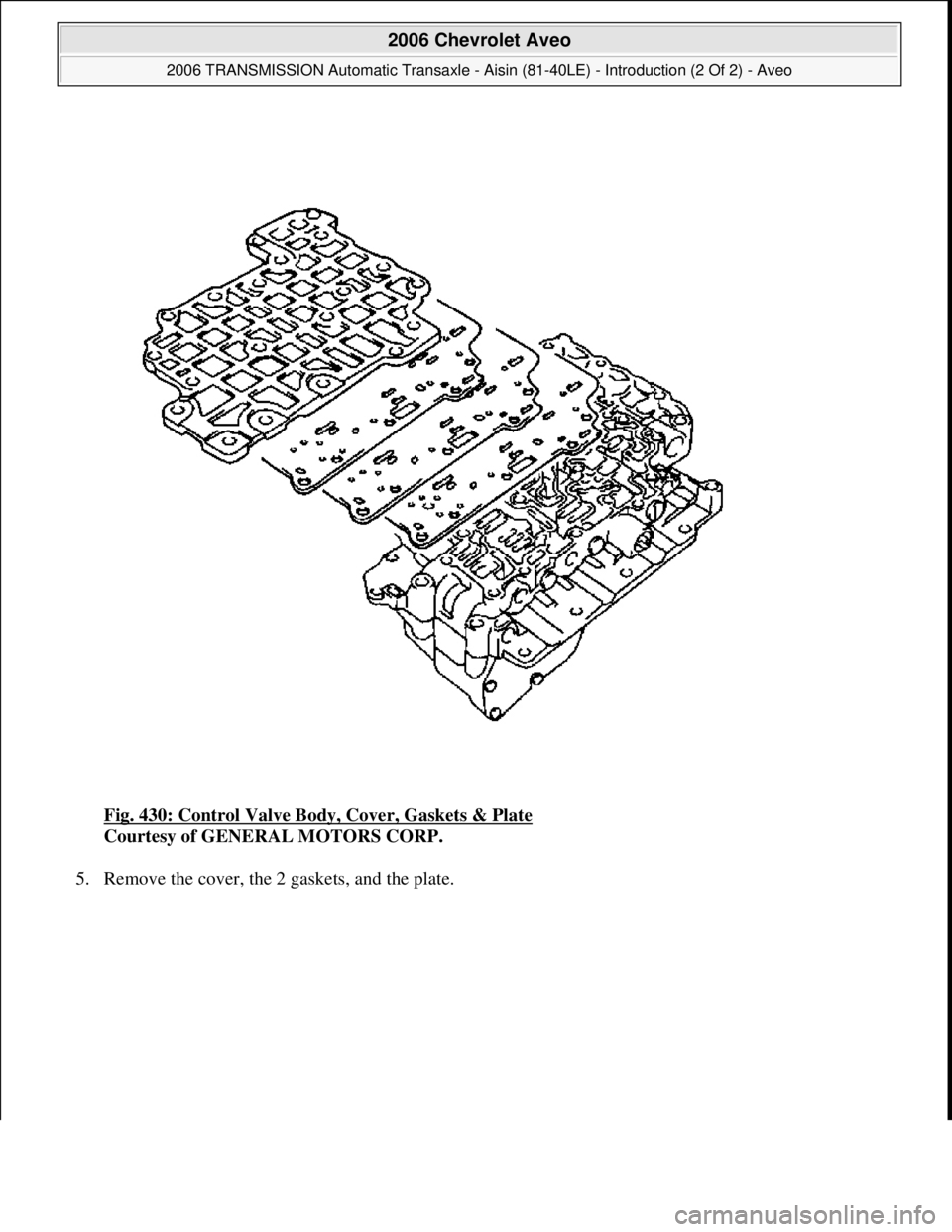

CHEVROLET AVEO 2002 Service Repair Manual Fig. 430: Control Valve Body, Cover, Gaskets & Plate Courtesy of GENERAL MOTORS CORP. 5. Remove the cover, the 2 gaskets, and the plate. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxl

Page 2994 of 5127

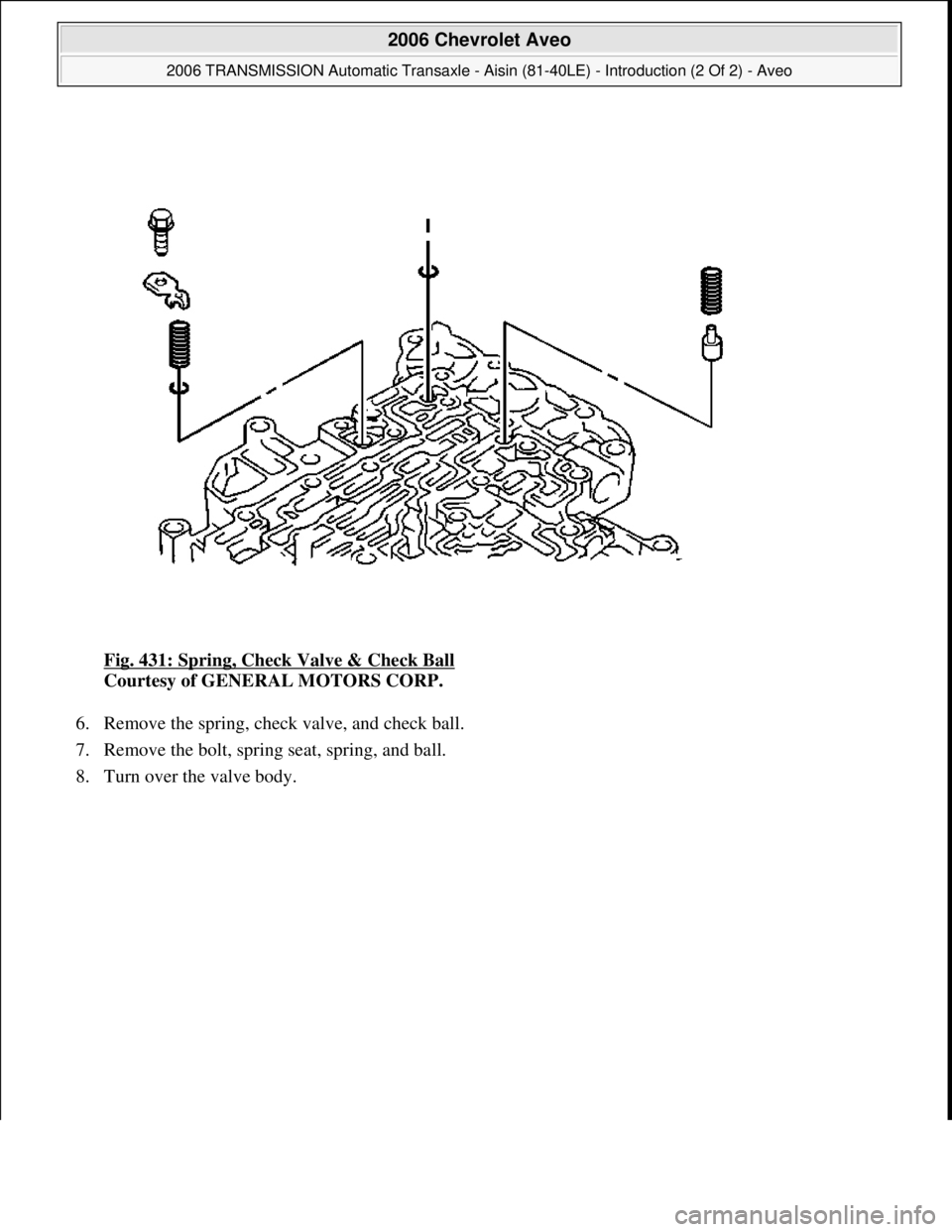

CHEVROLET AVEO 2002 Service Repair Manual Fig. 431: Spring, Check Valve & Check Ball Courtesy of GENERAL MOTORS CORP. 6. Remove the spring, check valve, and check ball. 7. Remove the bolt, spring seat, spring, and ball. 8. Turn over the

Page 2995 of 5127

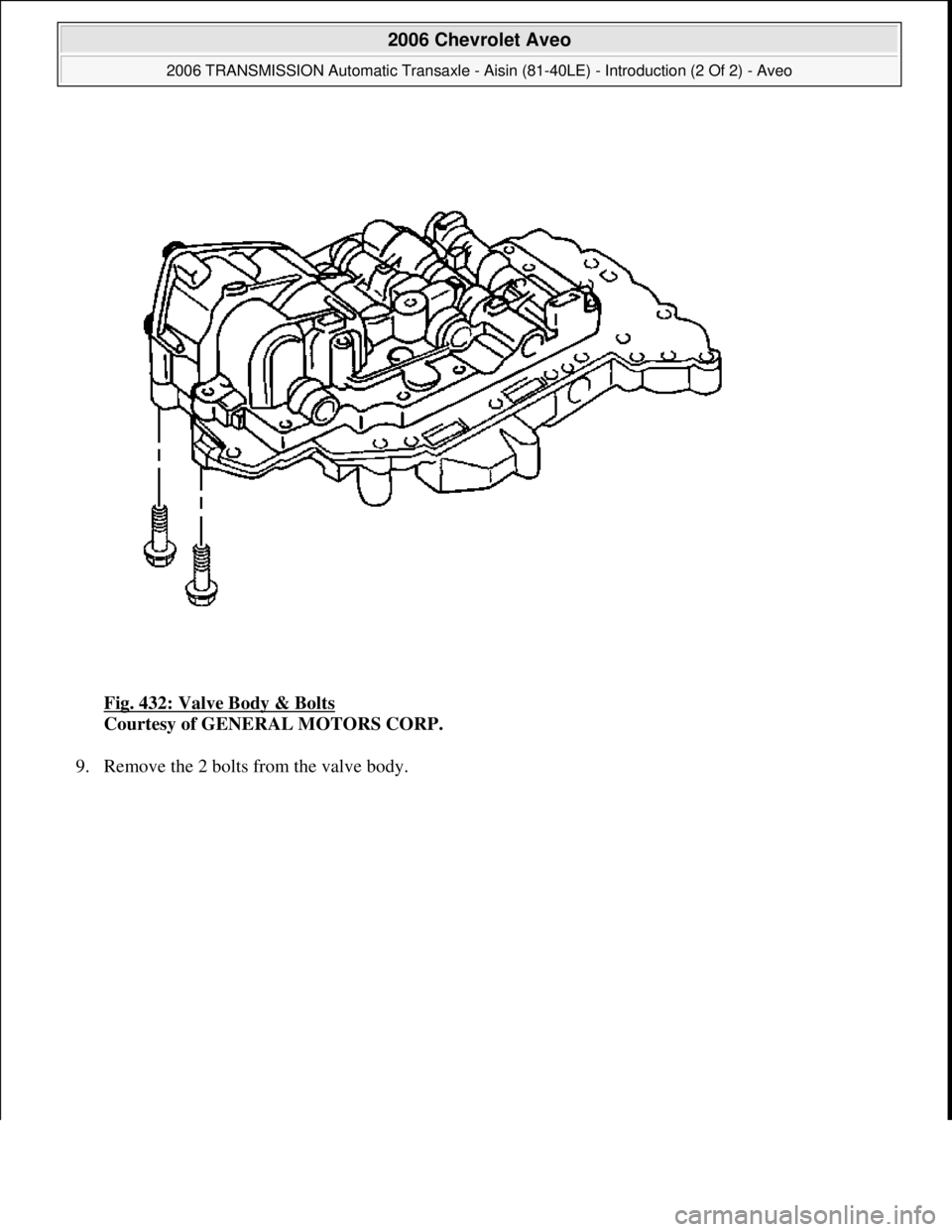

CHEVROLET AVEO 2002 Service Repair Manual Fig. 432: Valve Body & Bolts Courtesy of GENERAL MOTORS CORP. 9. Remove the 2 bolts from the valve body. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introductio

Page 2996 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 433: Upper Valve Body & Lower Valve Body Courtesy of GENERAL MOTORS CORP. 10. Remove the upper valve bod y from the lower valve body with the plate. 2006 Chevrolet Aveo 2006 TRANSMISSION Au

Page 2997 of 5127

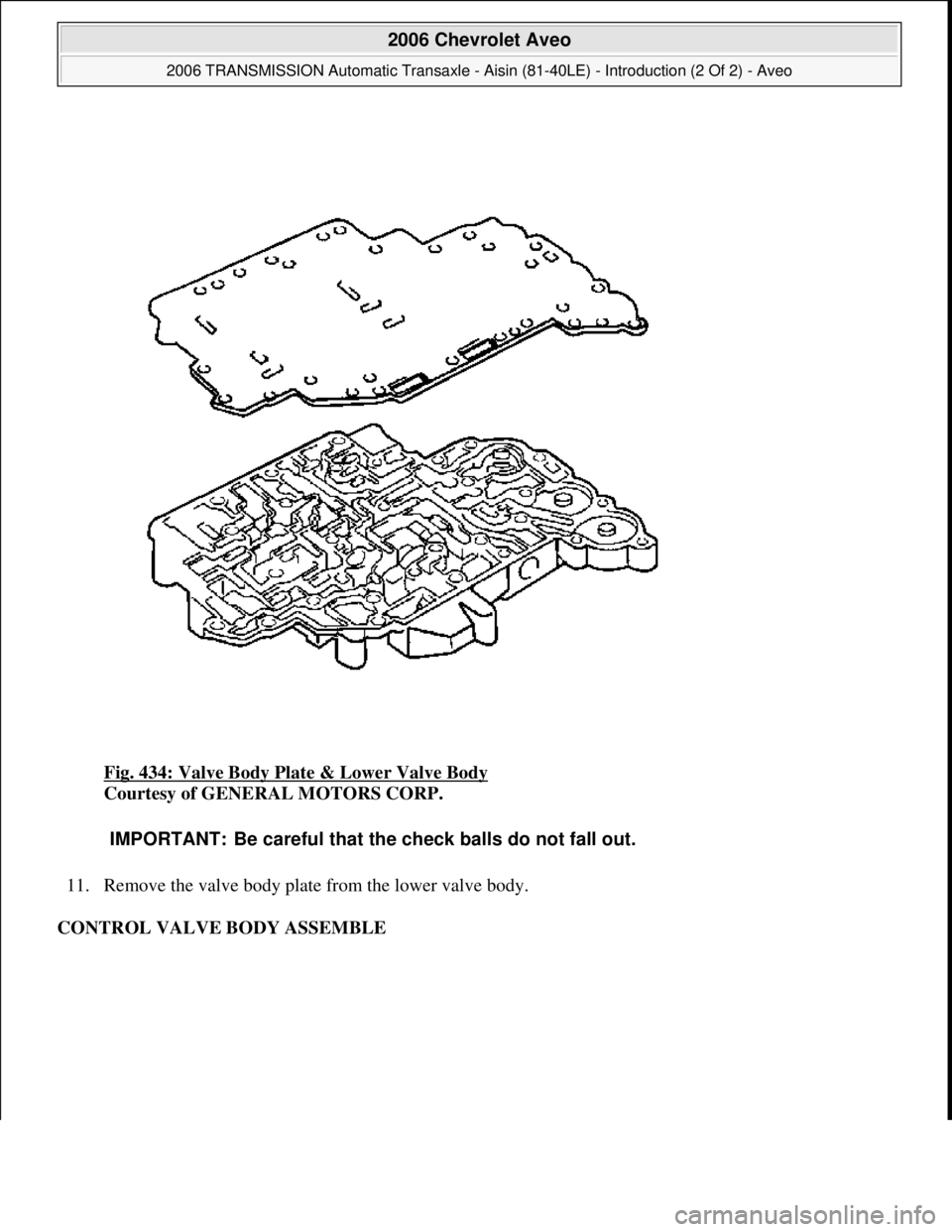

CHEVROLET AVEO 2002 Service Repair Manual Fig. 434: Valve Body Plate & Lower Valve Body Courtesy of GENERAL MOTORS CORP. 11. Remove the valve body plate from the lower valve body. CONTROL VALVE BODY ASSEMBLE IMPORTANT: Be careful that th

Page 2998 of 5127

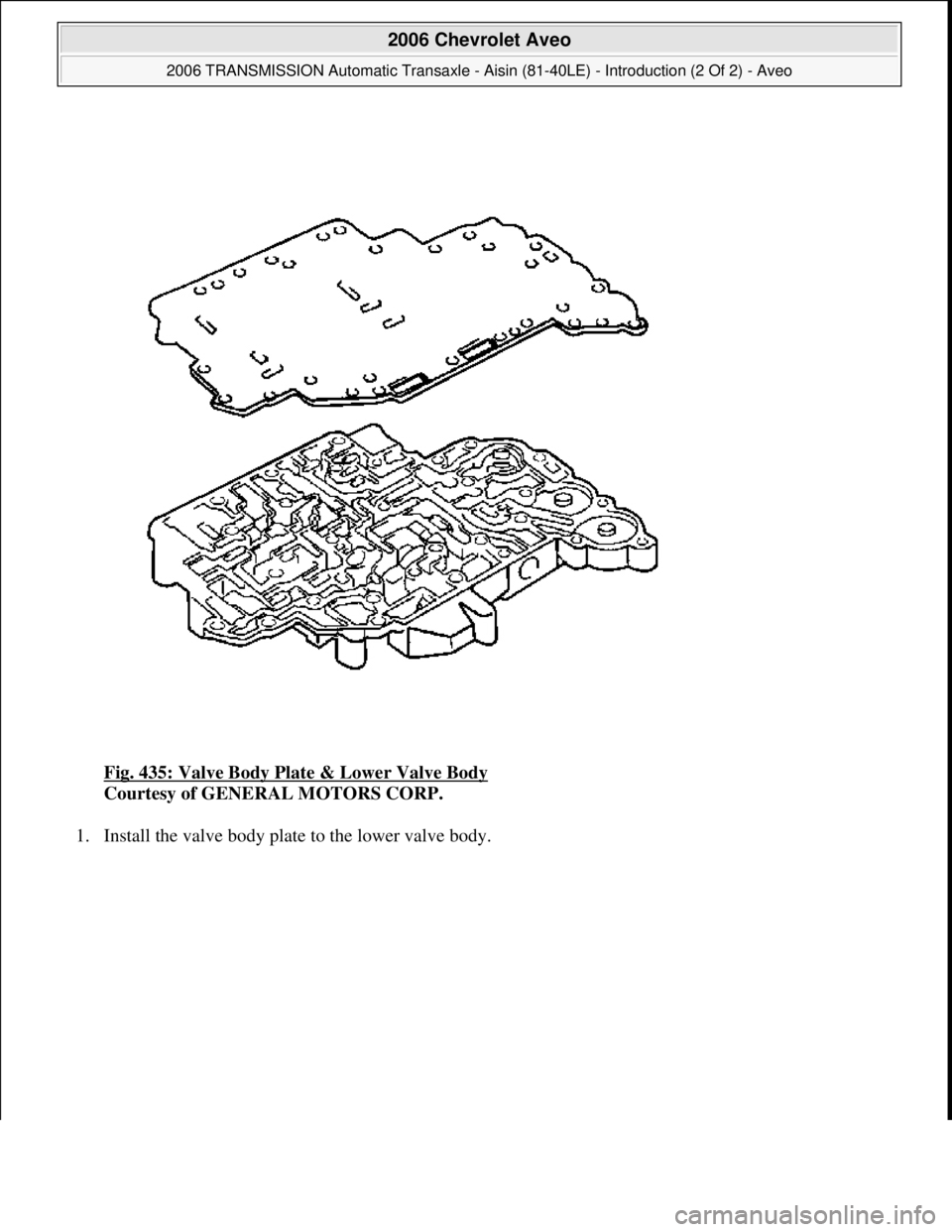

CHEVROLET AVEO 2002 Service Repair Manual Fig. 435: Valve Body Plate & Lower Valve Body Courtesy of GENERAL MOTORS CORP. 1. Install the valve bod y plate to the lower valve body. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle

Page 2999 of 5127

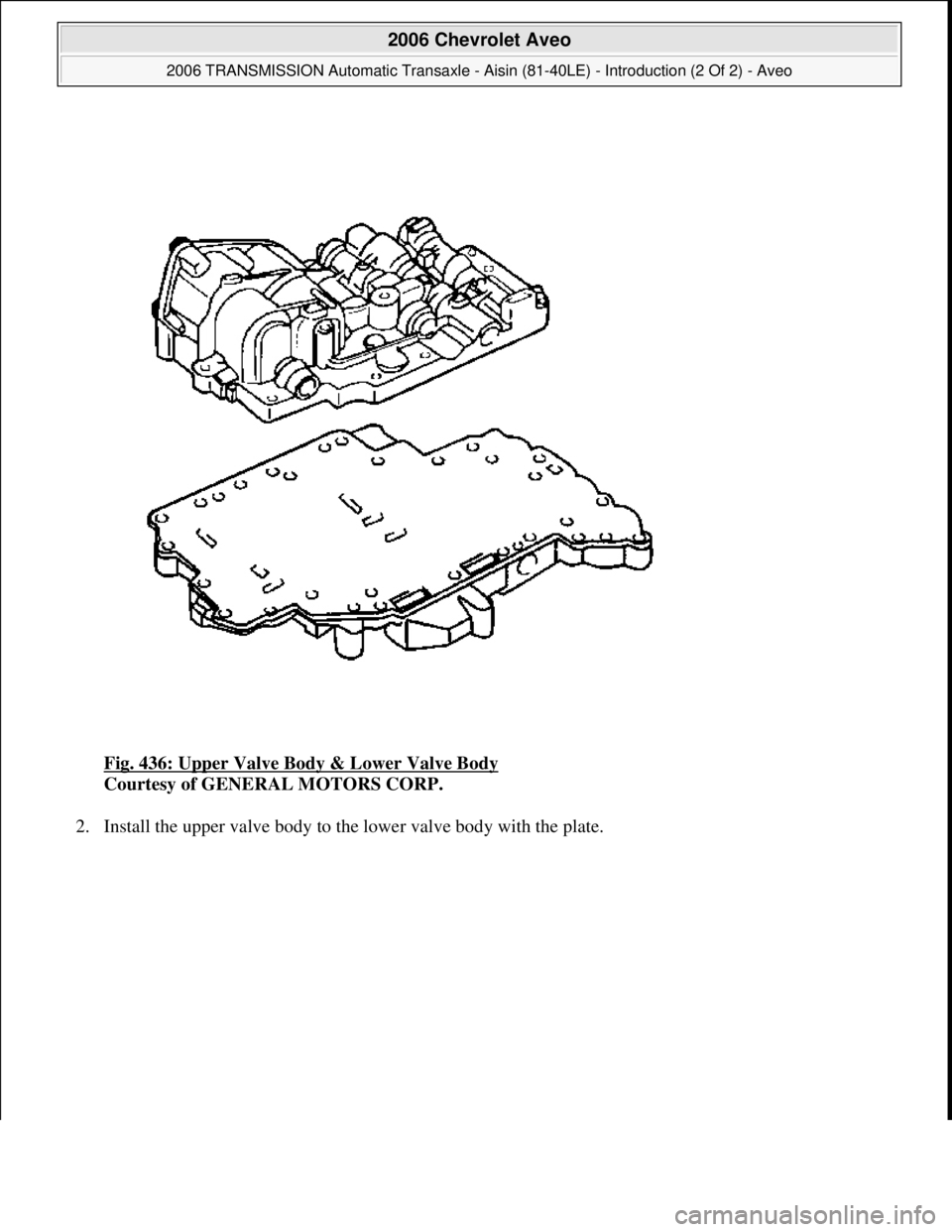

CHEVROLET AVEO 2002 Service Repair Manual Fig. 436: Upper Valve Body & Lower Valve Body Courtesy of GENERAL MOTORS CORP. 2. Install the upper valve bod y to the lower valve body with the plate. 2006 Chevrolet Aveo 2006 TRANSMISSION Auto

Page 3000 of 5127

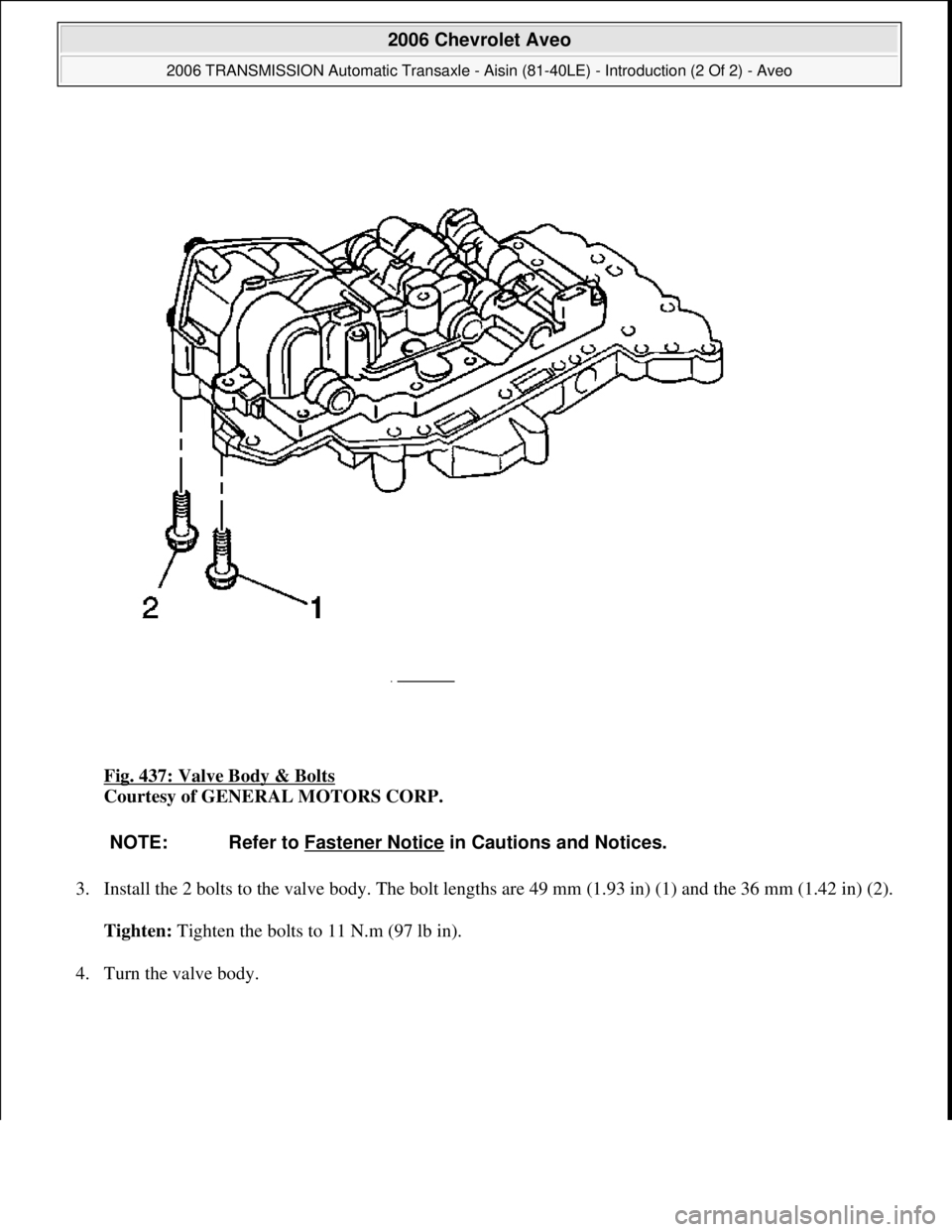

CHEVROLET AVEO 2002 Service Repair Manual Fig. 437: Valve Body & Bolts Courtesy of GENERAL MOTORS CORP. 3. Install the 2 bolts to the valve body. The bolt lengths are 49 mm (1.93 in) (1) and the 36 mm (1.42 in) (2). Tighten: Tighten the bo
