Page 2561 of 5127

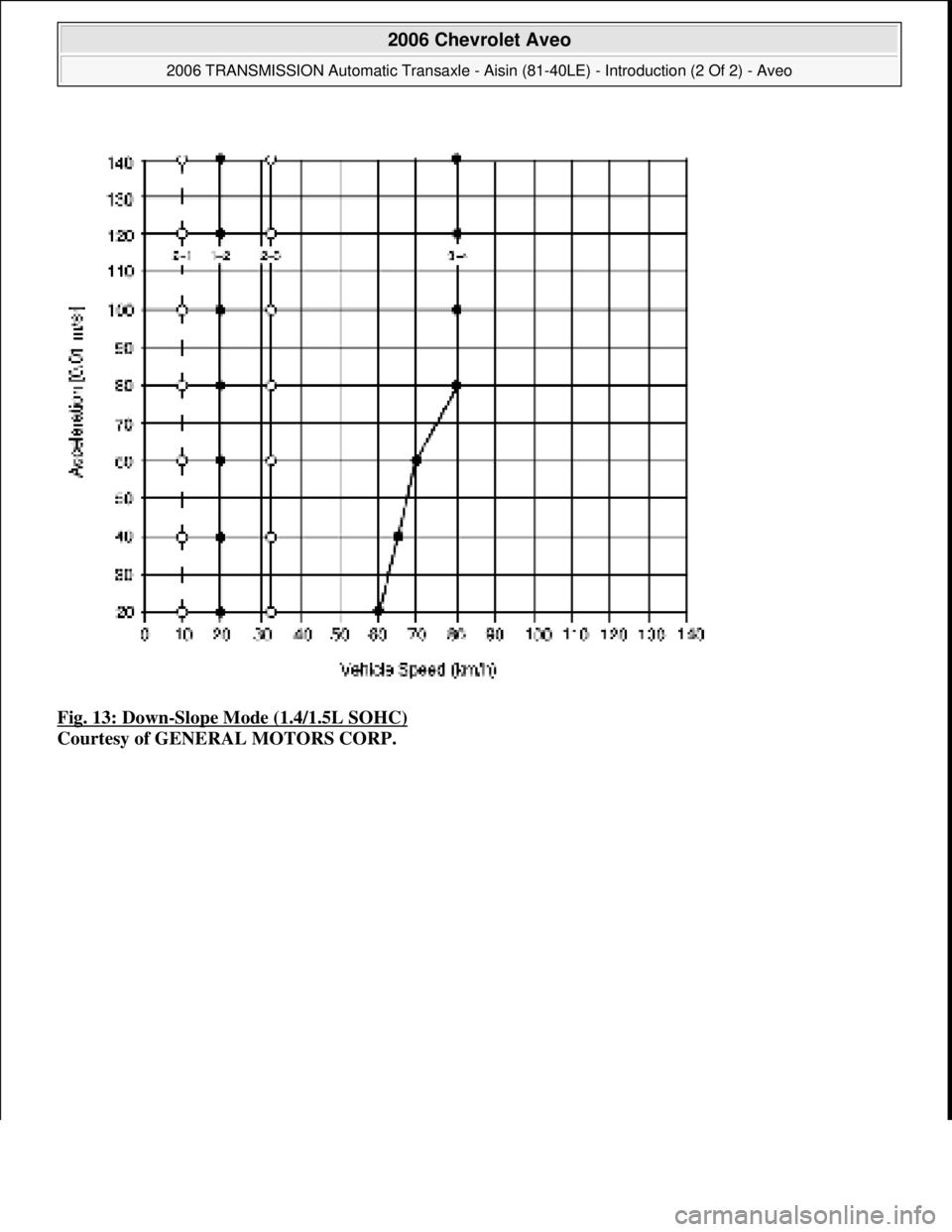

CHEVROLET AVEO 2002 Service Repair Manual Fig. 13: Down-Slope Mode (1.4/1.5L SOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microsoft T

Page 2562 of 5127

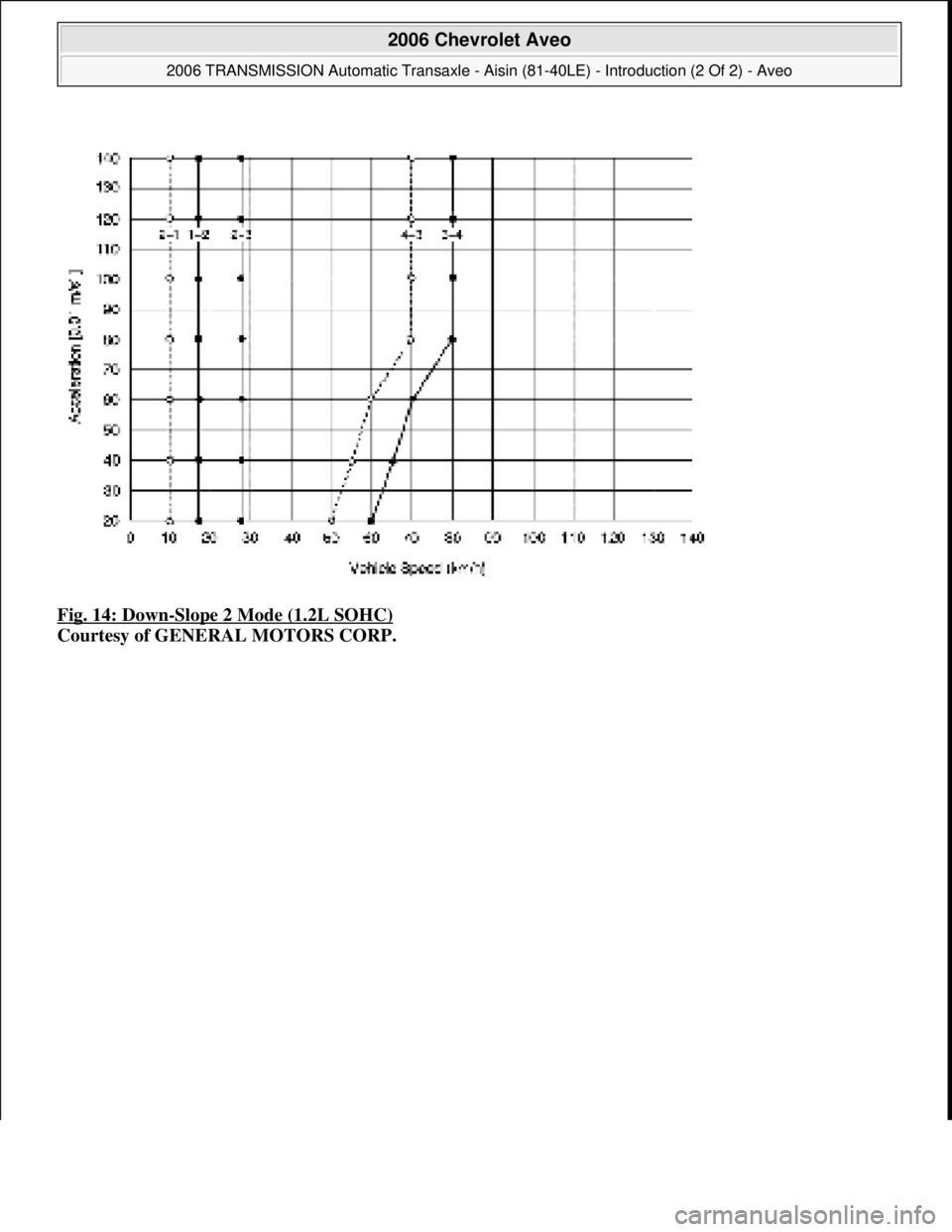

CHEVROLET AVEO 2002 Service Repair Manual Fig. 14: Down-Slope 2 Mode (1.2L SOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microsoft Thu

Page 2563 of 5127

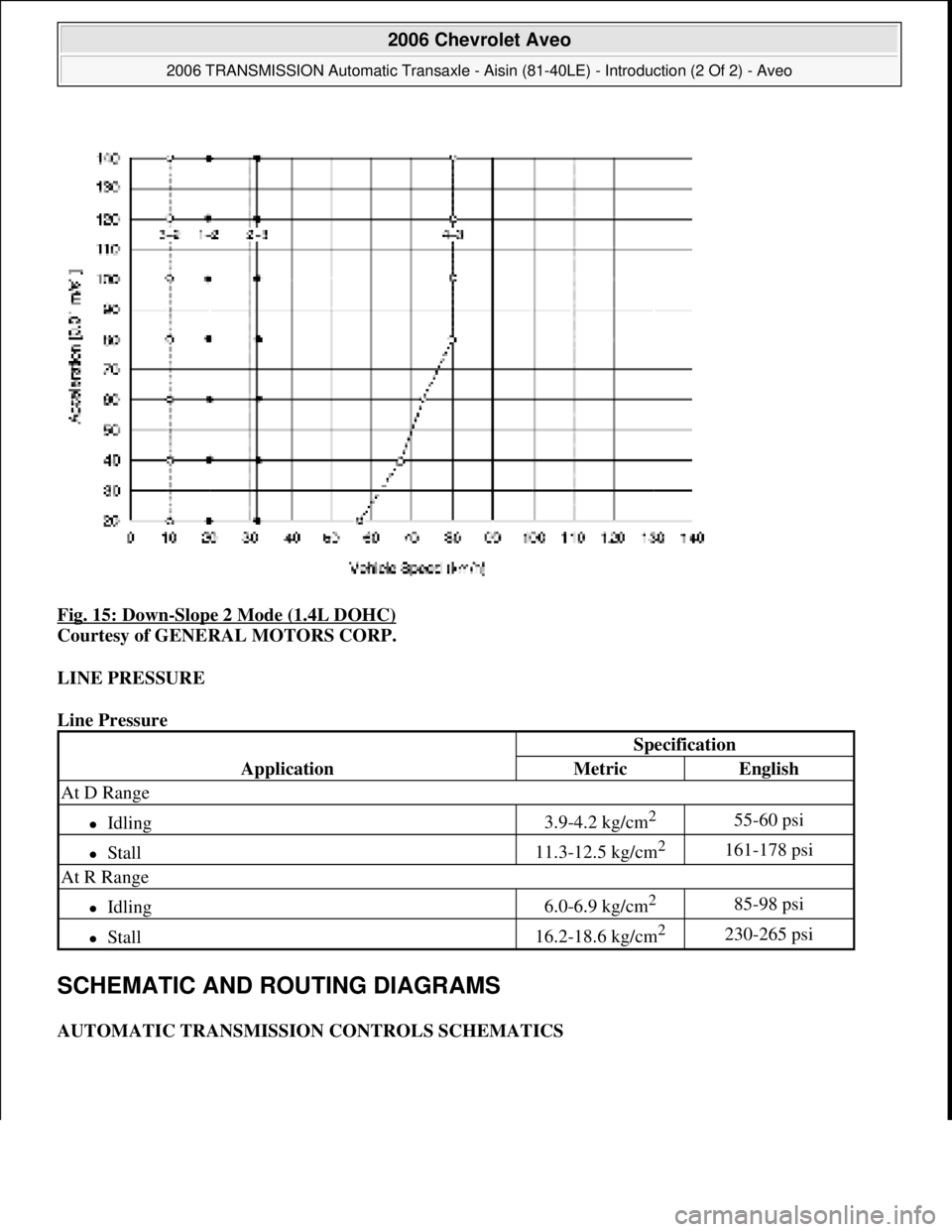

CHEVROLET AVEO 2002 Service Repair Manual Fig. 15: Down-Slope 2 Mode (1.4L DOHC) Courtesy of GENERAL MOTORS CORP. LINE PRESSURE Line Pressure SCHEMATIC AND ROUTING DIAGRAMS AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS Application Specific

Page 2564 of 5127

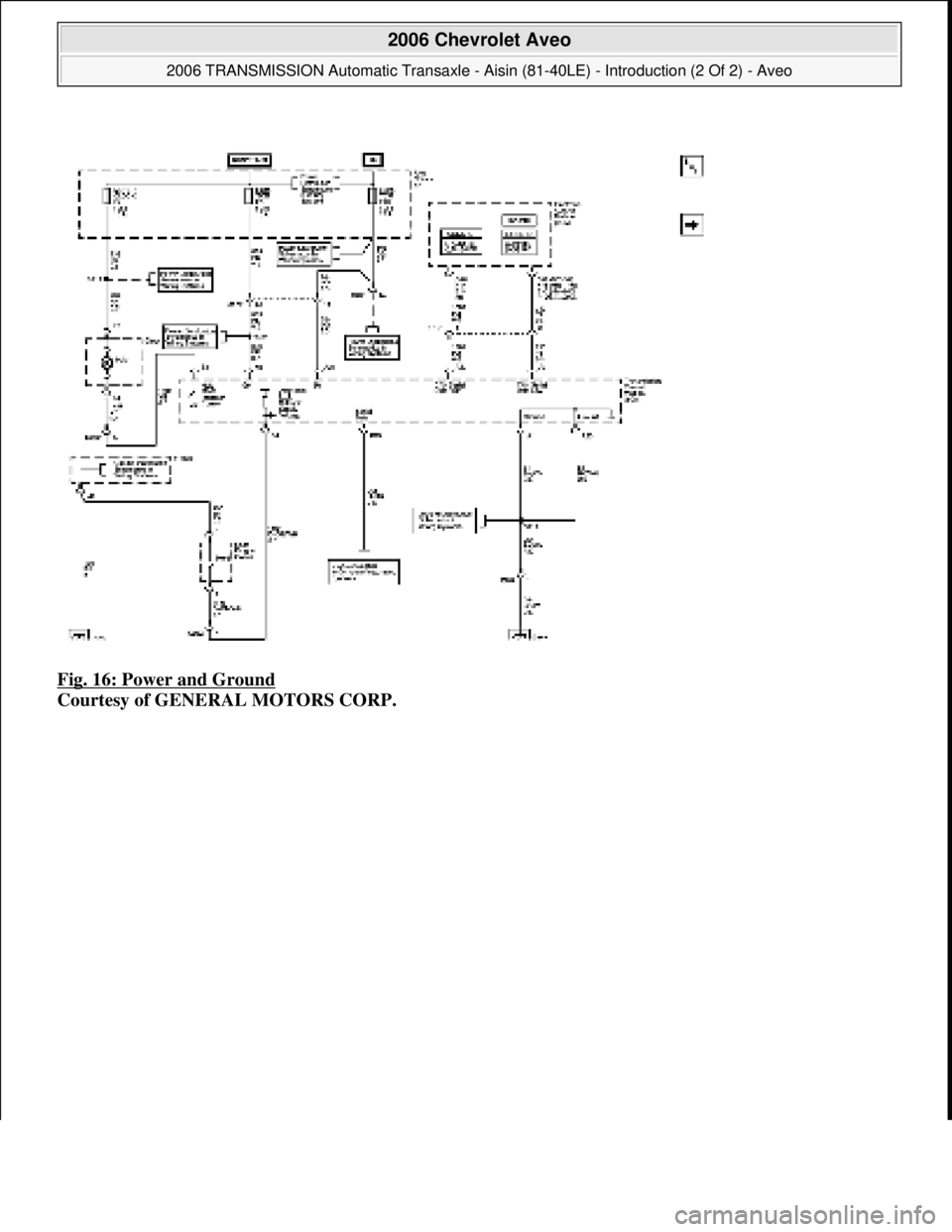

CHEVROLET AVEO 2002 Service Repair Manual Fig. 16: Power and Ground Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microsoft Thursday, July 1

Page 2565 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 17: Stop Lamp Switch And Transaxle Valves Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microso

Page 2566 of 5127

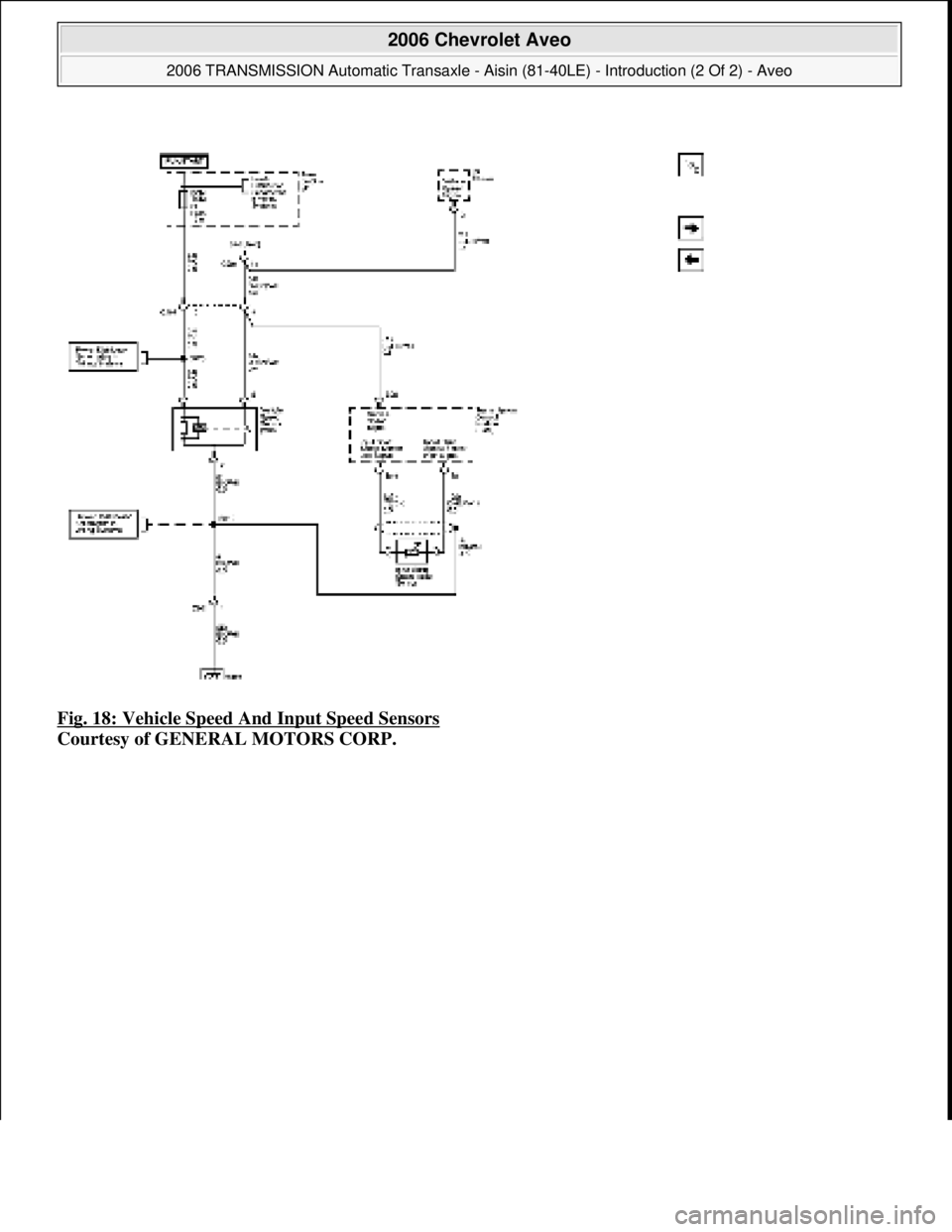

CHEVROLET AVEO 2002 Service Repair Manual Fig. 18: Vehicle Speed And Input Speed Sensors Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microso

Page 2567 of 5127

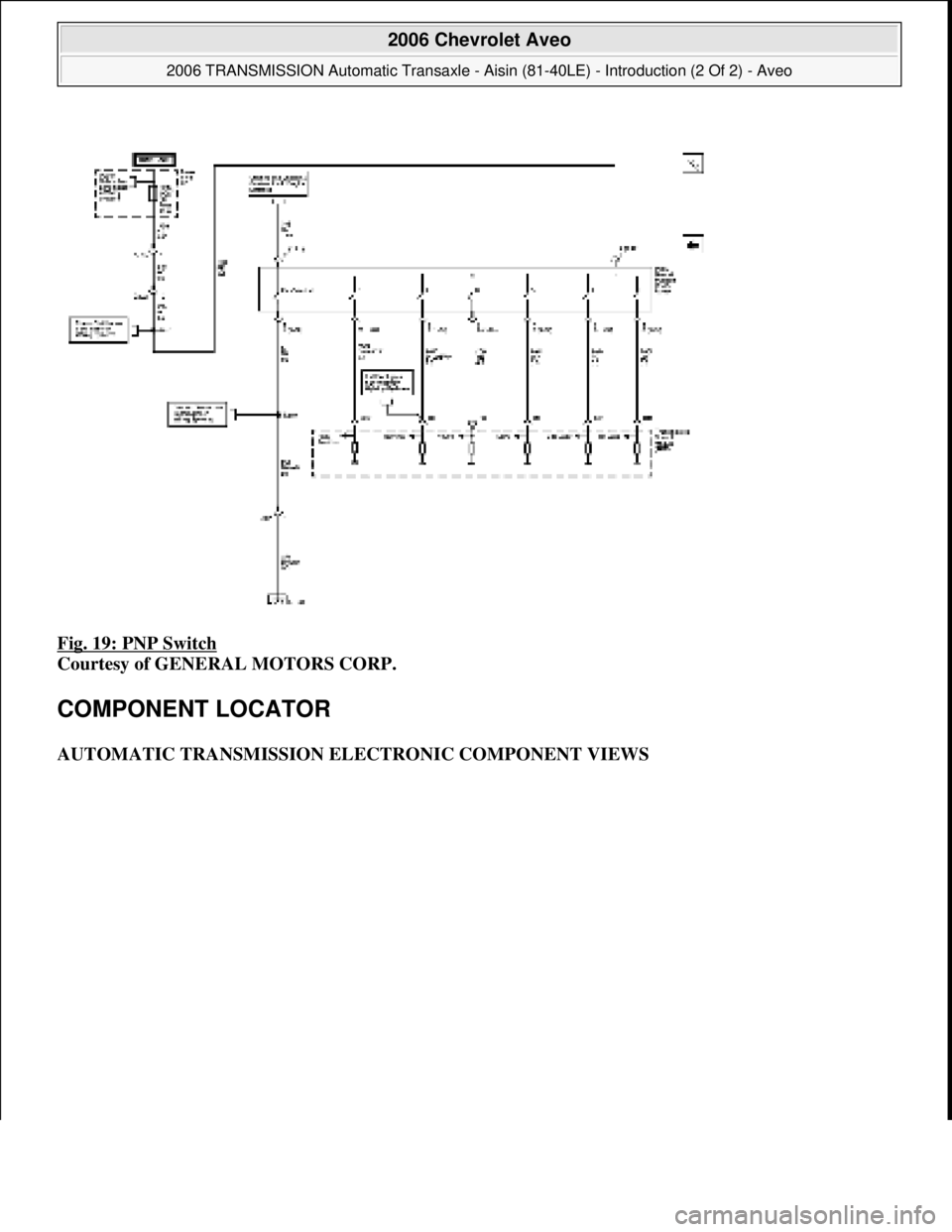

CHEVROLET AVEO 2002 Service Repair Manual Fig. 19: PNP Switch Courtesy of GENERAL MOTORS CORP. COMPONENT LOCATOR AUTOMATIC TRANSMISSION ELECTRONIC COMPONENT VIEWS 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40

Page 2568 of 5127

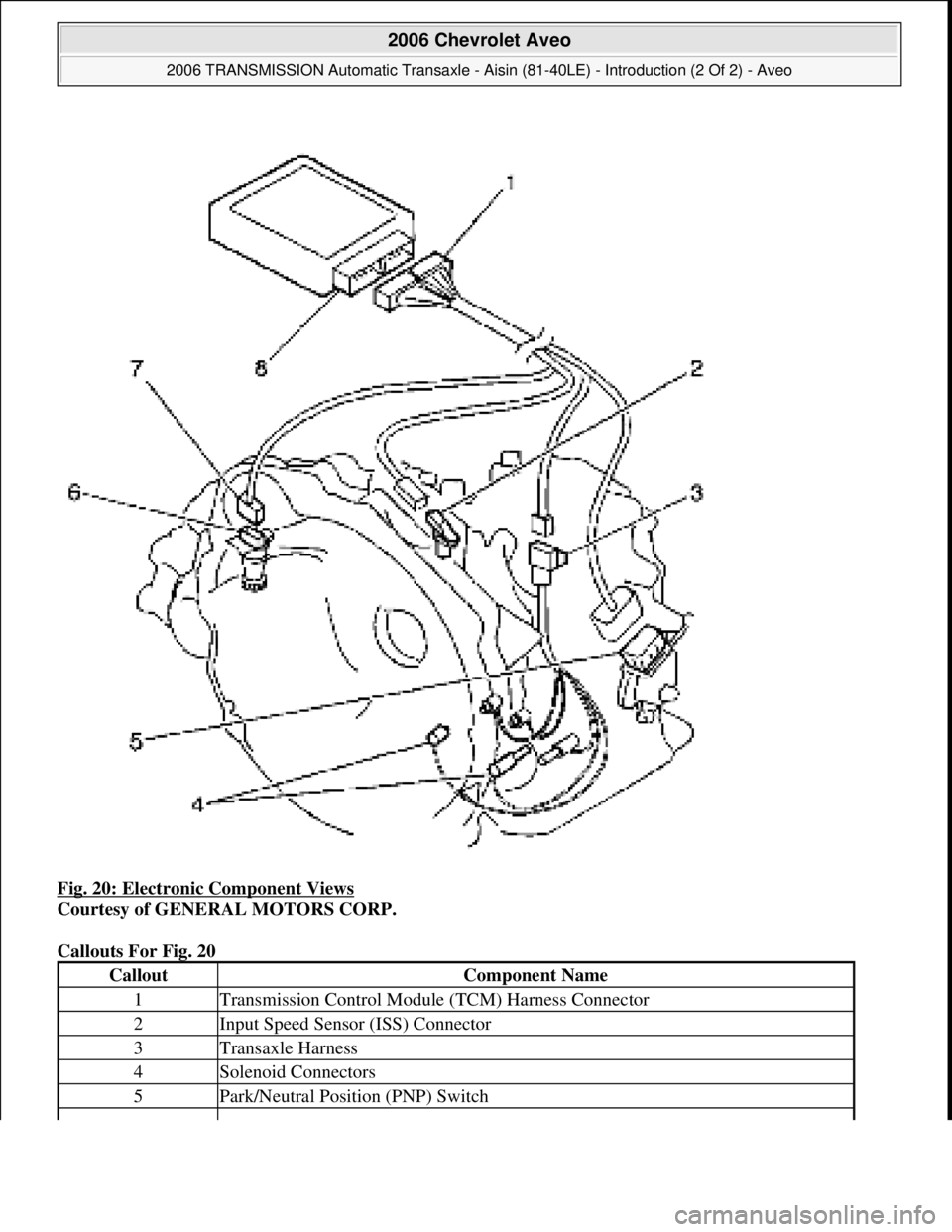

CHEVROLET AVEO 2002 Service Repair Manual Fig. 20: Electronic Component Views Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 20 CalloutComponent Name 1Transmission Control Module (TCM) Harness Connector 2Input Speed Sensor (ISS) Connec
