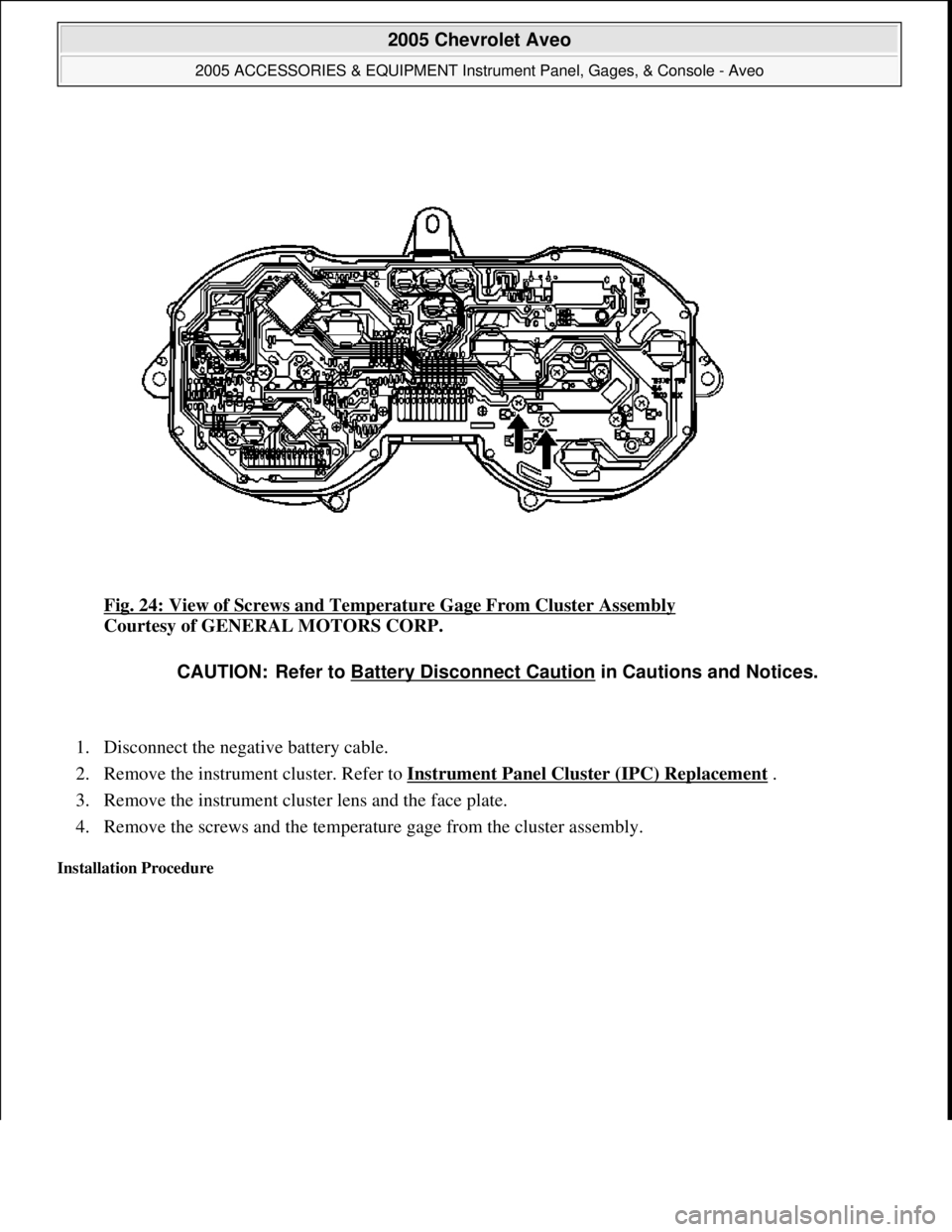

CHEVROLET AVEO 2002  Service Repair Manual Fig. 24: View of Screws and Temperature Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument

Page 4346 of 5127

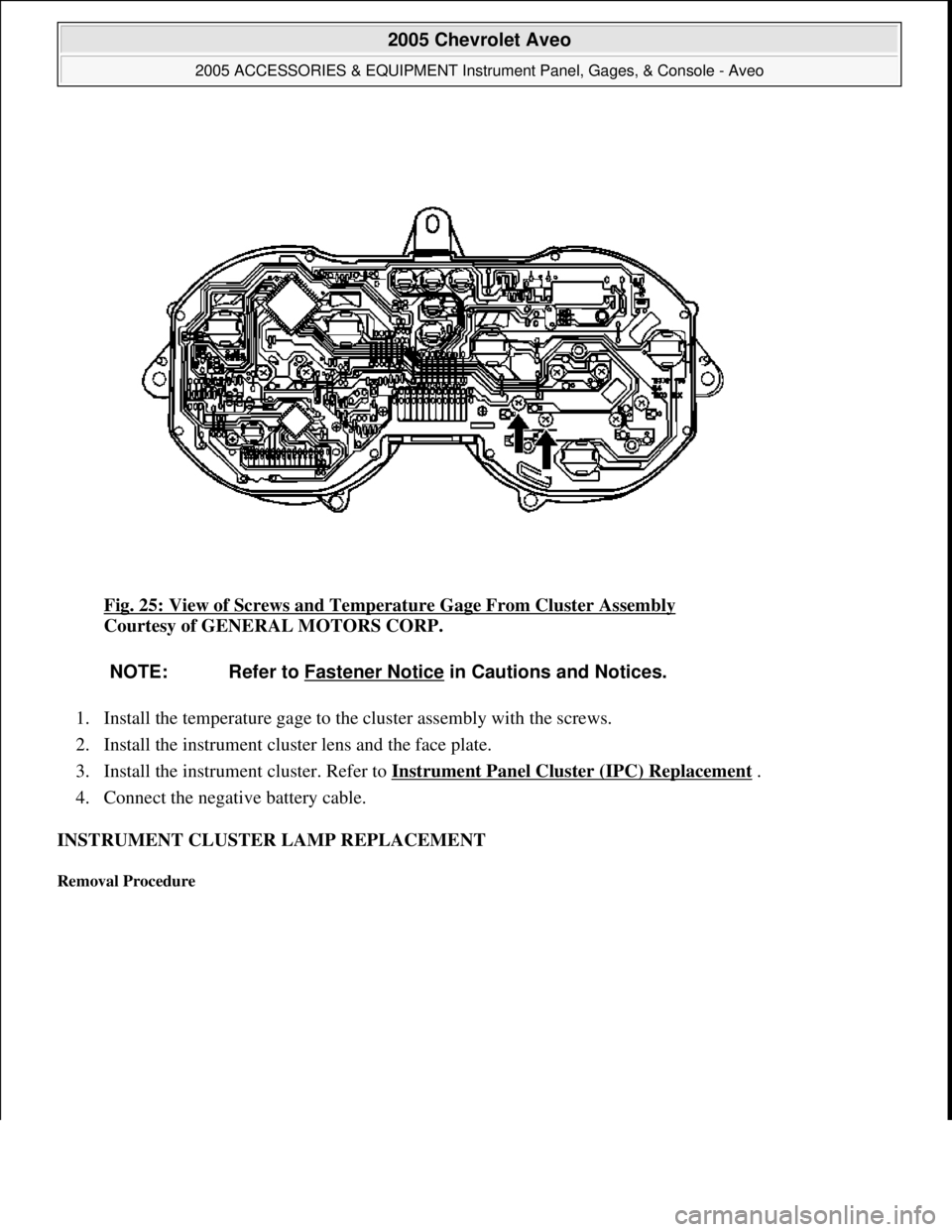

CHEVROLET AVEO 2002  Service Repair Manual Fig. 25: View of Screws and Temperature Gage From Cluster Assembly
Courtesy of GENERAL MOTORS CORP.
1. Install the temperature gage to the cluster assembly with the screws.
2. Install the instrume

Page 4347 of 5127

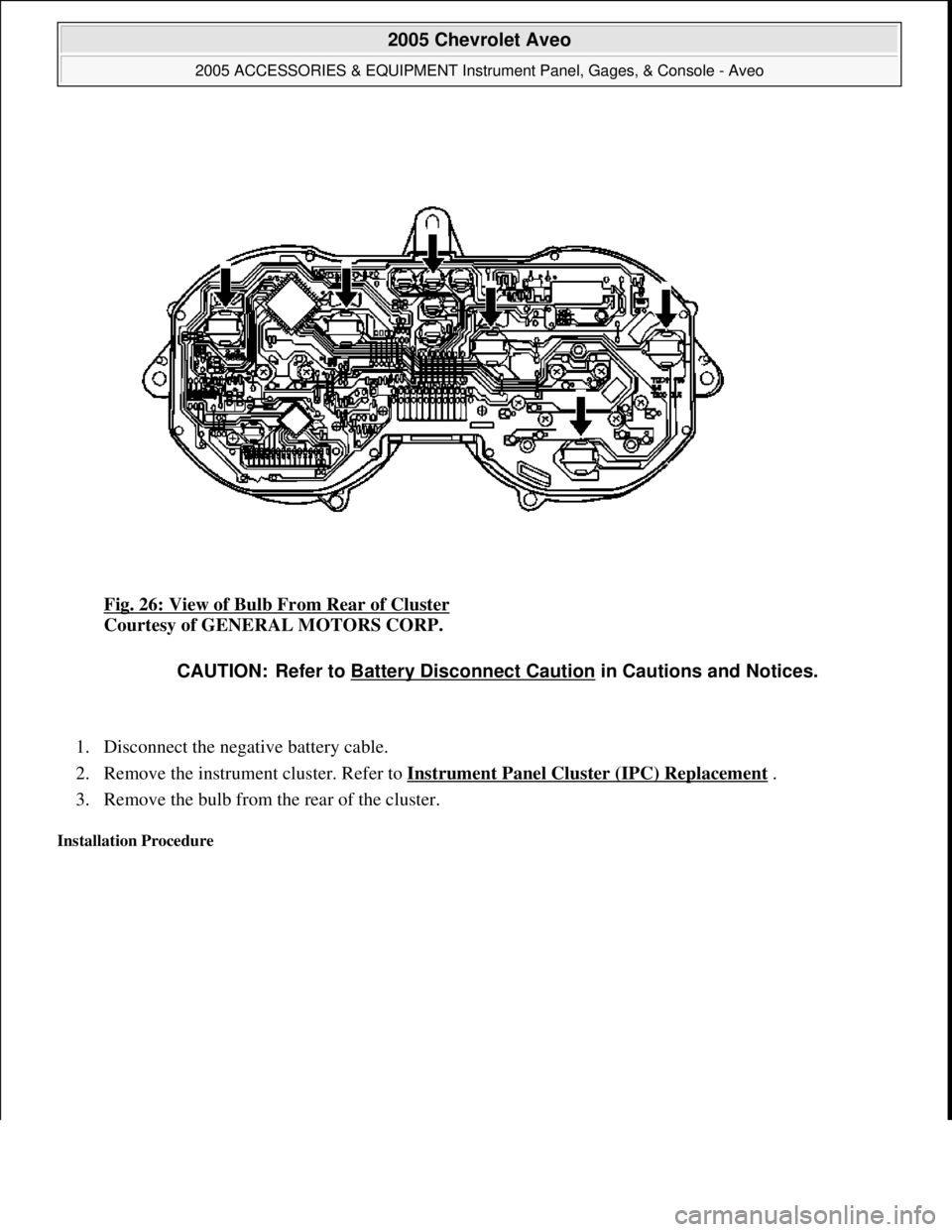

CHEVROLET AVEO 2002  Service Repair Manual Fig. 26: View of Bulb From Rear of Cluster
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Repl

Page 4348 of 5127

CHEVROLET AVEO 2002  Service Repair Manual Fig. 27: View of Bulb From Rear of Cluster
Courtesy of GENERAL MOTORS CORP.
1. Install the new bulb.
2. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement
 .
3.

Page 4349 of 5127

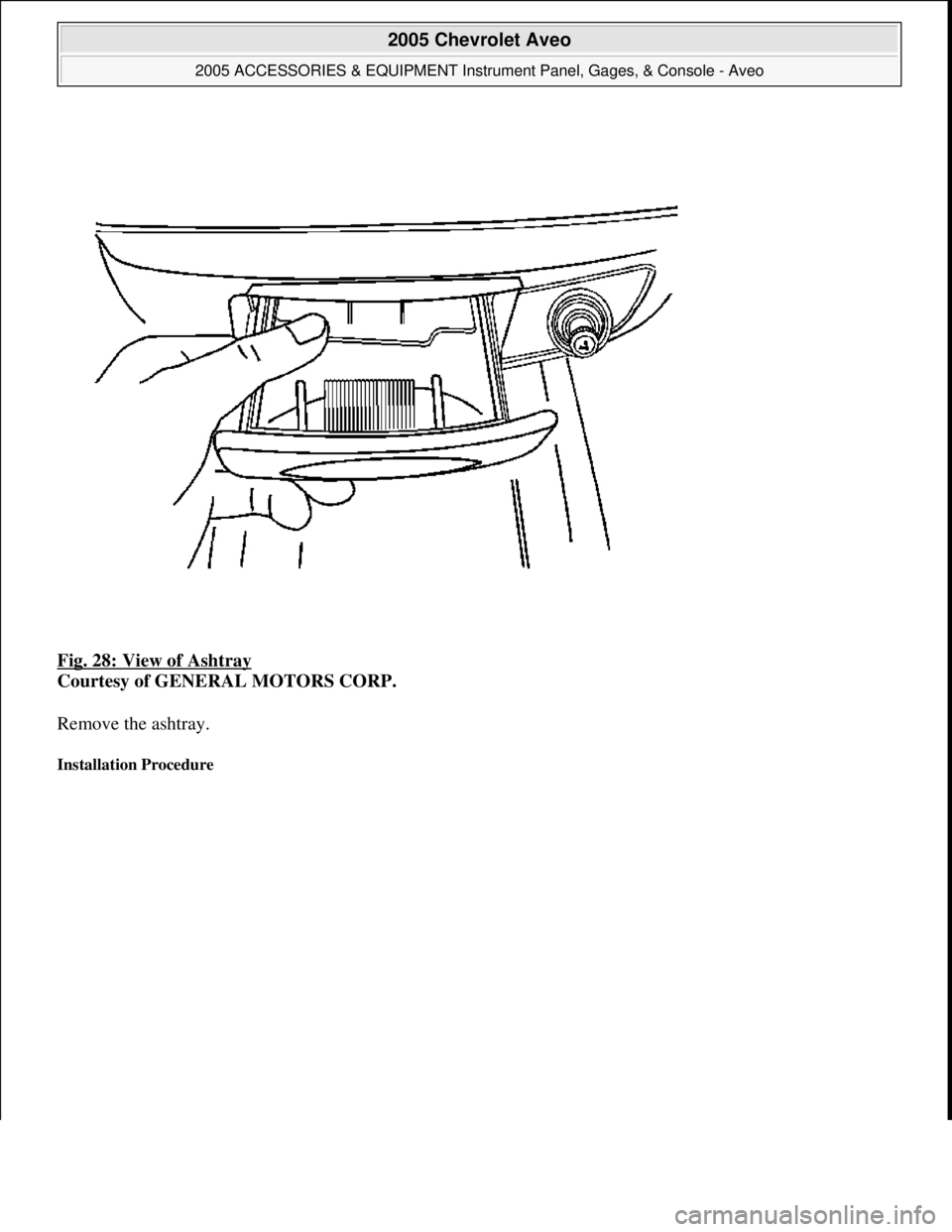

CHEVROLET AVEO 2002  Service Repair Manual Fig. 28: View of Ashtray
Courtesy of GENERAL MOTORS CORP.
Remove the ashtray.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo

Page 4350 of 5127

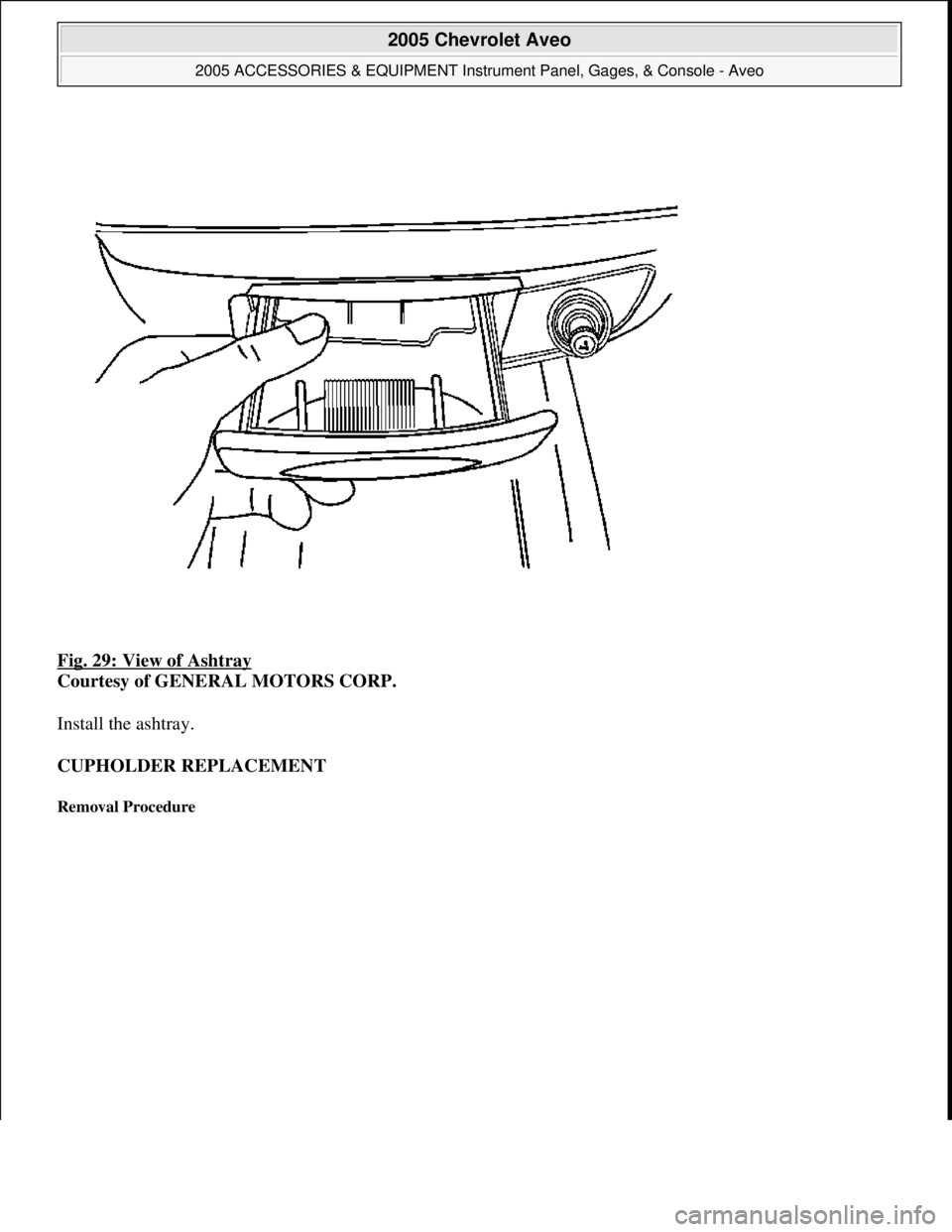

CHEVROLET AVEO 2002  Service Repair Manual Fig. 29: View of Ashtray
Courtesy of GENERAL MOTORS CORP.
Install the ashtray.
CUPHOLDER REPLACEMENT
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages,

Page 4351 of 5127

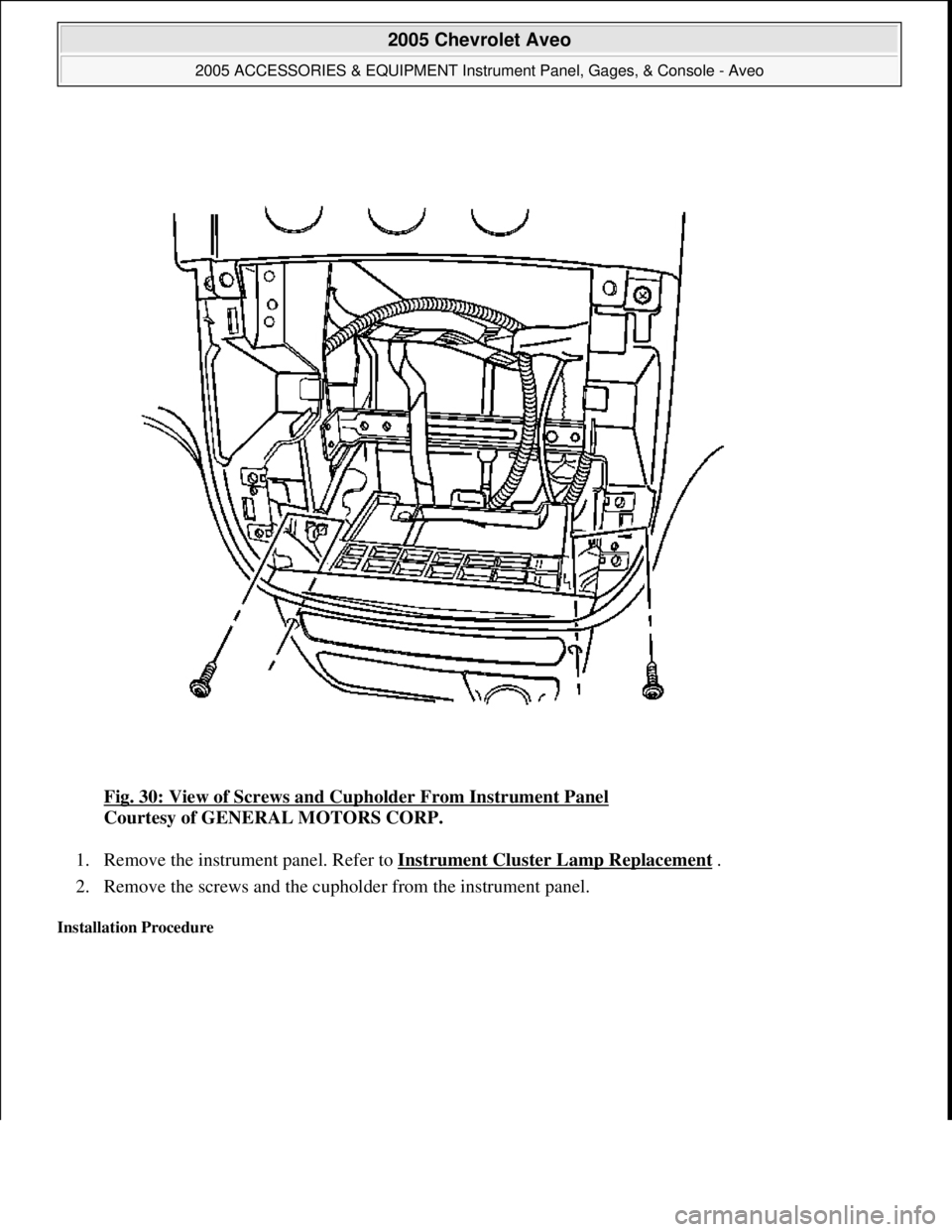

CHEVROLET AVEO 2002  Service Repair Manual Fig. 30: View of Screws and Cupholder From Instrument Panel
Courtesy of GENERAL MOTORS CORP.
1. Remove the instrument panel. Refer to Instrument Cluster Lamp Replacement
 .
2. Remove the screws an

Page 4352 of 5127

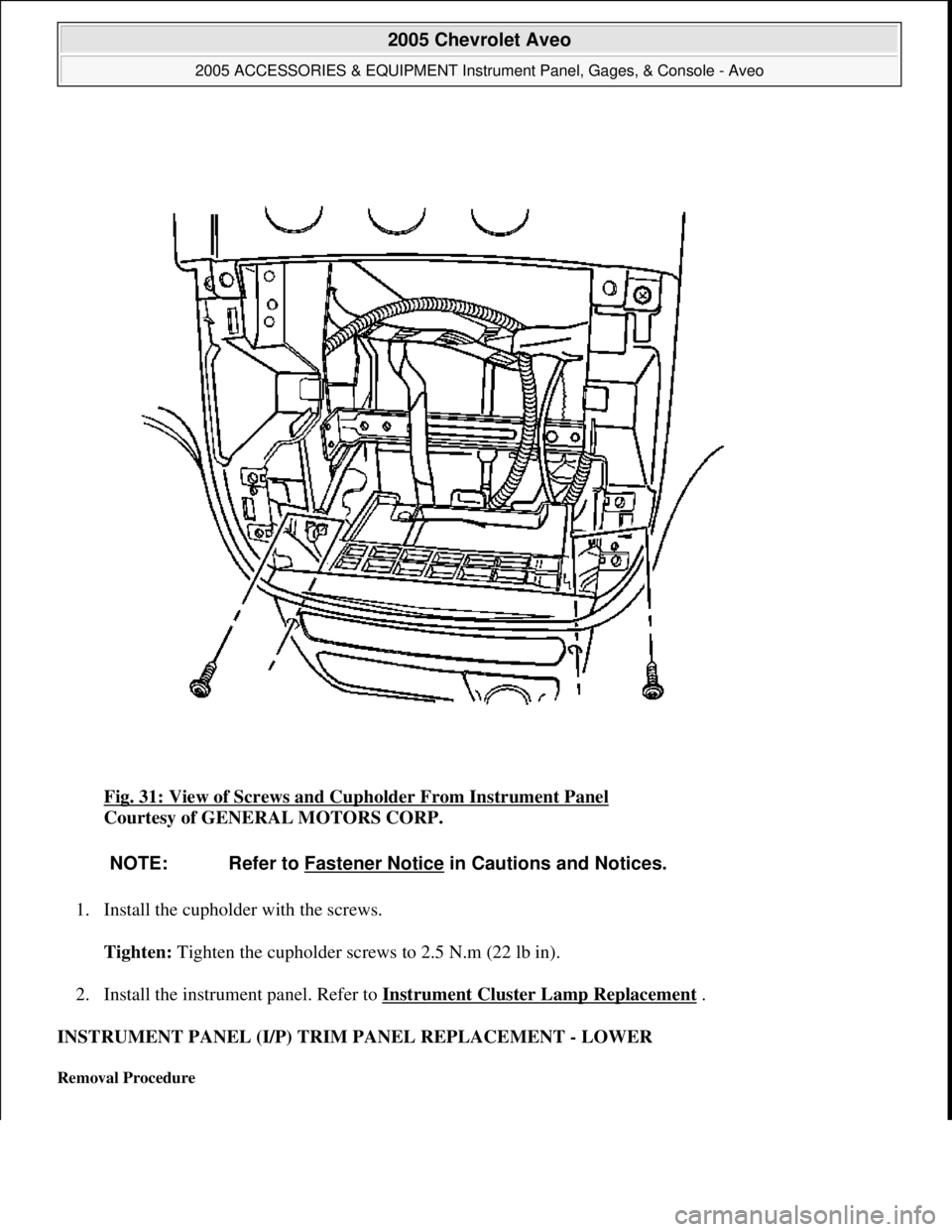

CHEVROLET AVEO 2002  Service Repair Manual Fig. 31: View of Screws and Cupholder From Instrument Panel
Courtesy of GENERAL MOTORS CORP.
1. Install the cupholder with the screws.
Tighten: Tighten the cupholder screws to 2.5 N.m (22 lb in).
