Page 2737 of 5127

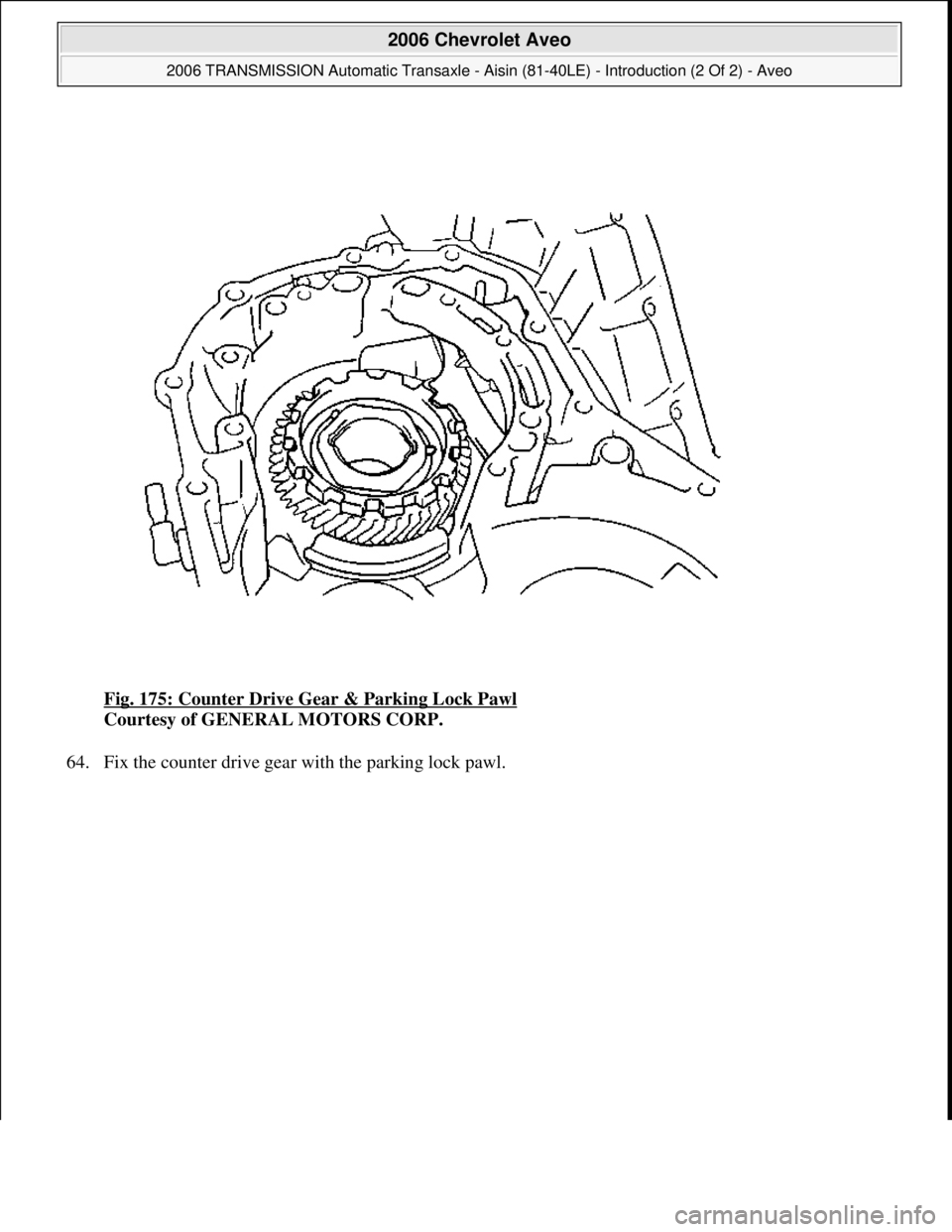

CHEVROLET AVEO 2002 Service Repair Manual Fig. 175: Counter Drive Gear & Parking Lock Pawl Courtesy of GENERAL MOTORS CORP. 64. Fix the counter drive gear with the parking lock pawl. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tran

Page 2738 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 176: Removing Planetary Ring Gear Nut Using DT 46472 Courtesy of GENERAL MOTORS CORP. 65. Remove the planetary ring gear nut using planetary ring gear nut removal/installation socket DT 46472

Page 2739 of 5127

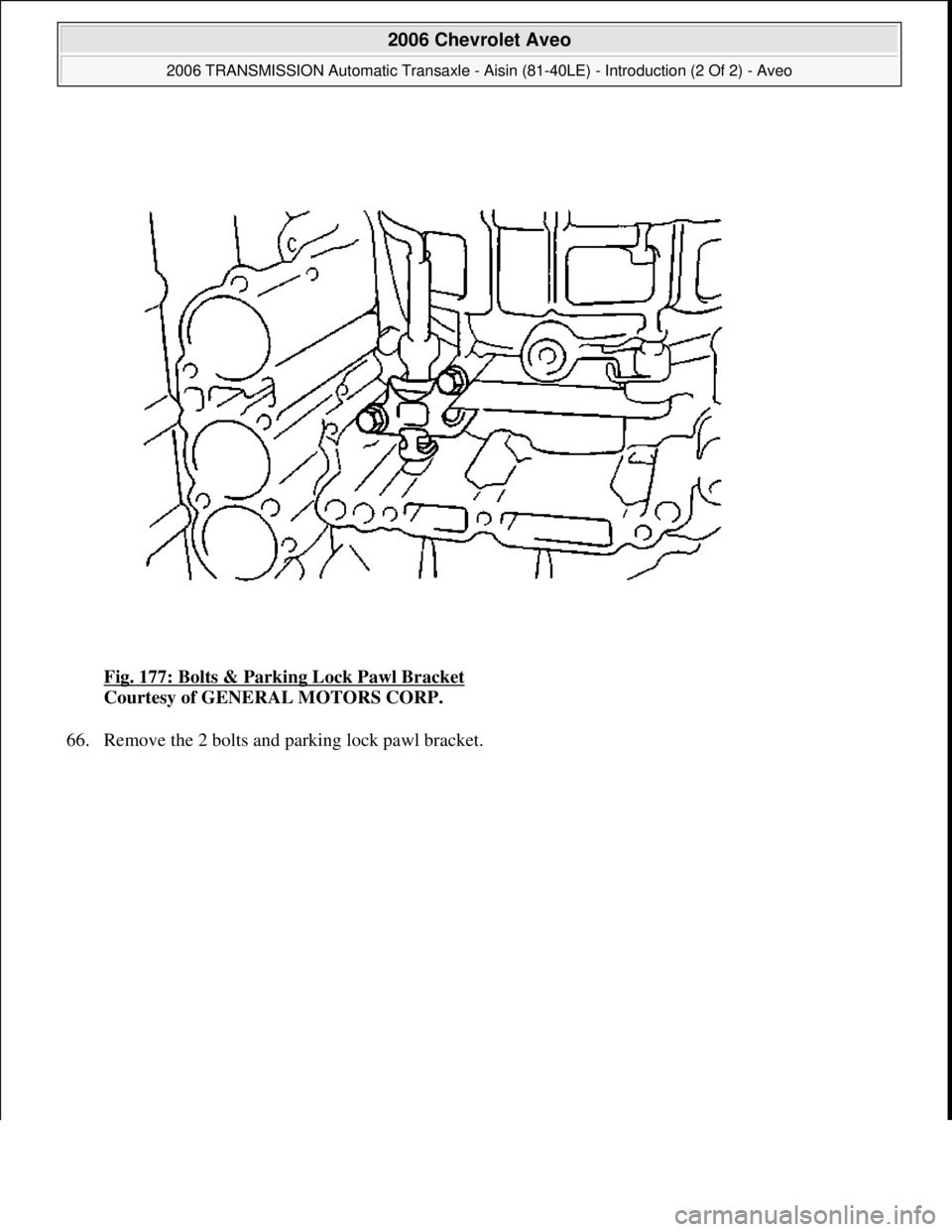

CHEVROLET AVEO 2002 Service Repair Manual Fig. 177: Bolts & Parking Lock Pawl Bracket Courtesy of GENERAL MOTORS CORP. 66. Remove the 2 bolts and parking lock pawl bracket. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Ais

Page 2740 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 178: Parking Lock Pawl, Shaft & Torsion Spring Courtesy of GENERAL MOTORS CORP. 67. Remove the parkin g lock pawl shaft, torsion spring and parking lock pawl. 2006 Chevrolet Aveo 2006 TRANS

Page 2741 of 5127

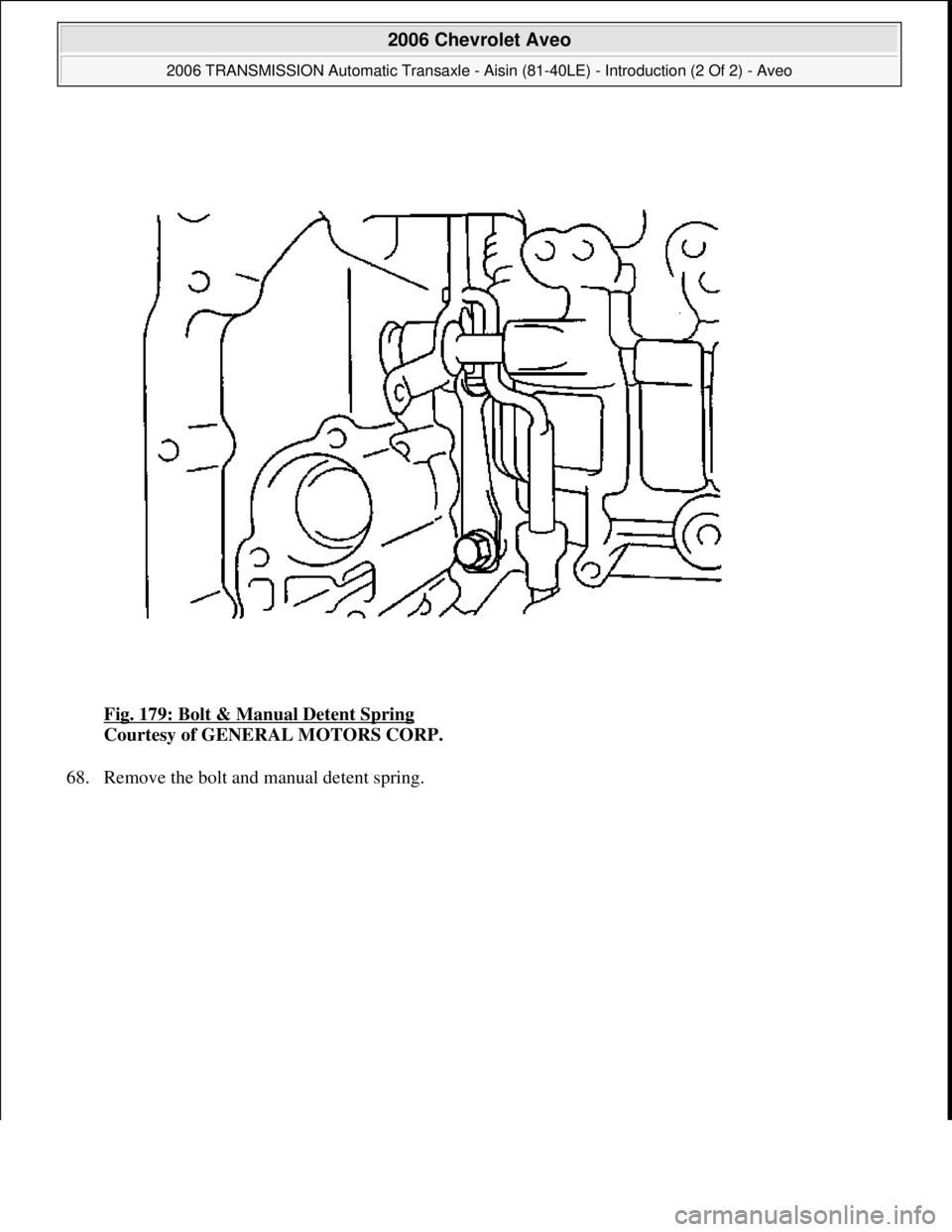

CHEVROLET AVEO 2002 Service Repair Manual Fig. 179: Bolt & Manual Detent Spring Courtesy of GENERAL MOTORS CORP. 68. Remove the bolt and manual detent spring. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) -

Page 2742 of 5127

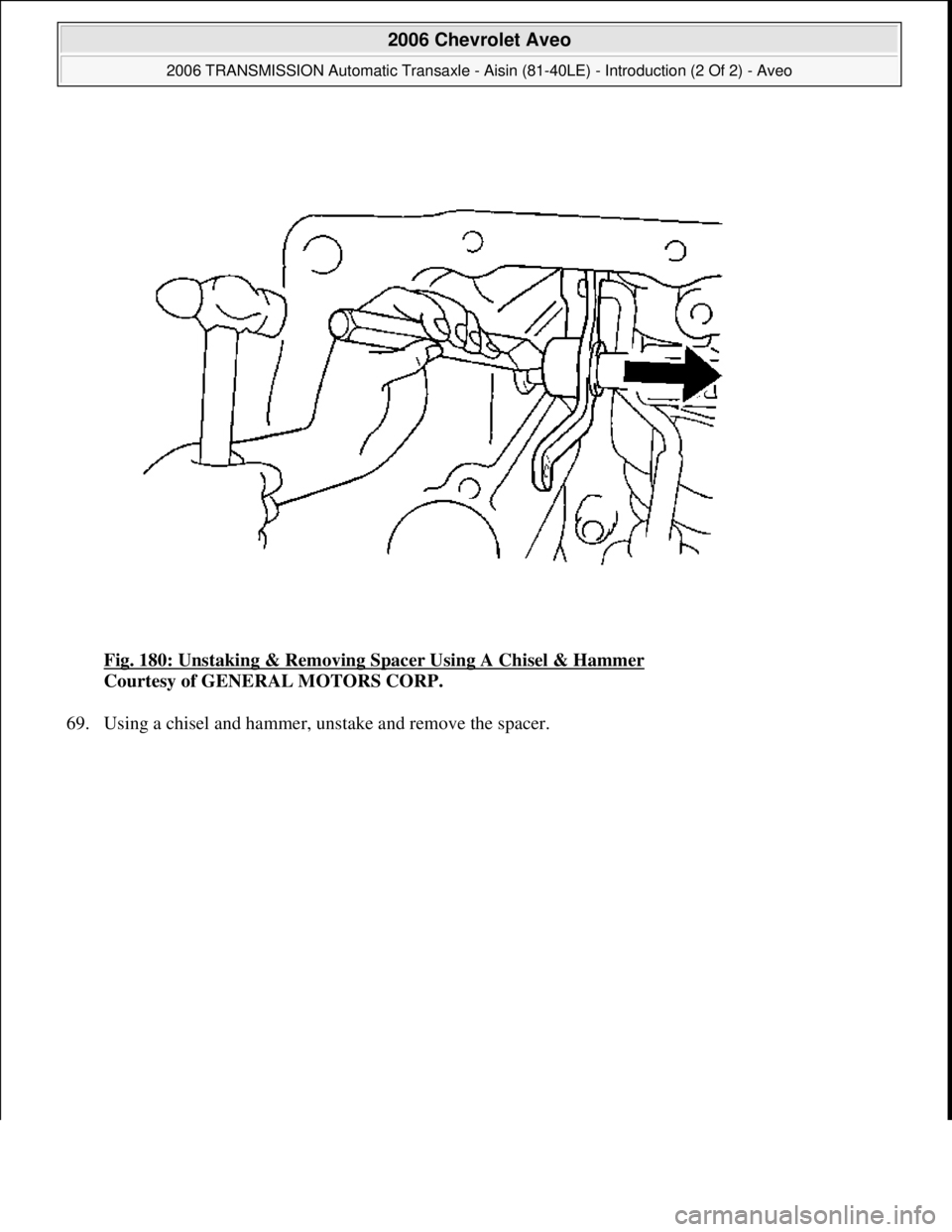

CHEVROLET AVEO 2002 Service Repair Manual Fig. 180: Unstaking & Removing Spacer Using A Chisel & Hammer Courtesy of GENERAL MOTORS CORP. 69. Usin g a chisel and hammer, unstake and remove the spacer. 2006 Chevrolet Aveo 2006 TRANSMISSIO

Page 2743 of 5127

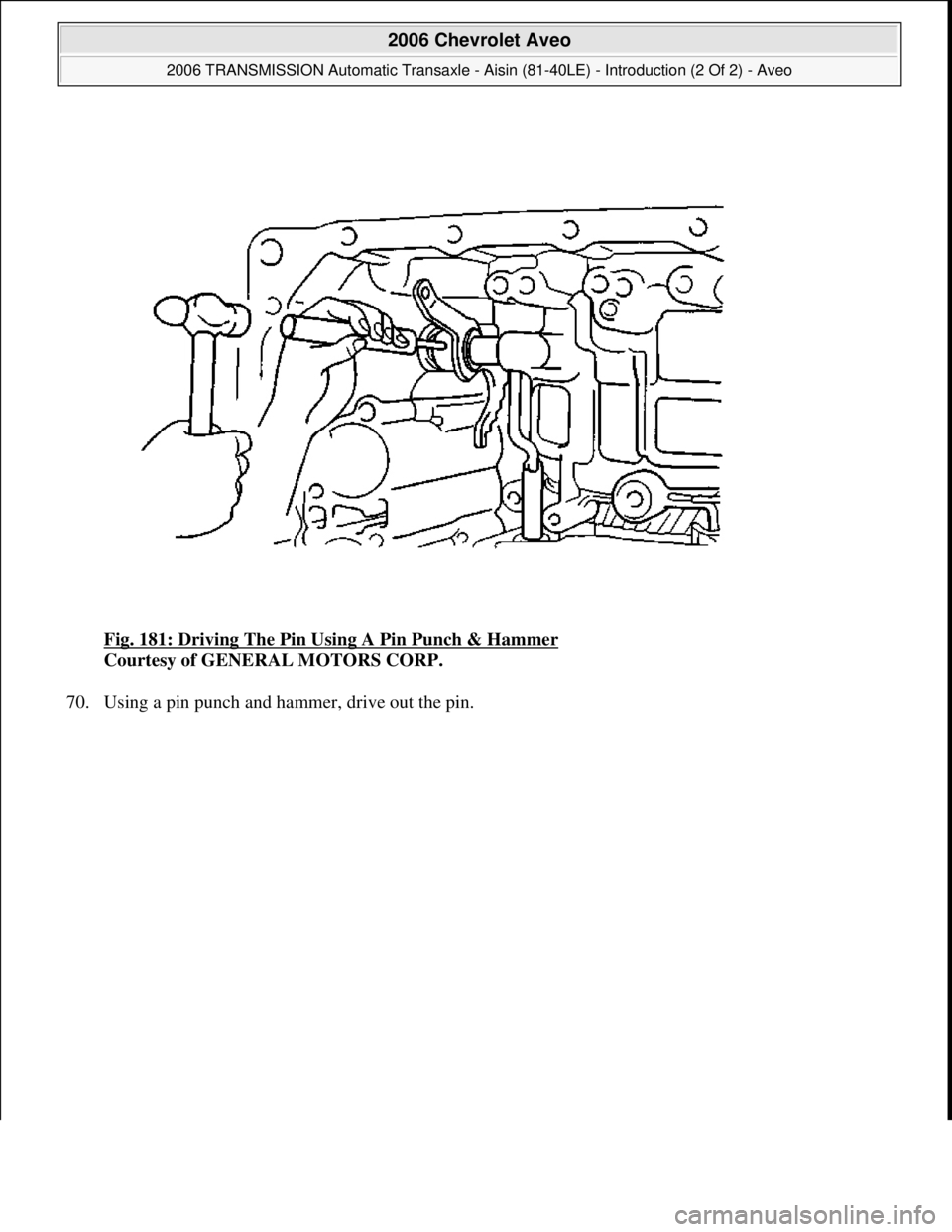

CHEVROLET AVEO 2002 Service Repair Manual Fig. 181: Driving The Pin Using A Pin Punch & Hammer Courtesy of GENERAL MOTORS CORP. 70. Using a pin punch and hammer, drive out the pin. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transax

Page 2744 of 5127

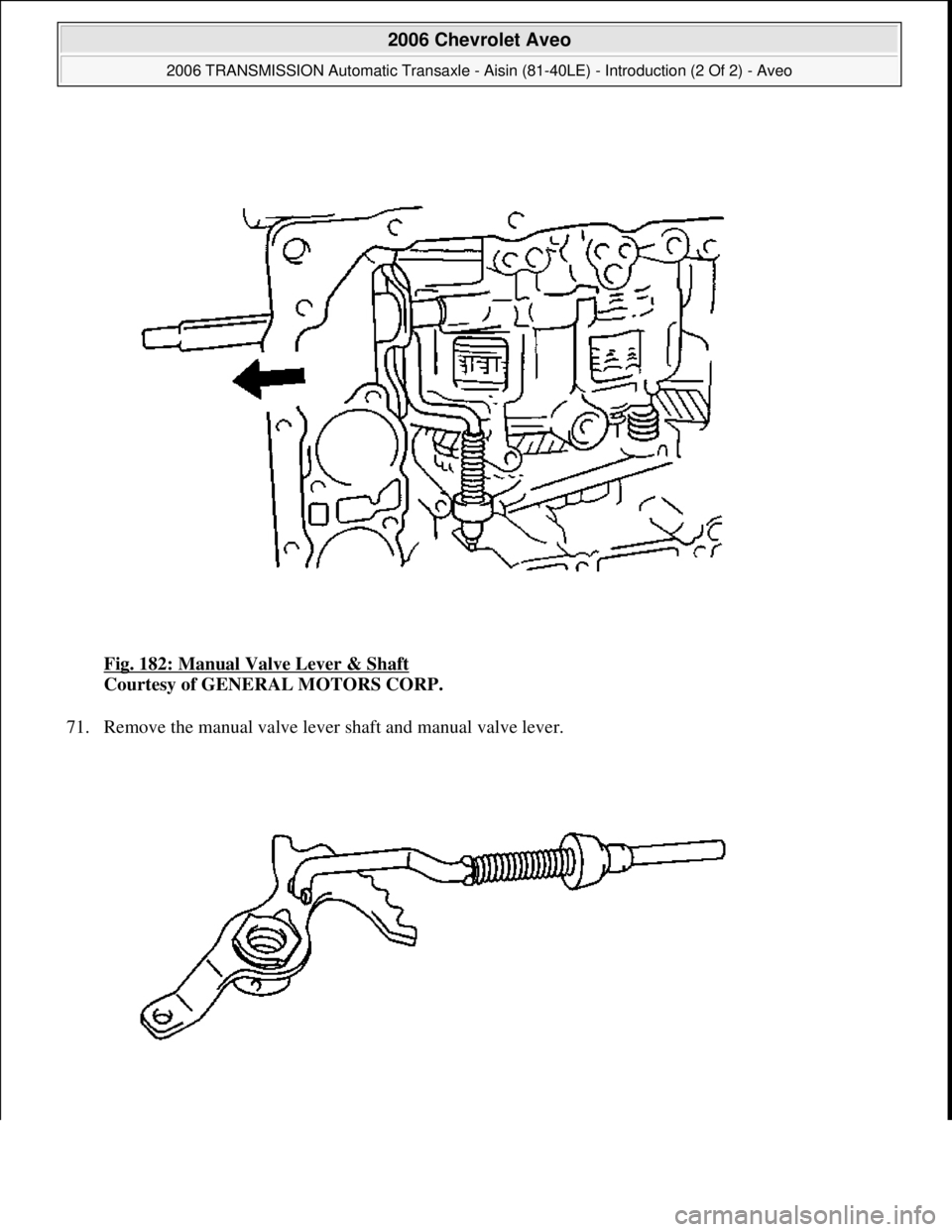

CHEVROLET AVEO 2002 Service Repair Manual Fig. 182: Manual Valve Lever & Shaft Courtesy of GENERAL MOTORS CORP. 71. Remove the manual valve lever shaft and manual valve lever. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle -
