Page 4297 of 5127

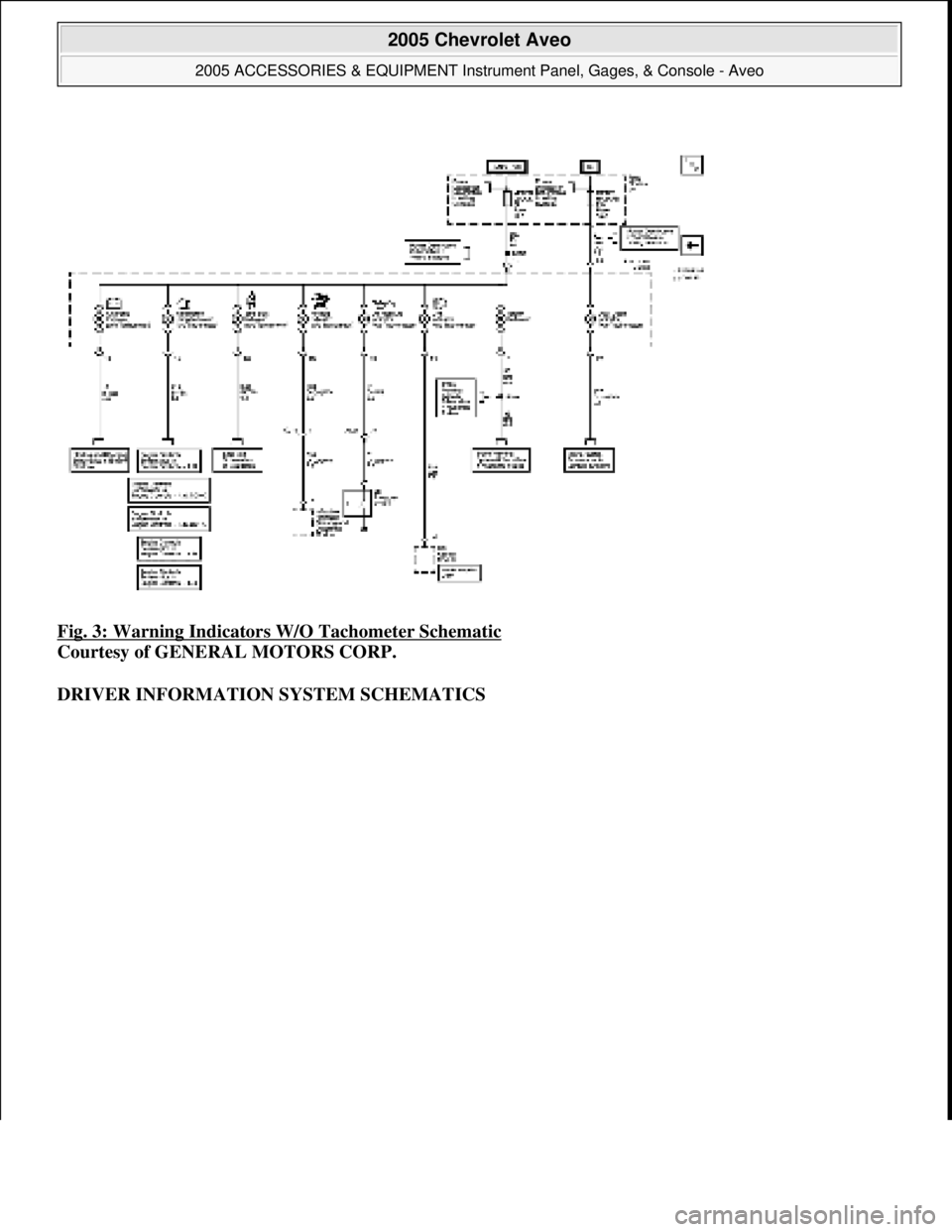

CHEVROLET AVEO 2002 Service Repair Manual Fig. 3: Warning Indicators W/O Tachometer Schematic Courtesy of GENERAL MOTORS CORP. DRIVER INFORMATION SYSTEM SCHEMATICS 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages

Page 4298 of 5127

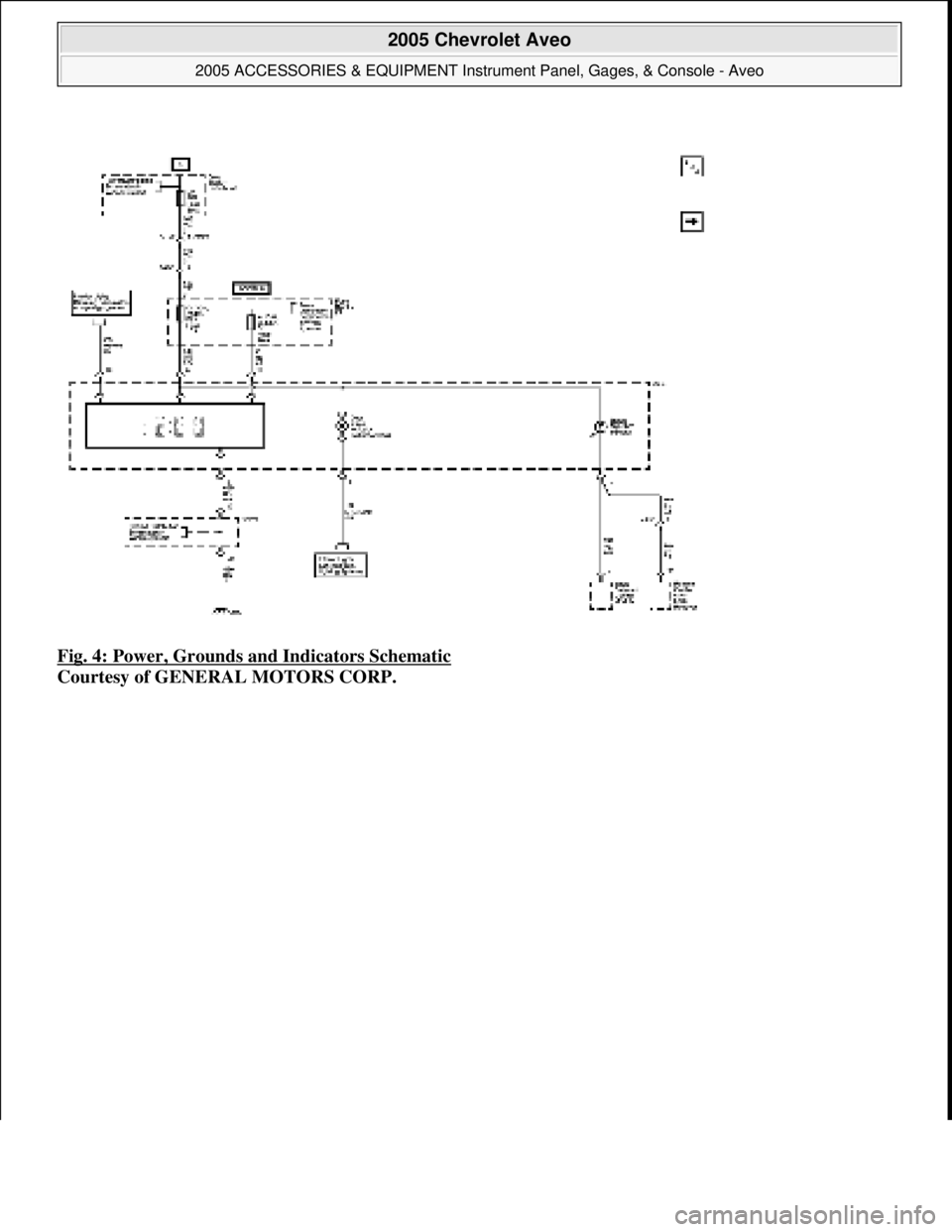

CHEVROLET AVEO 2002 Service Repair Manual Fig. 4: Power, Grounds and Indicators Schematic Courtesy of GENERAL MOTORS CORP. 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo Microsoft Friday, Ju

Page 4299 of 5127

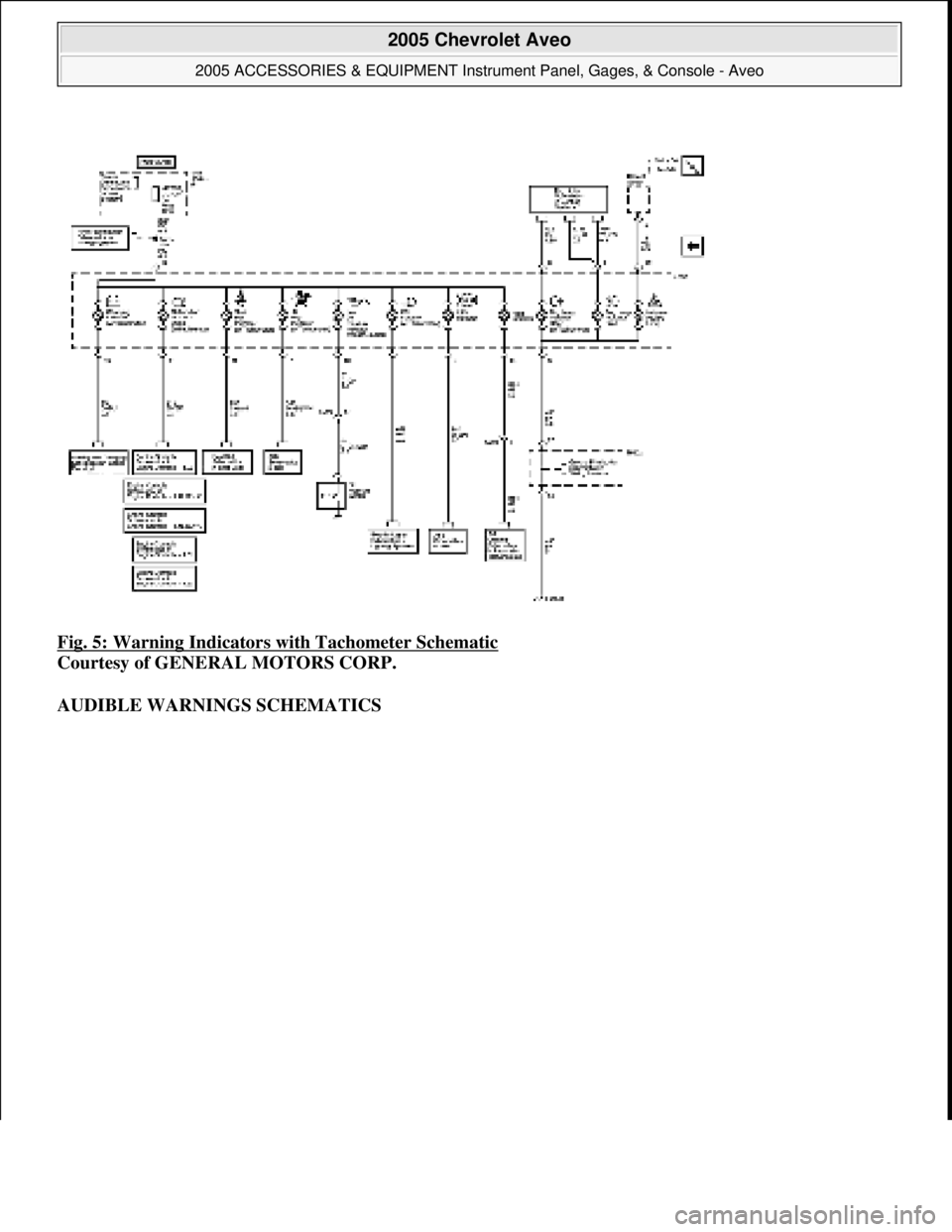

CHEVROLET AVEO 2002 Service Repair Manual Fig. 5: Warning Indicators with Tachometer Schematic Courtesy of GENERAL MOTORS CORP. AUDIBLE WARNINGS SCHEMATICS 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Cons

Page 4300 of 5127

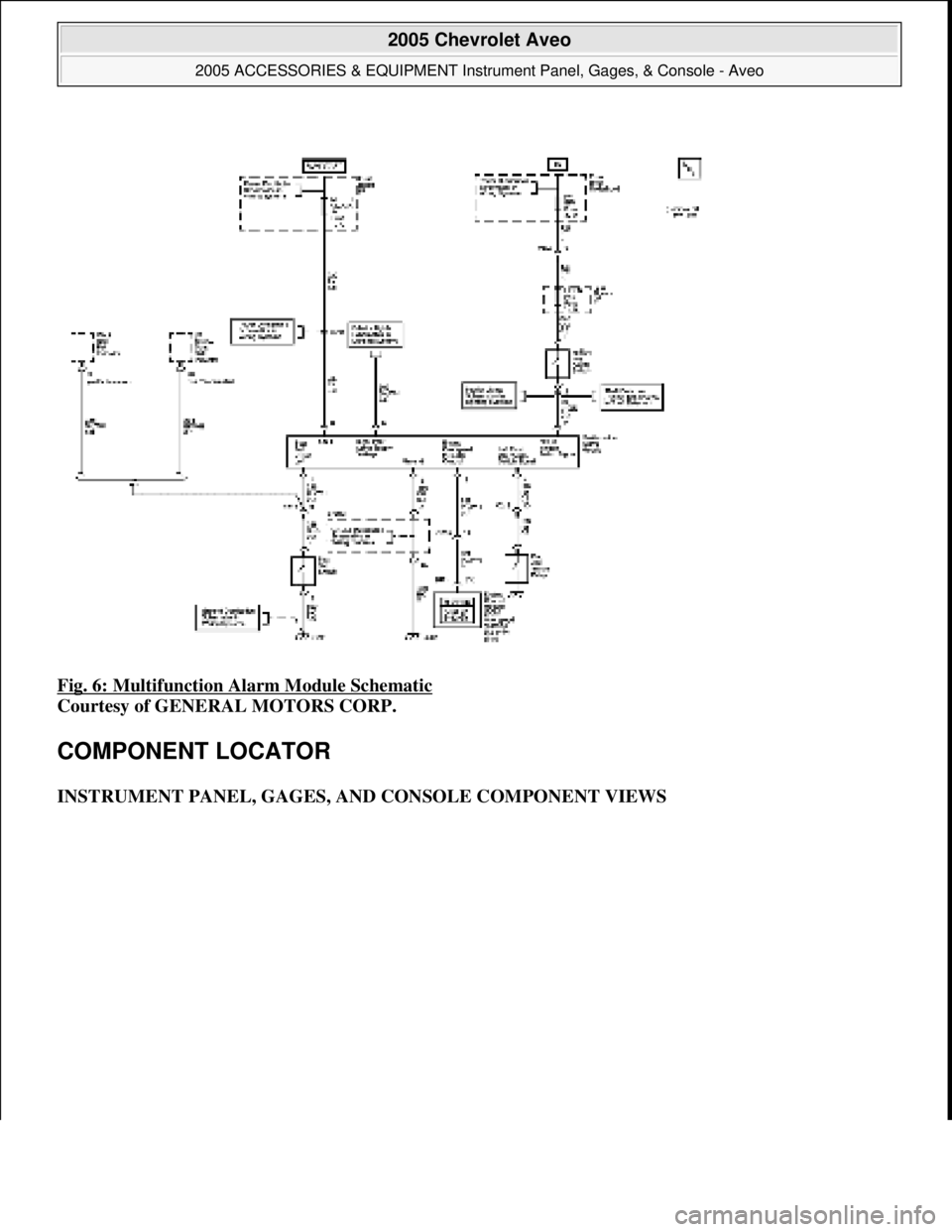

CHEVROLET AVEO 2002 Service Repair Manual Fig. 6: Multifunction Alarm Module Schematic Courtesy of GENERAL MOTORS CORP. COMPONENT LOCATOR INSTRUMENT PANEL, GAGES, AND CONSOLE COMPONENT VIEWS 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIP

Page 4301 of 5127

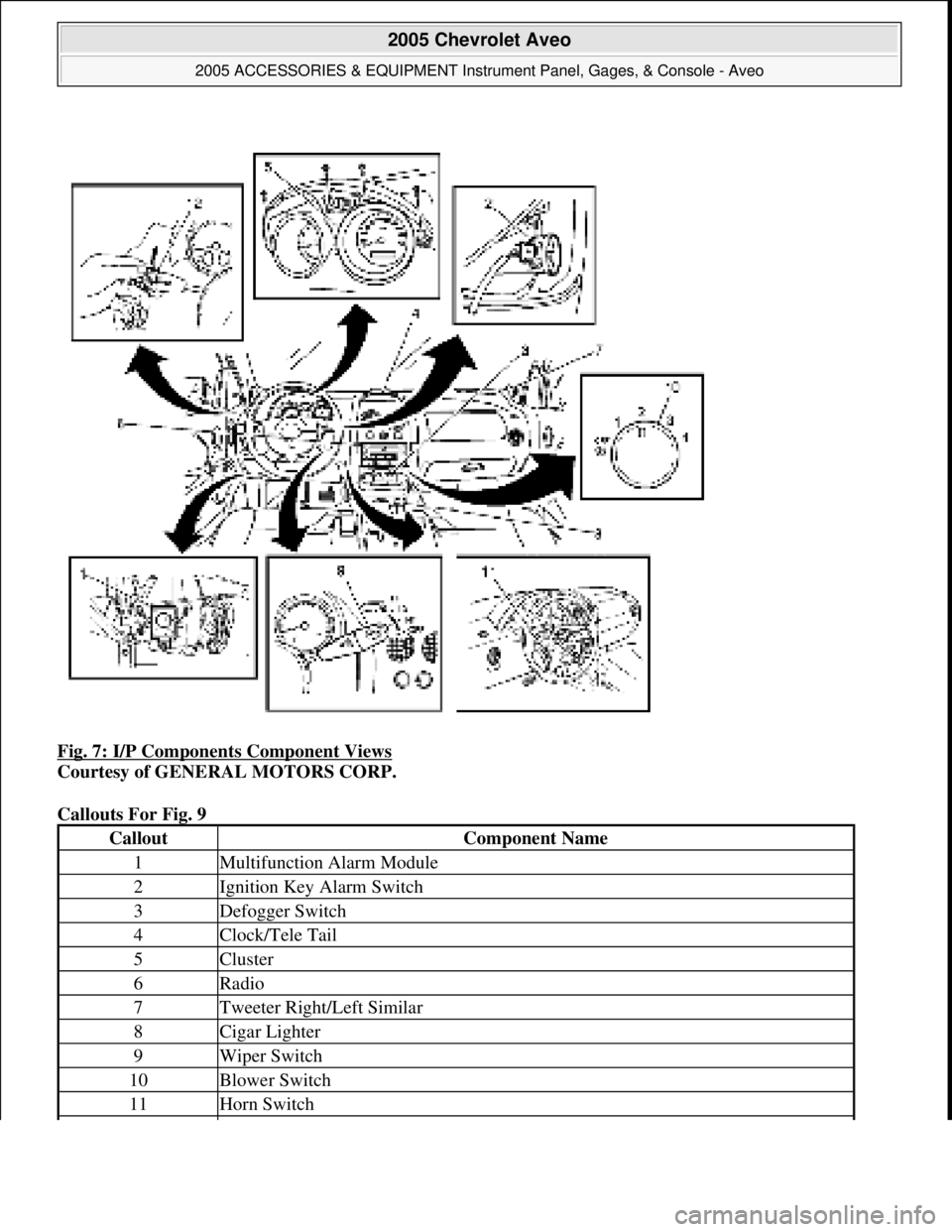

CHEVROLET AVEO 2002 Service Repair Manual Fig. 7: I/P Components Component Views Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 9 CalloutComponent Name 1Multifunction Alarm Module 2Ignition Key Alarm Switch 3Defogger Switch 4Clock/Tele

Page 4302 of 5127

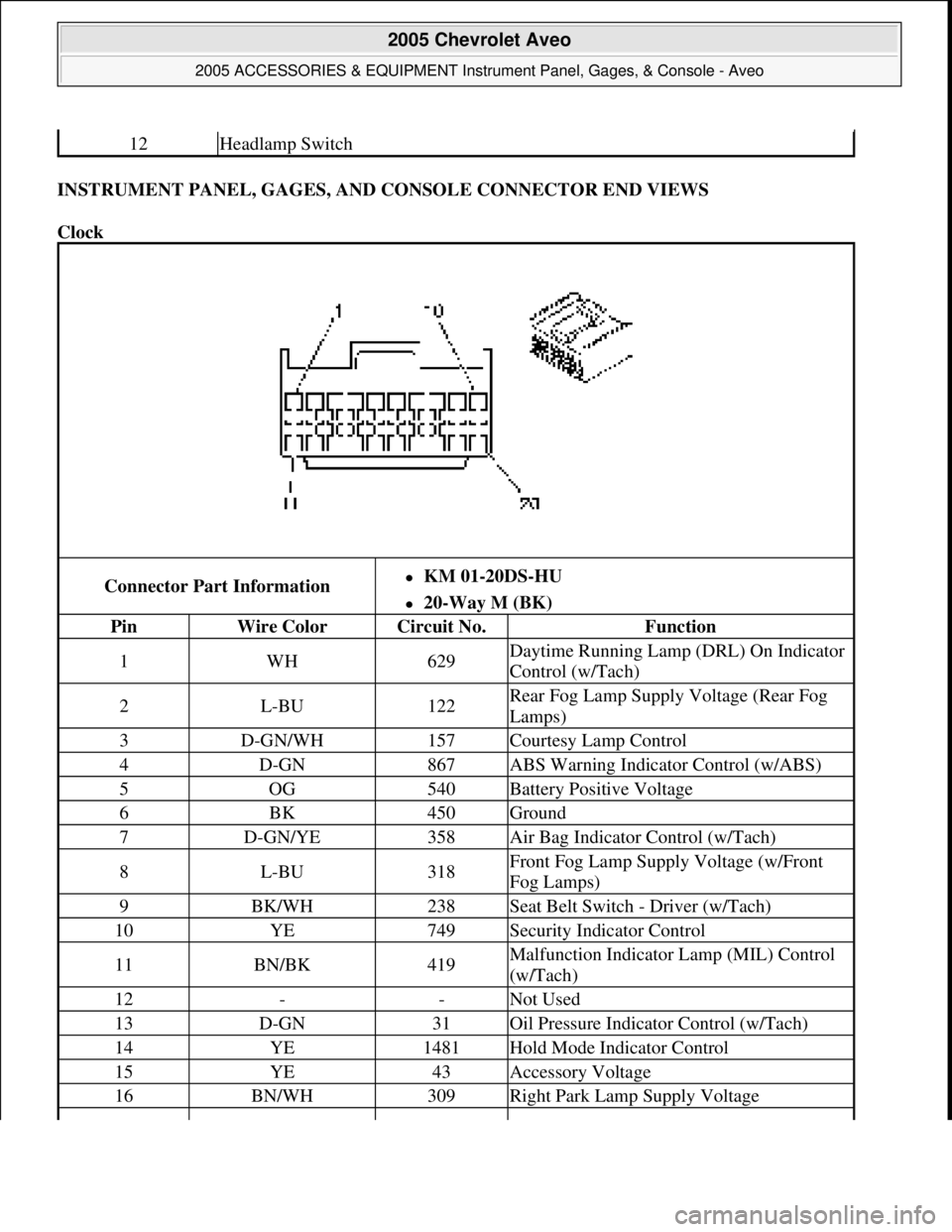

CHEVROLET AVEO 2002 Service Repair Manual INSTRUMENT PANEL, GAGES, AND CONSOLE CONNECTOR END VIEWS Clock 12Headlamp Switch Connector Part InformationKM 01-20DS-HU 20-Way M (BK) PinWire ColorCircuit No.Function 1WH629Daytime Runnin

Page 4303 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Ignition Key Alarm Switch Instrument Cluster 17PK239Ignition 1 Voltage 18--Not Used 19D-BU25Charge Indicator Control/Charge Indicator Signal (w/Tach) 20YE18Hazard Indicator Control Connector Part I

Page 4304 of 5127

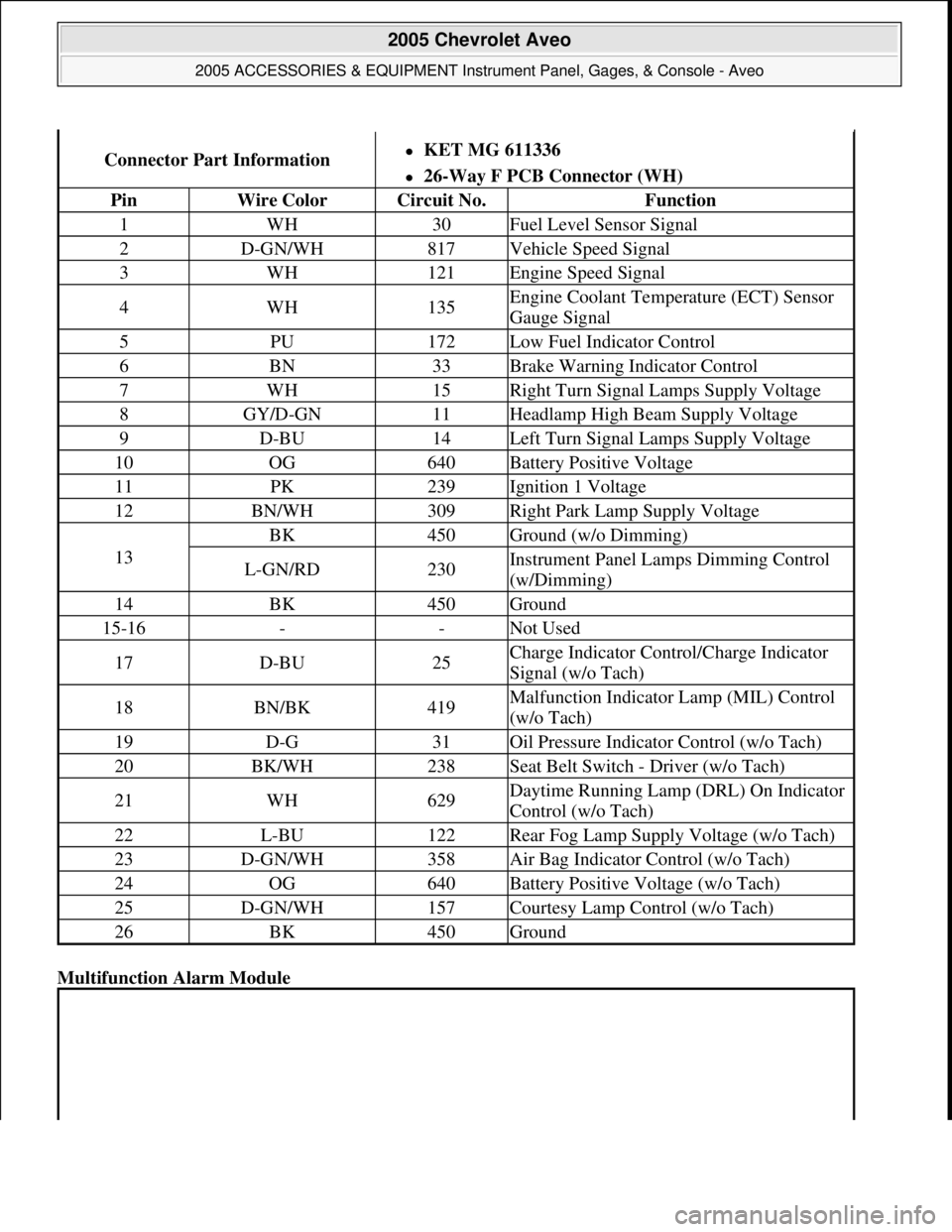

CHEVROLET AVEO 2002 Service Repair Manual Multifunction Alarm Module Connector Part InformationKET MG 611336 26-Way F PCB Connector (WH) PinWire ColorCircuit No.Function 1WH30Fuel Level Sensor Signal 2D-GN/WH817Vehicle Speed Signal
