Page 1497 of 5127

CHEVROLET AVEO 2002 Service Repair Manual 4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the

Page 1498 of 5127

CHEVROLET AVEO 2002 Service Repair Manual 6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. You may ﬁnd

Page 1499 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Air Bag Systems
This part explains the frontal and side impact air bag
systems.
Your vehicle has air bags – a frontal air bag for the
driver and another frontal air bag for the right front
passenger

Page 1500 of 5127

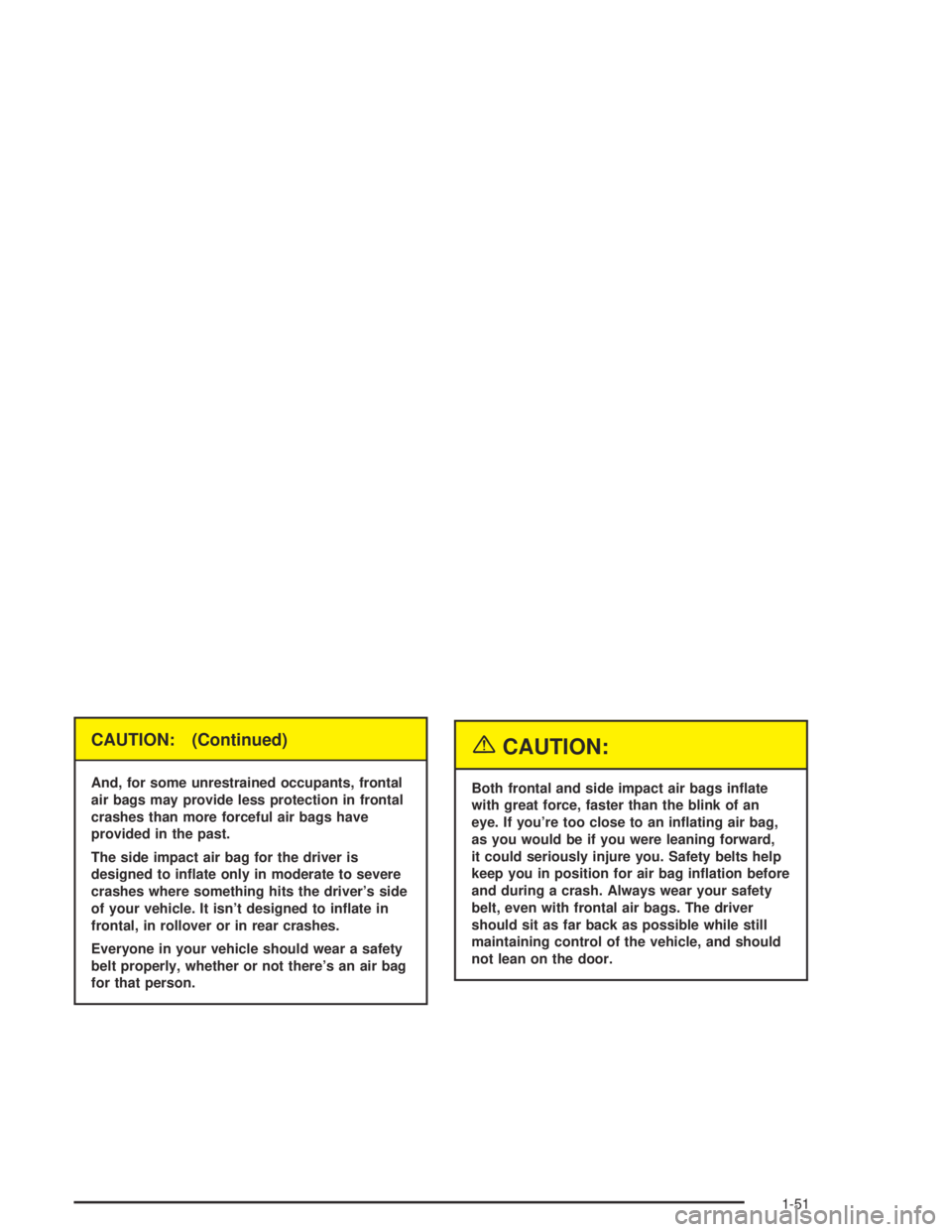

CHEVROLET AVEO 2002 Service Repair Manual CAUTION: (Continued)
And, for some unrestrained occupants, frontal
air bags may provide less protection in frontal
crashes than more forceful air bags have
provided in the past.
The side impact air ba

Page 1501 of 5127

CHEVROLET AVEO 2002 Service Repair Manual {CAUTION:
Anyone who is up against, or very close to,
any air bag when it in�ates can be seriously
injured or killed. Air bags plus lap-shoulder
belts offer the best protection for adults, but
not for

Page 1502 of 5127

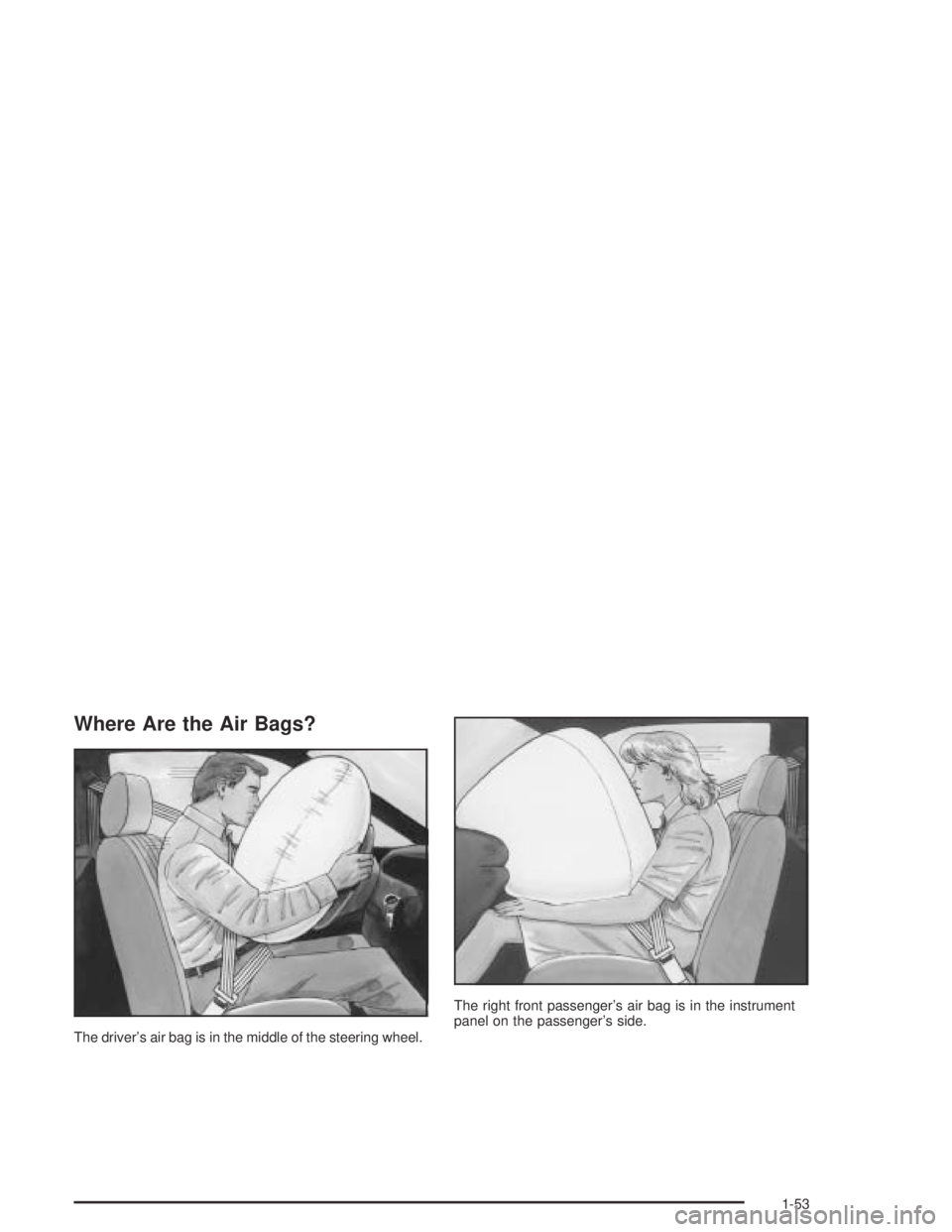

CHEVROLET AVEO 2002 Service Repair Manual Where Are the Air Bags?
The driver’s air bag is in the middle of the steering wheel.The right front passenger’s air bag is in the instrument
panel on the passenger’s side.
1-53

Page 1503 of 5127

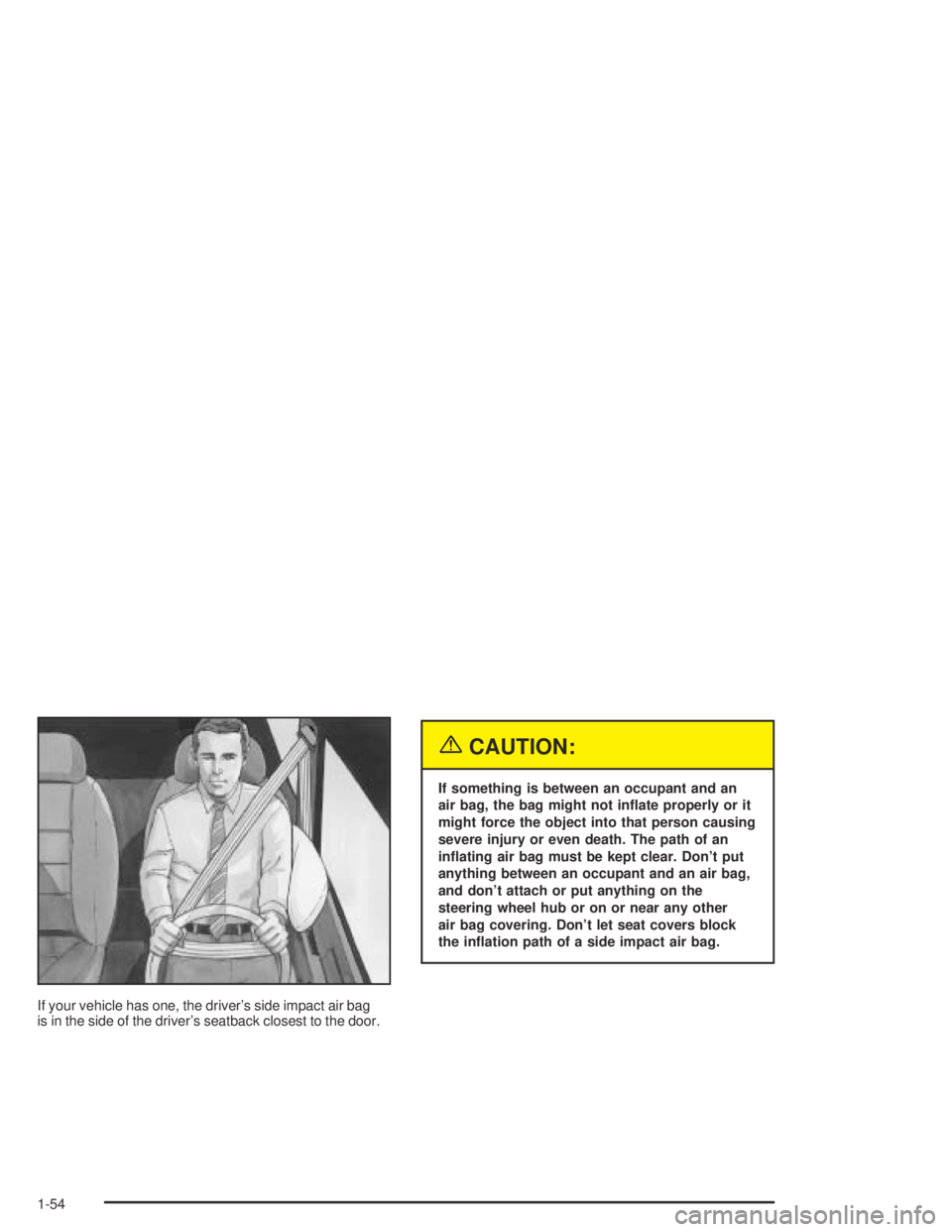

CHEVROLET AVEO 2002 Service Repair Manual If your vehicle has one, the driver’s side impact air bag
is in the side of the driver’s seatback closest to the door.
{CAUTION:
If something is between an occupant and an
air bag, the bag might n

Page 1504 of 5127

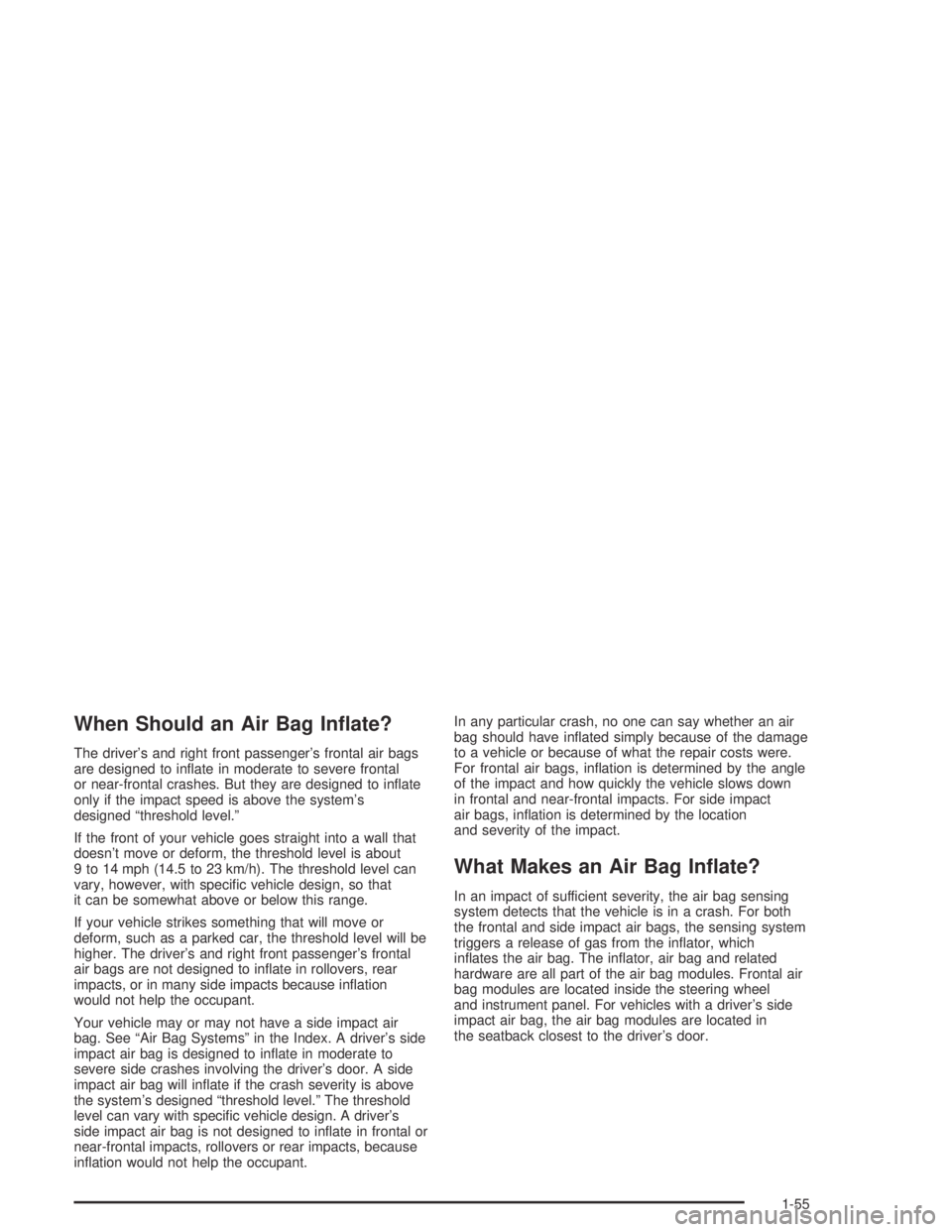

CHEVROLET AVEO 2002 Service Repair Manual When Should an Air Bag In�ate?
The driver’s and right front passenger’s frontal air bags
are designed to inﬂate in moderate to severe frontal
or near-frontal crashes. But they are designed to in

When Should an Air Bag Inate?
The driver’s and right front passenger’s frontal air bags
are designed to inﬂate in moderate to severe frontal
or near-frontal crashes. But they are designed to inﬂate
only if the impact speed is above the system’s
designed “threshold level.”
If the front of your vehicle goes straight into a wall that
doesn’t move or deform, the threshold level is about
9 to 14 mph (14.5 to 23 km/h). The threshold level can
vary, however, with speciﬁc vehicle design, so that
it can be somewhat above or below this range.
If your vehicle strikes something that will move or
deform, such as a parked car, the threshold level will be
higher. The driver’s and right front passenger’s frontal
air bags are not designed to inﬂate in rollovers, rear
impacts, or in many side impacts because inﬂation
would not help the occupant.
Your vehicle may or may not have a side impact air
bag. See “Air Bag Systems” in the Index. A driver’s side
impact air bag is designed to inﬂate in moderate to
severe side crashes involving the driver’s door. A side
impact air bag will inﬂate if the crash severity is above
the system’s designed “threshold level.” The threshold
level can vary with speciﬁc vehicle design. A driver’s
side impact air bag is not designed to inﬂate in frontal or
near-frontal impacts, rollovers or rear impacts, because
inﬂation would not help the occupant.In any particular crash, no one can say whether an air
bag should have inﬂated simply because of the damage
to a vehicle or because of what the repair costs were.
For frontal air bags, inﬂation is determined by the angle
of the impact and how quickly the vehicle slows down
in frontal and near-frontal impacts. For side impact
air bags, inﬂation is determined by the location
and severity of the impact.
What Makes an Air Bag Inate?
In an impact of sufficient severity, the air bag sensing
system detects that the vehicle is in a crash. For both
the frontal and side impact air bags, the sensing system
triggers a release of gas from the inﬂator, which
inﬂates the air bag. The inﬂator, air bag and related
hardware are all part of the air bag modules. Frontal air
bag modules are located inside the steering wheel
and instrument panel. For vehicles with a driver’s side
impact air bag, the air bag modules are located in
the seatback closest to the driver’s door.
1-55
