Page 4393 of 5127

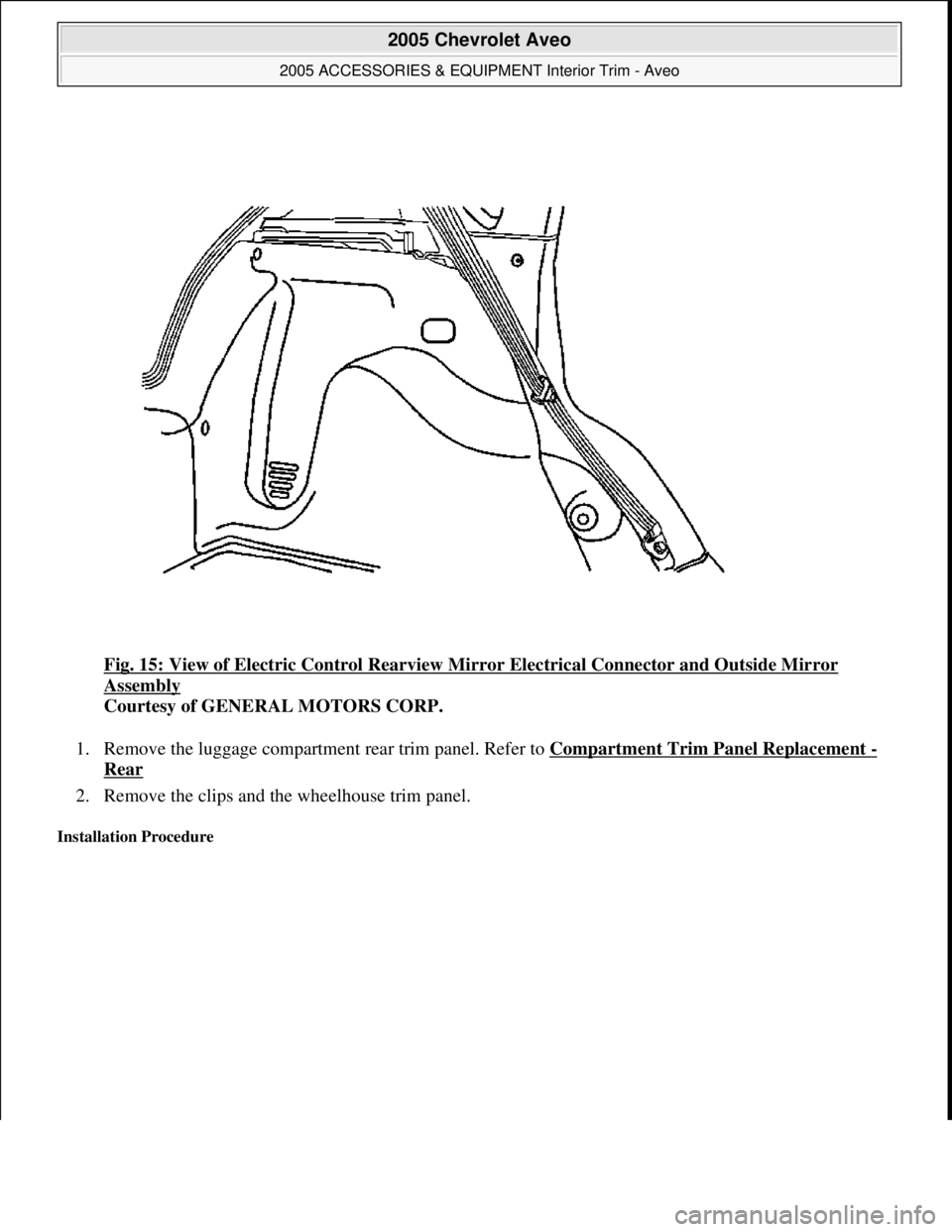

CHEVROLET AVEO 2002 Service Repair Manual Fig. 15: View of Electric Control Rearview Mirror Electrical Connector and Outside Mirror Assembly Courtesy of GENERAL MOTORS CORP. 1. Remove the luggage compartment rear trim panel. Refer to Compa

Page 4394 of 5127

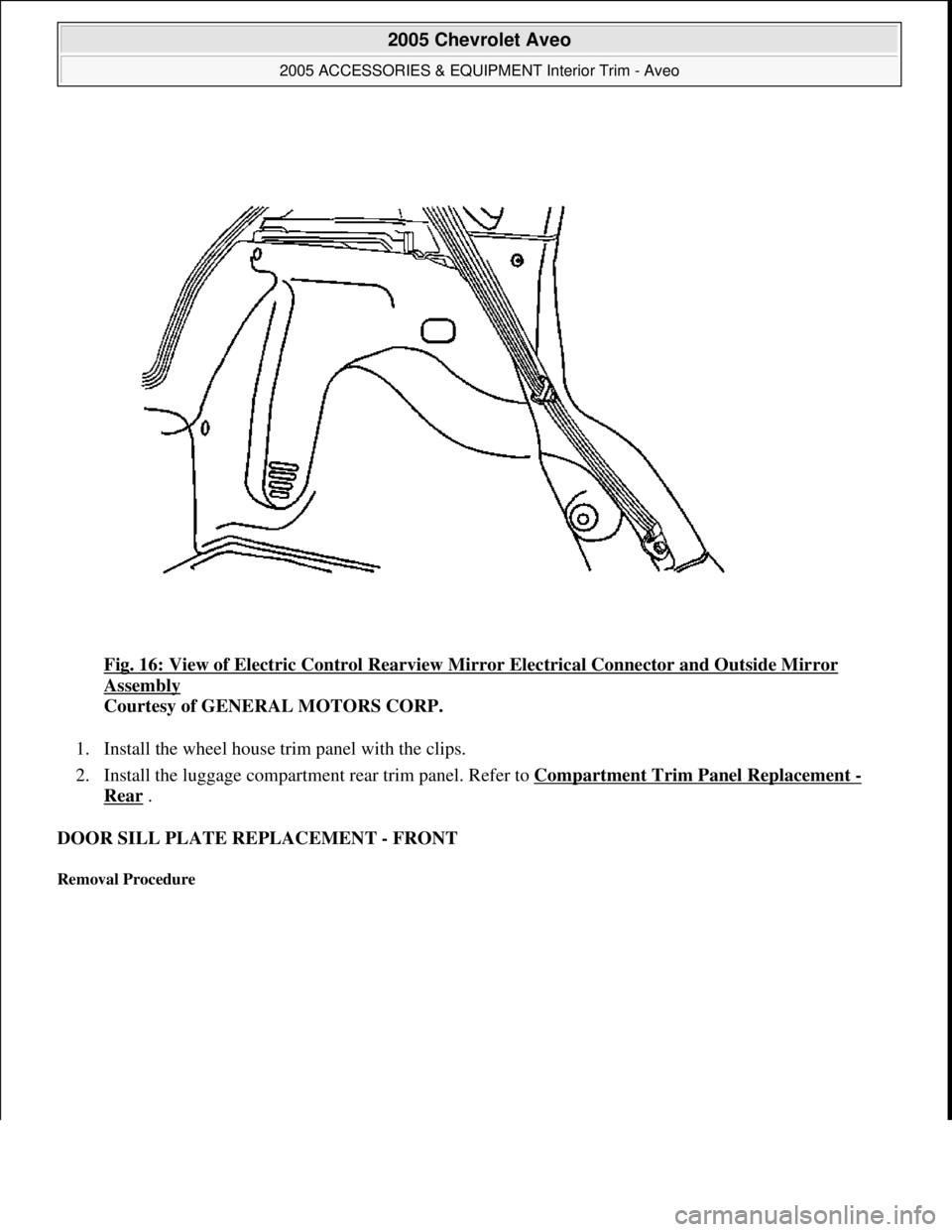

CHEVROLET AVEO 2002 Service Repair Manual Fig. 16: View of Electric Control Rearview Mirror Electrical Connector and Outside Mirror Assembly Courtesy of GENERAL MOTORS CORP. 1. Install the wheel house trim panel with the clips. 2. Instal

Page 4395 of 5127

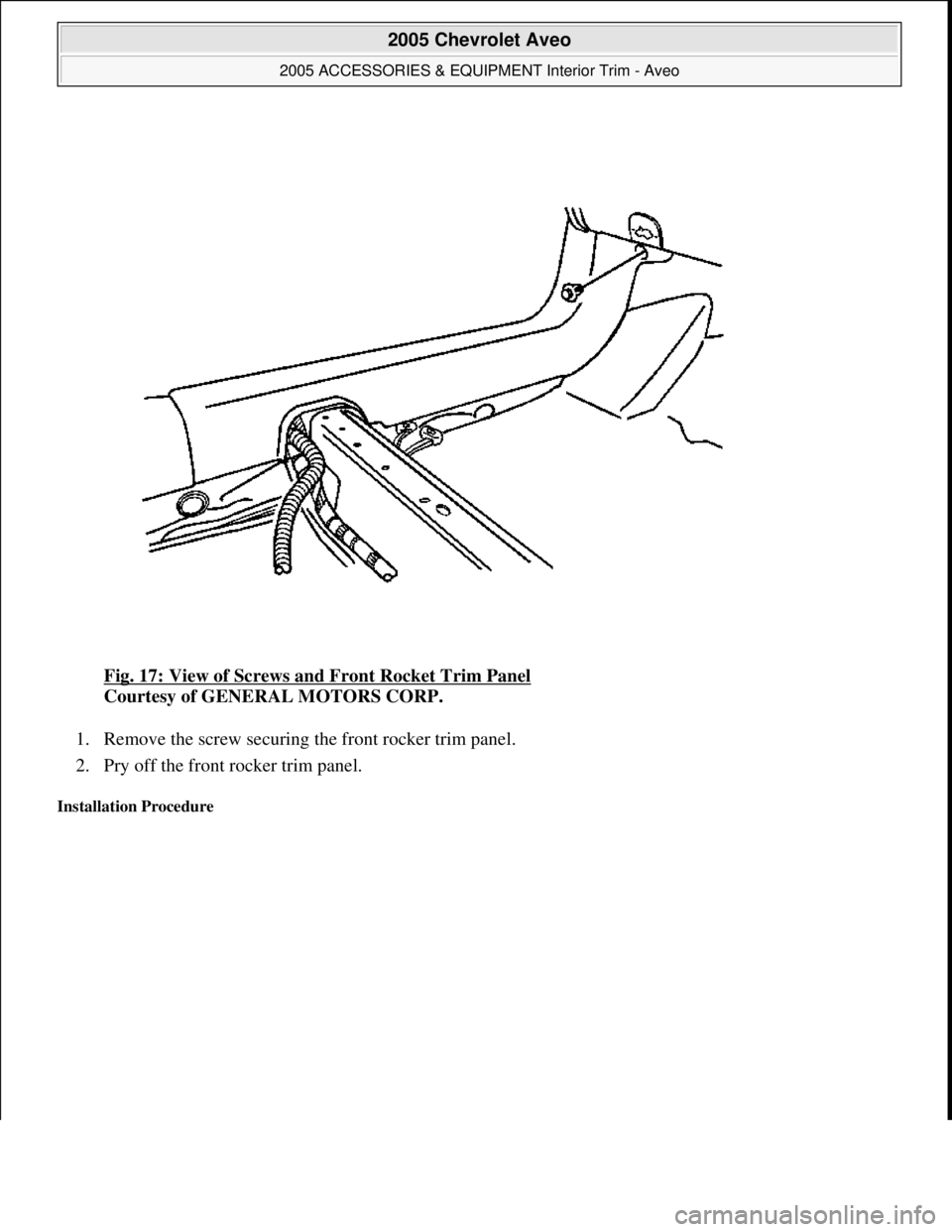

CHEVROLET AVEO 2002 Service Repair Manual Fig. 17: View of Screws and Front Rocket Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Remove the screw securing the front rocker trim panel. 2. Pry off the front rocker trim panel. Installatio

Page 4396 of 5127

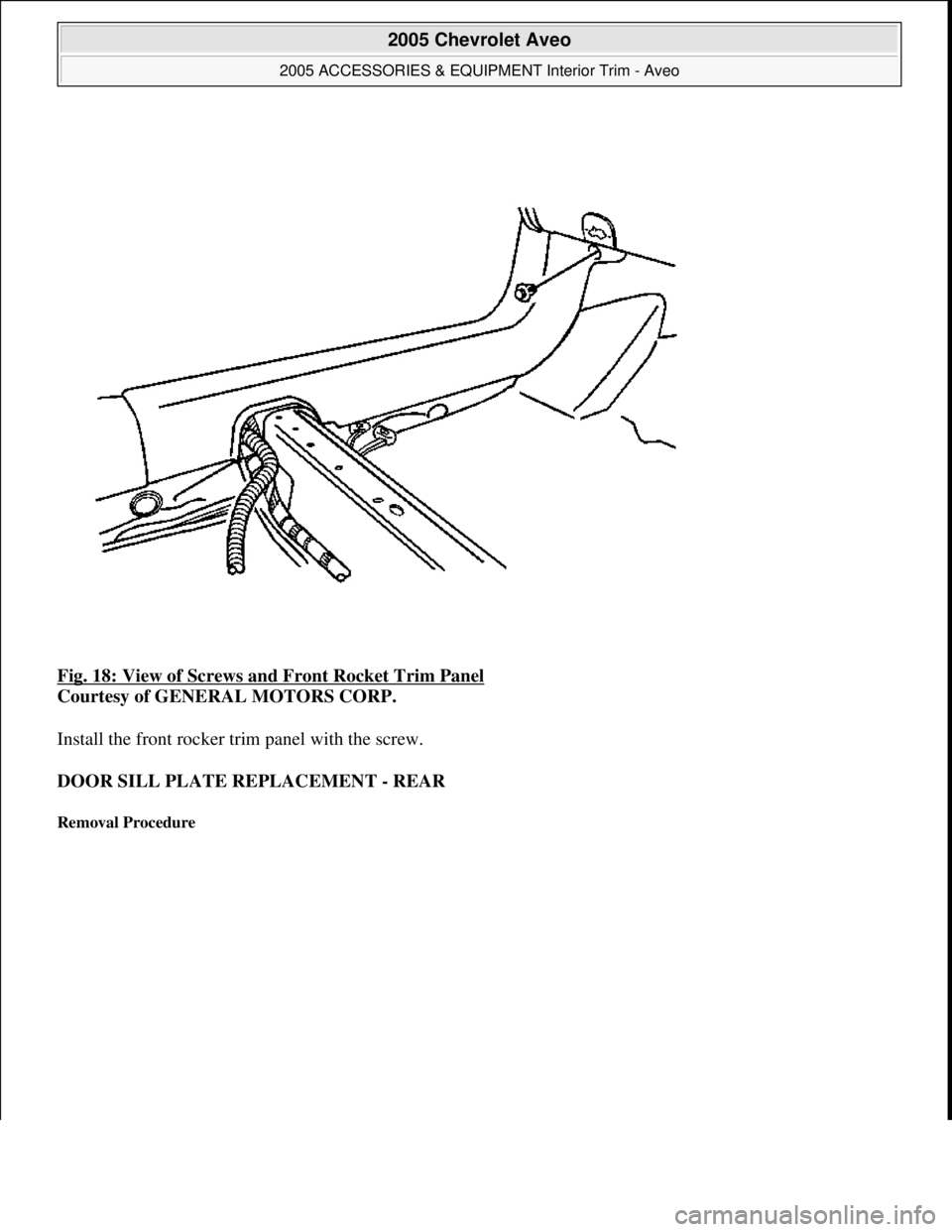

CHEVROLET AVEO 2002 Service Repair Manual Fig. 18: View of Screws and Front Rocket Trim Panel Courtesy of GENERAL MOTORS CORP. Install the front rocker trim panel with the screw. DOOR SILL PLATE REPLACEMENT - REAR Removal Procedure 200

Page 4397 of 5127

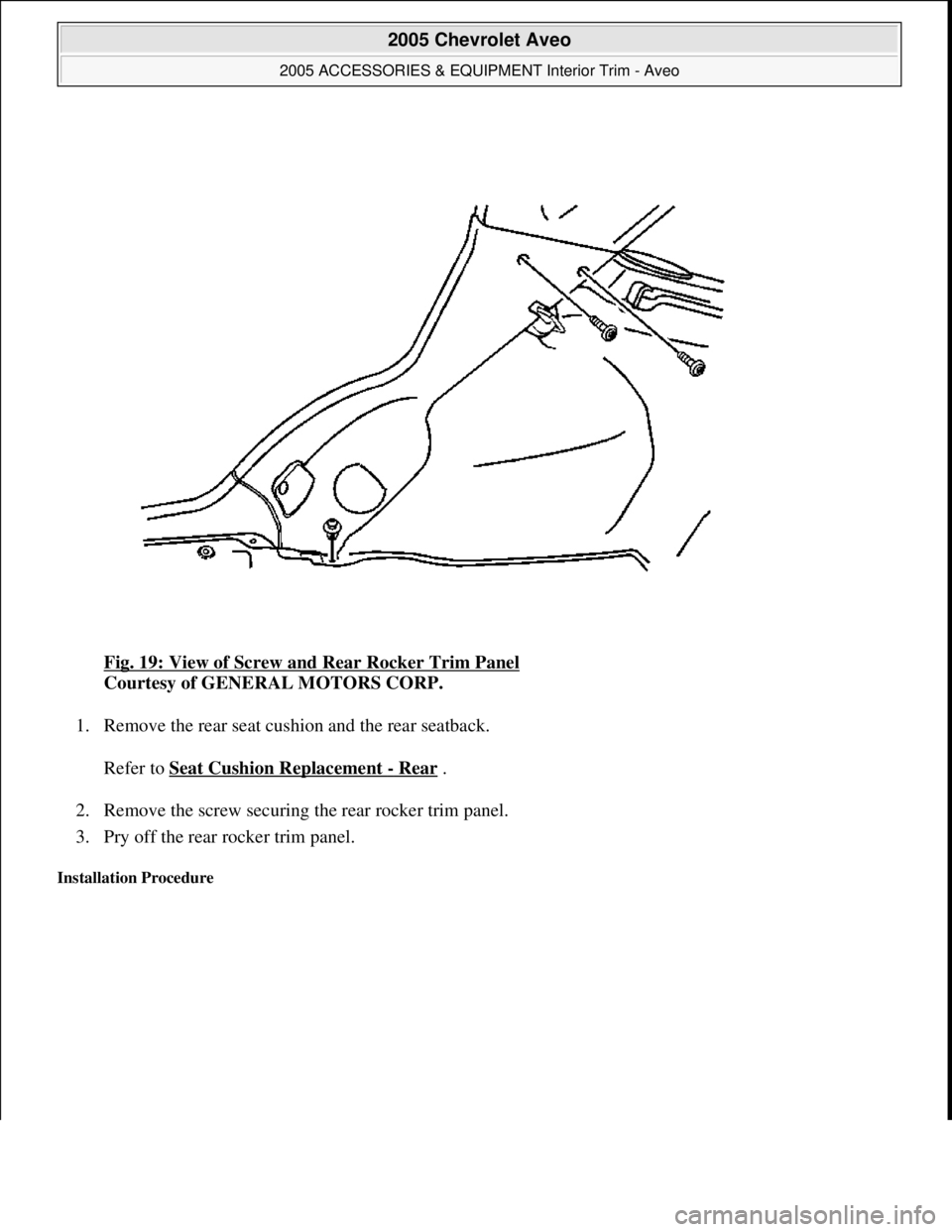

CHEVROLET AVEO 2002 Service Repair Manual Fig. 19: View of Screw and Rear Rocker Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Remove the rear seat cushion and the rear seatback. Refer to Seat Cushion Replacement - Rear . 2. Remove the

Page 4398 of 5127

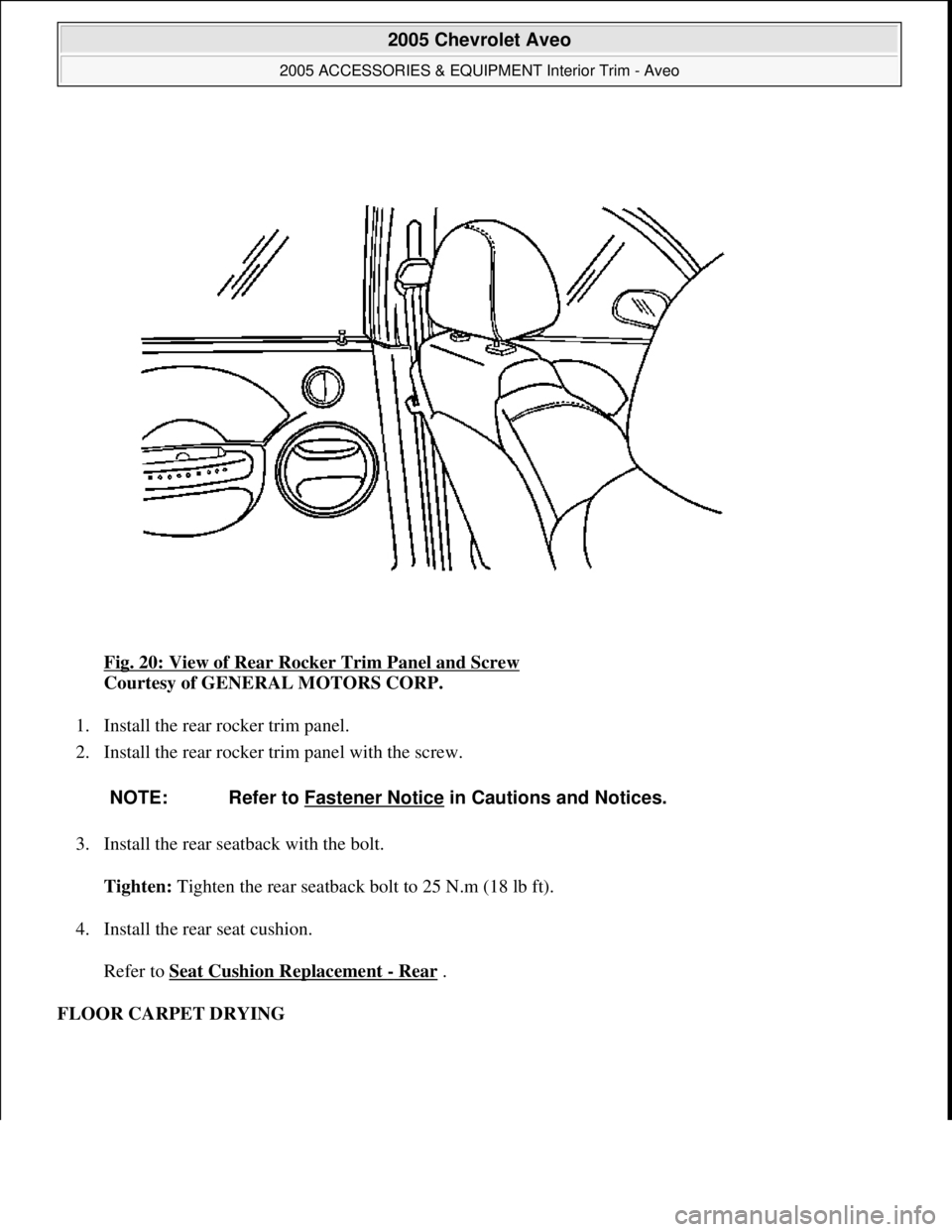

CHEVROLET AVEO 2002 Service Repair Manual Fig. 20: View of Rear Rocker Trim Panel and Screw Courtesy of GENERAL MOTORS CORP. 1. Install the rear rocker trim panel. 2. Install the rear rocker trim panel with the screw. 3. Install the rear

Page 4399 of 5127

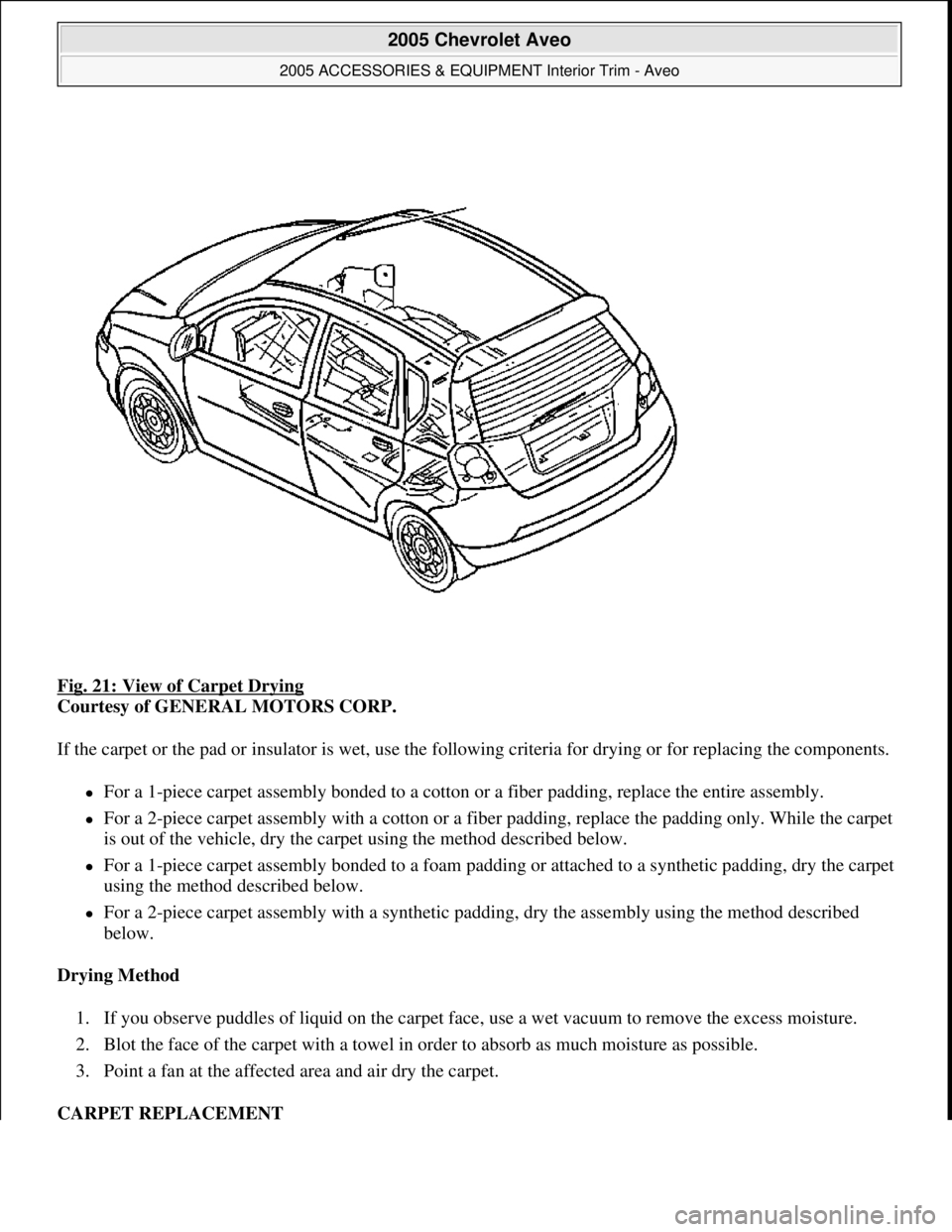

CHEVROLET AVEO 2002 Service Repair Manual Fig. 21: View of Carpet Drying Courtesy of GENERAL MOTORS CORP. If the carpet or the pad or insulator is wet, use the following criteria for drying or for replacing the components. For a 1-piece

Page 4400 of 5127

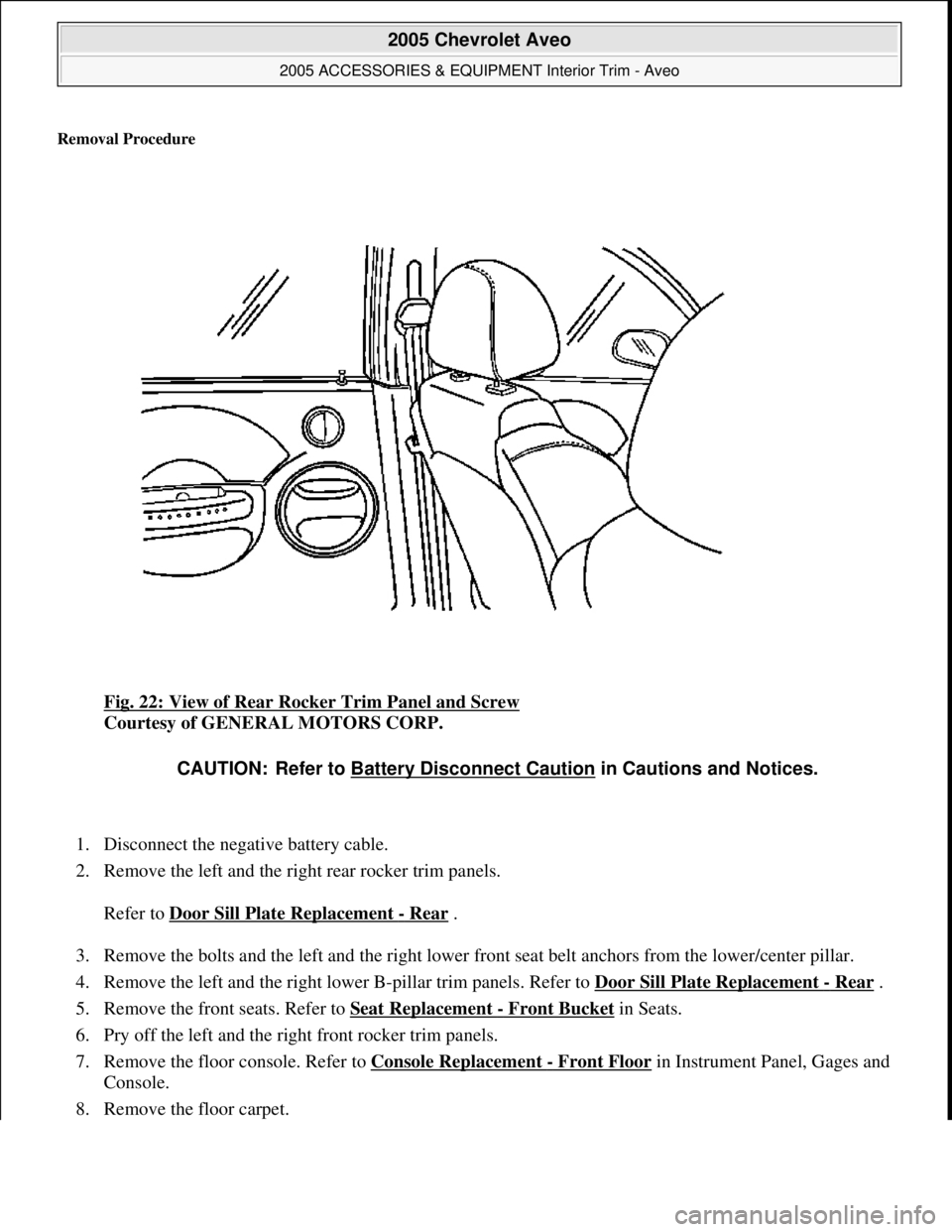

CHEVROLET AVEO 2002 Service Repair Manual Removal Procedure Fig. 22: View of Rear Rocker Trim Panel and Screw Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the left and the right rear rocker trim pa
