Page 4329 of 5127

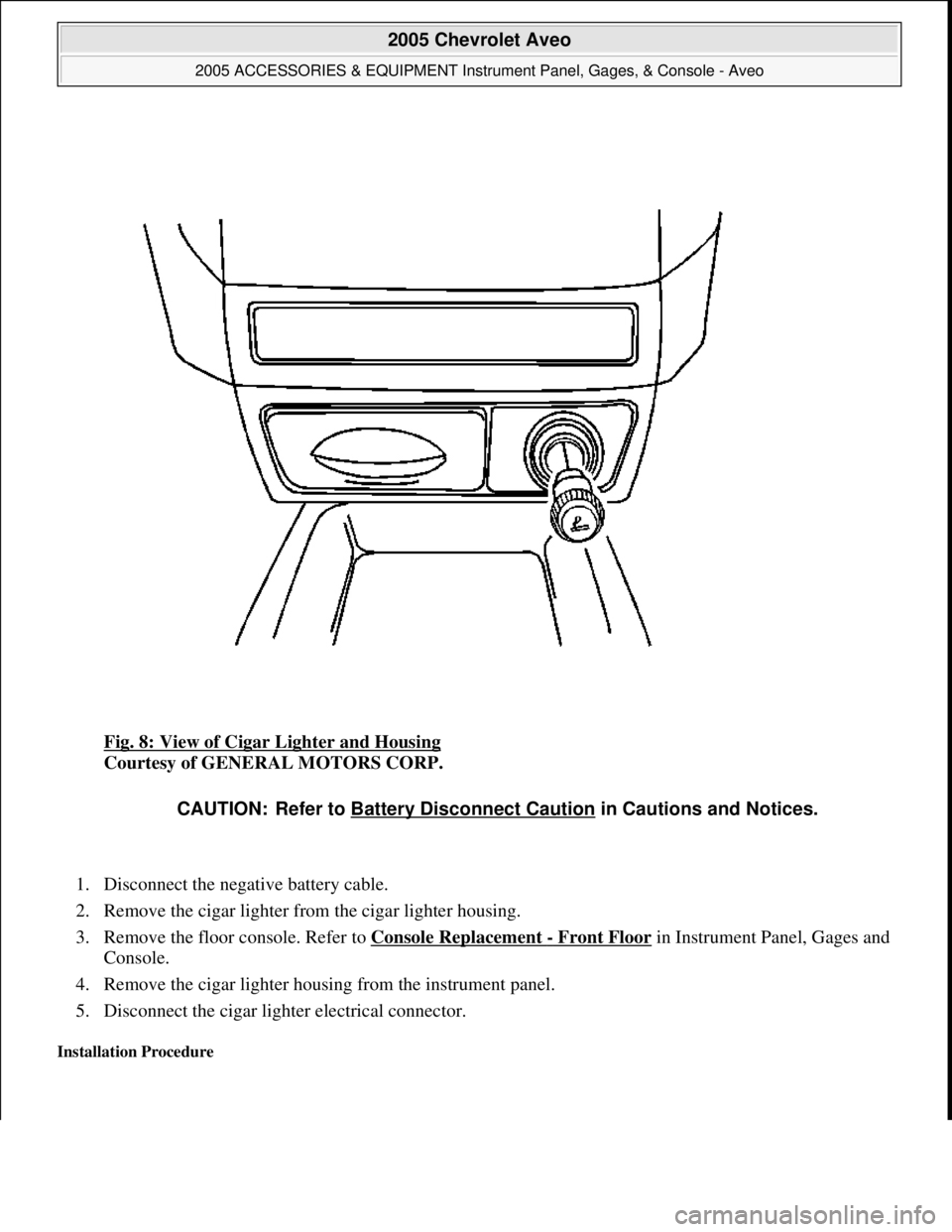

CHEVROLET AVEO 2002 Service Repair Manual Fig. 8: View of Cigar Lighter and Housing Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the cigar lighter from the cigar lighter housing. 3. Remove the flo

Page 4330 of 5127

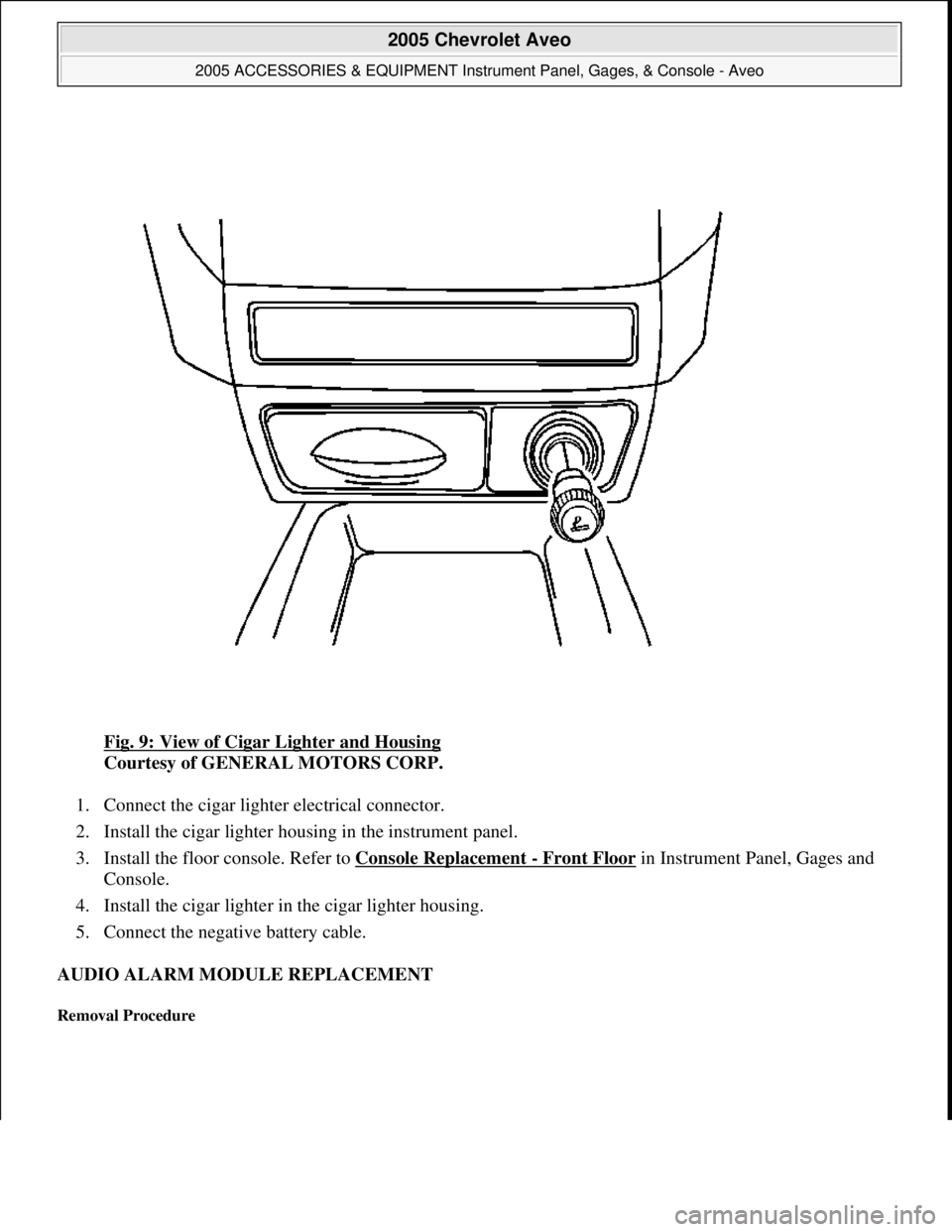

CHEVROLET AVEO 2002 Service Repair Manual Fig. 9: View of Cigar Lighter and Housing Courtesy of GENERAL MOTORS CORP. 1. Connect the cigar lighter electrical connector. 2. Install the cigar lighter housing in the instrument panel. 3. Ins

Page 4331 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 10: View of Chime Module and Screws Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the screws and the chime module. 3. Disconnect the electrical connec

Page 4332 of 5127

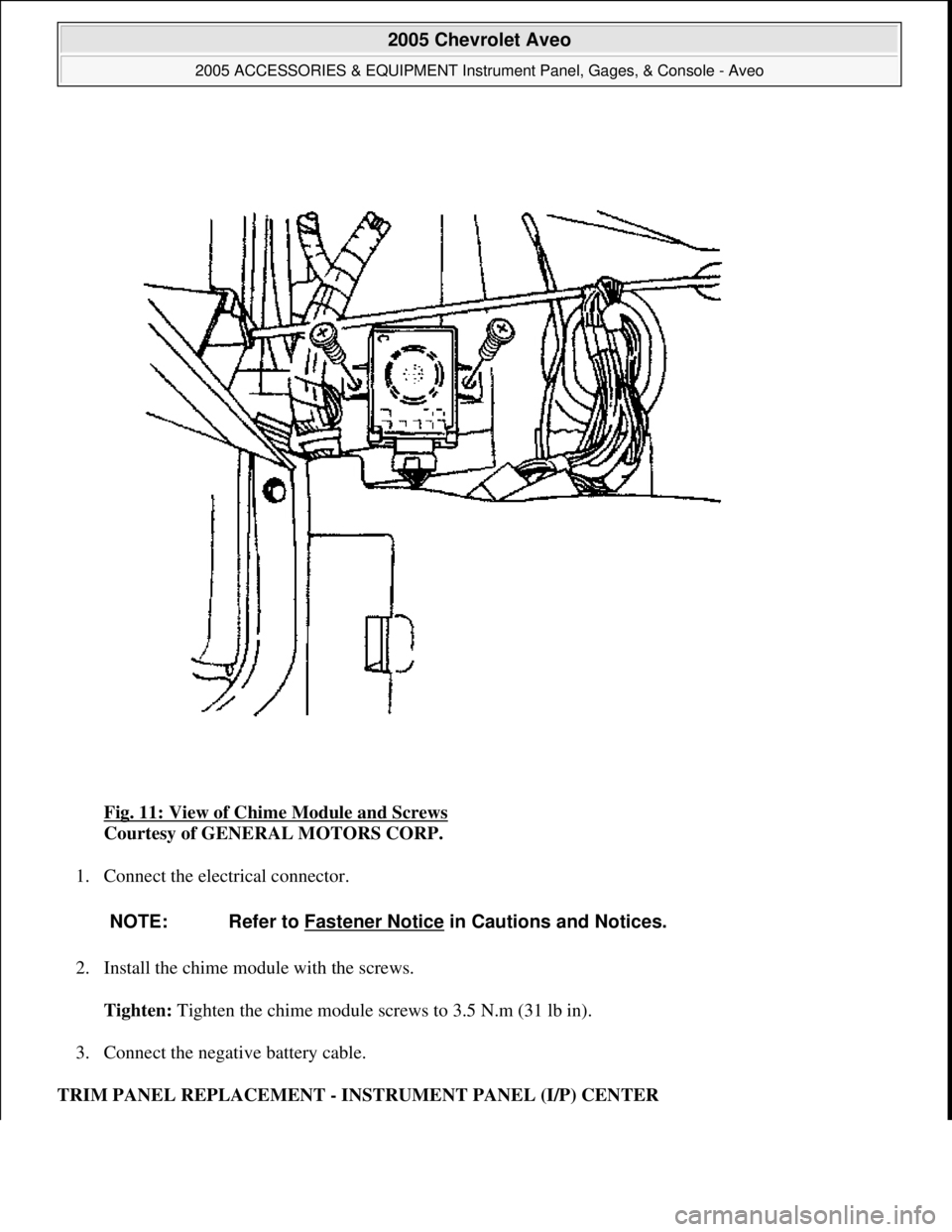

CHEVROLET AVEO 2002 Service Repair Manual Fig. 11: View of Chime Module and Screws Courtesy of GENERAL MOTORS CORP. 1. Connect the electrical connector. 2. Install the chime module with the screws. Tighten: Tighten the chime module screws

Page 4333 of 5127

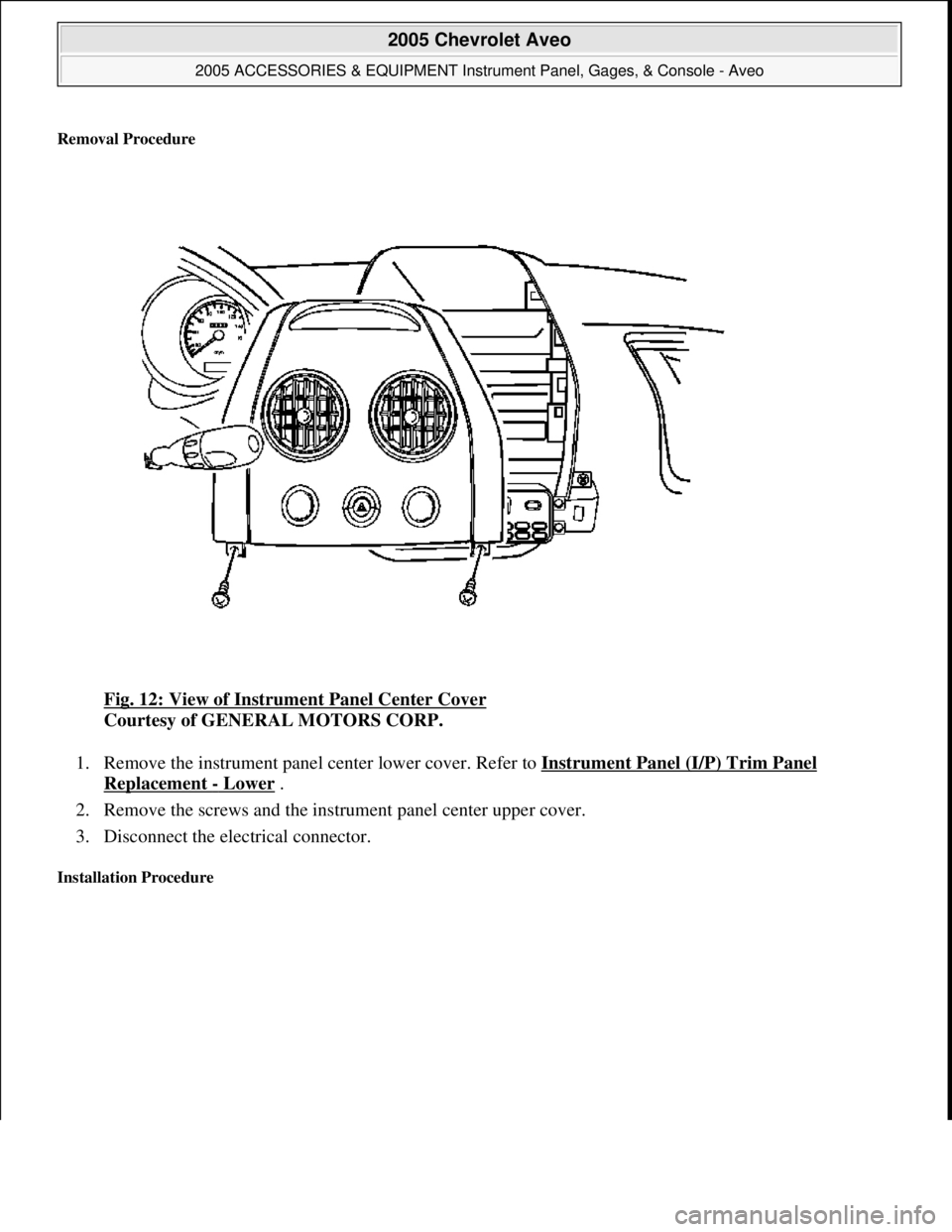

CHEVROLET AVEO 2002 Service Repair Manual Removal Procedure Fig. 12: View of Instrument Panel Center Cover Courtesy of GENERAL MOTORS CORP. 1. Remove the instrument panel center lower cover. Refer to Instrument Panel (I/P) Trim Panel Repl

Page 4334 of 5127

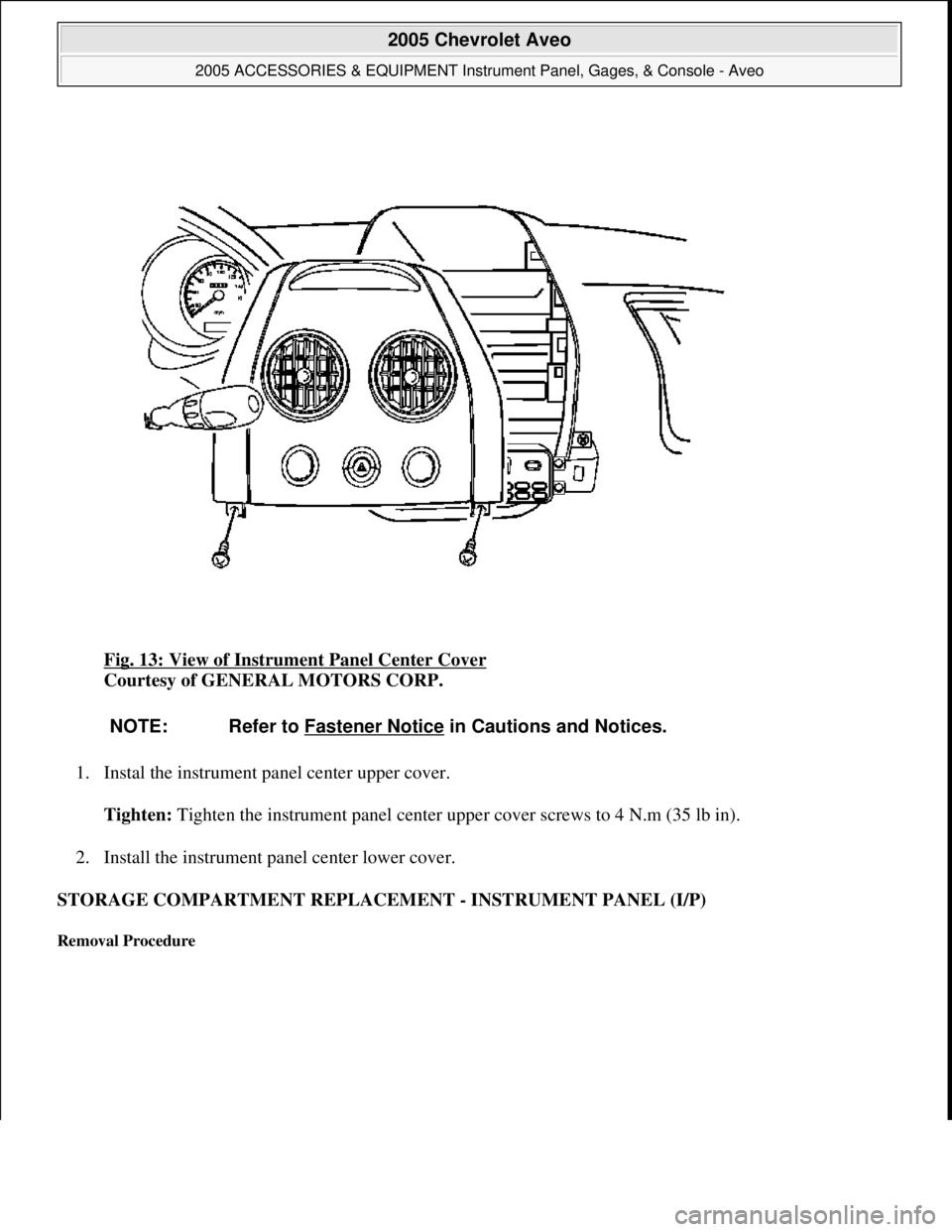

CHEVROLET AVEO 2002 Service Repair Manual Fig. 13: View of Instrument Panel Center Cover Courtesy of GENERAL MOTORS CORP. 1. Instal the instrument panel center upper cover. Tighten: Tighten the instrument panel center upper cover screws to

Page 4335 of 5127

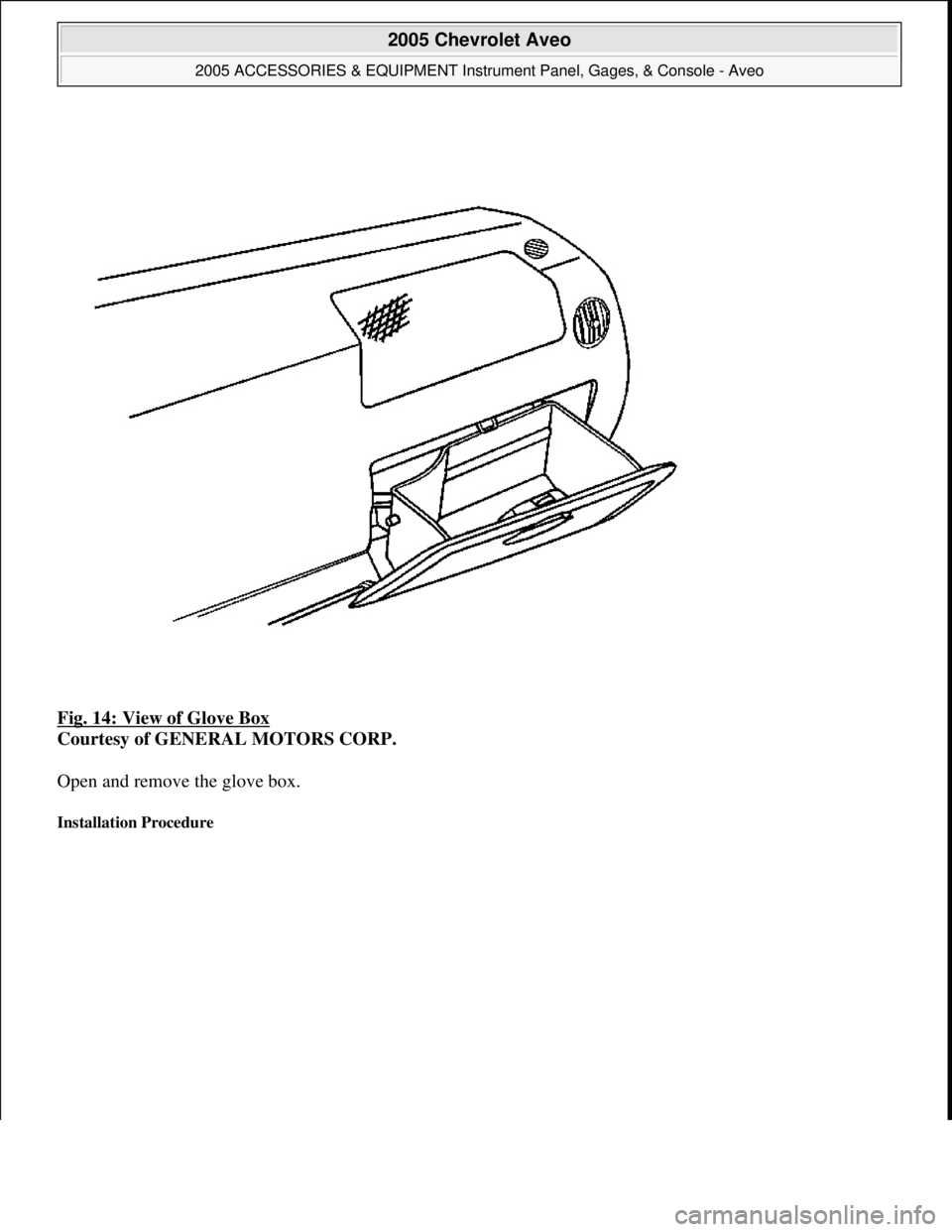

CHEVROLET AVEO 2002 Service Repair Manual Fig. 14: View of Glove Box Courtesy of GENERAL MOTORS CORP. Open and remove the glove box. Installation Procedure 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Con

Page 4336 of 5127

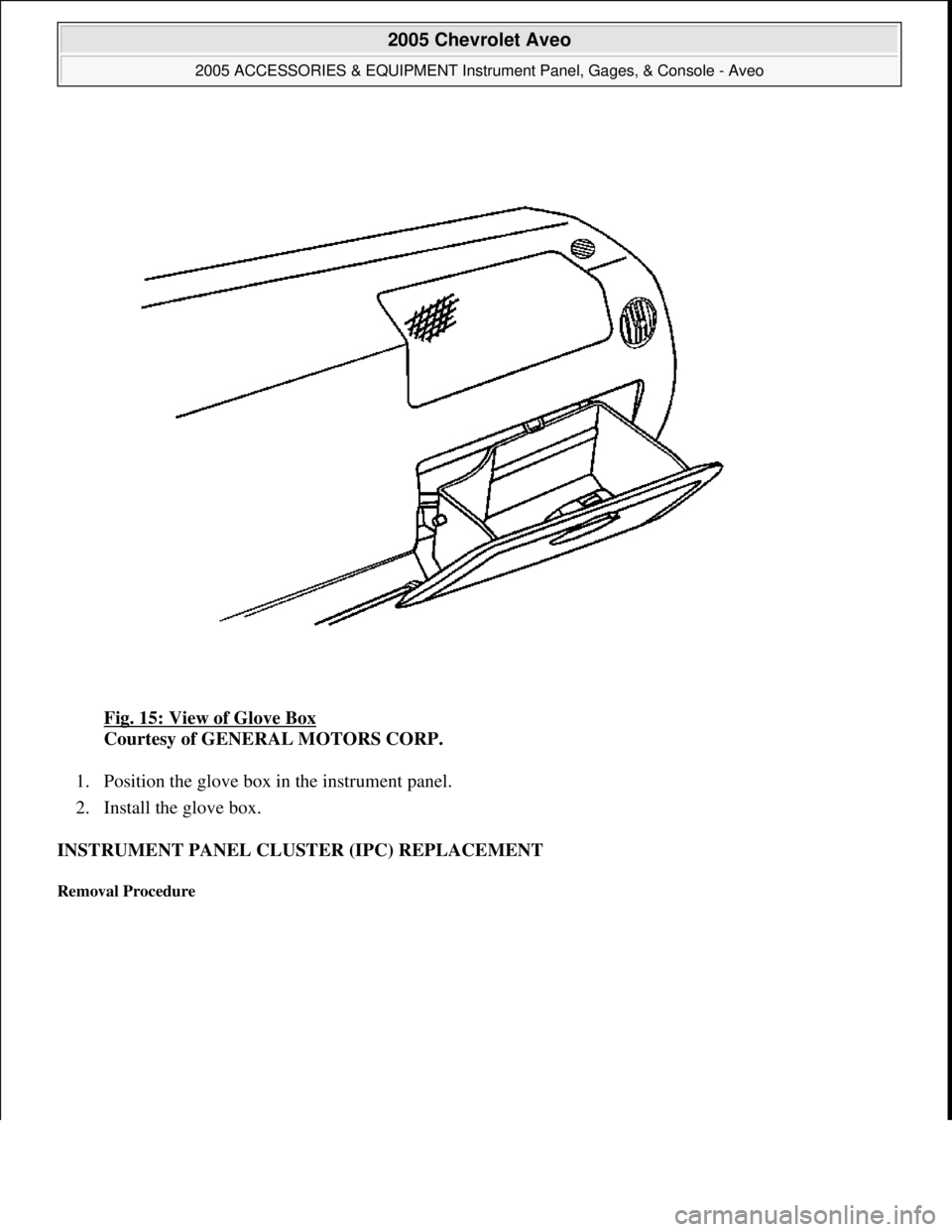

CHEVROLET AVEO 2002 Service Repair Manual Fig. 15: View of Glove Box Courtesy of GENERAL MOTORS CORP. 1. Position the glove box in the instrument panel. 2. Install the glove box. INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT Removal Proce
