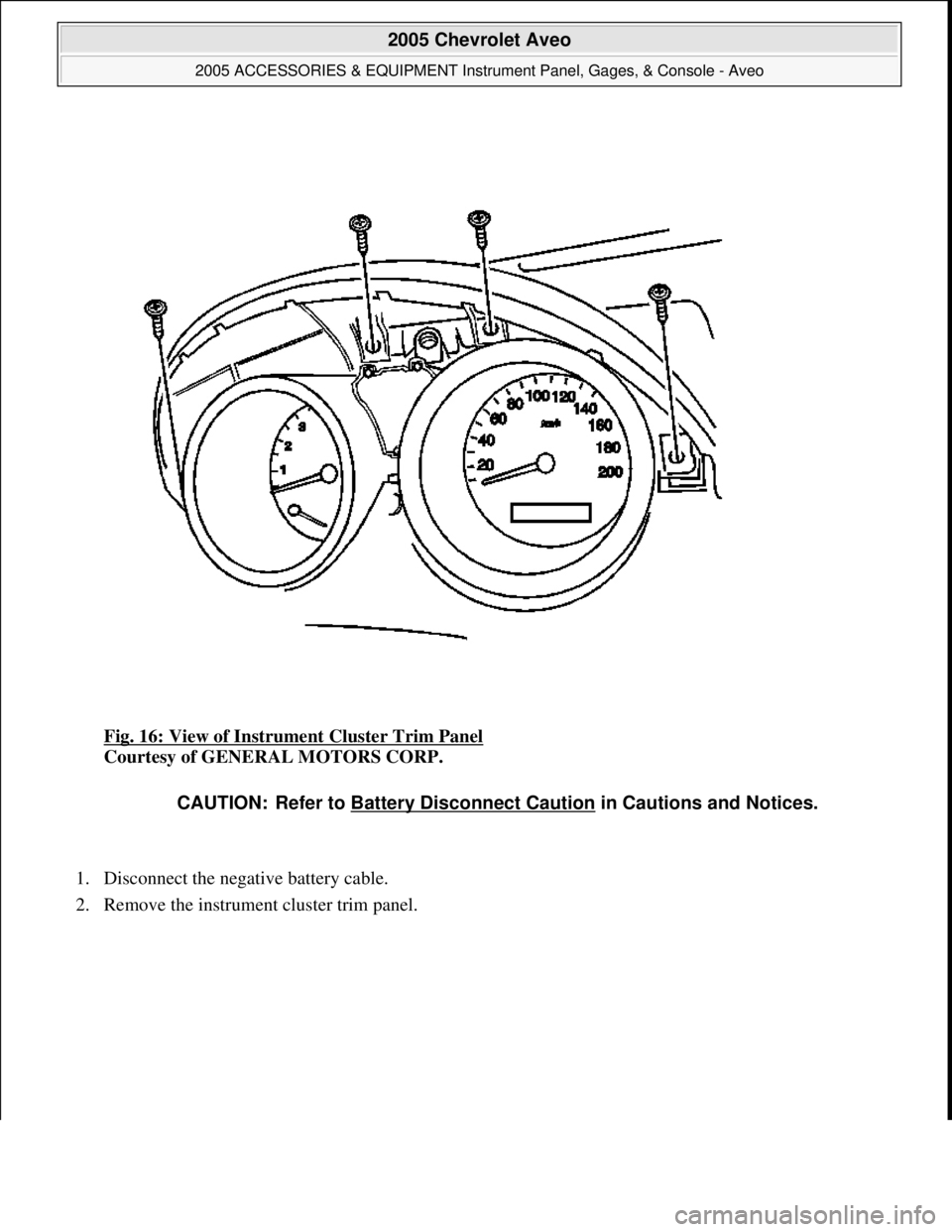

CHEVROLET AVEO 2002 Service Repair Manual Fig. 16: View of Instrument Cluster Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the instrument cluster trim panel. CAUTION: Refer to Battery Di

Page 4338 of 5127

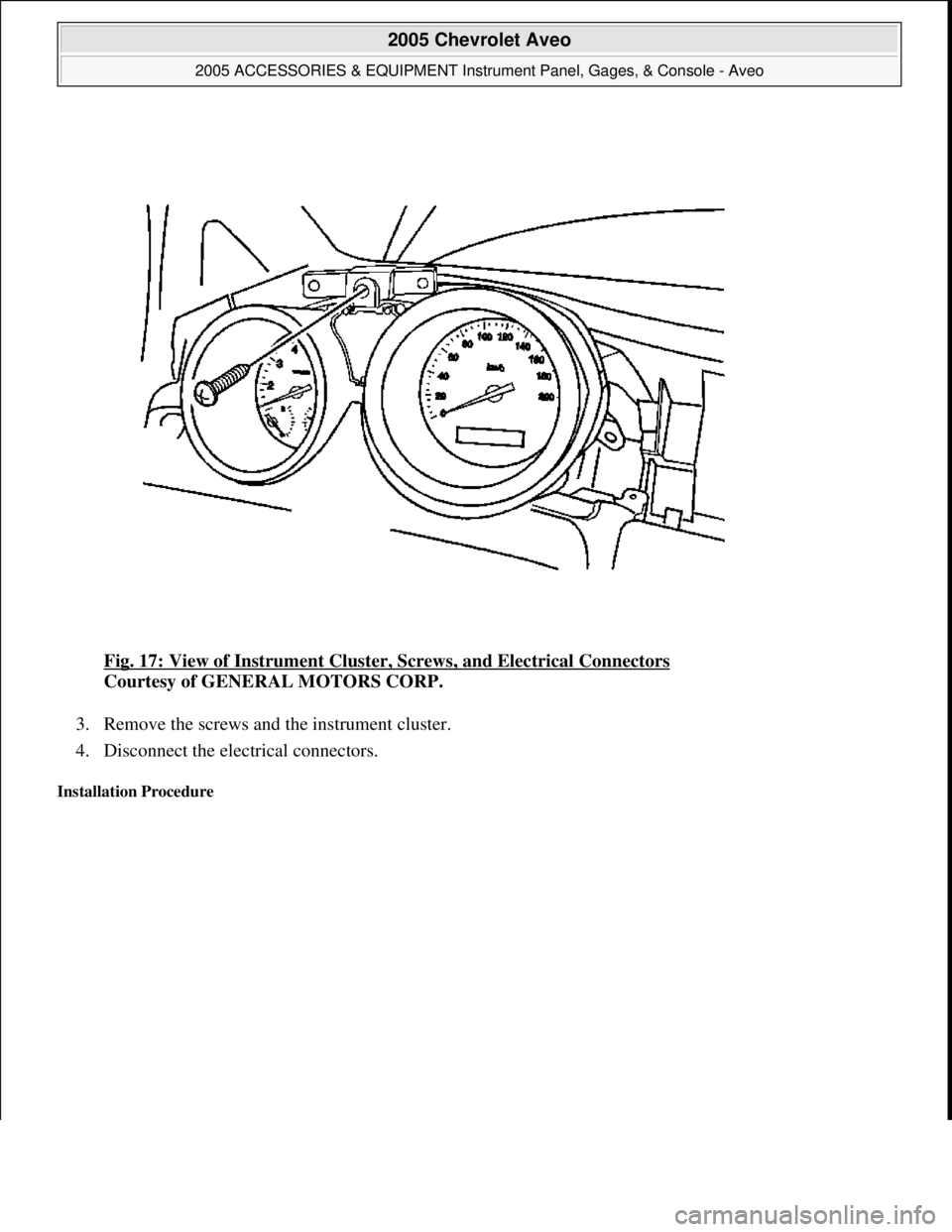

CHEVROLET AVEO 2002 Service Repair Manual Fig. 17: View of Instrument Cluster, Screws, and Electrical Connectors Courtesy of GENERAL MOTORS CORP. 3. Remove the screws and the instrument cluster. 4. Disconnect the electrical connectors.

Page 4339 of 5127

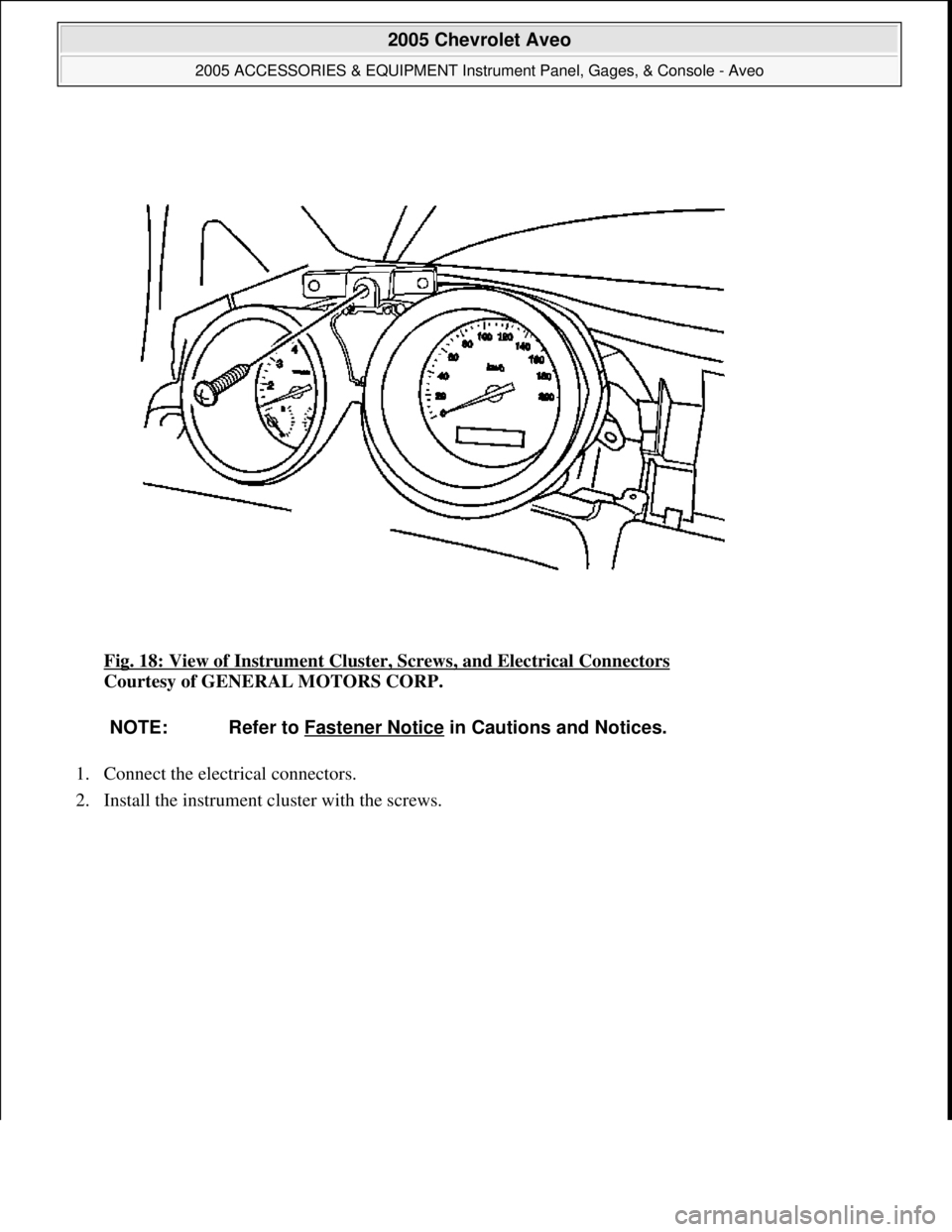

CHEVROLET AVEO 2002 Service Repair Manual Fig. 18: View of Instrument Cluster, Screws, and Electrical Connectors Courtesy of GENERAL MOTORS CORP. 1. Connect the electrical connectors. 2. Install the instrument cluster with the screws. NO

Page 4340 of 5127

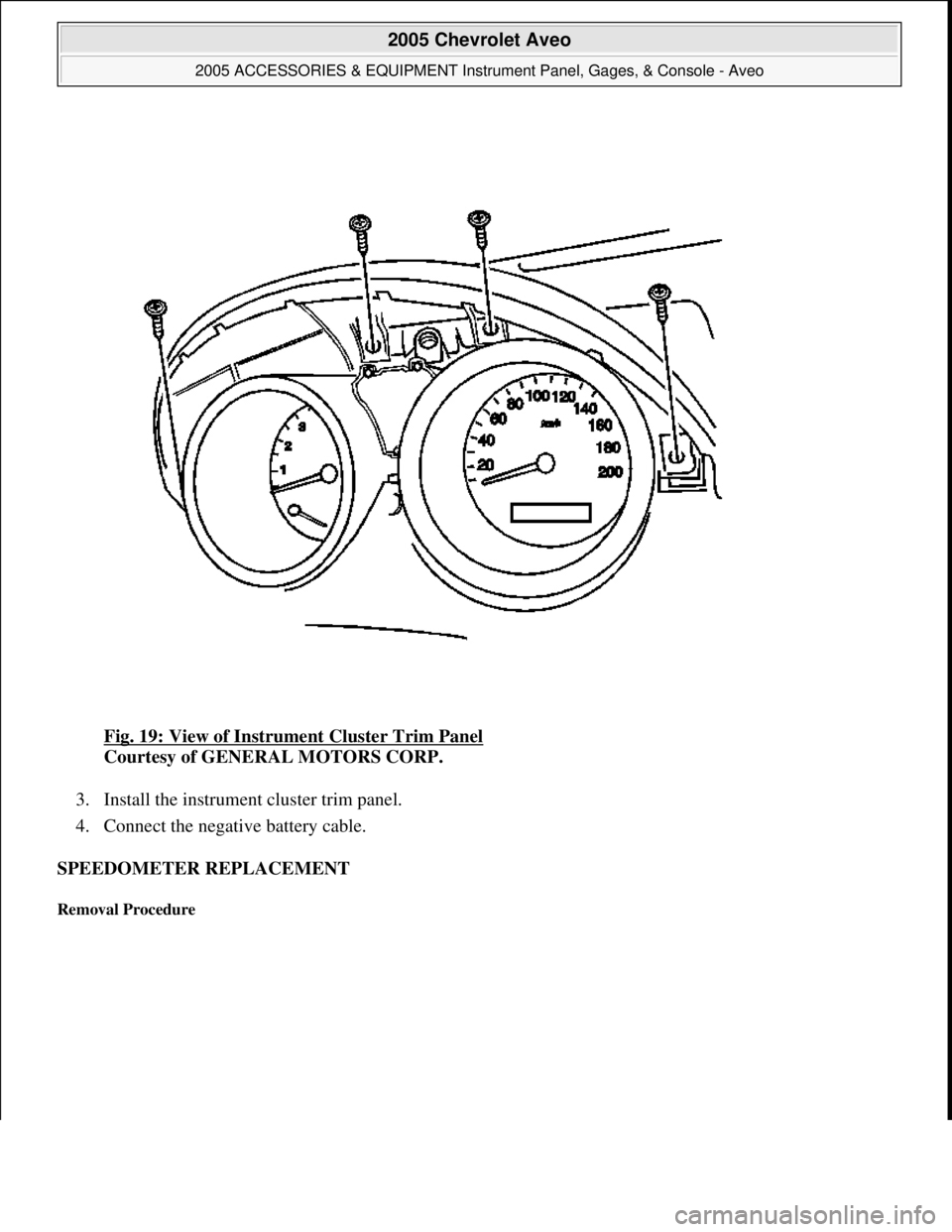

CHEVROLET AVEO 2002 Service Repair Manual Fig. 19: View of Instrument Cluster Trim Panel Courtesy of GENERAL MOTORS CORP. 3. Install the instrument cluster trim panel. 4. Connect the negative battery cable. SPEEDOMETER REPLACEMENT Remo

Page 4341 of 5127

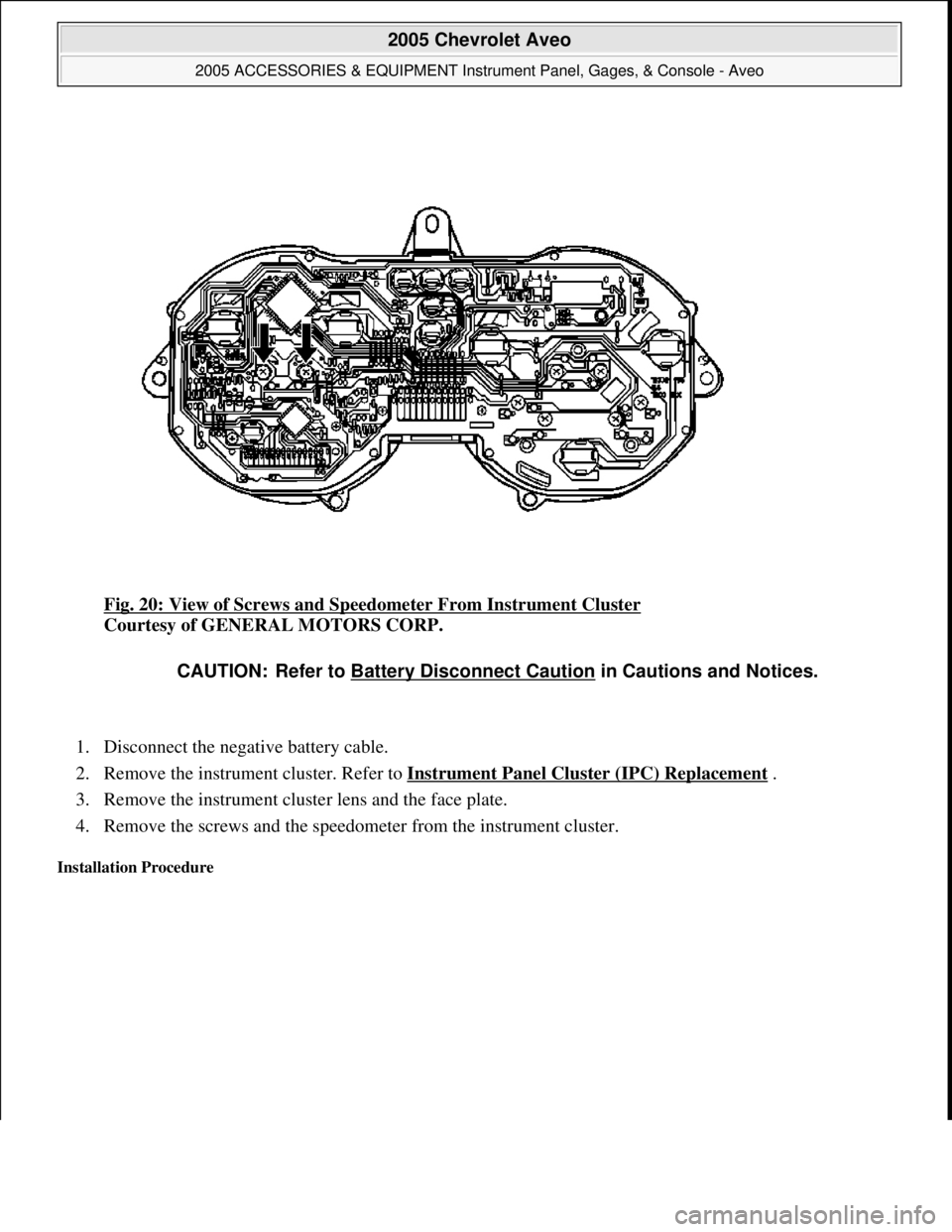

CHEVROLET AVEO 2002 Service Repair Manual Fig. 20: View of Screws and Speedometer From Instrument Cluster Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the instrument cluster. Refer to Instrument Pan

Page 4342 of 5127

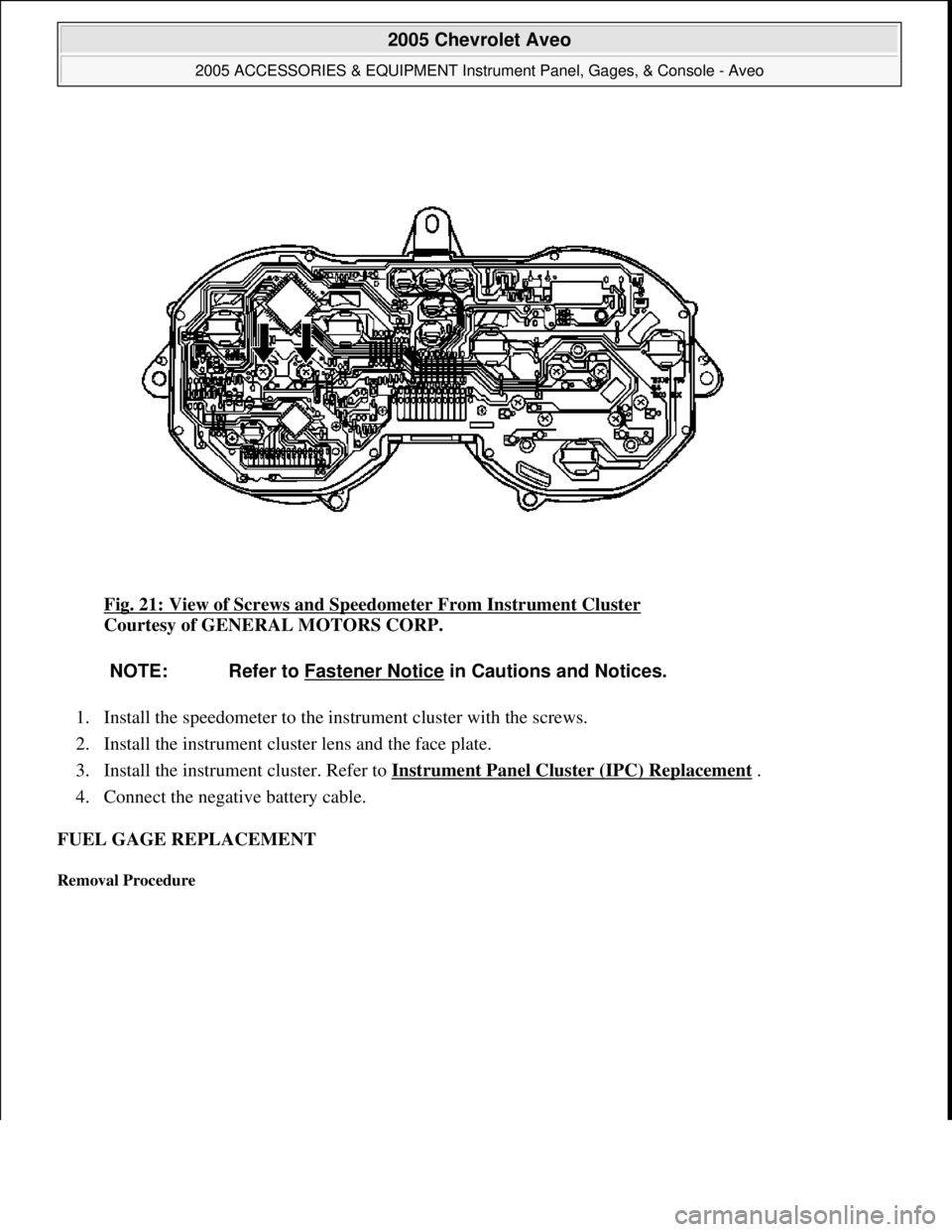

CHEVROLET AVEO 2002 Service Repair Manual Fig. 21: View of Screws and Speedometer From Instrument Cluster Courtesy of GENERAL MOTORS CORP. 1. Install the speedometer to the instrument cluster with the screws. 2. Install the instrument clu

Page 4343 of 5127

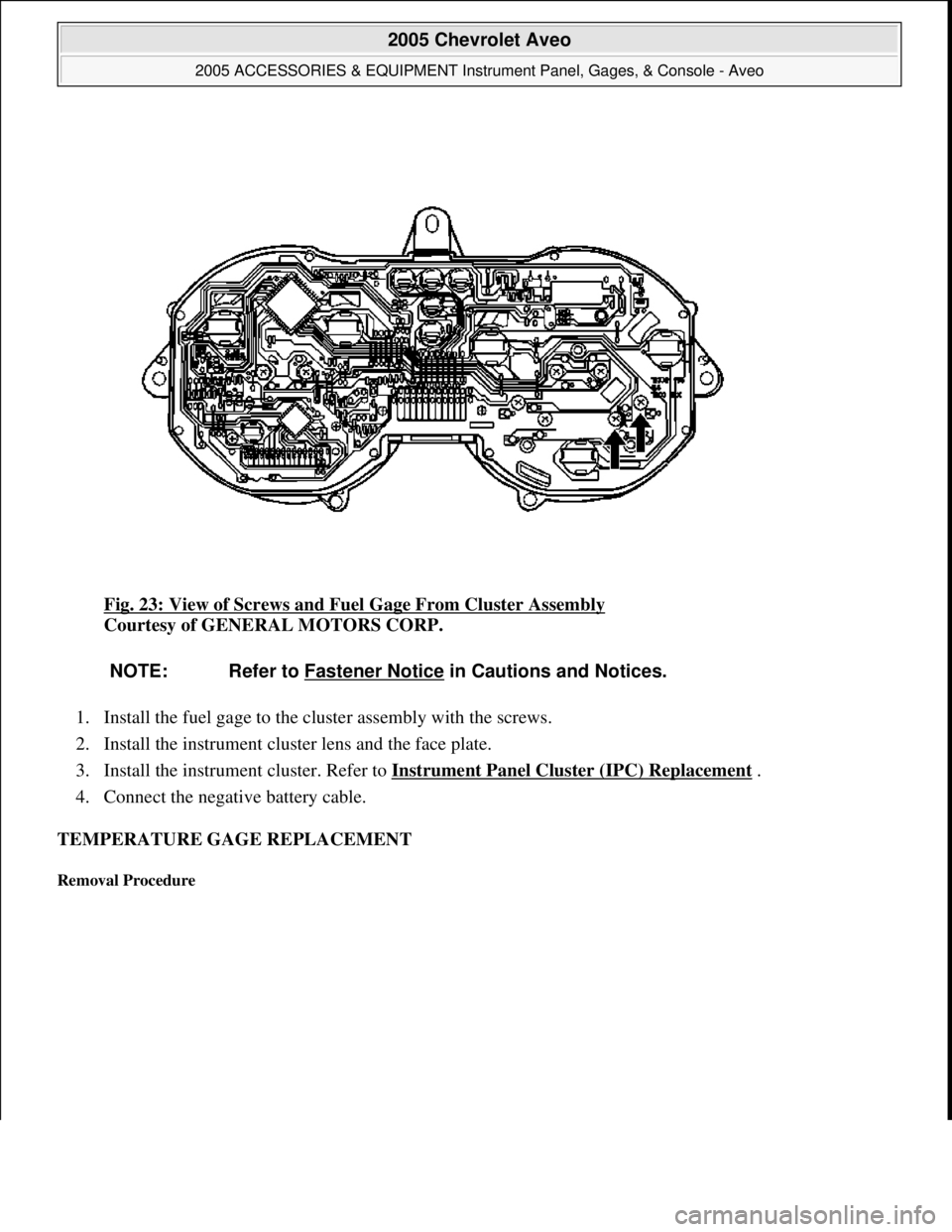

CHEVROLET AVEO 2002 Service Repair Manual Fig. 22: View of Screws and Fuel Gage From Cluster Assembly Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the instrument cluster. Refer to Instrument Panel C

Page 4344 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 23: View of Screws and Fuel Gage From Cluster Assembly Courtesy of GENERAL MOTORS CORP. 1. Install the fuel gage to the cluster assembly with the screws. 2. Install the instrument cluster len
