Page 3009 of 5127

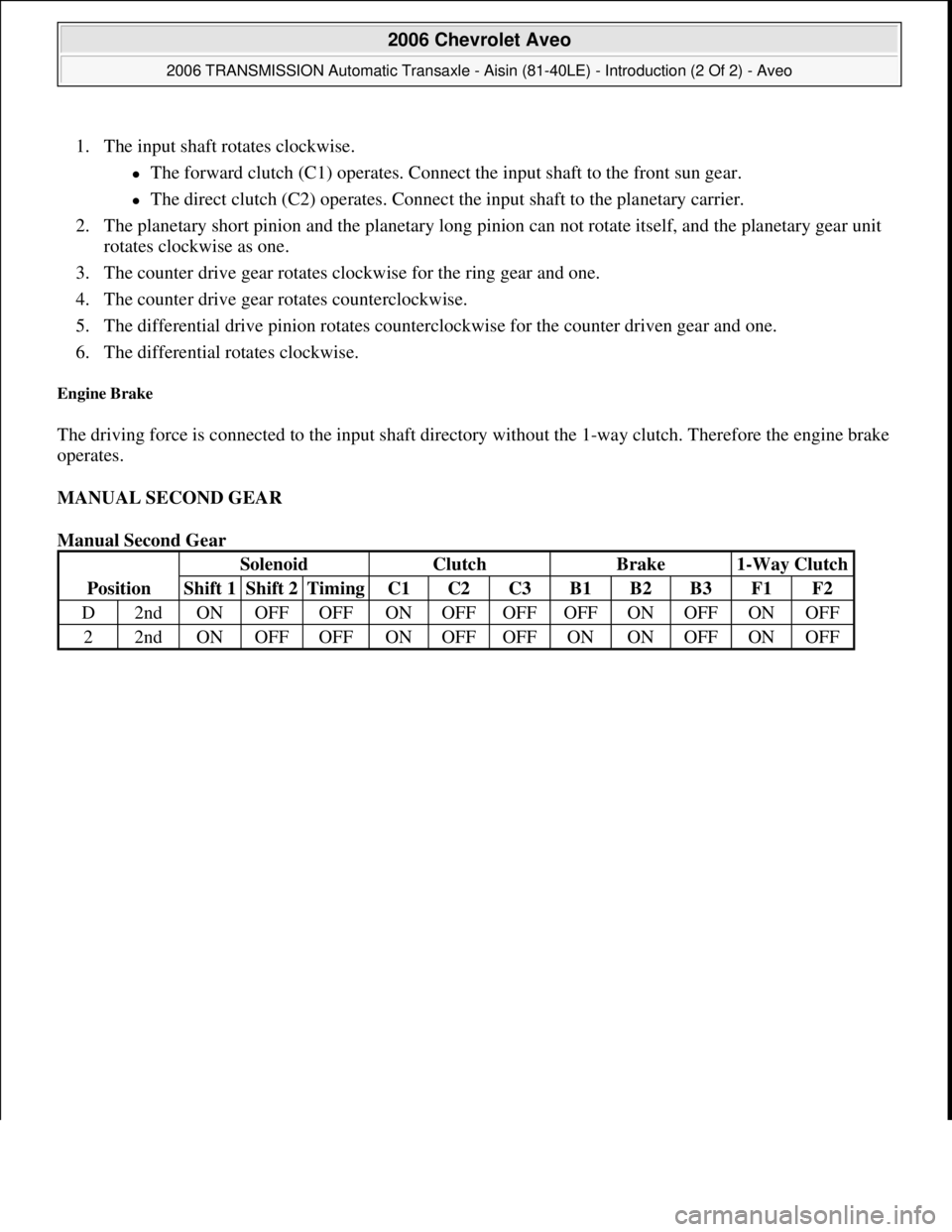

CHEVROLET AVEO 2002 Service Repair Manual 1. The input shaft rotates clockwise. The forward clutch (C1) operates. Connect the input shaft to the front sun gear. The direct clutch (C2) operates. Connect the input shaft to the planetar

Page 3010 of 5127

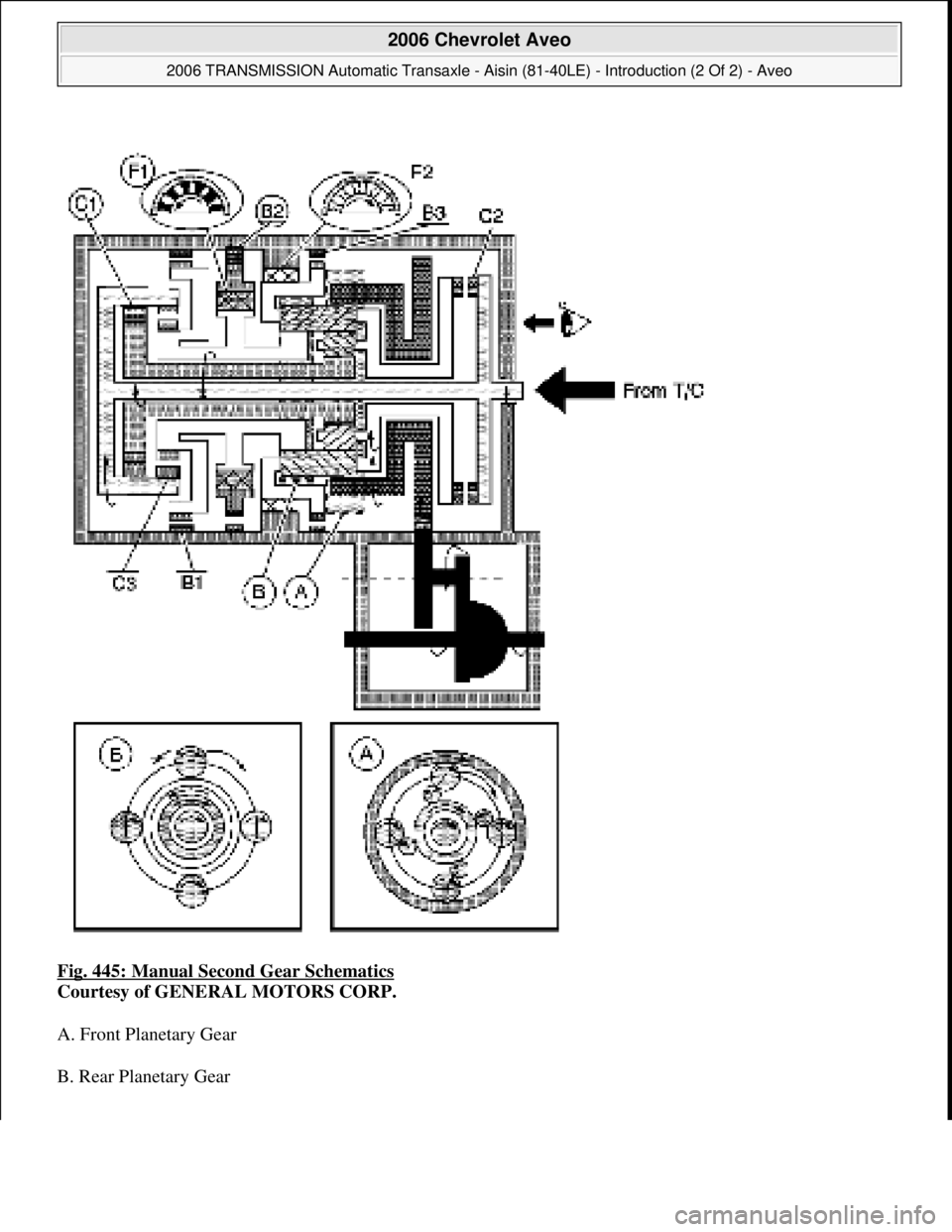

CHEVROLET AVEO 2002 Service Repair Manual Fig. 445: Manual Second Gear Schematics Courtesy of GENERAL MOTORS CORP. A. Front Planetary Gear B. Rear Planetar y Gear 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40

Page 3011 of 5127

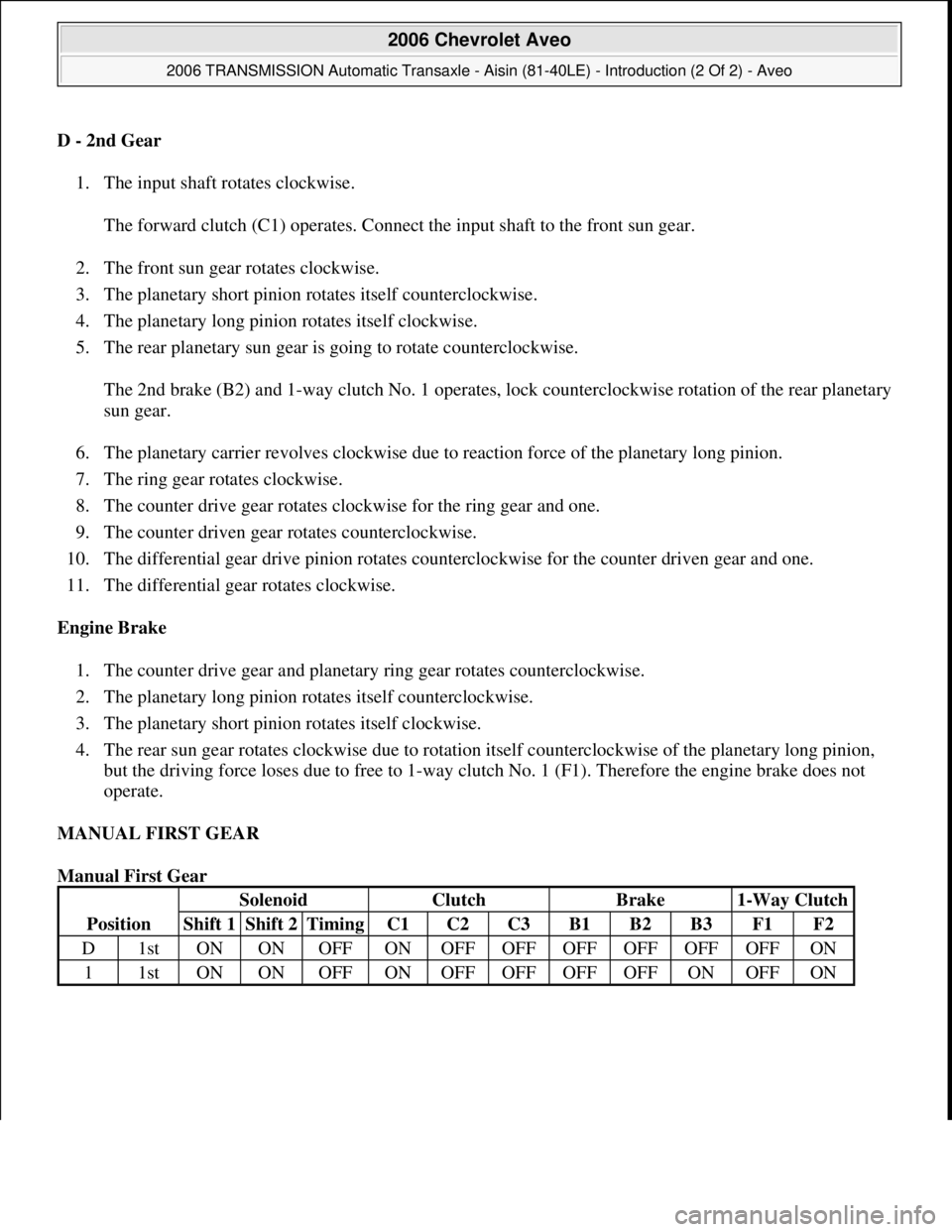

CHEVROLET AVEO 2002 Service Repair Manual D - 2nd Gear 1. The input shaft rotates clockwise. The forward clutch (C1) operates. Connect the input shaft to the front sun gear. 2. The front sun gear rotates clockwise. 3. The planetary short

Page 3012 of 5127

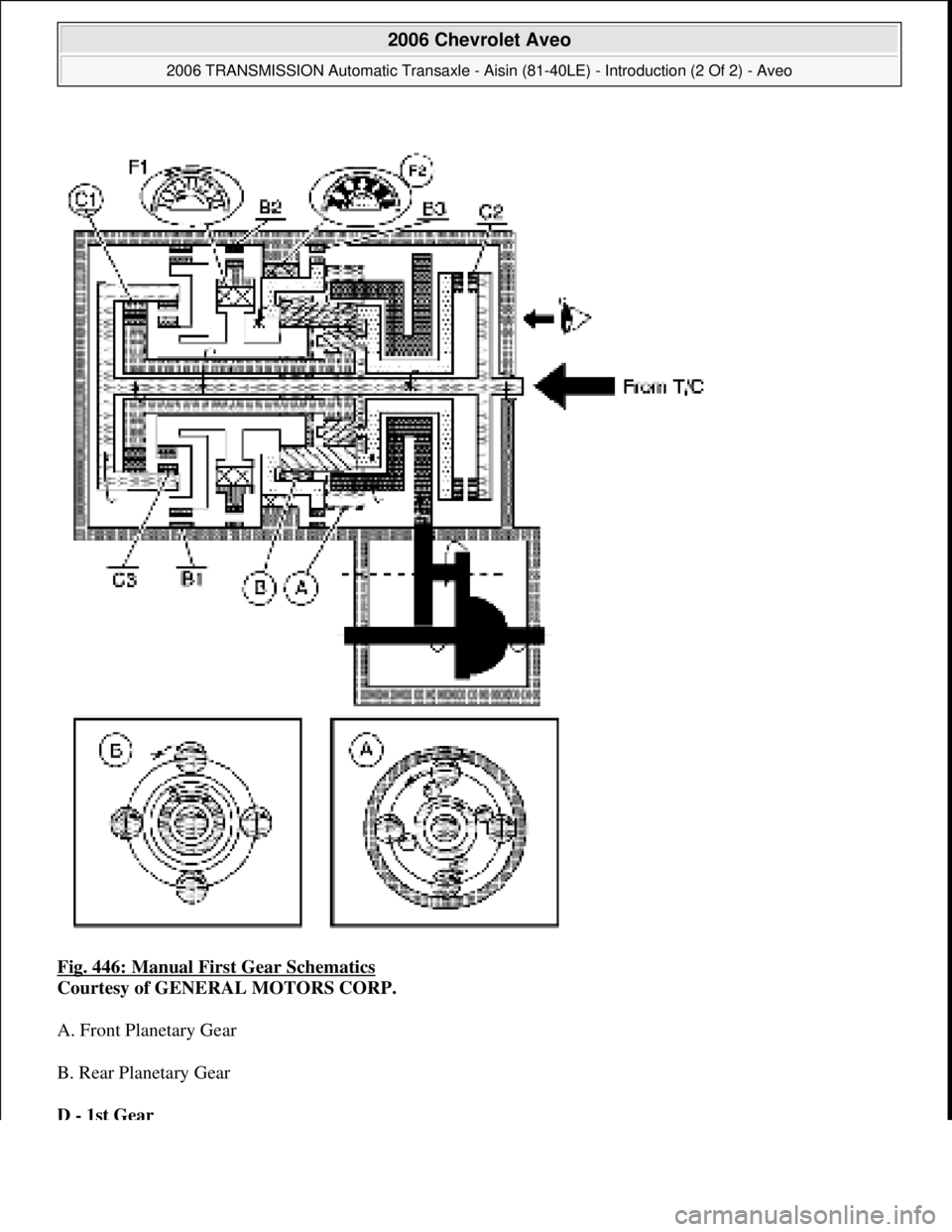

CHEVROLET AVEO 2002 Service Repair Manual Fig. 446: Manual First Gear Schematics Courtesy of GENERAL MOTORS CORP. A. Front Planetary Gear B. Rear Planetary Gear D - 1st Gear 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle -

Page 3013 of 5127

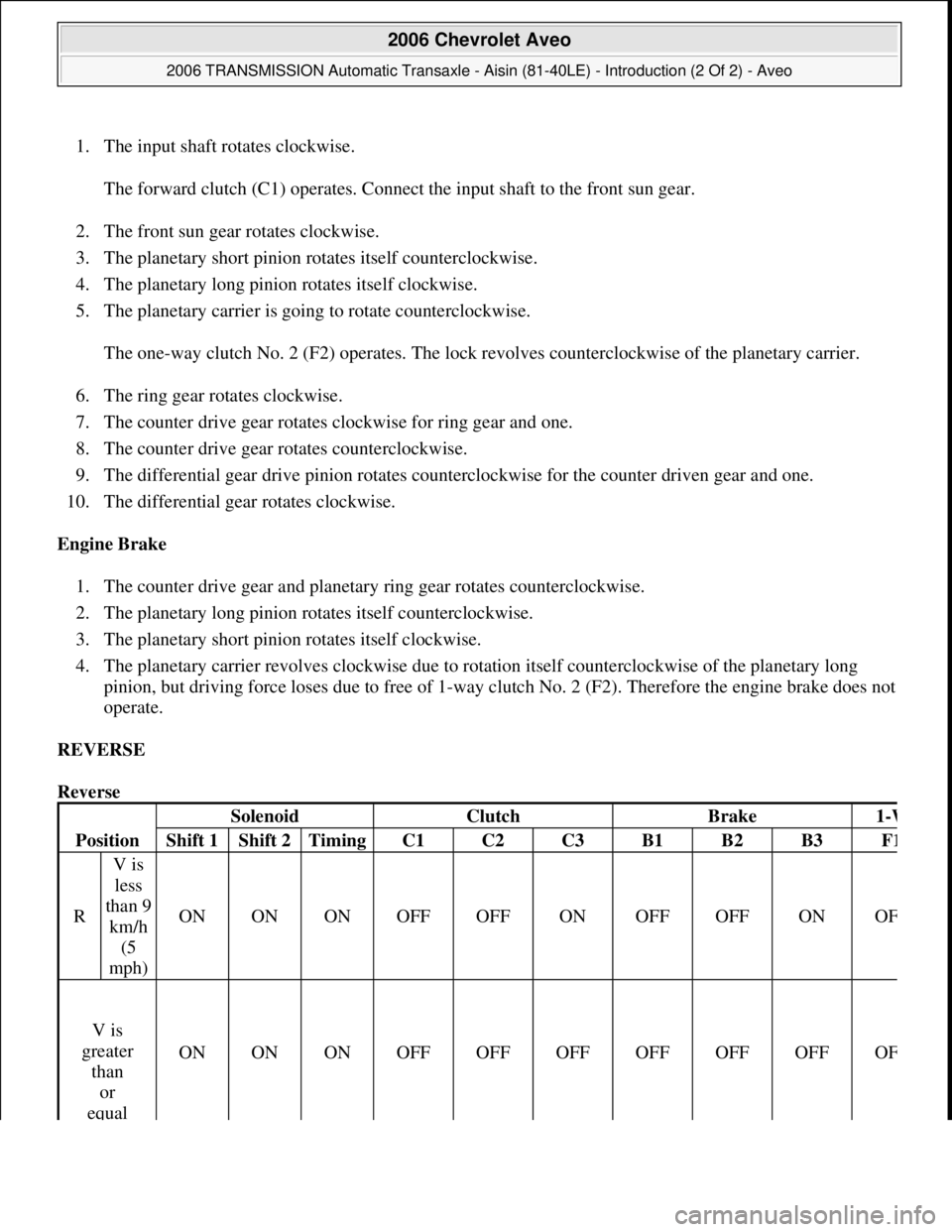

CHEVROLET AVEO 2002 Service Repair Manual 1. The input shaft rotates clockwise. The forward clutch (C1) operates. Connect the input shaft to the front sun gear. 2. The front sun gear rotates clockwise. 3. The planetary short pinion rotate

Page 3014 of 5127

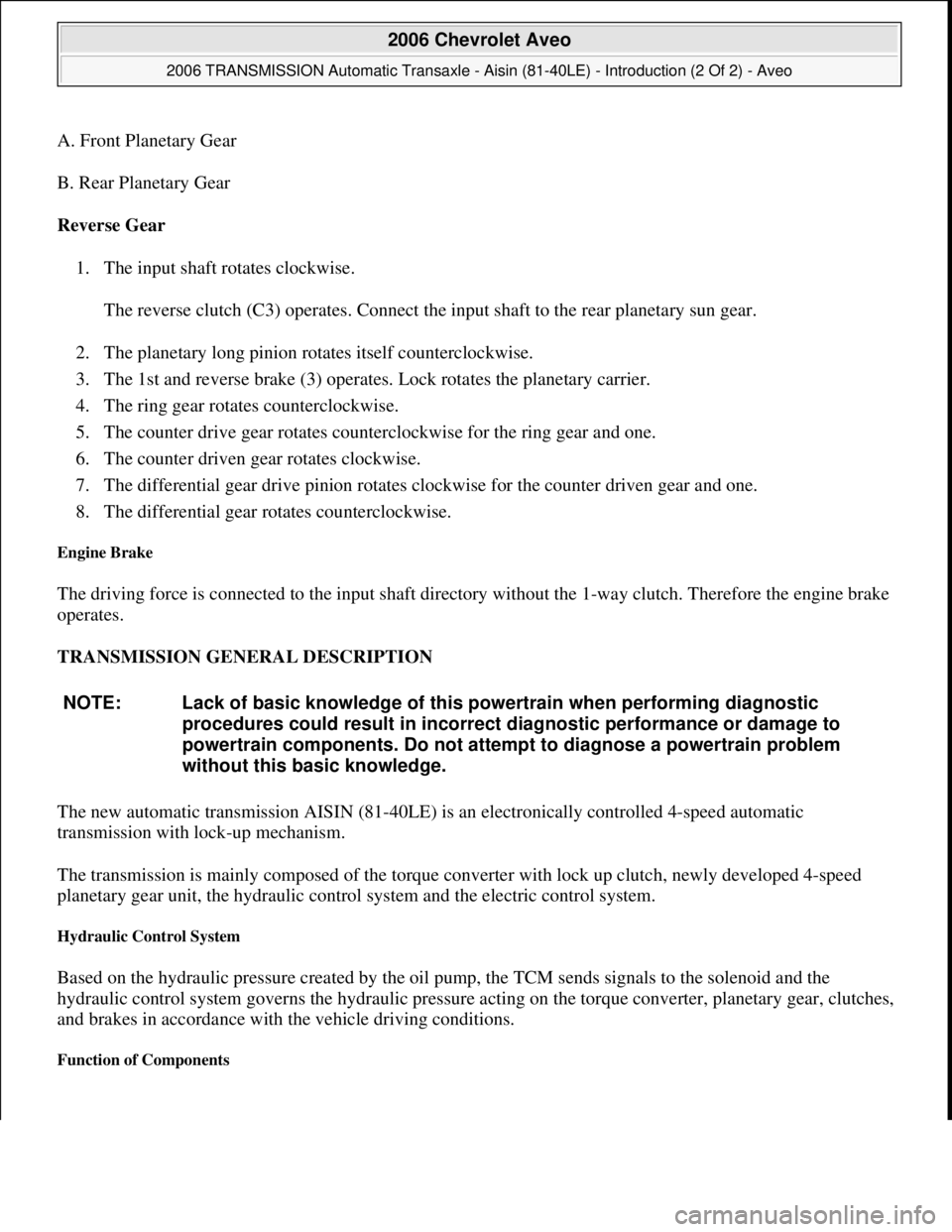

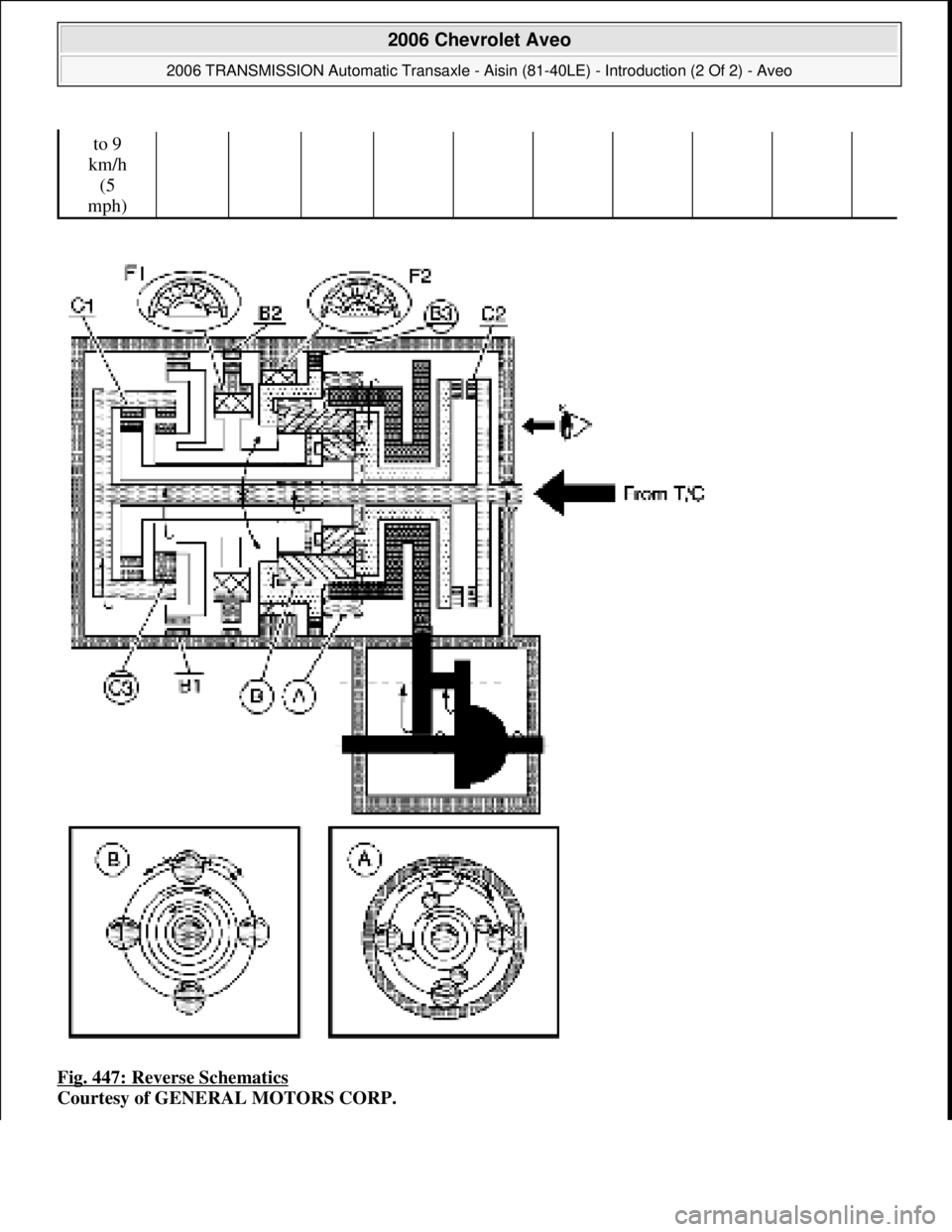

CHEVROLET AVEO 2002 Service Repair Manual Fig. 447: Reverse Schematics Courtesy of GENERAL MOTORS CORP. to 9 km/h (5 mph) 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Micr

Page 3015 of 5127

CHEVROLET AVEO 2002 Service Repair Manual A. Front Planetary Gear B. Rear Planetary Gear Reverse Gear 1. The input shaft rotates clockwise. The reverse clutch (C3) operates. Connect the input shaft to the rear planetary sun gear. 2. The

Page 3016 of 5127

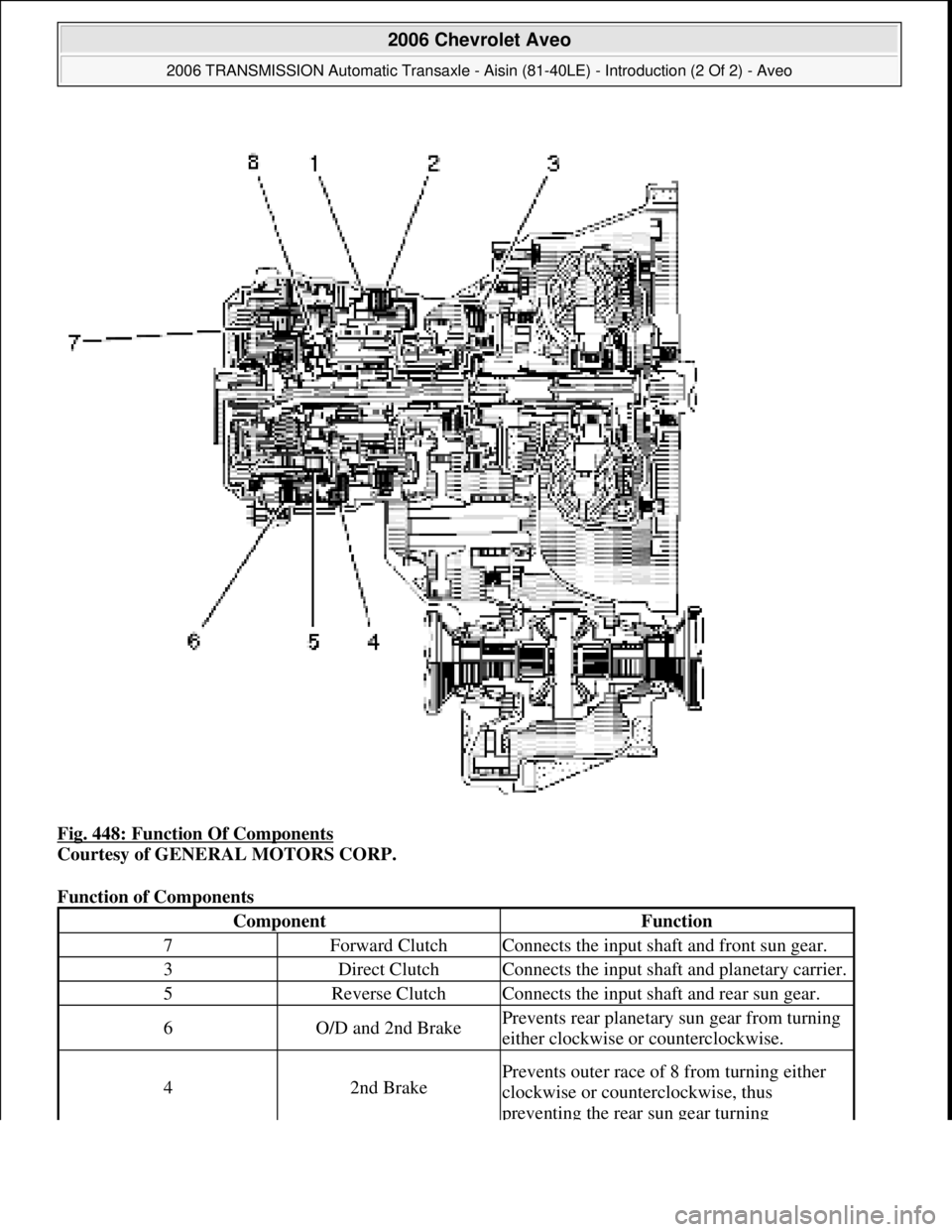

CHEVROLET AVEO 2002 Service Repair Manual Fig. 448: Function Of Components Courtesy of GENERAL MOTORS CORP. Function of Components ComponentFunction 7Forward ClutchConnects the input shaft and front sun gear. 3Direct ClutchConnects the inp
