Page 2569 of 5127

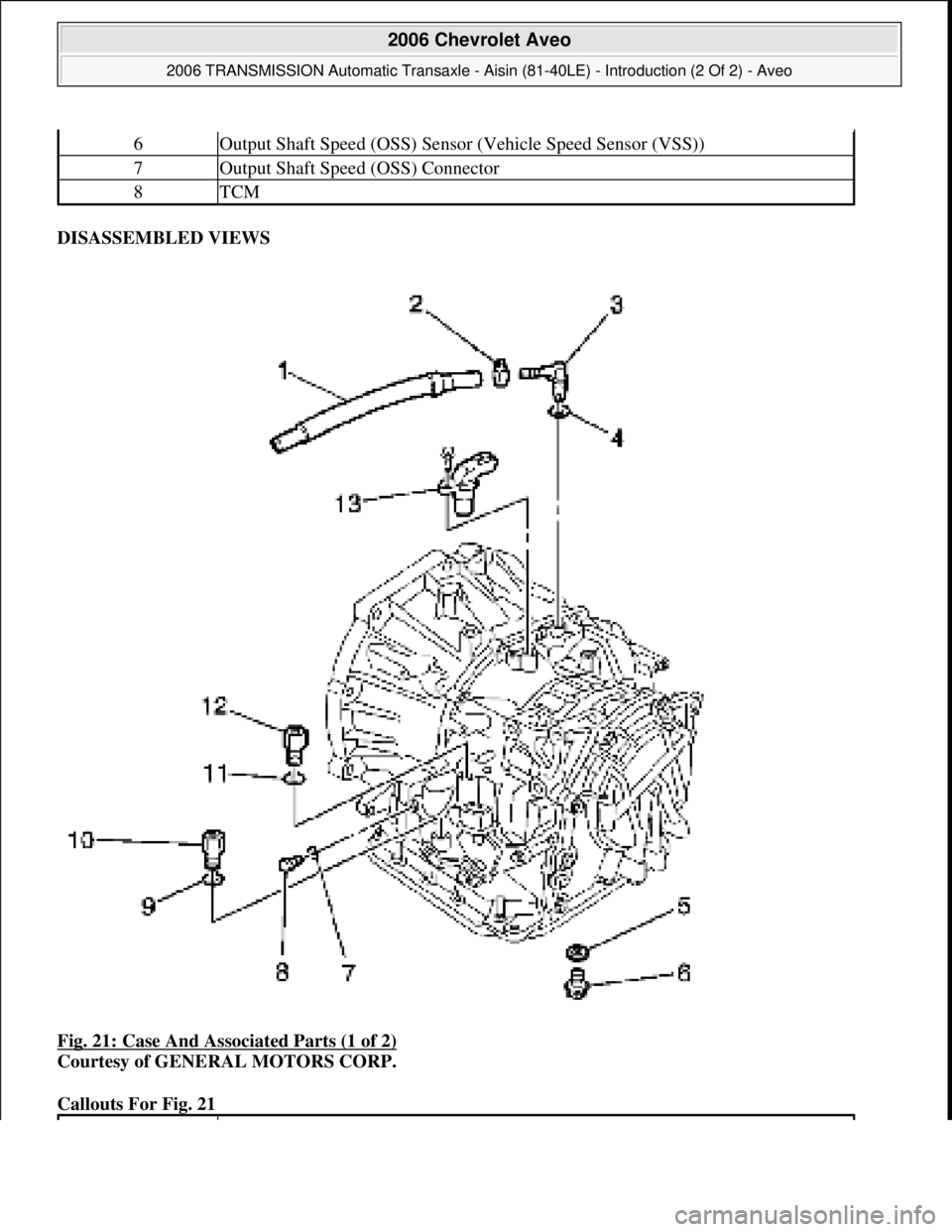

CHEVROLET AVEO 2002 Service Repair Manual DISASSEMBLED VIEWS Fig. 21: Case And Associated Parts (1 of 2) Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 21 6Output Shaft Speed (OSS) Sensor (Vehicle Speed Sensor (VSS)) 7Output Shaft Sp

Page 2570 of 5127

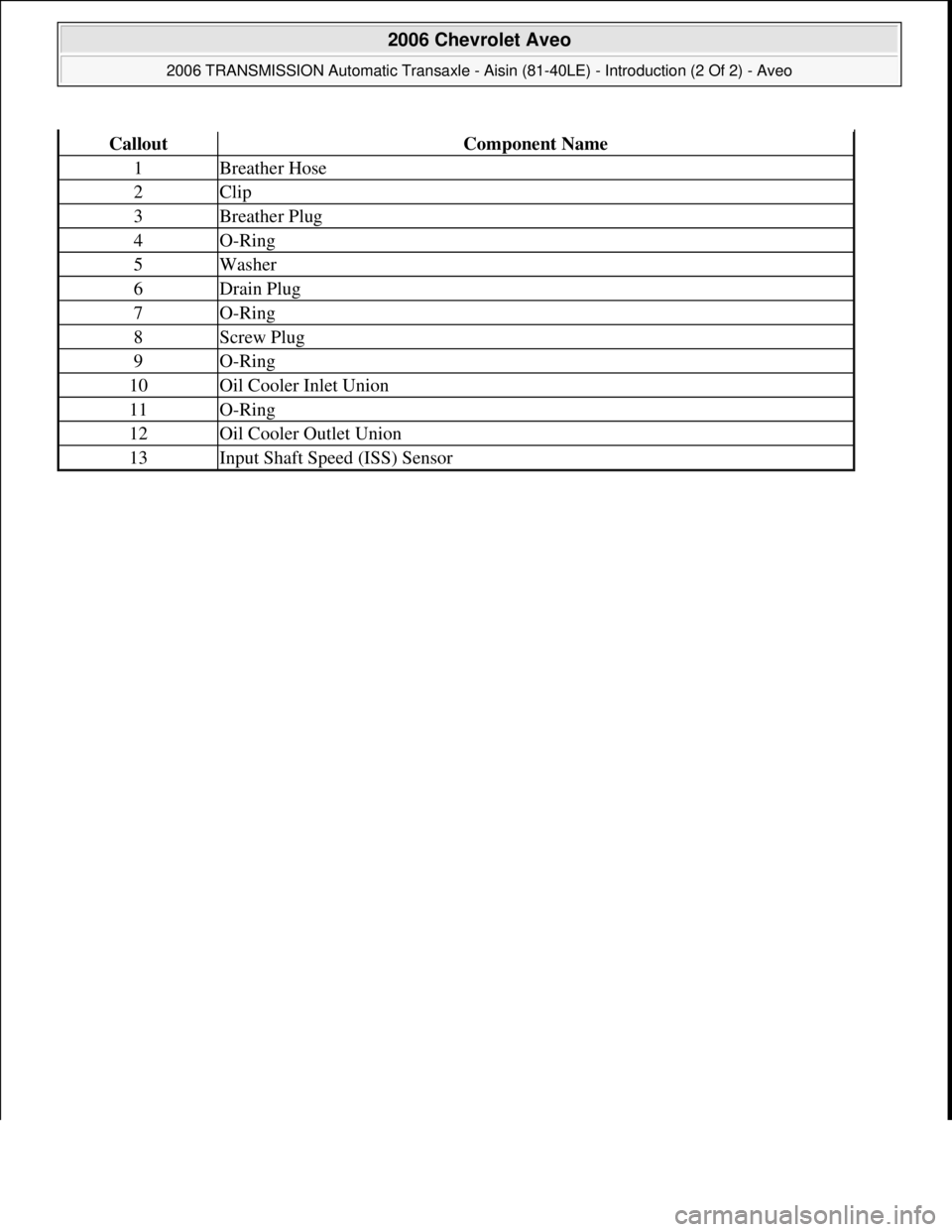

CHEVROLET AVEO 2002 Service Repair Manual CalloutComponent Name 1Breather Hose 2Clip 3Breather Plug 4O-Ring 5Washer 6Drain Plug 7O-Ring 8Screw Plug 9O-Ring 10Oil Cooler Inlet Union 11O-Ring 12Oil Cooler Outlet Union 13Input Shaft Speed (ISS)

Page 2571 of 5127

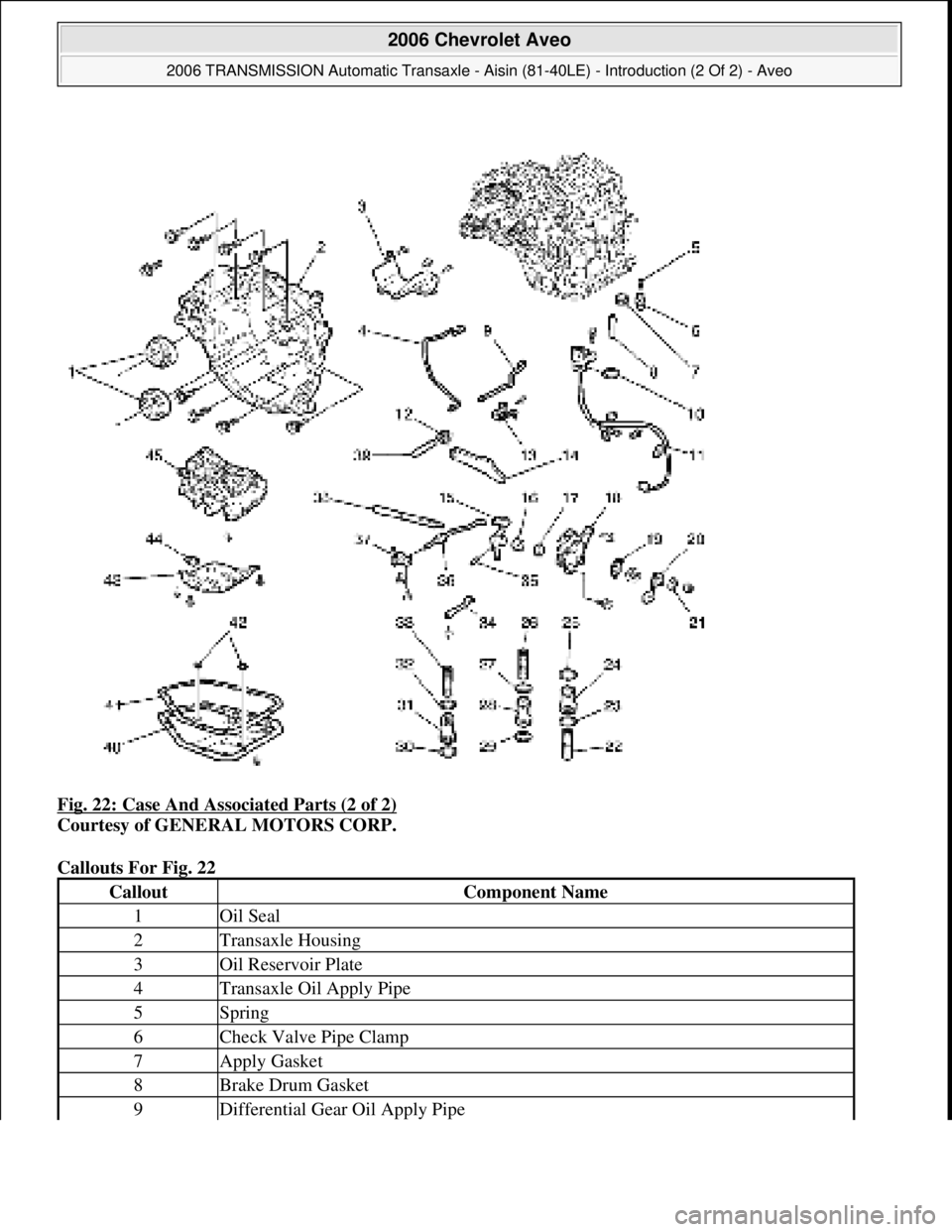

CHEVROLET AVEO 2002 Service Repair Manual Fig. 22: Case And Associated Parts (2 of 2) Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 22 CalloutComponent Name 1Oil Seal 2Transaxle Housing 3Oil Reservoir Plate 4Transaxle Oil Apply Pipe 5

Page 2572 of 5127

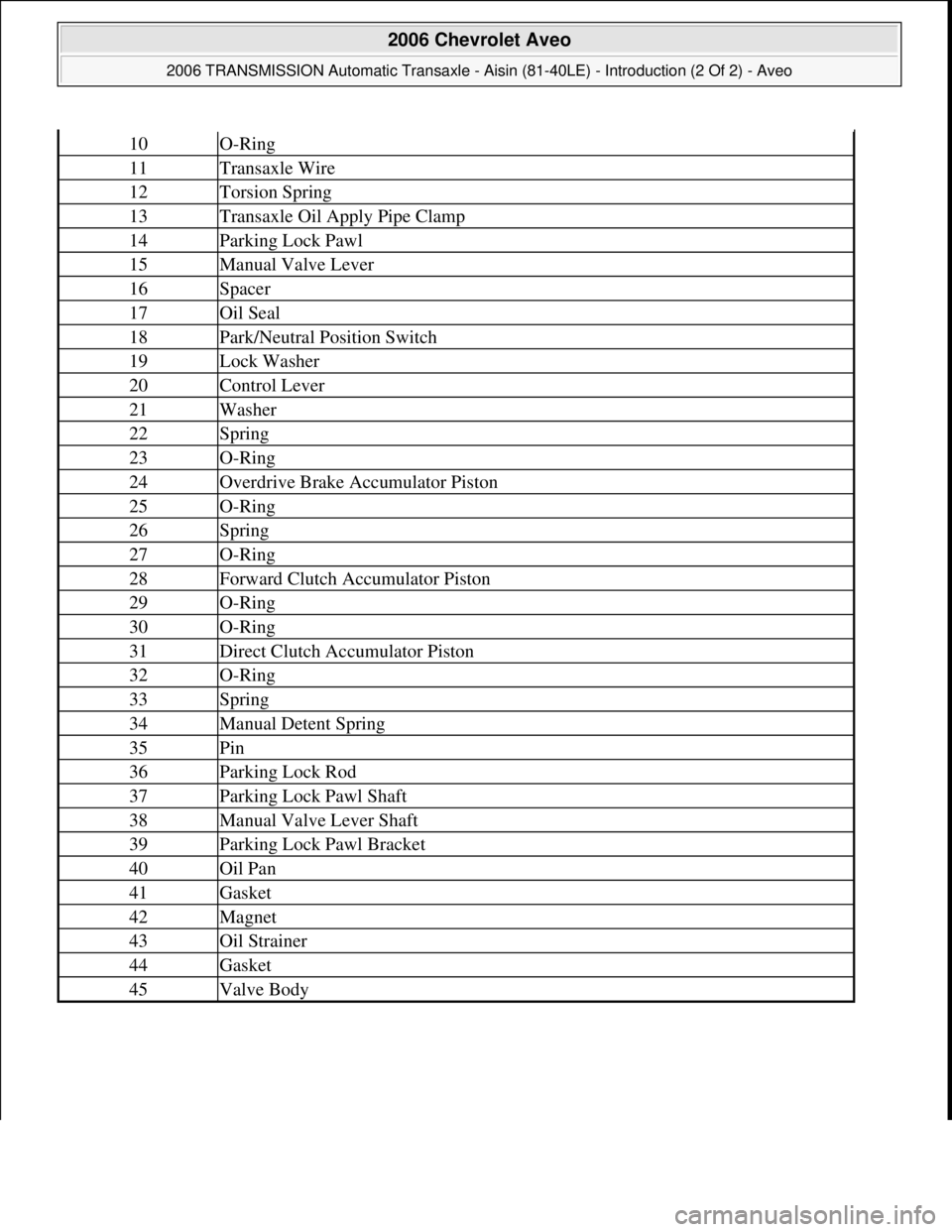

CHEVROLET AVEO 2002 Service Repair Manual 10O-Ring 11Transaxle Wire 12Torsion Spring 13Transaxle Oil Apply Pipe Clamp 14Parking Lock Pawl 15Manual Valve Lever 16Spacer 17Oil Seal 18Park/Neutral Position Switch 19Lock Washer 20Control Lever 21

Page 2573 of 5127

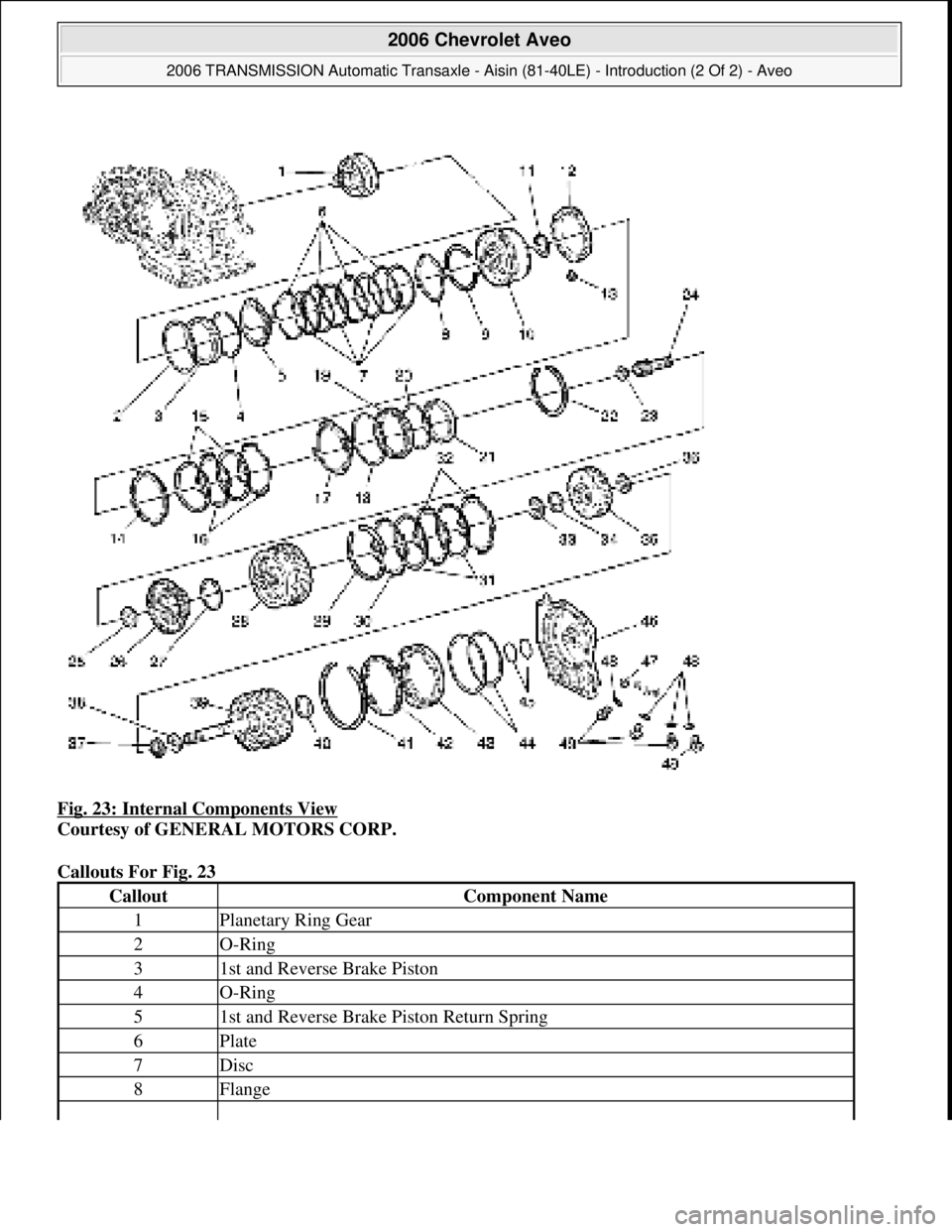

CHEVROLET AVEO 2002 Service Repair Manual Fig. 23: Internal Components View Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 23 CalloutComponent Name 1Planetary Ring Gear 2O-Ring 31st and Reverse Brake Piston 4O-Ring 51st and Reverse Bra

Page 2574 of 5127

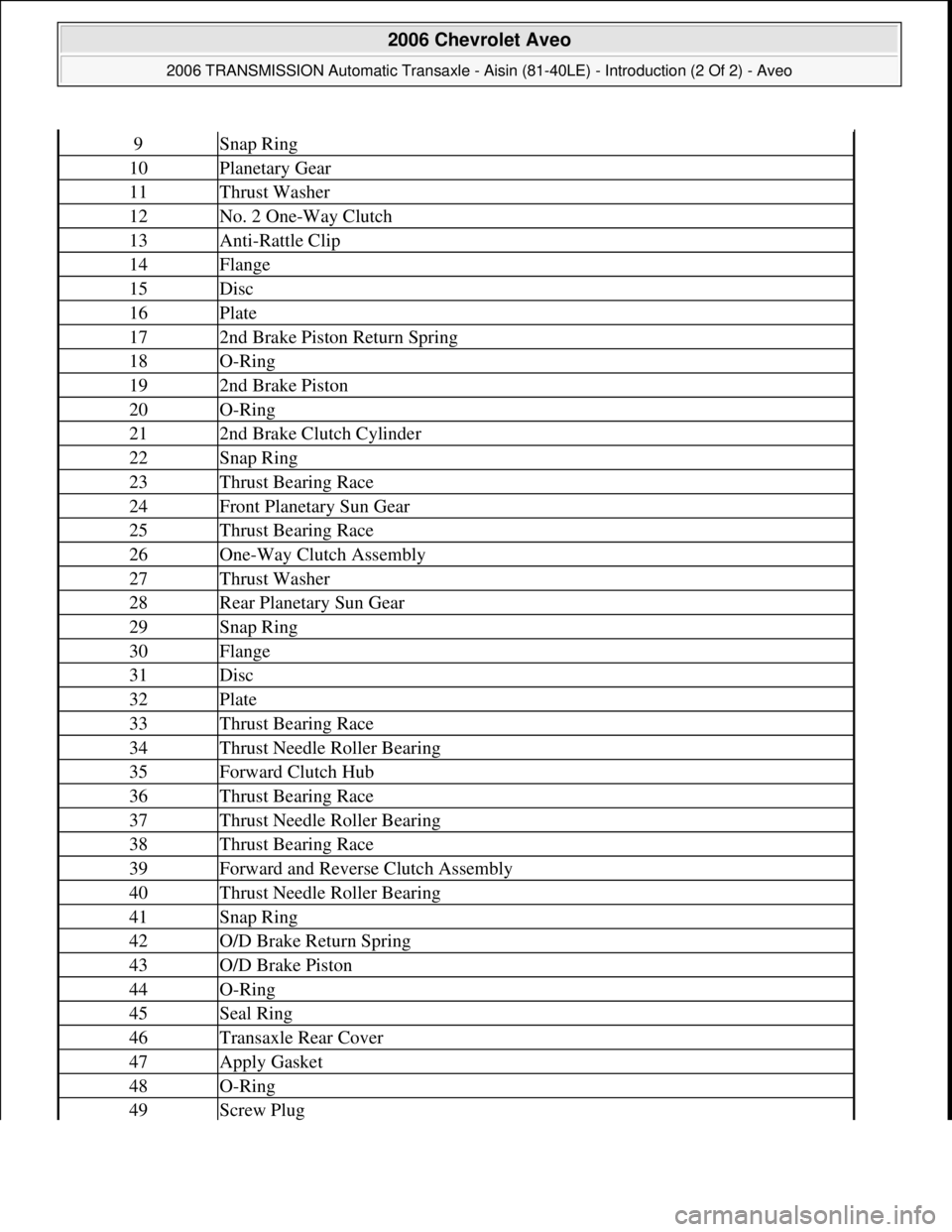

CHEVROLET AVEO 2002 Service Repair Manual 9Snap Ring 10Planetary Gear 11Thrust Washer 12No. 2 One-Way Clutch 13Anti-Rattle Clip 14Flange 15Disc 16Plate 172nd Brake Piston Return Spring 18O-Ring 192nd Brake Piston 20O-Ring 212nd Brake Clutch C

Page 2575 of 5127

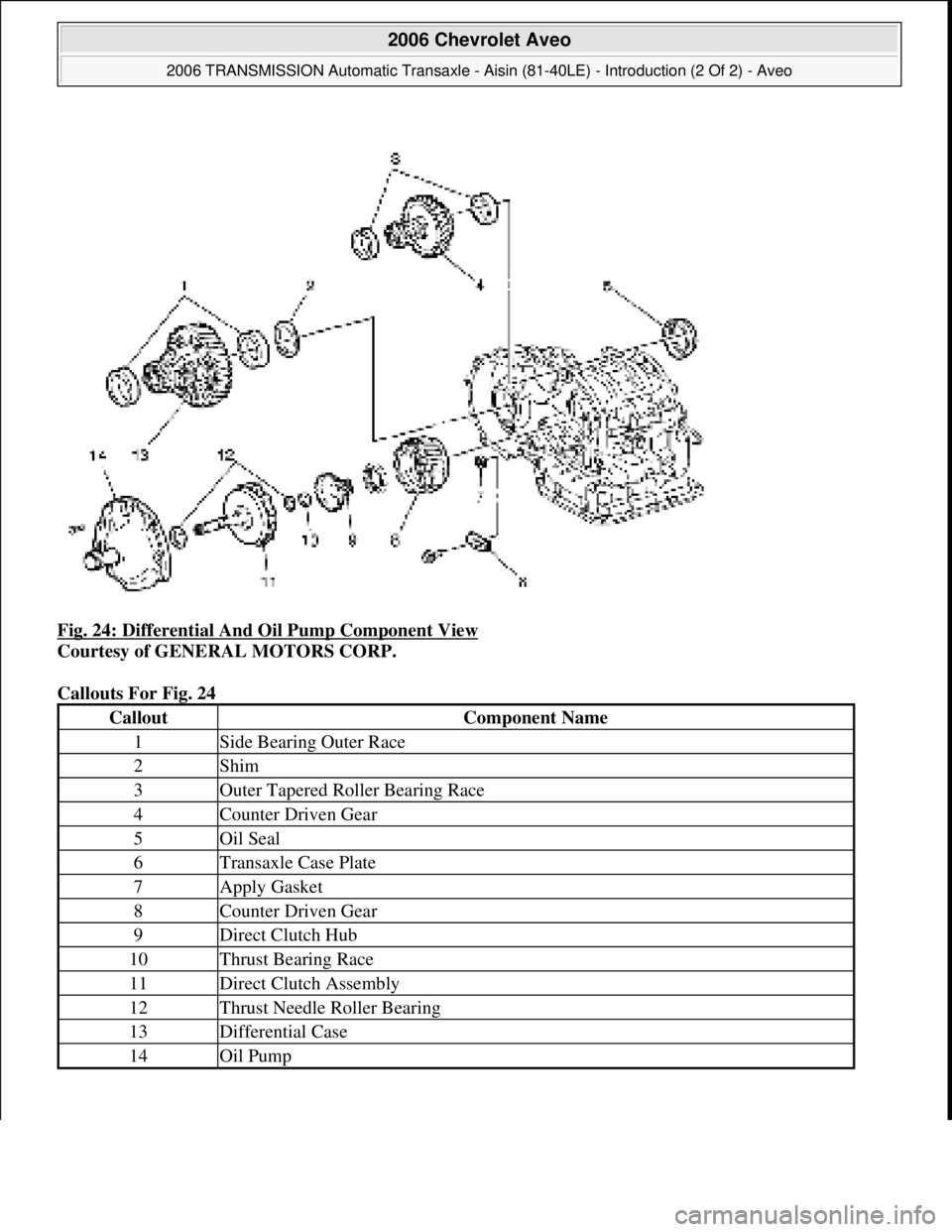

CHEVROLET AVEO 2002 Service Repair Manual Fig. 24: Differential And Oil Pump Component View Courtesy of GENERAL MOTORS CORP. Callouts For Fig. 24 CalloutComponent Name 1Side Bearing Outer Race 2Shim 3Outer Tapered Roller Bearing Race 4Coun

Page 2576 of 5127

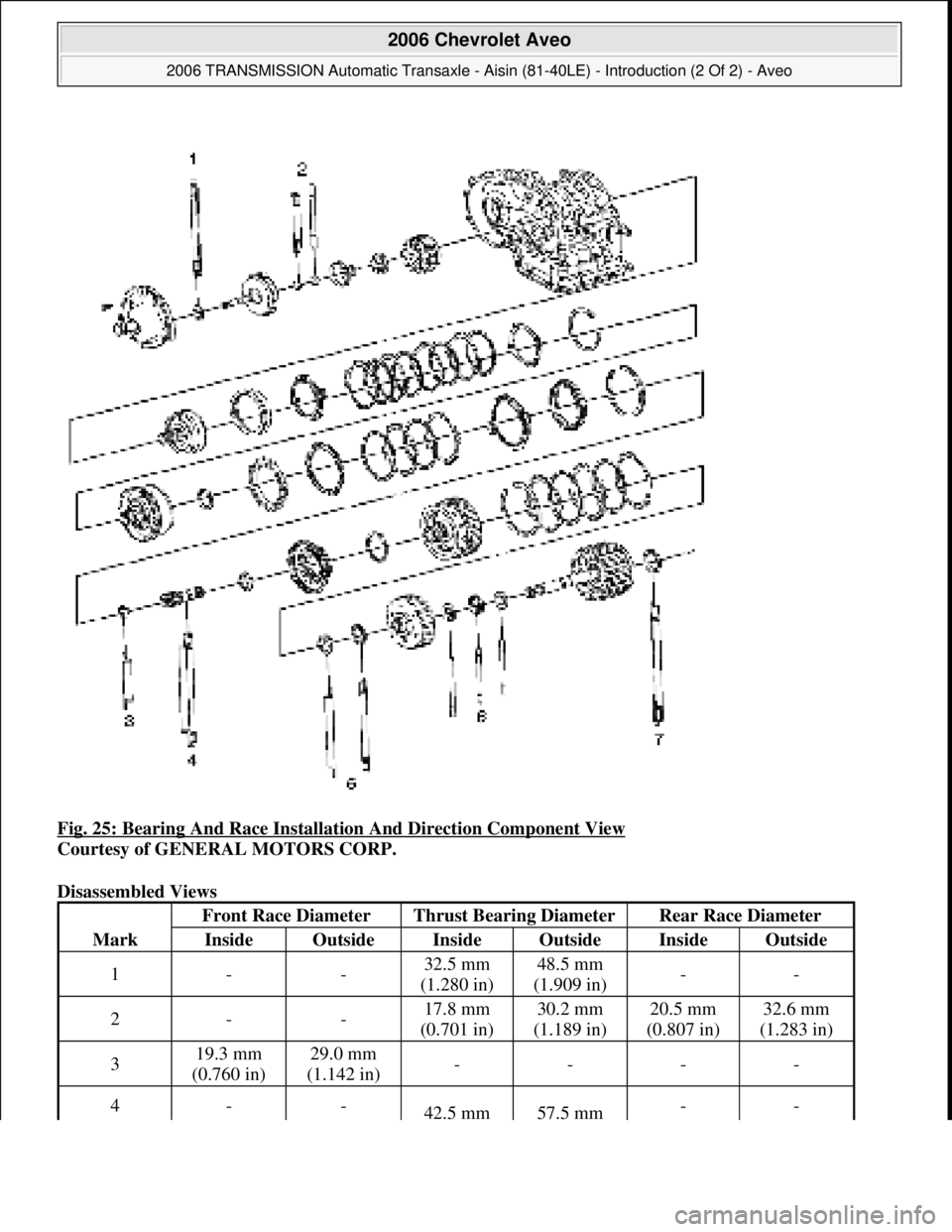

CHEVROLET AVEO 2002 Service Repair Manual Fig. 25: Bearing And Race Installation And Direction Component View Courtesy of GENERAL MOTORS CORP. Disassembled Views Mark Front Race DiameterThrust Bearing DiameterRear Race Diameter InsideOutsi
