Page 4353 of 5127

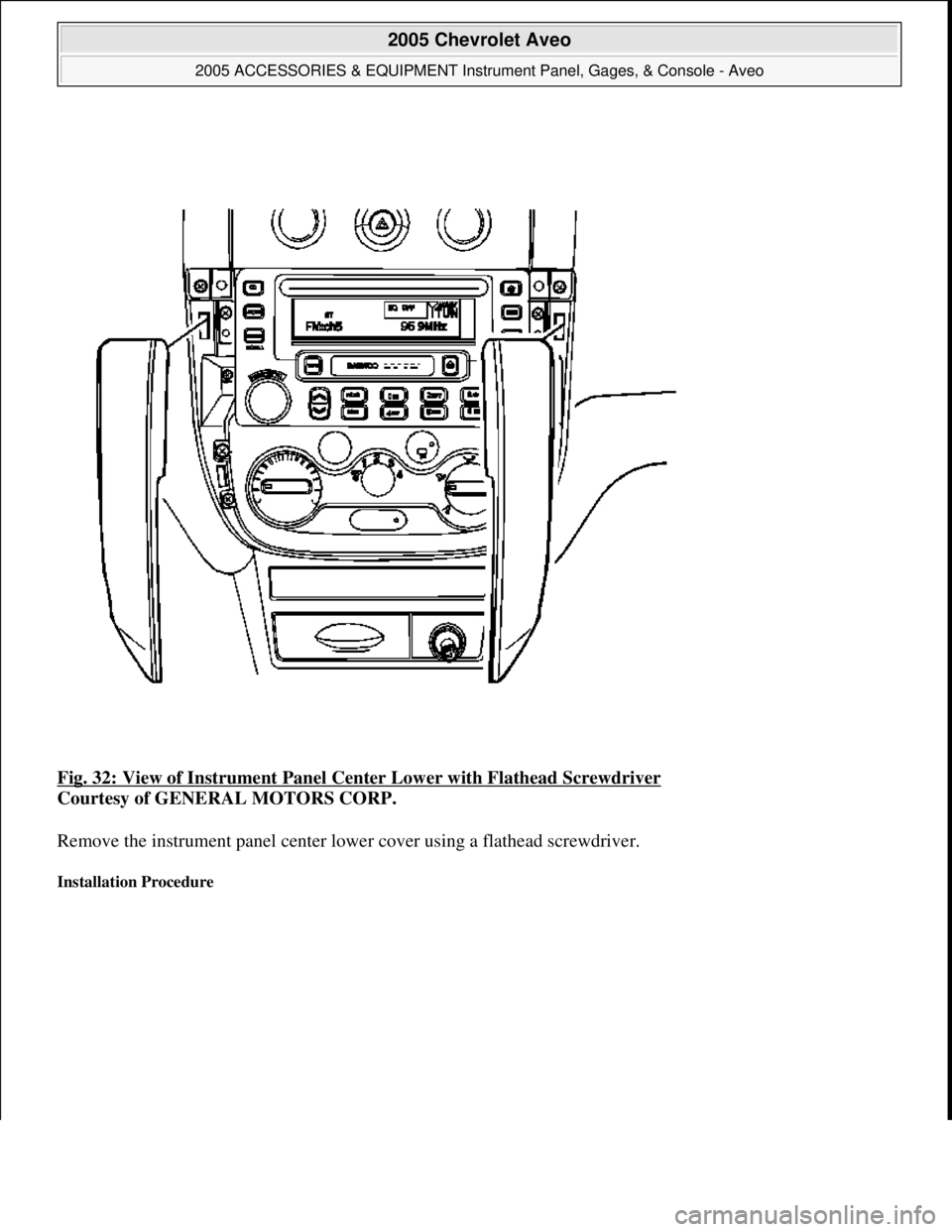

CHEVROLET AVEO 2002 Service Repair Manual Fig. 32: View of Instrument Panel Center Lower with Flathead Screwdriver Courtesy of GENERAL MOTORS CORP. Remove the instrument panel center lower cover using a flathead screwdriver. Installation P

Page 4354 of 5127

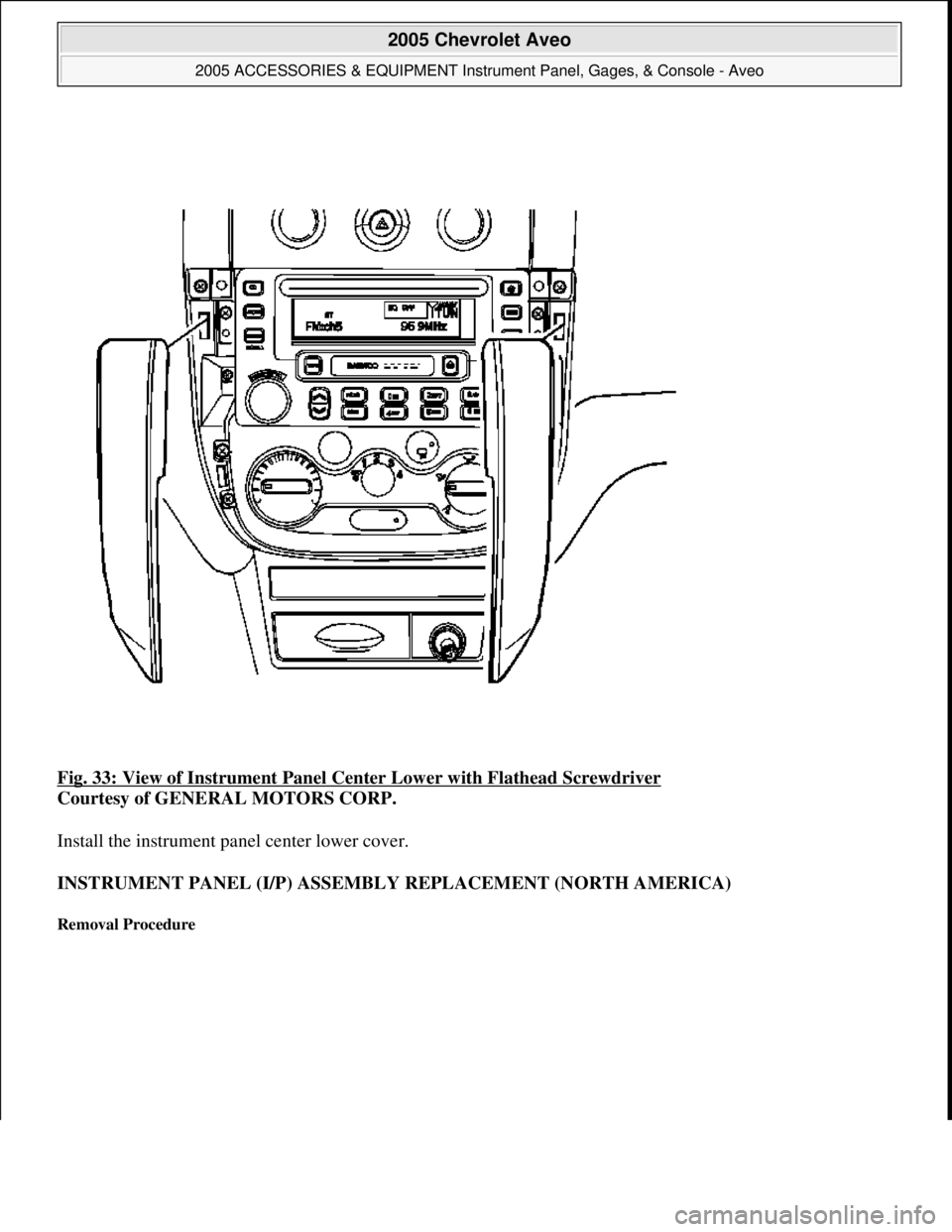

CHEVROLET AVEO 2002 Service Repair Manual Fig. 33: View of Instrument Panel Center Lower with Flathead Screwdriver Courtesy of GENERAL MOTORS CORP. Install the instrument panel center lower cover. INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMEN

Page 4355 of 5127

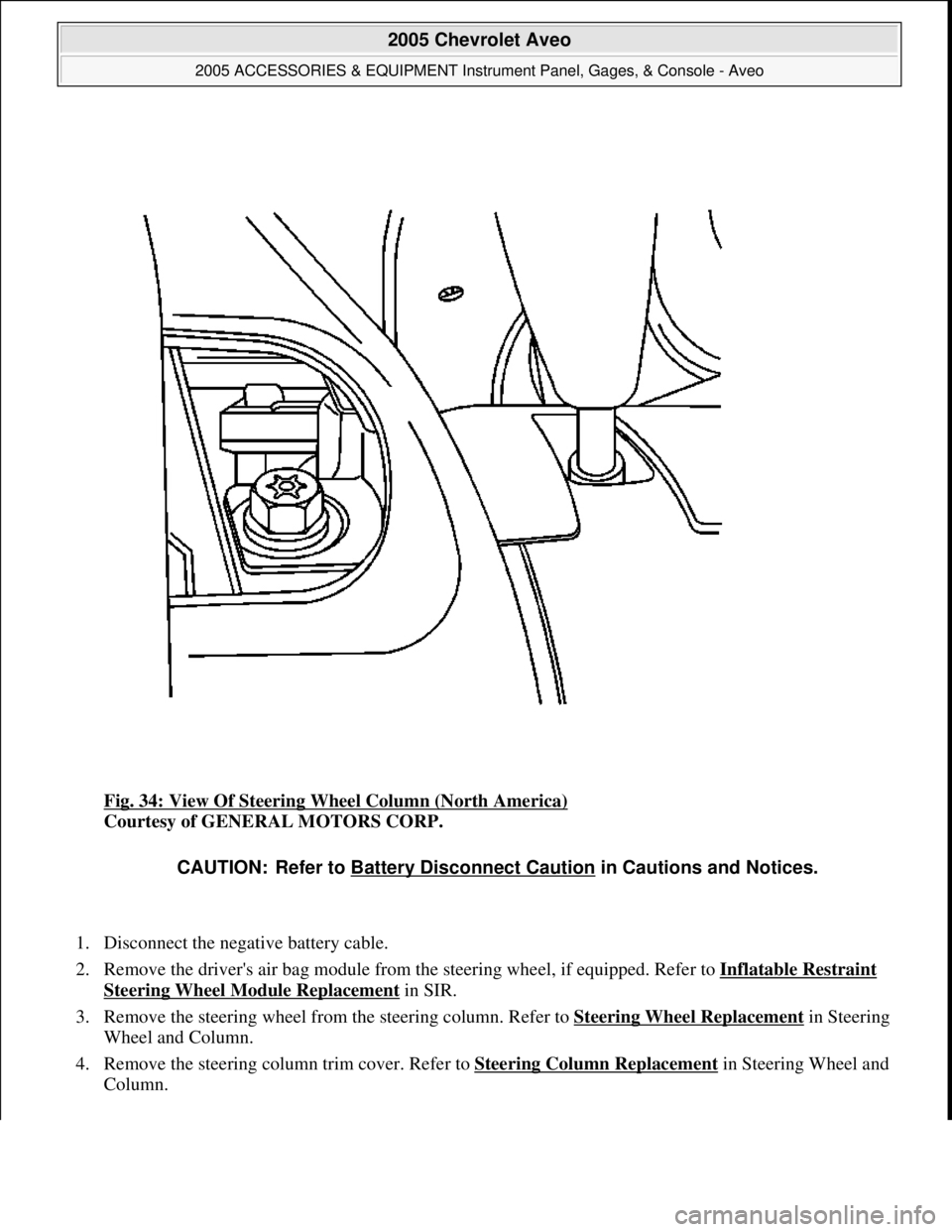

CHEVROLET AVEO 2002 Service Repair Manual Fig. 34: View Of Steering Wheel Column (North America) Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the drivers air bag module from the steering wheel, if

Page 4356 of 5127

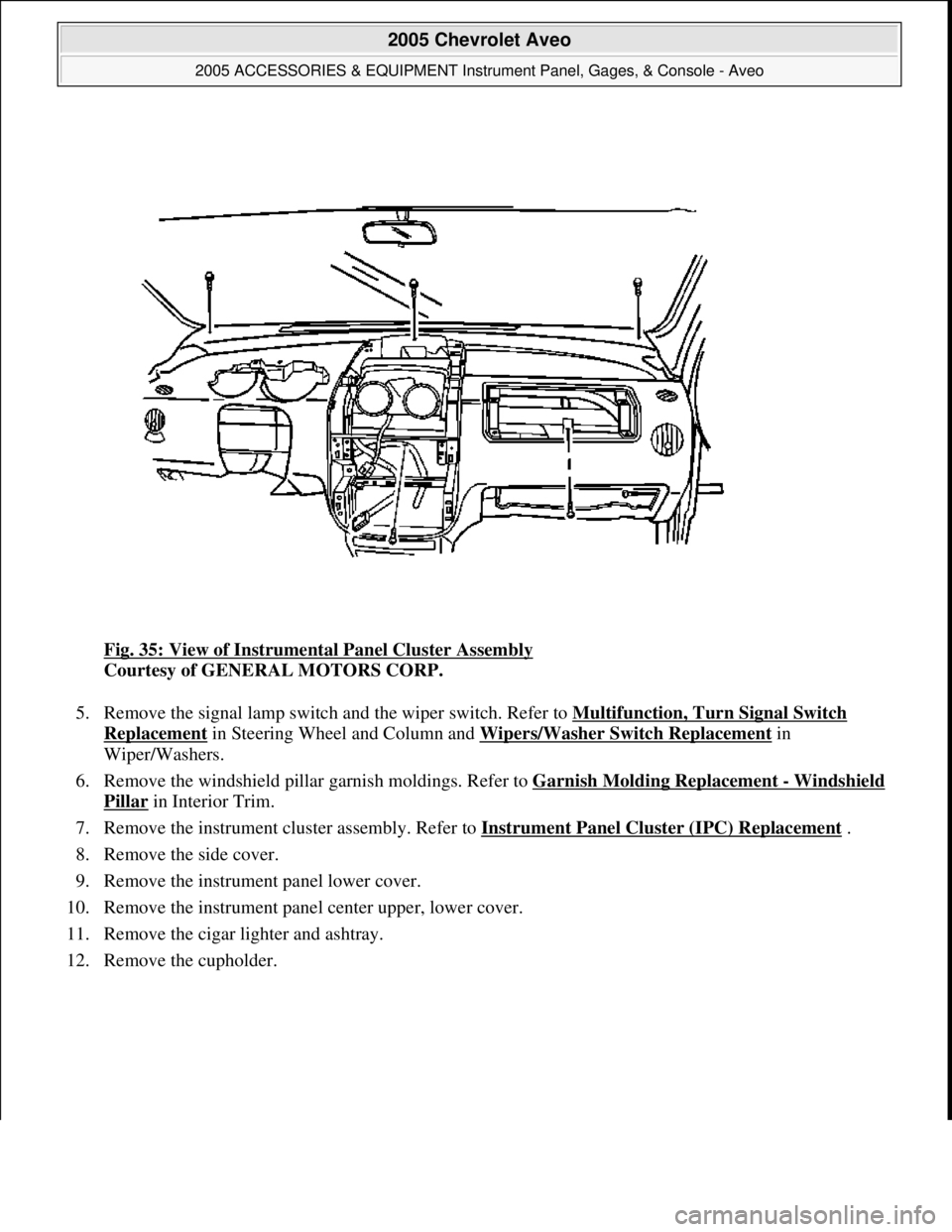

CHEVROLET AVEO 2002 Service Repair Manual Fig. 35: View of Instrumental Panel Cluster Assembly Courtesy of GENERAL MOTORS CORP. 5. Remove the signal lamp switch and the wiper switch. Refer to Multifunction, Turn Signal Switch Replacement i

Page 4357 of 5127

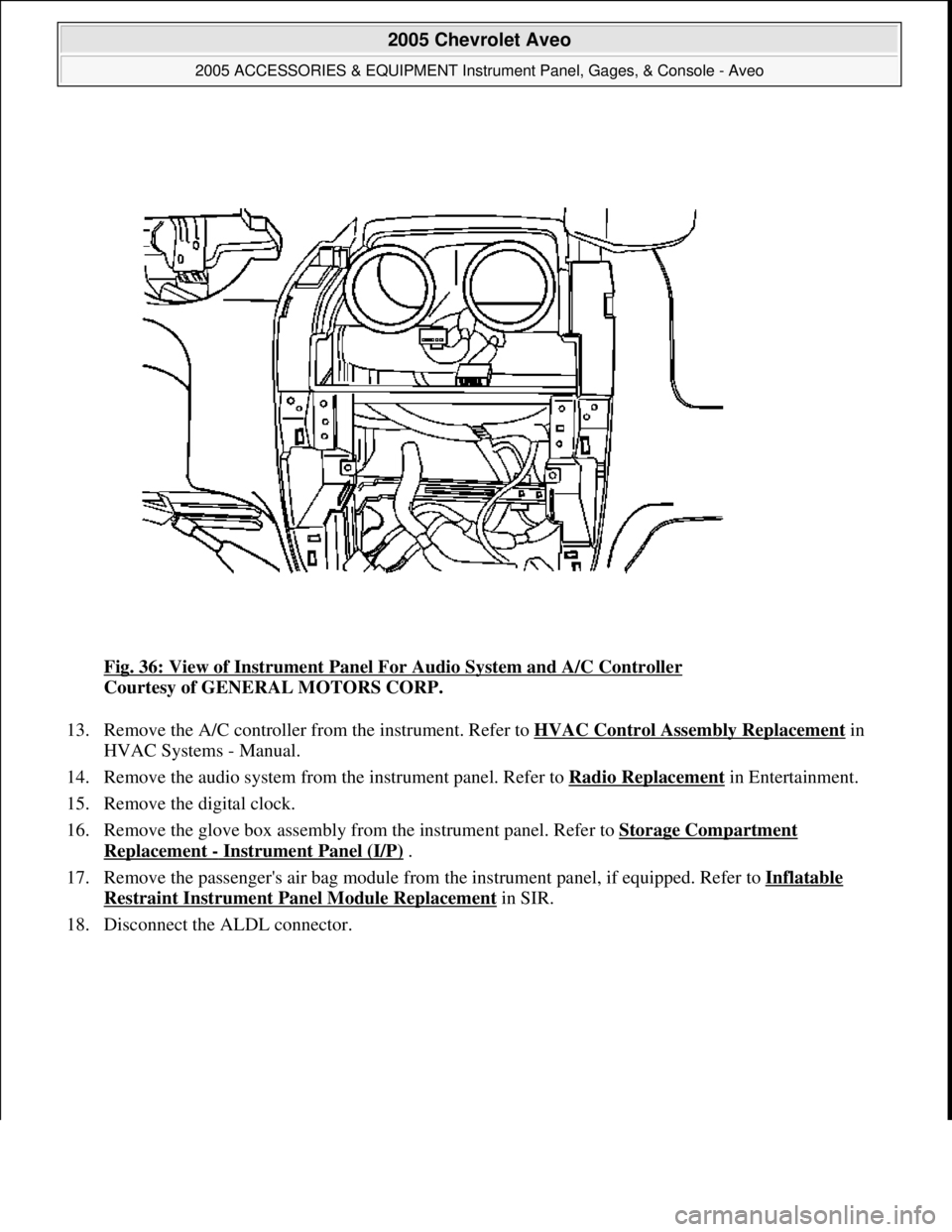

CHEVROLET AVEO 2002 Service Repair Manual Fig. 36: View of Instrument Panel For Audio System and A/C Controller Courtesy of GENERAL MOTORS CORP. 13. Remove the A/C controller from the instrument. Refer to HVAC Control Assembly Replacement

Page 4358 of 5127

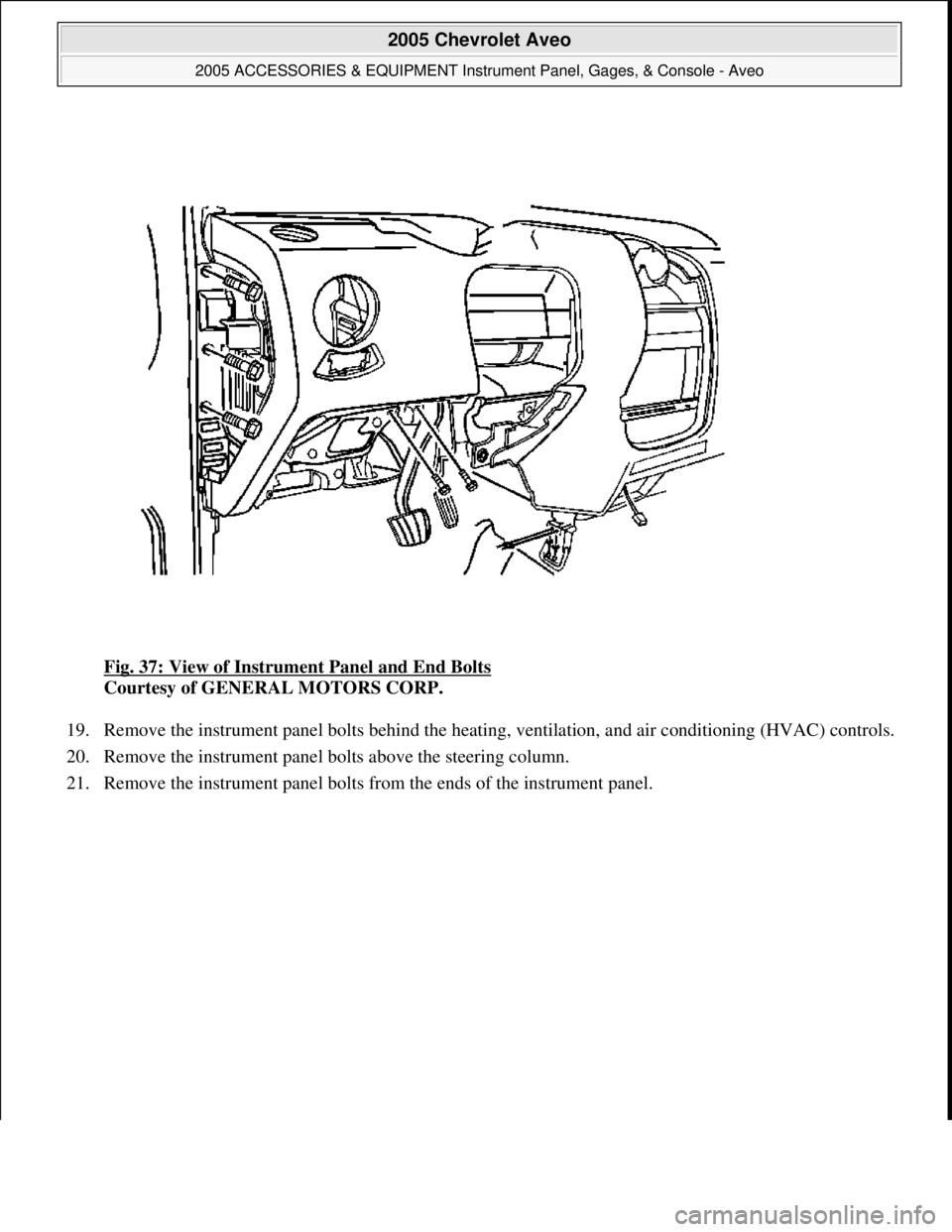

CHEVROLET AVEO 2002 Service Repair Manual Fig. 37: View of Instrument Panel and End Bolts Courtesy of GENERAL MOTORS CORP. 19. Remove the instrument panel bolts behind the heating, ventilation, and air conditioning (HVAC) controls. 20. Rem

Page 4359 of 5127

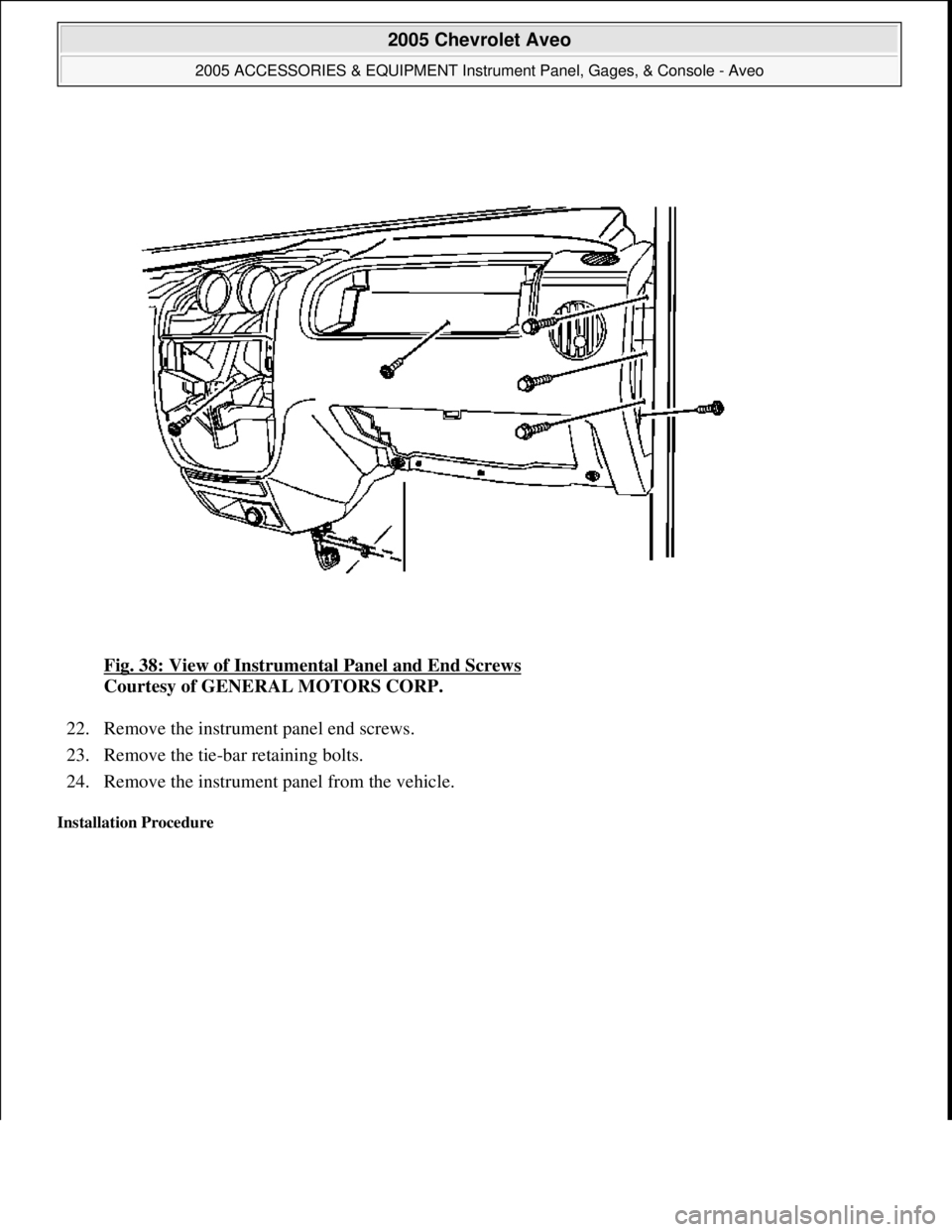

CHEVROLET AVEO 2002 Service Repair Manual Fig. 38: View of Instrumental Panel and End Screws Courtesy of GENERAL MOTORS CORP. 22. Remove the instrument panel end screws. 23. Remove the tie-bar retaining bolts. 24. Remove the instrument

Page 4360 of 5127

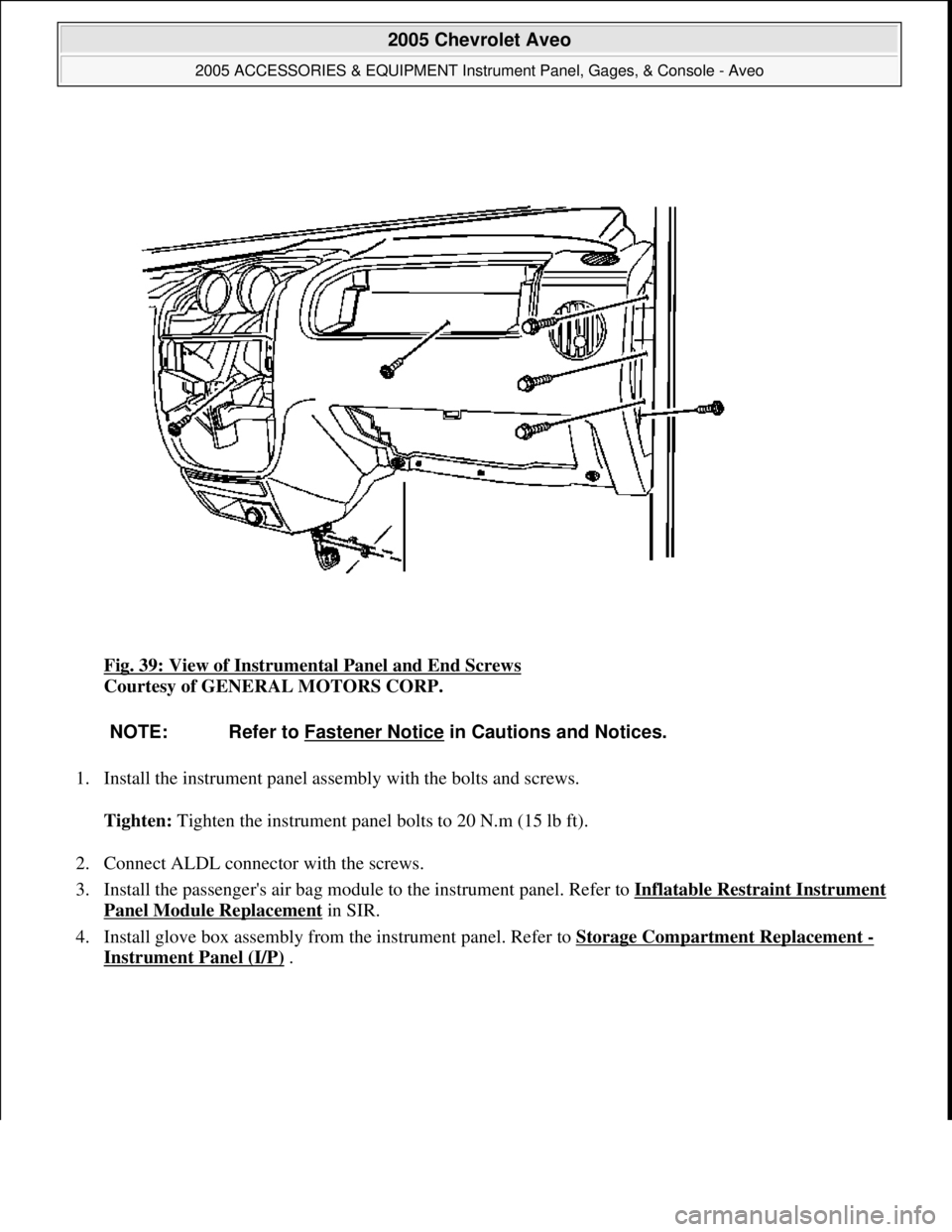

CHEVROLET AVEO 2002 Service Repair Manual Fig. 39: View of Instrumental Panel and End Screws Courtesy of GENERAL MOTORS CORP. 1. Install the instrument panel assembly with the bolts and screws. Tighten: Tighten the instrument panel bolts t
