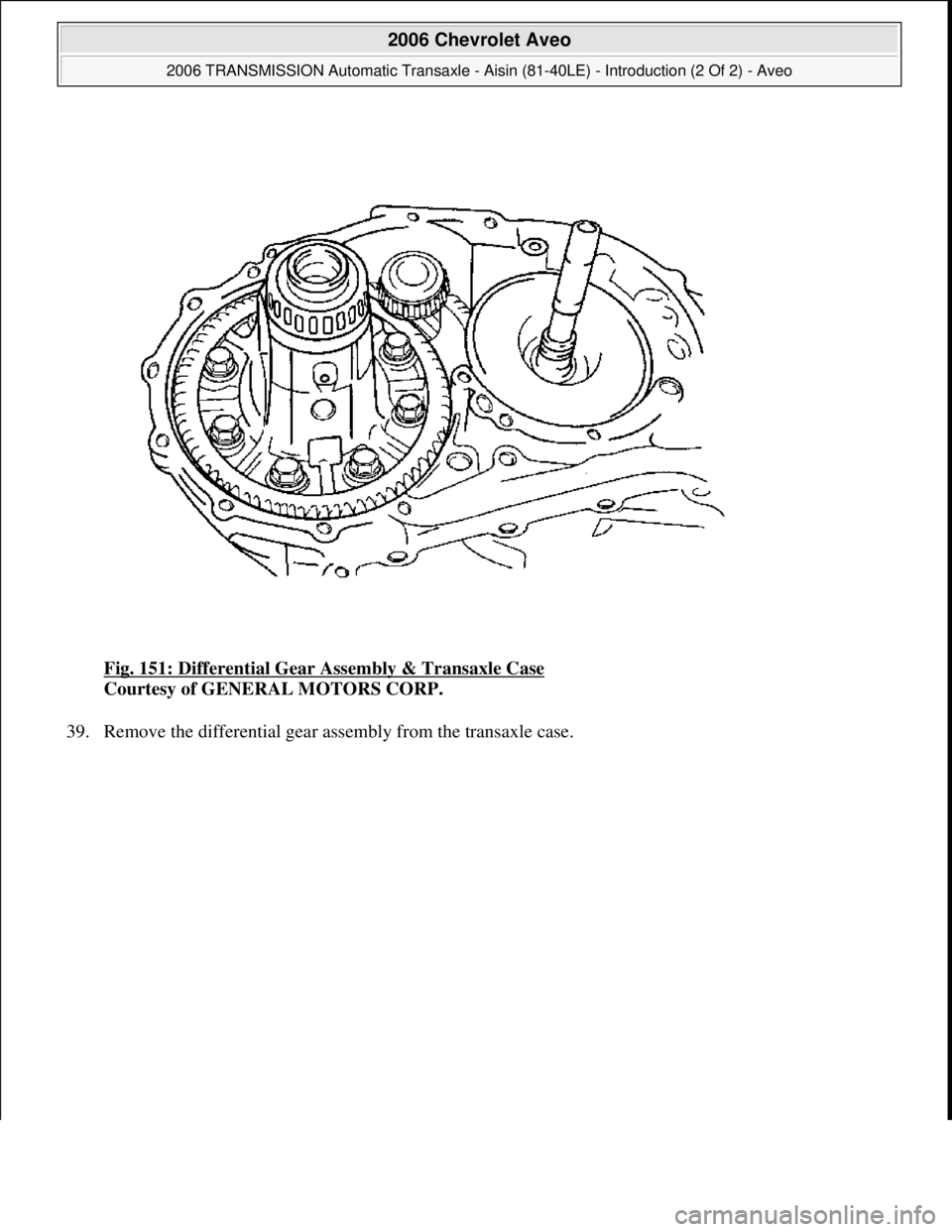

CHEVROLET AVEO 2002 Service Repair Manual Fig. 151: Differential Gear Assembly & Transaxle Case Courtesy of GENERAL MOTORS CORP. 39. Remove the differential gear assembly from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION A

Page 2714 of 5127

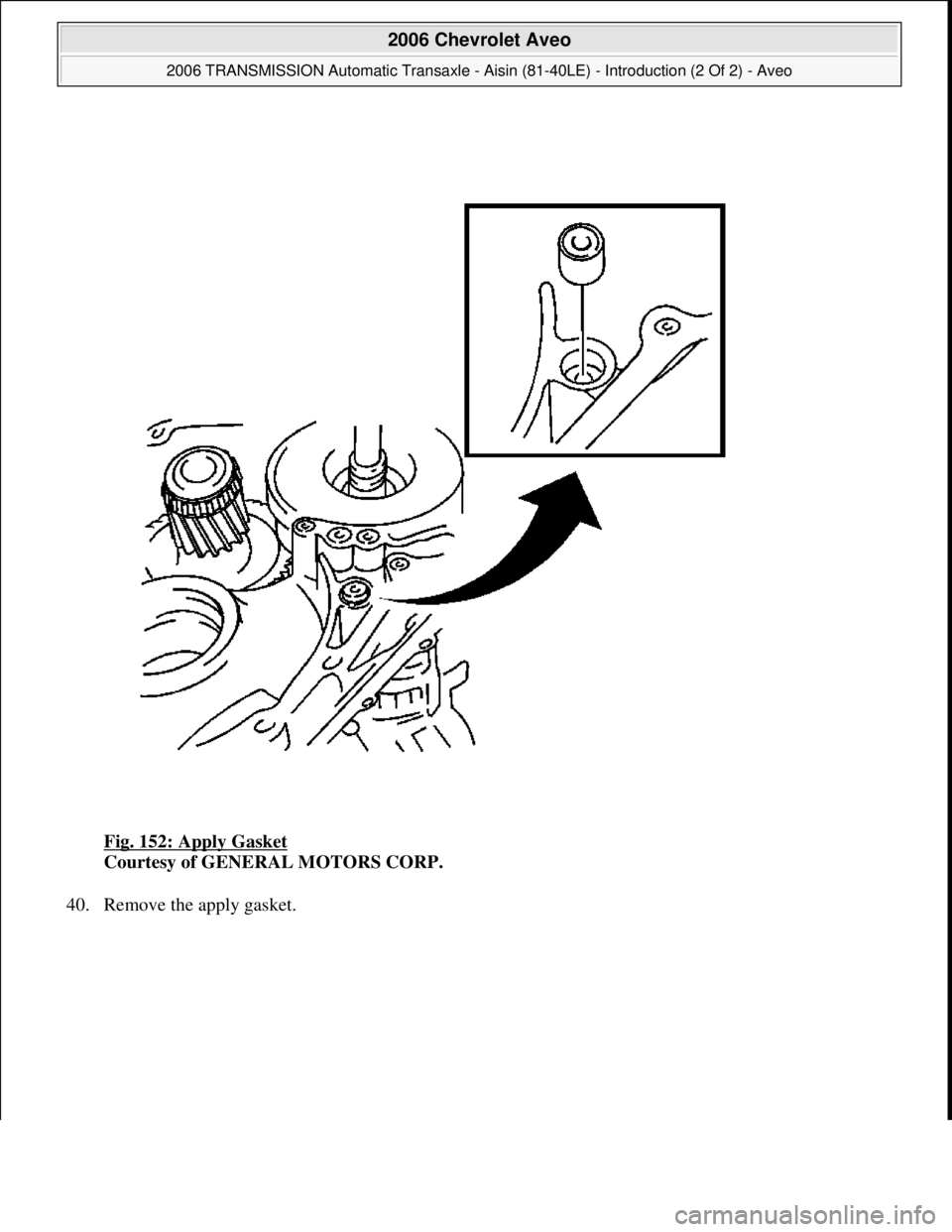

CHEVROLET AVEO 2002 Service Repair Manual Fig. 152: Apply Gasket Courtesy of GENERAL MOTORS CORP. 40. Remove the appl y gasket. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo

Page 2715 of 5127

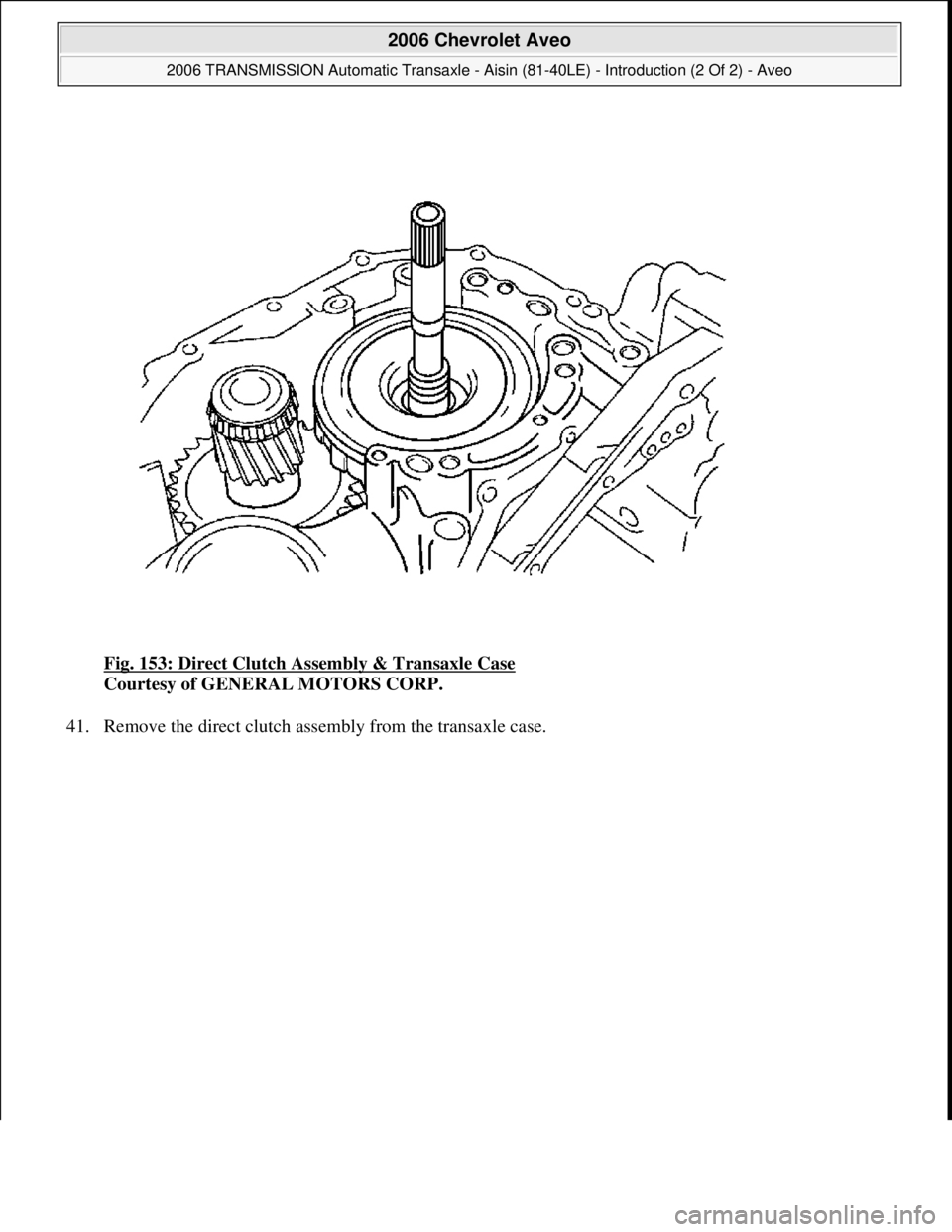

CHEVROLET AVEO 2002 Service Repair Manual Fig. 153: Direct Clutch Assembly & Transaxle Case Courtesy of GENERAL MOTORS CORP. 41. Remove the direct clutch assembl y from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic

Page 2716 of 5127

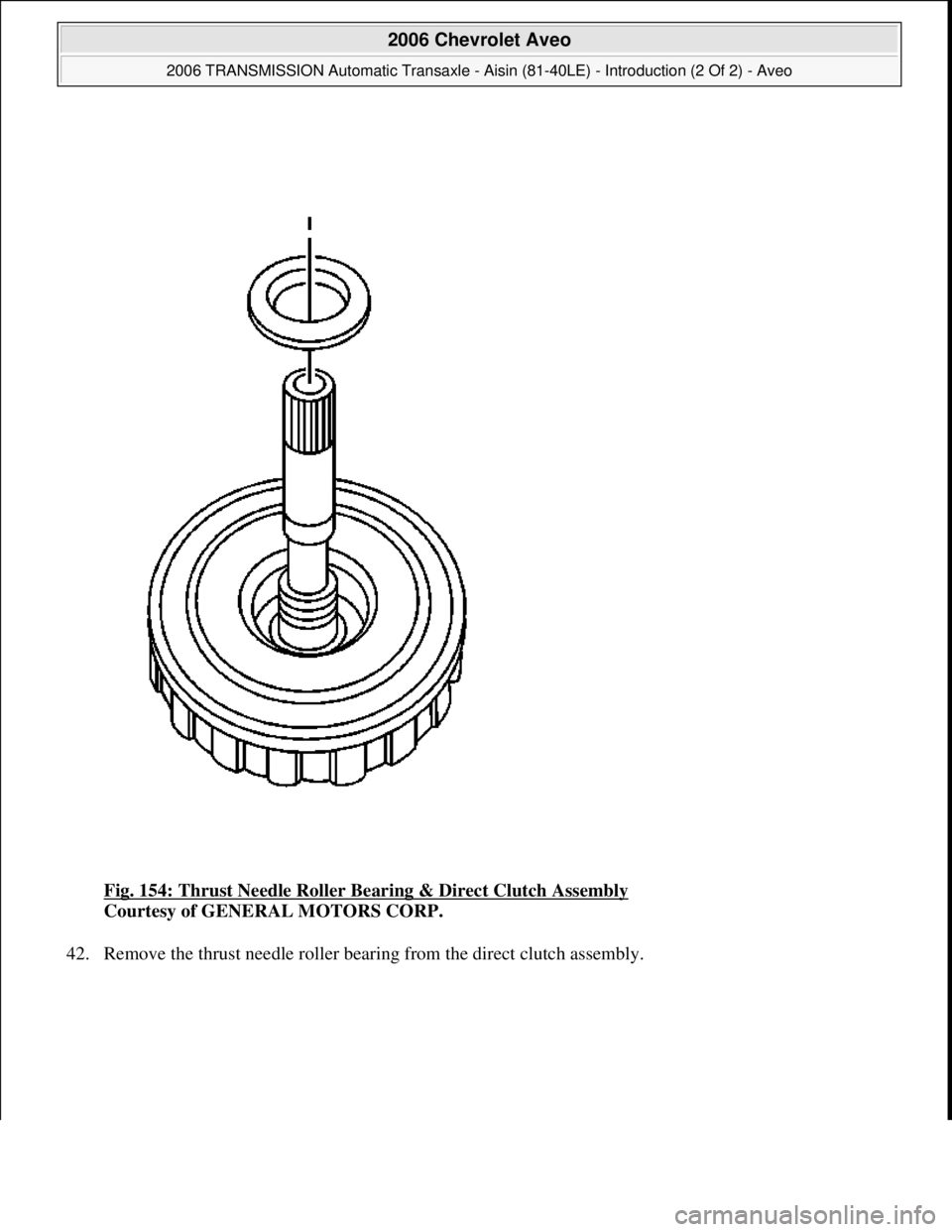

CHEVROLET AVEO 2002 Service Repair Manual Fig. 154: Thrust Needle Roller Bearing & Direct Clutch Assembly Courtesy of GENERAL MOTORS CORP. 42. Remove the thrust needle roller bearing from the direct clutch assembly. 2006 Chevrolet Aveo

Page 2717 of 5127

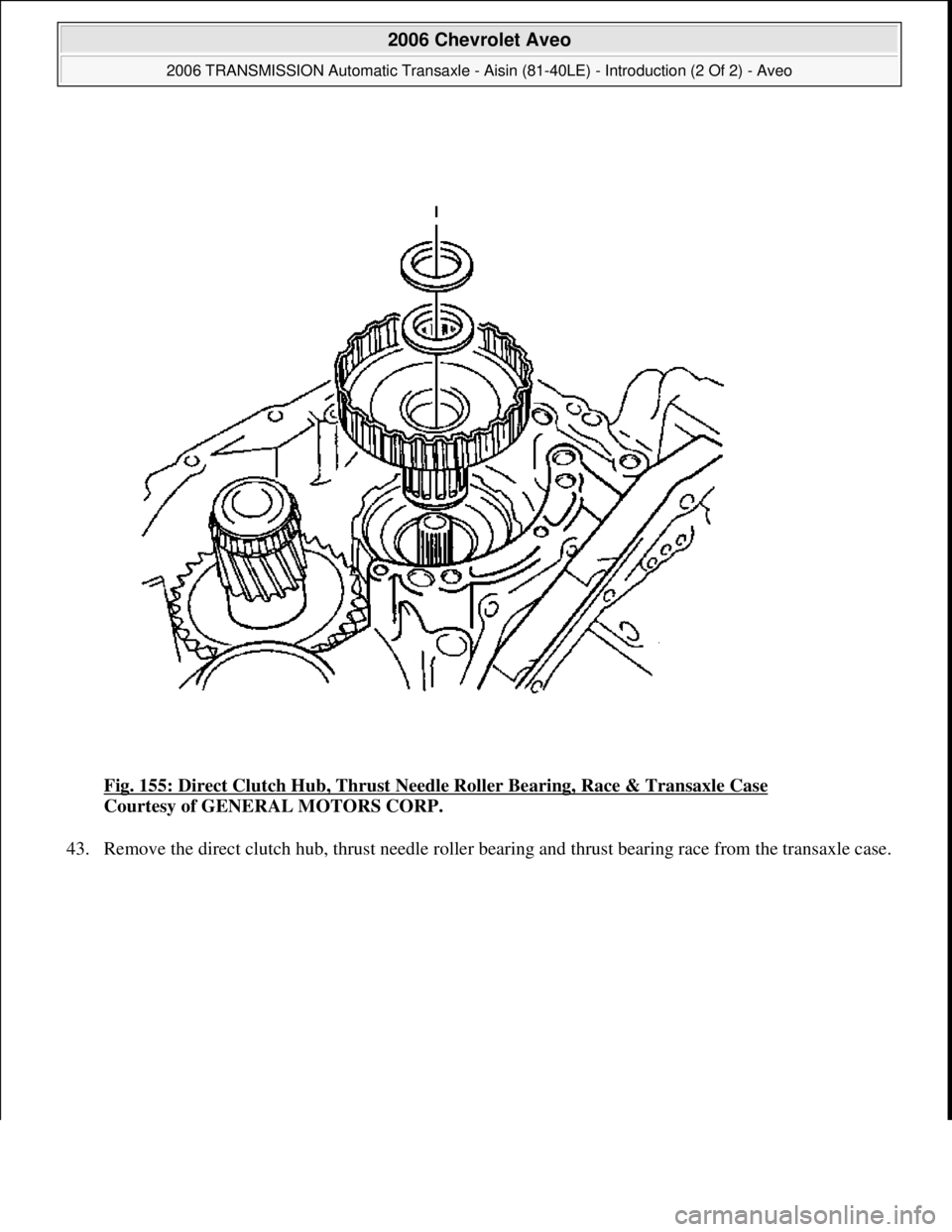

CHEVROLET AVEO 2002 Service Repair Manual Fig. 155: Direct Clutch Hub, Thrust Needle Roller Bearing, Race & Transaxle Case Courtesy of GENERAL MOTORS CORP. 43. Remove the direct clutch hub, thrust needle roller bearing and thrust bearing ra

Page 2718 of 5127

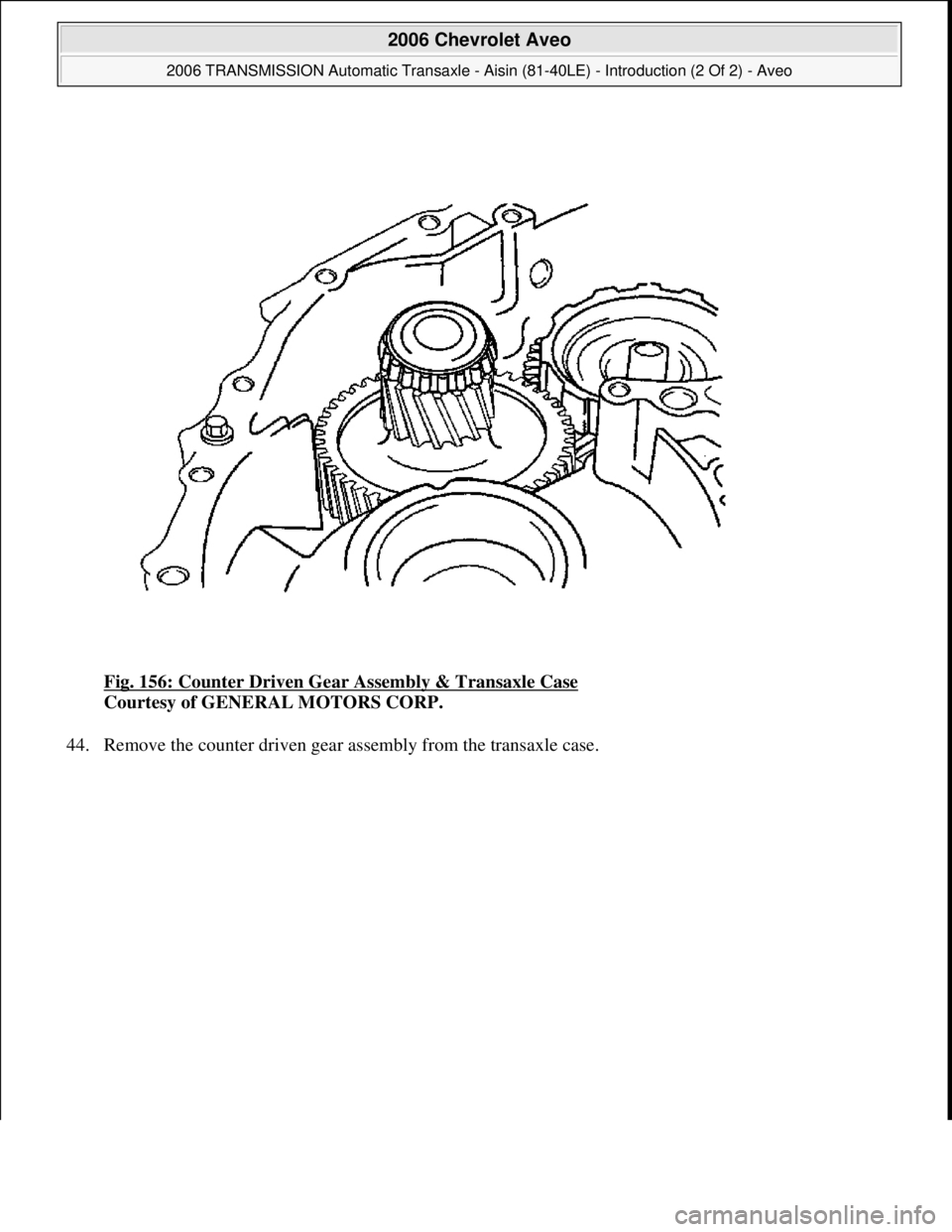

CHEVROLET AVEO 2002 Service Repair Manual Fig. 156: Counter Driven Gear Assembly & Transaxle Case Courtesy of GENERAL MOTORS CORP. 44. Remove the counter driven gear assembly from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSI

Page 2719 of 5127

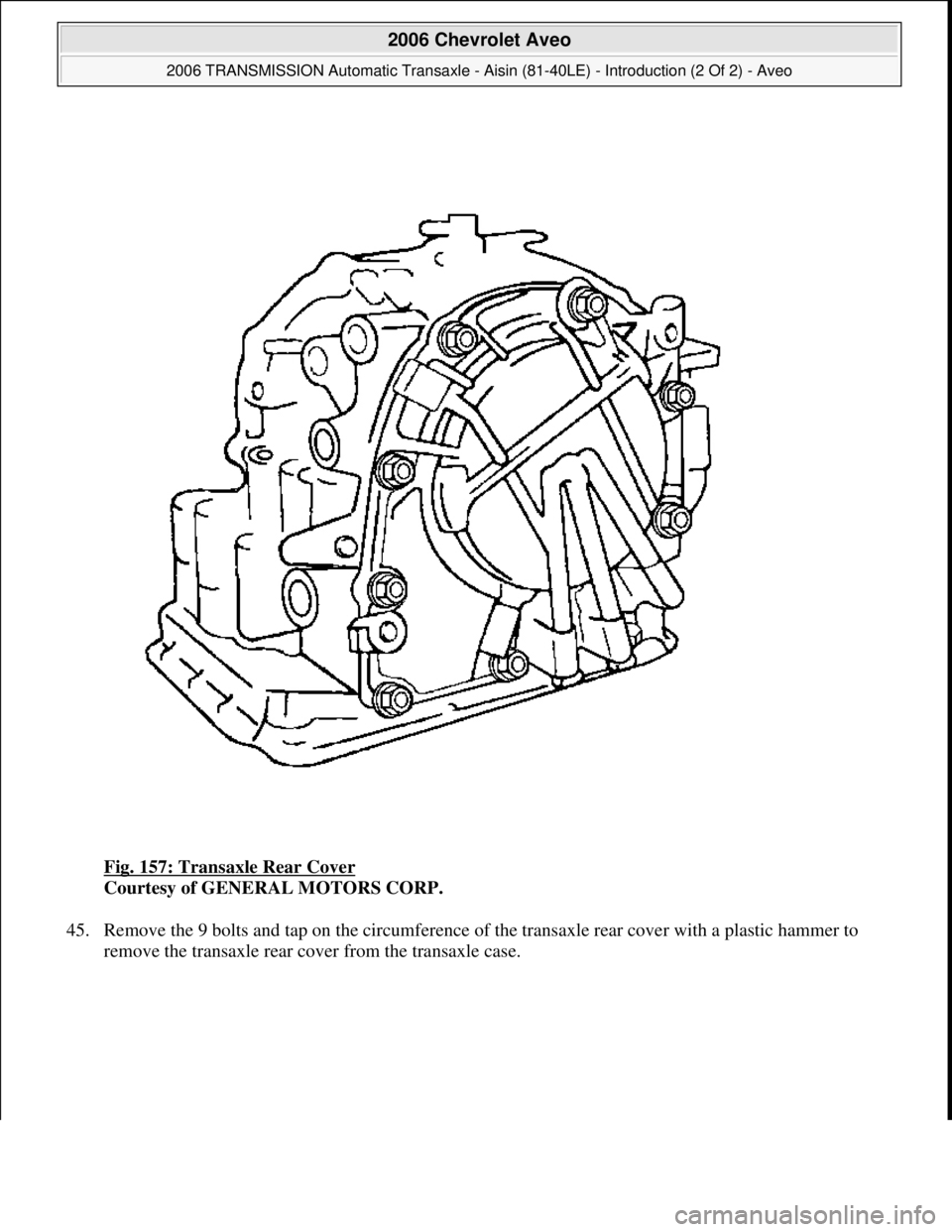

CHEVROLET AVEO 2002 Service Repair Manual Fig. 157: Transaxle Rear Cover Courtesy of GENERAL MOTORS CORP. 45. Remove the 9 bolts and tap on the circumference of the transaxle rear cover with a plastic hammer to remove the transaxle rear co

Page 2720 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 158: Apply Gaskets & Transaxle Rear Cover Courtesy of GENERAL MOTORS CORP. 46. Remove the 4 appl y gaskets. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Int
