Page 2601 of 5127

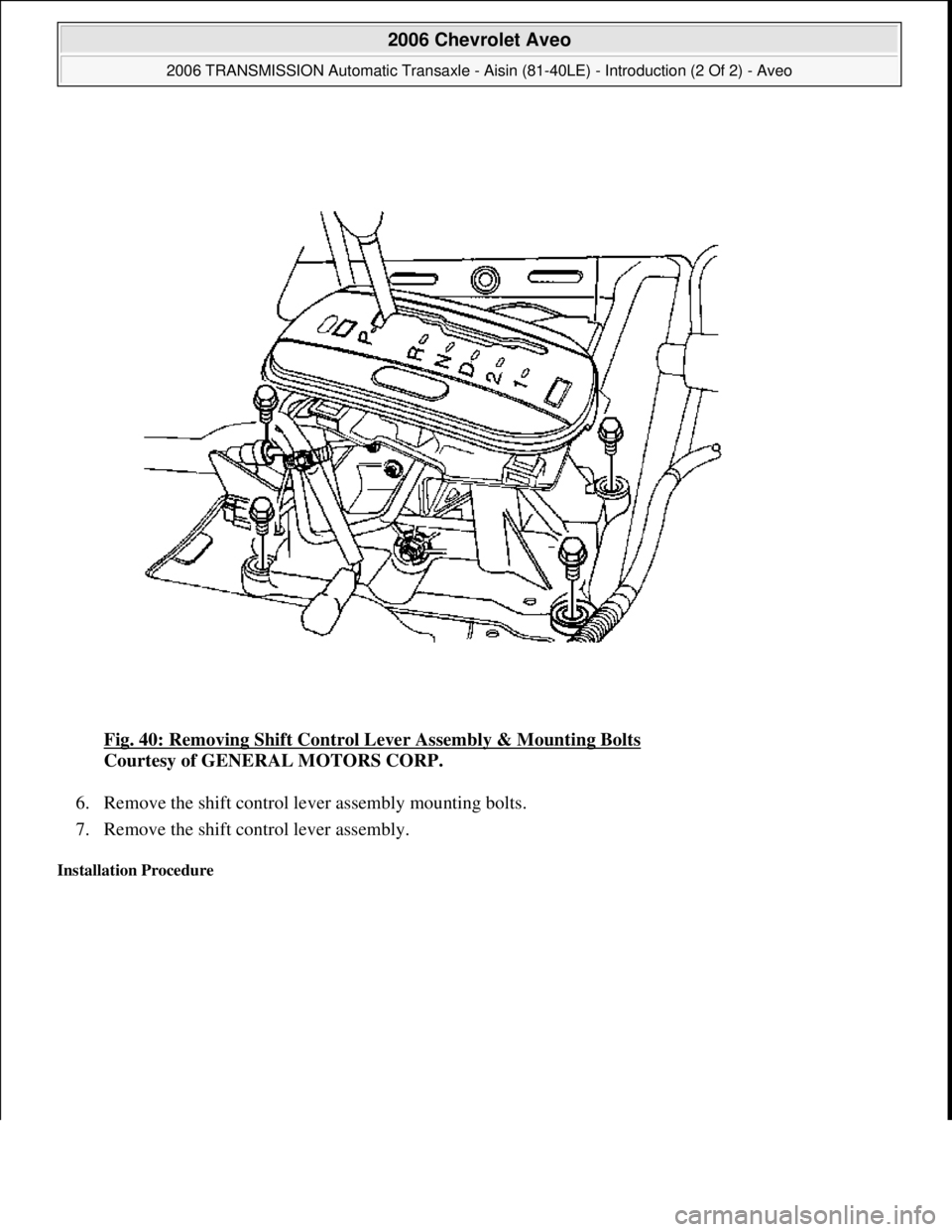

CHEVROLET AVEO 2002 Service Repair Manual Fig. 40: Removing Shift Control Lever Assembly & Mounting Bolts Courtesy of GENERAL MOTORS CORP. 6. Remove the shift control lever assembly mounting bolts. 7. Remove the shift control lever assemb

Page 2602 of 5127

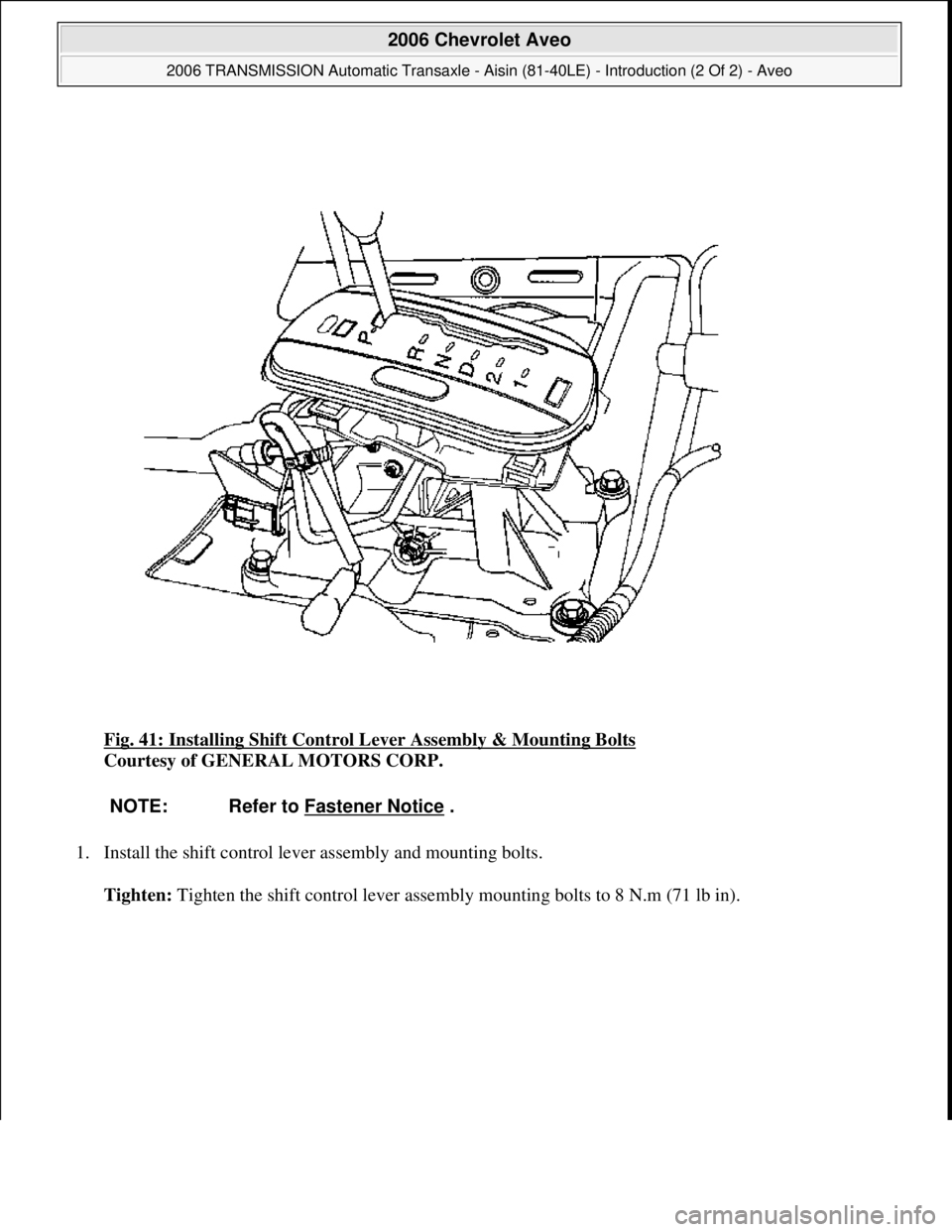

CHEVROLET AVEO 2002 Service Repair Manual Fig. 41: Installing Shift Control Lever Assembly & Mounting Bolts Courtesy of GENERAL MOTORS CORP. 1. Install the shift control lever assembly and mounting bolts. Tighten: Ti ghten the shift contro

Page 2603 of 5127

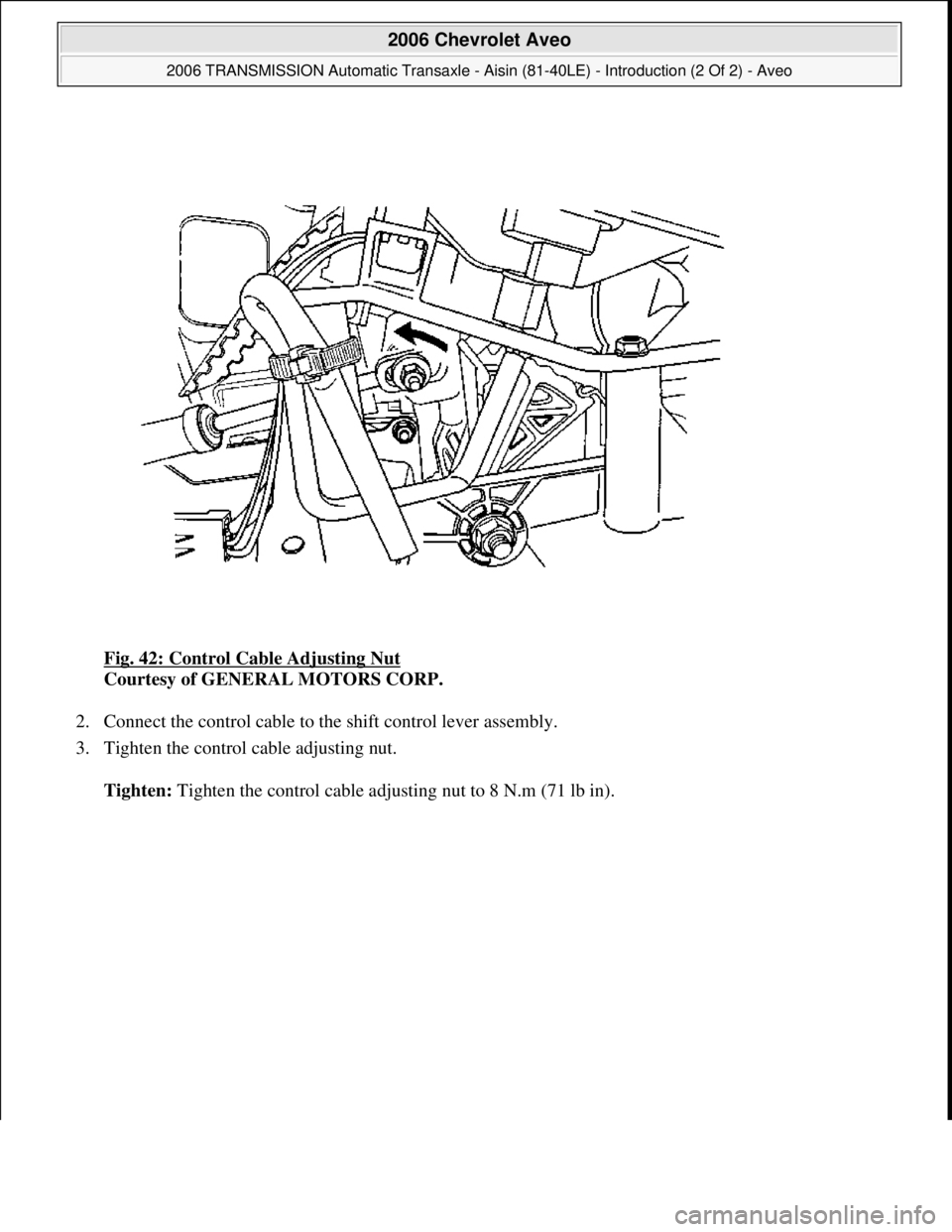

CHEVROLET AVEO 2002 Service Repair Manual Fig. 42: Control Cable Adjusting Nut Courtesy of GENERAL MOTORS CORP. 2. Connect the control cable to the shift control lever assembly. 3. Tighten the control cable adjusting nut. Tighten: Ti ght

Page 2604 of 5127

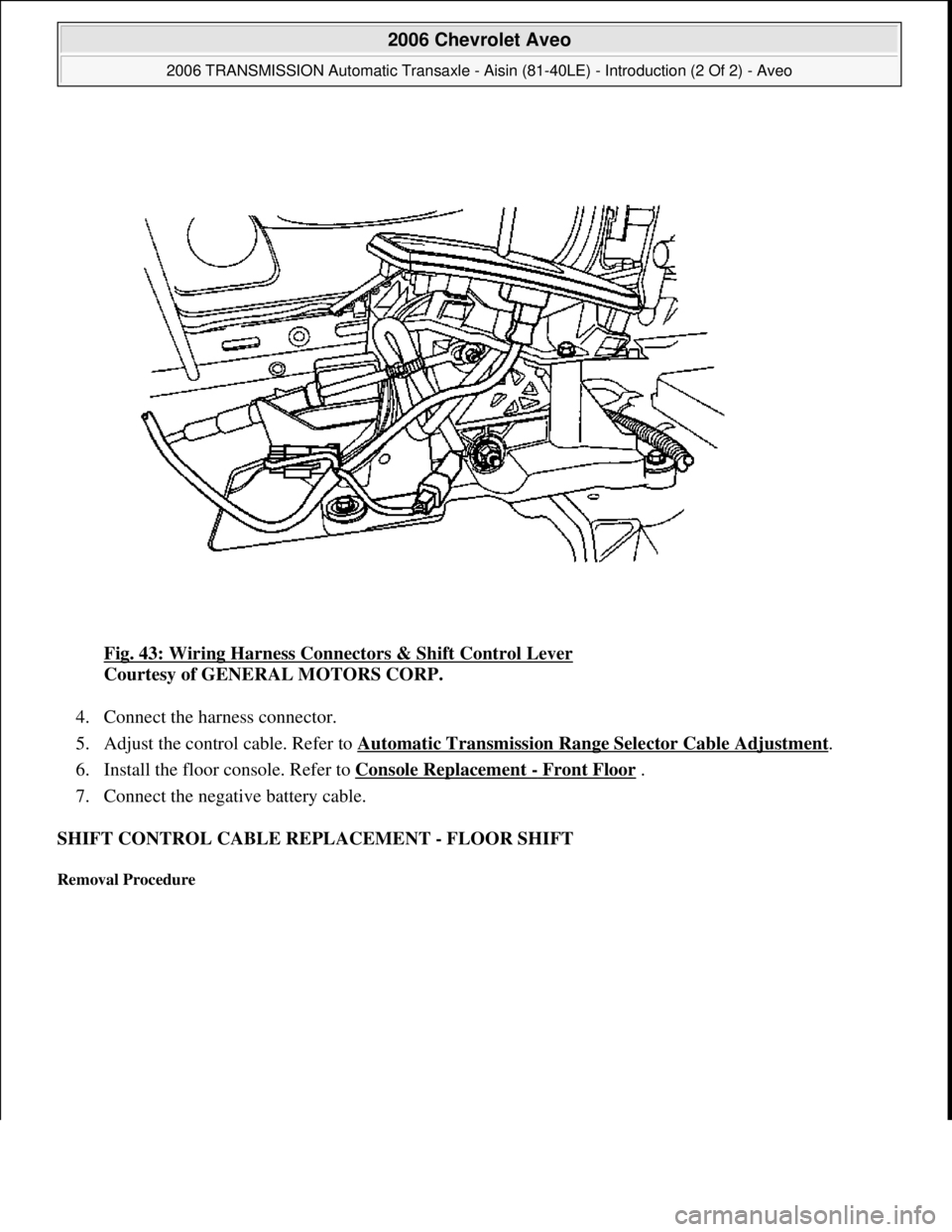

CHEVROLET AVEO 2002 Service Repair Manual Fig. 43: Wiring Harness Connectors & Shift Control Lever Courtesy of GENERAL MOTORS CORP. 4. Connect the harness connector. 5. Adjust the control cable. Refer to Automatic Transmission Range Selec

Page 2605 of 5127

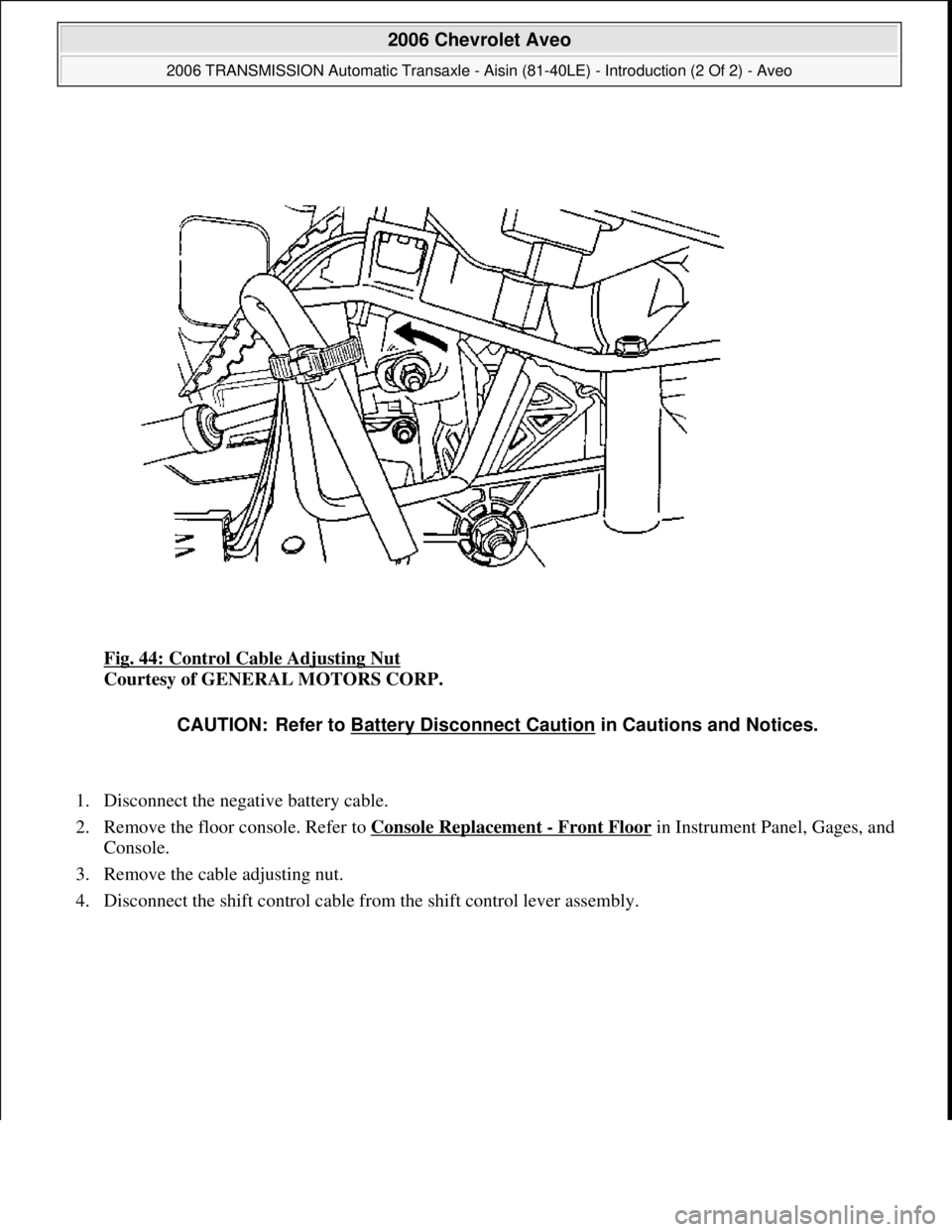

CHEVROLET AVEO 2002 Service Repair Manual Fig. 44: Control Cable Adjusting Nut Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the floor console. Refer to Console Replacement - Front Floorin Instrumen

Page 2606 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 45: Shift Control Cable & PNP Switch Lever Courtesy of GENERAL MOTORS CORP. 5. Remove the shift control cable retaining E-ring. 6. Disconnect the shift control cable from the park/neutral pos

Page 2607 of 5127

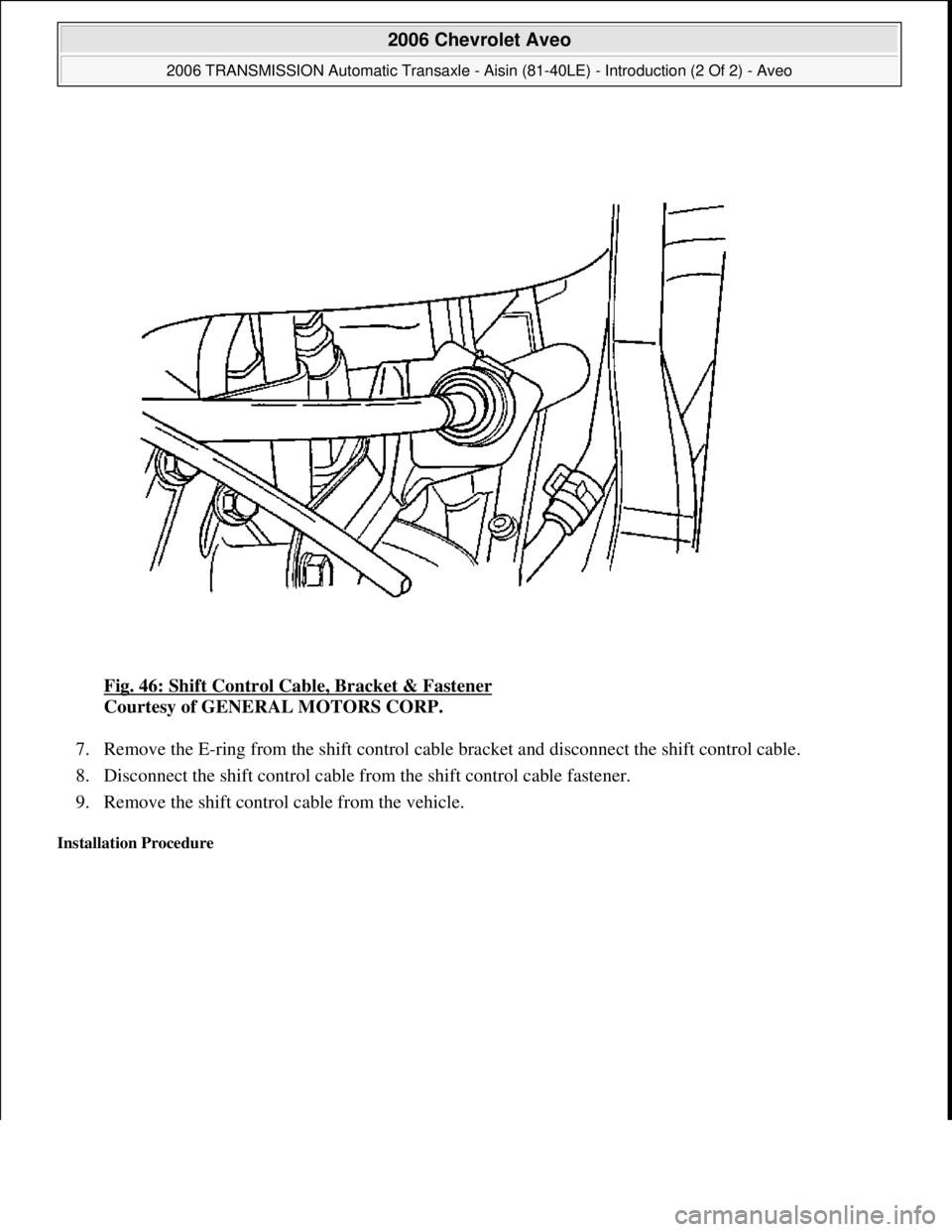

CHEVROLET AVEO 2002 Service Repair Manual Fig. 46: Shift Control Cable, Bracket & Fastener Courtesy of GENERAL MOTORS CORP. 7. Remove the E-ring from the shift control cable bracket and disconnect the shift control cable. 8. Disconnect th

Page 2608 of 5127

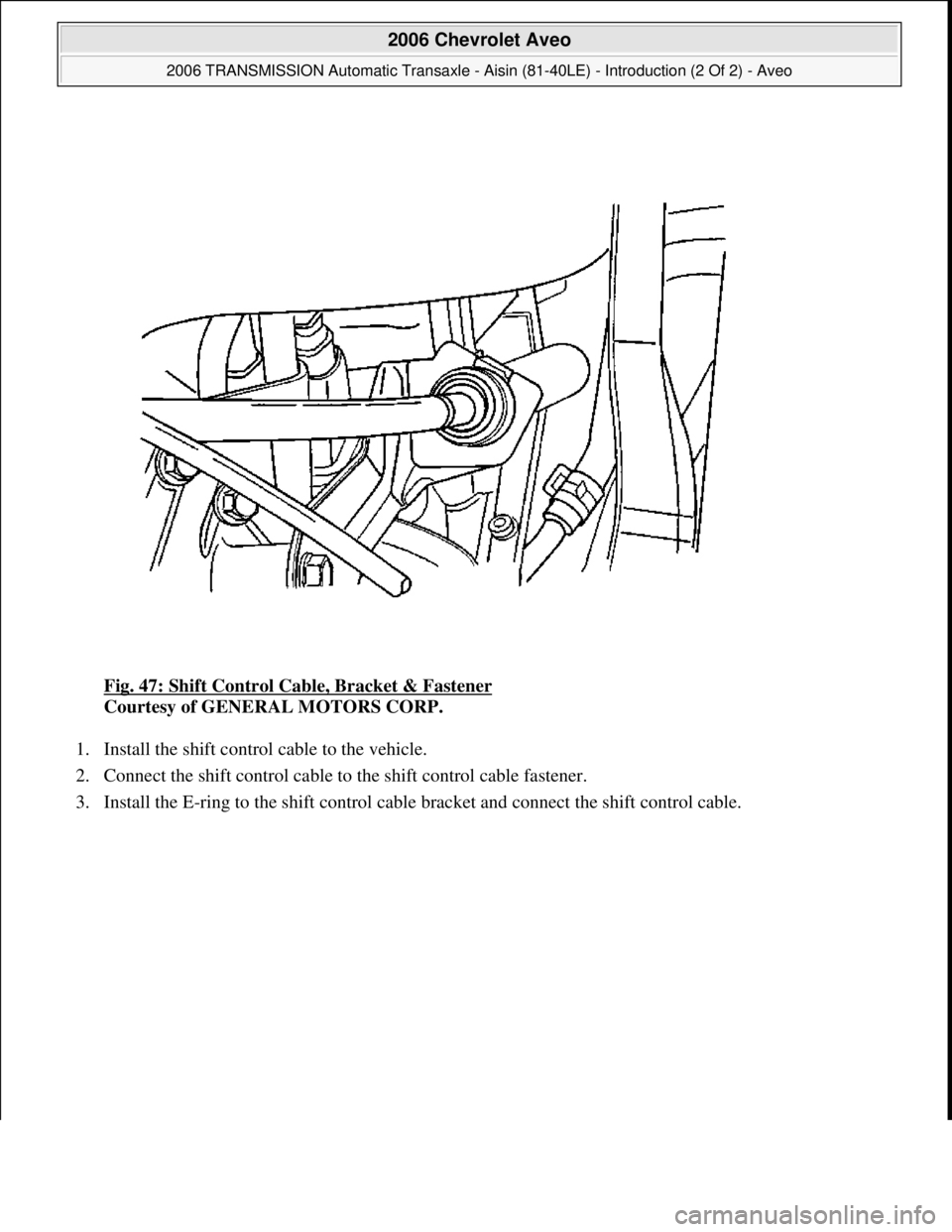

CHEVROLET AVEO 2002 Service Repair Manual Fig. 47: Shift Control Cable, Bracket & Fastener Courtesy of GENERAL MOTORS CORP. 1. Install the shift control cable to the vehicle. 2. Connect the shift control cable to the shift control cable f
