Page 2025 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Coolant Surge Tank with Pressure Cap B. Electric Engine Cooling Fan{CAUTION: An electric engine cooling fan un

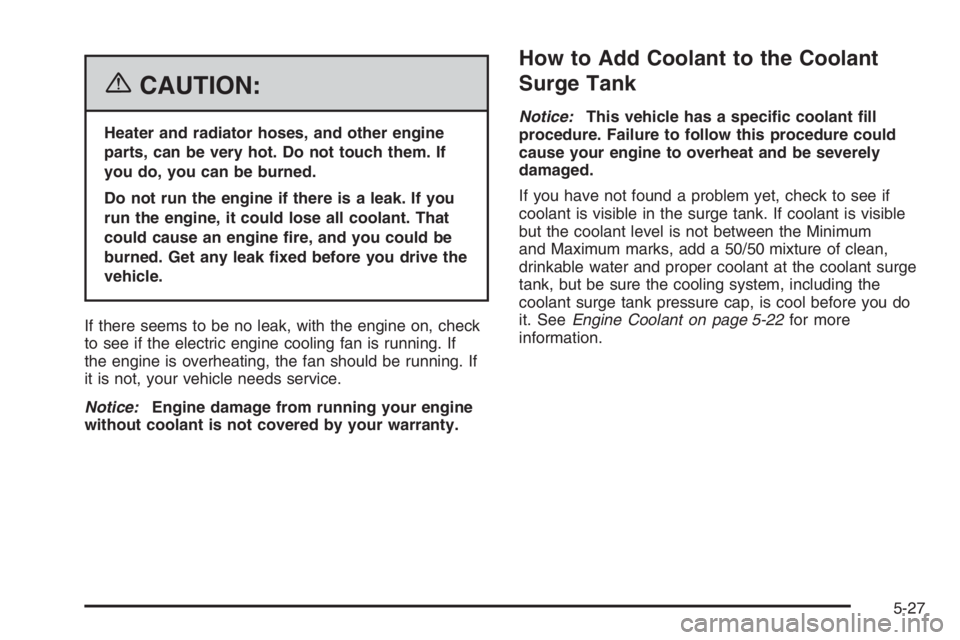

Page 2026 of 5127

CHEVROLET AVEO 2002 Service Repair Manual {CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could

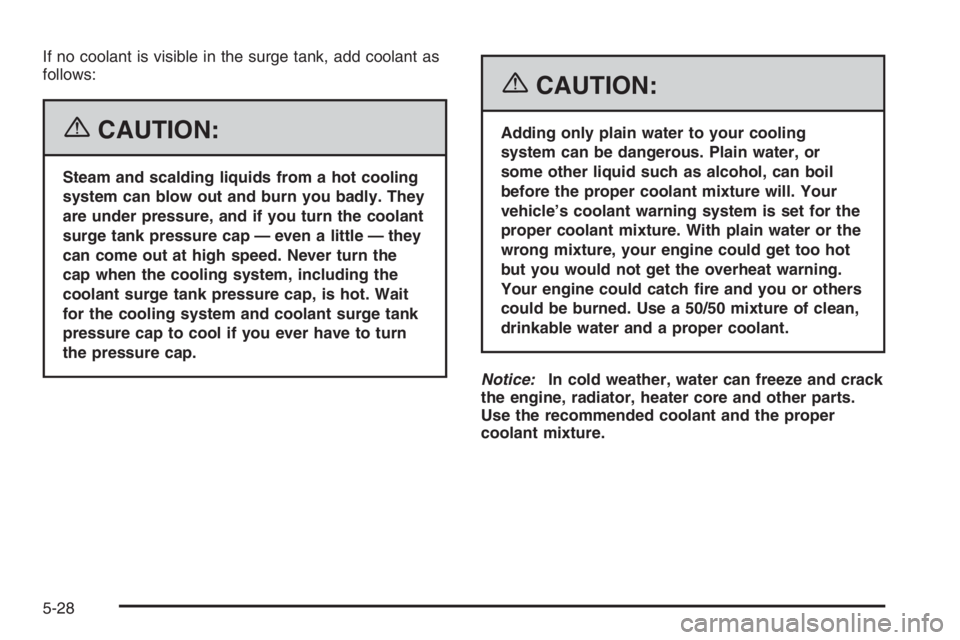

Page 2027 of 5127

CHEVROLET AVEO 2002 Service Repair Manual If no coolant is visible in the surge tank, add coolant as follows: {CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you

Page 2028 of 5127

CHEVROLET AVEO 2002 Service Repair Manual {CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 1. You

Page 2029 of 5127

CHEVROLET AVEO 2002 Service Repair Manual 3. Fill the coolant surge tank with the proper mixture to the Maximum mark on the coolant surge tank. Wait about five minutes, then check to see if the level is below the mark. If the level is below

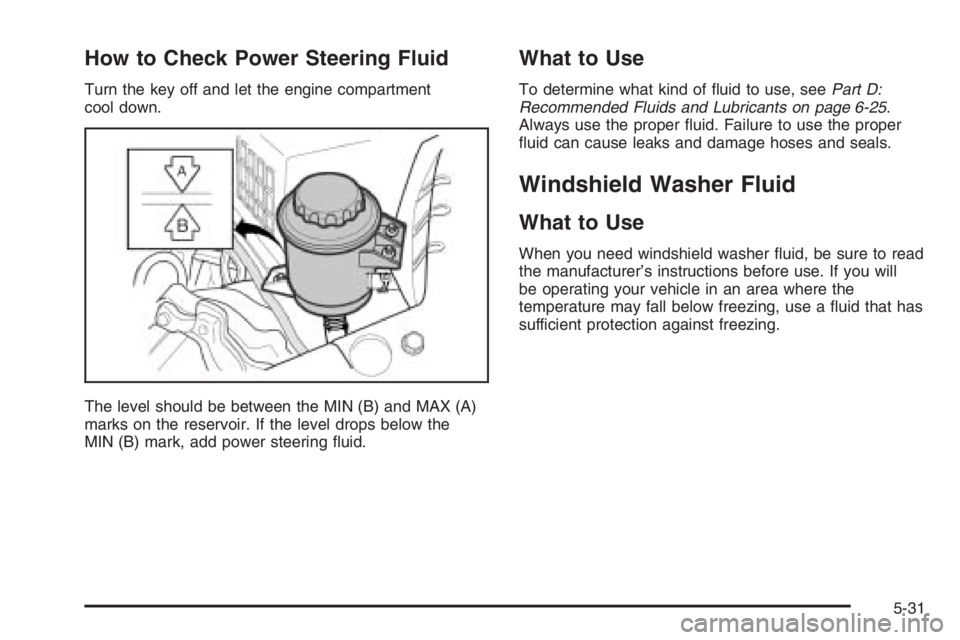

Page 2030 of 5127

CHEVROLET AVEO 2002 Service Repair Manual How to Check Power Steering Fluid Turn the key off and let the engine compartment cool down. The level should be between the MIN (B) and MAX (A) marks on the reservoir. If the level drops below the MI

Page 2031 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Adding Washer Fluid Open the cap with the washer symbol on it. Add washer fluid until the tank is full. SeeEngine Compartment Overview on page 5-12for reservoir location. Notice: When using concentr

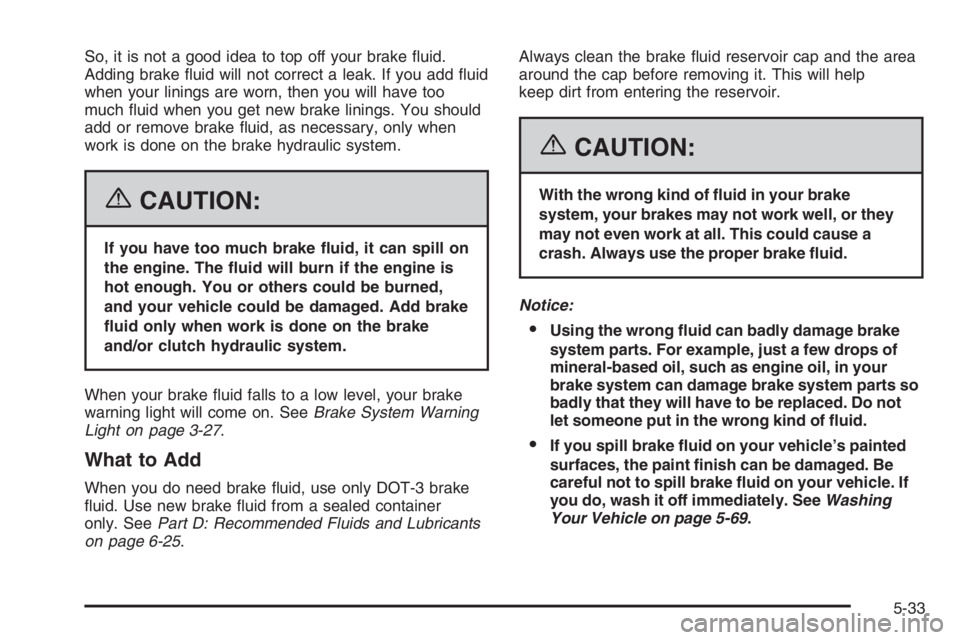

Page 2032 of 5127

CHEVROLET AVEO 2002 Service Repair Manual So, it is not a good idea to top off your brake fluid. Adding brake fluid will not correct a leak. If you add fluid when your linings are worn, then you will have too much fluid when you get new b
