Page 2825 of 5127

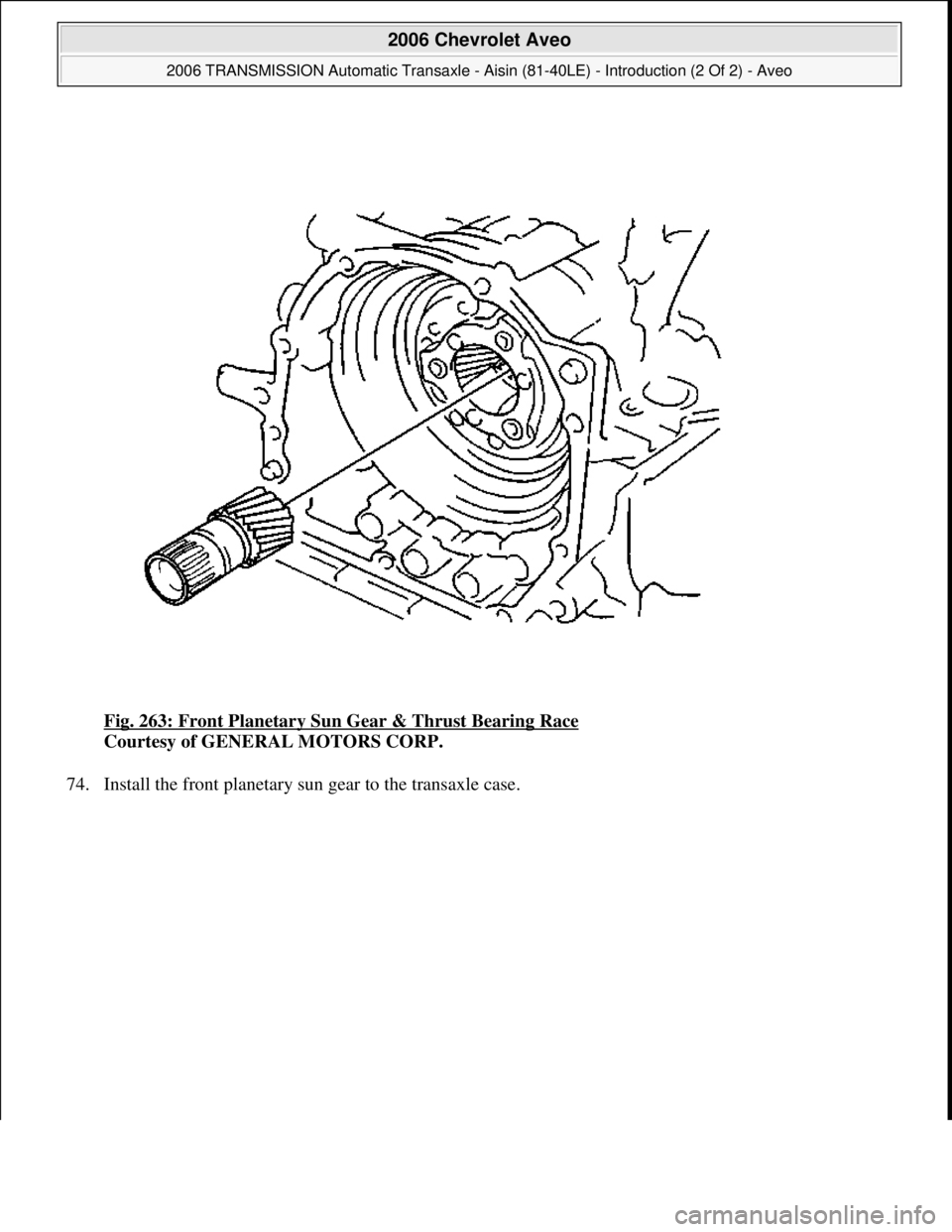

CHEVROLET AVEO 2002 Service Repair Manual Fig. 263: Front Planetary Sun Gear & Thrust Bearing Race Courtesy of GENERAL MOTORS CORP. 74. Install the front planetar y sun gear to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION A

Page 2826 of 5127

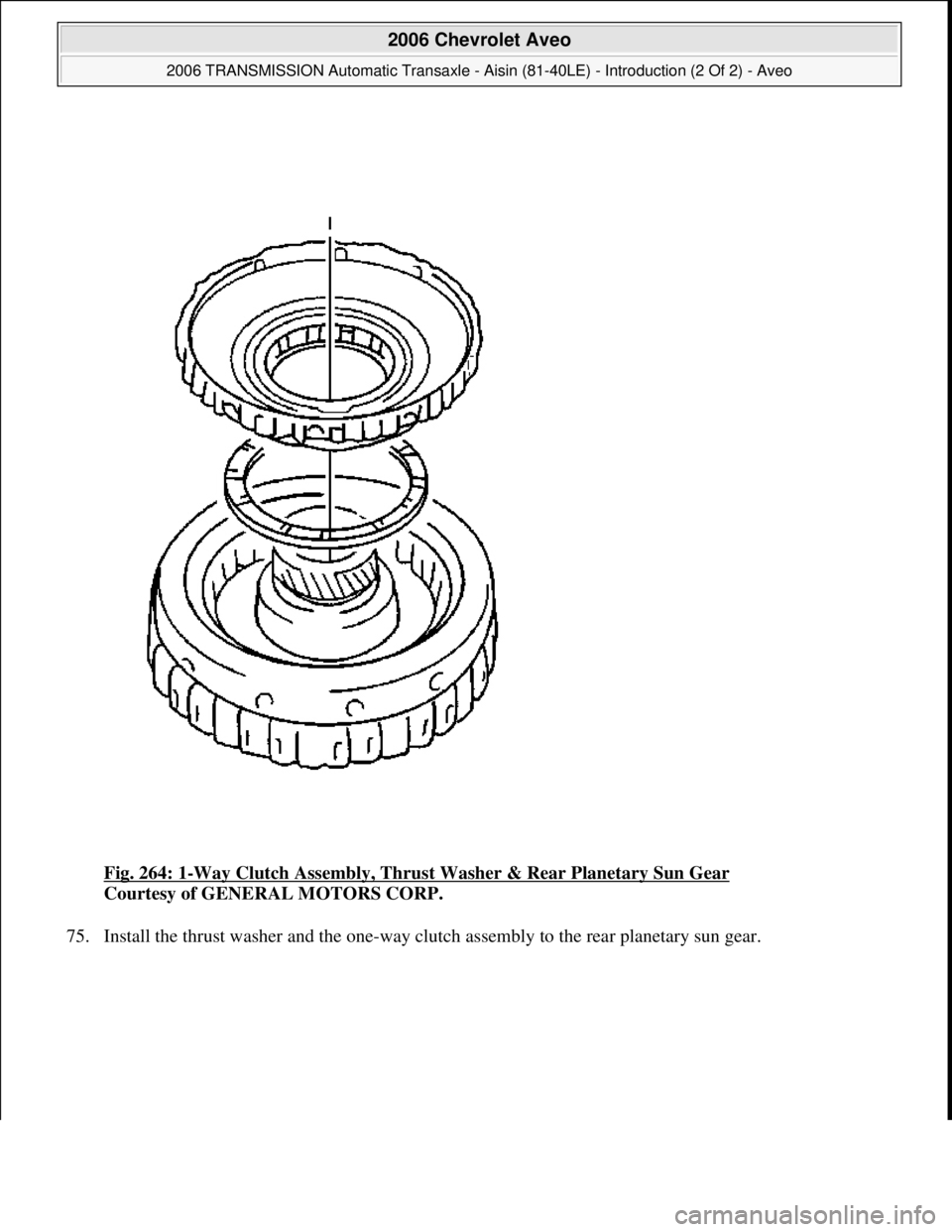

CHEVROLET AVEO 2002 Service Repair Manual Fig. 264: 1-Way Clutch Assembly, Thrust Washer & Rear Planetary Sun Gear Courtesy of GENERAL MOTORS CORP. 75. Install the thrust washer and the one-wa y clutch assembly to the rear planetary sun gea

Page 2827 of 5127

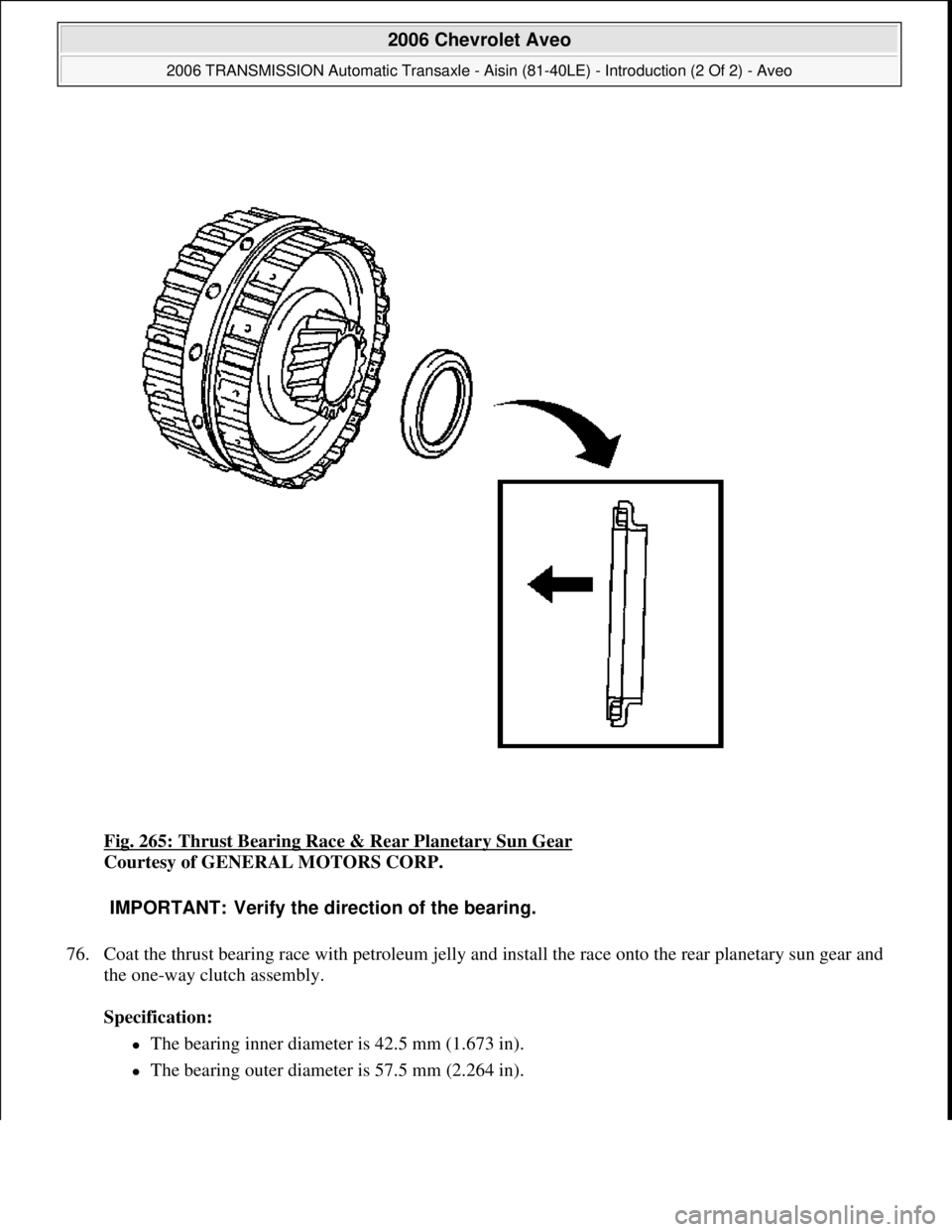

CHEVROLET AVEO 2002 Service Repair Manual Fig. 265: Thrust Bearing Race & Rear Planetary Sun Gear Courtesy of GENERAL MOTORS CORP. 76. Coat the thrust bearing race with petroleum jelly and install the race onto the rear planetary sun gear a

Page 2828 of 5127

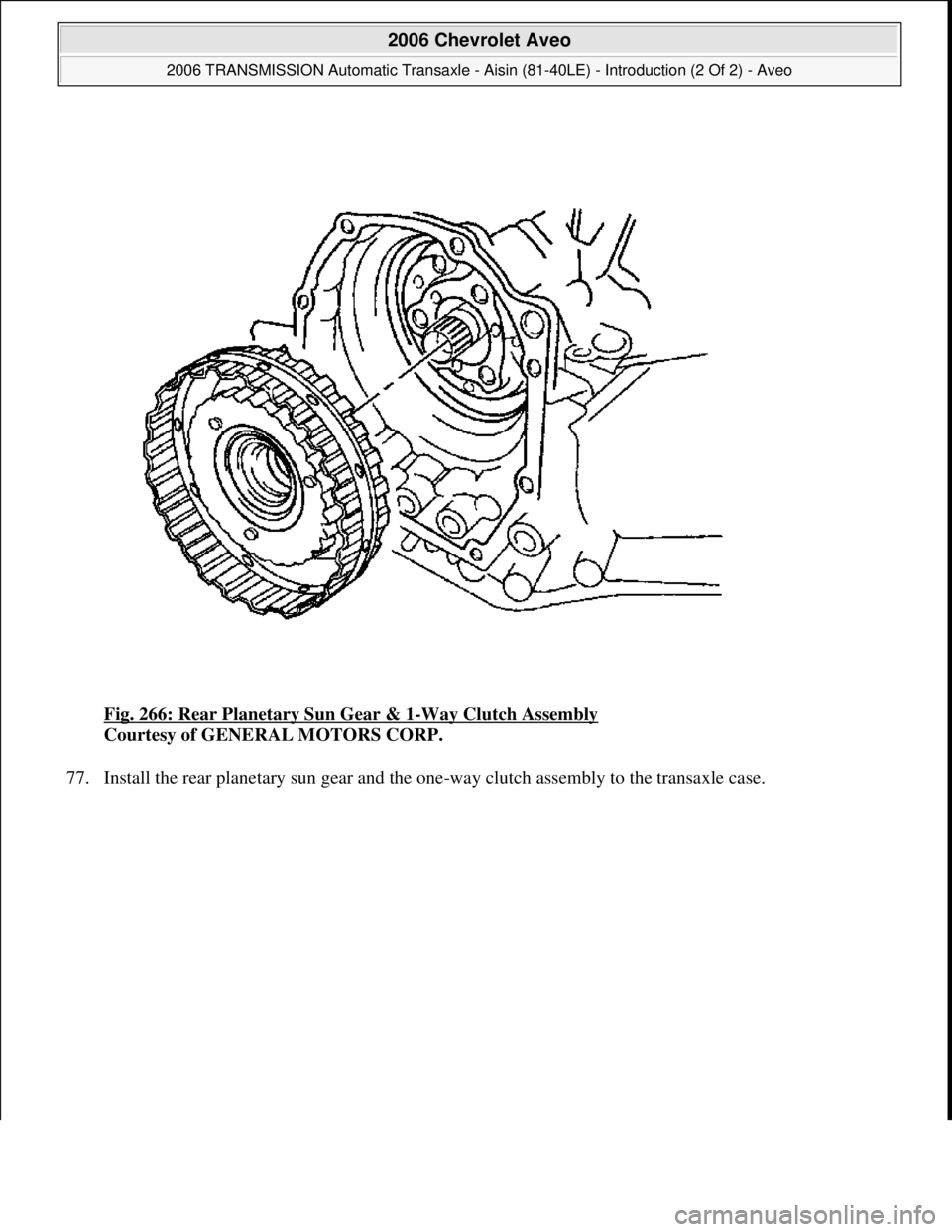

CHEVROLET AVEO 2002 Service Repair Manual Fig. 266: Rear Planetary Sun Gear & 1-Way Clutch Assembly Courtesy of GENERAL MOTORS CORP. 77. Install the rear planetar y sun gear and the one-way clutch assembly to the transaxle case. 2006 Che

Page 2829 of 5127

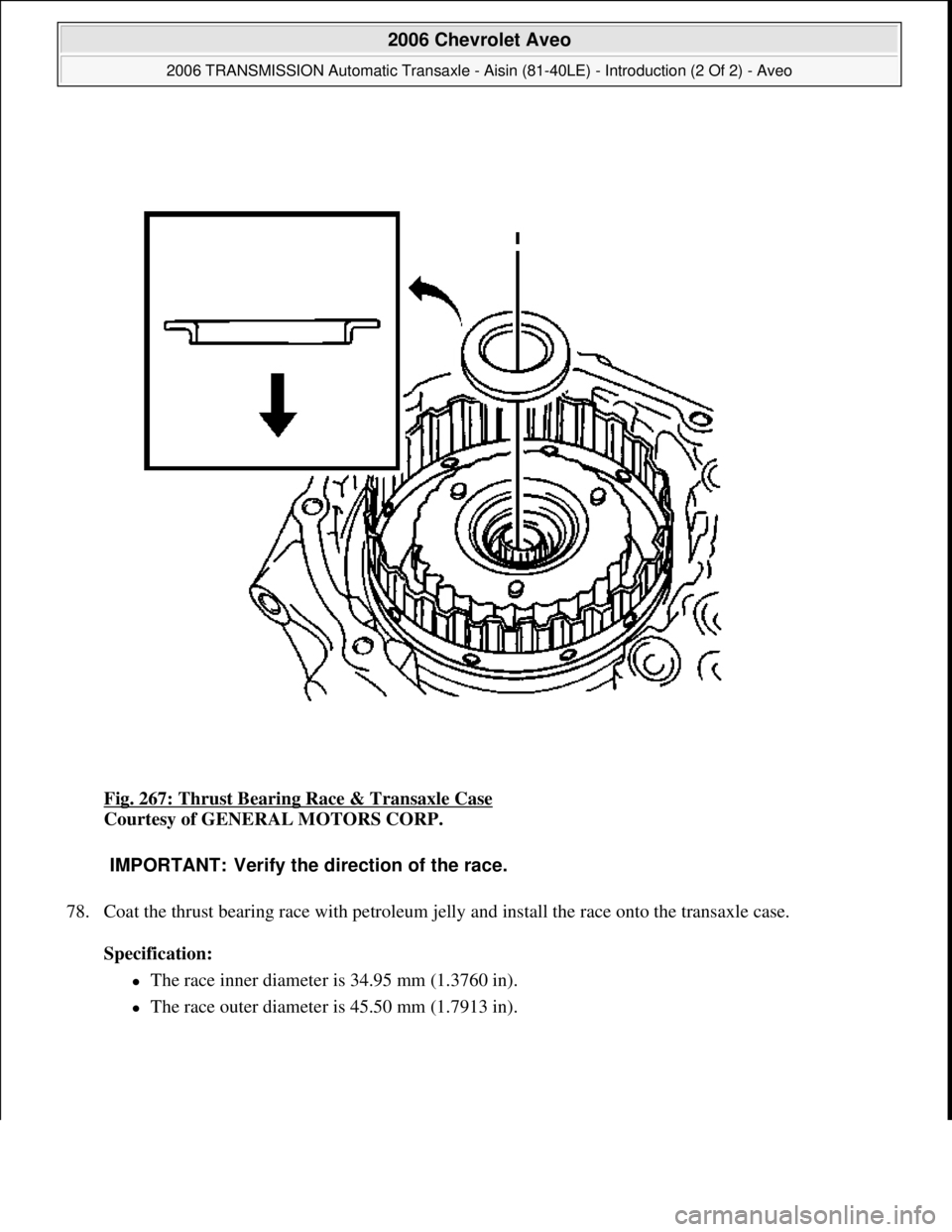

CHEVROLET AVEO 2002 Service Repair Manual Fig. 267: Thrust Bearing Race & Transaxle Case Courtesy of GENERAL MOTORS CORP. 78. Coat the thrust bearing race with petroleum jelly and install the race onto the transaxle case. Specification:

Page 2830 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 268: Thrust Needle Roller Bearing & Forward Clutch Hub Courtesy of GENERAL MOTORS CORP. 79. Coat the thrust needle roller bearing with petroleum jelly and install the bearing onto the forward c

Page 2831 of 5127

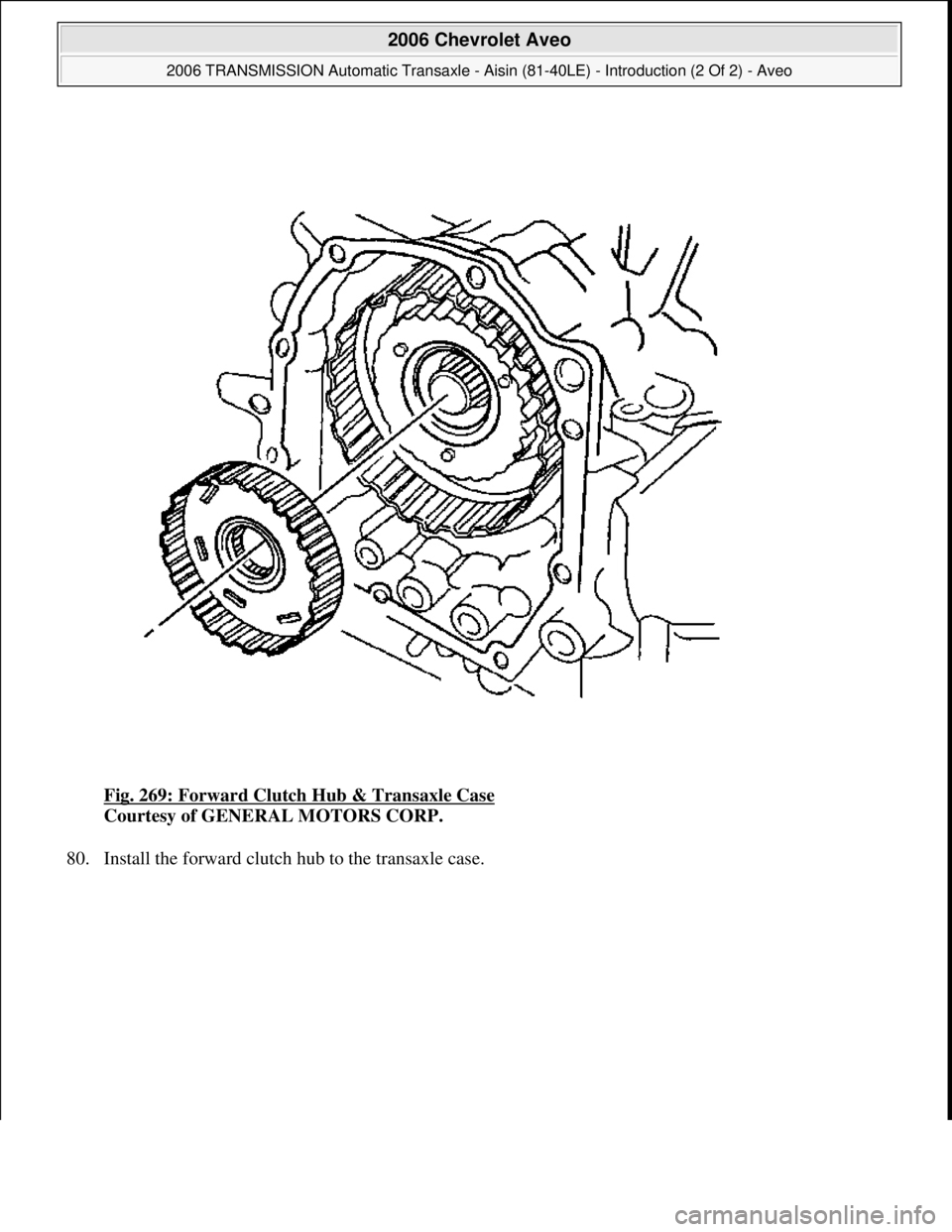

CHEVROLET AVEO 2002 Service Repair Manual Fig. 269: Forward Clutch Hub & Transaxle Case Courtesy of GENERAL MOTORS CORP. 80. Install the forward clutch hub to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle

Page 2832 of 5127

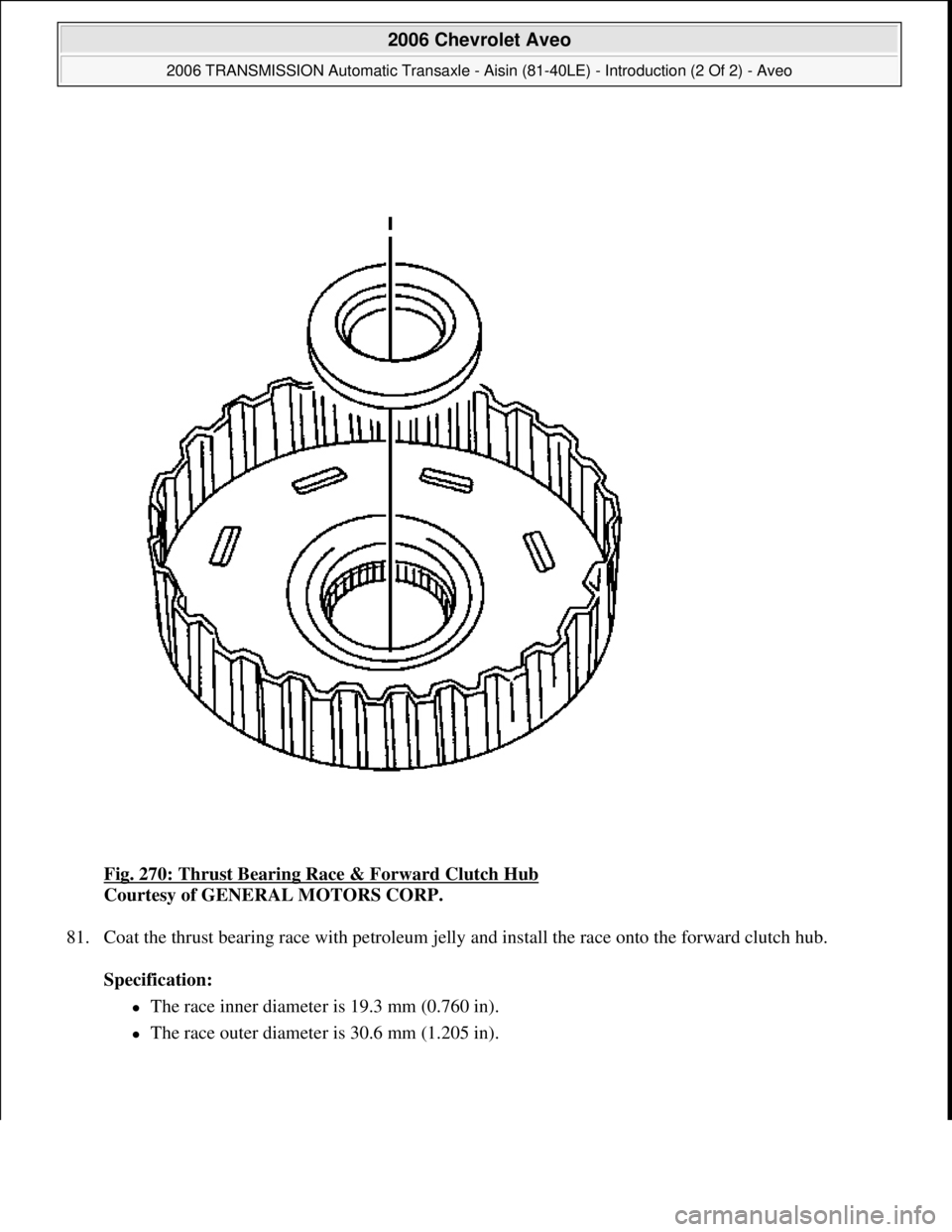

CHEVROLET AVEO 2002 Service Repair Manual Fig. 270: Thrust Bearing Race & Forward Clutch Hub Courtesy of GENERAL MOTORS CORP. 81. Coat the thrust bearing race with petroleum jelly and install the race onto the forward clutch hub. Specifica
