Page 4409 of 5127

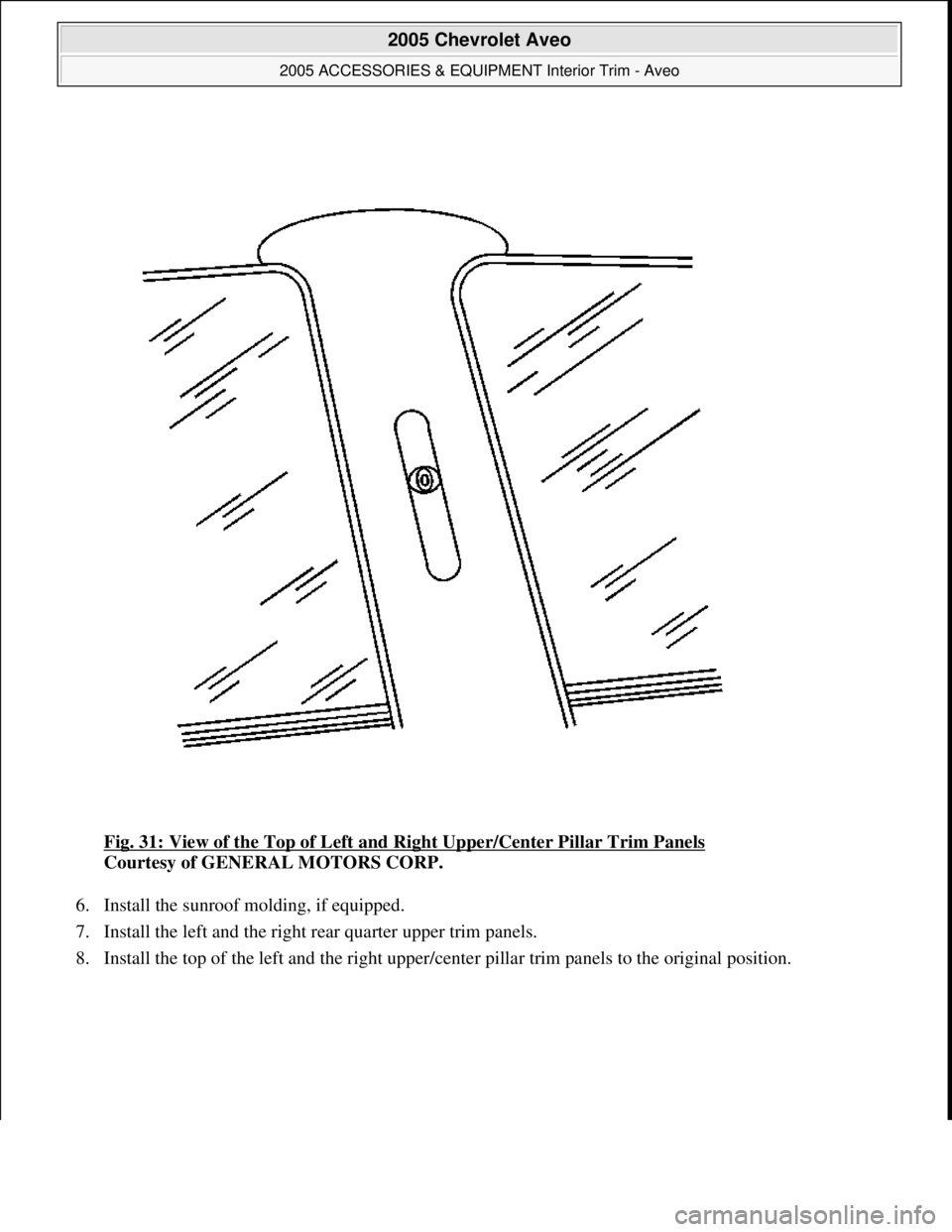

CHEVROLET AVEO 2002 Service Repair Manual Fig. 31: View of the Top of Left and Right Upper/Center Pillar Trim Panels Courtesy of GENERAL MOTORS CORP. 6. Install the sunroof molding, if equipped. 7. Install the left and the right rear quar

Page 4410 of 5127

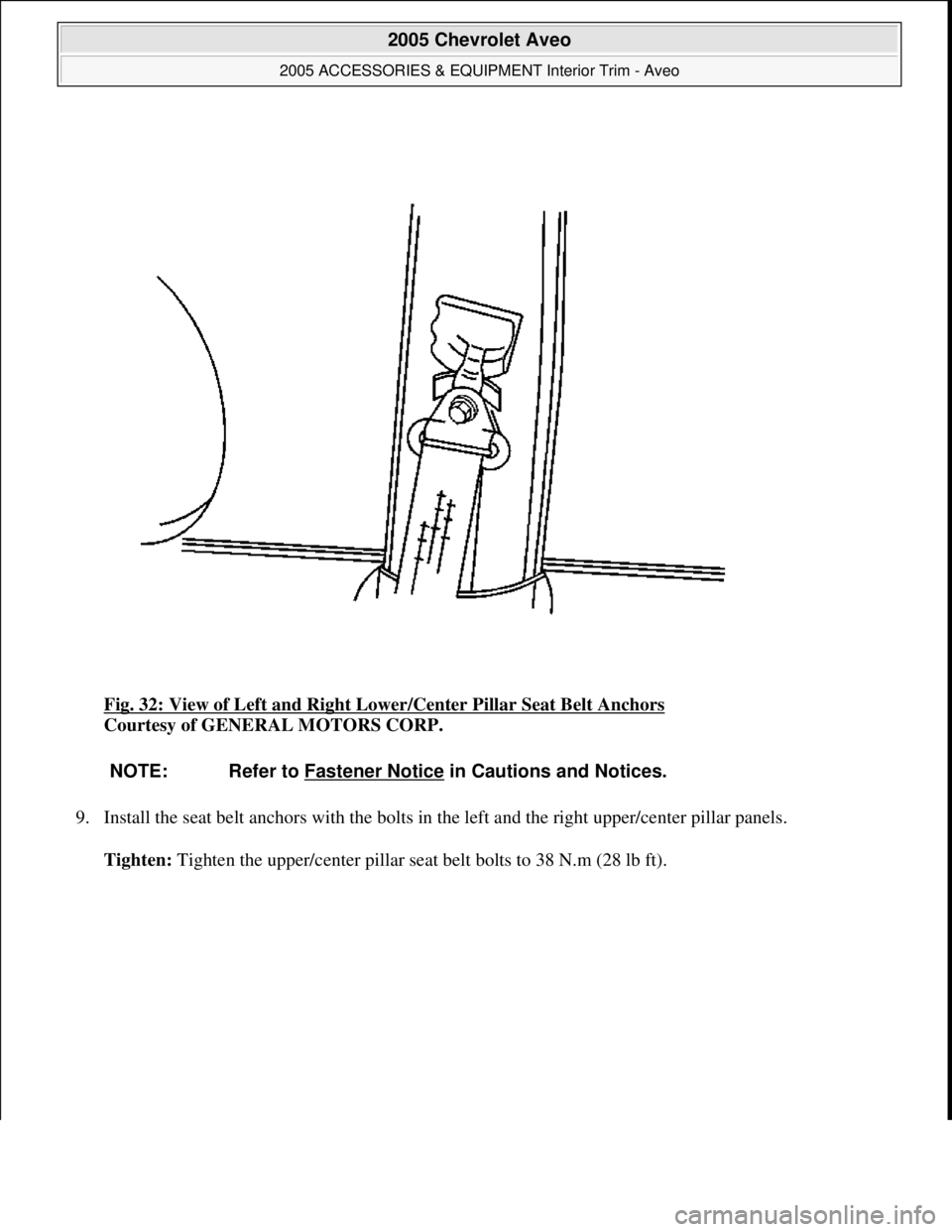

CHEVROLET AVEO 2002 Service Repair Manual Fig. 32: View of Left and Right Lower/Center Pillar Seat Belt Anchors Courtesy of GENERAL MOTORS CORP. 9. Install the seat belt anchors with the bolts in the left and the right upper/center pillar p

Page 4411 of 5127

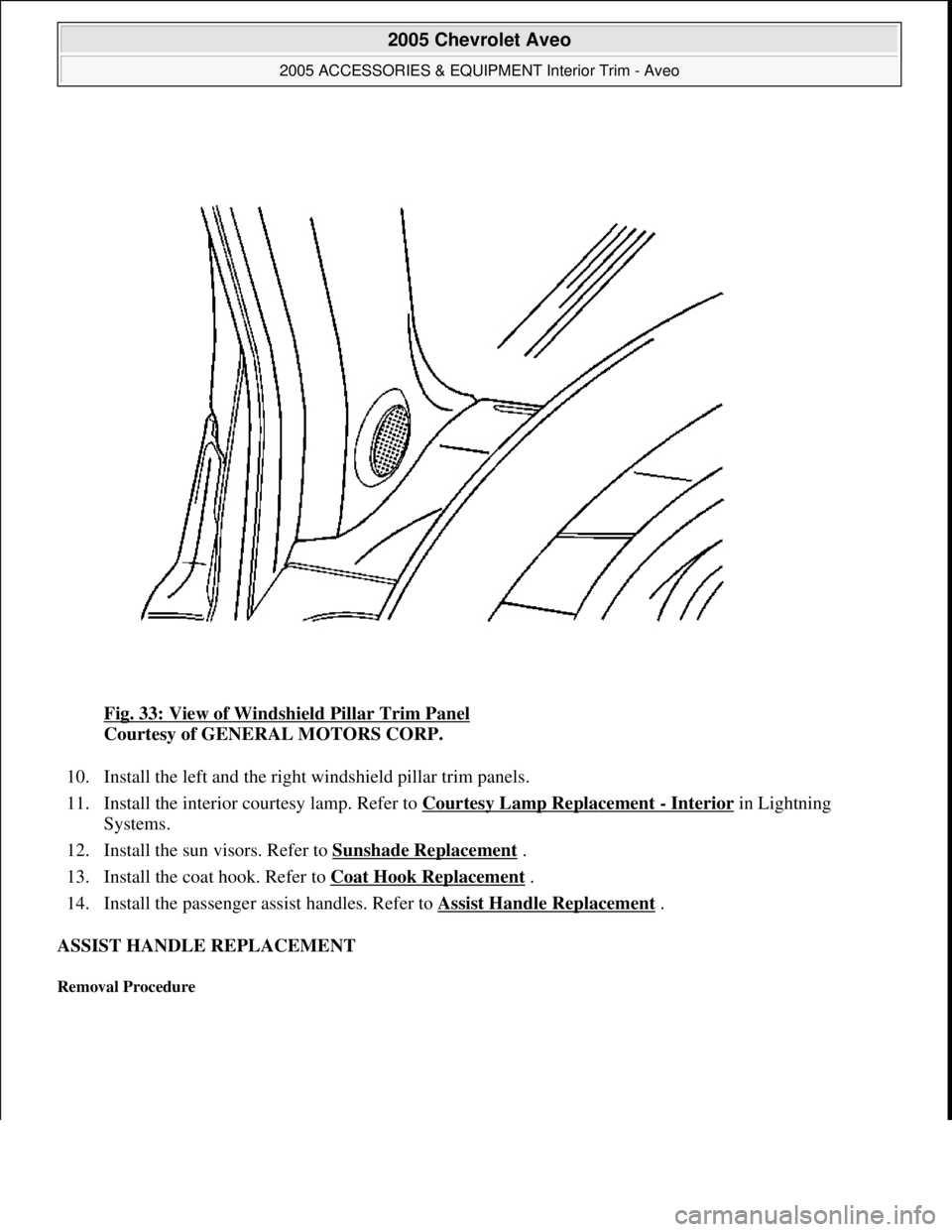

CHEVROLET AVEO 2002 Service Repair Manual Fig. 33: View of Windshield Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 10. Install the left and the right windshield pillar trim panels. 11. Install the interior courtesy lamp. Refer to Co

Page 4412 of 5127

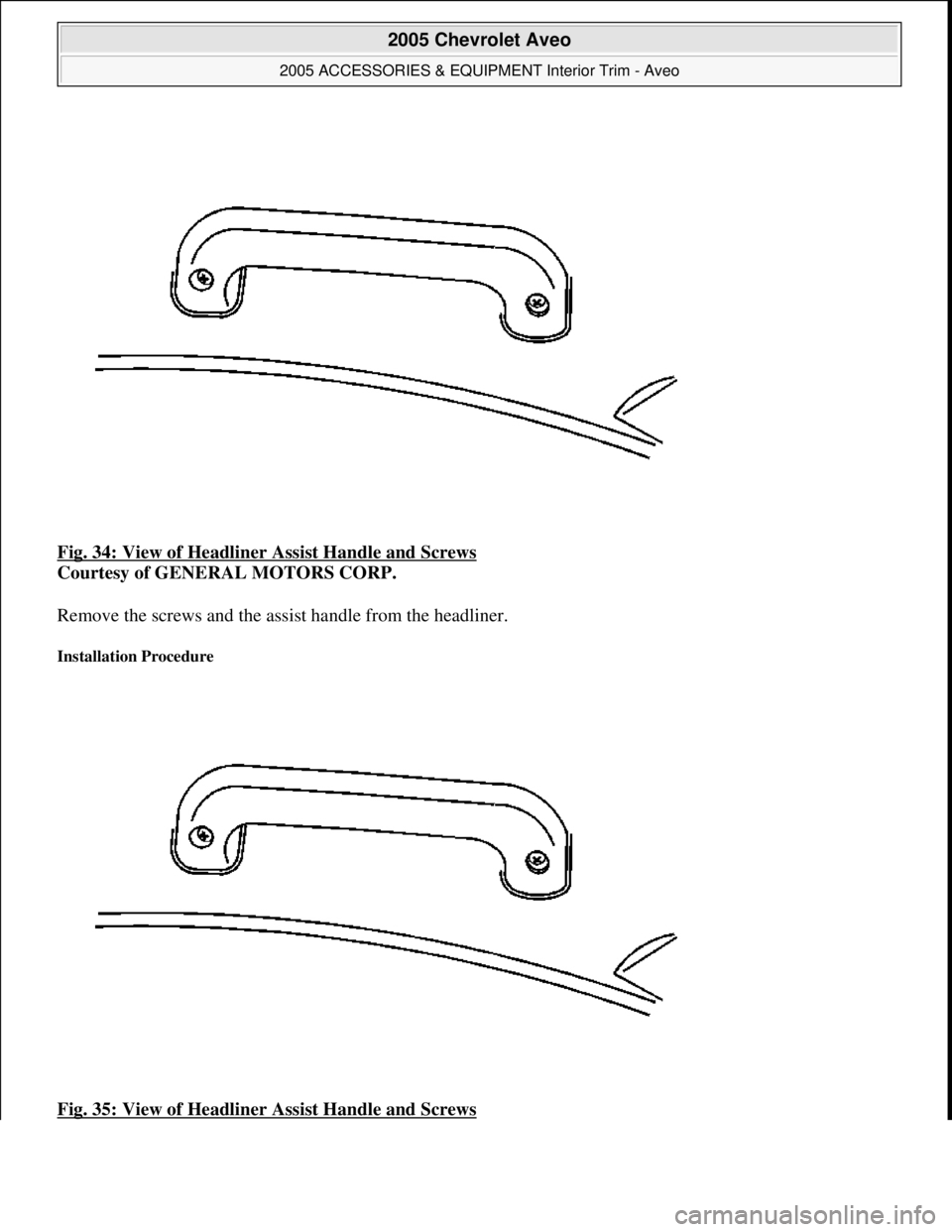

CHEVROLET AVEO 2002 Service Repair Manual Fig. 34: View of Headline r Assist Handle and Screws Courtesy of GENERAL MOTORS CORP. Remove the screws and the assist handle from the headliner. Installation Procedure Fig. 35: View of Headli

Page 4413 of 5127

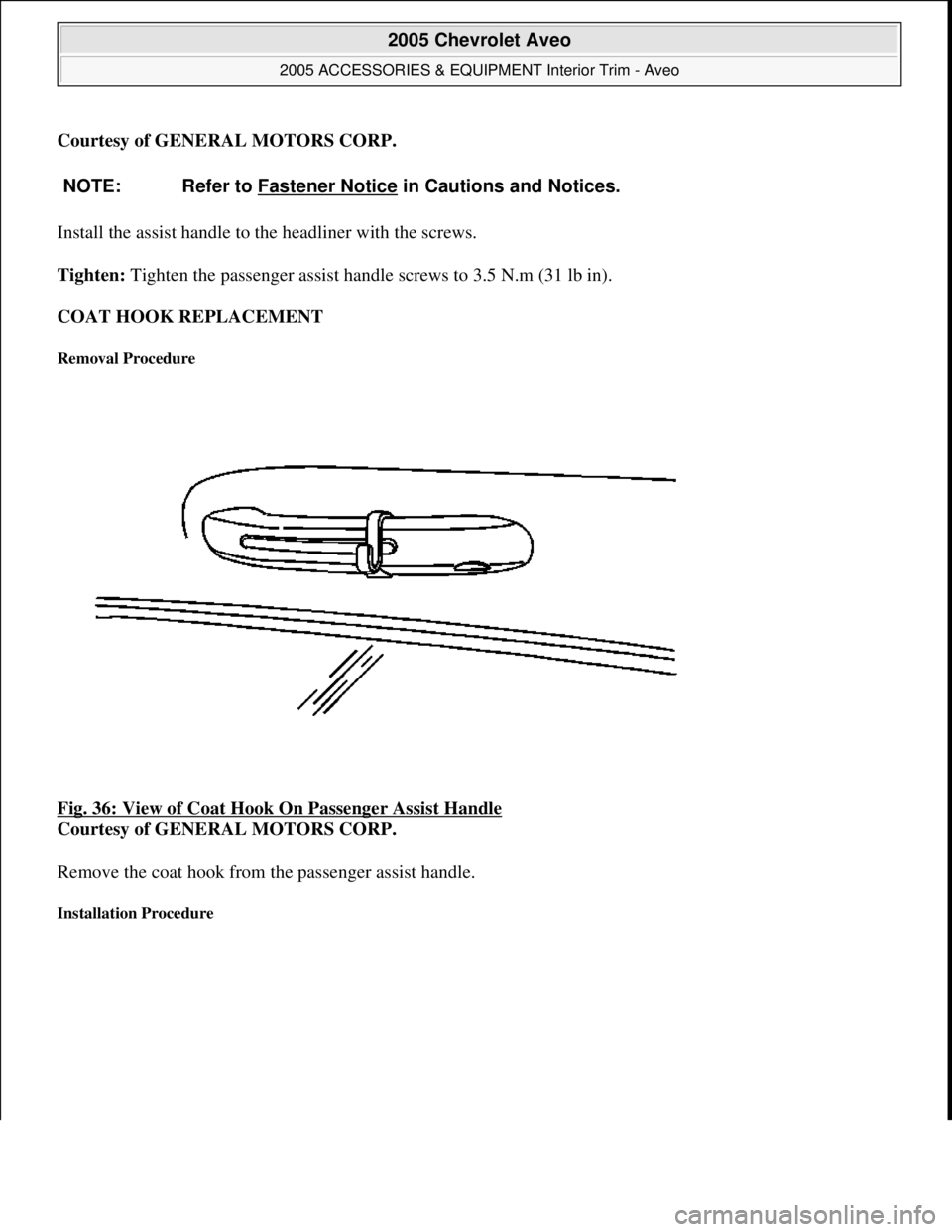

CHEVROLET AVEO 2002 Service Repair Manual Courtesy of GENERAL MOTORS CORP. Install the assist handle to the headliner with the screws. Tighten: Tighten the passenger assist handle screws to 3.5 N.m (31 lb in). COAT HOOK REPLACEMENT Removal

Page 4414 of 5127

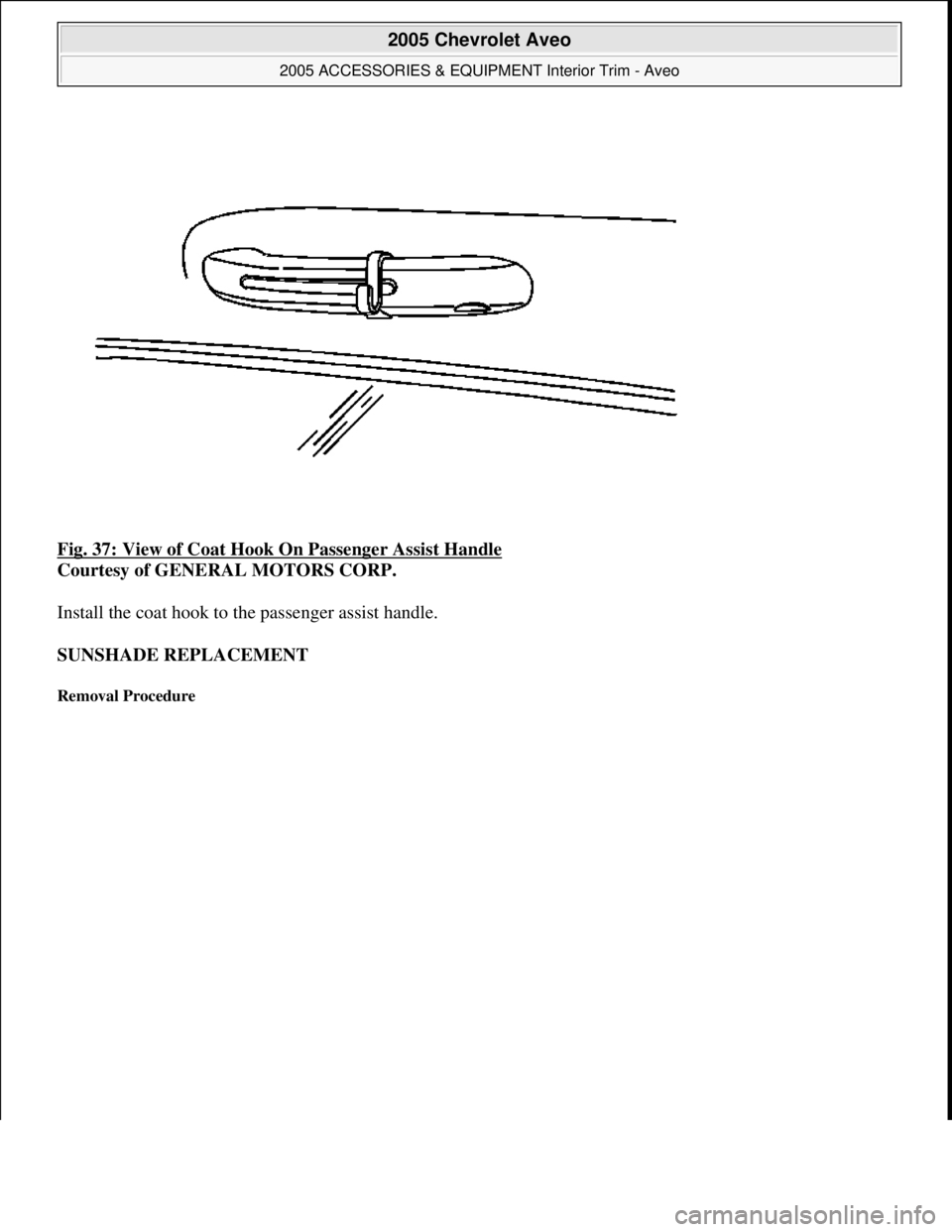

CHEVROLET AVEO 2002 Service Repair Manual Fig. 37: View of Coat Hook On Passenger Assist Handle Courtesy of GENERAL MOTORS CORP. Install the coat hook to the passenger assist handle. SUNSHADE REPLACEMENT Removal Procedure 2005 Chevrole

Page 4415 of 5127

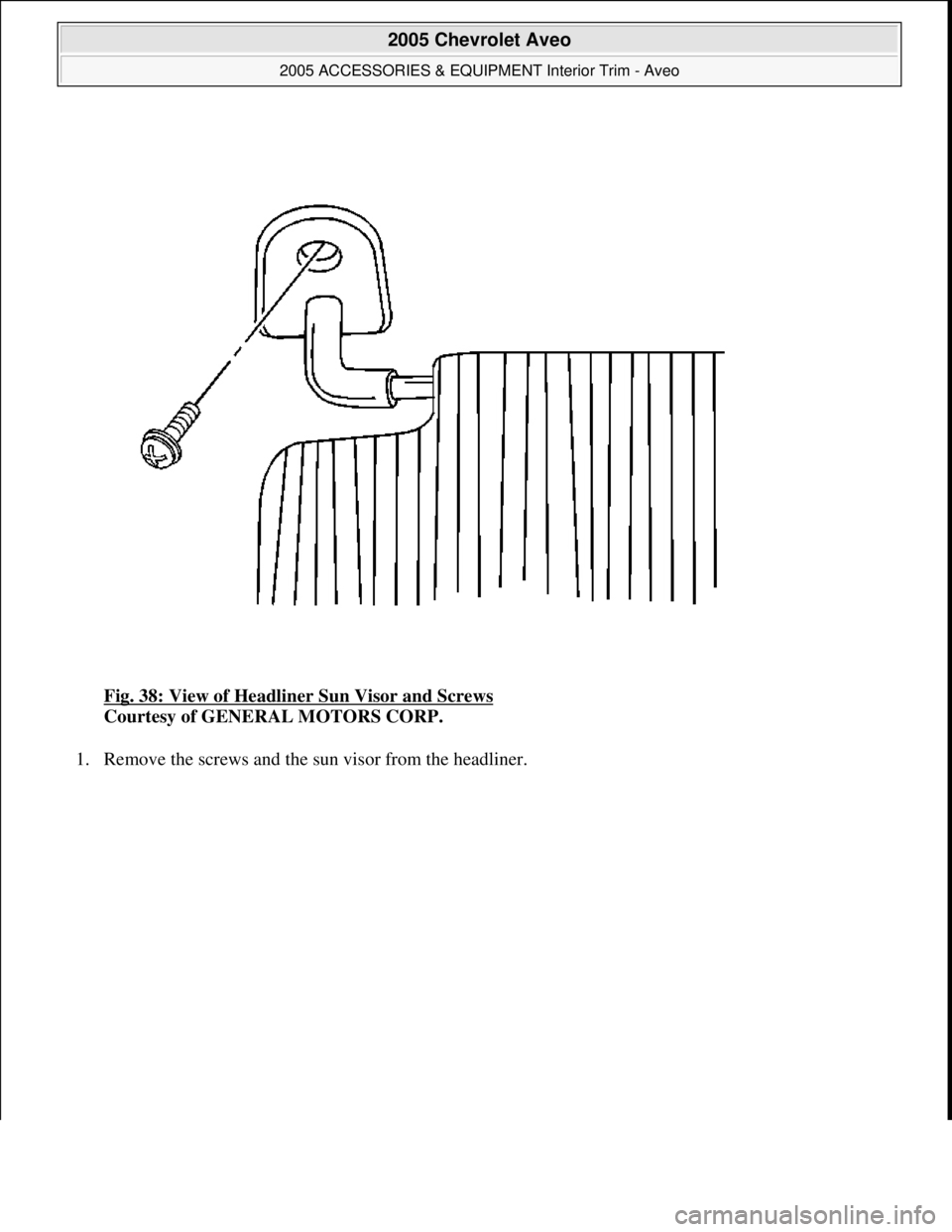

CHEVROLET AVEO 2002 Service Repair Manual Fig. 38: View of Headliner Sun Visor and Screws Courtesy of GENERAL MOTORS CORP. 1. Remove the screws and the sun visor from the headliner. 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Inter

Page 4416 of 5127

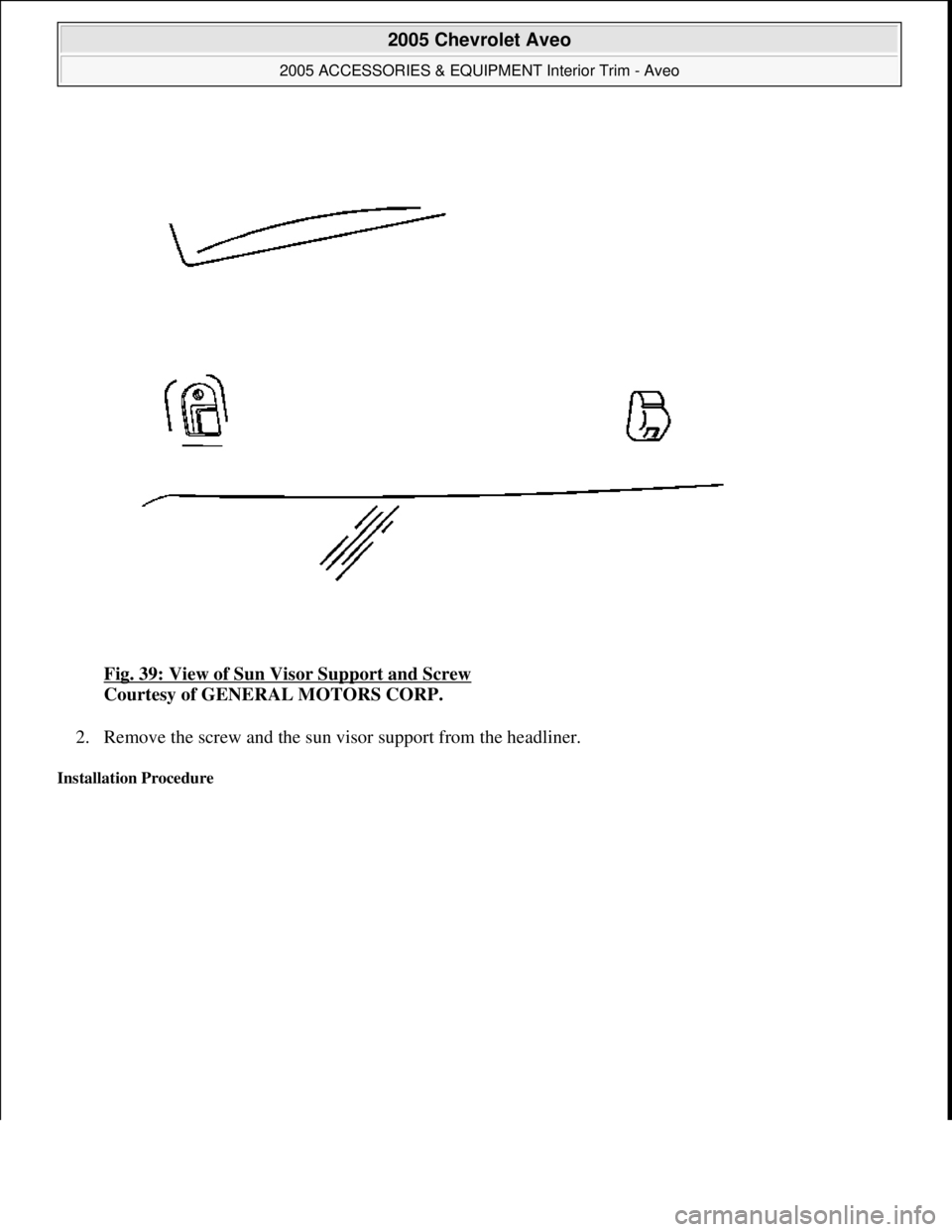

CHEVROLET AVEO 2002 Service Repair Manual Fig. 39: View of Sun Visor Support and Screw Courtesy of GENERAL MOTORS CORP. 2. Remove the screw and the sun visor support from the headliner. Installation Procedure 2005 Chevrolet Aveo 2005
