Page 2961 of 5127

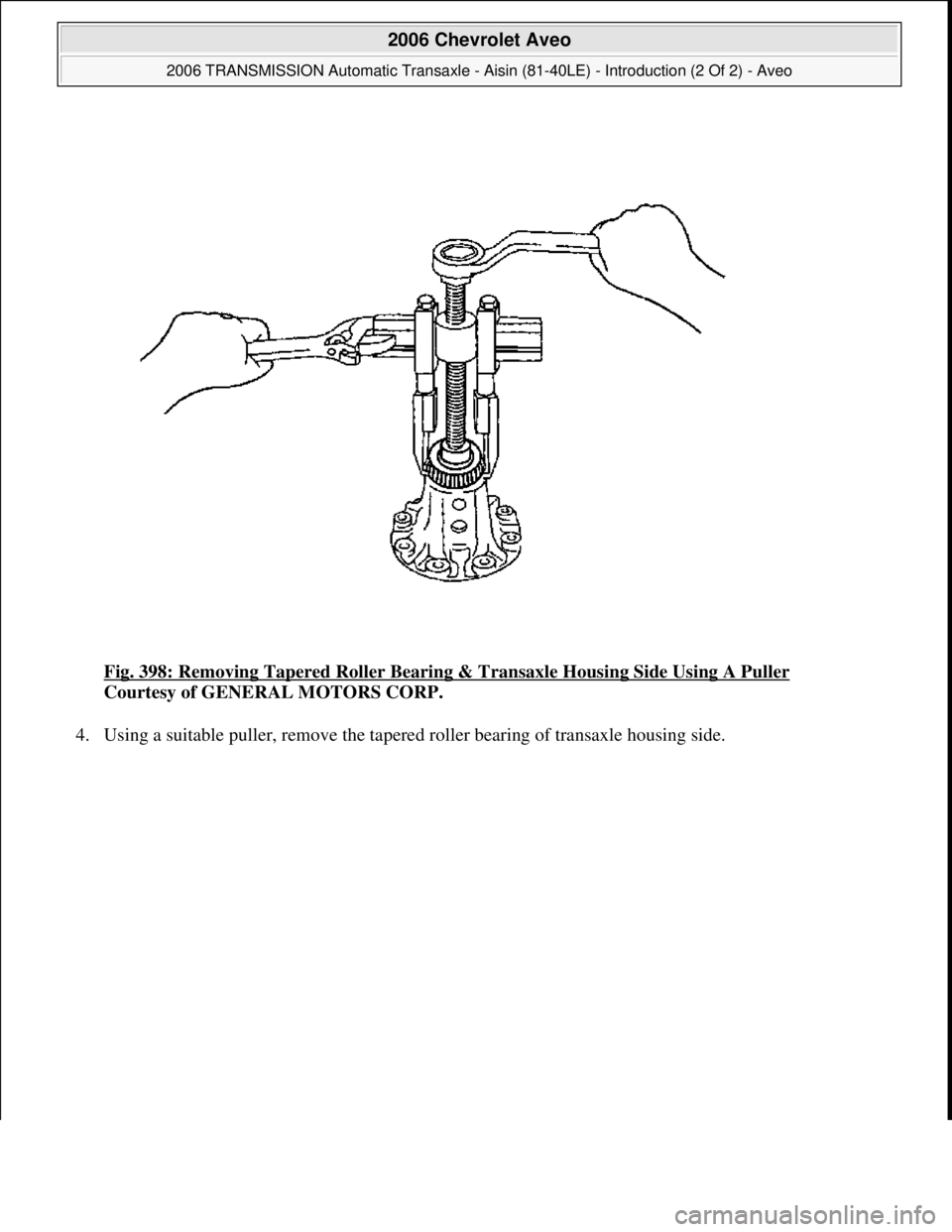

CHEVROLET AVEO 2002 Service Repair Manual Fig. 398: Removing Tapered Roller Bearing & Transaxle Housing Side Using A Puller Courtesy of GENERAL MOTORS CORP. 4. Usin g a suitable puller, remove the tapered roller bearing of transaxle housing

Page 2962 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 399: Removing Tapered Roller Bearing & Transaxle Case Side Using A Puller Courtesy of GENERAL MOTORS CORP. 5. Usin g a suitable puller, remove the tapered roller bearing of transaxle case side.

Page 2963 of 5127

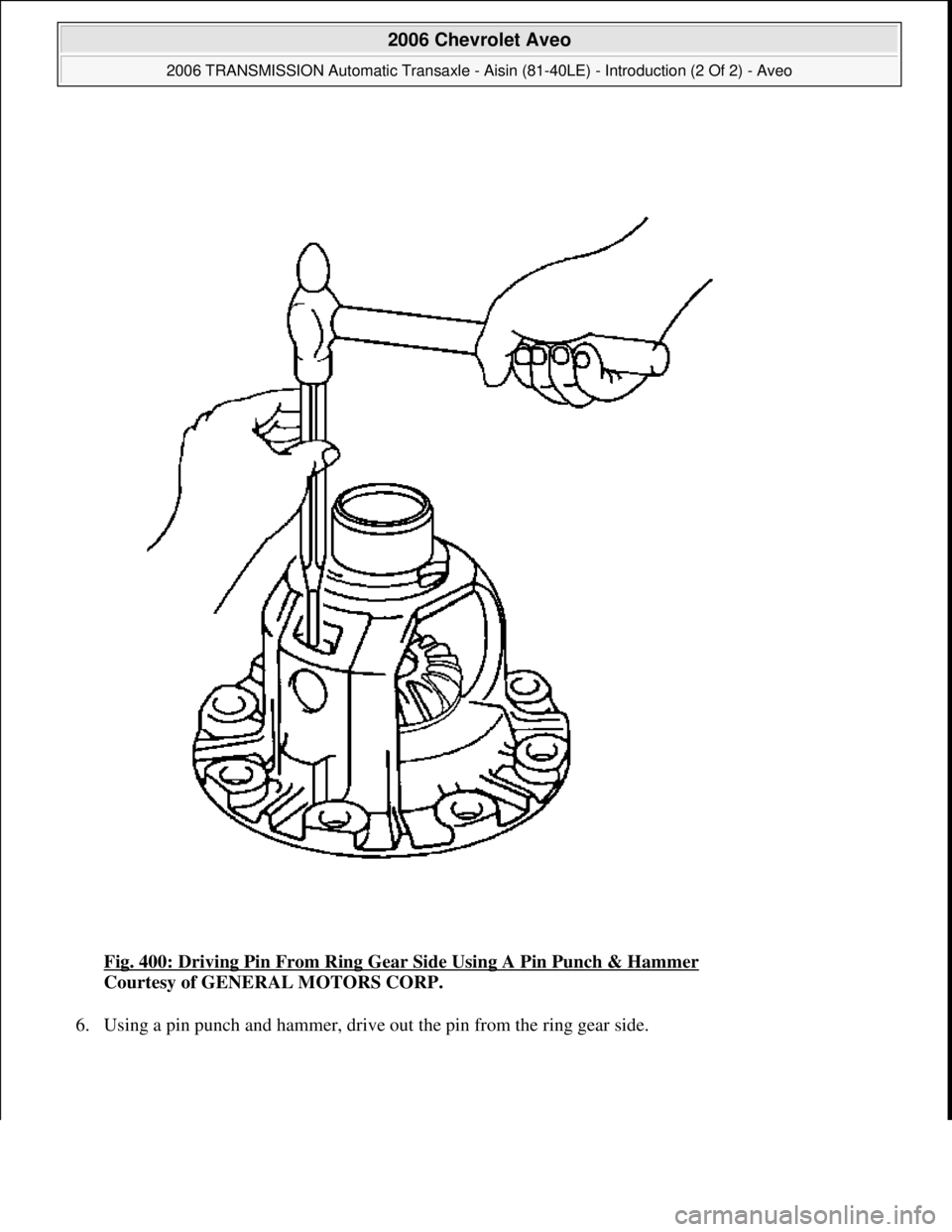

CHEVROLET AVEO 2002 Service Repair Manual Fig. 400: Driving Pin From Ring Gear Side Using A Pin Punch & Hammer Courtesy of GENERAL MOTORS CORP. 6. Usin g a pin punch and hammer, drive out the pin from the ring gear side. 2006 Chevrolet A

Page 2964 of 5127

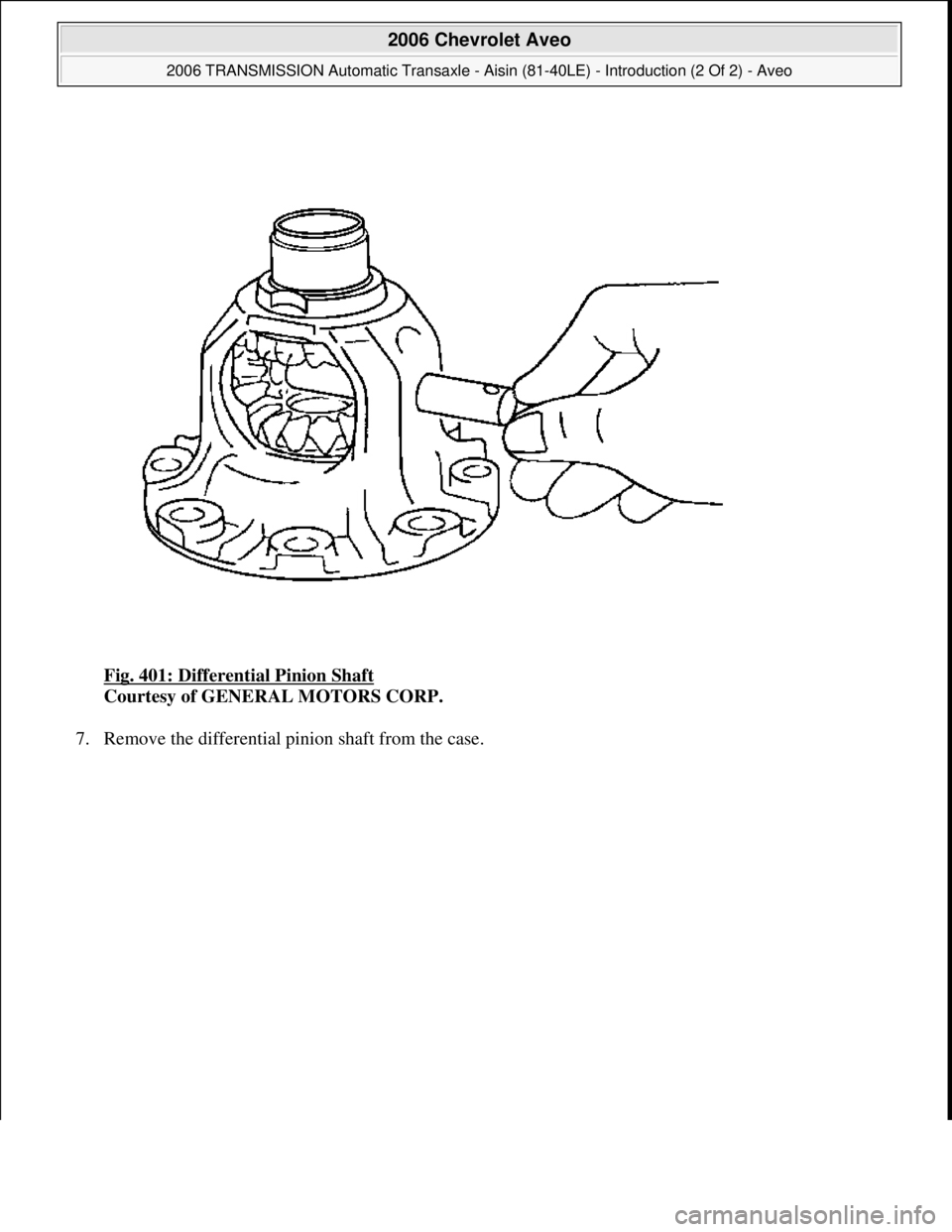

CHEVROLET AVEO 2002 Service Repair Manual Fig. 401: Differential Pinion Shaft Courtesy of GENERAL MOTORS CORP. 7. Remove the differential pinion shaft from the case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-

Page 2965 of 5127

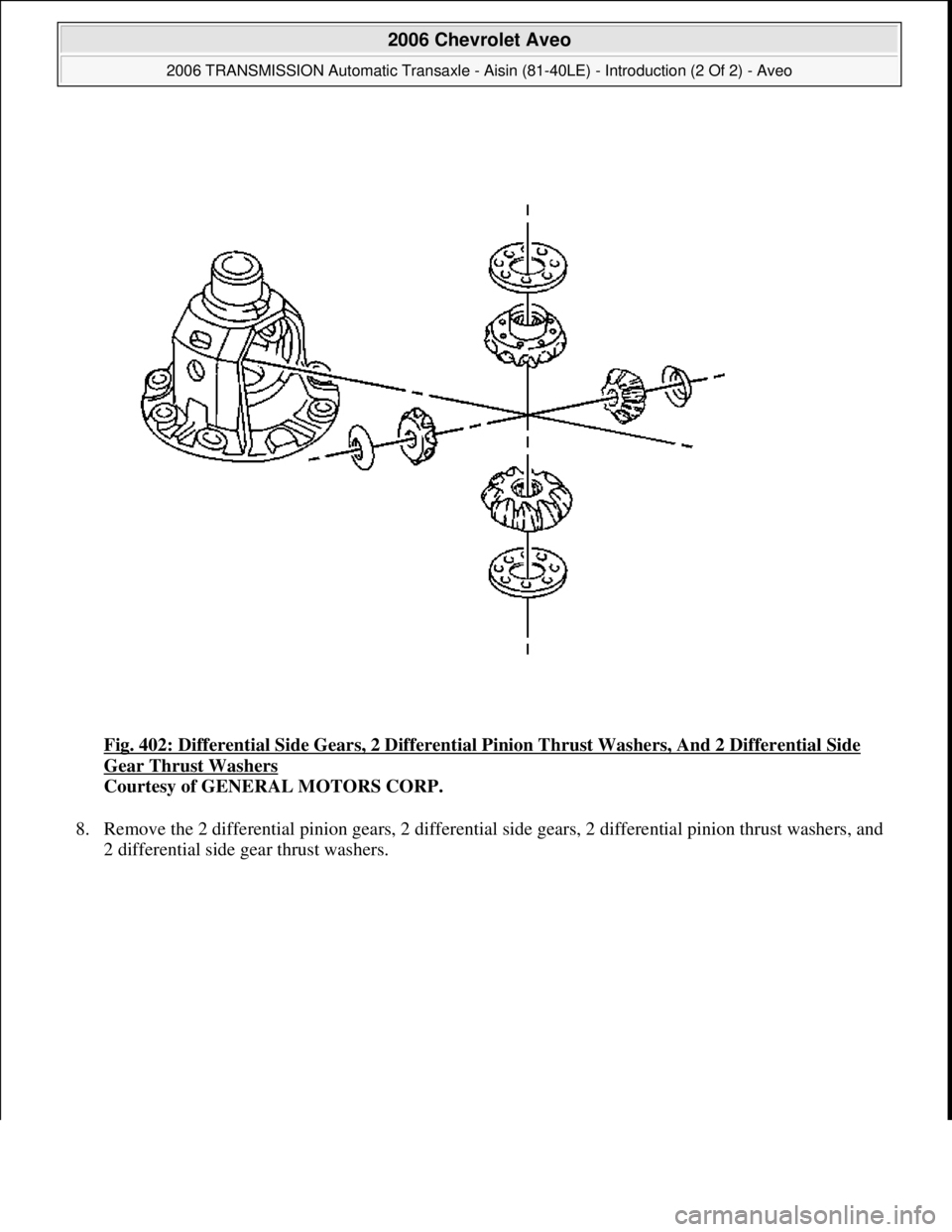

CHEVROLET AVEO 2002 Service Repair Manual Fig. 402: Differential Side Gears, 2 Differential Pinion Thrust Washers, And 2 Differential Side Gear Thrust Washers Courtesy of GENERAL MOTORS CORP. 8. Remove the 2 differential pinion gears, 2 di

Page 2966 of 5127

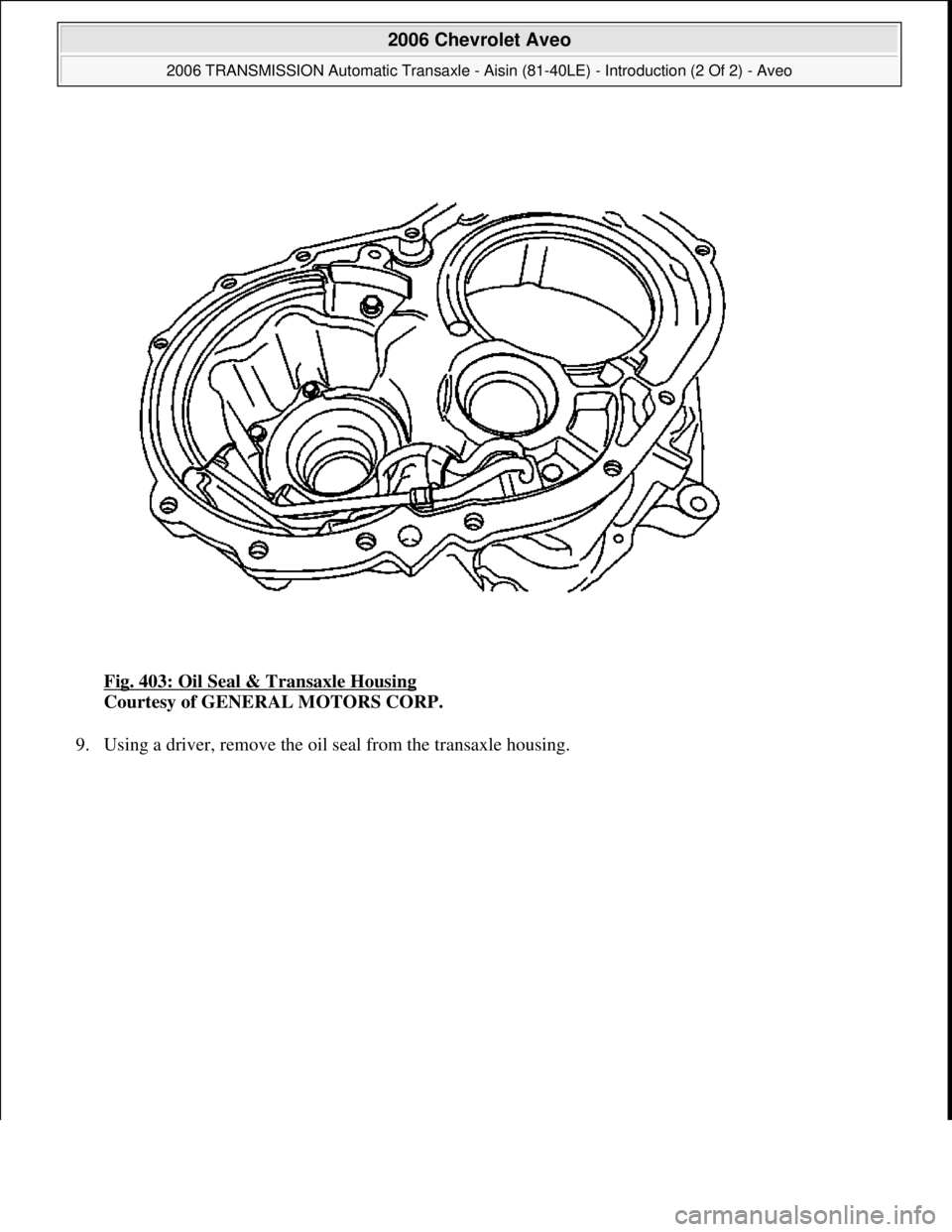

CHEVROLET AVEO 2002 Service Repair Manual Fig. 403: Oil Seal & Transaxle Housing Courtesy of GENERAL MOTORS CORP. 9. Usin g a driver, remove the oil seal from the transaxle housing. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transa

Page 2967 of 5127

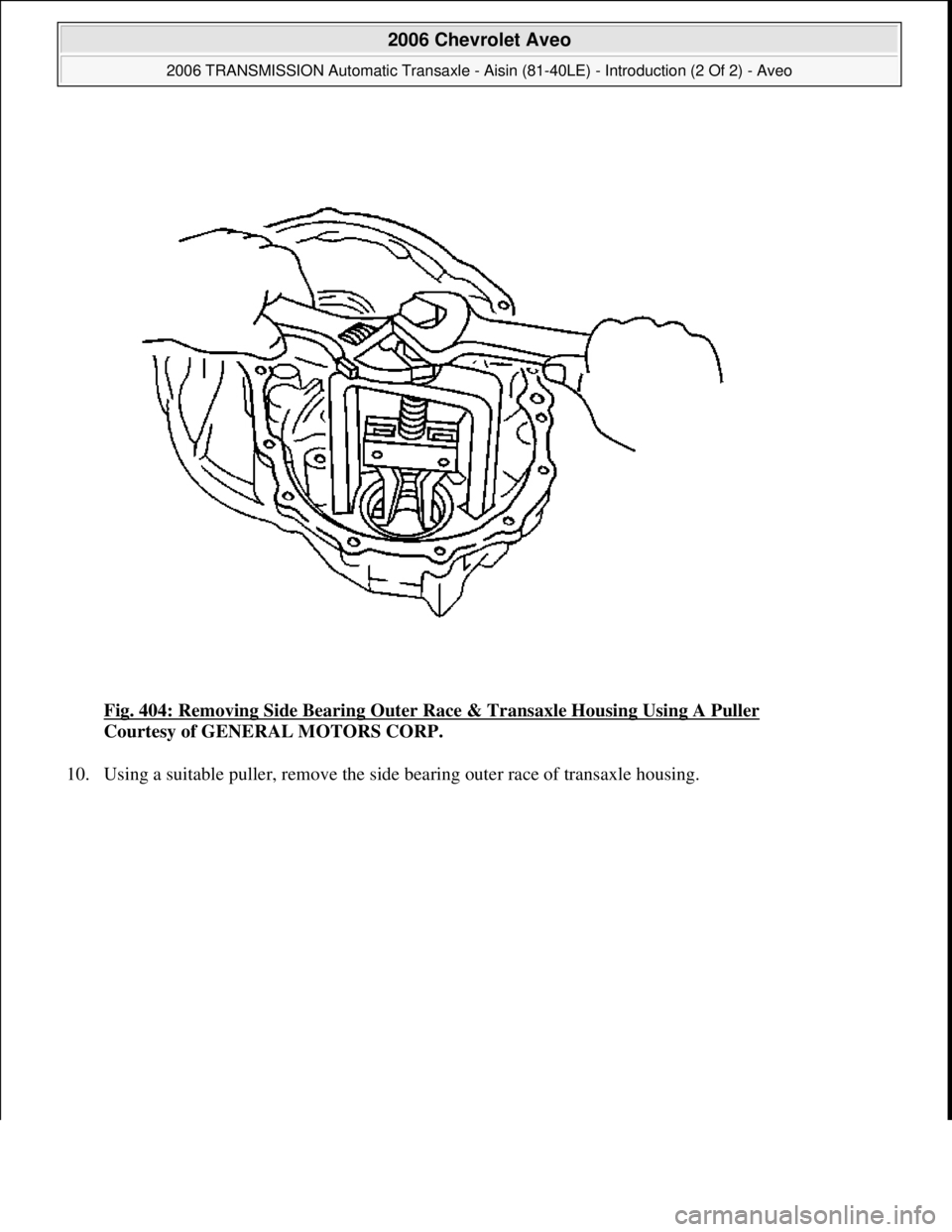

CHEVROLET AVEO 2002 Service Repair Manual Fig. 404: Removing Side Bearing Outer Race & Transaxle Housing Using A Puller Courtesy of GENERAL MOTORS CORP. 10. Usin g a suitable puller, remove the side bearing outer race of transaxle housing.

Page 2968 of 5127

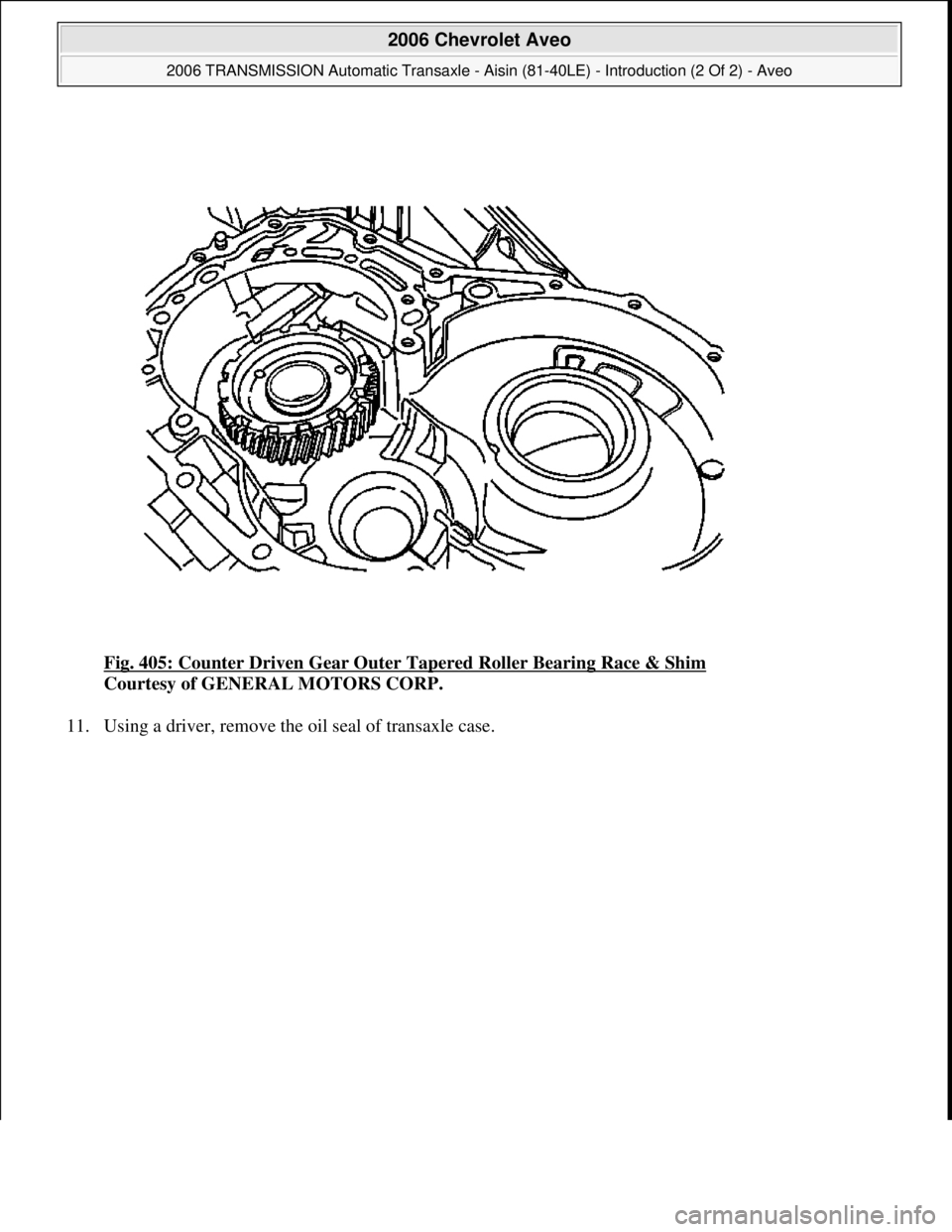

CHEVROLET AVEO 2002 Service Repair Manual Fig. 405: Counter Driven Gear Outer Tapered Roller Bearing Race & Shim Courtesy of GENERAL MOTORS CORP. 11. Usin g a driver, remove the oil seal of transaxle case. 2006 Chevrolet Aveo 2006 TRANS
