Page 2865 of 5127

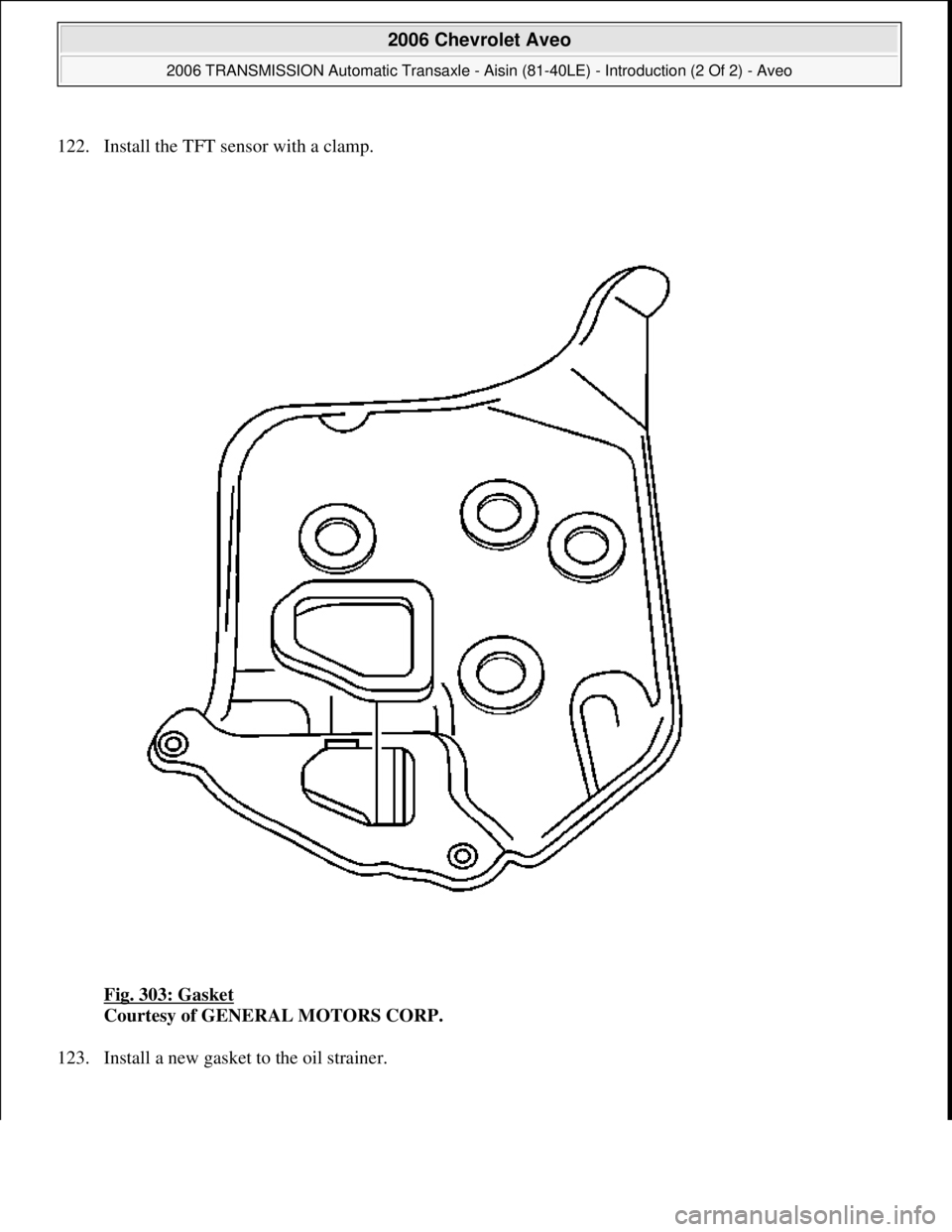

CHEVROLET AVEO 2002 Service Repair Manual 122. Install the TFT sensor with a clamp. Fig. 303: Gasket Courtesy of GENERAL MOTORS CORP. 123. Install a new gasket to the oil strainer. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tran

Page 2866 of 5127

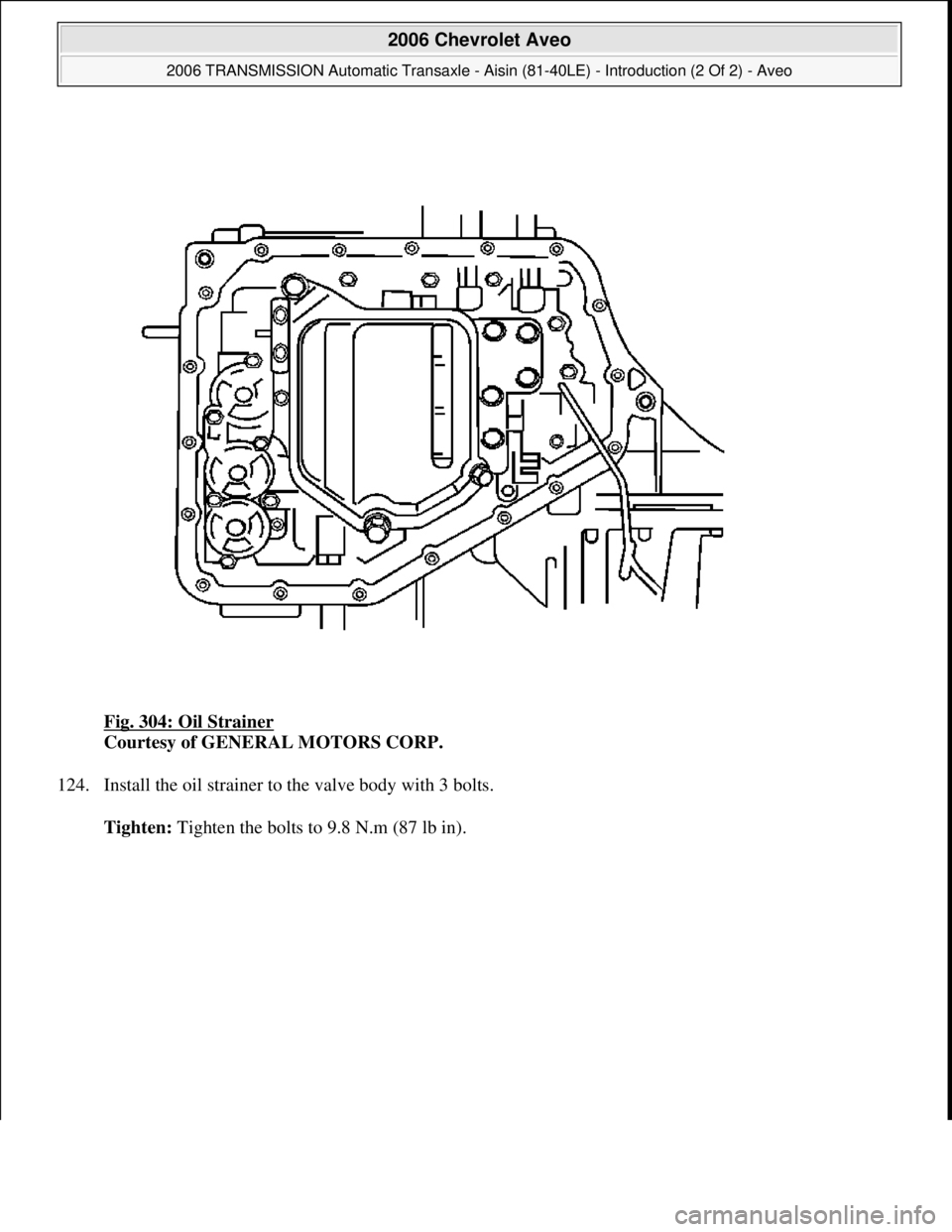

CHEVROLET AVEO 2002 Service Repair Manual Fig. 304: Oil Strainer Courtesy of GENERAL MOTORS CORP. 124. Install the oil strainer to the valve body with 3 bolts. Tighten: Ti ghten the bolts to 9.8 N.m (87 lb in). 2006 Chevrolet Aveo 2006

Page 2867 of 5127

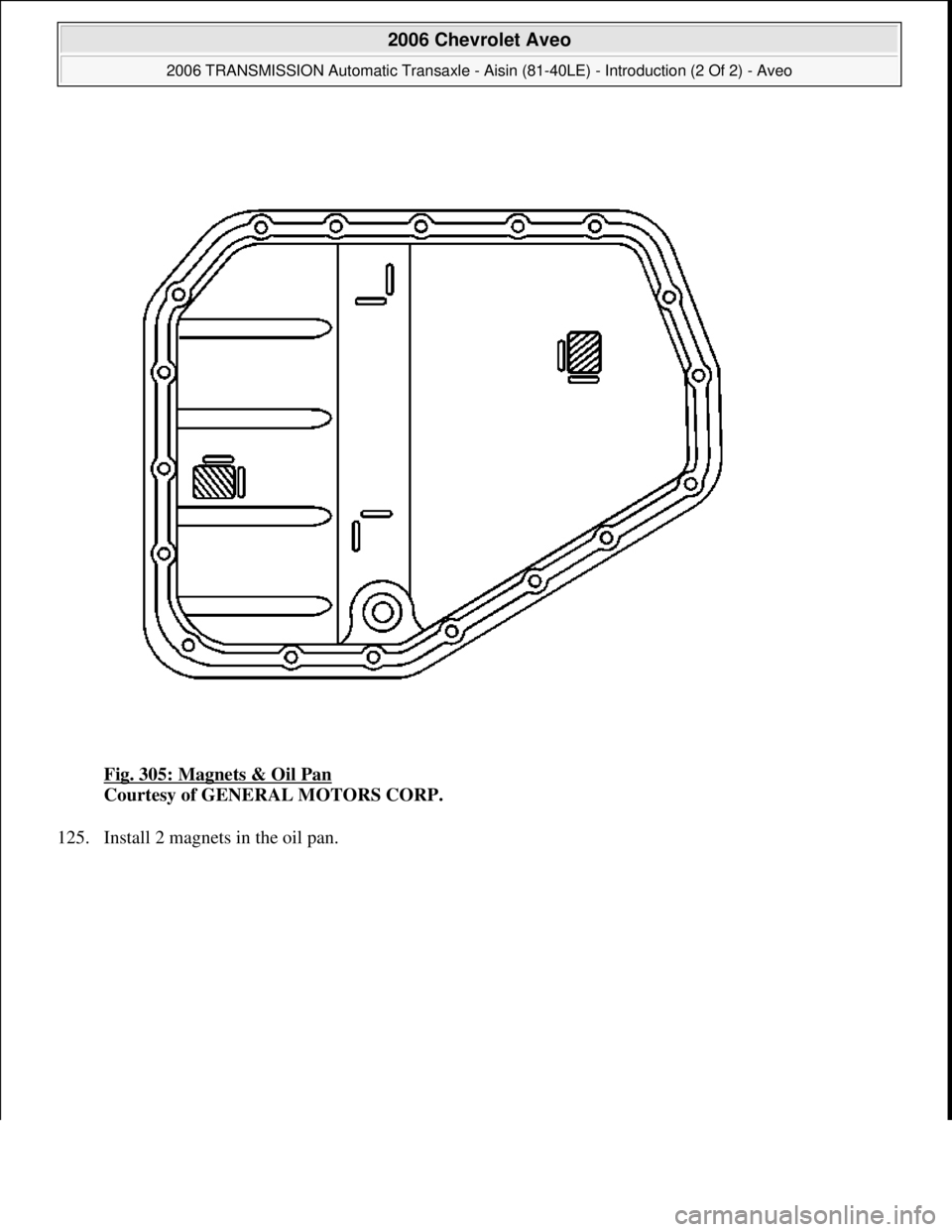

CHEVROLET AVEO 2002 Service Repair Manual Fig. 305: Magnets & Oil Pan Courtesy of GENERAL MOTORS CORP. 125. Install 2 magnets in the oil pan. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2

Page 2868 of 5127

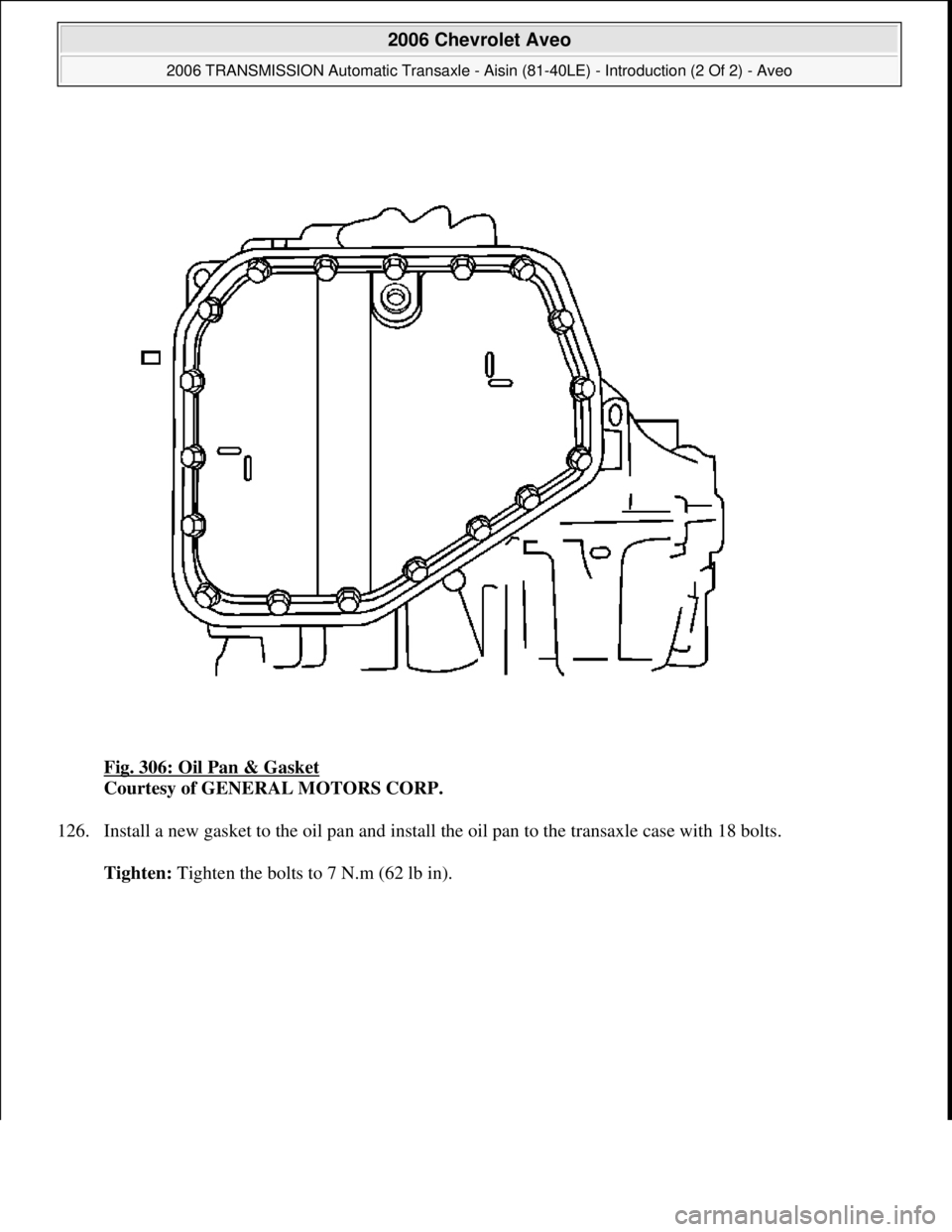

CHEVROLET AVEO 2002 Service Repair Manual Fig. 306: Oil Pan & Gasket Courtesy of GENERAL MOTORS CORP. 126. Install a new gasket to the oil pan and install the oil pan to the transaxle case with 18 bolts. Tighten: Tighten the bolts to 7 N.m

Page 2869 of 5127

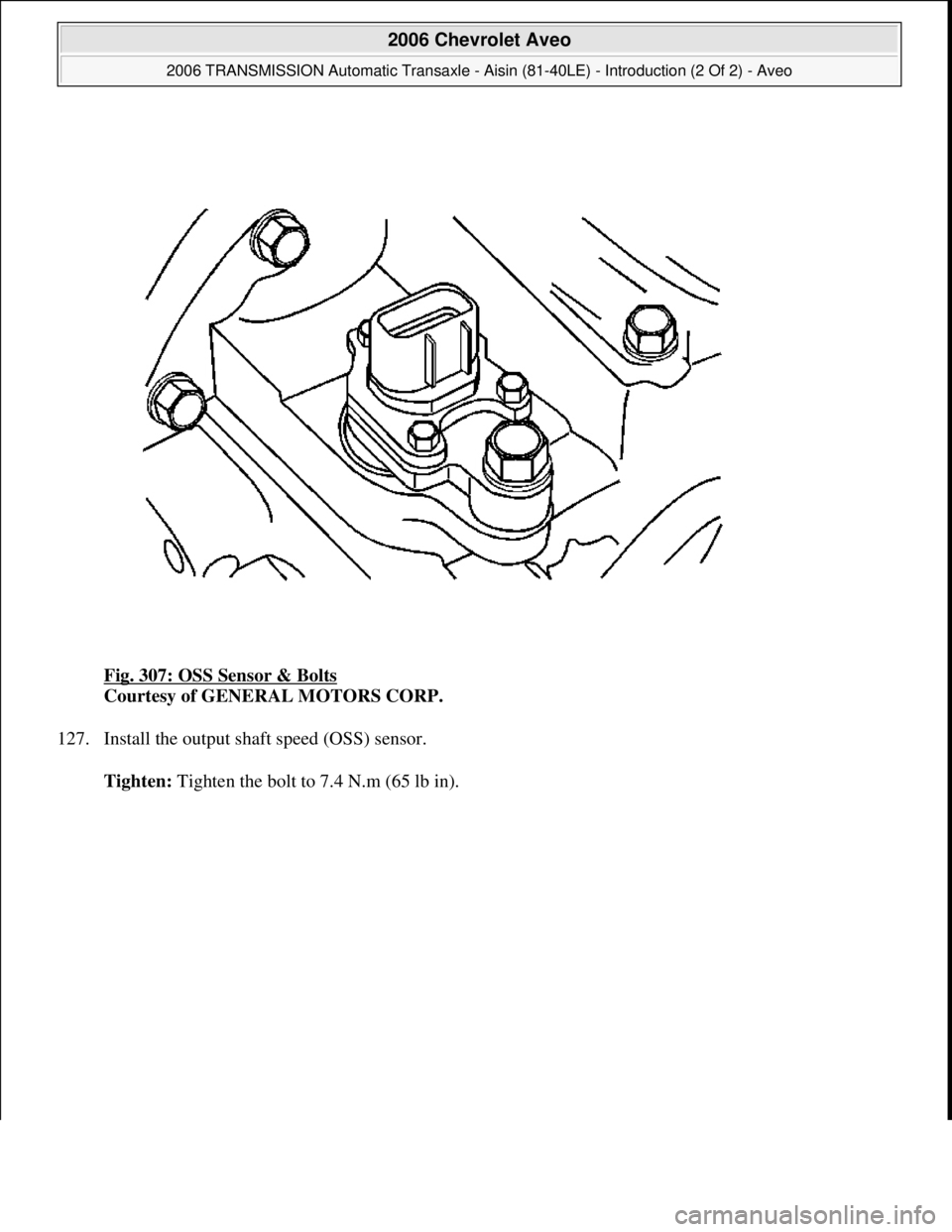

CHEVROLET AVEO 2002 Service Repair Manual Fig. 307: OSS Sensor & Bolts Courtesy of GENERAL MOTORS CORP. 127. Install the output shaft speed (OSS) sensor. Tighten: Ti ghten the bolt to 7.4 N.m (65 lb in). 2006 Chevrolet Aveo 2006 TRANSMI

Page 2870 of 5127

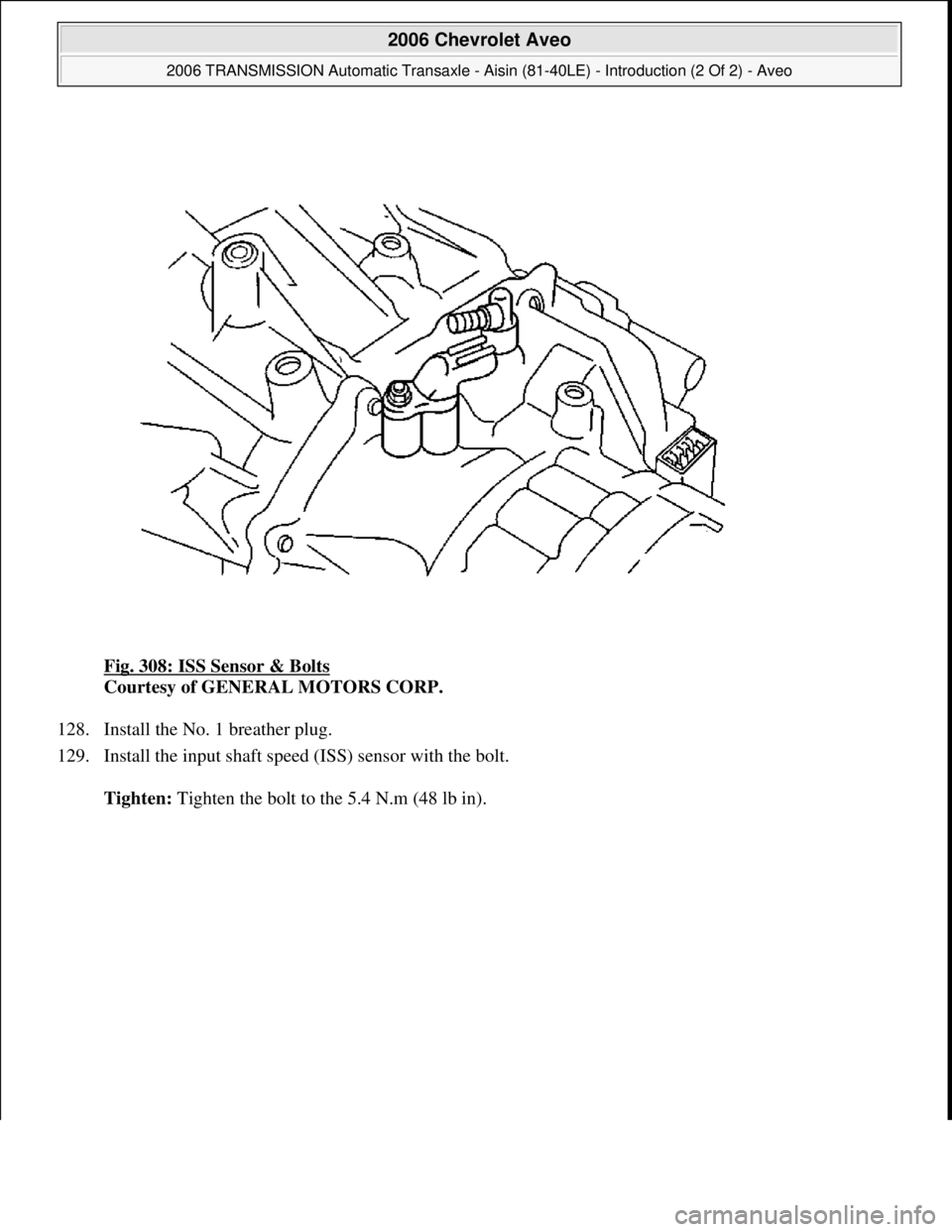

CHEVROLET AVEO 2002 Service Repair Manual Fig. 308: ISS Sensor & Bolts Courtesy of GENERAL MOTORS CORP. 128. Install the No. 1 breather plug. 129. Install the input shaft speed (ISS) sensor with the bolt. Tighten: Tighten the bolt to the

Page 2871 of 5127

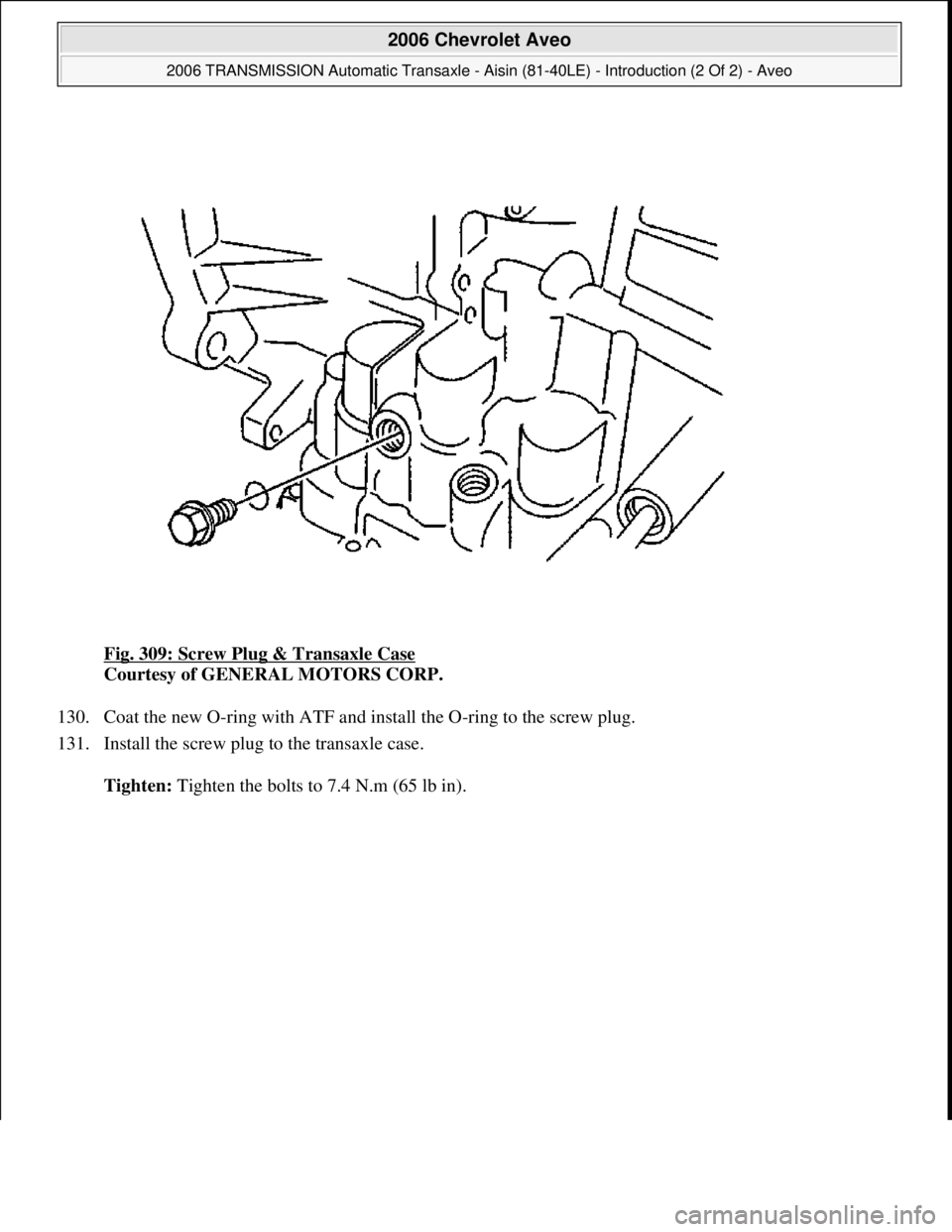

CHEVROLET AVEO 2002 Service Repair Manual Fig. 309: Screw Plug & Transaxle Case Courtesy of GENERAL MOTORS CORP. 130. Coat the new O-ring with ATF and install the O-ring to the screw plug. 131. Install the screw plug to the transaxle case

Page 2872 of 5127

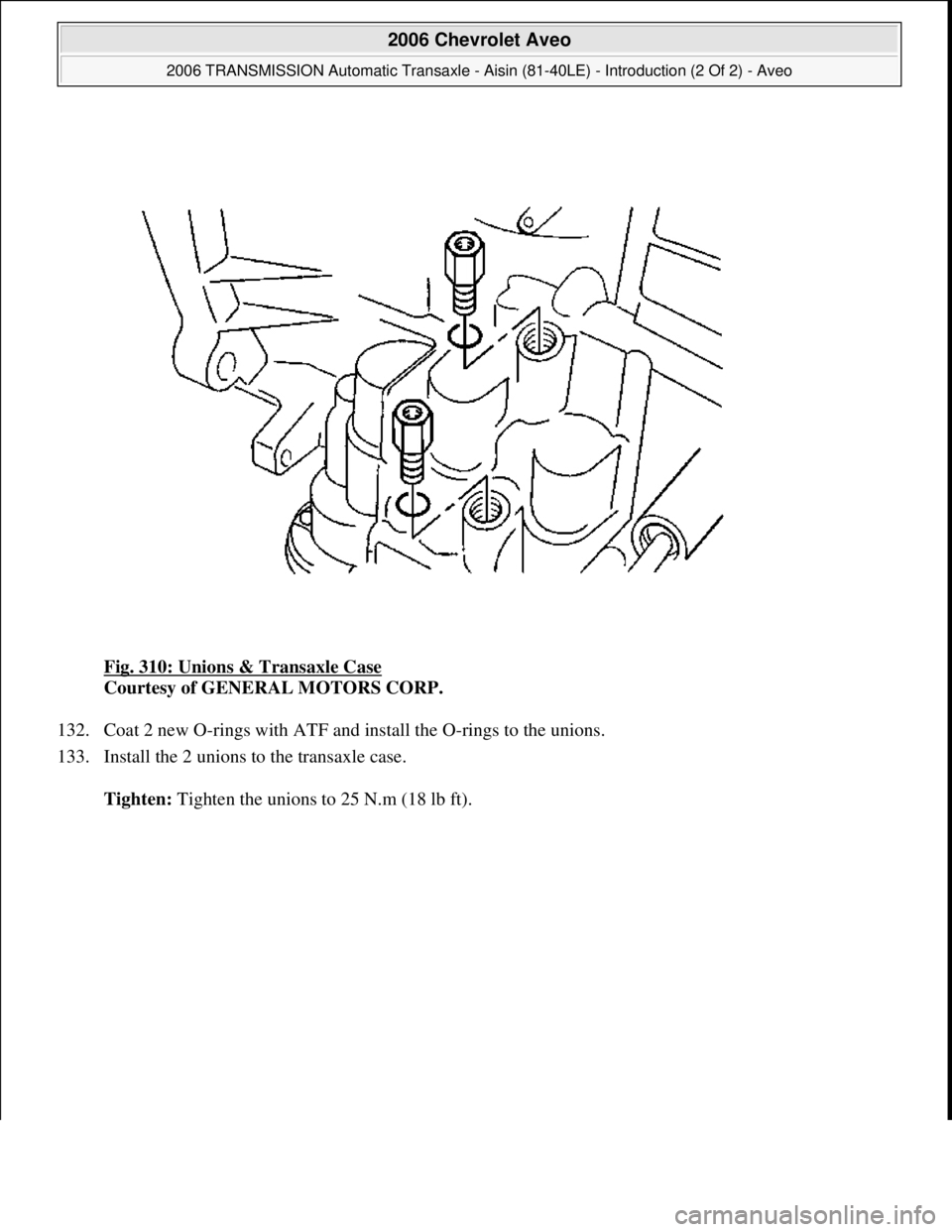

CHEVROLET AVEO 2002 Service Repair Manual Fig. 310: Unions & Transaxle Case Courtesy of GENERAL MOTORS CORP. 132. Coat 2 new O-rings with ATF and install the O-rings to the unions. 133. Install the 2 unions to the transaxle case. Tighten
