Page 4385 of 5127

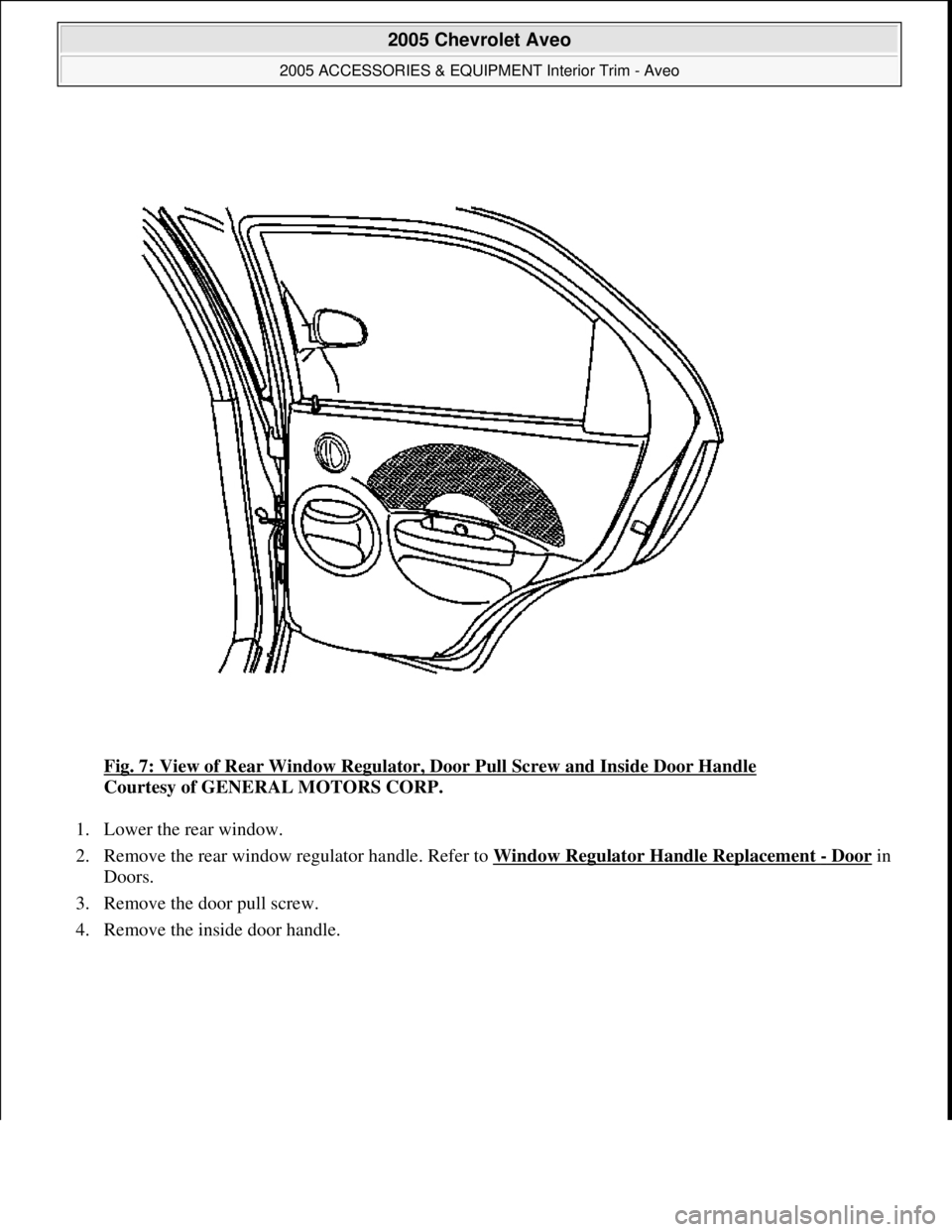

CHEVROLET AVEO 2002 Service Repair Manual Fig. 7: View of Rear Window Regulator, Door Pull Screw and Inside Door Handle Courtesy of GENERAL MOTORS CORP. 1. Lower the rear window. 2. Remove the rear window regulator handle. Refer to Window

Page 4386 of 5127

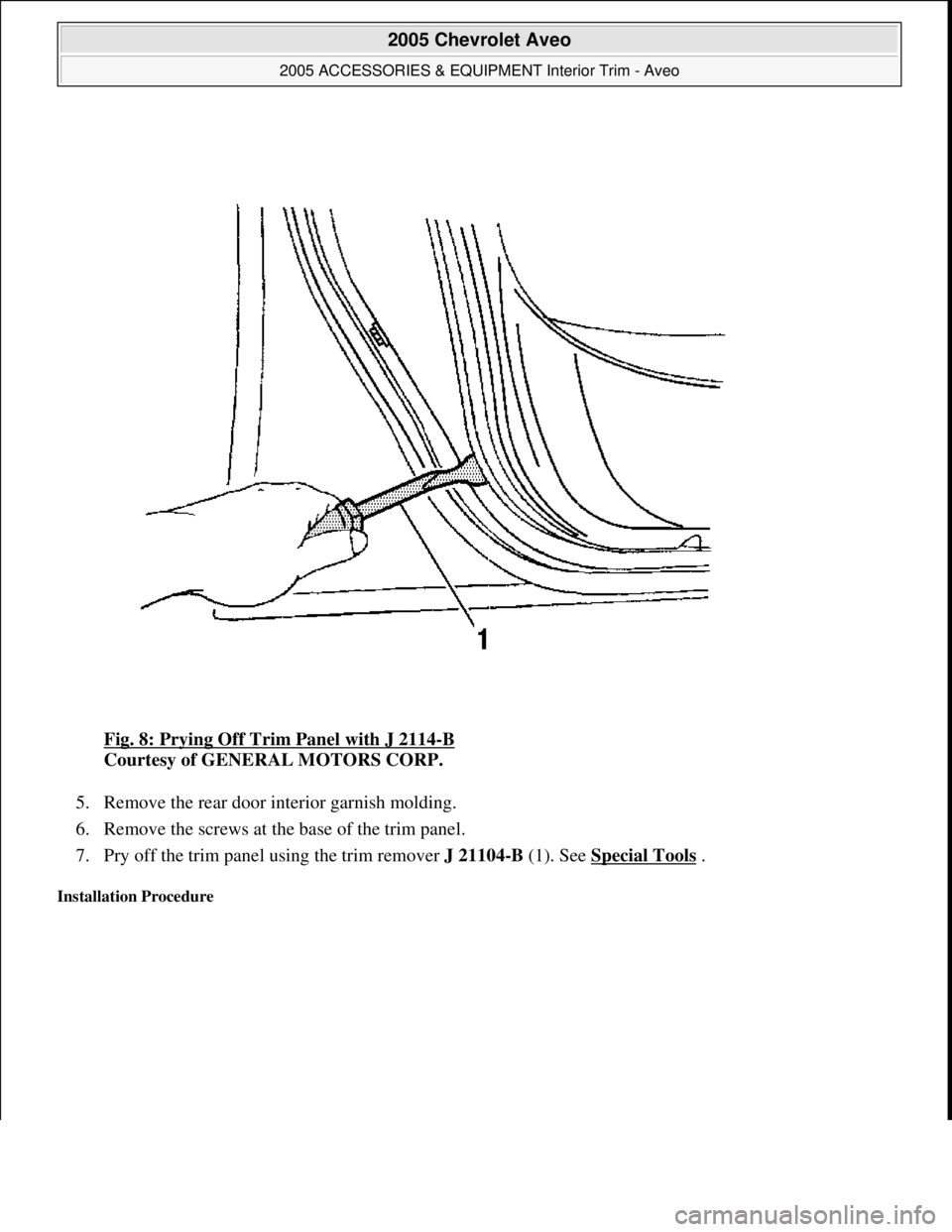

CHEVROLET AVEO 2002 Service Repair Manual Fig. 8: Prying Off Trim Panel with J 2114-B Courtesy of GENERAL MOTORS CORP. 5. Remove the rear door interior garnish molding. 6. Remove the screws at the base of the trim panel. 7. Pry off the

Page 4387 of 5127

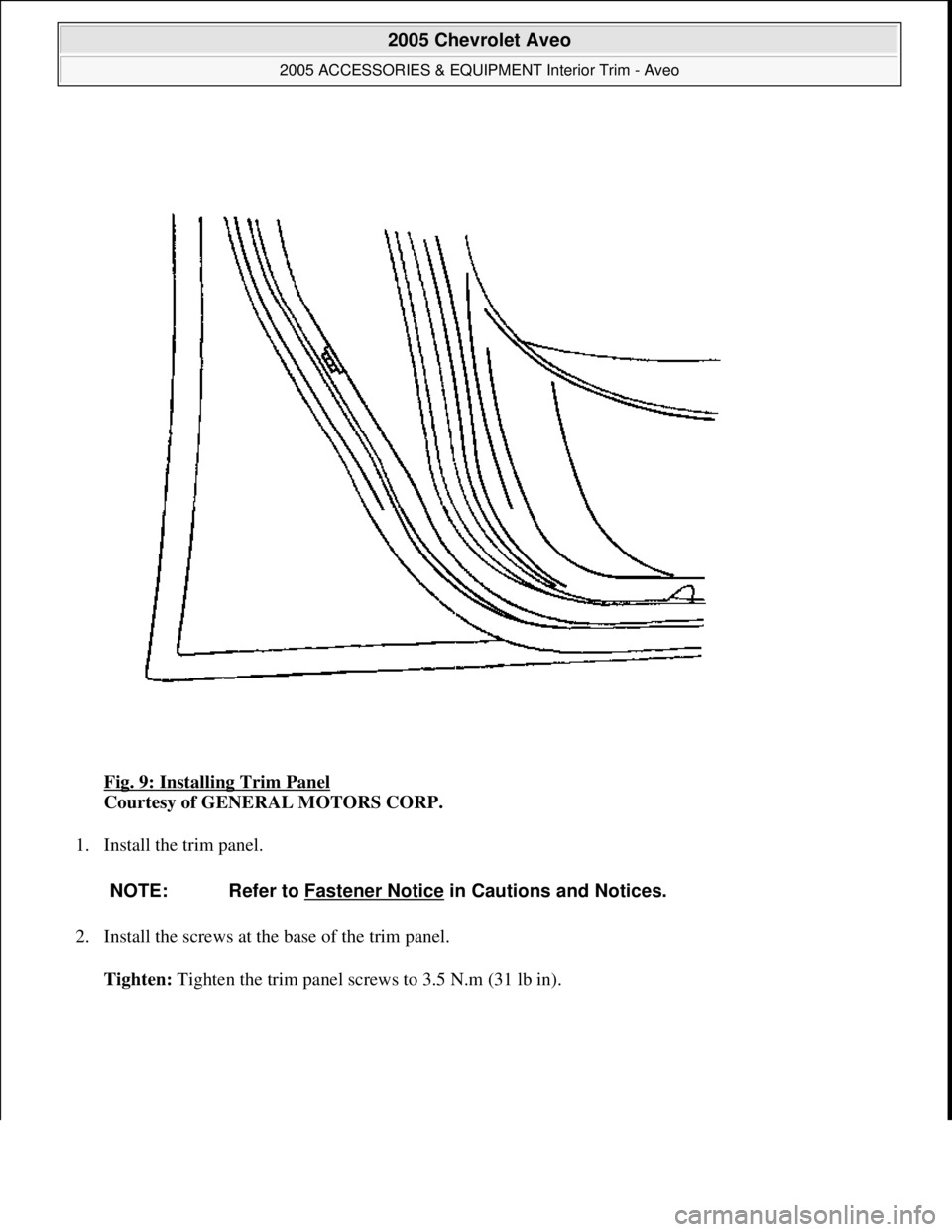

CHEVROLET AVEO 2002 Service Repair Manual Fig. 9: Installing Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Install the trim panel. 2. Install the screws at the base of the trim panel. Tighten: Ti ghten the trim panel screws to 3.5 N.m (3

Page 4388 of 5127

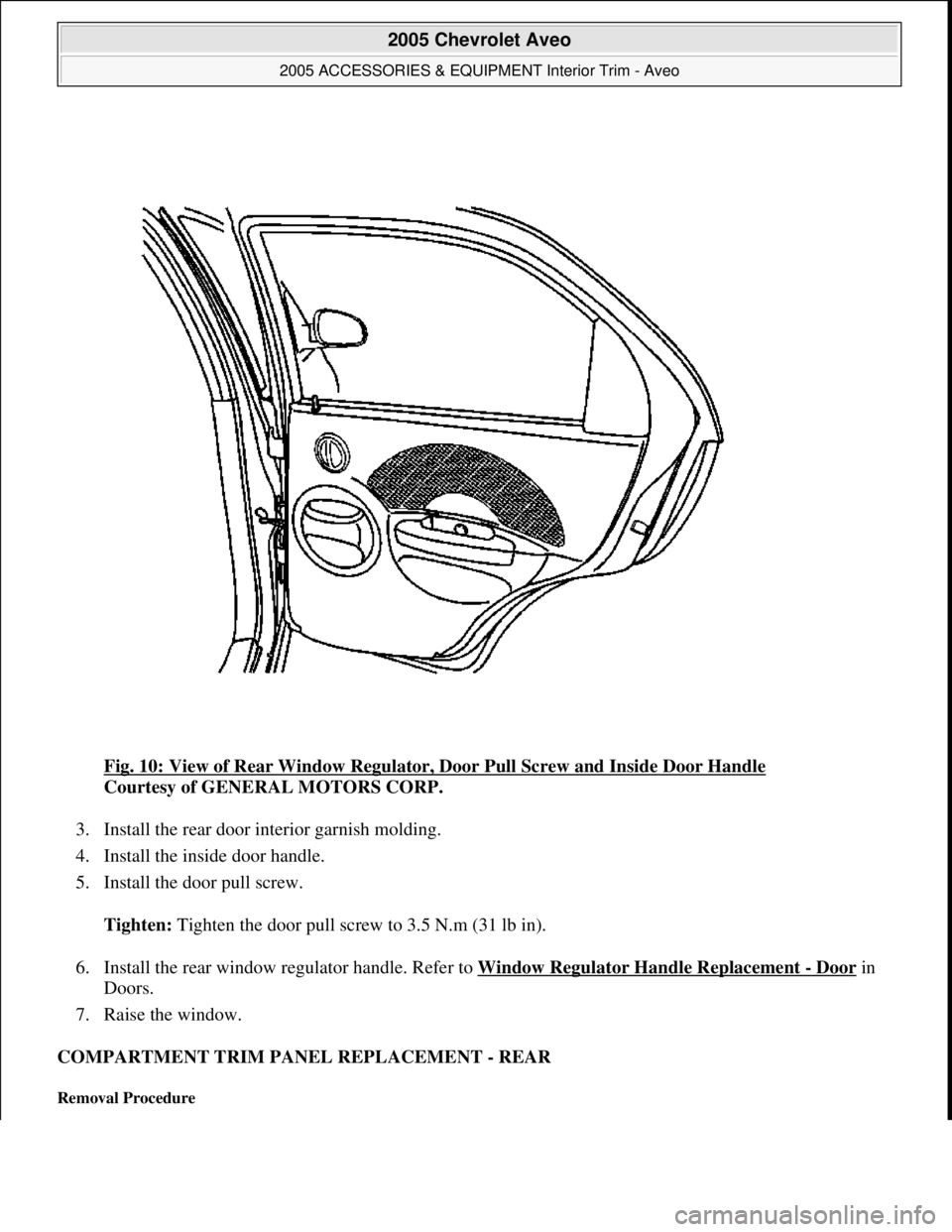

CHEVROLET AVEO 2002 Service Repair Manual Fig. 10: View of Rear Window Regulator, Door Pull Screw and Inside Door Handle Courtesy of GENERAL MOTORS CORP. 3. Install the rear door interior garnish molding. 4. Install the inside door handle

Page 4389 of 5127

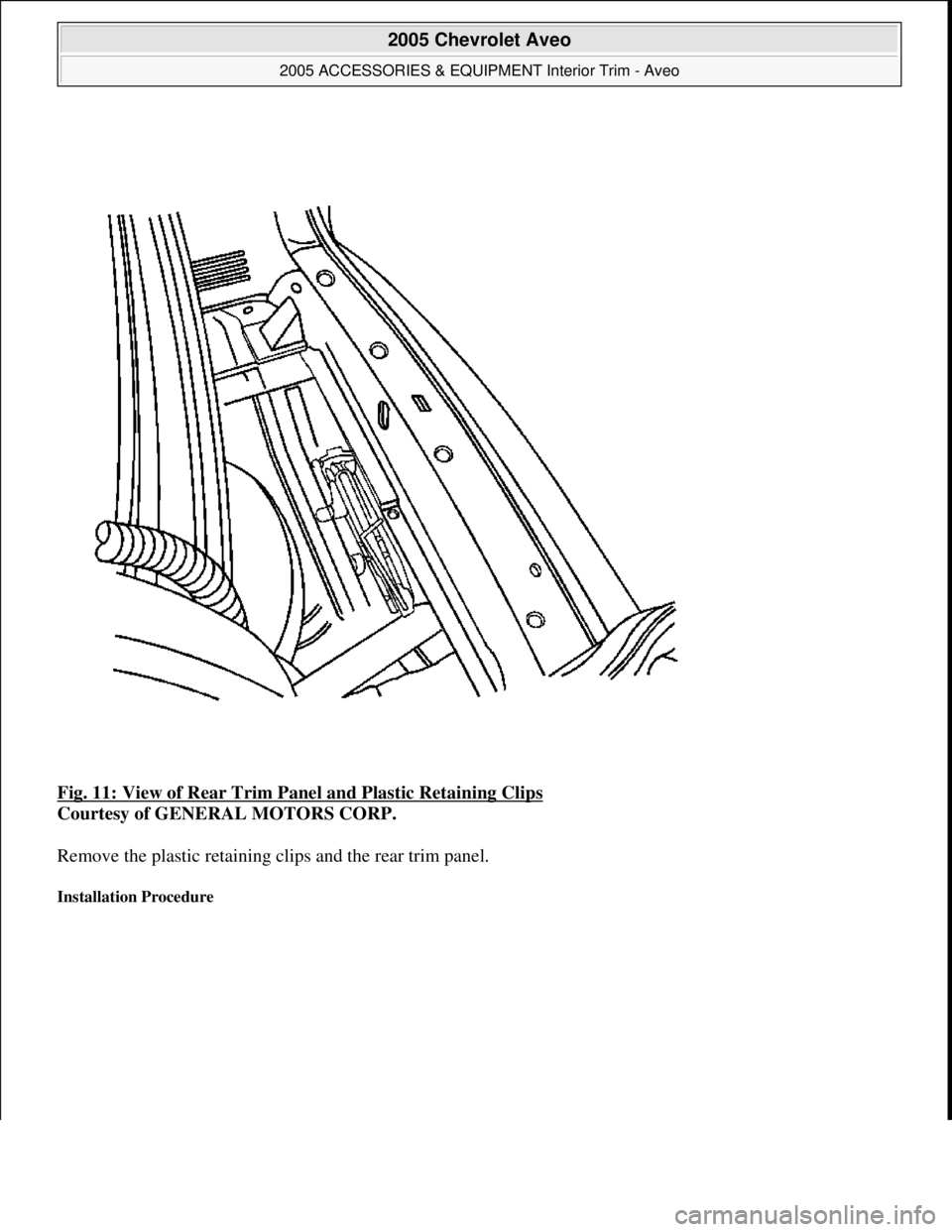

CHEVROLET AVEO 2002 Service Repair Manual Fig. 11: View of Rear Trim Panel and Plastic Retaining Clips Courtesy of GENERAL MOTORS CORP. Remove the plastic retaining clips and the rear trim panel. Installation Procedure 2005 Chevrolet Av

Page 4390 of 5127

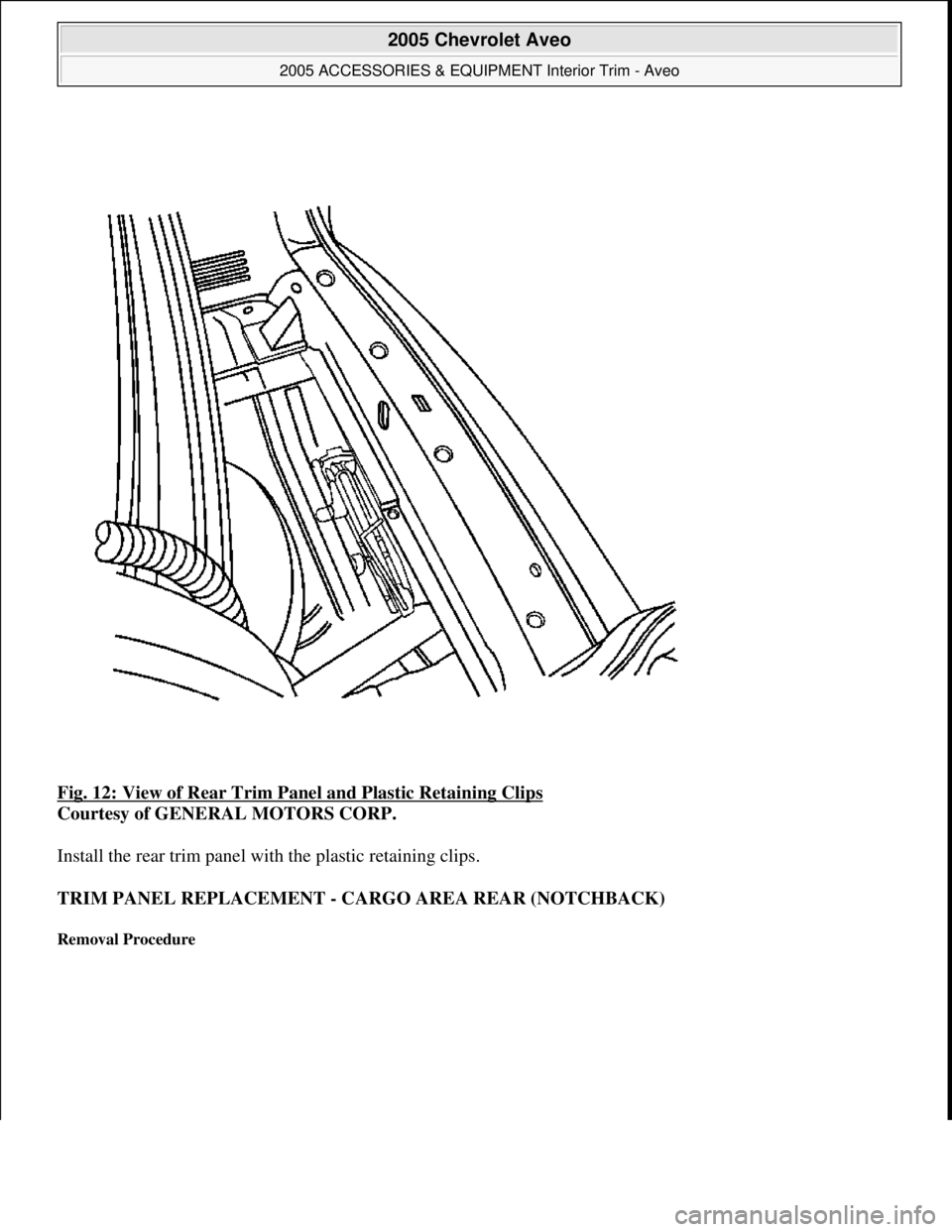

CHEVROLET AVEO 2002 Service Repair Manual Fig. 12: View of Rear Trim Panel and Plastic Retaining Clips Courtesy of GENERAL MOTORS CORP. Install the rear trim panel with the plastic retaining clips. TRIM PANEL REPLACEMENT - CARGO AREA REAR

Page 4391 of 5127

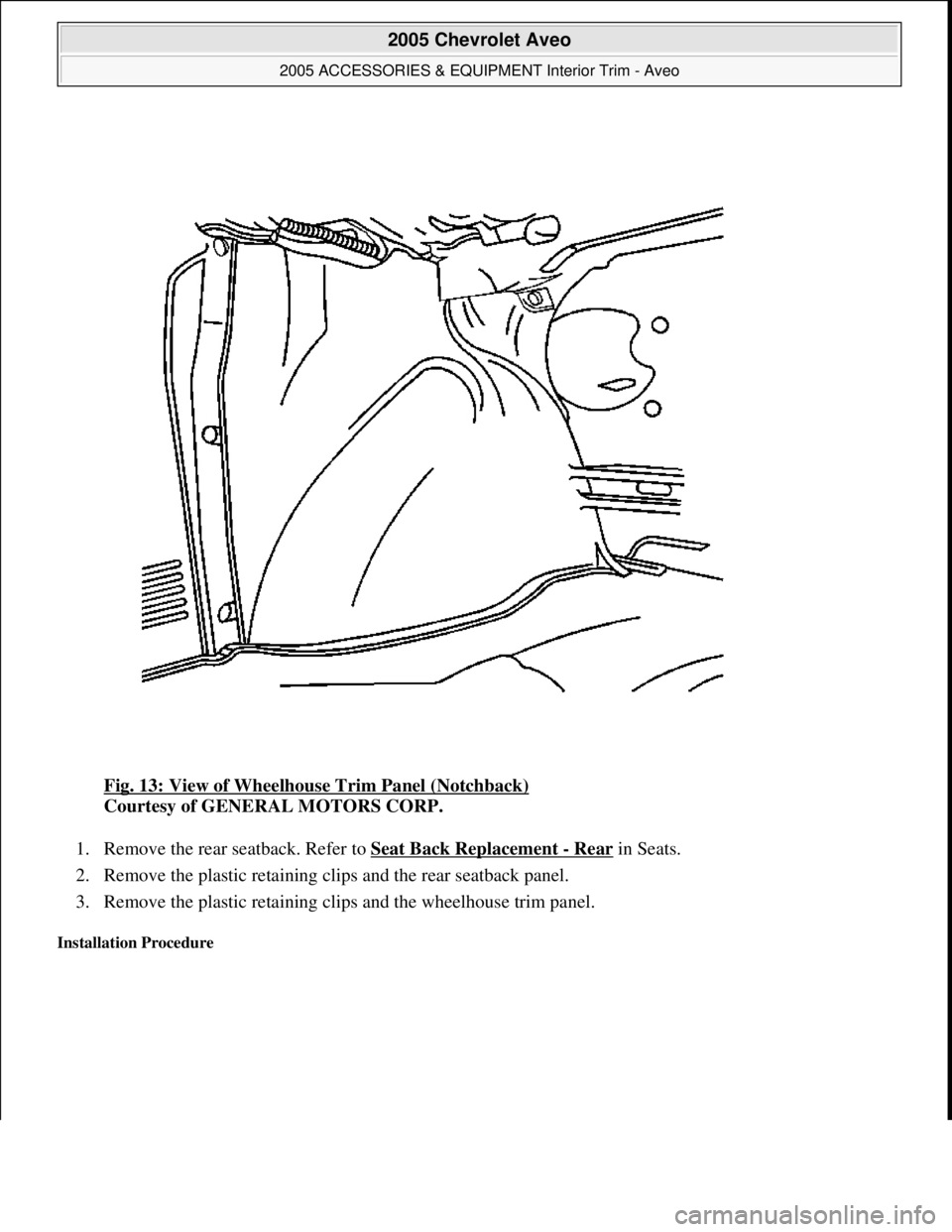

CHEVROLET AVEO 2002 Service Repair Manual Fig. 13: View of Wheelhouse Trim Panel (Notchback) Courtesy of GENERAL MOTORS CORP. 1. Remove the rear seatback. Refer to Seat Back Replacement - Rear in Seats. 2. Remove the plastic retaining cl

Page 4392 of 5127

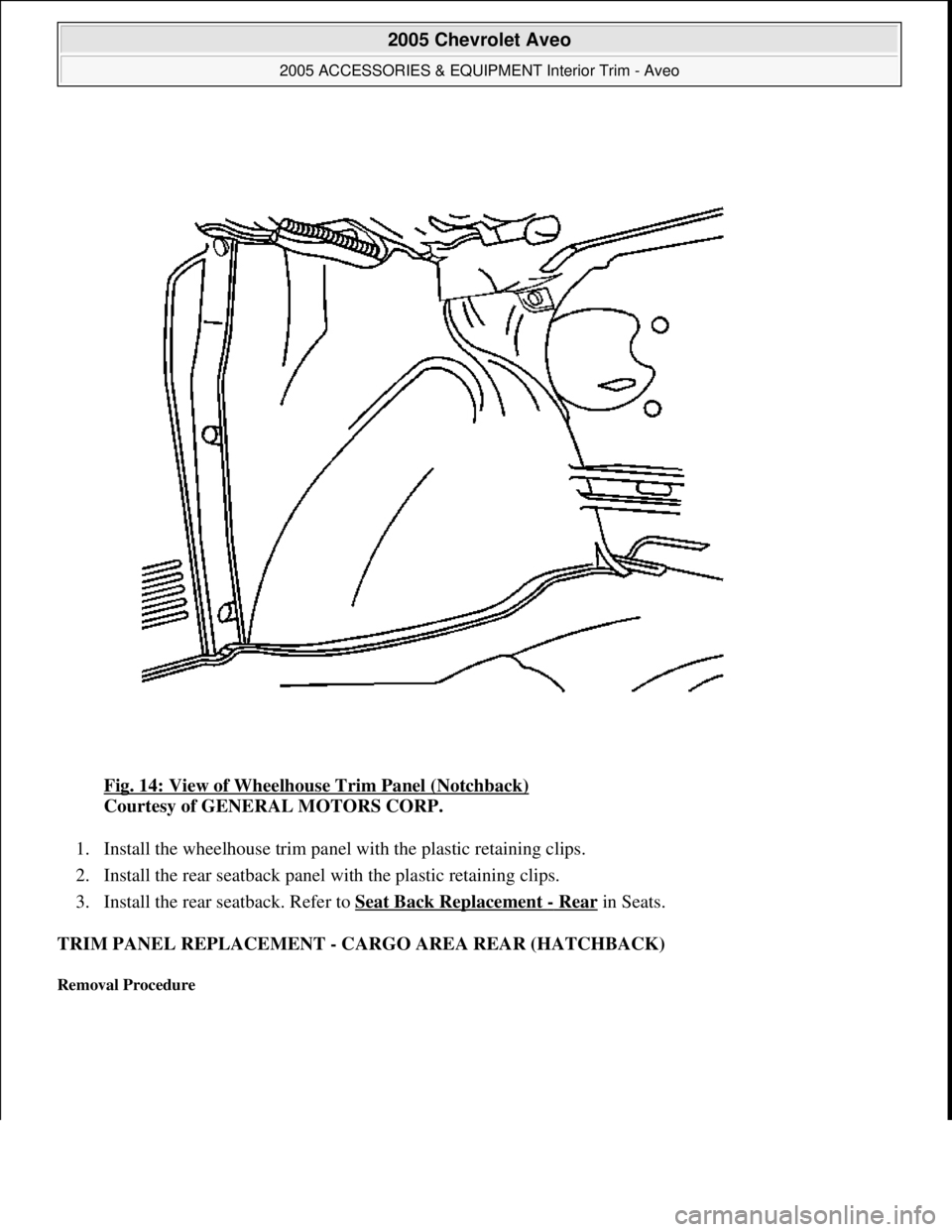

CHEVROLET AVEO 2002 Service Repair Manual Fig. 14: View of Wheelhouse Trim Panel (Notchback) Courtesy of GENERAL MOTORS CORP. 1. Install the wheelhouse trim panel with the plastic retaining clips. 2. Install the rear seatback panel with t
