Page 2985 of 5127

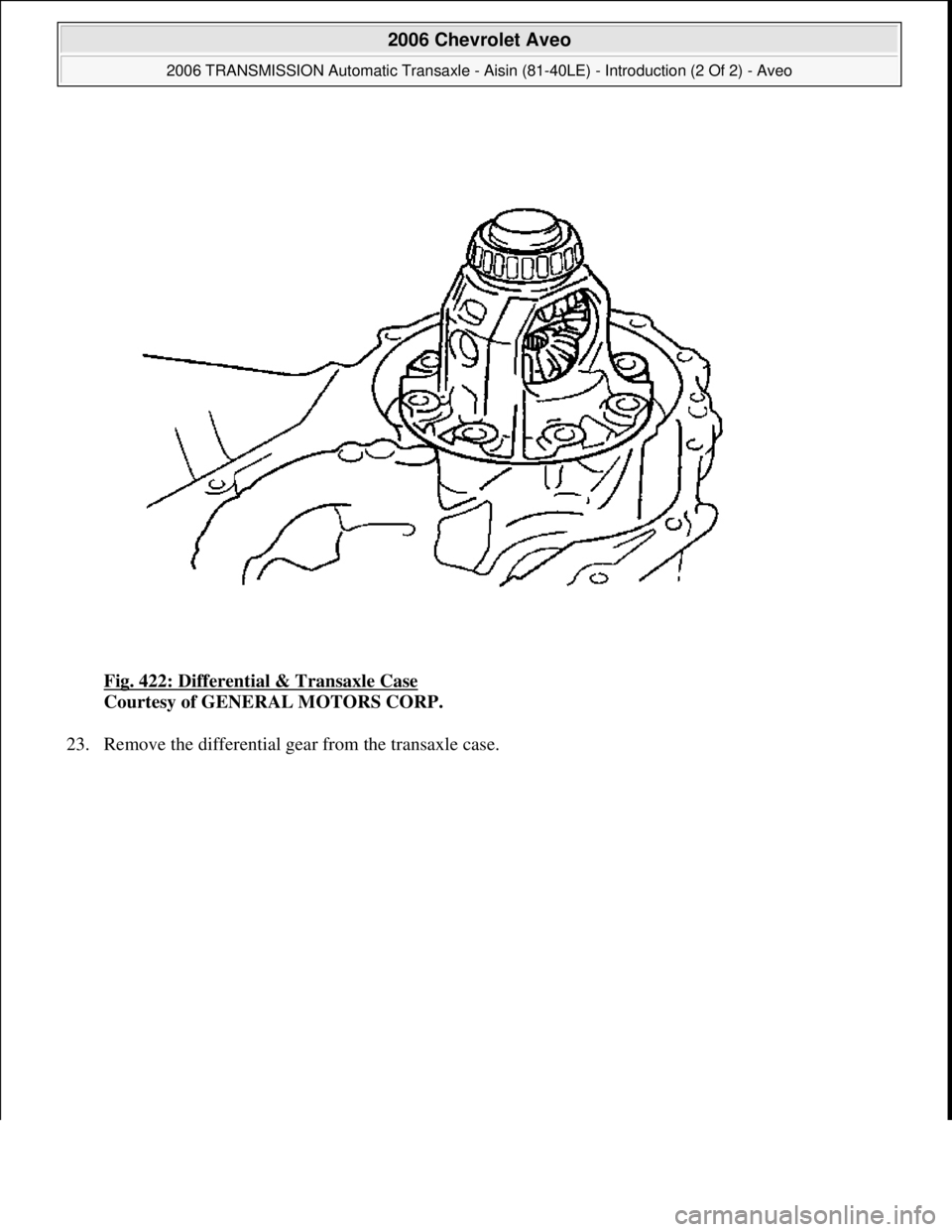

CHEVROLET AVEO 2002 Service Repair Manual Fig. 422: Differential & Transaxle Case Courtesy of GENERAL MOTORS CORP. 23. Remove the differential gear from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Ais

Page 2986 of 5127

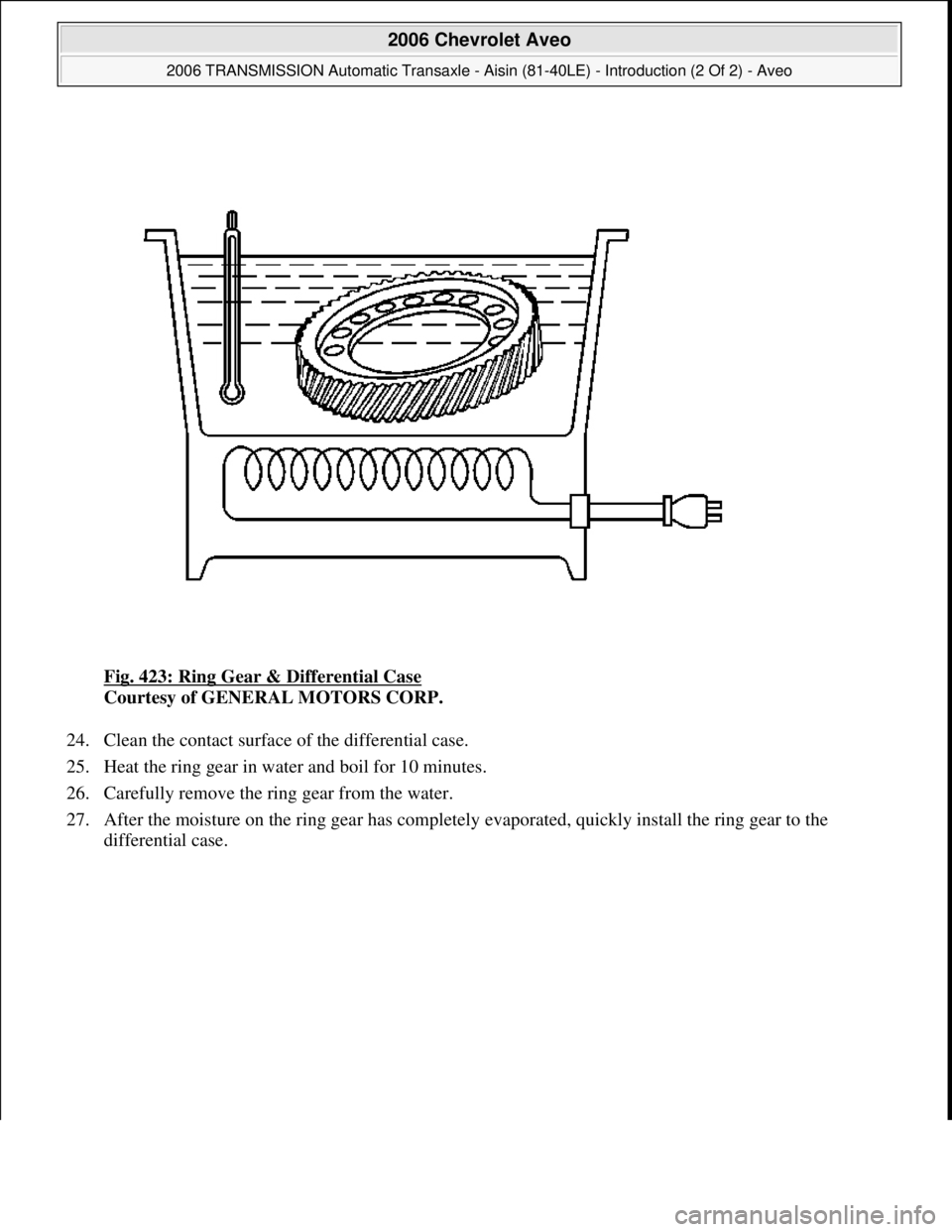

CHEVROLET AVEO 2002 Service Repair Manual Fig. 423: Ring Gear & Differential Case Courtesy of GENERAL MOTORS CORP. 24. Clean the contact surface of the differential case. 25. Heat the ring gear in water and boil for 10 minutes. 26. Care

Page 2987 of 5127

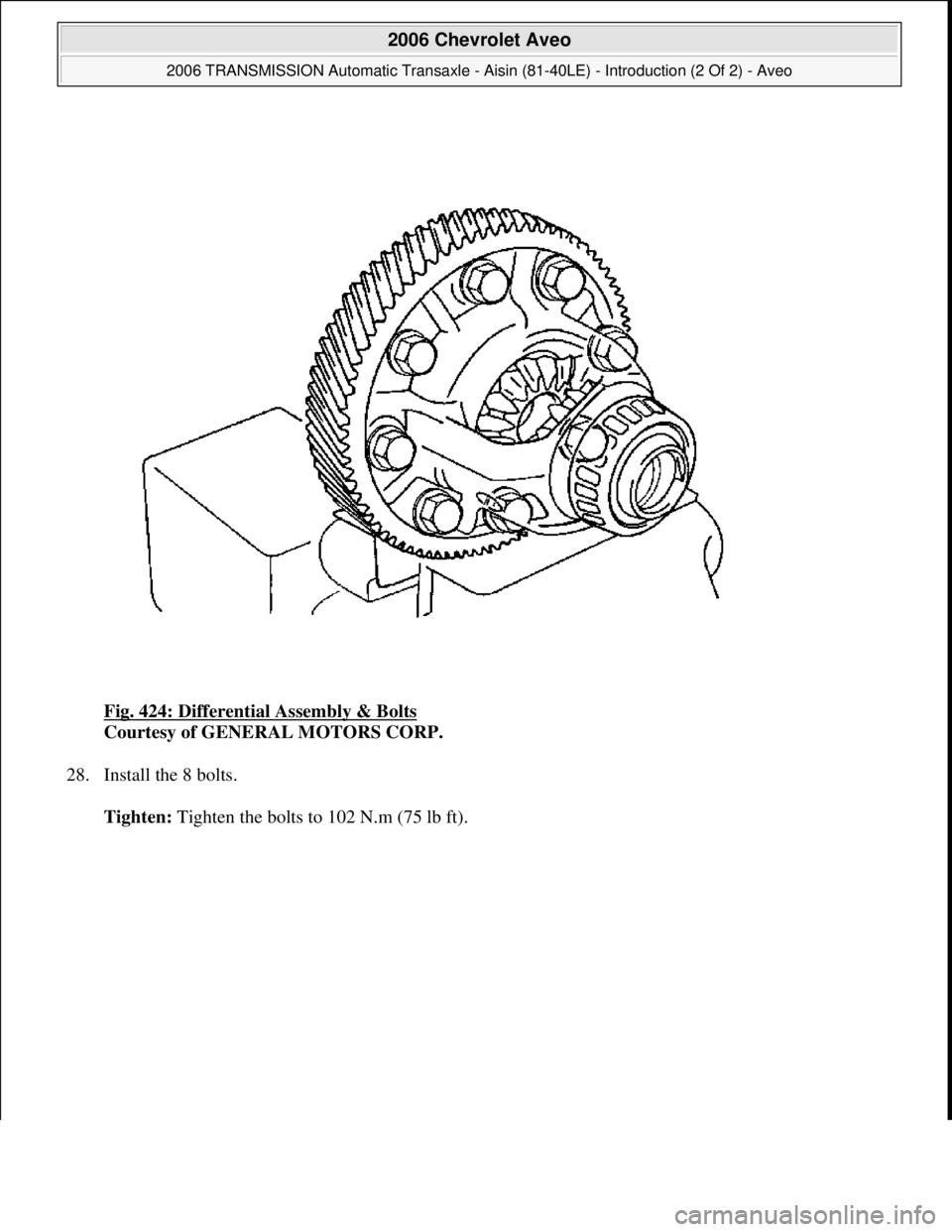

CHEVROLET AVEO 2002 Service Repair Manual Fig. 424: Differential Assembly & Bolts Courtesy of GENERAL MOTORS CORP. 28. Install the 8 bolts. Tighten: Tighten the bolts to 102 N.m (75 lb ft). 2006 Chevrolet Aveo 2006 TRANSMISSION Automati

Page 2988 of 5127

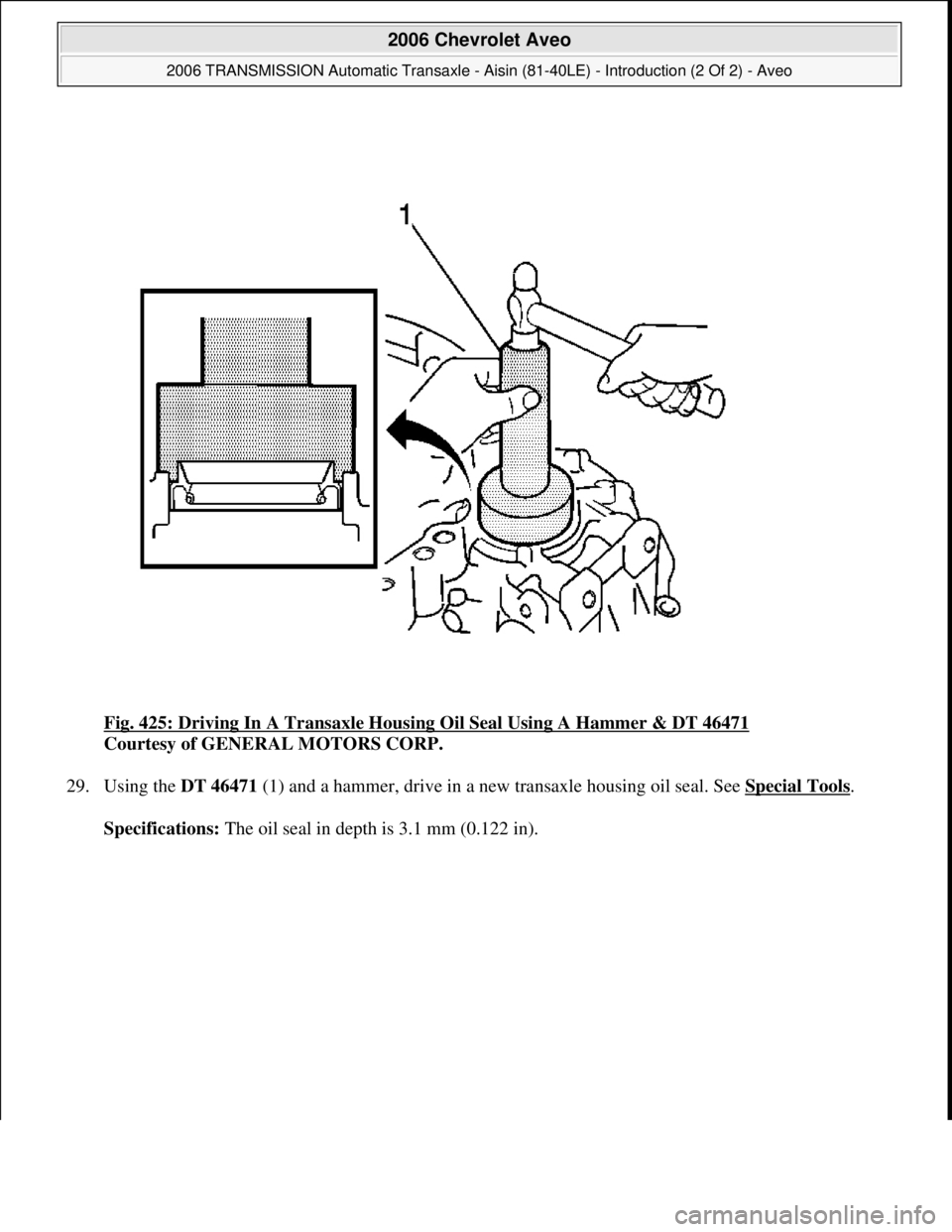

CHEVROLET AVEO 2002 Service Repair Manual Fig. 425: Driving In A Transaxle Housing Oil Seal Using A Hammer & DT 46471 Courtesy of GENERAL MOTORS CORP. 29. Using the DT 46471 (1) and a hammer, drive in a new transaxle housing oil seal. See S

Page 2989 of 5127

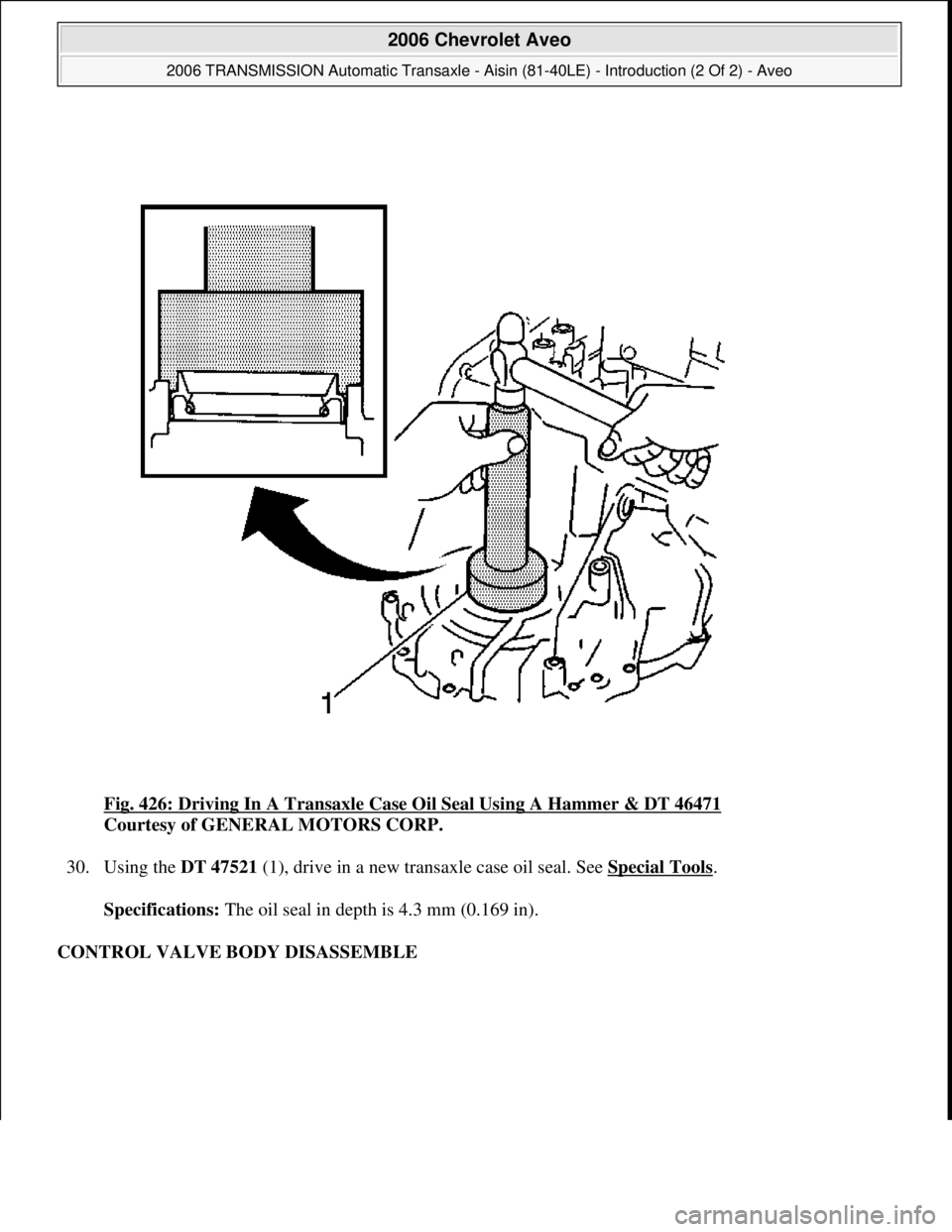

CHEVROLET AVEO 2002 Service Repair Manual Fig. 426: Driving In A Transaxle Case Oil Seal Using A Hammer & DT 46471 Courtesy of GENERAL MOTORS CORP. 30. Using the DT 47521 (1), drive in a new transaxle case oil seal. See Special Tools . Spe

Page 2990 of 5127

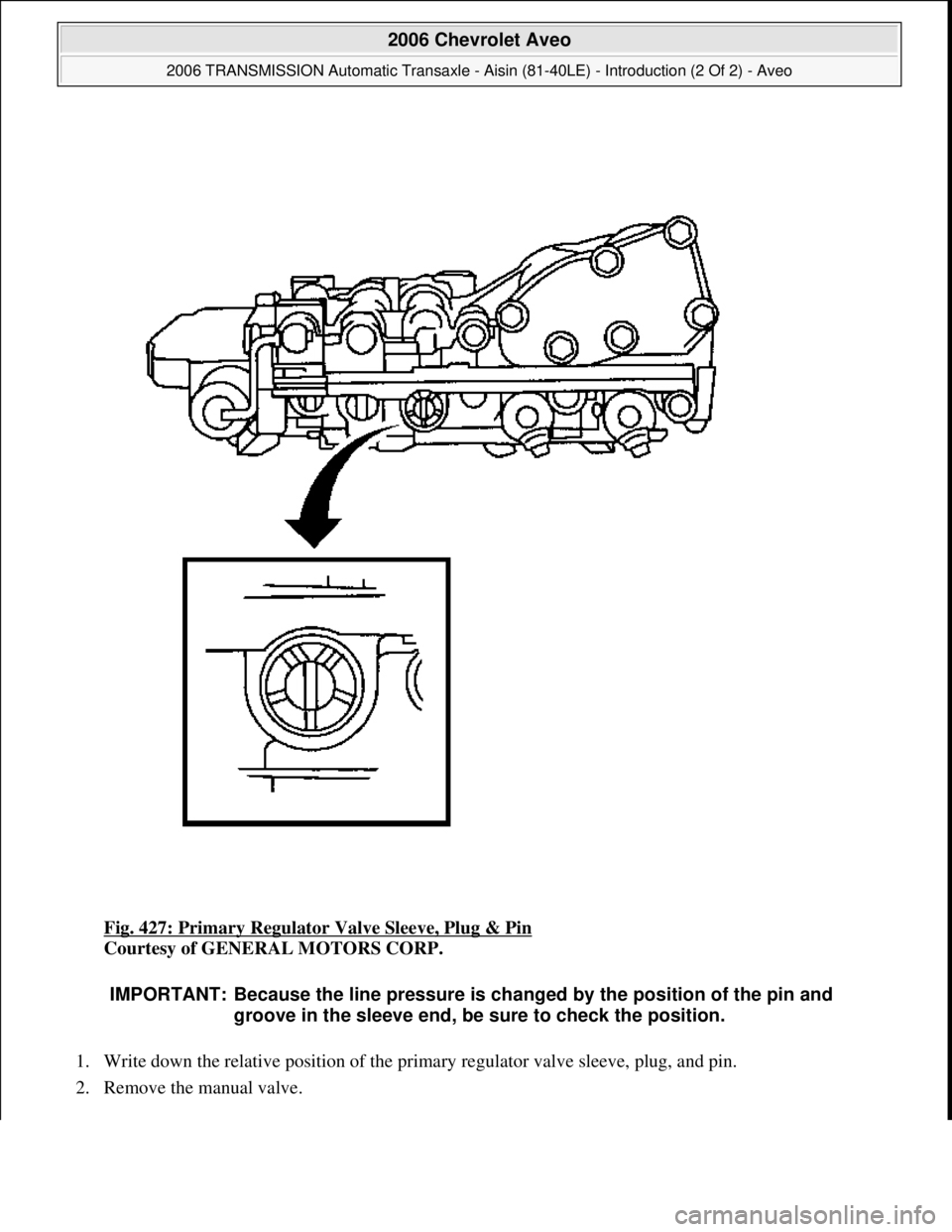

CHEVROLET AVEO 2002 Service Repair Manual Fig. 427: Primary Regulator Valve Sleeve, Plug & Pin Courtesy of GENERAL MOTORS CORP. 1. Write down the relative position of the primary regulator valve sleeve, plug, and pin. 2. Remove the manual

Page 2991 of 5127

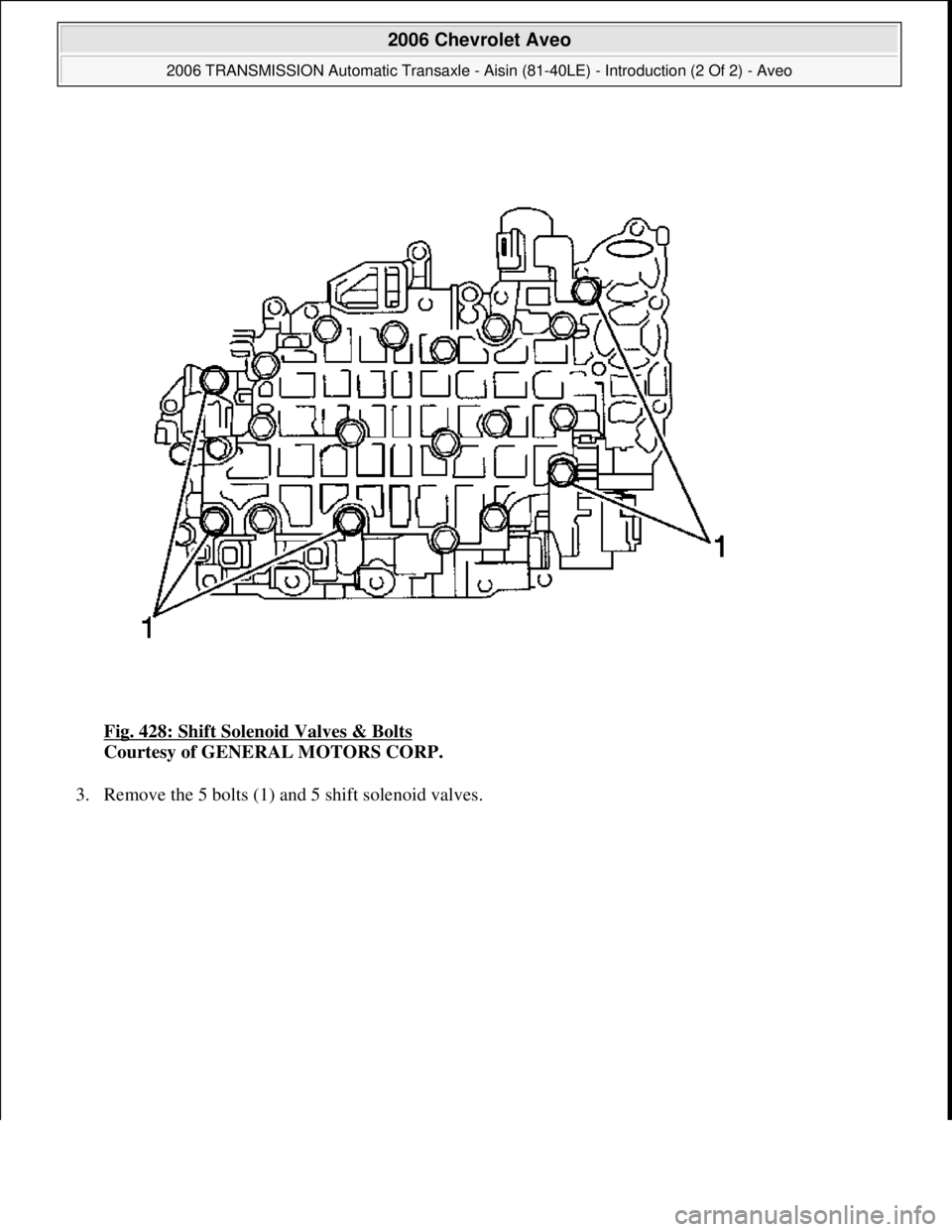

CHEVROLET AVEO 2002 Service Repair Manual Fig. 428: Shift Solenoid Valves & Bolts Courtesy of GENERAL MOTORS CORP. 3. Remove the 5 bolts (1) and 5 shift solenoid valves. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin

Page 2992 of 5127

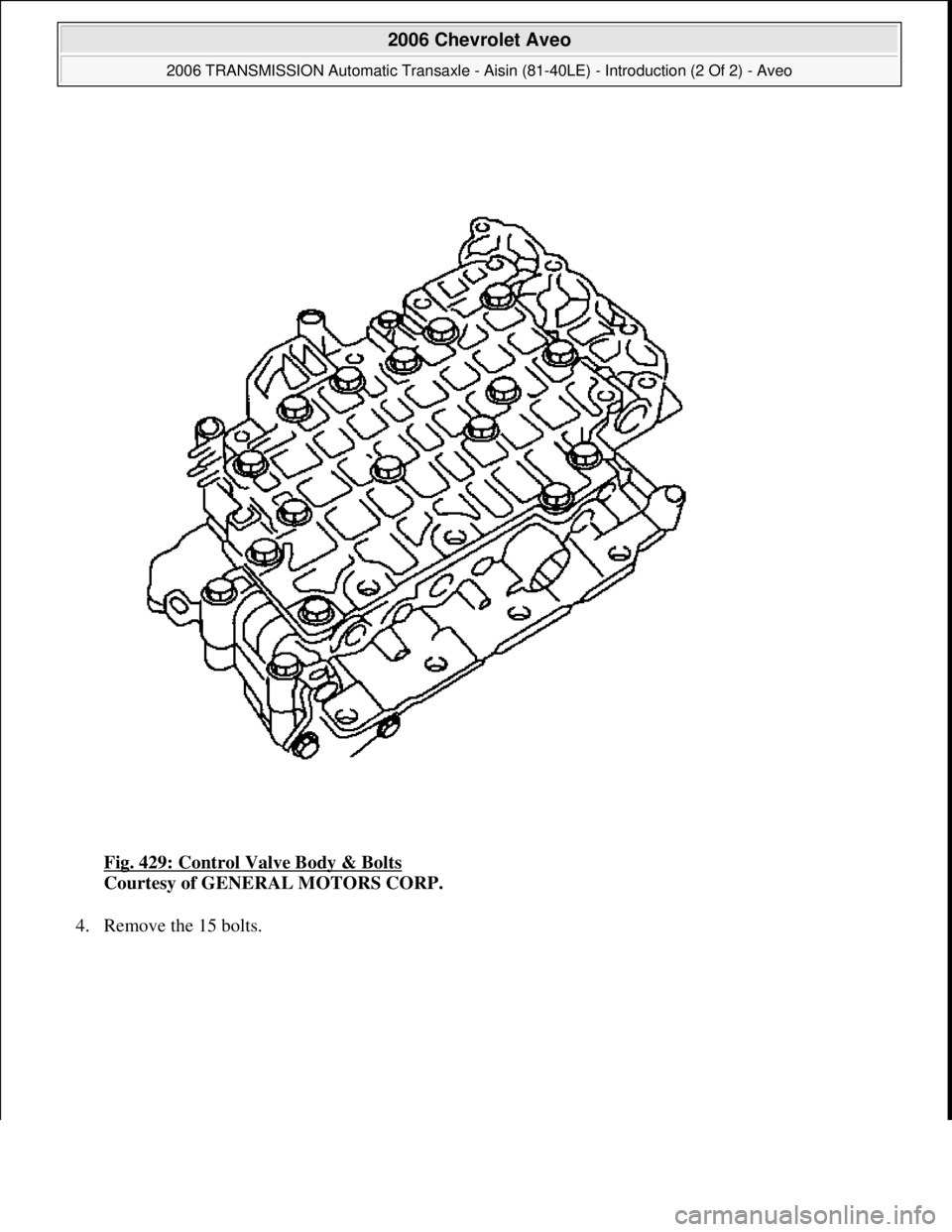

CHEVROLET AVEO 2002 Service Repair Manual Fig. 429: Control Valve Body & Bolts Courtesy of GENERAL MOTORS CORP. 4. Remove the 15 bolts. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2)
