Page 4417 of 5127

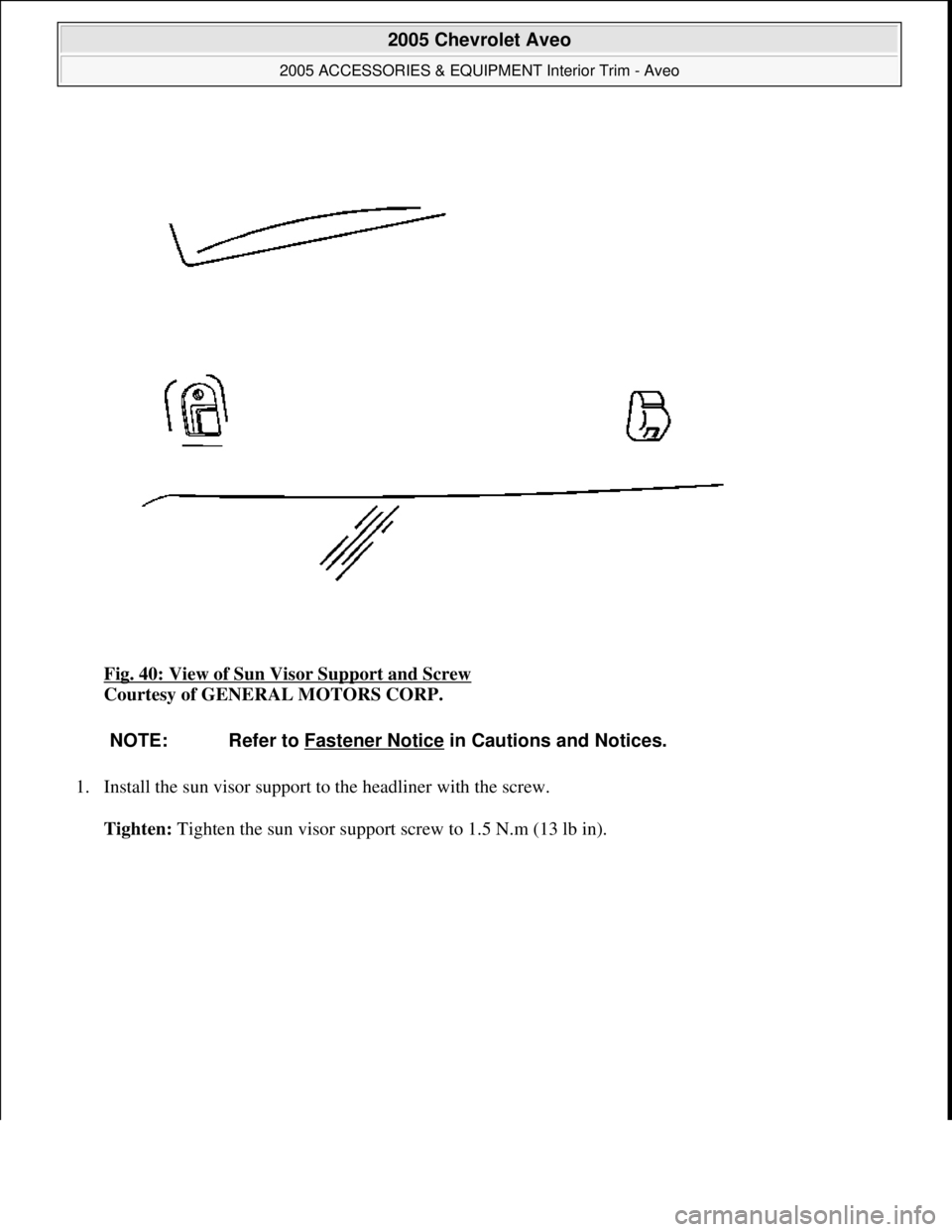

CHEVROLET AVEO 2002 Service Repair Manual Fig. 40: View of Sun Visor Support and Screw Courtesy of GENERAL MOTORS CORP. 1. Install the sun visor support to the headliner with the screw. Tighten: Ti ghten the sun visor support screw to 1.5

Page 4418 of 5127

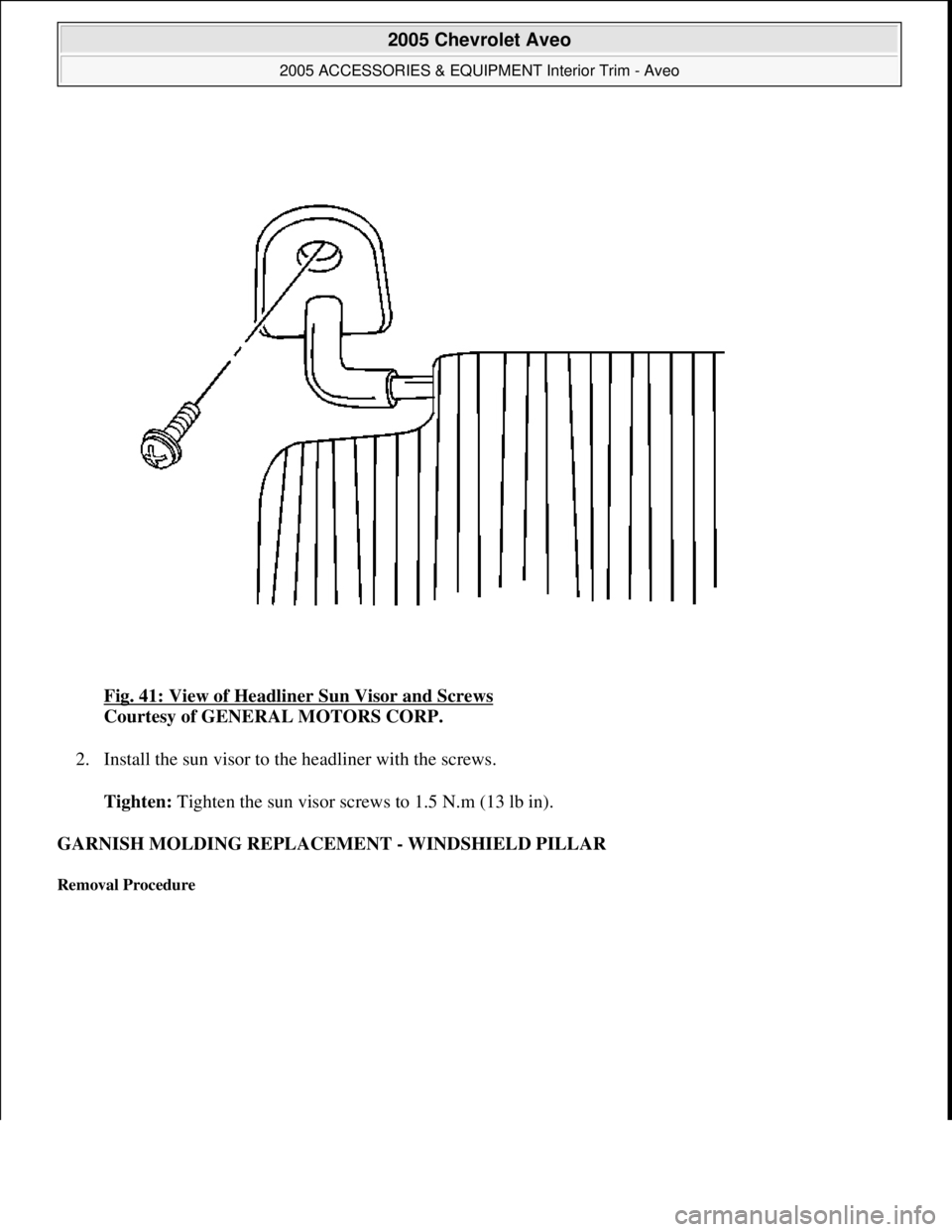

CHEVROLET AVEO 2002 Service Repair Manual Fig. 41: View of Headliner Sun Visor and Screws Courtesy of GENERAL MOTORS CORP. 2. Install the sun visor to the headliner with the screws. Tighten: Tighten the sun visor screws to 1.5 N.m (13 lb i

Page 4419 of 5127

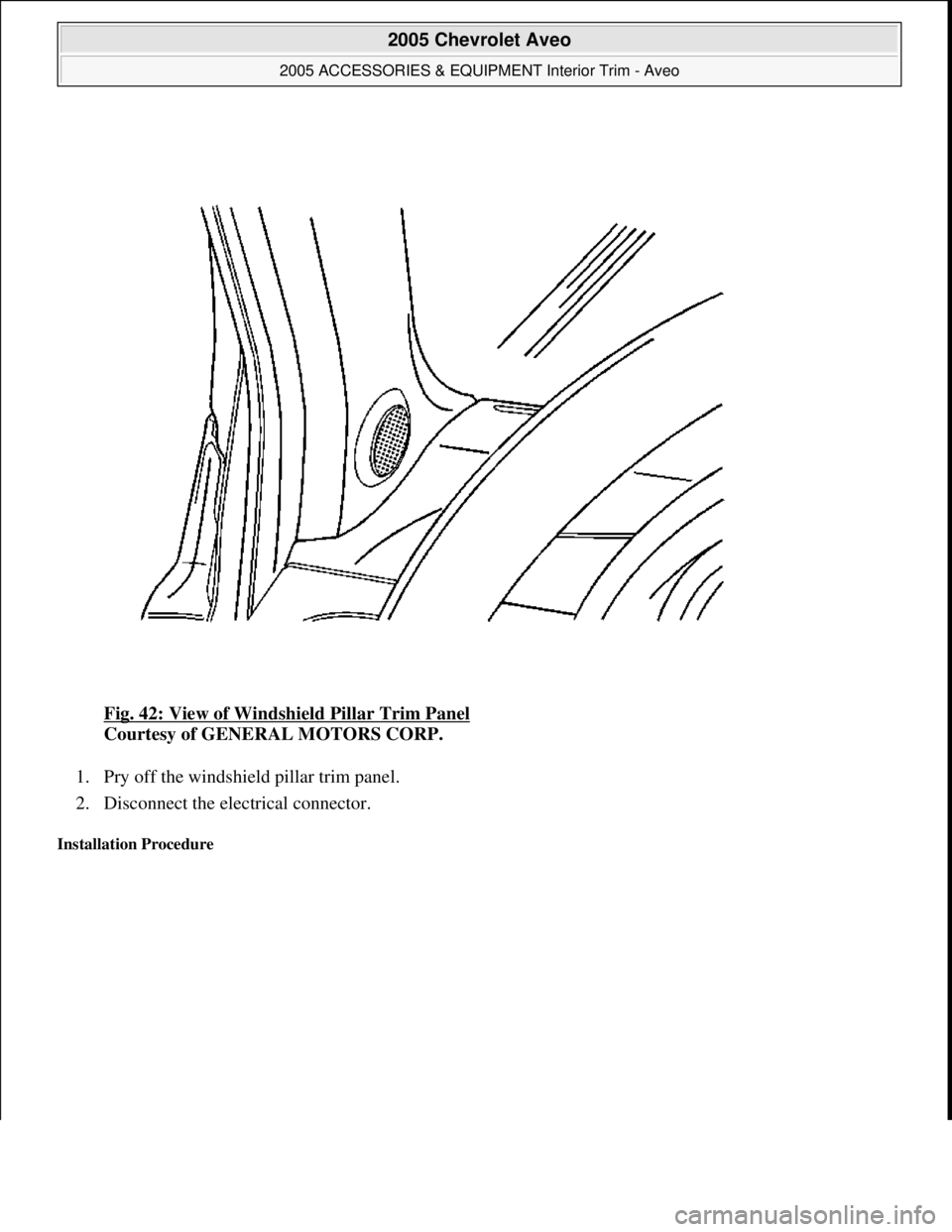

CHEVROLET AVEO 2002 Service Repair Manual Fig. 42: View of Windshield Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Pry off the windshield pillar trim panel. 2. Disconnect the electrical connector. Installation Procedure 2005

Page 4420 of 5127

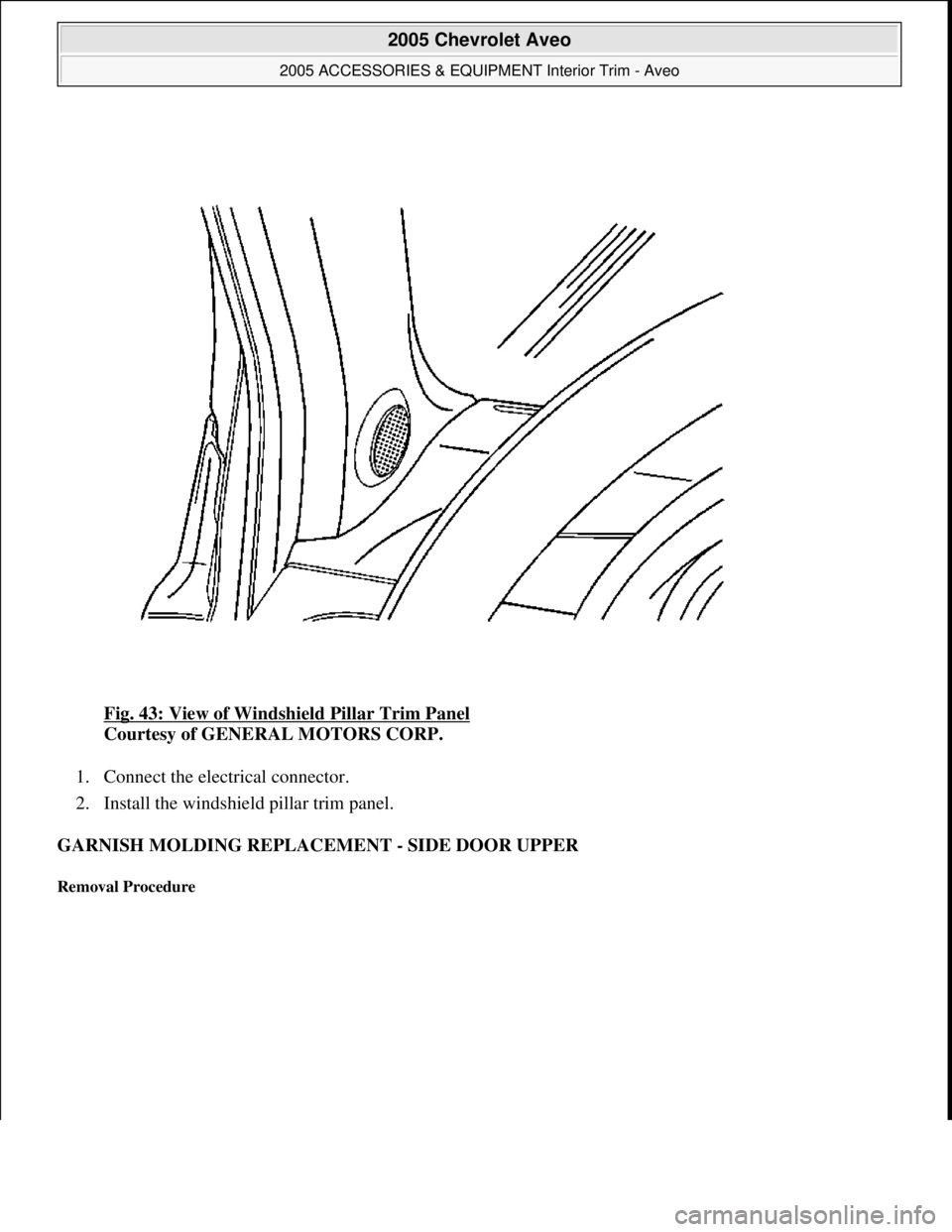

CHEVROLET AVEO 2002 Service Repair Manual Fig. 43: View of Windshield Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Connect the electrical connector. 2. Install the windshield pillar trim panel. GARNISH MOLDING REPLACEMENT - SID

Page 4421 of 5127

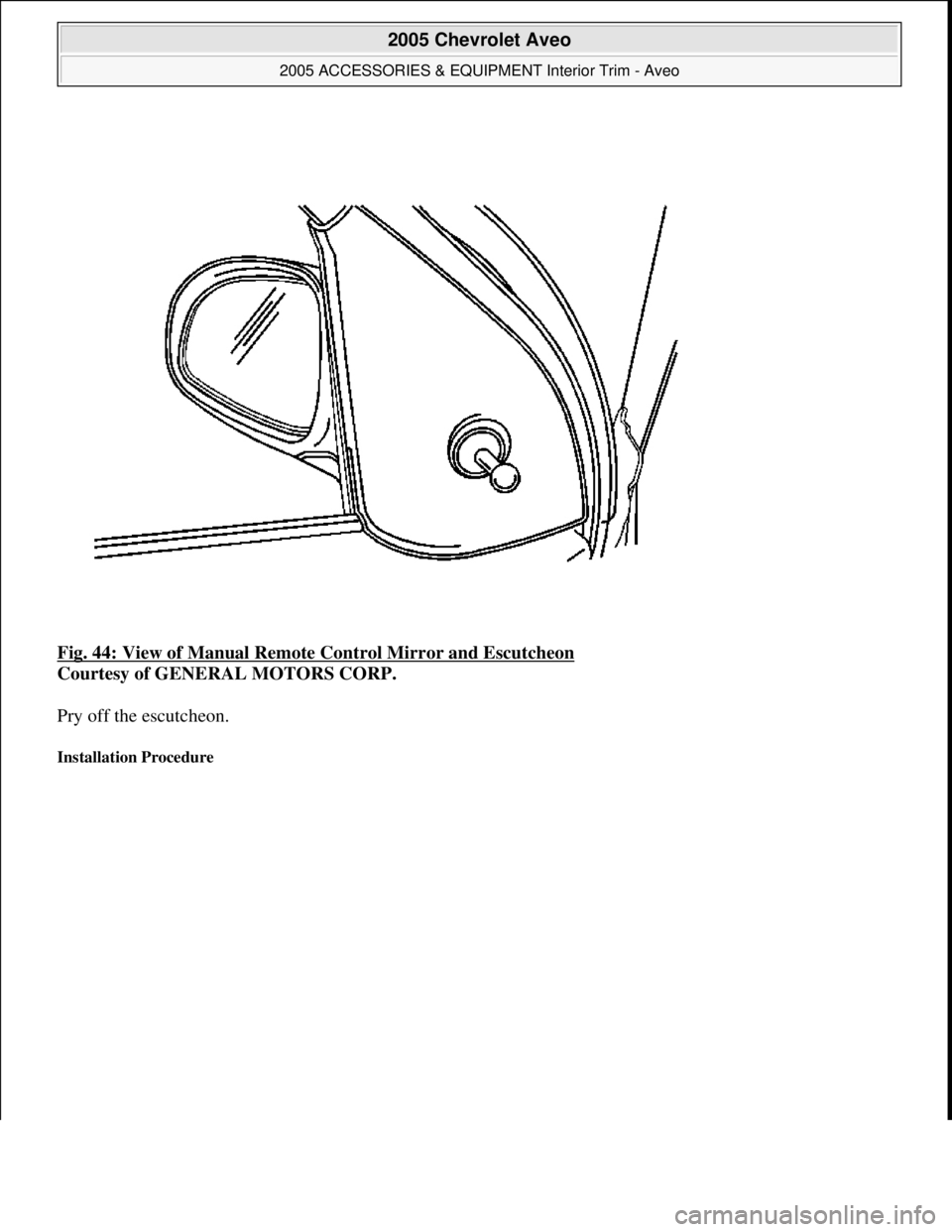

CHEVROLET AVEO 2002 Service Repair Manual Fig. 44: View of Manual Remote Control Mirror and Escutcheon Courtesy of GENERAL MOTORS CORP. Pry off the escutcheon. Installation Procedure 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Int

Page 4422 of 5127

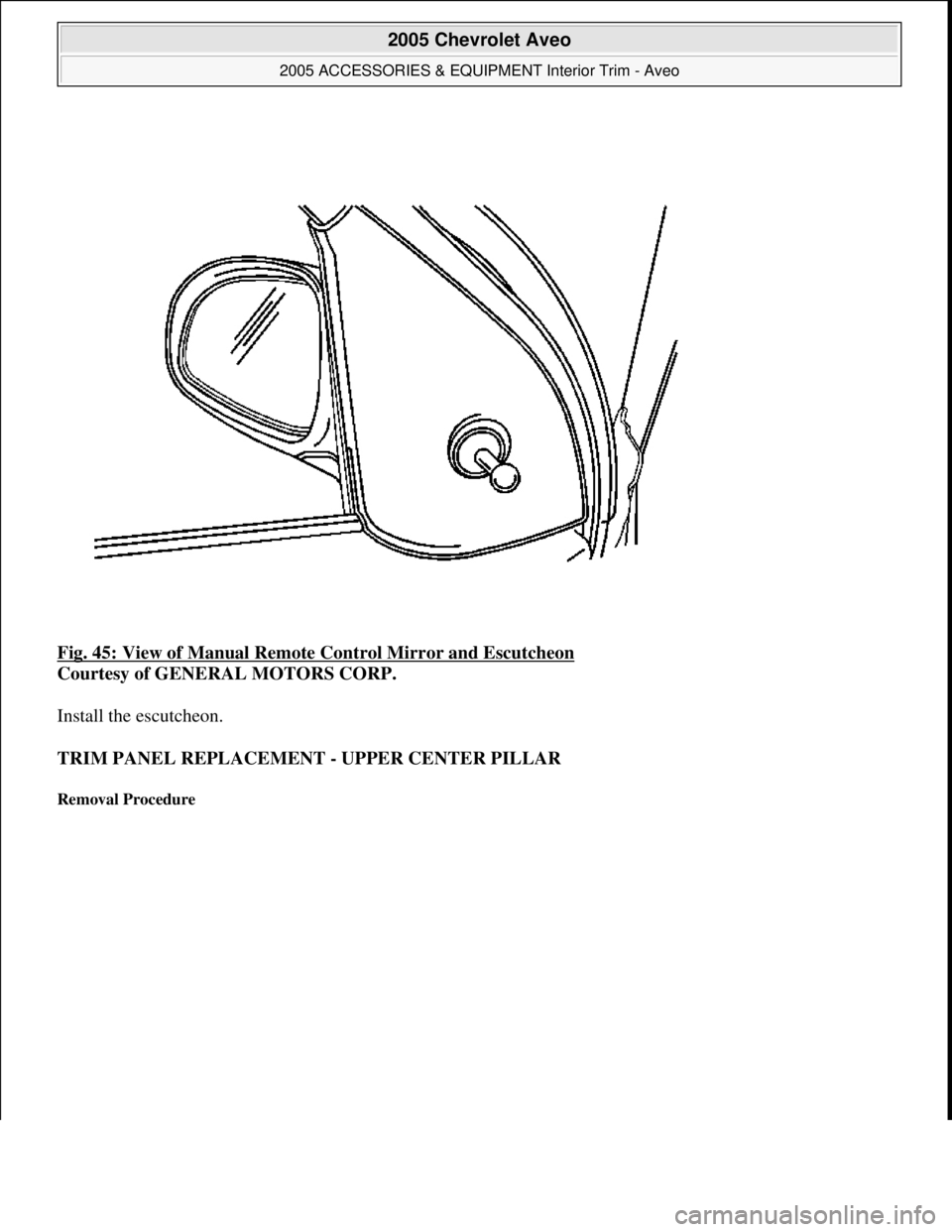

CHEVROLET AVEO 2002 Service Repair Manual Fig. 45: View of Manual Remote Control Mirror and Escutcheon Courtesy of GENERAL MOTORS CORP. Install the escutcheon. TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR Removal Procedure 2005 Chevrol

Page 4423 of 5127

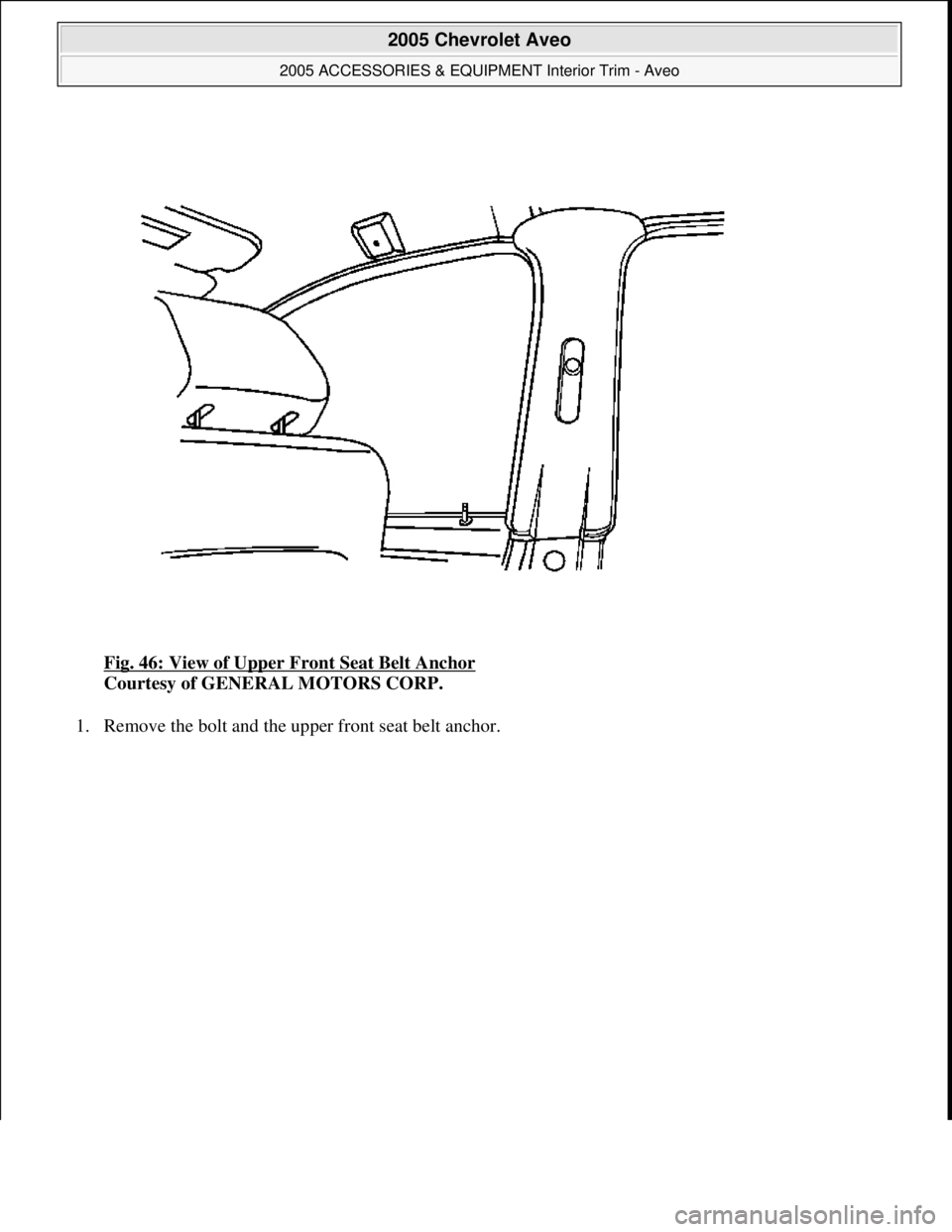

CHEVROLET AVEO 2002 Service Repair Manual Fig. 46: View of Upper Front Seat Belt Anchor Courtesy of GENERAL MOTORS CORP. 1. Remove the bolt and the upper front seat belt anchor. 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Interior

Page 4424 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 47: View of Lower Center Pillar Trim Panel, Seat Belt Bracket, and Screws Courtesy of GENERAL MOTORS CORP. 2. Remove the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower
